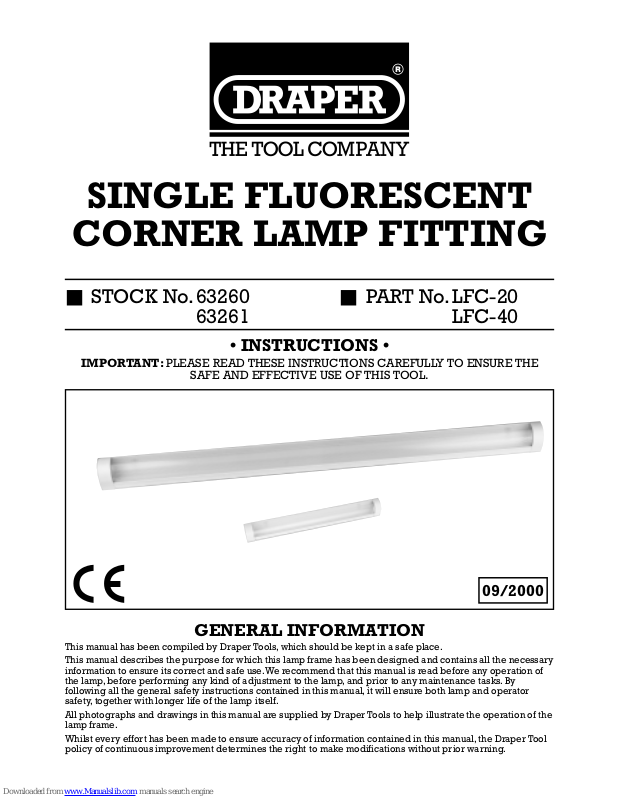

Draper LFC-20, LFC-40, 63260, 63261 Instructions Manual

SINGLE FLUORESCENT

CORNER LAMP FITTING

■ STOCK No.63260 ■ PART No. LFC-20

63261 LFC-40

• INSTRUCTIONS •

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE

SAFE AND EFFECTIVE USE OF THIS TOOL.

GENERAL INFORMATION

This manual has been compiled by Draper Tools, which should be kept in a safe place.
This manual describes the purpose for which this lamp frame has been designed and contains all the necessary

information to ensure its correct and safe use.We recommend that this manual is read before any operation of
the lamp, before performing any kind of adjustment to the lamp, and prior to any maintenance tasks. By
following all the general safety instructions contained in this manual, it will ensure both lamp and operator
safety, together with longer life of the lamp itself.

All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
lamp frame.

Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tool
policy of continuous improvement determines the right to make modifications without prior warning.

09/2000

SINGLE FLUORESCENT
CORNER LAMP FITTING

■ STOCK No.63260 ■ PART No. LFC-20

63261 LFC-40

We
Draper Tools Ltd. Hursley Road, Chandler’s Ford, Eastleigh, Hampshire.
SO53 1YF. England.

Declare under our sole responsibility that the product:

Stock Nos:- 63260 & 63261.
Part Nos:- LFC-20 & LFC-40.
Description:- Fluorescent Lamp Frame.

To which this declaration relates is in conformity with the following directive(s)
73/23/EEC & 89/336/EEC.

With reference to: EN60598-1, EN50081-1, EN55022, EN61000-3-2/-3, EN50082-1,
EN61547, (EN61000-4-2/-3/-4/-5/-6/-11).

JOHN DRAPER
Managing Director Issue Date: 28/07/2000

DECLARATION OF CONFORMITY

- 1 -

SPECIFICATIONS:

1. Rated voltage: AC 100-240V~50Hz.

2. λ=0.90C, µ=0.95, Tc=50°C.

3. Products of LFC series are assembled with G13 lamp holder and T8 lighting tube
(not supplied). They are easy to carry and install, and can be connected together
to a maximum of 8 fittings.

t

a

25°C

IP30

F

- 2 -

1. Remove right-hand end cover and
lampshade.

2. Mark fixing holes in desired location on
mounting surface.

3. Feed mains supply wire through either hole
on end covers and connect to the relevent
contact points in the terminal block located
on the right-hand end of the lamp frame.

4. Once all wiring connections are complete,
mount the lamp frame in the position
required, then carefully install the
fluorescent tube (not supplied) and replace
the lampshade and end cover(s).

5. If in doubt consult a qualified electrician for
advice or installation.

STOCK No.63260

1. Lampshade

2. Fluorescent tube (not supplied)

3. Frame

4. Right end cover

5. Terminal block

6. Screw

7. Left end cover

INSTALLATION

465mm

53.9mm

73.8mm

589mm
662mm

STOCK No.63261

1080mm

53.9mm

73.8mm

1195mm
1271mm
