Draper FSL-F-42 User Manual

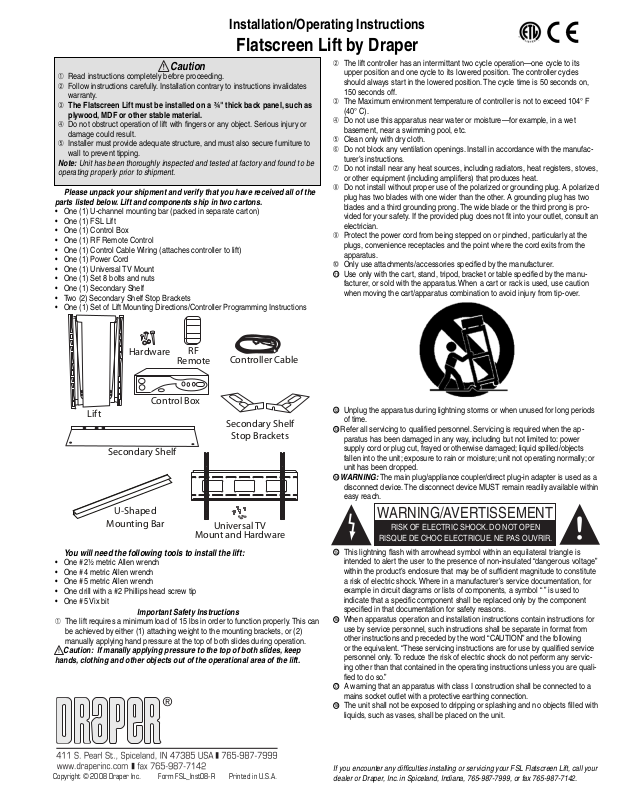

Installation/Operating Instructions

Flatscreen Lift by Draper

Caution

➀ Read instructions completely before proceeding.
➁ Follow instructions carefully. Installation contrary to instructions invalidates

warranty.

➂ The Flatscreen Lift must be installed on a ¾" thick back panel, such as
plywood, MDF or other stable material.

➃ Do not obstruct operation of lift with fi ngers or any object. Serious injury or
damage could result.
➄ Installer must provide adequate structure, and must also secure furniture to
wall to prevent tipping.

Note: Unit has been thoroughly inspected and tested at factory and found to be
operating properly prior to shipment.

Please unpack your shipment and verify that you have received all of the
parts listed below. Lift and components ship in two cartons.

• One (1) U-channel mounting bar (packed in separate carton)

• One (1) FSL Lift

• One (1) Control Box

• One (1) RF Remote Control

• One (1) Control Cable Wiring (attaches controller to lift)

• One (1) Power Cord

• One (1) Universal TV Mount

• One (1) Set 8 bolts and nuts

• One (1) Secondary Shelf

• Two (2) Secondary Shelf Stop Brackets

• One (1) Set of Lift Mounting Directions/Controller Programming Instructions

➁ The lift controller has an intermittant two cycle operation—one cycle to its
upper position and one cycle to its lowered position. The controller cycles
should always start in the lowered position. The cycle time is 50 seconds on,
150 seconds off.
➂ The Maximum environment temperature of controller is not to exceed 104° F
(40° C).
➃ Do not use this apparatus near water or moisture—for example, in a wet
basement, near a swimming pool, etc.

➄ Clean only with dry cloth.
➅ Do not block any ventilation openings. Install in accordance with the manufac-

turer’s instructions.
➆ Do not install near any heat sources, including radiators, heat registers, stoves,
or other equipment (including amplifi ers) that produces heat.
➇ Do not install without proper use of the polarized or grounding plug. A polarized
plug has two blades with one wider than the other. A grounding plug has two
blades and a third grounding prong. The wide blade or the third prong is pro­ vided for your safety. If the provided plug does not fi t into your outlet, consult an
electrician.
➈ Protect the power cord from being stepped on or pinched, particularly at the
plugs, convenience receptacles and the point where the cord exits from the
apparatus.
➉ Only use attachments/accessories specifi ed by the manufacturer.

11

Use only with the cart, stand, tripod, bracket or table specifi ed by the manu­ facturer, or sold with the apparatus. When a cart or rack is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.

Hardware

RF

Remote

Controller Cable

Control Box

Lift

Secondary Shelf

Stop Brackets

Secondary Shelf

U-Shaped

Mounting Bar

Universal TV

Mount and Hardware

You will need the following tools to install the lift:

• One #2½ metric Allen wrench

• One #4 metric Allen wrench

• One #5 metric Allen wrench

• One drill with a #2 Phillips head screw tip

• One #5 Vix bit

➀ The lift requires a minimum load of 15 lbs in order to function properly. This can
be achieved by either (1) attaching weight to the mounting brackets, or (2)
manually applying hand pressure at the top of both slides during operation.

Caution: If manally applying pressure to the top of both slides, keep

hands, clothing and other objects out of the operational area of the lift.

Important Safety Instructions

®

12

Unplug the apparatus during lightning storms or when unused for long periods
of time.

13

Refer all servicing to qualifi ed personnel. Servicing is required when the ap­ paratus has been damaged in any way, including but not limited to: power
supply cord or plug cut, frayed or otherwise damaged; liquid spilled/objects
fallen into the unit; exposure to rain or moisture; unit not operating normally; or
unit has been dropped.

14

WARNING: The main plug/appliance coupler/direct plug-in adapter is used as a
disconnect device. The disconnect device MUST remain readily available within
easy reach.

WARNING/AVERTISSEMENT

RISK OF ELECTRIC SHOCK. DO NOT OPEN

RISQUE DE CHOC ELECTRICUE. NE PAS OUVRIR.

15

This lightning fl ash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous voltage”
within the product’s enclosure that may be of suffi cient magnitude to constitute
a risk of electric shock. Where in a manufacturer’s service documentation, for
example in circuit diagrams or lists of components, a symbol “ ” is used to
indicate that a specifi c component shall be replaced only by the component
specifi ed in that documentation for safety reasons.

16

When apparatus operation and installation instructions contain instructions for
use by service personnel, such instructions shall be separate in format from
other instructions and preceded by the word “CAUTION” and the following
or the equivalent. “These servicing instructions are for use by qualifi ed service
personnel only. To reduce the risk of electric shock do not perform any servic­ ing other than that contained in the operating instructions unless you are quali­ fi ed to do so.”

17

A warning that an apparatus with class I construction shall be connected to a
mains socket outlet with a protective earthing connection.

18

The unit shall not be exposed to dripping or splashing and no objects fi lled with
liquids, such as vases, shall be placed on the unit.

Copyright © 2008 Draper Inc. Form FSL_Inst08-R Print ed in U.S.A.

If you encounter any diffi culties installing or servicing your FSL Flatscreen Lift, call your
dealer or Draper, Inc. in Spiceland, In di ana, 765-987-7999, or fax [phone].

Flatscreen Lifts by Draper, Inc. page 2 of 7

9

The FSL Flatscreen Lift must be installed on a ¾" thick back panel, such

Installing Unit

as plywood, MDF or other stable material.
Please Note: The top of back panel including lift U channel bracket must be
installed ¼" below inside front and sides of the cabinet.

Caution: Prior to installing, ensure the furniture/cabinetry being used
is large enough and strong enough to hold the FlastScreen Lift and the
display without tipping (see diagram on next page for minimum height
requirements). If attaching to wall, installer is responsible for ensuring
appropriate hardware is used and wall and studs are strong enough to hold
the combined weight of the display and the lift.

Figure 1

➀ Place "U" Channel Mounting Bar (see Fig. 1) down on the top edge of the ¾"
back panel with the four pre-drilled holes facing the inside of the furniture where
the lift will be placed. The "U" Channel Mounting Bar is press-on fi t.
➁ Lower the "U" channel on the back of the FSL Flatscreen Lift down over the
back panel Mounting Bar and center it on the back panel.

➂ Determine where to cut out for the motor in the ¾" thick back panel. (This is
easier if the back ¾" panel has not been installed and attached in the
actual cabinet yet.)

➃ See Fig. 2 for motor cutout location. Cut out the opening to enable motor to
pass through back panel. The added clearance around the cut out opening
allows the motor and controller wiring cable to be fed inside the cabinet for
hook-up. If more space is required for cables, etc., the hole can be enlarged or
additional holes can be made in the back panel.

U Channel Mounting Bar

MODEL
FSL-F-42 25½"
FSL-F-50 29½"
FSL-F-65 35¼"

DIM A

LIFT

C

L

DIM A

➅ Attach the two 21/8" tall x 3/8" deep secondary shelf stop brackets by inserting
one # 7 x

7

/16" pan head screw into the top of the adjustable slots in each stop

bracket. (Hand tighten screw only at this time and rotate brackets sideways on

U Channel Mounting Bar.) Do not attach secondary shelf stop brackets lower
inside the cabinet.

Caution: You must place a load of at least 15 lbs. to the unit before

operating the lift.

➆ Press the "Down" button on the remote control to activate the down function.
(Apply constant downward pressure to the top of both slides at the curved
portion of the lift.)

➇ As the lift descends press the "Down" button once to halt the lift when the
secondary lid stop brackets on the backside of the secondary lid are
approximately ¾" below the top of the "U" Channel Mounting Bar.
➈ Center the secondary lid bracket in cabinet opening (left and right).

Please note: If power to the unit is lost, the FSL has a manual override. Simply
remove the two screws from cover on the top of the lift, and use an M8 socket and
ratchet or drill to raise or lower the unit. See back page for details.

Making the ¾" Secondary Shelf

➀ Measure the inside opening width of cabinet opening from the back side of the
cabinet front panel to the front of the secondary lid bracket screw heads.
➁ Measure the inside opening length of cabinet opening from the inside of the
side walls.
➂ Manufacture the secondary lid out of the ¾" material. If using veneer edge
banding, subtract
subtract an additional

3

/16" off depth and 3/8" off width. If using solid hardwood,

1

/16" off depth and width.

Installing the ¾" Secondary Shelf

➀ Place the secondary lid from above on the pre-installed secondary shelf and
center in the cabinet (left and right).
➁ While holding down on the secondary shelf, press the "Up" button on the
remote once more to raise the lift.

Caution: Beware of getting fi ngers and hands pinched.

➂ Using the Vix bit, pre-drill through pre-registered holes in the secondary shelf
bracket. Secure the secondary shelf with appropriate fasteners (not supplied).
➃ Press the "Down" button once to lower the lift and secondary lid into the pocket
of the cabinet. Stop the lift when the top of the secondary lid is fl ush with the
sides of the cabinet. Rotate the two "L" shaped secondary lid stops into position
and tighten securely.
➄ Press the "Up" button on the remote once more to raise the lift to its fullest
extension height.

MOTOR

CUT OUT

7"

Figure 2

➄ Measure down from the top of the "U" Channel Mounting Bar to the location of
the two (2) 6 mm threaded anchoring holes on the bottom of the lift (above the
motor). Pre-drill the location on the panel with a #5 Vix bit and then drill two
holes through the back panel.
➅ Mount the lift in place onto the back panel and secure it with two (2) 6 mm x 30
mm bolts using fl at washers. The bolts need only be tightened with a fi rm
amount of torque, so as not to distort the back panel.
➆ Attach the back ¾" furniture panel with lift into cabinetry and secure. Pull
the motor/control wire cable through into the inside opening of the Lift area.
➇ Position the controller in a convenient place to the left or right side of the lift at
the top of the back panel just below the "U" Channel Mounting Bar. Screw the
controller into place using four (4) 7 x
➈ Attach the male end of the motor/control cable to the female connector on the
bottom of the controller.

➉ Attach the female connector of the power cord to the male connector on the
bottom of the controller.

FSL Flatscreen Lift Operation

The FSL FlatScreen Lift can be operated with an RF Controller (standard) (115V
AC or 220V AC) or an IR/RS-232 Controller (optional) (115V or 220V AC).

➀ The controller has been pre-programmed to extend to pre-determined height.
➁ Press the "Up" button on the remote control to activate the up function.
➂ The lift will extend to its pre-programmed height.
➃ Attach secondary shelf to mounting brackets. (The secondary shelf has

adjustable slots that allow you to center it in the cabinet opening.)
➄ Pre-drill into the four holes located on the "U" channel mounting bar with a #5

3"

15/8"

5

/16"

7

/16" pan head mounting screws provided.

When installing lid on cabinet, make sure:
A When fully open the lid is leaning slightly forward (resting against the unit) so
it will close as unit is lowered; and
B The lid is placed so that if cabinet is placed against the wall the lid has
adequate space to open.

Dimensions and Data

Model FSL-F-42 FSL-F-50 FSL-F-65

TV Size Up to 42" Up to 50" Up to 65"
Maximum TV Height* 24
Lift Height 25
Lift Width 17" 17" 17"
Lift Depth without Brackets 3
TV Bracket Depth 1" 1" 1"
Lift Depth with Brackets** 4
Lift Height at Max. Ext. 59¼" 73½" 83
Extension 33
Extension Time 25 sec. 33 sec. 36 sec.
Max. Weight Capacity 210 lb 210 lb 210 lb

*If using secondary shelf, and TV height is a concern, contact Draper for
recommendations.

**Back-panel to back of TV

Vix bit into the back panel.

www.draperinc.com

(765) 987-799

Please Note:

13

/16" 28¾" 34¼"

13

/16" 29¾" 35¼"

1

/16" 31/16" 31/16"

1

/16" 41/16" 41/16"

7

/16" 43¾" 483/8"

5

/8"

Flatscreens Lift by Draper, Inc. page 3 of 7

9

Model Dim A Dim B
FSL-F-42 2513/16" 42"
FSL-F-50 293/4" 461/16"
FSL-F-65 351/4" 63"

Dimensions—with Extensions

Dimensions

B

1

/2"

20

32"

17"

Connect the mount plate and lift bracket

➀ Find the M6 x 12 screws with washer and nut in the screw pack.

15

/16"

➁ With the help of an assistant, position the mount plate level against the lift

3

1

in the desired mounting location.

/16"

3

1

/4"

➂ Mark the right (upper and lower) and the left (upper and lower) positions of
the small horizontal slots that are in alignment with vertical slot on the
metal studs of the lift.
➃ With the help of an assistant, position the mounting plate against the lift

2
/16"

and line up the mounting slots.

3

➄ For each location, insert a screw, washer and nut with lift bracket.
➅ Tighten each screw with an open ended socket wrench by turning

8

20"

13

/16"

clockwise until tight.

Display bracket installation

➀ To ensure optimal installation, this kit includes various screws of different

A

diameters and lengths.
➁ Place your TV screen down on a soft, fl at surface, and locate the threaded
mounting points that are located on the back of the display.
➂ Determine which screw is the correct length by carefully inserting a straw,
or toothpick, and mark how deep the mounting point is.
➃ If your display has a curved back or a recessed thread mounting point, a
spacer must be used.

➄ Place the spacer between the mounting bracket and the display.
➅ If a smaller screw is being used, please use a washer with each screw for

added stability.

Final installation

➀ Attach each bracket to the display by aligning the holes on each bracket,
with the thread insert on the back panel of your display, inserting the
screws through both and turning clockwise until they are fully inserted.

➁ Tighten with a Phillips head screw driver.
➂ To complete the installation of your new plasma mount, carefully place the

television brackets over the upper and lower mounting lips.
➃ Insert the locking rods to secure the mounting bracket.

Attaching the FSL Universal TV Mount Kit

Model Dim C Dim D
FSL-F-42 59

1

/4" 253/8"
FSL-F-50 731/2" 29"
FSL-F-65 835/8" 309/16"

Caution: Do not obstruct operation of lift with fi ngers or any

object. Serious injury or damage could result.

C

D

www.draperinc.com

(765) 987-799

Flatscreen Lift by Draper, Inc. page 4 of 7

9

Controller Programming Instructions

IMPORTANT:
➀ THE LIFT MUST BE WORKING AGAINST A MINIMUM LOAD OF AT
LEAST 15 LBS IN ORDER TO FUNCTION PROPERLY. This can be
achieved by either (1) attaching weight to the mounting brackets, or (2)
manually by applying hand pressure at the top of both slides during
operation.
➁ PLEASE READ THROUGH THESE INSTRUCTIONS CAREFULLY
BEFORE ATTEMPTING TO OPERATE THE CONTROLLER OR THE LIFT.
IT WILL SAVE YOU MUCH TIME AND EFFORT.

Programming the Controller

The controller is pre-programmed and tested at the factory, and should operate
properly immediately upon installation. However, there are several functions
that can be programmed to your specifi c requirements. Please note that when
power is fi rst applied to the controller, a horizontal fl ashing bar may appear in
the display. If the fl ashing bar is in the upper right-hand corner (Fig 1), it means
that the system thinks the lift is in the fully extended or “up” position.

Fig. 1 Fig. 2
If the fl ashing bar is in the lower left-hand corner (Fig. 2), it means that the
system thinks the lift is in the fully closed or “down” position. In either case,
compare the actual position of the lift with the indication on the display before
proceeding with programming. If they are not the same, follow the instructions
for “Extension Programming” before programming other functions.

Entering Setup Mode

Before any of the functions of the controller can be programmed, you must
fi rst enter the Setup mode. To enter the Setup mode, do the following:
➀ Press SETUP and together, and hold for 5 seconds. EP should appear
on the controller display. The controller is now unlocked and you may now
access and program all the controller functions.
➁ By repeatedly pressing SETUP, you may toggle through the functions,
which are abbreviated and will appear in the display in the following order:
Function Display
Extension Programming EP
Add remote control A.rc
Clear remote control C.rc
Current down Cu.d
Current Up Cu.U
Infrared down Ird
Infrared up Iru
Count Cou
bypass byp
End End
➂ To exit setup mode:
Press SETUP until End appears in the display, then press . A brief
description and procedure for programming each of the functions follows.

EP

➃ Once the lift is in the full down position, check to see whether the
horizontal fl ashing bar is in the lower left-hand corner of the display. If it is
not, press
and you may proceed with extension programming.

➄

Press SETUP until EP appears in the display.

Press . The extension height can now be programmed.

➅
➆ Press and hold until the desired height is reached.
➇ To lock in the height setting, press SETUP until the display shows the next

available function (in this case, A.rc).
➈ Exit setup mode.

. The lift position and the controller will now be synchronized

Arc

Add Remote Control

Use to add a second remote control to the controller memory.
➀ Enter setup mode pressing SETUP and together, and holding for 5
seconds.

➁ Press SETUP until A.rc appears in the display.
➂ Press any button on the remote control that is to be added. Press

repeatedly until -.1.r or -.2.r appears in the controller display. The number
1 or 2 designates which remote is being added. If no number shows up
after several attempts, clear the memory with the C.rc function (see below)
and try again.

Crc

Clear Remote Control

Used to clear all remote control information from the controller memory.
➀ Enter setup mode pressing SETUP and together, and holding for 5
seconds.

➁ Press SETUP until C.rc appears in the display.
➂ Press and together, and hold until the display goes blank.
➃ Proceed to A.rc, or exit setup mode.

Cu.d

Current Down

Used to set the maximum current limit for downward movement. This is one
of the safety features of the lift. When the controller senses the current limit you
have set, it will stop its downward movement, reverse itself, and travel upward
several inches. (See also the section on “Electrical Current/Load Monitoring”
below.)
➀ Enter setup mode pressing SETUP and together, and holding for 5
seconds.

➁ Press SETUP until Cu.d appears in the display.
➂ Press once. The last programmed current value appears in the display.
➃ Press or to change to the desired value.
➄ To confi rm and lock in this value, press SETUP until the next available function

appears, (in this case Cu.U).
➅ Exit setup mode.

Extension Programming

Used to program the lift to stop at any desired extension height.
NOTE: WHEN ATTEMPTING TO PROGRAM EXTENSION HEIGHT, IT
IS VERY IMPORTANT TO START WITH THE LIFT IN THE FULLY CLOSED OR
“DOWN” POSITION. If you see that the horizontal bar is fl ashing in the lower left
corner of the display, but the lift is not in the lowest or “closed” position, (which
often happens when the “up” and “down” buttons have been pushed before the
controller is connected to the lift), do the following:
➀ Enter Setup mode by pressing SETUP and together, and holding for 5
seconds

➁ Enter the bypass mode (refer to bypass instructions below).
➂ When in bypass mode, press and hold until the lift reaches its full down

position.

.

www.draperinc.com

Cu.U

Current Up

Used to set the maximum current limit for upward movement. (See also
the section on “Electrical Current/Load Monitoring” below.)
➀ Enter setup mode pressing SETUP and together, and holding for 5
seconds.

➁ Press SETUP until Cu.U appears in the display.
➂ Press once. The last programmed current value appears in the display.
➃ Press or to change to the desired value.
➄ To confi rm and lock in this value, press SETUP until the next available

function appears, (in this case Cu.U).
➅ Exit setup mode.

(765) 987-799

9

Flatscreen Lift by Draper, Inc. page 5 of 7

To use the bypass feature, do the following:

Ird

Infrared Down

This function applies only to those controllers equipped with our Universal
Infrared System. Use this function to designate a button on the remote (any
remote) to control downward movement of the lift.
➀ Enter setup mode pressing SETUP and together, and holding for 5
seconds.

➁ Press SETUP until Ird appears in the display.
➂ Press . You will hear a single beep, and the display will change to I.rd,

indicating that the system is ready for programming.
➃ Aim the infrared remote control at the infrared eye, which should be
connected to an infrared port on the bottom of the controller.
➄ Press the button on the infrared remote that you would like to designate as
the button to control downward movement. You will fi rst hear a double
beep, and then a little later you will hear a triple beep. The triple beep
signifi es that the code is recognized and the task is fi nished.
➅ Exit Setup mode.

Iru

Infrared Up

This function applies only to those controllers equipped with our Universal
Infrared System. Use this function to designate a button on the remote (any
remote) to control upward movement of the lift.
➀ Enter setup mode pressing SETUP and together, and holding for 5
seconds.
➁ Press SETUP until Iru appears in the display.
Press
indicating that the system is ready for programming.
➂ Aim the infrared remote control at the infrared eye, which should be
connected to an infrared port on the bottom of the controller.
➃ Press the button on the infrared remote that you would like to designate as
the button to control upward movement. You will fi rst hear a double beep,
and then a little later you will hear a triple beep. The triple beep signifi es
that the code is recognized and the task is fi nished.
➄ Exit Setup mode.

. You will hear a single beep, and the display will change to I.ru,

Cou

Count

With this function, you can determine how many times the lift has been cycled
(assuming the same lift and controller have been paired since new). A cycle is
one complete lifting/lowering action. To see how many times the lift has been
cycled, do the following:
➀ Enter setup mode pressing SETUP and together, and holding for 5
seconds.

➁ Press SETUP until Cou appears in the display.3
➂ Pressing displays the number of cycles (up to 999).
➃ Pressing displays the number of cycles in thousands.
➄ Exit Setup mode.

➀ Enter setup mode pressing SETUP and together, and holding for 5

seconds.

➁ Press SETUP until byp appears in the display.
➂ Use or to move the lift up or down as desired.
➃ Exit Setup mode.

End

End

Use this function to exit and lock the Setup mode, thereby preventing inadvertent
changes to the settings or tampering by unauthorized persons. To exit Setup
and lock access to the Setup mode:

➀ Press SETUP until End appears in the display.
➁ Press to exit and lock the Setup mode.

ELECTRICAL CURRENT/LOAD MONITORING

One of the built-in safety features of the lift is based upon the fact that the
harder the lift motor has to work, the more current it will draw. Should the lift
encounter any unusual resistance during its travel, the current being drawn by
the motor will increase rapidly. If there were no automatic means of cutting power
to the motor, the result could be personal injury or damage to the motor or the
lift. For this reason, the controller is designed to sense when the current being
drawn exceeds a certain limit, and will instantly cut power to the motor, which
immediately stops the lift.

Monitoring the Current

It is possible to monitor the current being drawn by the motor while the lift is
in motion. Simply press SETUP while the lift is going up or down. The actual
current being drawn by the lift will be shown (in amps) in real time on the controller
display.
This feature may also be used to detect gradual changes in current draw that
could give an early indication of an impending internal mechanical failure (such
failures are rare, but they can occur).

Setting the Current Limits

Because the lift is designed to accommodate a wide variety of screens of
various sizes and weights, it is important that the current limits be adjustable to
the values appropriate to the weight of the screen being used. With this lift and
controller, it is possible to set the upper current limit to any value desired within
the normal operating range, which is 4.5 to 6.5 amps, depending on the weight
of the screen. The reading should never exceed 8.0 amps, which is the factory
default setting.
To set the limit for upward travel:

➀ Run the lift up with the planned load.
➁ Monitor the current and note the maximum reading.
➂ Using the “Current Up” feature (see above), set the limit to 1 amp higher

than the maximum reading noted.
To set the limit for downward travel:

➃ Run the lift down with the planned load.
➄ Monitor the current and note the maximum reading.
➅ Using the “Current Down” feature (see above), set the limit to 1 amp higher

than the maximum reading noted.
Example: During upward travel, you note that the maximum reading is 3
amps. Use “Current UP” to set the limit at 4 amps.

byP

Bypass

This is the temporary bypass mode. In this mode, the controller
temporarily ignores all previously programmed instructions. IT ALSO
IGNORES ALL THE PROGRAMMABLE SAFETY FUNCTIONS AND
FEATURES. PLEASE EXERCISE CAUTION WHEN USING THIS FEATURE!
The bypass feature may be used in special situations. For example, a
programmed controller might be removed from a shorter lift model and then
connected to a taller lift model. During operation of the taller lift, the lift may
stop before reaching the bottom of its travel, because the controller is still
programmed for the shorter lift, and assumes that it has already reached the
bottom limit of travel for the shorter lift.

www.draperinc.com

(765) 987-799

9

Flatscreen Lift by Draper, Inc. page 6 of 7

Plugging TV into Controller for Power

TV can be plugged into outlet on Controller to power the TV. The outlet is
fused to protect the TV from power surges. The outlet provides power only when
the lift is fully up, and cuts power as soon as it starts going down.

CC/12VT Port

The Second RJ11 terminal from the left, marked CC/12VT, is a combined
Contact Closure and 12 Volt Trigger port.

Contact Closure uses pins 1,2,3,4 and works as follows:

Pin 4 GND (COM)
Pin 3 Up (closing pin 4 and 3 will make the lift go up)
Pin 2 Down (closing pin 4 and 2 will make the lift go down)
Pin 1 Stop (closing pin 1 and 4 will stop the lift)

Contact Closure can be set up as a two- or three-button system if preferred.
In a two-button system, Pin 1 is not used. The lift will stop if either the up or
down buttons are pressed while the lift is in motion. Contact closure also works
as either a momentary or permanent closure.

12 Volt trigger uses pins 5 and 6 and works as follows:

Pin 5 DC 12V(+)
Pin 6 DC 12V(-)

The presence of voltage on pins 5 and 6 causes the lift to go up.
No voltage on pins 5 and 6 causes the lift to go down.
The range of acceptable DC voltage is 8V to 18V.

The RJ11 terminal on the right, marked EMERG. sensor port, is an extra
sensor port. If desired, this terminal may be used with an additional external safety
switch or sensor. Using an NC switch to close Pins 2 and 4 will disable the lift.
When the contacts are opened, the lift will operate again. Pin 3 in this terminal
may be used to supply 12VDC power to the external sensor if required.

FCC Device: This device complies with Part 15 of the FCC Rules. Operation
is subject to the following conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received including
interference that may cause undesired operation.

Sensor Port (For Future Use)

WARNING!

RISK OF ELECTRICAL SHOCK

DISCONNECT FROM POWER BEFORE SERVICING

CC/Trig. port

1-CC stop, 2-CC dn

3-CC up, 4-GND

5-Trig. -in 12V(+)

6-Trig. -in 12V(-)

1..................6

LIFT

Emerg.

sensor port

2-in, 3- +12V

4-GND

1..................4

CE Adapter Plug
plugs in to back of
220V controller

Interfacing Instructions

RS-232C 9-pin connector:

Hardware Overview

3 wire RS-232C protocol:
9600 baud / 8data bits / 1 stop bits / no parity / no fl ow control

DB9 female D type connector:

Pin 2 (TX) - transmit
Pin 3 (RX) - receive
Pin 5 (GND) - signal ground

Commands: (ASCII Code)

:UP000 - upward movement command
:Dn000 - downward movement command

Used for

IRS-232
Control

Used for

IR Control

5

9

8

7

6

GND

4

3

RX

TX

2

1

www.draperinc.com

(765) 987-799

Flatscreen Lift by Draper, Inc. page 7 of 7

9

Universal Infrared System Programming

The infrared system does not use any fi xed IrDA codes. It is capable of
learning any code you wish to assign to it. Below are instructions on how to
assign codes for up/down movement. The IR receiver only is supplied. Any IR
remote transmitter can be used.

First, unlock access to all controller functions:

Press and hold “Setup” button. While holding “Setup,” press and hold
button for fi ve seconds.

Ird – Assigning the button/code for downward movement.

Press “SETUP” button until “Ird” shows up on the display.
Press
gramming.
Aim your infrared remote control at the infrared eye, which should be con­nected to the infrared port on the bottom of your controller.
Press the remote control button you would like to designate for downward
movement. You will hear a double beep fi rst and then a triple beep once the
code is recognized and the task is fi nished.

Iru – Assigning the button/code for upward movement.

Press “SETUP” button until “Iru” shows up on the display.
Press
ming.
Aim your infrared remote control at the infrared eye, which should be con­nected to the infrared port on the bottom of your controller.
Press the remote control button you would like to designate for upward
movement. You will hear a double beep fi rst and then a triple beep once the
code is recognized and task is fi nished.

button. A single beep indicates that the system is ready for pro-

button. A single beep indicates that system is ready for program-

Manual Override Instructions

(Only available on FSL-F-42 and FSL-F-65)

If you lose power to the unit, it can be raised or lowered using the
manual override. To access the manual override, remove the metal panel
from the top of the lift. The unit can be raised or lowered by using an M8
socket to fi t the head of the threaded shaft to drive the lift up and down
with the manual override. You can use a regular ratchet or an electric
drill with M8 socket attached.

Manual Override (M8 socket required)

IrDA Interfacing Instructions

The fi rst RJ14 terminal from the left, marked as IrDA port, is provided to
plug in the infrared eye. IrDA eye shipped with our controller cannot be
coupled with any connecting block and used with fl ushers, as it generates TTL
(Digital) signal. The IrDA eye is connected to pins 3; 4; 5 on IrDA RJ11 termi­nal. Only the eye provided with the controller can be connected to pins 3; 4; 5.
If you need to use alternative IrDA (Analog) eye, capable of working with
fl ushers, then you must connect it to the following pins on the same IrDA RJ11
terminal:
Pin 1: fl usher/IrD signal (+)
Pin 6: fl usher/IrD signal (-)

Troubleshooting Info:

A horizontal fl ashing bar in the lower left corner of the display tells you that the system
assumes that it is in the lowest/closed position.
If you fi nd the bar fl ashing in the lower left corner and the lift is not in the lowest/closed
position, use “BYP” function to bring the lift all the way down.
(You may fi nd yourself in this situation when “Up” and “Down” buttons on the controller are
used without previously connecting controller to the lift)

A Horizontal fl ashing bar in the upper right corner of the display shows you that the lift
has reached its maximum (previously programmed) extension height.
Use “EP” function to set new desired height.

www.draperinc.com

(765) 987-799
