FlyCages

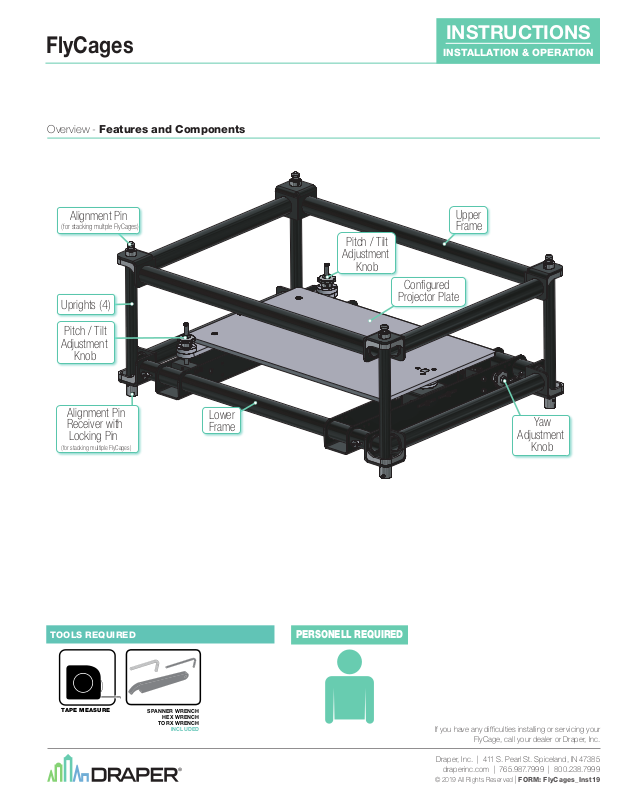

Overview - Features and Components
INSTRUCTIONS
INS TALL ATIO N & OPE R ATIO N
Alignment Pin
(for stacking multple FlyCages)
Uprights (4)
Pitch / Tilt
Adjustment
Knob
Alignment Pin
Receiver with
Locking Pin
(for stacking multiple FlyCages)
Lower
Frame
Upper
Frame
Pitch / Tilt
Adjustment
Knob
Configured
Projector Plate
Yaw
Adjustment
Knob
TOOLS REQUIRED
TAPE MEASURE
SPANNER WREN CH
HEX WREN CH
TORX WREN CH
INCLU DED
PERSONELL REQUIRED
If you have any difficulties installing or servicing your
FlyCage, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2019 All Rights Reserved | FORM: FlyCages_Inst19
FlyCages
page 2 of 4
Important Safety Information Important Safety Information
Improper installation and use of FlyCage can result in serious injury or death. Primarily, injuries can occur when the FlyCage falls due to imprecise
installation, mishandling of the FlyCage during installation or installation on an insufficient wall or ceiling structure. Please use extreme care.
1.
Please read the following installation guidelines thoroughly and follow them carefully. Failure to do so may cause product to fall or otherwise fail, and could
result in serious injury.
2.
Installation and calibration of the FlyCage should only be performed by an authorized, qualified, and experienced professional. In par ticular, electrical work and
wiring [indicated in diagram by dashed lines] must be completed only by a qualified professional electrician who has read this manual completely and is familiar
with the construction and operation of this equipment and the hazards involved.
3.
Turn off power and any nearby equipment or cables carrying electricity before connecting switches, wires, controls, or electrical components.
4.
Do not affix the unit to wall or ceilings that have inadequate strength to permanently hold the unit during use. It is the owner's and installer's responsibility to
confirm the wall or ceiling to which the unit attaches is sufficient to permanently hold the weight and stress loads of the unit at all times. Draper, Inc., is not
responsible for improper installation, application, testing or workmanship related to the product at place of installation.
5.
It is the installer's responsibility to make sure appropriate fasteners are used for mounting.
6.
Before testing or operation, carefully inspect the entire area underneath the FlyCage to be sure no persons or objects are in the area.
7.
During testing or operation, carefully watch the surrounding area for any potential safety concerns including nearby persons or objects.
8.
After installation, the entire system should be carefully tested to ensure safe and normal operation.
Extreme care should be taken during testing to remain clear of moving parts to avoid possible injury.
9.
Installation of FlyCage should be performed only by authorized and qualified personnel, who have been trained in the safe and effective operation of the
FlyCage & understand its safety features.
10.
The safety features of the FlyCage should never be disabled, bypassed or overridden. The system should not be operated until all safety features are properly
and completely installed, calibrated and tested.
11.
FlyCage may need to comply with local, state or district rules and regulations, in particular when installed in schools.
All applicable rules and regulations should be reviewed before installation and use.
12.
Failure to precisely follow installation guidelines invalidates all warranties.
13.
Custom products/installations may not be reflected in this manual.
Call Draper, Inc., if you have questions about the installation of custom products or any questions about your installation.
WARNING
Before Beginning Installation
1.
Look for any job site conditions that could interfere with installation or operation of the system.
2.
Read carefully and be sure to understand all installation instructions and all related operations manuals. These instructions are intended to as a guide for the
installer and owner. They should be followed closely and combined with the expertise of experienced qualified installers. Draper, Inc., is not responsible for
improper installation, application, testing or workmanship related to the product at place of installation. Please retain all instructions for future use.
3.
Open cartons lengthwise.
4.
Locate and lay out all pieces.
5.
Inspect all boxes to make sure you have received the proper FlyCage and parts.
6.
If you have any difficulties with installing, servicing or operating your FlyCage, call your dealer or Draper, Inc., 765 987-7999.
Section 1 - FlyCage Components
Upper Frame
Section
Projector
Plate
Lower Frame
Section
Uprights (4)
Included Tools
Hex Wrench
Torx Wrench
Spanner Wrench
Projector
Mounting
Hardware
1.
2.
3.
4.
5.
6.
FlyCages
Section 2 - FlyCage Assembly
page 3 of 4
Projector Plate
Mounting Hardware
and set aside
INSERT UPRIGHTS
into the hole in each
corner of the frame
REMOVE
Figure 2Figure 1
SECURE ALL
FOUR (4)
UPRIGHTS
ATTACH
PROJECTOR PLATE
Secure with Mounting
Hardware from Step 1
Projector
Plate
Mounting
Detail
Projector Plate
Washer
Arm
Bushing
Lock Nut
Screw
Figure 3
Align holes in each corner of the
Section 3 - Mounting Projector
ATTACH UPPER FRAME
frame with a vertical upright
Tighten
Tighten
Figure 4
Tighten
Tighten
Tighten
Tighten
Tighten
Figure 6Figure 5
Each FlyCage is manufactured with a projector plate configured to the exact projector that was specified at the time of purchase.
Attach the projector
(hardware by other)
, using the provided holes on the configured projector plate.
Projector
Mounting
Hardware
2°
FlyCages
Section 4 - Pitch, Tilt & Yaw Adjustments
The FlyCage has 3 types of projector adjustment: Pitch, Tilt & Yaw.
Section 4.1 - Pitch Adjustments
1. To adjust the PITCH of the projector plate, turn the both Pitch / Tilt
adjustment knobs an equal number of turns per knob
An unequal number of turns will adjust the TILT
Section 4.2 - Tilt Adjustments
1. To adjust the TILT of the projector plate, turn one of the Pitch / Tilt adjust ment knobs clockwise, and the other counter-clockwise
4° of adjustment is available in either direction.
Section 4.3 - Yaw Adjustments
1. To adjust the YAW of the projector plate, turn the yaw adjustment knob
3° of adjustment is available in either direction.
(see Fig. 7)
(see section 4.2 - Tilt Adjustments)
.
(see Fig. 8)
.
(see Fig. 9)
page 4 of 4
SIDE VIEW
2.6°
.
FRONT VIEW
Projector
(by Others)
Figure 7
Figure 8
Projector
4°
.
(by Others)
TOP VIEW
3° 3°
SIDE VIEW
Projector
(by Others)
FRONT VIEW
Projector
(by Others)
4°
Section 5 - Stacking Multiple FlyCages
Align all 4
(four)
cage uprights and secure them with the provided locking pins
(Up to 3 if supported from below; 2 if flown overhead)
(see Fig. 10.)
1
2
Projector
(by Others)
YAW
Yaw Adjustment Knob
Figure 9
3
1
Insert All
Locking
Pins
Align and
Insert at All 4
(four) corners
32
