PENCIL
POWER DRILL
TAPE MEASURE
LEVEL
HARDWARE
(by others)
PLIERS

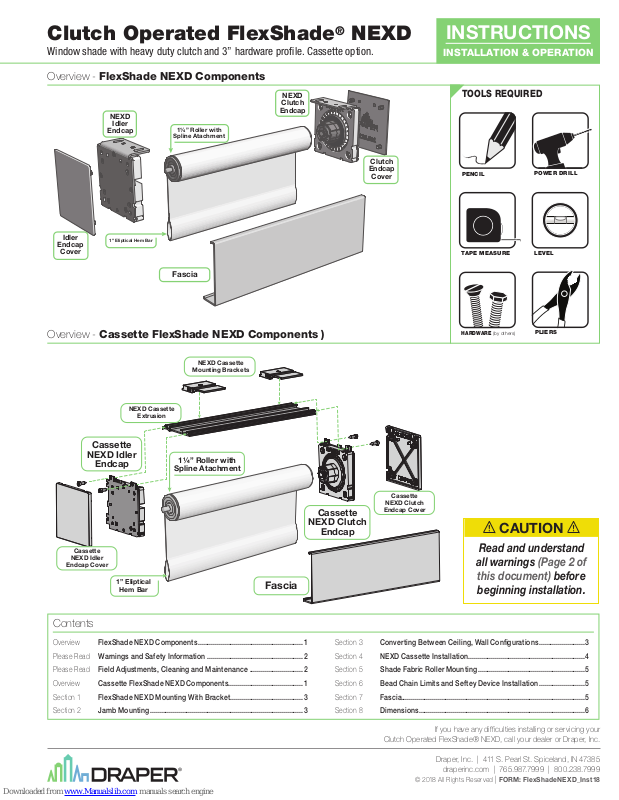

Clutch Operated FlexShade® NEXD
Window shade with heavy duty clutch and 3” hardware profile. Cassette option.
Overview - FlexShade NEXD Components
INSTRUCTIONS
INS TALL ATIO N & OPE R ATIO N
NEXD
Clutch
Endcap
Idler
Endcap
Cover
NEXD
Idler
Endcap
1” Eliptical Hem Bar
1¼” Roller with
Spline Atachment
Fascia
Overview - Cassette FlexShade NEXD Components )
NEXD Cassette
Mounting Brackets
Clutch
Endcap
Cover
TOOLS REQUIRED
NEXD Cassette
Extrusion
Cassette
NEXD Idler
Endcap
Cassette
NEXD Idler
Endcap Cover
1” Eliptical
Hem Bar
1¼” Roller with
Spline Atachment
Fascia
Contents
Overview FlexShade NEXD Components .......................................................1
Please Read Warnings and Safety Information ..................................................2
Please Read Field Adjustments, Cleaning and Maintenance ............................2
Overview Cassette FlexShade NEXD Components .......................................1
Section 1 FlexShade NEXD Mounting With Bracket ......................................3
Section 2 Jamb Mounting ................................................................................3
Cassette
NEXD Clutch
Cassette
NEXD Clutch
Endcap
Endcap Cover
CAUTION
Read and understand
all warnings (Page 2 of
this document) before
beginning installation.
Section 3 Converting Between Ceiling, Wall Configurations ........................3
Section 4 NEXD Cassette Installation .............................................................4
Section 5 Shade Fabric Roller Mounting ........................................................5
Section 6 Bead Chain Limits and Seftey Device Installation ........................5
Section 7 Fascia ................................................................................................ 5
Section 8 Dimensions .......................................................................................6
If you have any difficulties installing or servicing your
Clutch Operated FlexShade® NEXD, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2018 All Rights Reserved | FORM: FlexShadeNEXD_Inst18
Clutch Operated FlexShade® NEXD
Window shade with heavy duty clutch and 3” hardware profile. Cassette option.
page 2 of 6
Important Safety Information Important Safety Information
Improper installation and use of the FlexShade® NEXD can result in serious injury or death. Primarily, injuries can occur when the shade falls
due to imprecise installation, mishandling of the shade during installation or installation on an insufficient wall or ceiling structure. Please use
extreme care.
1.
Please read the following installation guidelines thoroughly and follow them
carefully. Failure to do so may cause product to fall or otherwise fail, and
could result in serious injury.
2.
Installation and calibration of the shade should only be performed by an
authorized, qualified, and experienced professional.
3.
Do not affix the unit to wall or ceilings that have inadequate strength to
permanently hold the unit during use. It is the owner’s and installer’s responsibility
to confirm the wall or ceiling to which the unit attaches is sufficient to
permanently hold the weight and stress loads of the unit at all times. Draper, Inc.,
is not responsible for improper installation, application, testing or workmanship
related to the product at place of installation.
4.
It is the installer’s responsibility to make sure appropriate fasteners are used for
mounting.
5.
All brackets, fascia, head boxes, pockets, wall clips, and other hardware must be
installed level. shade must be level and square.
6.
Never leave the area while operating the shade during installation, maintenance,
or normal operation, unless it is secure and safe.
7.
Before testing or operation, carefully inspect the entire area and path of the shade
WARNING
and areas underneath the shade to be sure no persons or objects are in the area.
8.
During testing or operation, carefully watch the surrounding area for any potential
safety concerns including nearby persons or objects.
9.
After installation, the entire system should be carefully tested to ensure safe and
normal operation. Extreme care should be taken during testing to remain clear of
moving par ts to avoid possible injury.
10.
Operation of shade should be performed only by authorized and qualified
personnel, who have been trained in the safe and effective operation of the shade
& understand its safety features.
11.
The safety features of the shade should never be disabled, bypassed or
overridden. The system should not be operated until all safety features are
properly and completely installed, calibrated and tested.
12.
Shade may need to comply with local, state or district rules and regulations, in
particular when installed in schools. All applicable rules and regulations should
be reviewed before installation and use.
13.
Failure to precisely follow installation guidelines invalidates all warranties.
14.
Custom products/installations may not be reflected in this manual. Call Draper,
Inc., if you have questions regarding your installation.
Before Beginning Installation
1.
Look for any job site conditions that could interfere with installation or operation
of the system.
2.
Read carefully and be sure to understand all installation instructions and all
related operations manuals. These instructions are intended to serve as a guide
for the installer and owner. They should be followed closely and combined with
the expertise of experienced qualified installers. Draper, Inc., is not responsible
for improper installation, application, testing or workmanship related to the
product at place of installation. Please retain all instructions for future use.
3.
Open cartons lengthwise.
4.
Locate and lay out all pieces.
5.
Inspect all boxes to make sure you have received the proper shade and parts.
Controls may be shipped separately, or in same carton as shade.
6.
If you have any difficulties with installing, servicing or operating your shade, call
your dealer or Draper, Inc., 765-987-7999.
Child Safety Information
ANSI/WCMA A100.1-2018 standard (developed by the Window Coverings Manufacturer’s Association and the Consumer Product Safety
Commission) was established on December 15, 2018, to eliminate strangulation hazards for small children from hanging cords and chain loops.
When a Draper dealer specifies that custom shades comply with ANSI/WCMA A100.1-2018, Draper provides a pre-installed Spring-Loaded Chain
Tension Device (shown at right) for clutch-operated units. A warning label is attached to the kit and approved mechanical fasteners are included.
When properly installed, the tension device prevents the creation of a hazardous loop by maintaining tension on the bead chain. If not installed
properly, the shade is partially inoperable. A warning label (shown below) is also added to the shade roller.
For more information, please see Draper's ANSI/WCMA A100.1-2018 compliance page: www.draperinc.com/windowshades/wcmacompliance.aspx
Field Adjustments
Each Draper Solar Control Shade is tested to ensure proper operation. Even with this testing, some field adjustments may be needed for telescoping.
If the shade is telescoping, place a piece of high quality gaffer tape about 1" wide on the exposed roller (where the fabric will cover it) on the side that the
fabric will be drawn toward. For example: if the fabric is tracking to the left, place the tape on the right side.
Cleaning and Maintenance
Window covering products manufactured by Draper, when properly installed, should require no operational maintenance or lubrication.
Most of Draper’s standard fabrics may be cleaned at the window by vacuuming with a soft brush attachment. They also may be cleaned by using a sponge or
soft cloth and mild solution of warm soapy water. A mild dishwashing liquid is recommended. A clean dry cloth is recommended for the metal finish.
Please Note: Exceptions are Flocké and Phifer SW7000 fabrics, which must be cleaned with a dry art sponge.
Push Endcap Covers
onto Both Endcaps
Clutch Operated FlexShade® NEXD
Window shade with heavy duty clutch and 3” hardware profile. Cassette option.
Section 1 - FlexShade NEXD Mounting With Bracket
Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions.
page 3 of 6
Section 1.1 - Wall Mounting with Bracket
1.
Mark wall for placement of mounting brackets.
Caution: Before mounting shades, verify measurements on card provided
with the shade, and ensure brackets are installed at correct width.
2.
Drill small starter hole (if necessary) in mounting surface.
3.
Mount brackets using appropriate fasteners for surface (Fig. 1-A).
4.
Attach idler and operator endcap covers to mounting brackets ( Fig. 1-B).
Section 1.2 - Ceiling Mounting with Bracket
1.
Mark ceiling for placement of endcaps.
Caution: Before mounting shades, verify measurements on card provided
with the shade, and ensure brackets are installed at correct width.
2.
Drill small starter hole (if necessary) in mounting surface.
3.
Mount endcaps using appropriate fasteners for surface (Fig. 2-A).
4.
Attach idler and operator endcap covers to mounting brackets (Fig. 2-B).
Into the
Wall
Figure 2-A
Figure 1-A
Into the Ceiling
Endcap
Cover
Push Endcap Covers
onto Both Endcaps
Endcap
Cover
Figure 1-B
Endcap
Endcap
Figure 2-B
Section 2 - Jamb Mounting
1.
Mark jamb for placement of endcaps.
Caution: Before mounting shades, verify measurements on card provided with
the shade, and ensure brackets are installed at correct width.
2.
Drill small starter hole (if necessary) in mounting surface.
3.
Mount endcaps using appropriate fasteners for surface (Fig. 3).
Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions.
Section 3 - Converting Between Ceiling and Wall Mounting Configurations
Ceiling Mount
Configuration
1. Remove
these three
screws from
Endcaps
2. Rotate metal
mounting plate
90° toward the
mounting
surface
3. Reattach
these three
screws to
Endcaps
Figure 3
Wall Mount
Configuration
Endcap Cover
Removed
Figure 4
NEXD
CASSETTE
SHADE
(WALL MOUNT)
BRACKET
ATTACHED
TO WALL
2. Insert rail along back
of shade onto top side
of mounting brackets.
3. Rotate shade until
bottom side of rail snaps
onto mounting bracket.
Clutch Operated FlexShade® NEXD
Window shade with heavy duty clutch and 3” hardware profile. Cassette option.

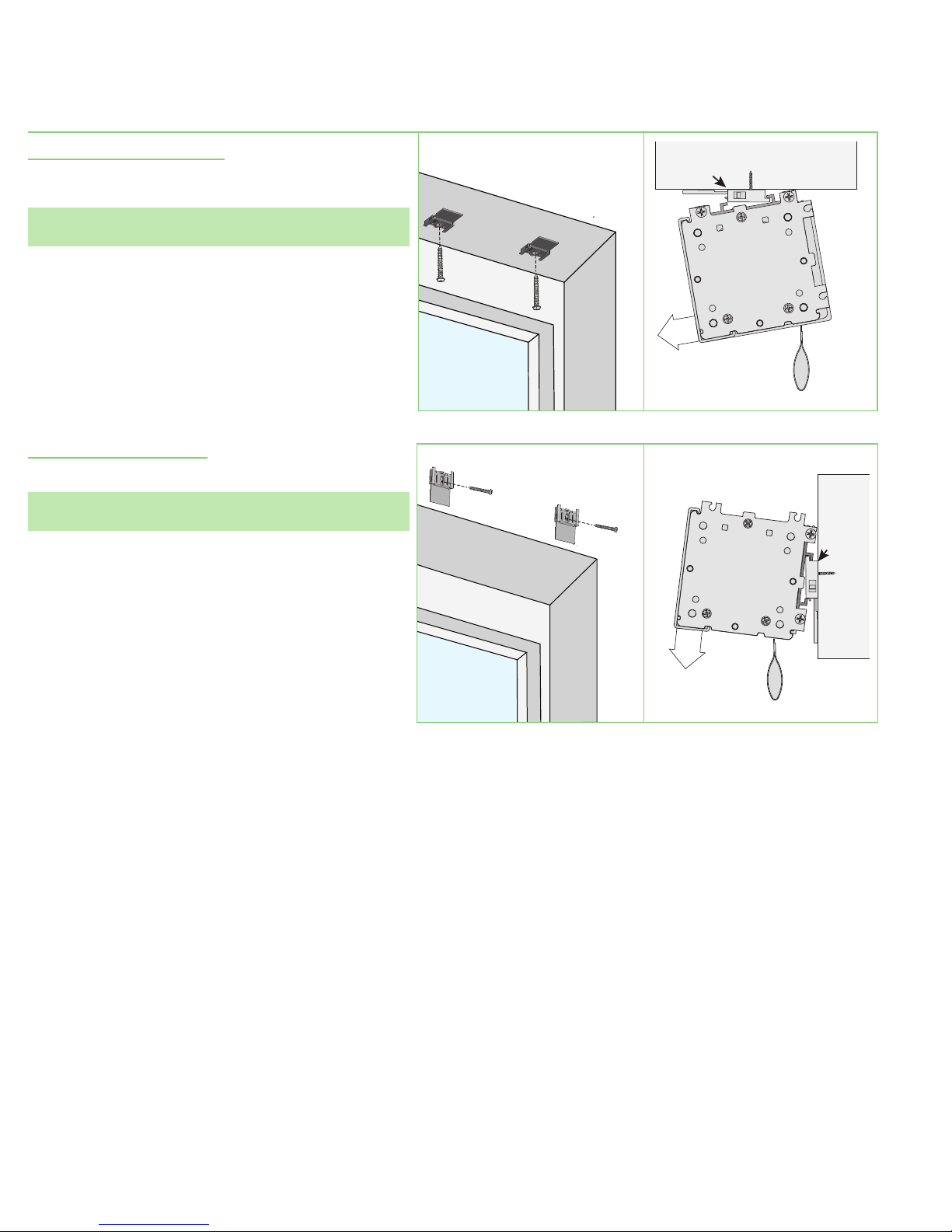

Section 4 - NEXD Cassette Installation
Section 4.1 - Ceiling Mount
1. The brackets will be attached to top of window frame (or ceiling)
as shown.
Please note: Mounting brackets must be securely attached to
mounting surface.
2. The outermost brackets should be installed approximately 2” in from
edge of window frame. Any remaining brackets will be spaced out
evenly in between outermost brackets.
3. Before drilling screw in and securely tightening bracket to mounting
surface, make sure that plastic tab on bracket is facing toward
front of shade.
Figure 10-A
WINDOW
1. Attach Mounting
Brackets to Ceiling
JAMB
BRACKET
ATTACHED
TO CEILING
NEXD
CASSETTE
SHADE
(CEILING MOUNT)
3. Rotate shade until
bottom side of rail snaps
onto mounting bracket.
page 4 of 6
2. Insert rail along top
of shade onto back side
of mounting brackets.
Figure 10-B
Section 4.2 - Wall Mount
1. The brackets will be attached to wall above window frame as shown.
Please note: Mounting brackets must be securely attached to
mounting surface.
2. The outermost brackets should be installed approximately 2” in from
edge of window frame. Any remaining brackets will be spaced out
evenly in between outermost brackets.
3. Before drilling screw in and securely tightening bracket to mounting
surface, make sure that plastic tab on bracket is facing toward
bottom of shade.
Figure 11-A
WINDOW
1. Attach Mounting
Brackets to Wall
JAMB
2. Insert rail along back
of shade onto top side
of mounting brackets.
NEXD
CASSETTE
SHADE
(WALL MOUNT)
3. Rotate shade until
bottom side of rail snaps
onto mounting bracket.
BRACKET
ATTACHED
TO WALL
Figure 11-B
Clutch Operated FlexShade® NEXD
Window shade with heavy duty clutch and 3” hardware profile. Cassette option.

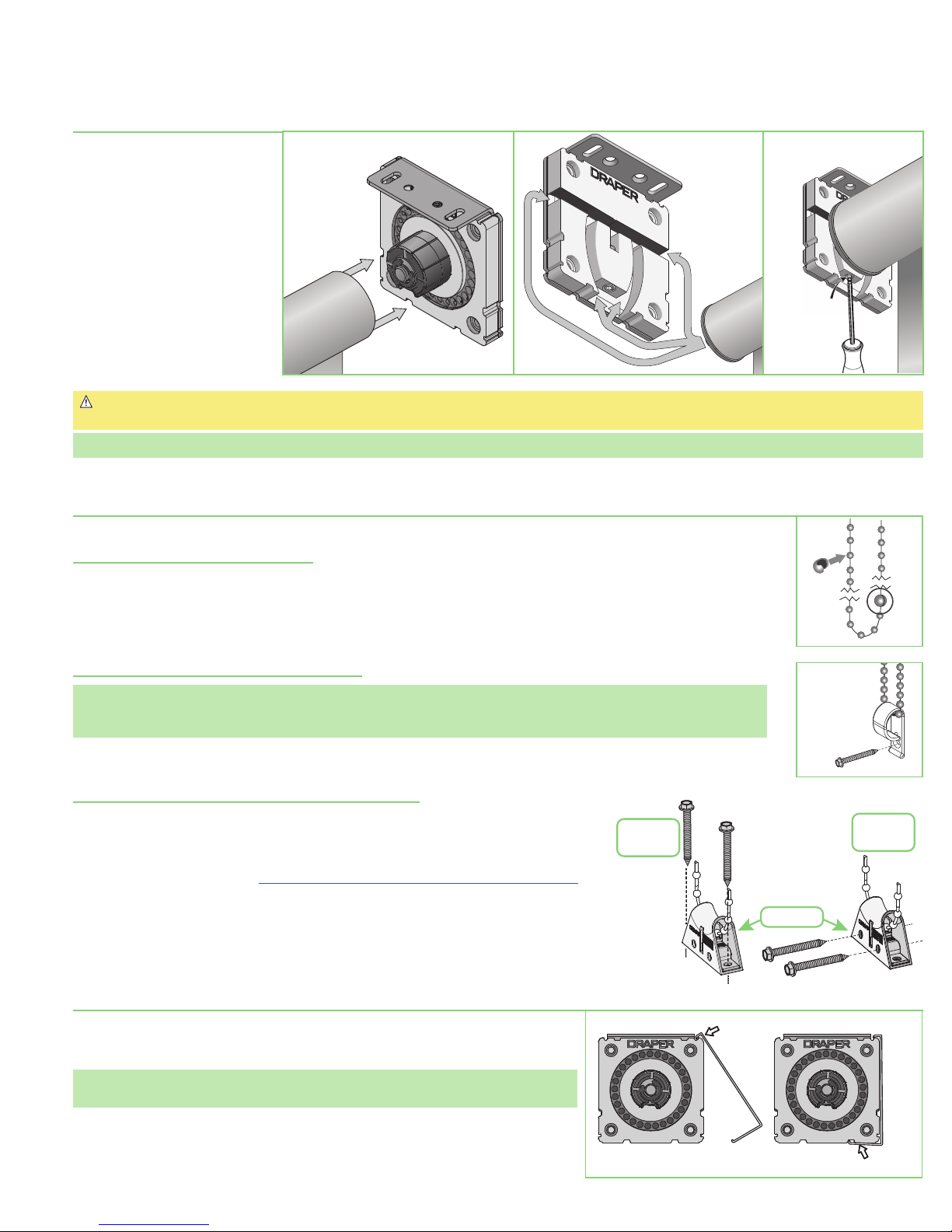

Section 5 - Shade Fabric Roller Mounting
1.
Carefully work open (clutch)
end of roller onto bead chain
clutch (Fig. 5-A).
2.
Slide idler end pin up through
one of the slots on
idler endcap, (Fig. 5-B) and
into seat for pin.
3.
Ensure that all mounting hardware
is secure and fully tightened.
4.
Test shade to ensure that roller
is level and operating properly. If
not, adjust idler leveling screw with
provided hex wrench (Fig. 5-C).
Figure 5-A
Open (clutch)
End of Roller
Assembly
Idler Pin Paths
Figure 5-B
Idler End
of Roller
Assembly
page 5 of 6
Figure 5-C
Adjust Idler
Leveling Screw
with the
provided
Hex Wrench
Idler End
of Roller
Assembly
Caution: Do not allow shade roller to become exposed by running shade fabric too far down. Be sure to use stop balls provided in hardware packet by
Draper to set up and down travel limits. Stop balls by others may be too small, and become lodged in clutch mechanism.
Please Note: If shade fabric is uneven, see “Field Adjustments” on page 4.
Section 6 - Bead Chain Limits and Safety Device Installation
Figure 6
Attach
Section 6.1 - Attaching Stop Balls
1.
Set upper and lower travel limits by installing stop balls to bead chain (crimp closed using pliers) (Fig. 6).
Section 6.2 - P-Clip Cord Tension Device
Please Note: Draper Bead Chain Clutch Operated shades that do not comply with WMCA/ANSI Standard A100.1-2012 come with
a cord tension device pre- attached to bead chain (Fig. x). This device must be attached to wall, jamb or sill so that
bead chain is held taut enough that children cannot pull it away from wall or fit their head into loop.
Section 6.3 - Spring-Loaded Cord Tension Device
If Draper Clutch FlexShade complies with WMCA/ANSI Standard A100.1-2018, a Spring-Loaded
Cord Tension Device comes installed on bead chain (Fig. 8). An approved permanent warning
label and approved mechanical fasteners (wood screws) are included. Device is designed so that
Sill
Mount
children cannot pull bead chain away from wall or fit their head into loop. (See safety note on
page 2). For more information, visit www.draperinc.com/WindowShades/WCMAcompliance.asp.
1.
Install cord tension device to wall, jamb or sill.
2.
Pull tensioner down so that bead chain is held taut and use mounting hardware to keep it taut.
Please Note: Bead chain should be taut enough to move smoothly through device. However,
overtightening screws will damage Spring Loaded Tension Device.
Stop Balls
Figure 7
Figure 8
Tensioner
Jamb
Mount
Crimp
Closed
with
Pliers
Section 7 - Fascia
1.
Place groove along top of fascia over endcaps.
2.
Snap into place (Fig. 9).
Please Note: Fascia is not fully seated until it clicks into place on both ends. Once in place,
check for secure fit.
Insert
Fascia
STEP 1 STEP 2
Figure 9
Clicks
into place
Shade Width
2 ½”
(64mm)
3
3
/16”
(81mm)
1
3
/16”
(47mm)
Shade Width
Clutch EndIdler End
Fabric Width
Clutch Operated FlexShade® NEXD
Window shade with heavy duty clutch and 3” hardware profile. Cassette option.
Section 8 - Dimensions
Clutch Operated FlexShade NEXD Dimensions
page 6 of 6
3
/16”
3
(81mm)
2 ½”
(64mm)
1
/16”
(2mm)
7
/8”
(22mm)
NEXD Cassette Dimensions
Fabric Width
(44mm)
1¾”
Clutch EndIdler End
(32mm)
3
/
(4.7mm)
1 ¼”
16
(19mm)
”
¾”
1 3/16”
(47mm)
3 3/16”
(81mm)
Overall Width includes plastic endcap covers
(Pair adds 1/8" (3mm) to Overall Width)
3 3/16”
(81mm)
1”
(25mm)
Overall Shade Width
(always includes endcap covers)*
2”
(51mm)
* Endcaps covers are NOT to be removed at
any point during NEXD Cassette installation.
Clutch EndIdler End
3 3/8”
(22mm)
3½”
(89mm)
7
/8”
(86mm)
3 3/8”
(86mm)
Loading...
