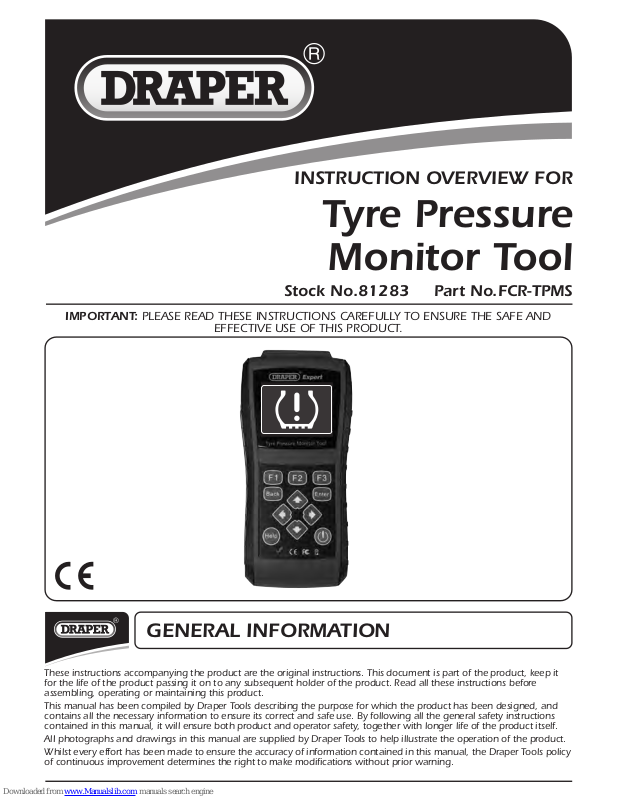

INSTRUCTION OVERVIEW FOR
Tyre Pressure
Monitor Tool
Stock No.81283 Part No.FCR-TPMS
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR:
TYRE PRESSURE MONITOR TOOL
Stock no. 81283
Part no. FCR-TPMS
1.2 REVISIONS:
As our user manuals are continually updated, users should make sure that they use the very
latest version.
Downloads are available from: http://www.drapertools.com/b2c/b2cmanuals.pgm
DRAPER TOOLS LIMITED WEBSITE: www.drapertools.com
HURSLEY ROAD PRODUCT HELPLINE: +44 (0) 23 8049 4344
CHANDLER’S FORD GENERAL FAX: +44 (0) 23 8026 0784
EASTLEIGH
HAMPSHIRE
SO53 1YF
UK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other
form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Date first published July 2015
GUARANTEE
GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed
to be free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor
or contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or Product Helpline (023) 8049 4344.
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee period covering
parts/labour is 12 months from the date of purchase except where tools are hired out when
the guarantee period is ninety days from the date of purchase. The guarantee is extended to
24 months for parts only. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty
repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges
will be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of
its terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt
or invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory
rights.
Draper Tools Limited.
4
Safety Information
For your own safety and the safety of others, and to prevent damage to the equipment and
vehicles, read this manual thoroughly before operating your TPMS trigger tool. The safety
messages presented below and throughout this user’s manual are reminders to the operator to
exercise extreme care when using this device. Always refer to and follow safety messages and
test procedures provided by vehicle manufacturer. Read, understand and follow all safety
messages and instructions in this manual.
Safety Message Conventions Used
We provide safety messages to help prevent personal injury and equipment damage. Below are
signal words we used to indicate the hazard level in a condition.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor
injury to the operator or to bystanders.
Important Safety Instructions
And always use your TPMS trigger tool as described in the user’s manual, and follow all safety
messages.
Do not route the test cable in a manner that would interfere with driving controls.
Do not exceed voltage limits between inputs specified in this user’s manual.
Always wear goggles to protect your eyes from propelled objects as well as hot RU
caustic liquids.
Fuel, oil vapors, hot steam, hot toxic exhaust gases, acid, refrigerant and other debris produced
by a malfunction engine can cause serious injury or death. Do not use the TPMS trigger tool in
areas where explosive vapor may collect, such as in below-ground pits, confined areas, or
areas that are less than 18 inches (45 cm) above the floor.
Do not smoke, strike a match, or cause a spark near the vehicle while testing and keep all
sparks, heated items and open flames away from the battery and fuel / fuel vapors as they are
highly flammable.
Keep a dry chemical fire extinguisher suitable for gasoline, chemical and electrical fires in work
area.
Always be aware of rotating parts that move at high speed when an engine is running and keep
a safe distance from these parts as well as other potentially moving objects to avoid serious
injury.
Do not touch engine components that get very hot when an engine is running to avoid severe
burns.
5
Block drive wheels before testing with engine running. Put the transmission in park (for
automatic transmission) or neutral (for manual transmission). And never leave a running engine
unattended.
Do not wear jewelry or loose fitting clothing when working on engine.
CONTENTS
CONTENTS
Page content
Page
INTRODUCTION ....................................................................................................................................2
GUARANTEE ....................................................................................................................................3
SAFETY INFORMATION............................................................................................................................. 4
SAFETY MESSAGE CONVENTIONS USED...........................................................................................4
IMPORTANT SAFETY INSTRUCTIONS ................................................................................................4
1 USING THIS MANUAL ............................................................................................................................8
1.1 BOLD TEXT ..................................................................................................................................8
1.2 SYMBOLS AND ICONS ................................................................................................................. 8
1.2.1 Solid Spot ............................................................................................................................8
1.2.2 Arrow Icon ..........................................................................................................................8
1.2.3 Note and Important Message ............................................................................................ 8
2 INTRODUCTION ....................................................................................................................................9
2.1 ABOUT TPMS ............................................................................................................................... 9
2.1.1 Tyre Pressure Monitoring System ....................................................................................... 9
2.1.2 Why Monitor Tyre Pressure? ...............................................................................................9
2.2 ABOUT TPMS monitor .................................................................................................................9
2.2.1 Descriptions ........................................................................................................................ 10
2.2.2 Accessories .........................................................................................................................10
2.2.3 Technical Specifications .....................................................................................................11
3 GETTING STARTED ...............................................................................................................................11
3.1 POWER ON/OFF THE TPMS TRIGGER TOOL .............................................................................. 11
3.2 CHARGING THE TPMS TRIGGER TOOL ...................................................................................... 11
3.2.1 Charging via Wall Plug ...................................................................................................... 11
3.2.2 Charging via Personal Computer with USB Cable ...........................................................12
3.3 APPLICATION OVERVIEW ..........................................................................................................12
3.4 TOOL SYMBOLS AND ICONS .....................................................................................................12
4 TPMS ACTIVATION ............................................................................................................................... 13
4.1 VEHICLE SELECTION ................................................................................................................... 13
4.1.1 Activation in All Wheel Mode ..........................................................................................14
4.1.2 Activation in One Wheel Mode ........................................................................................ 16
4. 2 LATEST TEST ..............................................................................................................................17
5 RKE & RF MONITOR ..............................................................................................................................18
6 TPM AUDIT REPORT .............................................................................................................................19
7 SYSTEM SETUP ...................................................................................................................................19
7.1 SELECT LANGUAGE .................................................................................................................... 20
7.2 CONFIGURE BEEPER ................................................................................................................... 20
7.3 CONFIGURE AUTO POWER-OFF INTERVAL ...............................................................................21
7.4 ADJUST DISPLAY CONTRAST .....................................................................................................21
7.5 TOGGLE BACKLIGHT ON/OFF ....................................................................................................22
7.6 CONFIGURE 10 FORMAT ............................................................................................................22
7.7 CONFIGURE PRESSURE UNIT ......................................................................................................23
7.8 CONFIGURE TEMPERATURE UNIT .............................................................................................23
7.9 CONFIGURE WHEEL MODE ........................................................................................................24
8 TOOL INFORMATION ...........................................................................................................................24
CONTENTS
9 UPDATE ...................................................................................................................................25
9.1 UPDATE THE TPMS TRIGGER TOOL............................................................................................25
9.2 USER MANUAL........................................................................................................................... 27
9.3 UPDATE TOOL SETTINGS ...........................................................................................................27
Note: Draper Tools accepts no responsibility for any accident or
injury arising from servicing the vehicles system. When
interpreting results from the vehicle, always follow the
manufacturer’s recommendation for repair.
Page content Page
8
1 Using This Manual
We provide tool usage instructions in this manual. Below are the conventions we used in the
manual.
1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu options.
Example:
Press the ENTER button to select.
1.2 Symbols and Icons
1.2.1 Solid Spot
Operation tips and lists that apply to specific tool are introduced by a solid spot .
Example:
When System Setup is selected, a menu that lists all available options displays. Menu options
include:
Languages
Unit
Beep
Keypad Test
LCD Test
1.2.2 Arrow Icon
An arrow icon indicates a procedure.
Example
To change menu language:
1. Scroll with the arrow keys to highlight Language on the menu.
2. Press the ENTER button to select.
1.2.3 Note and Important Message
Note
A NOTE provides helpful information such as additional explanations, tips, and comments.
Example:
NOTE
Test results do not necessarily indicate a faulty component or system.
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage to the test
equipment or vehicle.
Example:
IMPORTANT
Do not soak keypad as water might find its way into the TPMS trigger tool.
9
2 Introduction
2.1 About TPMS
2.1.1 Tyre Pressure Monitoring System
A Tyre Pressure Monitoring System is a safety device that measures, identifies and warns the
driver when one or more tyres is significantly under-inflated or over-inflated. Majority of the TPMS
adopt direct tyre sensors. The TPMS sensor is typically located as a valve--mounted stem in the
tyre. It works by monitoring the temperature, air pressure, and battery state in a vehicle tyre and
automatically transmitting a
warning to the driver via a warning light or dashboard display. Those
vehicles which have graphical displays of the TPMS positions can then show on which wheel
there is a problem.
2.1.2 Why Monitor tyre Pressure?
Tyre Pressure Monitoring helps drivers to properly maintain their vehicle tyres, improves vehicle
safety and fuel efficiency.
33,000 crashes are a result of under-inflated tyres.
75% of roadside flats are caused by a slow leak or under inflation.
35% of drive
rs admit to never checking tyre pressure.
.
.
NHTSA estimates TPMS could save as many as 660 lives annually.
Source: U.S. National Highway Traffic Safety Administration Data
Tyres influence the vehicle’s ability to handle, steer, brake, and maintain stability. If the tyres are
under-inflated, vehicle safety is compromised. Sudden tyre failure can have serious consequences,
especially at high speeds. With the help of TPMS, An estimated 23,000 accidents and 535 fatal
accidents
annually involve blowouts or flat tyres. It is reported by Sécurité Routière (the French
Institution for Road Safety) that 9% of all road accidents worldwide are attributed to tyre
under-inflation. German DEKRA estimated that 41% of accidents with physical injuries are
linked to tyre problems, according to their investigation.
2.2 About FCR-TPMS
The )&5TPMS trigger tool is a universal TPM sensor decoder or activator. It accurately
activates and decodes TPM sensors and displays the data or any faults.
10
2.2.1 Descriptions
This section illustrates external features, ports and connectors of the tool.
Figure 2-1 Front View
1 Diagnostic Port - provides connection between the service tool and vehicle.
2 LCD Display - shows menus, test results and operation tips.
3 Function Keys / Shortcut keys - three keys that correspond with “buttons” on some screens
for executing special commands or provide quick access to most frequently used applications
or functions.
4 ENTER Key -
executes a selected option and generally goes to the next screen.
5 Direction Keys - select an option or scroll through a screen of data or text.
6 Power Switch - turns on/off the service tool and press and hold for 5 seconds for
emergency reboots.
7 HELP Key - displays helpful information.
8 BACK Key - exits a screen and generally returns to previous screen.
9 TF Card Port - holds the TF memory card for data backup and software update.
10 USB Port - provides a USB connection betwee
n the service tool and PC or laptop.
IMPORTANT
Do not use solvents such as alcohol to clean keypad or display. Use a mild nonabrasive detergent
and a soft cotton cloth.
2.2.2 Accessories
This section lists the accessories that go with the TPMS trigger tool. If you find any of the following
items missing from your package, contact your local dealer for assistance.
1 USB Cable - provides connection between the TPMS trigger tool and a computer to upgrade
the tool and charges the built-in battery.
2 Software CD - contains user’s guide, update client and update files.
11
3 Magnet - triggers early TPMS sensors which need a magnet to activate.
4 Battery Charger - charges built-in battery via wall plug.
5 Blower Molding Case - stores the TPMS trigger tool and its accessories.
2.2.3 Technical Specifications
Display: Backlit, 128*64 pixel display with contrast adjustment
Working Temperature: 0 to 60 ℃ (32 to 140℉)
Storage Temperature: -20 to 70℃ (-4 to 158℉)
Power Supply: 3.7V Li-polymer battery, 3.3V USB power
Dimensions (L*W*H): 200*130*40mm
Gross Weight: 1.6kg
Radio reception: 315 MHz and 433.92 MHz
3 Getting Started
This section describes how to provide power to the TPMS trigger tool. It provides a brief
introduction of applications loaded on the TPMS trigger tool, an introduction of symbol and icons
displayed on the screen and how to power on/off and charge the tool.
3.1 Power on/off the TPMS trigger tool
The FCR-TPMS is powered on/off by pressing the power switch.
To power on/off the tool
1. Press the power switch to power on the tool, and the unit will display the Main Menu.
2. Hold the power switch for one 1 seconds and the release to power down the FCR-TPMS, and
the
“Bye Bye
” message displays. The tool powers down automatically after a period of inactivity.
Please refer to 7.3 Configure Auto Power-off Interval for details.
3.2 Charging the TPMS trigger tool
The FCR-TPMS is shipped with fully charged battery, but due to self-drain it may require charging, it
is recommended to charge the tool over 2 hours before first use.
The unit charges on any of the following sources
12-volt wall plug
USB connection to personal computer
IMPORTANT
Use the battery charger or USB cable included in the FCR-TPMS tool kit ONLY. The use of
un-approved power supplies may damage the tool and will void the tool warranty.
3.2.1 Charging via Wall Plug
To charge via wall plug
1. Find the power port at left side of the tool.
2. Connect the tool to power source with the battery charger provided.
12
3.2.2 Charging via Personal Computer with USB Cable
The TPMS trigger tool can also be charged through the USB port.
To charge via USB cable
1. Insert the small end of the USB cable to the USB port at the right side of the TPMS trigger tool
and the large end to a computer.
3.3 Application Overview
When the TPMS trigger tool boots up, the Main Menu displays. This screen shows all applications
loaded on the unit.
The following applications are preloaded into the TPMS trigger tool
TPM Sensor Activation – leads to screens for activating TPM sensors.
RKE&RF Monitor – leads to screens for checking RF Remote Keyless Entry (key FOB).
Settings – leads to screens for adjusting default settings to meet your own preference.
Tool Information – leads to screen of information about your trigger tool.
Latest Test – leads to screens for access the last tested sensor data.
Figure 3-1 Sample Home Screen
3.4 Tool Symbols and Icons
This section provides a brief introduction of symbols and icons of tool display.
No. Indicator Description
1
Indicates current selected menu item.
2
Indicates there is data stored in the tool
3
Indicates internal battery volume.
4
Indicates the TPMS tool is sending signals to
the tyre
sensor for activation and test.
5
Indicates battery charging.
6
Indicates One Wheel test mode is selected.
7
Indicates ALL Wheels test mode is selected.
8
Indicates magnet is required to activate TPMS
sensor.
13
9
Indicates deflation is required to activate TPMS
sensor.
10
Indicates USB communication with the
computer is established.
4 TPMS Activation
This section illustrates how to use the TPMS trigger tool to activate and decode TPM sensor data.
The FCR-TPMS is designed to activate all know TPM sensors and decode data including sensor ID,
tyre pressure, temperature, battery condition, and OE part number, and to warn of a wrong
sensor
installed, mis
sing or faulty sensor, duplicate ID, and incorrect sensor mode.
Two methods of selecting correct TPM sensor are provided
Vehicle Selection
Latest Test
It typically tests a vehicle by the following two methods
All wheel mode
One wheel mode
You may get access to vehicle mode selection by Settings>Wheels to Test>All wheels/One wheel.
Please refer to the figures here below for details.
Figure 4-1 Sample Mode Selection Screen
Figure 4-2 Sample All Wheel/One Wheel Selection Screen
4.1 Vehicle Selection
Vehicle Selection leads to screens for selecting of correct TPM sensor via vehicle make, model
and year selection. The sensor identification sequence is menu driven; you simply follow the
screen prompts and make a series of choices. Each selection you make advances you to the next
screen. Exact procedures may vary somehow by vehicle.
To test the TPM sensors:
14
1. Scroll with the UP/DOWN arrow keys to highlight Vehicle Selection from the Main Menu and
press the YES key to start.
Figure 4-3 Sample Application Menu
2. On each screen that appears, select the correct option and then press the YES key. Do this
until the complete vehicle information is entered.
Figure 4-4 Sample Vehicle Selection Screen
NOTE
The selected vehicle is remembered by the tool when a test is started. It is very convenient for
workshops to trigger TPM sensors of the same vehicle.
4.1.1 Activation in All Wheel Mode
The all wheel mode provides a vehicle icon on the screen to give user prompts for each wheel. In
this mode, each TPM has wheel locations of LF (Left Front), RF (Right Front), RR (Right Rear),
LR (Left Rear) and spare (if the car has a spare tyre).
1. In all wheel mode, the solid spot flashes at the wheel to be tested. Depending on the sensor
type, place the tool to the correct position to insure sensor activation and decode. Below is a
chart illustrating how to correctly place the tool.
15
No. Sensor Type Illus
tration Description
1
LF Activated
Sensors
The tool sho
uld be placed alongside the
valve stem.
Ford branded
LF Activated
Sensors
Th
e tool sho
uld be held 180°away from the
valve stem.
2
Magnet
Activated
Sensors
If the TPM
requires a magnet, place the
magnet over the stem and then place the
tool alongside the stem
3
Delta P
activated
sensors
If t
he sensor requires tyre deflation
(of the
order of 10PSI), the icon will appear
on screen. Please deflate the tyre and place
th
e tool
alongside the stem
Table 4-1
2. Press Test to test the TPM. If test passes, TPM data is briefly displayed for 3 seconds and then
the solid spot on the vehicle icon moves around to prompt that the next wheel should be tested.
Or manually move around vehicle using U P/ DOWN arrow keys.
Figure 4-5 Sample All Wheel Test Data Screen
3. TPM data is stored and can be accessed by selecting a wheel location and press the YES key.
4. Depending on test results, one of the following possi
ble scenarios may dis
play.
No. Sensor Type Illus
tration Description
1
Successful
Sensor Read
TPMS sensor was successfully
activated and
decoded. The FCR-TPMS emits a series of tones
and displays pressure at wheel location.
16
2
Failed Sensor
Read
The search period expires without reading a
TPM. The )&57306 emits a single audible beep
and displays “No sensor detected.” Repeat the
test process to verify.
3 Duplicate ID
A sensor with a duplicate ID has been read.
The )&57306 emits three audible beep and
displays “S
ensor ID duplicate.” Clear data and
re-read sensors.
Table 4-2
NOTE
Operator can press the NO key to abort the sensor activation and return to previous menu at any
time.
4.1.2 Activation in One Wheel Mode
This section illustrates how to test TPM sensor in one wheel mode. In this mode, TPM data is
displayed and stored immediately.
1. In one wheel mode, the screen displays as below when the TPM sensor is selected.
Figure 4-6 Sample One Wheel Test Screen
2. Refer to Table 4-1 in page 12 to correctly place the trigger tool and press the Test key.
3. The tool moves to next wheel to be tested automatically or manually select a wheel to test using
UP/DOWN arrow keys. Repeat the steps to complete test of all wheels.
Figure 4-7 Sample Wheel Selection Screen
4. Press YES key to review test results.
Figure 4-8 Sample One Wheel Test Data Screen
17
[Pos] – Indicates the wheel sensor position.
[ID-H/D] – Shows sensor ID data.
[KPa/Psi/Bar] – Indicates wheel pressure.
[℃/℉] – Indicates wheel temperature.
[BAT] – Indicates battery condition.
[Fre.] – Indicates the frequency of the sensor.
NOTE
Anytime while doing the TPMS test, press HELP key to read the sensor make, OEM part no., and
relearn information for the vehicle being tested.
Figure 4-9 Sample Senser Make Screen
NOTE
Different ID format, pressure and temperature units will display at the title bar according to the
device’s system setting, please refer to 2.7 Settings for detailed guidance.
4. 2 Latest Test
Latest Test leads to screens for activating the sensor by using the same wave signal of the latest
trigger event. The tool remembers the latest tested vehicle and makes it much easier to trigger
sensors of the same vehicle.
To test the TPM sensors:
1. Scroll with the UP/DOWN arrow keys to highlight Latest Test from the Main Menu and press
the YES key to start. A message asking if the old recording to be cleared displays.
Figure 4-10 Sample Latest Test Screen
Figure 4-11 Sample Delete Data Screen
NOTE
18
Once a vehicle is tested, the menu item Latest Test will be replaced with the tested vehicle name
and will not show in the menu any longer. Please see the figure below for reference.
Figure 4-12 Sample Delete Data Screen
2. If previous recording is to be cleared, press YES. Position the tool properly as illustrated in
Table 4-1 on page 14 and 15 and press the Test key. If in all wheel test mode, follow steps 1-3
of Activation in All Wheel Mode on page 14 and 15 to complete the test. If in one wheel test
mode, follow steps 1-3 of Activation in One Wheel Mode on page 15 and 17 to complete the
test.
3. If previous recording not to be cleared, press NO to review the record on screen.
5 RKE & RF Monitor
This section illustrates how to check RF Remote Keyless Entry (key FOB) with the trigger tool.
The FCR-TPMS tests 315MHz and 433MHz key fobs only, and checks only for a signal present.
To test the check RF Remote Keyless Entry:
1. Scroll with the UP/DOWN arrow keys to highlight RKE & RF Monitor from the Main Menu and
press the YES key to start.
Figure 5-1 Sample Application Menu
2. Hold the Key Fob close to the tool, and press the function buttons on the FOB. If the button
works and the FOB is sending a signal, the tool will beep and the following screen displays.
Figure 5-2 Sample RKE& RF Monitor Screen
3. Press the NO key to return.
19
6 TPM Audit Report
The FCR-TPMS is capable of presenting all of its stored TPM data in an HTML files when
connected to a PC via an USB cable.
To view the TPM audit report
1. Insert the small end of the USB cable to the USB port at the right side of the TPMS trigger tool
and the large end to a computer.
2. Turn on the tool by pressing the power switch and it automatically goes into Mass Storage
Device (MSD). An explorer window pops up, and double click a file to view details. The d
ata
presented displays not only information regarding the TPM’s, but also automatically updates
with the date. It provides data entry (typing) areas for other tester and vehicle data.

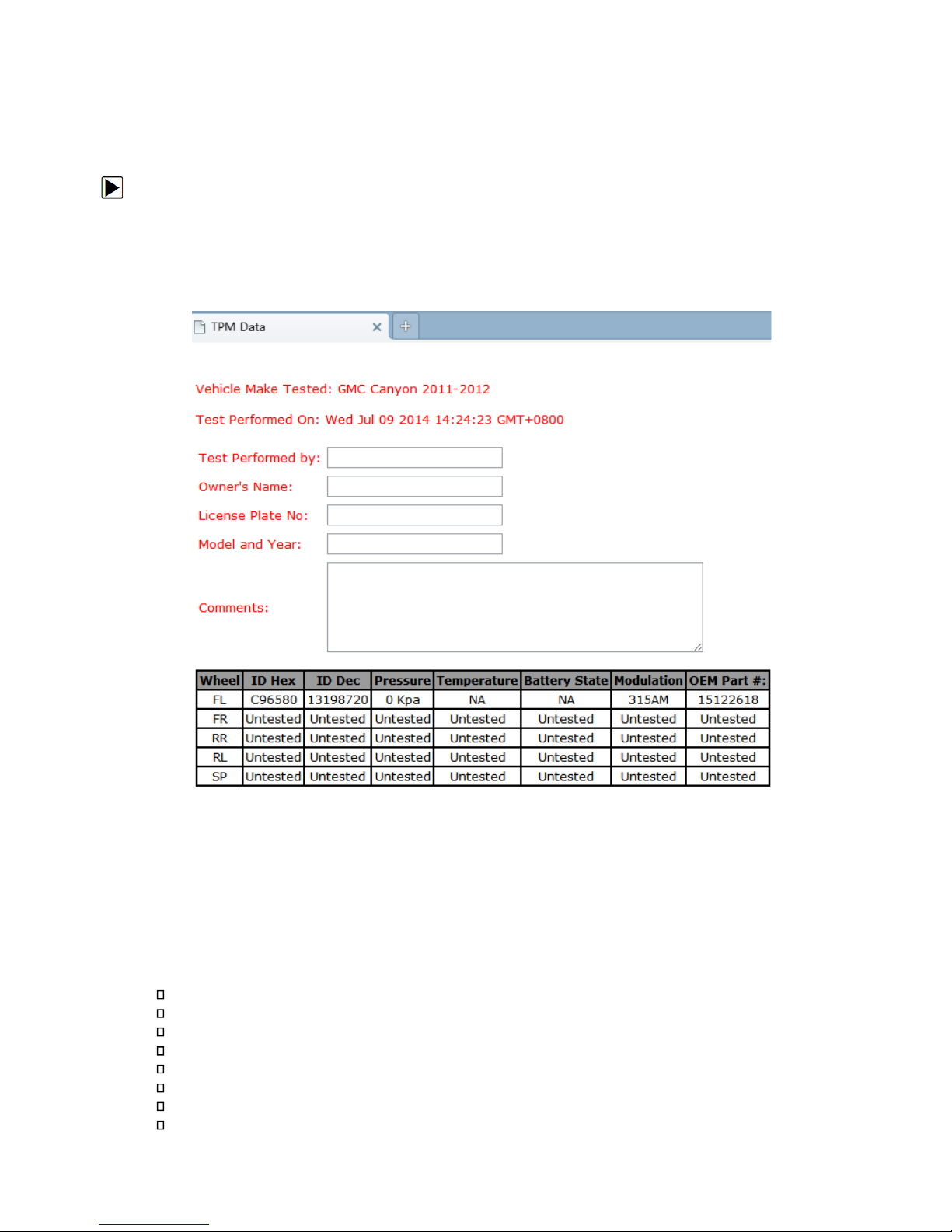

Figure 6-1 Sample HTML Audit Report Screen
3. Remove the USB lead to exit audit mode.
7 System Setup
This section illustrates how to program the TPMS trigger tool to meet your specific needs.
When Setup application is selected, a menu with available se
rvice options displays. Menu options
typically include
Language
Beep Set
Auto Power-off
Contrast
Backlight Set
ID Format
Pressure Units
Temperature Unit
20
Wheels to Test
7.1 Select Language
Selecting Language opens a screen that allows you to choose system language. The TPMS
trigger tool is set to display English menus by default.
To configure system language
1. Scroll with the UP/DOWN arrow keys to highlight Language from Setup menu and press the
YES key.
Figure 7-1 Sample Language Setup Screen
2. Press the UP/DOWN arrow key select a language and press the YES key to confirm and return.
Figure 7-2 Sample Language Selection Screen
7.2 Configure Beeper
Selecting Beep Set opens a dialog box that allows you to turn on/off the beeper.
To turn on/off the beeper
1. Scroll with the UP/DOWN arrow keys to highlight Beep Set from Setup menu and press the
YES key.
Figure 7-3 Sample Beep Setup Screen
2. Press the UP/DOWN arrow key select an item and press the YES key to save and return.
21
Figure 7-4 Sample Beeper On/Off Selection Screen
7.3 Configure Auto Power-off Interval
Selecting Auto Power-off opens a dialog box that allows you to set automatic power-off interval of
the trigger tool to save battery life. Auto power off is not operational when charging. The maximum
interval is 20 minutes and the minimal is 1 minute.
To change auto power off interval:
1. Use the UP/DOWN arrow key to select Auto Power-Off from Setup screen and press the YES
key to confirm.
Figure 7-5 Sample Auto Power-off Setup Screen
2. Use the UP/DOWN key to increase or decrease time, and press the YES key to save and
return.
Figure 7-6 Sample Auto Power-off Interval Screen
7.4 Adjust Display Contrast
Selecting Contrast opens a dialog box that allows you to adjust display contrast.
To adjust display contrast
1. Use the UP/DOWN key to select Contrast from Setup screen and press the YES key.
22
Figure 7-7 Sample Contrast Setup Screen
2. Use the UP/DOWN key to adjust and press the ENTER key to save and return.
Figure 7-8 Sample Contrast Change Screen
7.5 Toggle Backlight ON/OFF
Selecting Backlight Set opens a dialog box that allows you to turn backlight on/off. Turning
backlight off will save battery life.
To toggle backlight on/off
1. Scroll with the UP/DOWN arrow key to highlight Backlight Set from Setup menu and press the
YES key.
Figure 7-9 Sample Backlight Setup Screen
2. Press the UP/DOWN arrow key select an item and press the YES key to save and return.
Figure 7-10 Sample Backlight On/Off Selection Screen
7.6 Configure ID Format
Selecting ID format opens a dialog box that allows you to set ID data to be displayed in
hexadecimal or decimal format.
To change the ID display format
1. Scroll with the arrow key to highlight ID Format from Setup menu and press the YES key.
23
Figure 7-11 Sample ID Format Setup Screen
2. Press the UP/DOWN arrow key select a format and press the YES key to save and return.
Figure 7-12 Sample ID Format Selection Screen
7.7 Configure Pressure Unit
Selecting Pressure Unit opens a screen that allows you to set the pressure unit in kPa, PSI or bar.
To configure pressure unit
1. Scroll with the UP/DOWN arrow keys to highlight Pressure Unit from Setup menu and press
the YES key.
Figure 7-13 Sample Pressure Unit Setup Screen
2. Press the UP/DOWN arrow key select an item and press the YES key to save and return.
Figure 7-14 Sample Pressure Unit Selection Screen
7.8 Configure Temperature Unit
Selecting Temperature Unit opens a screen that allows you to set the temperature unit Celsius or
Fahrenheit degrees.
To configure temperature unit
24
1. Scroll with the UP/DOWN arrow keys to highlight Temperature Unit from Setup menu and
press the YES key.
Figure 7-15 Sample Temperature Unit Setup Screen
2. Press the UP/DOWN arrow key select an item and press the YES key to save and return.
Figure 7-16 Sample Temperature Unit Selection Screen
7.9 Configure Wheel Mode
Selecting Wheels to Test option opens a screen that allows you to select one wheel or all wheels
to test.
To configure wheels to test
1. Scroll with the UP/DOWN arrow keys to highlight Wheels to Test from Setup menu and press
the YES key.
Figure 7-17 Sample Wheel Test Mode Setup Screen
2. Press the UP/DOWN arrow key select an item and press the YES key to save and return.
Figure 7-18 Sample Wheel Test Mode Selection Screen
8 Tool Information
Selecting Tool Information option opens a screen that shows information about your TPMS trigger
tool, such as serial number, which may be required when contacting customer service.
25
To view information of your TPMS trigger tool
1. Scroll with the UP/DOWN arrow keys to highlight Tool Information of the main menu and
press the YES key.
Figure 8-1 Sample Main Manu
2. A screen with detailed information of the TPMS trigger tool displays.
Figure 8-2 Sample Tool Information Screen
3. Press any key to exit and return to the Setup menu.
