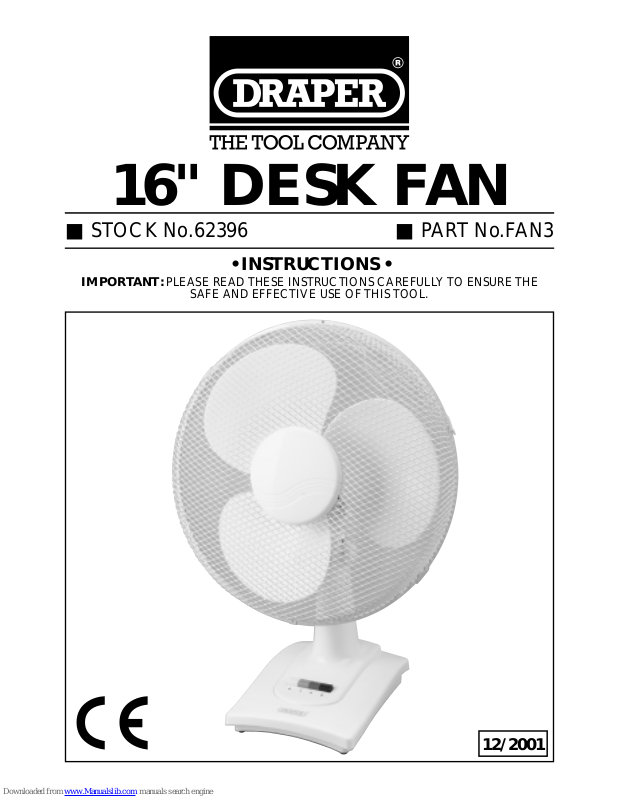

Draper FAN3, FAN2, 62396 Instructions Manual

16" DESK FAN

■ STOCK No.62396 ■ PART No.FAN3

• INSTRUCTIONS •

IMPORTANT:PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE

SAFE AND EFFECTIVE USE OF THIS TOOL.

12/2001

DECLARATION OF CONFORMITY

- 1 -

Whilst ever y eff or t has been made to ensure that the accuracy of information given in this
booklet is correct at time of going to print,The Draper Tools policy of continuous
improvement determines the right to change specification without notice.

Voltage.............................................................................................................230V A.C./50Hz

Wattage .............................................................................................................................50W

3 Speeds ......................................................................................................Slow,Medium, Fast

Maximum airflow.....................................................................................................65cbm/min

Weight .............................................................................................................................3.2kg

SPECIFICATION

GUARANTEE

Draper electric fans have been carefully tested and inspected before shipment and are
guaranteed to be free from defective materials and workmanship for a period of 12 months
from the date of purchase except where they are hired out when the guarantee period is ninety
days from the date of purchase.

Should the unit develop any fault please return the complete item to your nearest author ised
warranty repair agent or contact Draper Tools Limited,Chandler’s Ford, Eastleigh, Hampshire.
SO53 1YF.England.Telephone:[phone].

If upon inspection it is found that the fault occur ring is due to def ective materials or
workmanship the repairs will be carried out free of charge.This guarantee does not apply to
normal wear and tear, nor does it cover any damage caused by misuse, careless or unsafe
handling,alterations,accident, or repairs attempted by any personnel other than the
authorised Draper War ranty repair agent.

This guarantee applies in lieu of any other guarantee expressed or implied and variations of
its terms are not authorised.

Your Draper guarantee is not effective unless you produce a dated receipt or invoice to ver ify
your proof of purchase within the 12 month period.

Please note that this guarantee is an additional benefit and does not affect your statutory
rights.

Draper Tools Limited.

We Draper Tools Ltd.Hursley Road,Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF.
England. Declare under our sole responsibility that the product:

Stock No.:- 62396 Part No.:- FAN3
Description :- Desk Fan

To which this declaration relates is in conformity with the following directive(s) 73/23/EEC &
89/336/EEC.

With reference to: EN55014,EN55014-2, EN61000-3-2, EN61000-3-3

JOHN DRAPER - Managing Director Issue Date :17-05-2000

- 2 -

WARNING:

Please read the following instructions carefully,failure to do so could lead to serious
personal injury.

IMPORTANT:

Draper Tools Limited recommends that this fan not be modified or used for any application
other than that for which it was designed.If you are unsure of its relative applications do not
hesitate to contact us in writing and we will advise you.

GENERAL SAFETY RULES FOR FANS

1. Never insert fingers,pencils,or any other object through the protective grille,while the

fan is running.

2. Disconnect the fan from the power supply when moving it from one location to another.

3. Disconnect the fan from the power supply when removing the protective grilles for

cleaning.

4. Always ensure fan is secure on a firm level surface before operating.

5. Do not use fan in a window , as rain can create an electrical hazard.

6. Always complete the assembly of the fan before switching it on after cleaning.

7. If the power supply cable becomes damaged,it should be replaced immediately by a

qualified electrician.

8. Do not use this fan with a valid state speed control device.

- 3 -

ASSEMBLING THE BASE:

1.Remove the screw from the base of the fan.

2.Align the locking lug of the button housing with the base.

3.Tighten the screw from the base to secure the button housing and base together.

ASSEMBLY INSTRUCTIONS

ASSEMBLING THE
PROTECTIVE BLADE
GRILLES:

1. Unscrew the spinner (6)
clockwise and the nut (3)
anticlockwise,then remove both
of them.

2. Locate the rear grille (2) in the
correct position,ensuring that
the handle is at the top.

3. Replace and tighten the nut (3)
to secure the rear grille (2).

4. Discard the PVC sleeve (4) on
the motor shaft.

5. Slide the fan blade (5) onto the
motor shaft until it reaches the
retaining pin.

6. Screw the spinner (6) onto the
motor shaft in an anticlockwise
direction.

7. Undo the locking screw
mounted on the rear grille (2).
Mount the front grille (7) onto
the rear grille ensuring that the
small round hole on the top
aligns with the hole on the rear
grille.

8. Fix both grilles together with the
clips and then tighten the
locking screw.

Clutch
Knob

Tilt
Adjustment
Knob

Button
Housing

Fig.1.

OPERATING INSTRUCTIONS

- 4 -

1. To stop the fan head from oscillating,pull the clutch knob up.

2. To make the fan head oscillate,push the clutch knob down.

3. The airflow can be adjusted upward or downward by loosening the tilt adjustment
knob and adjusting the vertical angle as desired. Retighten the adjustment knob
securely.

4. The speed is controlled by depressing the buttons located on the panel below the
fan;

0 = Off
1 = Slow
2 = Medium
3 = Fast

IMPORTANT:

Remove the plug from the power supply and wait until the fan has completely stopped
rotating before making any adjustments to it.

CLEANING INSTRUCTIONS

1. Always unplug the fan from the power supply.

2. To disassemble the fan, reverse the sequence of the ‘ASSEMBLING THE

PROTECTIVE BLADE GRILLES’section.

3. All plastic components should be cleaned with a mild soapy detergent and a damp
cloth or sponge.Ensure all traces of water and detergent are removed before
reassembly.

4. Ensure that water and/or cleaning detergent does not enter the motor housing or
switch mechanism.

- 5 -
