Installation/Operating Instructions
Luma and Star Spring Roller Operated Projection Screens by Draper
➀ Read and understand these instructions; keep them for future reference.
Follow instructions carefully.
➁ Care in both mounting and correct operation will mean long and satis factory service from your Draper screen.
➂ Locate the screen where the audience can best see it, and where other
room fur nish ings permit.
➃ Mount the screen so that the bottom of the picture, when screen is fully
extended, will be above the heads of viewers.
➄ When raising screen, pull down and, while holding, allow for slow
retraction into the case to reduce risk of injury from falling screen.
➅ Screen should be installed level (using a carpenter’s level).
➆ Nothing should be fastened to screen dowel or viewing surface.
NOTE: Screen has been thoroughly inspected and tested at factory and found to
be operating prior to shipment.
Installation
Caution
Your Draper screen can be mounted on a wall or suspended from the ceiling or
extension brackets. It must be mounted level and with the fl at back parallel to the
wall.
The screen (or extension brackets) should be mounted into studs or blocking in the
wall/ceiling, or in drywall (minimum thickness ½") with specifi ed anchors. For any
other type of installation, follow all local build ing and safety codes.
Steel studs, concrete or cinder block walls and all other types of non-wood frame
construction require the use of special screws or anchors.
The selection of ap pro pri ate mounting hardware should be made by a
qualifi ed professional installer.

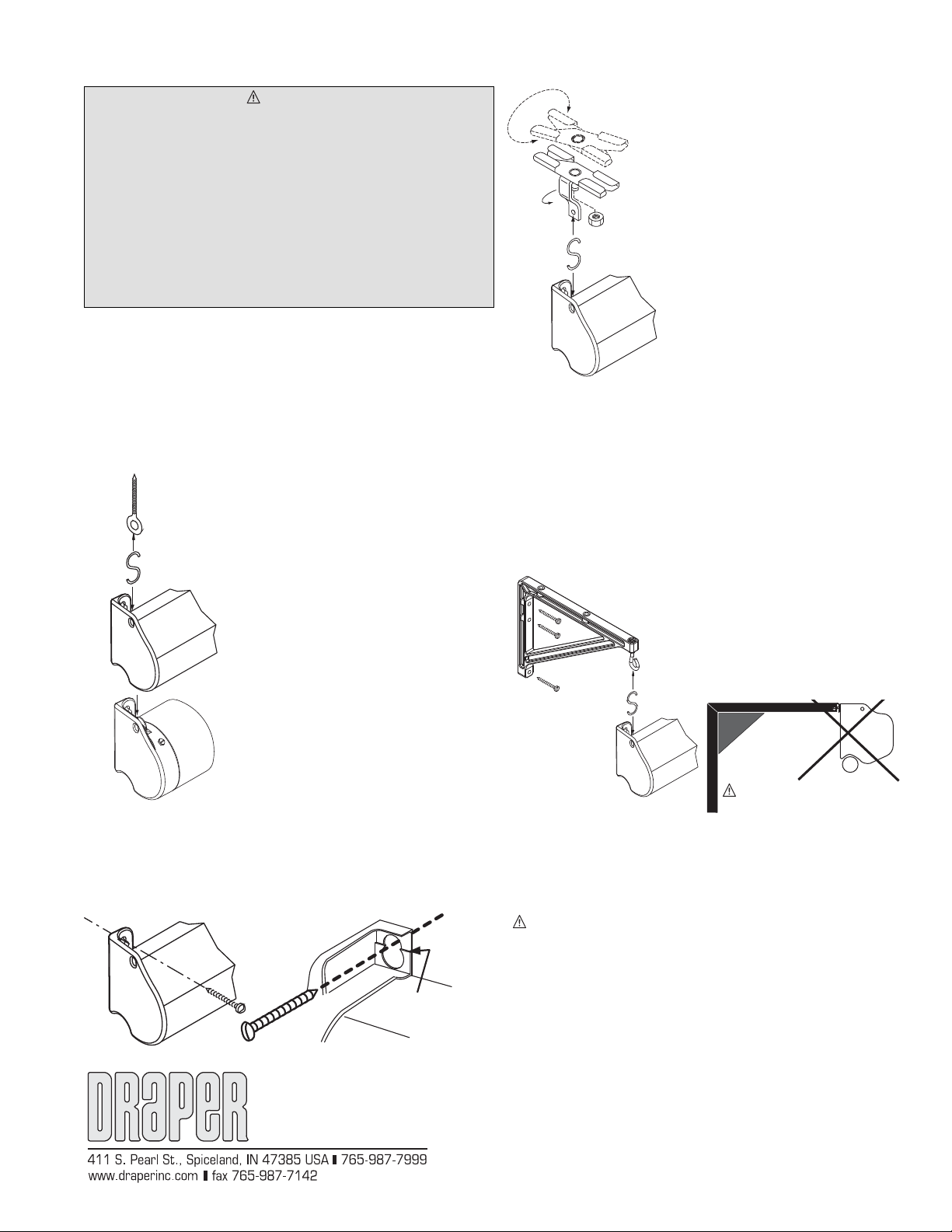

Ceiling Suspended
(Hardware not Included)
Use the holes at the front of the endcap/
Crimp
Crimp
Luma
mount ing brack et for sus pend ed mount ing.
Po si tion and prop er ly an chor screw eyes or
oth er fasteners (not included) into ceil ing
joists or oth er sol id sur face. Sus pend “S”
hooks (not included) from fas ten ers (not
included) and hook through holes in the
front of the mount ing brack et. For added
safe ty, crimp both ends of the “S” hooks so
the screen can not come off.
Recommended hardware (not included):
For mount ing into wood or ceil ing joist,
3
use two
di am e ter “S” hooks; for mount ing into
dry wall (min i mum
or molly bolts with
/16" x 11/4" screw eyes and 3/16"
1
/2" thick), use 3/16" tog gle
3
/16" “S” hooks.
Clip
Screen
Hanger
Crimp
Assembly
Nut
Crimp
➀ Loosen the clip assembly by turn ing the
formed steel hanger counterclockwise.
➁ Spread the clip assembly apart, place over
the T-irons, and fi rmly squeeze the clip
assembly back to geth er, mak ing sure the
clip is fi rmly seated around the T-iron.
Retighten by using pliers to turn the formed
steel hanger clockwise. Make sure it is fully
tightened.
➂ Se cure with the nut. Tighten with pliers.
Please Note: Make sure the clip is
fully tightened around the T-iron, and
that the formed steel hanger and the
lock nut are fully tightened. Poorly
tightened clip assemblies, hangers
Luma pictured
or nuts allow the T-Bar Twist Clip to
work loose.
➃ Test by trying to pull the twist clip open and by pulling down on the hanger.
The clip should not pull open.
➄ Suspend provided “S” hooks from the holes in the clips and hook through
holes in the front of the screen mounting brack et. For added safe ty, crimp
both ends of the “S” hooks so the screen can not come off.
Please Note: T–Bar Twist Clips are not rec om mend ed for screens larg er
than 70" x 70" unless T-irons are reinforced.
Extension Brackets
(Optional Equipment)
Crimp
Crimp
Luma pictured
T–Bar Twist Clips
(Optional Equipment)
Wall mount the brackets (not in clud ed
with screen) using hard ware recommended for “Wall Mounting” (above, not
included). Then, sus pend the screen from
the front holes with “S” hooks. For added
safe ty, crimp both ends of the “S” hooks
so the screen can not come off.
DO NOT OVERTIGHTEN.
Star
Wall Mounting
(Hardware not Included)
Use the upper portion of the holes at the back of the endcap/mounting bracket
for fl ush wall mount ing. Recommended hard ware (not included): For mount ing
into wood or wall stud, use #10 x 1¼" wood screws; for mount ing into dry wall
(minimum ½" thick), use
HEAD SCREWS. DO NOT OVERTIGHTEN.
3
/16" tog gle bolts or 3/16" molly bolts. DO NOT USE FLAT
Lip to prevent screen from
“jumping” off mounting screw
Luma pictured
®
Copyright © 2012 Draper Inc. Form Luma-Star_Inst12 Printed in U.S.A.
Caution: If mounting screen on oldstyle metal wall brackets, do not mount
back of screen to front of bracket.
Please note: When installing wall brackets, fl exible driver bit extensions may make
it easier to accurately drive the fasteners into the mounting surface.
Operating Instructions—Standard
To lower picture surface, pull screen down. Hesitate—then allow screen to retract
very slowly until it locks in place.
To raise picture surface, pull screen down and, while holding, allow for slow
retraction into the case to reduce risk of injury from falling screen.
Operating Instructions—AutoReturn (Available with Luma)
To lower picture surface, pull screen down. Hesitate—then allow screen to retract
very slowly until it locks in place.
To raise picture surface, pull screen down gently until it stops, then release.
Viewing Surface Care & Maintenance
Matt White XT1000E, Contrast Grey XH800E, Contrast White XH1100E: Mild
soap and water.
Argent White XH1500E, Pearl White CH1900E, Radiant CT2400E, Contrast
Radiant CH2400E: Clean damp cloth.
Glass Beaded CH3200E: Dry brush or cloth.
Ecomatt XT700E: Feather duster.
For complete viewing surface cleaning instructions and other information visit
www.draperinc.com/ProjectionScreens/Surfaces.asp.
If you encounter any diffi culties installing or servicing your screen, call your dealer
or Draper, Inc., Spiceland, Indiana, (765) 987-7999, or fax (765) 987-7142.
