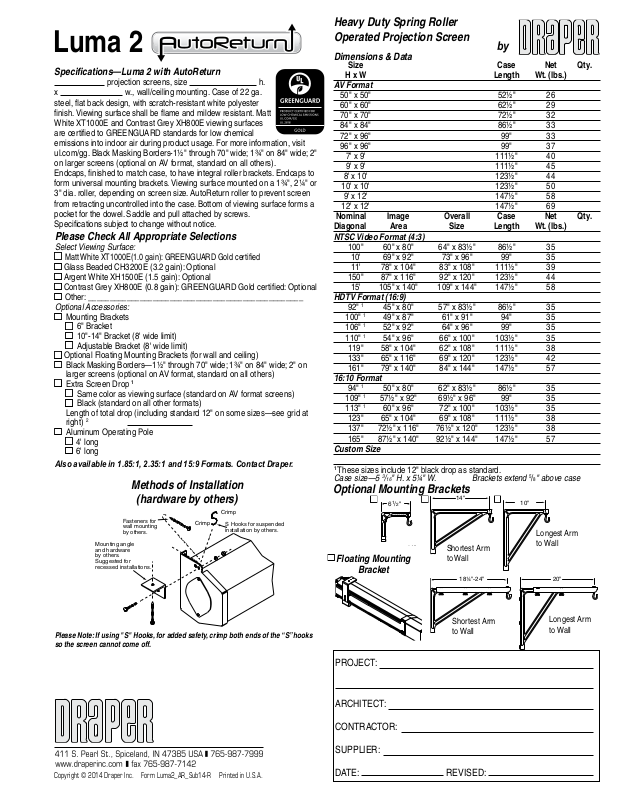

Page 1
Luma 2
Mounting angle
and hardware
by others.
Suggested for
recessed installations.
Fasteners for
wall mounting
by others.
S Hooks for suspended
installation by others.
Crimp
Crimp
61/2"
Max. Load 75 lbs (35 kgs)
6
1
/2"
Specifications—Luma 2 with AutoReturn
projection screens, size h.
x w., wall/ceiling mounting. Case of 22 ga.
steel, flat back design, with scratch-resistant white polyester
finish. Viewing surface shall be flame and mildew resistant. Matt
White XT1000E and Contrast Grey XH800E viewing surfaces
are certified to GREENGUARD standards for low chemical
emissions into indoor air during product usage. For more information, visit
ul.com/gg. Black Masking Borders-1½" through 70" wide; 1¾" on 84" wide; 2"
on larger screens (optional on AV format, standard on all others).
Endcaps, finished to match case, to have integral roller brackets. Endcaps to
form universal mounting brackets. Viewing surface mounted on a 1¾", 2¼" or
3" dia. roller, depending on screen size. AutoReturn roller to prevent screen
from retracting uncontrolled into the case. Bottom of viewing surface forms a
pocket for the dowel. Saddle and pull attached by screws.
Specifications subject to change without notice.
Please Check All Appropriate Selections
Select Viewing Surface:
Matt White XT1000E(1.0 gain): GREENGUARD Gold certified
Glass Beaded CH3200E (3.2 gain): Optional
Argent White XH1500E (1.5 gain): Optional
Contrast Grey XH800E (0.8 gain): GREENGUARD Gold certified: Optional
Other: __________________________________________________
Optional Accessories:
Mounting Brackets
6" Bracket
10"-14" Bracket (8' wide limit)
Adjustable Bracket (8' wide limit)
Optional Floating Mounting Brackets (for wall and ceiling)
Black Masking Borders—1½" through 70" wide; 1¾" on 84" wide; 2" on
larger screens (optional on AV format, standard on all others)
Extra Screen Drop
Same color as viewing surface (standard on AV format screens)
Black (standard on all other formats)
Length of total drop (including standard 12" on some sizes—see grid at
right) 2
Aluminum Operating Pole
4' long
6' long
Also available in 1.85:1, 2.35:1 and 15:9 Formats. Contact Draper.
1
Methods of Installation
(hardware by others)
Heavy Duty Spring Roller
Operated Projection Screen
by
Dimensions & Data
Size Case Net Qty.
H x W Length Wt. (lbs.)
AV Format
50" x 50" 52½" 26
60" x 60" 62½" 29
70" x 70" 72½" 32
84" x 84" 86½" 33
72" x 96" 99" 33
96" x 96" 99" 37
7' x 9' 111½" 40
9' x 9' 111½" 45
8' x 10' 123½" 44
10' x 10' 123½" 50
9' x 12' 147½" 58
12' x 12' 147½" 69
Nominal Image Overall Case Net Qty.
Diagonal Area Size Length Wt. (lbs.)
NTSC Video Format (4:3)
100" 60" x 80" 64" x 83½" 86½" 35
10' 69" x 92" 73" x 96" 99" 35
11' 78" x 104" 83" x 108" 111½" 39
150" 87" x 116" 92" x 120" 123½" 44
15' 105" x 140" 109" x 144" 147½" 58
HDTV Format (16:9)
92" 1 45" x 80" 57" x 83½" 86½" 35
100" 1 49" x 87" 61" x 91" 94" 35
106" 1 52" x 92" 64" x 96" 99" 35
110" 1 54" x 96" 66" x 100" 103½" 35
119" 58" x 104" 62" x 108" 111½" 38
133" 65" x 116" 69" x 120" 123½" 42
161" 79" x 140" 84" x 144" 147½" 57
16:10 Format
94" 1 50" x 80" 62" x 83½" 86½" 35
109" 1 57½" x 92" 69½" x 96" 99" 35
113" 1 60" x 96" 72" x 100" 103½" 35
123" 65" x 104" 69" x 108" 111½" 38
137" 72½" x 116" 76½" x 120" 123½" 38
165" 87½" x 140" 92½" x 144" 147½" 57
Custom Size
1
These sizes include 12" black drop as standard.
Case size—5 3/16" H. x 5¼" W. Brackets extend 5/8" above case
Optional Mounting Brackets
Max. Load 75 lbs (35 kgs)
14"
10"
Please Note: If using "S" Hooks, for added safety, crimp both ends of the “S” hooks
so the screen cannot come off.
Copyright © 2014 Draper Inc. Form Luma2_AR_Sub14-R Printed in U.S.A.
Shortest Arm
Floating Mounting
to Wall
Bracket
18¼"-24"
Shortest Arm
to Wall
PROJECT:
ARCHITECT:
CONTRACTOR:
SUPPLIER:
DATE: REVISED:
Longest Arm
to Wall
20"
Longest Arm
to Wall
