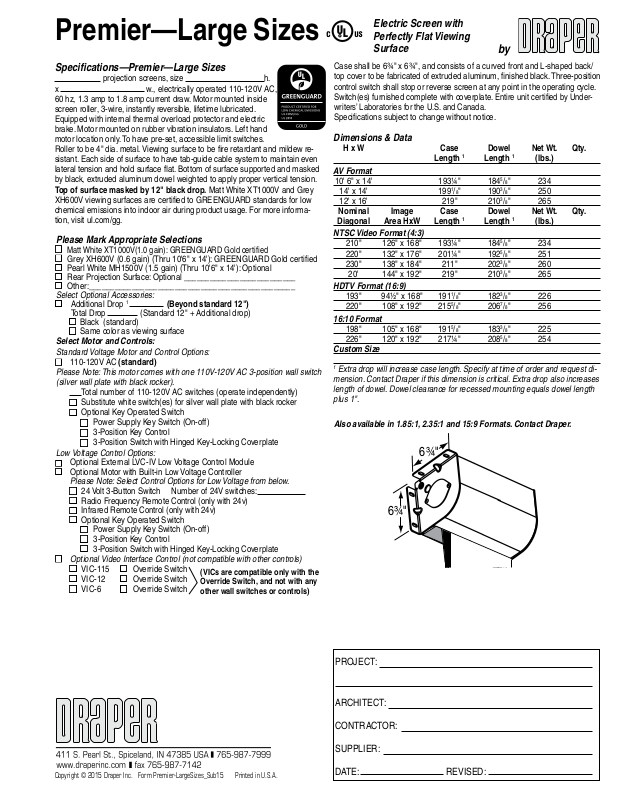

Page 1
Premier—Large Sizes
6¾"
Specifications—Premier—Large Sizes
projection screens, size h.
x w., electrically operated 110-120V AC,
60 hz, 1.3 amp to 1.8 amp current draw. Motor mounted inside
screen roller, 3-wire, instantly reversible, lifetime lubricated.
Equipped with internal thermal overload protector and electric
brake. Motor mounted on rubber vibration insulators. Left hand
motor location only. To have pre-set, accessible limit switches.
Roller to be 4" dia. metal. Viewing surface to be fire retardant and mildew re
sistant. Each side of surface to have tab-guide cable system to maintain even
lateral tension and hold surface flat. Bottom of surface supported and masked
by black, extruded aluminum dowel weighted to apply proper vertical tension.
Top of surface masked by 12" black drop. Matt White XT1000V and Grey
XH600V viewing surfaces are certified to GREENGUARD standards for low
chemical emissions into indoor air during product usage. For more informa
tion, visit ul.com/gg.
Please Mark Appropriate Selections
Matt White XT1000V(1.0 gain): GREENGUARD Gold certified
Grey XH600V (0.6 gain) (Thru 10'6" x 14'): GREENGUARD Gold certified
Pearl White MH1500V (1.5 gain) (Thru 10'6" x 14'): Optional
Rear Projection Surface: Optional __________________________
Other:________________________________________________
Select Optional Accessories:
Additional Drop 1 (Beyond standard 12")
Total Drop (Standard 12" + Additional drop)
Black (standard)
Same color as viewing surface
Select Motor and Controls:
Standard Voltage Motor and Control Options:
110-120V AC (standard)
Please Note: This motor comes with one 110V-120V AC 3-position wall switch
(silver wall plate with black rocker).
Total number of 110-120V AC switches (operate independently)
Substitute white switch(es) for silver wall plate with black rocker
Optional Key Operated Switch
Power Supply Key Switch (On-off)
3-Position Key Control
3-Position Switch with Hinged Key-Locking Coverplate
Low Voltage Control Options:
Optional External LVC-IV Low Voltage Control Module
Optional Motor with Built-in Low Voltage Controller
Please Note: Select Control Options for Low Voltage from below.
24 Volt 3-Button Switch Number of 24V switches:
Radio Frequency Remote Control (only with 24v)
Infrared Remote Control (only with 24v)
Optional Key Operated Switch
Power Supply Key Switch (On-off)
3-Position Key Control
3-Position Switch with Hinged Key-Locking Coverplate
Optional Video Interface Control (not compatible with other controls)
VIC-115 Override Switch
VIC-12 Override Switch
VIC-6 Override Switch
(VICs are compatible only with the
Override Switch, and not with any
other wall switches or controls)
-
-
Electric Screen with
Perfectly Flat Viewing
Surface
Case shall be 6¾" x 6¾", and consists of a curved front and L-shaped back/
top cover to be fabricated of extruded aluminum, finished black. Three-position
control switch shall stop or reverse screen at any point in the operating cycle.
Switch(es) furnished complete with coverplate.
writers’ Laboratories for the U.S. and Canada.
Specifications subject to change without notice.
Dimensions & Data
H x W Case Dowel Net Wt. Qty.
Length
AV Format
10' 6" x 14' 193¼" 184
14' x 14' 199
12' x 16' 219" 210
Nominal Image Case Dowel Net Wt. Qty.
Diagonal Area HxW Length
NTSC Video Format (4:3)
210" 126" x 168" 193¼" 184
220" 132" x 176" 201¼" 192
230" 138" x 184" 211" 202
20' 144" x 192" 219" 210
HDTV Format (16:9)
193" 94½" x 168" 191
220" 108" x 192" 215
16:10 Format
198" 105" x 168" 191
226" 120" x 192" 217¼" 208
Custom Size
1
Extra drop will increase case length. Specify at time of order and request dimension. Contact Draper if this dimension is critical. Extra drop also increases
length of dowel. Dowel clearance for recessed mounting equals dowel length
plus 1".
Also available in 1.85:1, 2.35:1 and 15:9 Formats. Contact Draper.
1
Length
1
/8" 1903/8" 250
1
Length
1
/8" 1823/8" 226
5
/8" 2067/8" 256
5
/8" 1833/8" 225
by
Entire unit certified by Under-
1
(lbs.)
5
/8" 234
3
/8" 265
1
(lbs.)
5
/8" 234
5
/8" 251
3
/8" 260
3
/8" 265
5
/8" 254
6¾"
Copyright © 2015 Draper Inc. Form Premier-LargeSizes_Sub15 Printed in U.S.A.
PROJECT:
ARCHITECT:
CONTRACTOR:
SUPPLIER:
DATE: REVISED:
Page 2
Premier—Large Sizes by Draper Page 2 of 2
www
Appropriate hardware
iate
.
Single Station Control
Internal Screen Wiring
White (Common)
Black (Down)
Red (Up)
Green (Ground)
Dashed wiring
by electrician
Control
switch
Single gang box by others
Min. 4" x 2
1
/8" x 1
7
/8" deep
Red
Black
Blue
Location of key
operated on-off
switch if furnished
To 110-120V Line
Multiple Station Control
Internal Screen Wiring
White (Common)
Black (Down)
Red (Up)
Green (Ground)
Dashed wiring
by electrician
Red
Red
Black
Blue
Blue
Cap off with wire
nut and tape
Black
Red
Blue
Black
Single gang box by others
Min. 4" x 2
1
/8" x 1
7
/8" deep.
3 shown. More or less equally
feasible.
Location of key
operated on-off
switch if furnished
To 110-120V Line
Single Low Voltage Control
Multiple Low Voltage Controls
110-120V Quiet Motor
110-120V Motor
Types of Installation
Wall Mounted
provided by installer.
Ceiling Mounted
Appropr
hardware
provided
by installer
6¾"
Case Dimensions
6¾"
3
/8"
3
33/8"
R2
3
/8"
7
/8"
¼"
11
/16"
Varies
4"
110-120V Motor 110-120V Motor
Please Note: For low voltage (LVC-IV not built-in), serial (LVC-IV)
and network (LVC-IV & LS100) wiring diagrams, please consult
instructions for those modules.
.draperinc.com
Wiring Diagrams*
Dashed wiring
by electrician
To 110-120V Line
* For more information and wiring diagrams for serial and network
communication, please see the Serial and IP Screen and Lift Control
Planning Sheet, Draper Screens and Lift Controls Wiring Manual and
wiring diagrams supplied with individual items.
(765) 987-7999
with Built-in Low Voltage Controller
Internal Screen Wiring
White (Neutral)
Black
Green/Yellow (Ground)
Data Cable
RJ-9
connector
Wall Switch,
RF or IR
Receiver,
or integrated
control system
PROJECT:
SUPPLIER:
DATE:
REVISED:
To 110-120V Line
Dashed wiring
by electrician
Internal Screen Wiring
White (Neutral)
Black
Green/Yellow (Ground)
connectors
Wall Switches,
control systems
Data
Cables
RJ-9
RF or IR
Receivers,
or integrated
