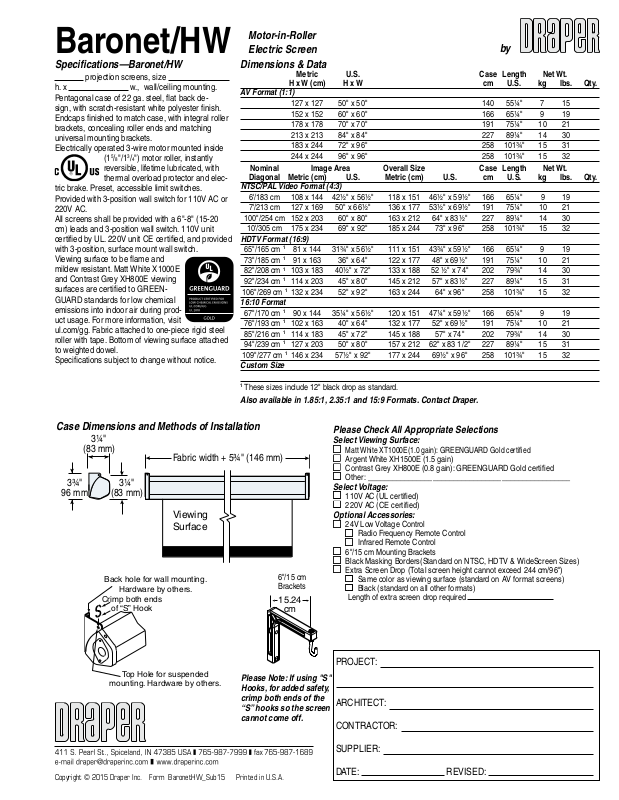

Page 1
Baronet/HW
Fabric width + 5¾" (146 mm)
3¼"
(83 mm)
3¾"
96 mm
Viewing
Surface
3¼"
(83 mm)
15.24
Specifications—Baronet/HW
projection screens, size
h. x
Pentagonal case of 22 ga. steel, flat back de
sign, with scratch-resistant white polyester finish.
Endcaps finished to match case, with integral roller
brackets, concealing roller ends and matching
universal mounting brackets.
Electrically operated 3-wire motor mounted inside
tric brake. Preset, accessible limit switches.
Provided with 3-position wall switch for 110V AC or
220V AC.
All screens shall be provided with a 6"-8" (15-20
cm) leads and 3-position wall switch. 110V unit
certified by UL. 220V unit CE certified, and provided
with 3-position, surface mount wall switch.
Viewing surface to be flame and
mildew resistant. Matt White X1000E
and Contrast Grey XH800E viewing
surfaces are certified to GREEN
GUARD standards for low chemical
emissions into indoor air during prod
uct usage. For more information, visit
ul.com/gg. Fabric attached to one-piece rigid steel
roller with tape. Bottom of viewing surface attached
to weighted dowel.
Specifications subject to change without notice.
w., wall/ceiling mounting.
-
5
(1
/8"/13/4") motor roller, instantly
reversible, lifetime lubricated, with
thermal overload protector and elec
-
-
Dimensions & Data
Metric U.S. Case Length Net Wt.
H x W (cm) H x W cm U.S. kg lbs. Qty.
AV Format (1:1)
127 x 127 50" x 50" 140 55¼" 7 15
152 x 152 60" x 60" 166 65¼" 9 19
178 x 178 70" x 70" 191 75¼" 10 21
213 x 213 84" x 84" 227 89¼" 14 30
183 x 244 72" x 96" 258 101¾" 15 31
244 x 244 96" x 96" 258 101¾" 15 32
Nominal Image Area Overall Size Case Length Net Wt.
Diagonal Metric (cm) U.S. Metric (cm) U.S. cm U.S. kg lbs. Qty.
-
NTSC/PAL Video Format (4:3)
6'/183 cm 108 x 144 42½" x 56½" 118 x 151 46½" x 59½" 166 65¼" 9 19
7'/213 cm 127 x 169 50" x 66½" 136 x 177 53½" x 69½" 191 75¼" 10 21
100"/254 cm 152 x 203 60" x 80" 163 x 212 64" x 83½" 227 89¼" 14 30
10'/305 cm 175 x 234 69" x 92" 185 x 244 73" x 96" 258 101¾" 15 32
HDTV Format (16:9)
65"/165 cm
73"/185 cm
82"/208 cm
92"/234 cm
106"/269 cm
16:10 Format
67"/170 cm
76"/193 cm
85"/216 cm
94"/239 cm
109"/277 cm
Custom Size
Motor-in-Roller
Electric Screen
1
81 x 144 31¾" x 56½" 111 x 151 43¾" x 59½" 166 65¼" 9 19
1
91 x 163 36" x 64" 122 x 177 48" x 69½" 191 75¼" 10 21
1
103 x 183 40½" x 72" 133 x 188 52 ½" x 74" 202 79¾" 14 30
1
114 x 203 45" x 80" 145 x 212 57" x 83½" 227 89¼" 15 31
1
132 x 234 52" x 92" 163 x 244 64" x 96" 258 101¾" 15 32
1
90 x 144 35¼" x 56½" 120 x 151 47¼" x 59½" 166 65¼" 9 19
1
102 x 163 40" x 64" 132 x 177 52" x 69½" 191 75¼" 10 21
1
114 x 183 45" x 72" 145 x 188 57" x 74" 202 79¾" 14 30
1
127 x 203 50" x 80" 157 x 212 62" x 83 1/2" 227 89¼" 15 31
1
146 x 234 57½" x 92" 177 x 244 69½" x 96" 258 101¾" 15 32
by
1
These sizes include 12" black drop as standard.
Also available in 1.85:1, 2.35:1 and 15:9 Formats. Contact Draper.
Case Dimensions and Methods of Installation
Back hole for wall mounting.
Hardware by others.
Crimp both ends
of “S” Hook
Top Hole for suspended
mounting. Hardware by others.
Please Note: If using "S"
Hooks, for added safety,
crimp both ends of the
“S” hooks so the screen
cannot come off.
6"/15 cm
Brackets
cm
Please Check All Appropriate Selections
Select Viewing Surface:
Matt White XT1000E(1.0 gain): GREENGUARD Gold certified
Argent White XH1500E (1.5 gain)
Contrast Grey XH800E (0.8 gain): GREENGUARD Gold certified
Other: __________________________________________________
Select Voltage:
110V AC (UL certified)
220V AC (CE certified)
Optional Accessories:
24V Low Voltage Control
Radio Frequency Remote Control
Infrared Remote Control
6"/15 cm Mounting Brackets
Black Masking Borders(Standard on NTSC, HDTV & WideScreen Sizes)
Extra Screen Drop (Total screen height cannot exceed 244 cm/96")
Same color as viewing surface (standard on AV format screens)
Black (standard on all other formats)
Length of extra screen drop required
PROJECT:
ARCHITECT:
CONTRACTOR:
Copyright © 2015 Draper Inc. Form BaronetHW_Sub15 Printed in U.S.A.
SUPPLIER:
DATE: REVISED:
Page 2
Baronet/HW by Draper
Neutral
L1
220v,
50 Hz.
or 60 Hz.
Dashed wiring
by installer
Control
switch
Single Station Control
CE Approved
Internal Screen Wiring
Blue-220v (Common)
Brown-220v (Down)
Black-220v (Up)
Dashed wiring
by installer
Neutral
Hot
Multiple Station Control
Not CE Approved
Cap off with wire
nut & tape
Red
Red
Red
Blue
Blue
Blue
Black
Black
220v, 50 Hz. or 60 Hz.
Black
Junction box at
left end of screen
Internal Screen Wiring
Blue-220v (Common)
Brown-220v (Down)
Black-220v (Up)
Green/Yellow (Motor Ground)
Green/Yellow (Motor Ground)
3.8 mm (1
1
/2")
3.2 mm (1
1
/4")
8.6 mm
(3
3
/8")
7.8 mm
(3
1
/16")
4.5 mm (1
3
/4")
UP
DOWN
7 mm (2
3
/4")
11.8 mm
(4
1
/2")
3"-6" leads
www
Single Station Control
Multiple Station Control
all Switch
Baronet/HW 110V AC
Page 2 of 2
Wiring Diagrams
Baronet/HW 220V AC (CE)
Junction box at
left end of screen
Blue
Red
Location of key
operated on-off
switch if furnished
To 110V AC Line
Internal Screen Wiring
White (Common)
Black (Down)
Red (Up)
Green (Motor Ground)
Control
Single gang box by others
switch
Min. 4" x 2-1/8" x 1-7/8" deep
Black
Dashed wiring
by electrician
Junction box at
left end of screen
Red
Red
Red
Black
Location of key
operated on-off
switch if furnished
To 110V AC Line
Internal Screen Wiring
White (Common)
Black (Down)
Red (Up)
Green (Motor Ground)
Cap off with wire
Blue
nut and tape
Black
Black
Dashed wiring
by electrician
Blue
Blue
Single gang box by others
Min. 4" x 2-1/8" x 1-7/8" deep.
3 shown. More or less equally
feasible.
Low Voltage, IR Remote, RF Remote, Serial or Network Control (LVC-IV)
Internal Screen Wiring
White (Common)
Red (Up)
Black 110 (Down)
Green/Yellow
(Motor Ground)
N
To
110-120 VAC
2
For more information and wiring diagrams for serial and network communication, please consult wiring diagrams supplied with individual items.
Line
L1
GND
White or Blue-Common to screen & 110/220V AC Neutral
Red-to screen (directional)
Brown-to screen (directional)
Ye llow-to 110/220V AC-Hot
Black-to 110/220V AC-Hot
Green/Yellow (Ground)
Location of key
operated 0n-off
switch if furnished.
Dashed wiring by electrician
Low voltage wiring by others
Receiver
Button
3 Button Wall Switch
DOWN - Black
COM - White
UP - Red
Electrically Straight
Data Cable to more
LVC-IV modules*
RS232/485 Inputs/Outputs
Low Voltage Trigger
3-28 VAC
IR Eye Input
*A maximum of six (6)
LVC-IV modules can be
linked together.
W
Please Note: For serial (LVC-IV) and network (LVC-IV & LS100) wiring diagrams, please consult instructions for those modules.
* For more information and wiring diagrams for low voltage multiple motors and network communication, please consult
wiring diagrams supplied with individual items.
220V 3-Position, Surface Mount Wall Switch110-120V 3-Position Wall Switch
PROJECT:
SUPPLIER:
DATE: REVISED:
.draperinc.com (765) 987-7999
