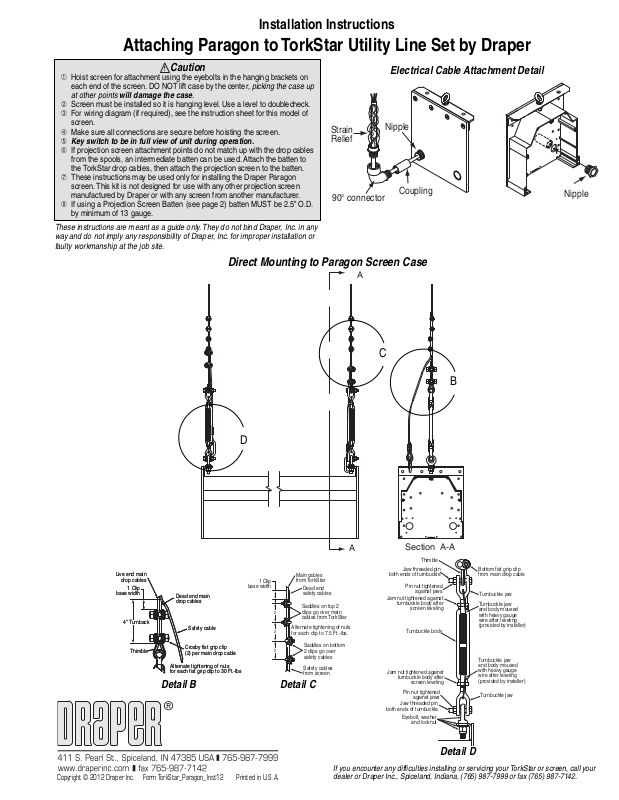

Installation Instructions
Attaching Paragon to TorkStar Utility Line Set by Draper
➀ Hoist screen for attachment using the eyebolts in the hanging brackets on
Caution
each end of the screen. DO NOT lift case by the center, picking the case up
at other points will damage the case.
➁ Screen must be installed so it is hanging level. Use a level to doublecheck.
➂ For wiring diagram (if required), see the instruction sheet for this model of
screen.
➃ Make sure all connections are secure before hoisting the screen.
➄ Key switch to be in full view of unit during operation.
➅ If projection screen attachment points do not match up with the drop cables
from the spools, an intermediate batten can be used. Attach the batten to
the TorkStar drop cables, then attach the projection screen to the batten.
➆ These instructions may be used only for installing the Draper Paragon
screen. This kit is not designed for use with any other projection screen
manufactured by Draper or with any screen from another manufacturer.
➇ If using a Projection Screen Batten (see page 2) batten MUST be 2.5" O.D.
by minimum of 13 gauge.
These instructions are meant as a guide only. They do not bind Draper, Inc. in any
way and do not imply any responsibility of Draper, Inc. for improper installation or
faulty work man ship at the job site.
Direct Mounting to Paragon Screen Case
Strain
Relief
90° connector
A
C
Electrical Cable Attachment Detail
Nipple
Coupling
Nipple
B
D
A
Live end main
Live end main
drop cables
drop cables
1 Clip
1 Clip
base width
base width
4" Turnback
4" Turnback
Thimble
Thimble
Dead end main
Dead end main
drop cables
drop cables
Safety cable
Safety cable
Crosby fist grip clip
Crosby fist grip clip
(2) per main drop cable
(2) per main drop cable
Alternate tightening of nuts
Alternate tightening of nuts
for each fist grip clip to 30 Ft.-lbs
for each fist grip clip to 30 Ft.-lbs
1 Clip
base width
Main cables
from TorkStar
Dead end
safety cables
Saddles on top 2
clips go over main
2
cables from TorkStar
Alternate tightening of nuts
2
for each clip to 7.5 Ft.-lbs.
Saddles on bottom
2
2 clips go over
safety cables
Safety cables
from screen
Detail B Detail C
®
Section A-A
Thimble
Jaw threaded pin
both ends of turnbuckle
Pin nut tightened
against jaws
Jam nut tightened against
turnbuckle body after
screen leveling
Turnbuckle body
Jam nut tightened against
turnbuckle body after
screen leveling
Pin nut tightened
against jaws
Jaw threaded pin
both ends of turnbuckle
Eyebolt, washer
and locknut
Bottom fist grip clip
from main drop cable
Turnbuckle jaw
Turnbuckle jaw
and body moused
with heavy gauge
wire after leveling
(provided by installer)
Turnbuckle jaw
and body moused
with heavy gauge
wire after leveling
(provided by installer)
Turnbuckle jaw
Copyright © 2012 Draper Inc. Form TorkStar_Paragon_Inst12 Printed in U.S.A.
Detail D
If you encounter any diffi culties installing or ser vic ing your TorkStar or screen, call your
dealer or Draper Inc., Spiceland, Indiana, (765) 987-7999 or fax (765) 987-7142.
Attaching Paragon to TorkStar Utility Line Set by Draper page 2 of 2
9
Mounting to Batten then to Paragon Screen Case
Live end main
drop cables
1 Clip
base width
C
Dead end main
drop cables
B
D
A
Section A-A
A
Electrical Cable Attachment Detail
Strain
Relief
90° connector
Nipple
Coupling
Nipple
Projection Screen Batten Splice Kit
For screens requiring a Projection Screen Batten longer than 20', a splice kit is required.
➀ Slide pre-drilled batten tubes over the splice tube.
➁ Line up the holes in the splice tube with the holes in the batten tubes.
➂ Secure using ½"-13 x 3" zine hex head cap screws and ½"-13 nylon lock nuts.
➃ Attach to drop cables as shown above.
Please Note: Be sure that the center drop cable and clamp are centered on the meeting point of
the two sections of projection screen batten. The clamp should cover the the meeting point of the
two sections.
4" Turnback
Thimble
Detail B
1 Clip
base width
2
2
2
Thimble
Jaw threaded pin
both ends of turnbuckle
Pin nut tightened
Jam nut tightened against
Jam nut tightened against
both ends of turnbuckle
against jaws
turnbuckle body after
screen leveling
Turnbuckle body
turnbuckle body after
screen leveling
Pin nut tightened
against jaws
Jaw threaded pin
Eyebolt, washer
and locknut
Safety cable
Crosby fist grip clip
(2) per main drop cable
Alternate tightening of nuts
for each fist grip clip to 30 Ft.-lbs
Main cables
from TorkStar
Dead end
safety cables
Saddles on top 2
clips go over main
cables from TorkStar
Alternate tightening of nuts
for each clip to 7.5 Ft.-lbs.
Saddles on bottom
2 clips go over
safety cables
Safety cables
from screen
Detail C
Bottom fist grip clip
from main drop cable
Turnbuckle jaw
Turnbuckle jaw
and body moused
with heavy gauge
wire after leveling
(provided by installer)
Turnbuckle jaw
and body moused
with heavy gauge
wire after leveling
(provided by installer)
Turnbuckle jaw
Batten
Pipe
Splice
Pipe
1
A
4
10" 3"
18"
Section AA
36"
1
3
2
➀ TorkStar Splice Tube 2½" O.D. x 13 GAGE
STEEL.
➁ TorkStar Splice Tube 2¼" O.D. x 14 GAGE x 36".
➂ Screw ½"-13 x 3" zinc grade 5 hex head cap.
A
➃ Nut ½"-13 nylon lock nut LT/half/zinc TorkStar
Detail D
Splice Tube.
Varies
www.draperinc.com
Varies
