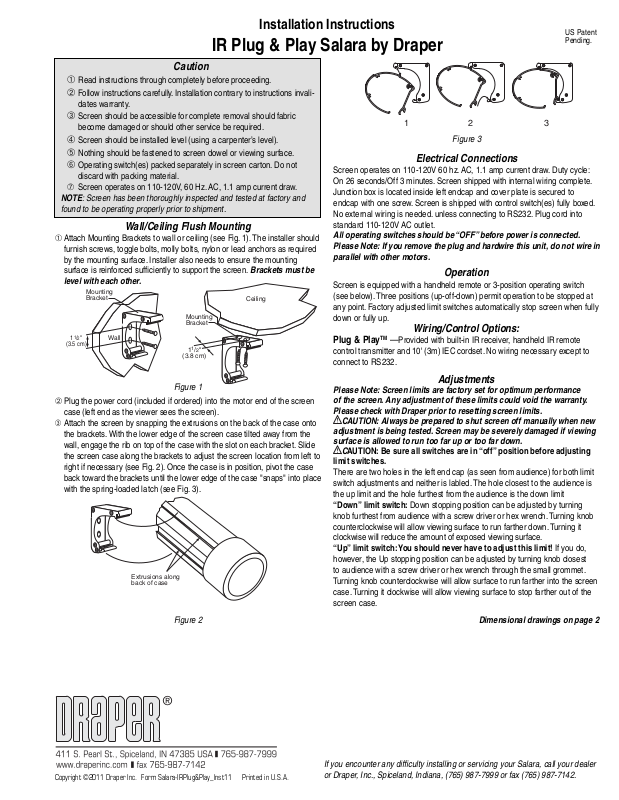

Installation Instructions
M
IR Plug & Play Salara by Draper
Caution
➀
Read instructions through completely before proceeding.
➁
Follow instructions carefully. Installation con trary to instructions in val i-
dates warranty.
➂
Screen should be accessible for complete removal should fabric
become damaged or should other ser vice be required.
➃
Screen should be installed level (using a carpenter’s level).
➄
Nothing should be fastened to screen dowel or viewing surface.
➅
Operating switch(es) packed separately in screen carton. Do not
discard with packing material.
➆
Screen operates on 110-120V, 60 Hz. AC, 1.1 amp current draw.
NOTE: Screen has been thoroughly inspected and tested at factory and
found to be operating properly prior to shipment.
Wall/Ceiling Flush Mounting
➀
Attach Mounting Brackets to wall or ceiling (see Fig. 1). The installer should
furnish screws, toggle bolts, molly bolts, nylon or lead anchors as required
by the mounting surface. Installer also needs to ensure the mounting
surface is reinforced suffi ciently to support the screen. Brackets must be
level with each other.
11/2"
(3.5 cm)
ounting
Bracket
Wall
Mounting
Bracket
1
1
/2"
(3.8 cm)
Ceiling
US Patent
Pending.
1
23
Figure 3
Electrical Connections
Screen operates on 110-120V 60 hz. AC, 1.1 amp current draw. Duty cycle:
On 26 seconds/Off 3 minutes. Screen shipped with internal wiring complete.
Junction box is located inside left endcap and cover plate is secured to
endcap with one screw. Screen is shipped with control switch(es) fully boxed.
No external wiring is needed. unless connecting to RS232. Plug cord into
standard 110-120V AC outlet.
All operating switches should be “OFF” before power is connected.
Please Note: If you remove the plug and hardwire this unit, do not wire in
parallel with other motors.
Operation
Screen is equipped with a handheld remote or 3-position operating switch
(see below). Three positions (up-off-down) per mit operation to be stopped at
any point. Factory adjusted limit switches au to mat i cal ly stop screen when fully
down or fully up.
Wiring/Control Options:
Plug & PlayTM —Provided with built-in IR receiver, handheld IR remote
control transmitter and 10' (3m) IEC cordset. No wiring necessary except to
connect to RS232.
Figure 1
➁
Plug the power cord (included if ordered) into the motor end of the screen
case (left end as the viewer sees the screen).
➂ Attach the screen by snapping the extrusions on the back of the case onto
the brackets. With the lower edge of the screen case tilted away from the
wall, engage the rib on top of the case with the slot on each bracket. Slide
the screen case along the brackets to adjust the screen location from left to
right if necessary (see Fig. 2). Once the case is in position, pivot the case
back toward the brackets until the lower edge of the case "snaps" into place
with the spring-loaded latch (see Fig. 3).
Please Note: Screen limits are factory set for optimum performance
of the screen. Any adjustment of these limits could void the warranty.
Please check with Draper prior to resetting screen limits.
adjustment is being tested. Screen may be severely damaged if viewing
surface is allowed to run too far up or too far down.
limit switches.
There are two holes in the left end cap (as seen from audience) for both limit
switch adjustments and neither is labled. The hole closest to the audience is
the up limit and the hole furthest from the audience is the down limit
“Down” limit switch: Down stopping position can be adjusted by turning
knob furthest from audience with a screw driver or hex wrench. Turning knob
counterclockwise will allow viewing surface to run farther down. Turning it
clockwise will reduce the amount of exposed viewing surface.
“Up” limit switch: You should never have to adjust this limit! If you do,
however, the Up stopping position can be adjusted by turning knob closest
Extrusions along
back of case
to audience with a screw driver or hex wrench through the small grommet.
Turning knob counterclockwise will allow surface to run farther into the screen
case. Turning it clockwise will allow viewing surface to stop farther out of the
screen case.
Figure 2
Adjustments
CAUTION: Always be prepared to shut screen off manually when new
CAUTION: Be sure all switches are in “off” position before ad just ing
Dimensional drawings on page 2
®
If you encounter any diffi culty installing or ser vic ing your Salara, call your dealer
Copyright ©2011 Draper Inc. Form Salara-IRPlug&Play_Inst11 Printed in U.S.A.
or Draper, Inc., Spiceland, Indiana, (765) 987-7999 or fax (765) 987-7142.
Page 2
IR Plug & Play Salara by Draper
9
13
/16"
3
(9.57 cm)
5
/16"
(.8 cm)
1
/8"
3
(8 cm)
1
/16"
5
(12.8 cm)
7
5
/16"
(13.8 cm)
Chassis
ground
label
7
/16"
3
(8.7 cm)
13/8" (1.5 cm)
3
/8"
(1 cm)
Viewing Surface
Standard 110-120V AC IEC (no external wiring necessary)
Green/Yellow
Line 1
N
IEC Inlet
Motor/PCB Ground
(1) #10 Ring
Terminal on
each ground wire
Dimensions
Case Length
Wiring Diagram
Floating Mounting Brackets
Green
Black
White
Page 2 of 2
311/16"
(9.4 cm)
5
/16"
(.8 cm)
L N Neu Dir Dir
MotorAC In
Green
White
Red
Black
Motor
Please Note: If you remove the plug and hardwire this unit, do not wire in parallel with other motors.
