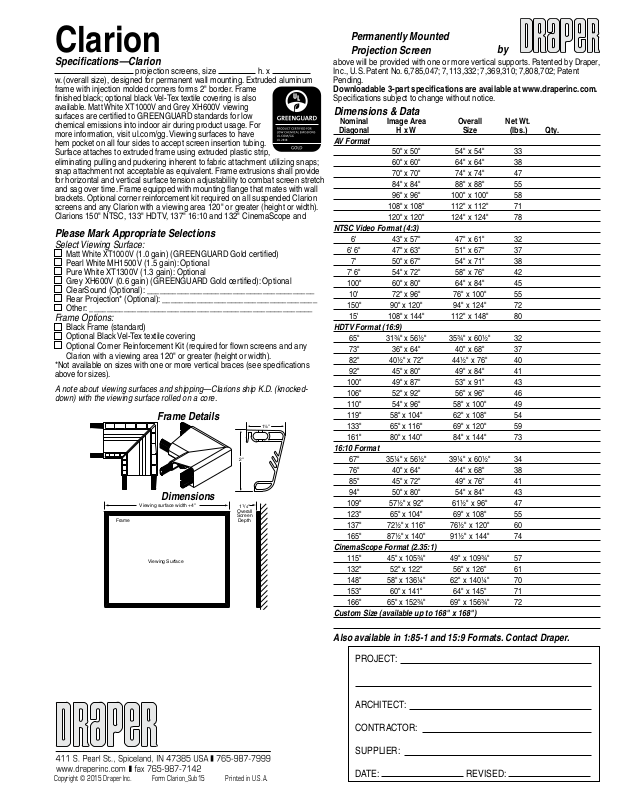

Page 1
Clarion
Specifications—Clarion
w. (overall size), designed for permanent wall mounting. Extruded aluminum
frame with injection molded corners forms 2" border. Frame
finished black; optional black Vel-Tex textile covering is also
available.
Matt White XT1000V
surfaces are certified to GREENGUARD standards for low
chemical emissions into indoor air during product usage. For
more information, visit ul.com/gg. Viewing surfaces to have
hem pocket on all four sides to accept screen insertion tubing.
Surface attaches to extruded frame using extruded plastic strip,
eliminating pulling and puckering inherent to fabric attachment utilizing snaps;
snap attachment not acceptable as equivalent. Frame extrusions shall provide
for horizontal and vertical surface tension adjustability to combat screen stretch
and sag over time. Frame equipped with mounting flange that mates with wall
brackets. Optional corner reinforcement kit required on all suspended Clarion
screens and any Clarion with a viewing area 120" or greater (height or width).
Clarions 150" NTSC, 133" HDTV, 137" 16:10 and 132" CinemaScope and
projection screens, size h. x
and Grey XH600V viewing
Please Mark Appropriate Selections
Select Viewing Surface:
Matt White XT1000V
(1.0 gain) (GREENGUARD Gold certified)
Pearl White MH1500V (1.5 gain): Optional
Pure White XT1300V (1.3 gain): Optional
Grey XH600V (0.6 gain) (GREENGUARD Gold certified): Optional
ClearSound (Optional): _______________________________________
Rear Projection* (Optional): ____________________________________
Other: ____________________________________________________
Frame Options:
Black Frame (standard)
Optional Black Vel-Tex textile covering
Optional Corner Reinforcement Kit (required for flown screens and any
Clarion with a viewing area 120" or greater (height or width).
*Not available on sizes with one or more vertical braces (see specifications
above for sizes).
A note about viewing surfaces and shipping—Clarions ship K.D. (knockeddown) with the viewing surface rolled on a core.
Frame Details
1¼"
2"
Dimensions
Viewing surface width +4"
Frame
Viewing Surface
11/4"
Overall
Screen
Depth
above will be provided with one or more vertical supports. Patented by Draper,
Inc., U.S. Patent No. 6,785,047; 7,113,332; 7,369,310; 7,808,702; Patent
Pending.
Downloadable 3-part specifications are available at www.draperinc.com.
Specifications subject to change without notice.
Dimensions & Data
Nominal Image Area Overall Net Wt.
Diagonal H x W Size (lbs.) Qty.
AV Format
50" x 50" 54" x 54" 33
60" x 60" 64" x 64" 38
70" x 70" 74" x 74" 47
84" x 84" 88" x 88" 55
96" x 96" 100" x 100" 58
108" x 108" 112" x 112" 71
120" x 120" 124" x 124" 78
NTSC Video Format (4:3)
6' 43" x 57" 47" x 61" 32
6' 6" 47" x 63" 51" x 67" 37
7' 50" x 67" 54" x 71" 38
7' 6" 54" x 72" 58" x 76" 42
100" 60" x 80" 64" x 84" 45
10' 72" x 96" 76" x 100" 55
150" 90" x 120" 94" x 124" 72
15' 108" x 144" 112" x 148" 80
HDTV Format (16:9)
65" 31¾" x 56½" 35¾" x 60½" 32
73" 36" x 64" 40" x 68" 37
82" 40½" x 72" 44½" x 76" 40
92" 45" x 80" 49" x 84" 41
100" 49" x 87" 53" x 91" 43
106" 52" x 92" 56" x 96" 46
110" 54" x 96" 58" x 100" 49
119" 58" x 104" 62" x 108" 54
133" 65" x 116" 69" x 120" 59
161" 80" x 140" 84" x 144" 73
16:10 Format
67" 35¼" x 56½" 39¼" x 60½" 34
76" 40" x 64" 44" x 68" 38
85" 45" x 72" 49" x 76" 41
94" 50" x 80" 54" x 84" 43
109" 57½" x 92" 61½" x 96" 47
123" 65" x 104" 69" x 108" 55
137" 72½" x 116" 76½" x 120" 60
165" 87½" x 140" 91½" x 144" 74
CinemaScope Format (2.35:1)
115" 45" x 105¾" 49" x 109¾" 57
132" 52" x 122" 56" x 126" 61
148" 58" x 136¼" 62" x 140¼" 70
153" 60" x 141" 64" x 145" 71
166" 65" x 152¾" 69" x 156¾" 72
Custom Size (available up to 168" x 168")
Permanently Mounted
Projection Screen
by
Copyright © 2015 Draper Inc. Form Clarion_Sub15 Printed in U.S.A.
Also available in 1:85-1 and 15:9 Formats. Contact Draper.
PROJECT:
ARCHITECT:
CONTRACTOR:
SUPPLIER:
DATE: REVISED:
