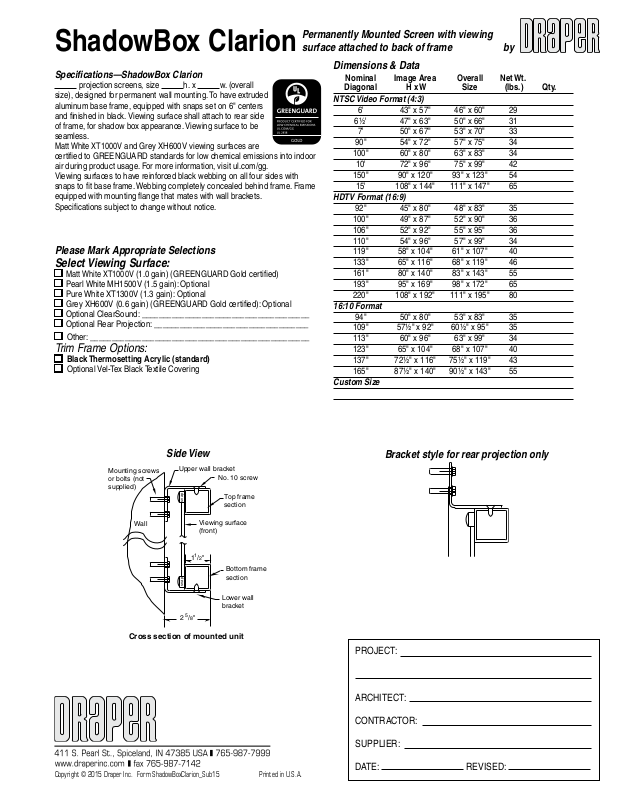

Page 1
Permanently Mounted Screen with viewing
Upper wall bracket
Top frame
section
Viewing surface
(front)
No. 10 screw
Bottom frame
section
Lower wall
bracket
Cross section of mounted unit
snap
snap
Wall
2 5/8"
11/2"
Mounting screws
or bolts (not
supplied)
ShadowBox Clarion
surface attached to back of frame
by
Specifications—ShadowBox Clarion
projection screens, size h. x w. (overall
size), designed for permanent wall mounting. To have extruded
aluminum base frame, equipped with snaps set on 6" centers
and finished in black. Viewing surface shall attach to rear side
of frame, for shadow box appearance. Viewing surface to be
seamless.
Matt White XT1000V
and Grey XH600V viewing surfaces are
certified to GREENGUARD standards for low chemical emissions into indoor
air during product usage. For more information, visit ul.com/gg.
Viewing surfaces to have reinforced black webbing on all four sides with
snaps to fit base frame. Webbing completely concealed behind frame. Frame
equipped with mounting flange that mates with wall brackets.
Specifications subject to change without notice.
Please Mark Appropriate Selections
Select Viewing Surface:
Matt White XT1000V
(1.0 gain) (GREENGUARD Gold certified)
Pearl White MH1500V (1.5 gain): Optional
Pure White XT1300V (1.3 gain): Optional
Grey XH600V (0.6 gain) (GREENGUARD Gold certified): Optional
Optional ClearSound: _______________________________________
Optional Rear Projection: ____________________________________
Other: ___________________________________________________
Trim Frame Options:
Black Thermosetting Acrylic (standard)
Optional Vel-Tex Black Textile Covering
Dimensions & Data
Nominal Image Area Overall Net Wt.
Diagonal H x W Size (lbs.) Qty.
NTSC Video Format (4:3)
6' 43" x 57" 46" x 60" 29
6½' 47" x 63" 50" x 66" 31
7' 50" x 67" 53" x 70" 33
90" 54" x 72" 57" x 75" 34
100" 60" x 80" 63" x 83" 34
10' 72" x 96" 75" x 99" 42
150" 90" x 120" 93" x 123" 54
15' 108" x 144" 111" x 147" 65
HDTV Format (16:9)
92" 45" x 80" 48" x 83" 35
100" 49" x 87" 52" x 90" 36
106" 52" x 92" 55" x 95" 36
110" 54" x 96" 57" x 99" 34
119" 58" x 104" 61" x 107" 40
133" 65" x 116" 68" x 119" 46
161" 80" x 140" 83" x 143" 55
193" 95" x 169" 98" x 172" 65
220" 108" x 192" 111" x 195" 80
16:10 Format
94" 50" x 80" 53" x 83" 35
109" 57½" x 92" 60½" x 95" 35
113" 60" x 96" 63" x 99" 34
123" 65" x 104" 68" x 107" 40
137" 72½" x 116" 75½" x 119" 43
165" 87½" x 140" 90½" x 143" 55
Custom Size
Copyright © 2015 Draper Inc. Form ShadowBoxClarion_Sub15 Printed in U.S.A.
Side View
Bracket style for rear projection only
PROJECT:
ARCHITECT:
CONTRACTOR:
SUPPLIER:
DATE:
REVISED:
