Page 1
Athletic Equipment
Athletic Equipment
Indoor Equipment
&
Outdoor Equipment
Page 2
Draper, Inc.
specializes in the design and manufacture of top quality
educational equipment. Since 1902, we’ve been a recognized
worldwide leader in our industry.
We are proud to offer you an extensive line of gymnasium
equipment that carries with it our reputation for quality
materials and superior engineering and craftsmanship.
Choose Draper as your full-line gymnasium equipment
supplier—our quality is unequaled.
Draper also manufactures projection screens, lifts and
mounts for projectors, plasma displays and fl at panel displays and FlexShade window coverings. Please call for
catalogs of any of these product lines, or visit our web site at
www.draperinc.com.
Draper has a tradition of product innovation. Watch for
the logos below to discover new products and features.
Indoor Equipment
Table of Contents
Indoor Athletic Equipment
Wall-Mounted Backstops .......................... 3
Basketball Backboards .............................. 4
Basketball Goals ....................................... 5
Portable Basketball Systems ...................... 5
Backboard Height Adjusters ...................... 6
Accessories & Controls .............................. 7

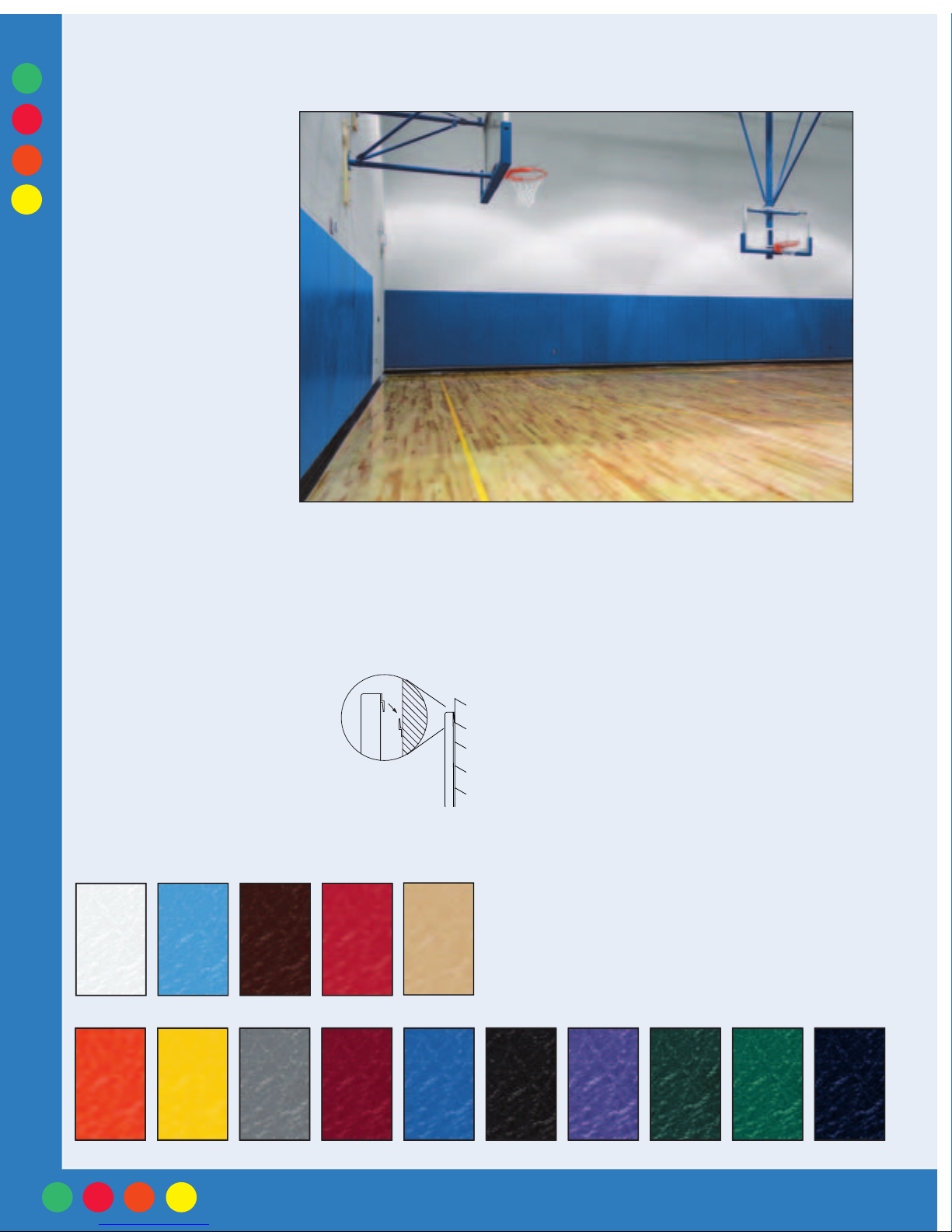

Wall Pads .................................................. 8

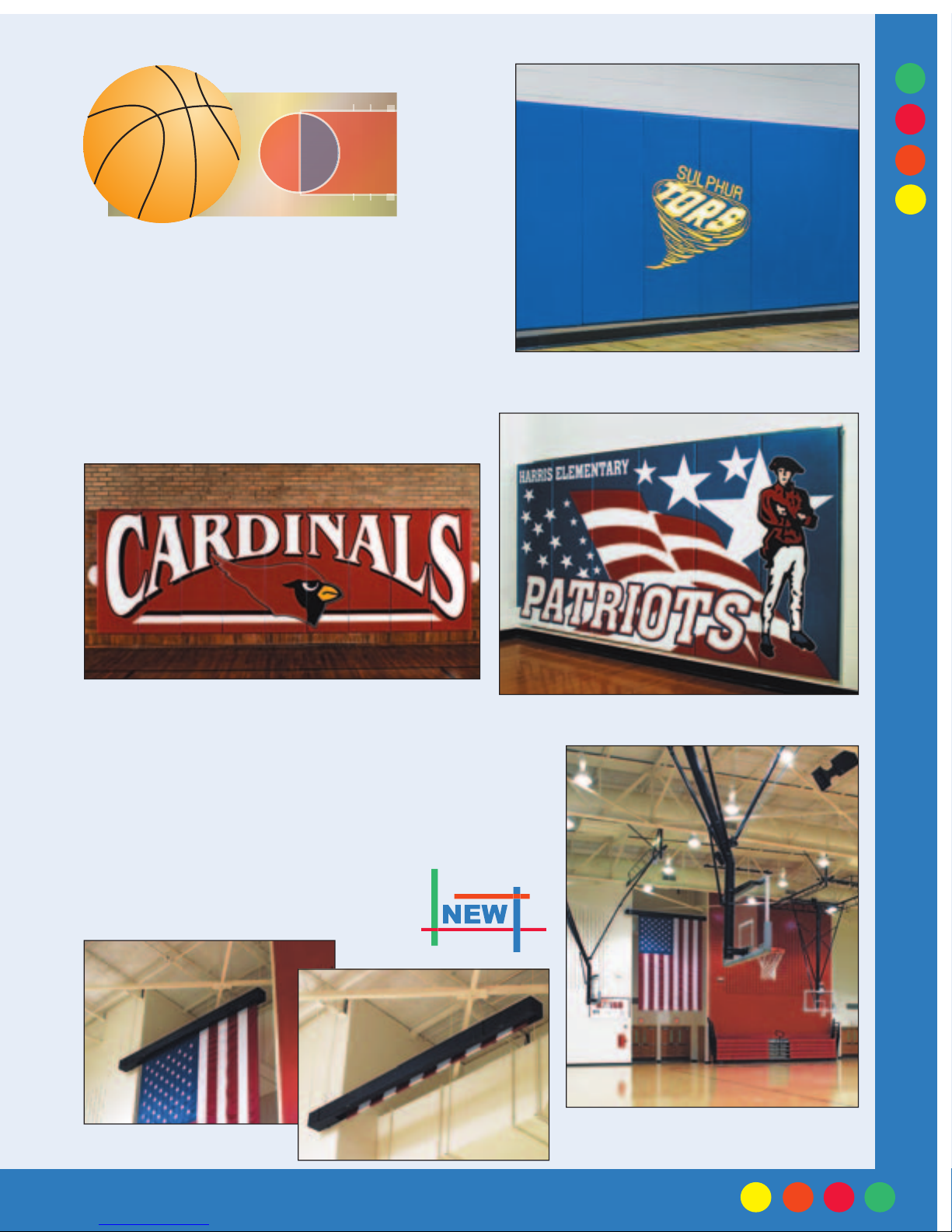

Graphic Wall Pads, Patriot Flag ................ 9

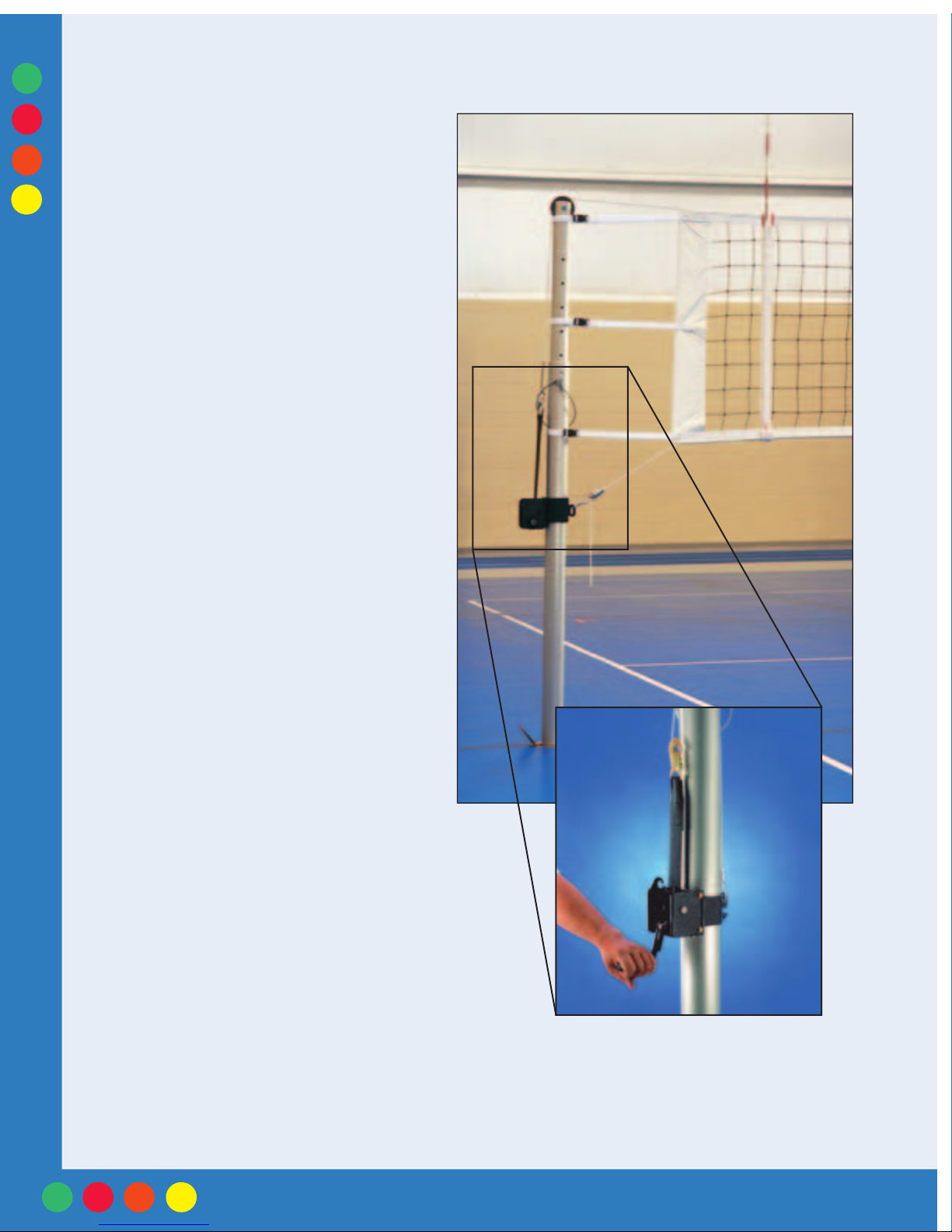

Power Volleyball System .......................... 10

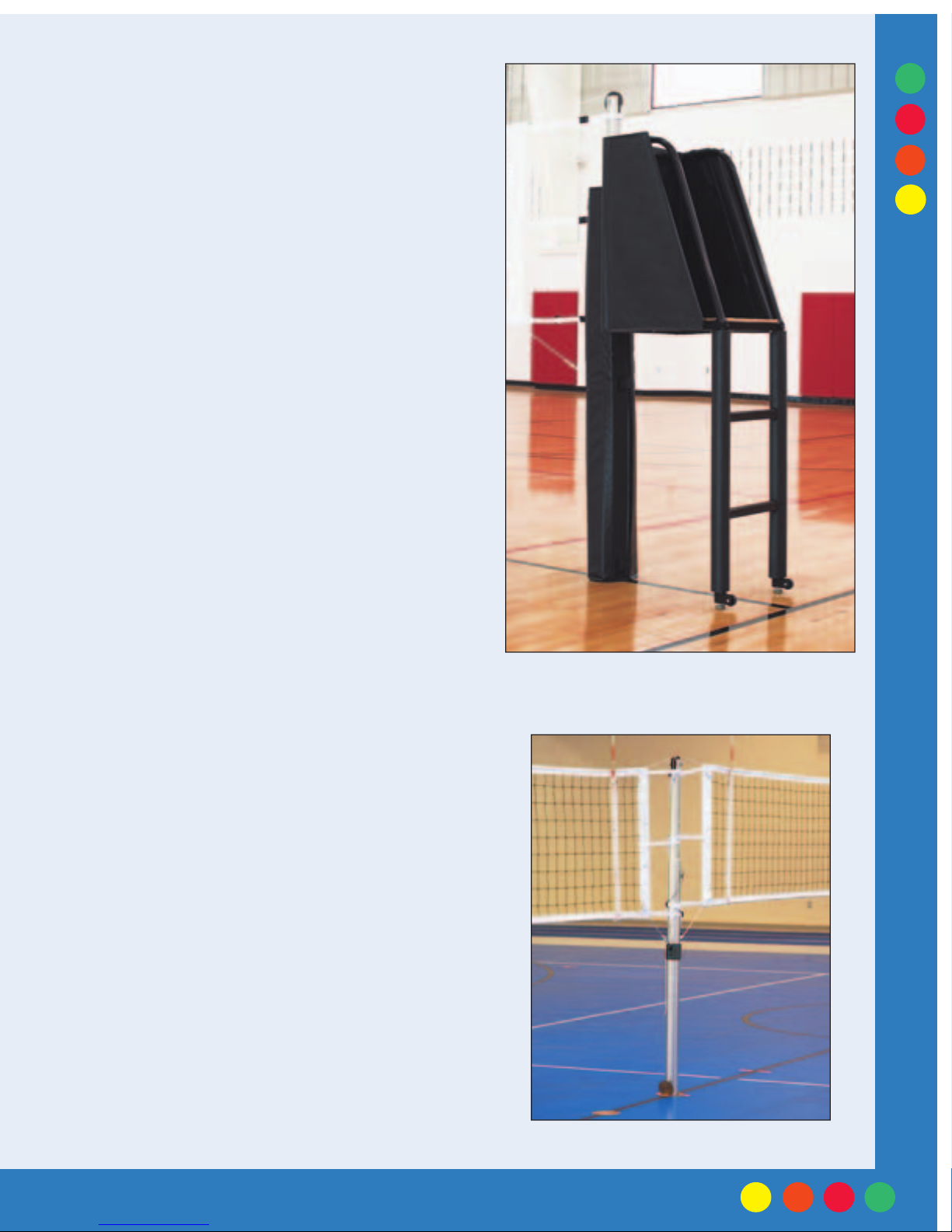

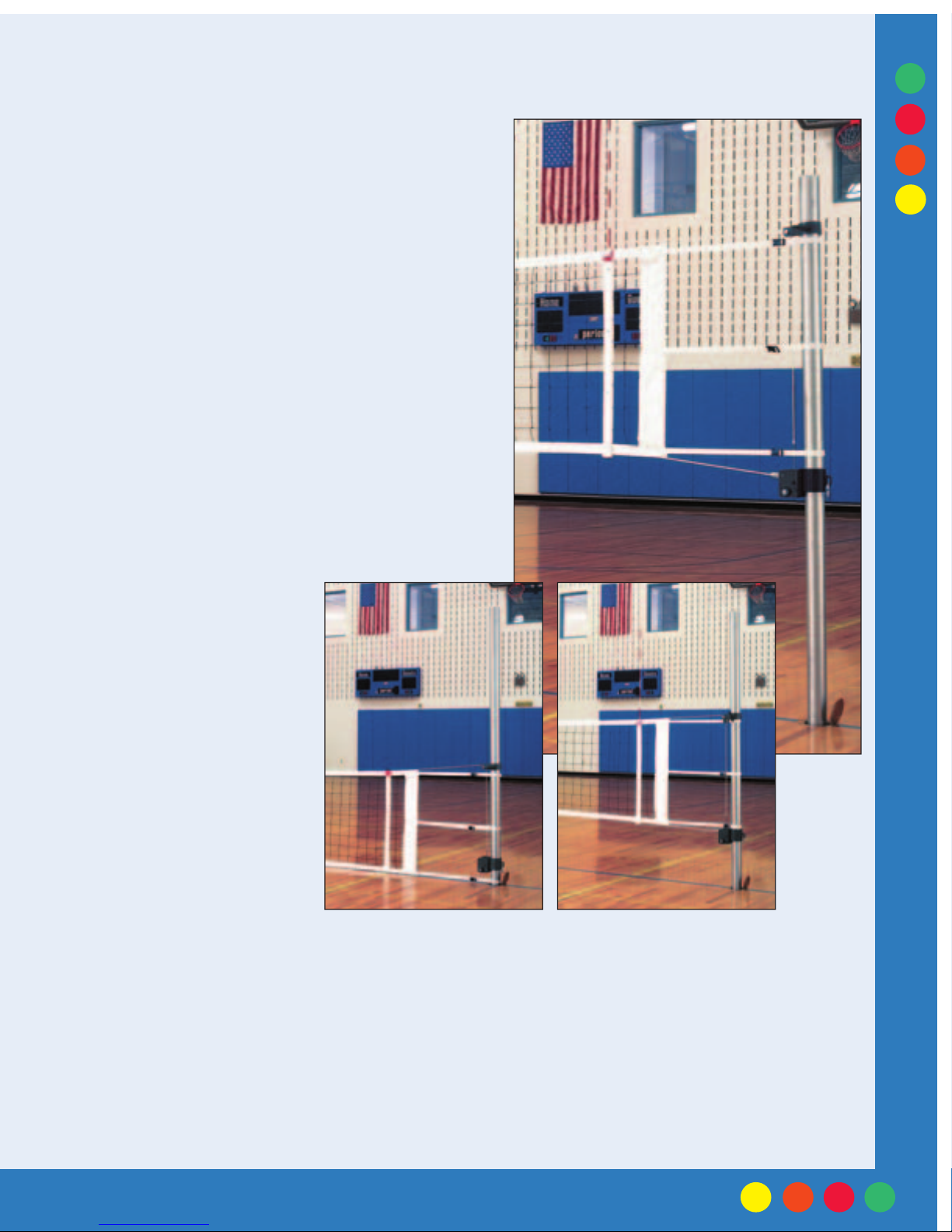

Competition Volleyball System ............... 11

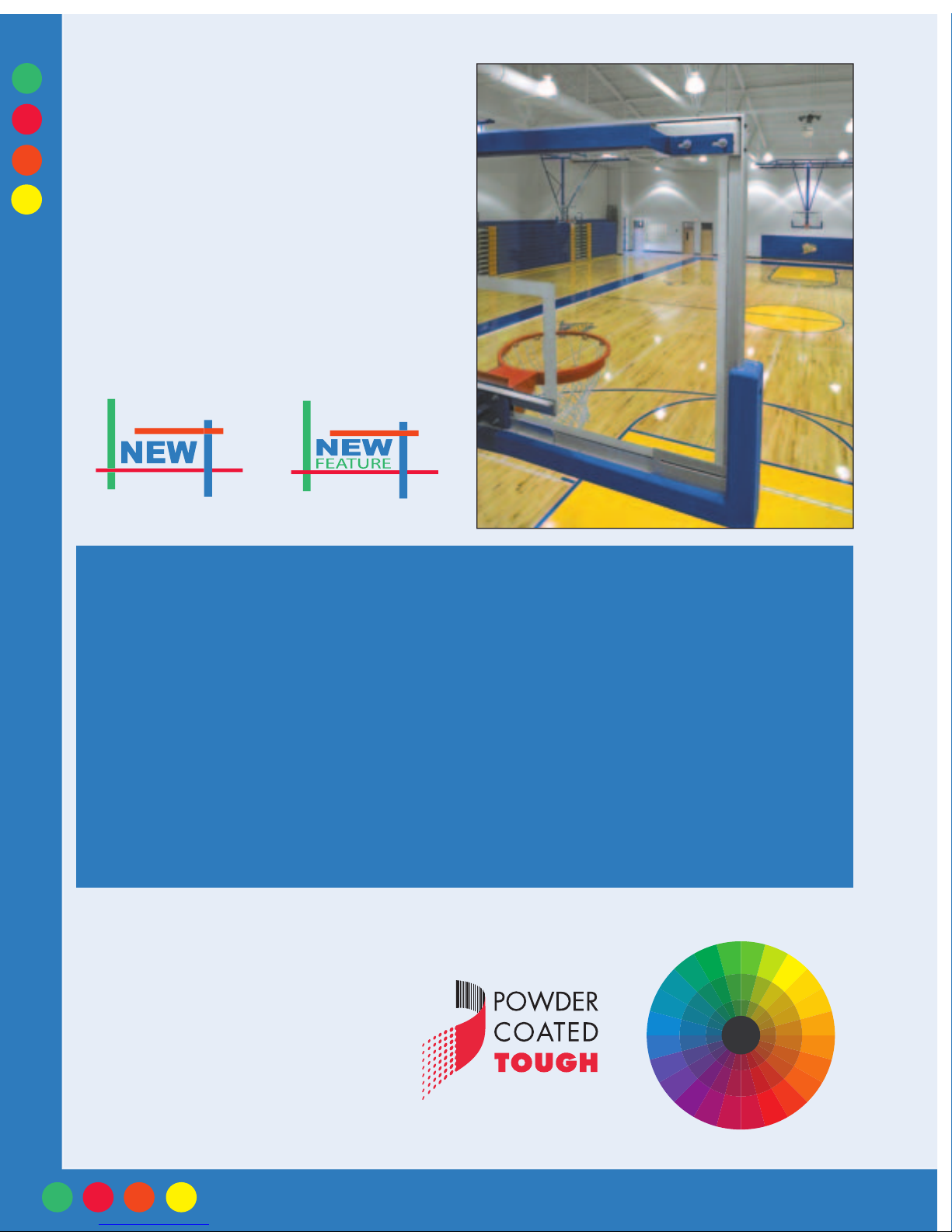

Show Your Colors—We Powder Coat
Powder coating is the advanced method we use
to apply a scratch-resistant color fi nish to our steel
mechanical tubing on all EZ Fold Basketball
Backstops. Black and white are standard, and other
colors are available at a minimal additional charge.
With nearly unlimited colors to choose from, you
can specify your school colors, or the color of your
choice to have the backstop match the gym decor.
Powder coating creates a smooth, durable, protective
fi nish. Minimizes touch-ups following product
installation. Considered the most attractive and
durable fi nish on the market today.

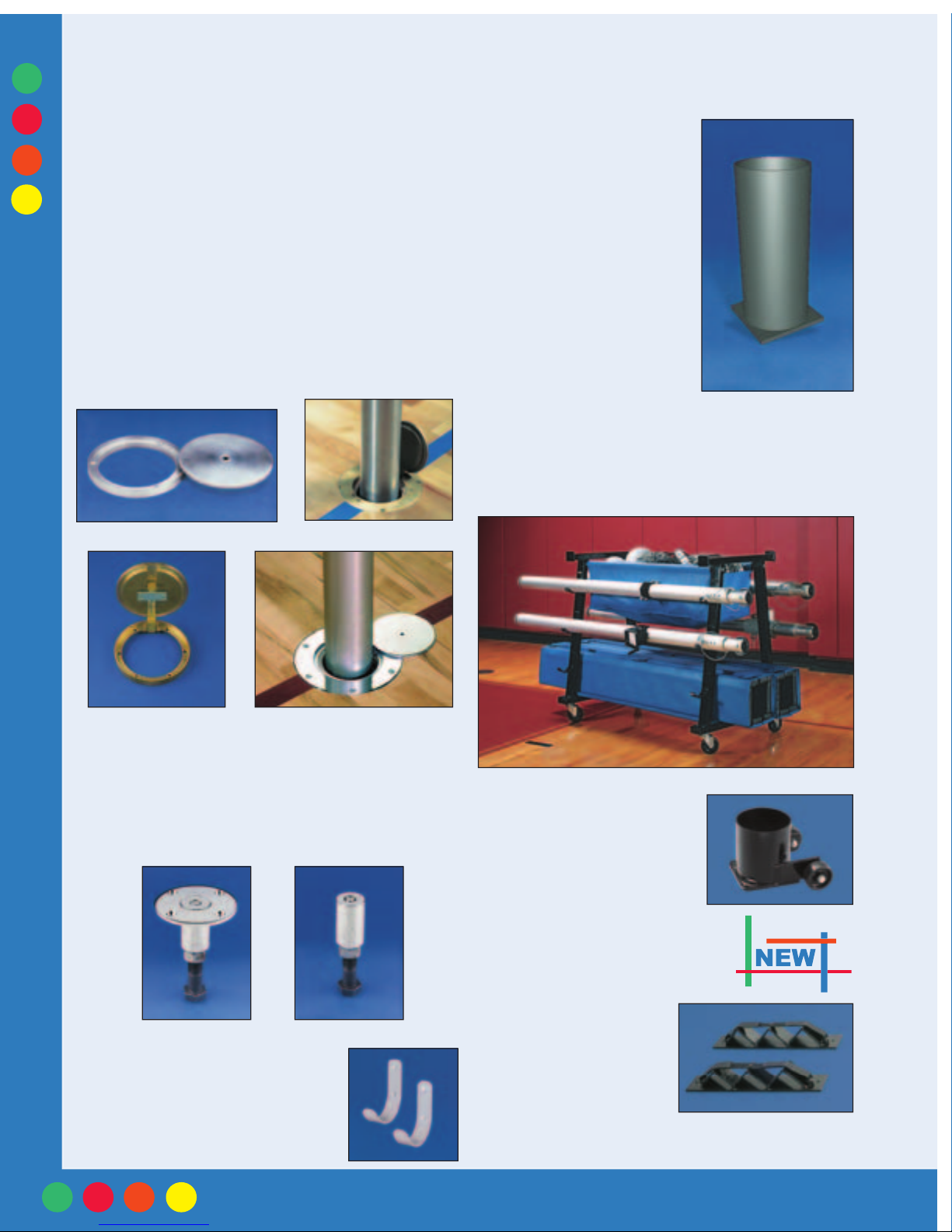

Volleyball Accessories ......................... 12-13

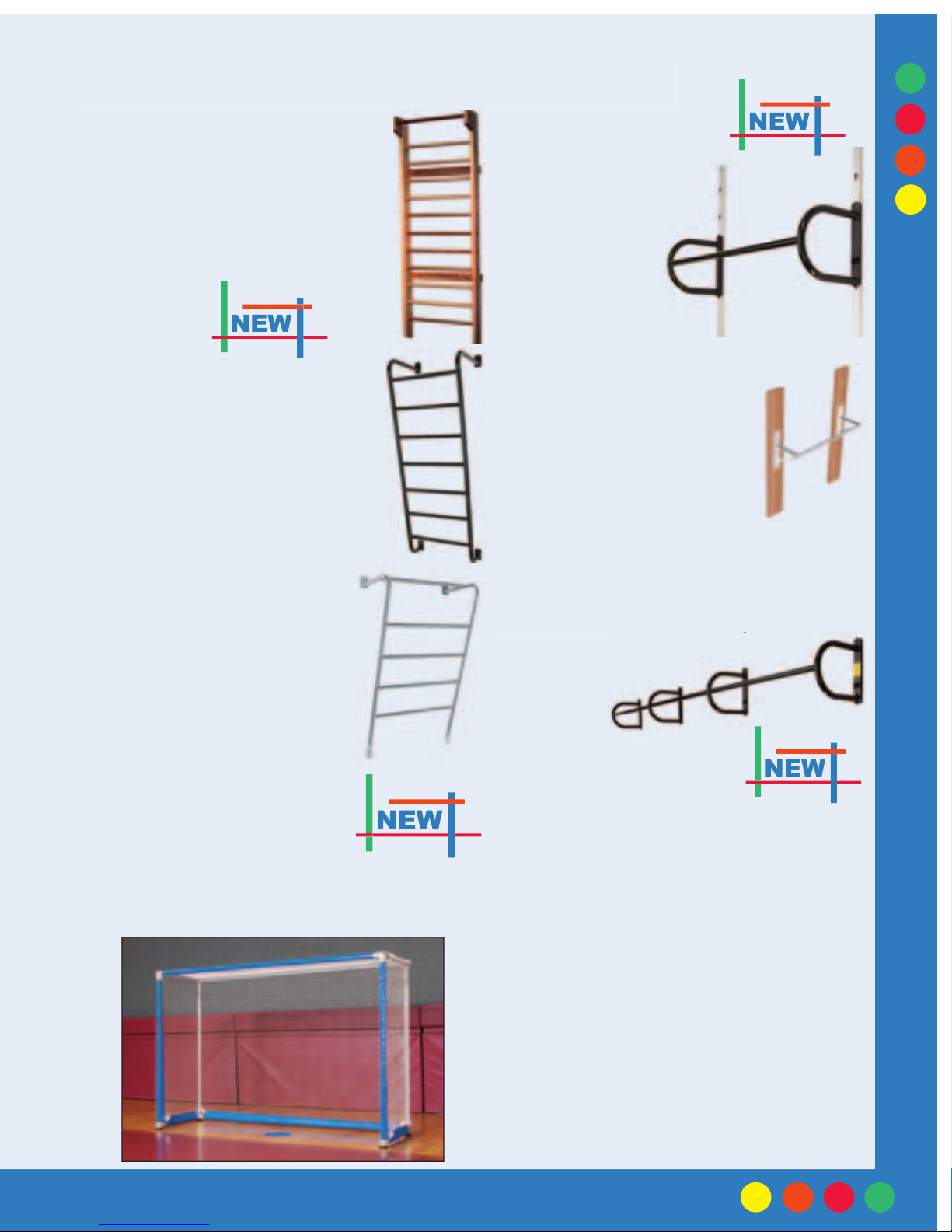

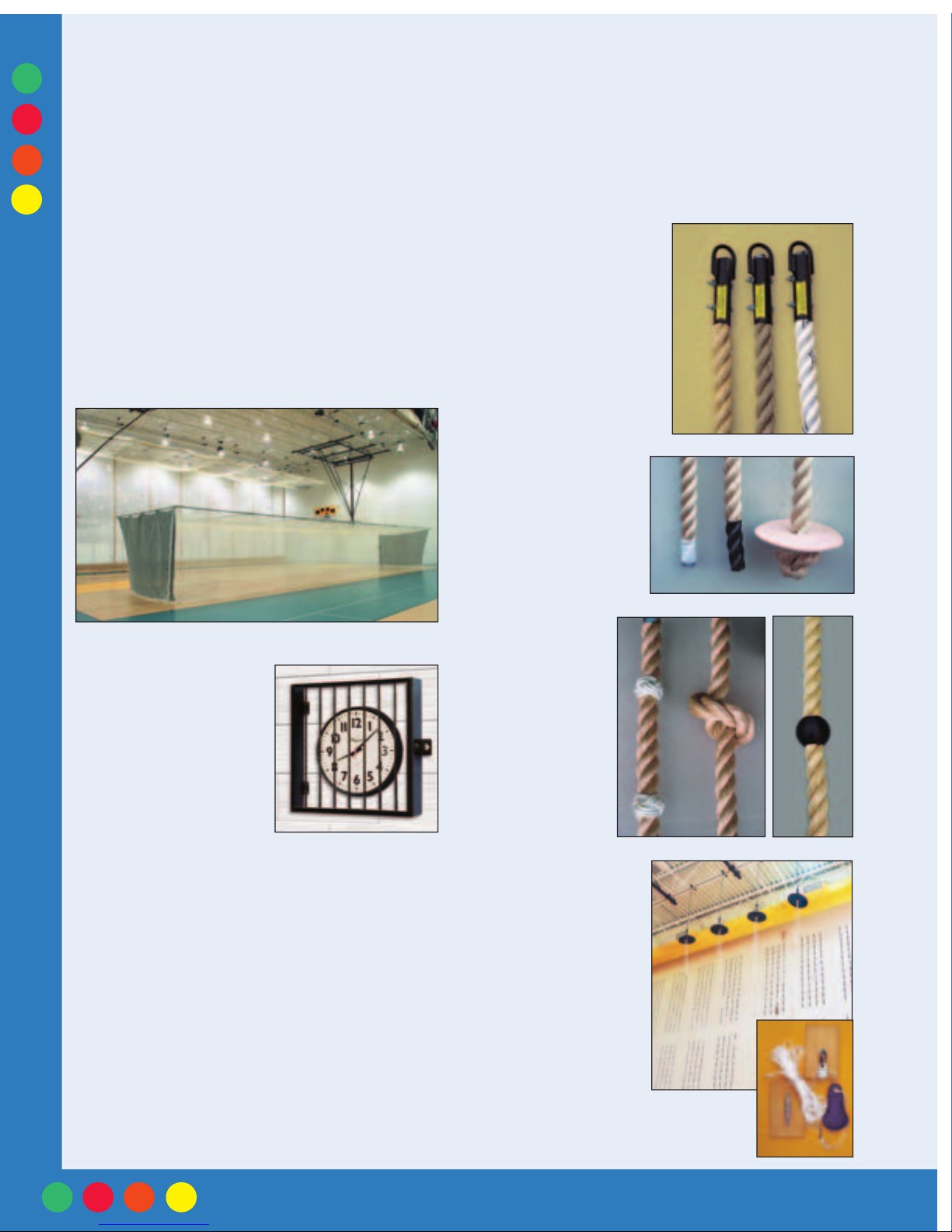

Physical Education Equipment ............14-15
Floor Hockey Goal .................................. 15
Outdoor Athletic Equipment

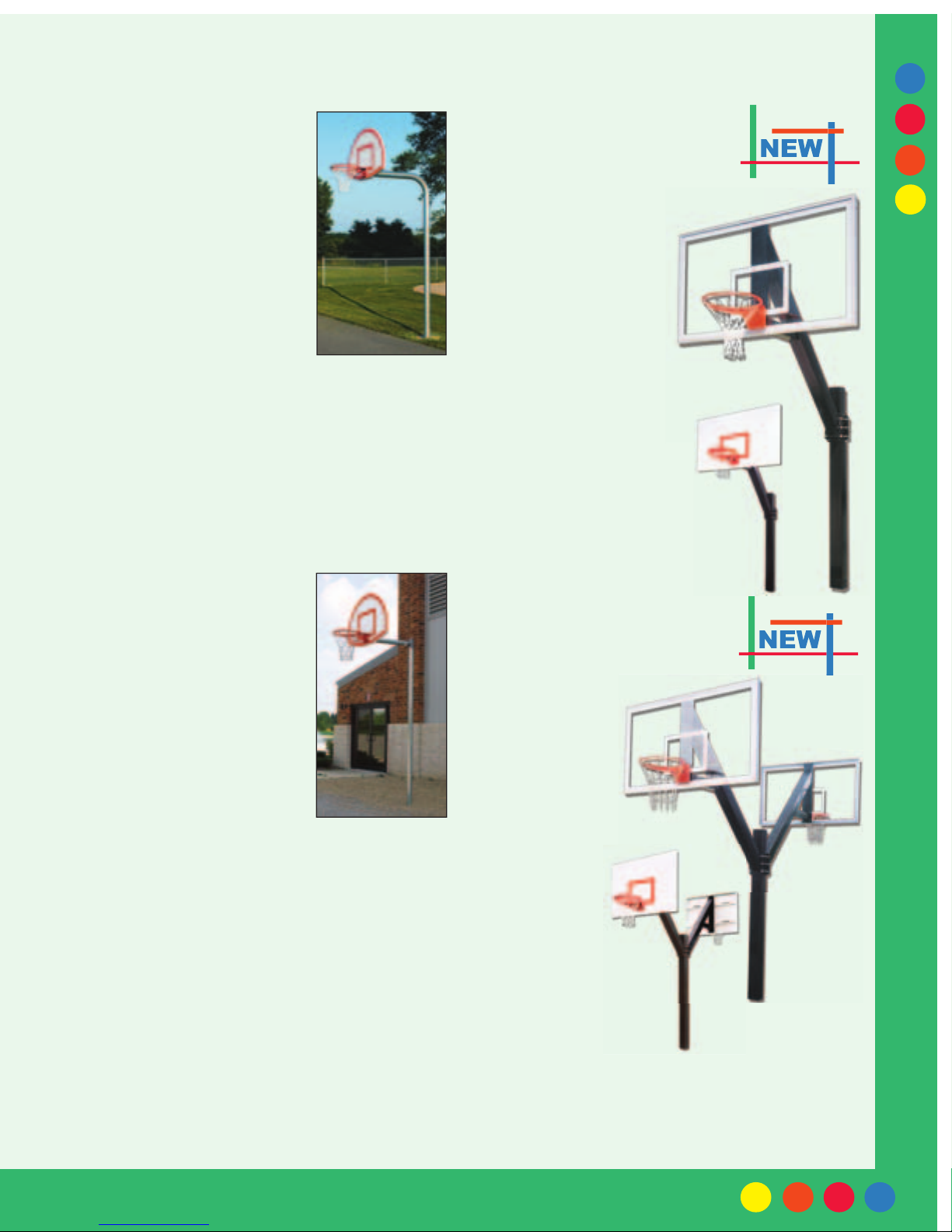

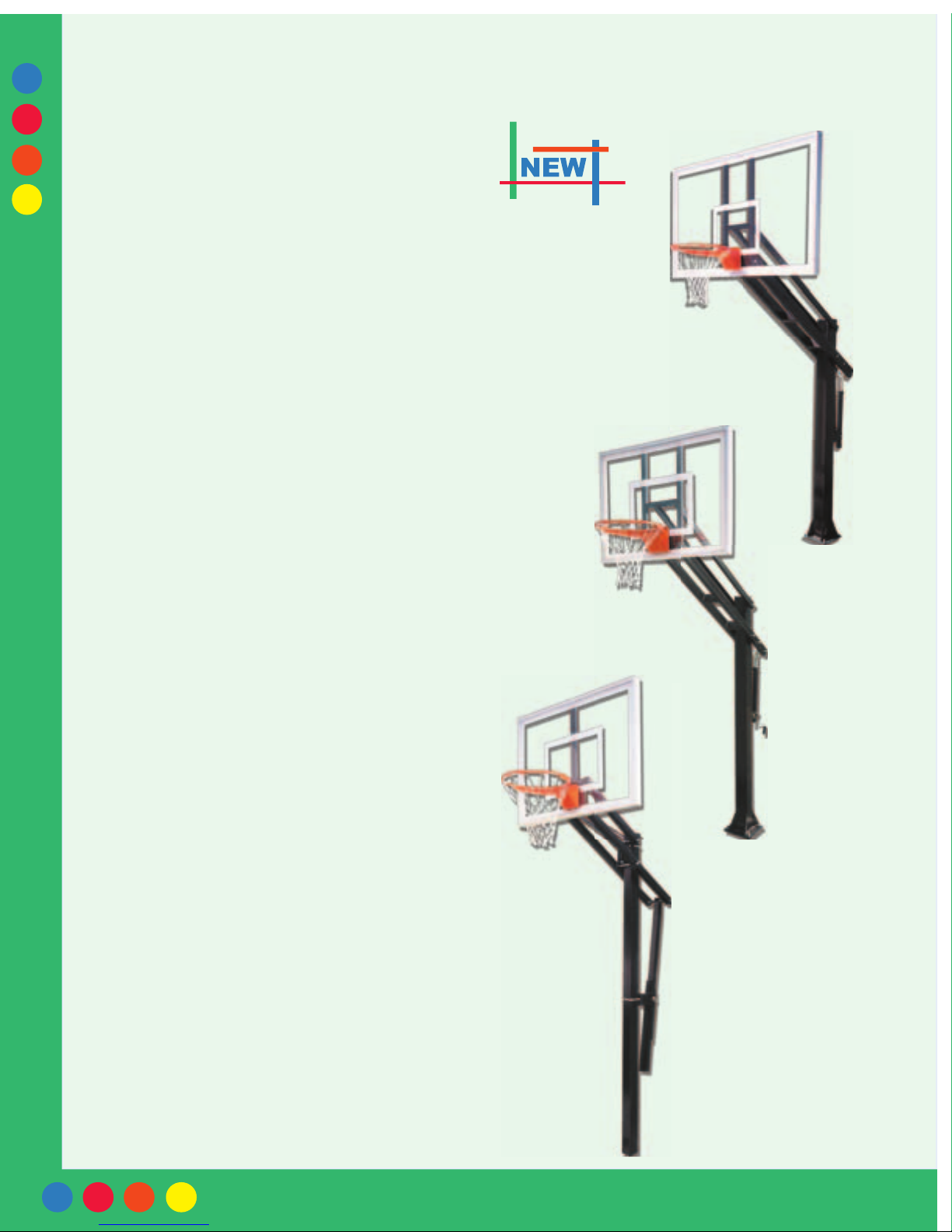

Basketball Backstop Systems .................... 16-18

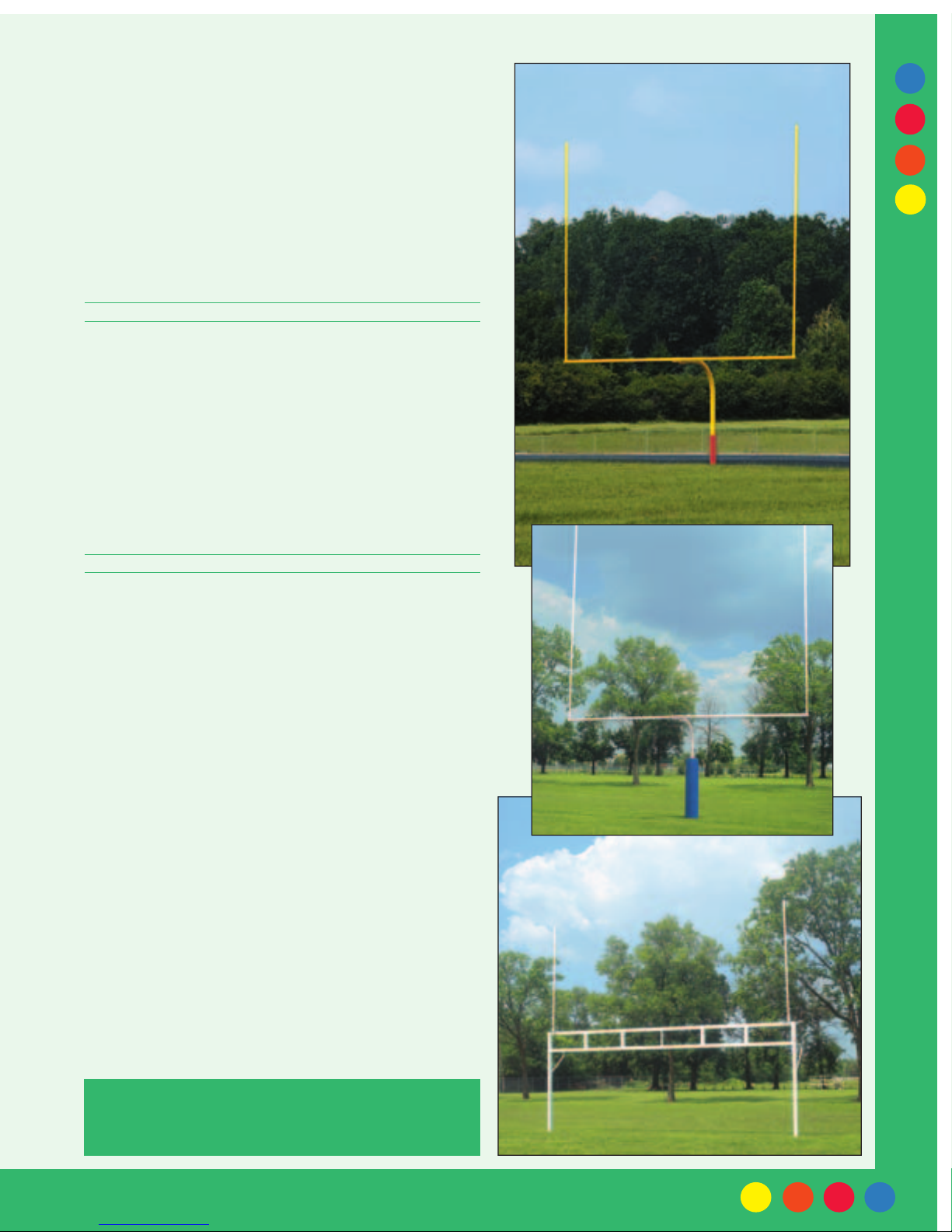

Football Goalposts ........................................ 19

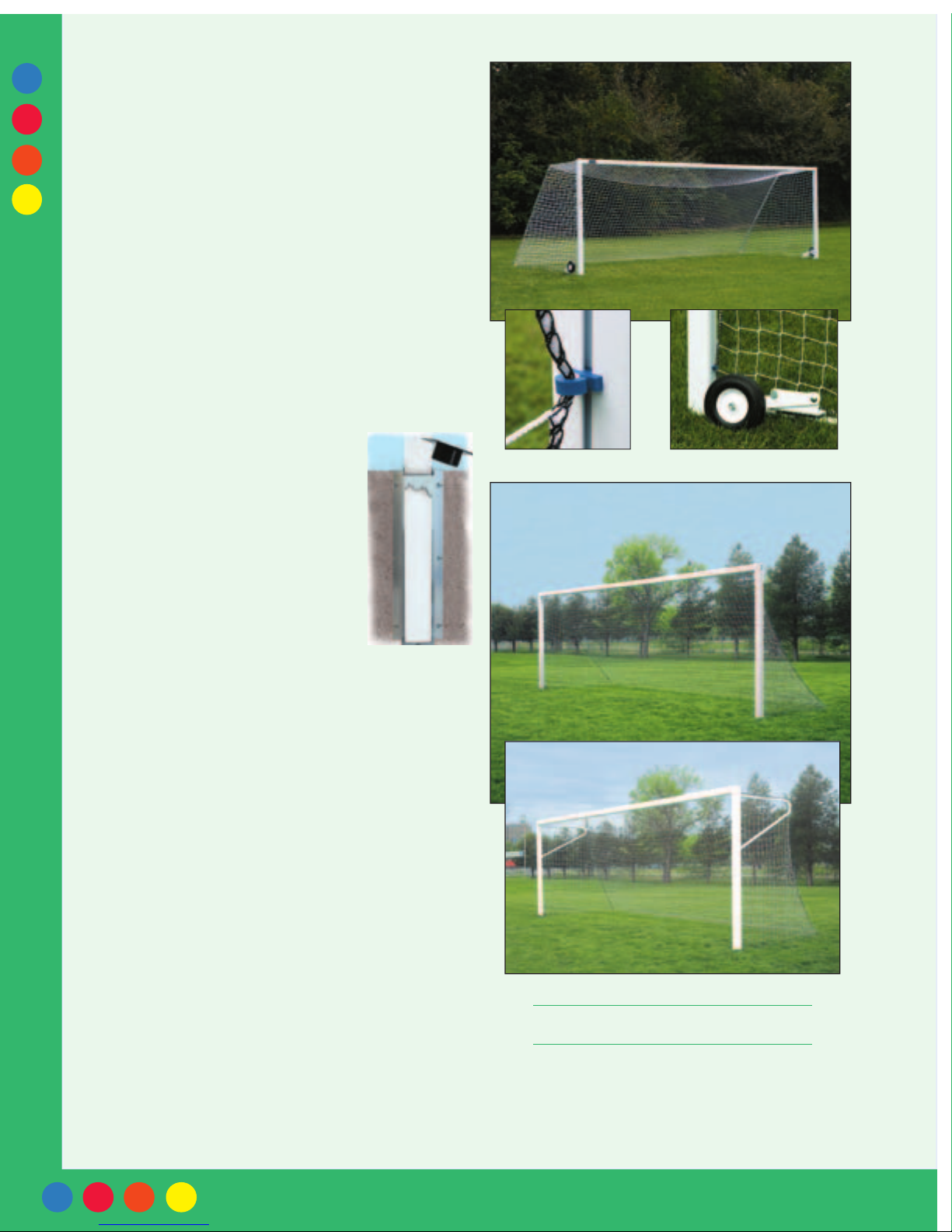

Soccer Goals .................................................20
Football & Soccer Accessories ....................... 21

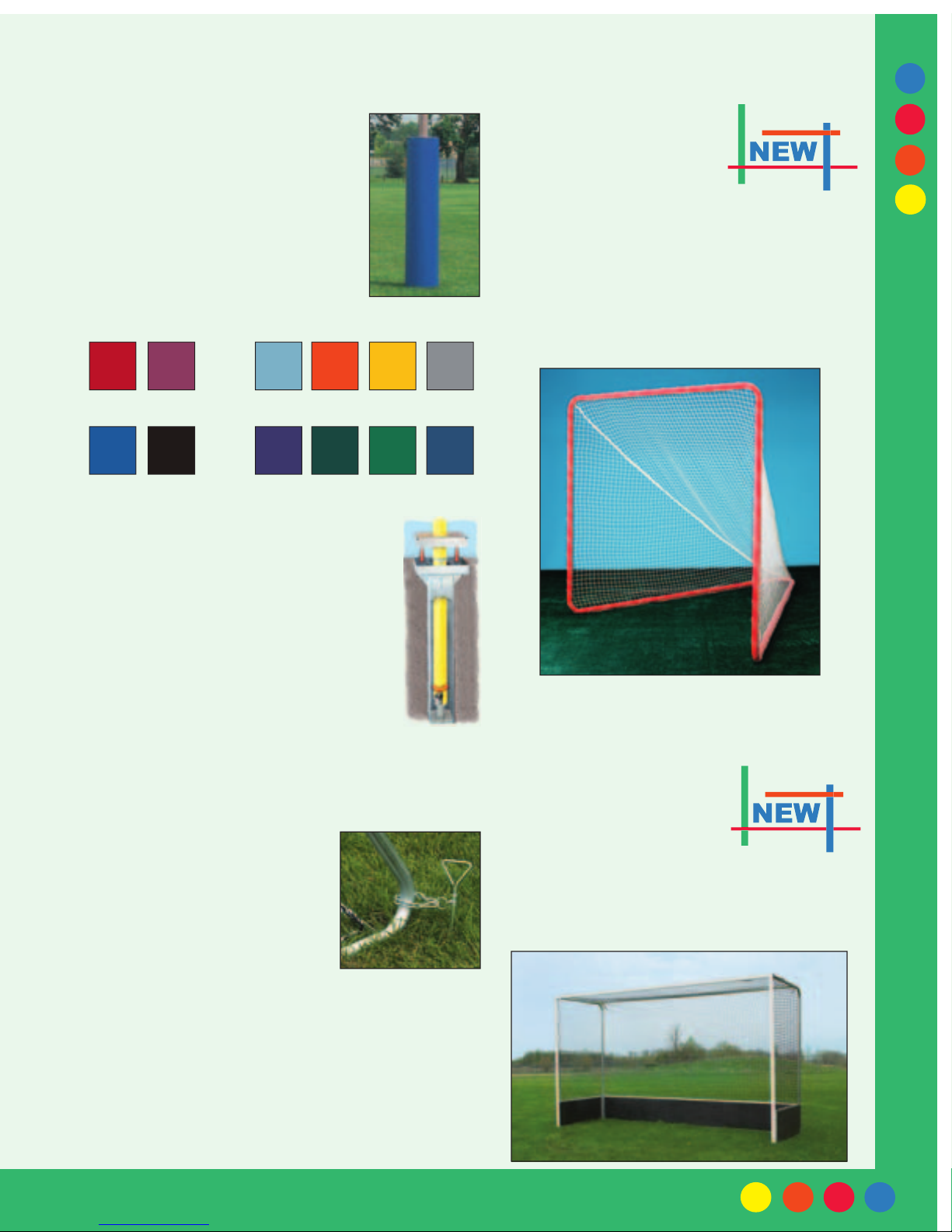

Lacrosse & Field Hockey Goals ..................... 21

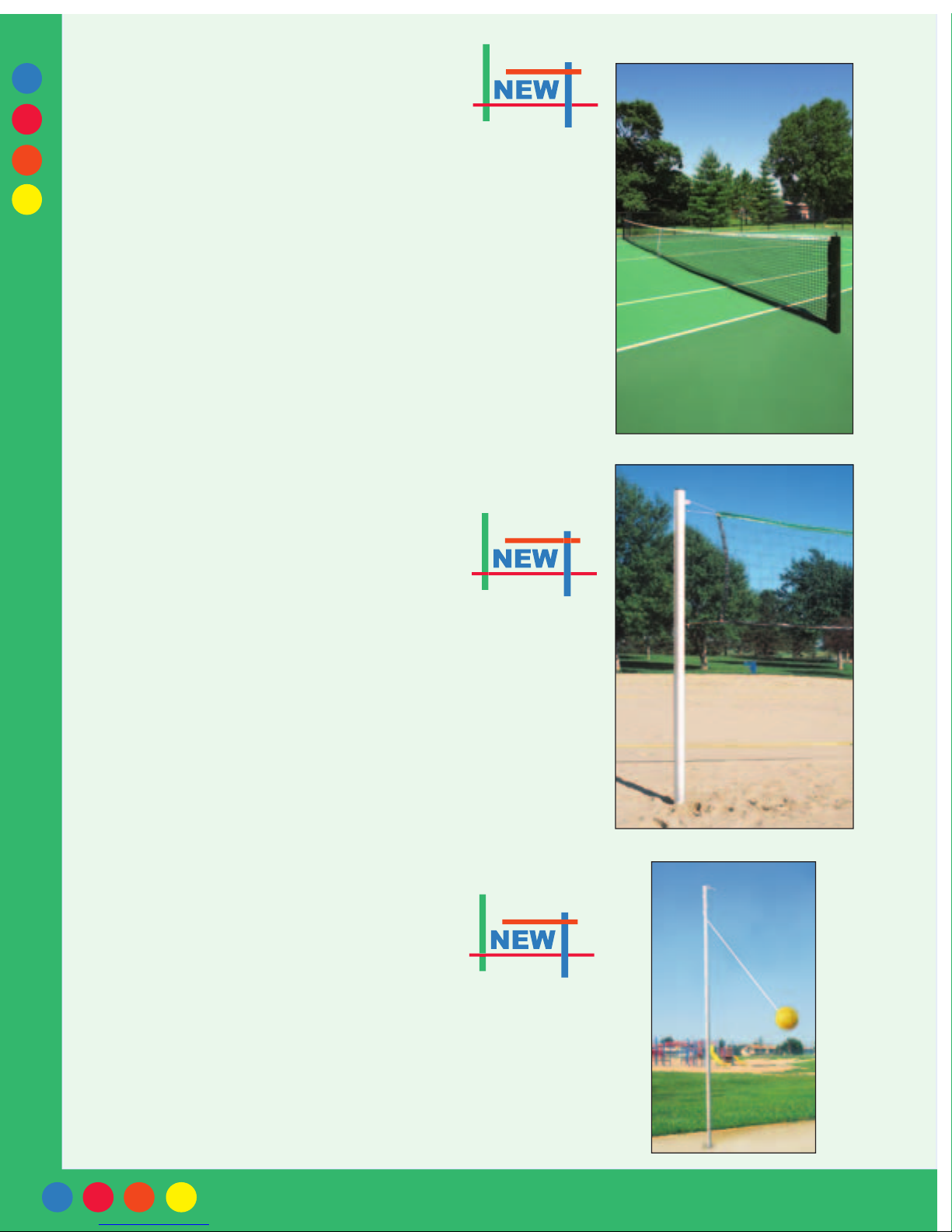

Tennis, Volleyball & Tetherball Systems ....... 22

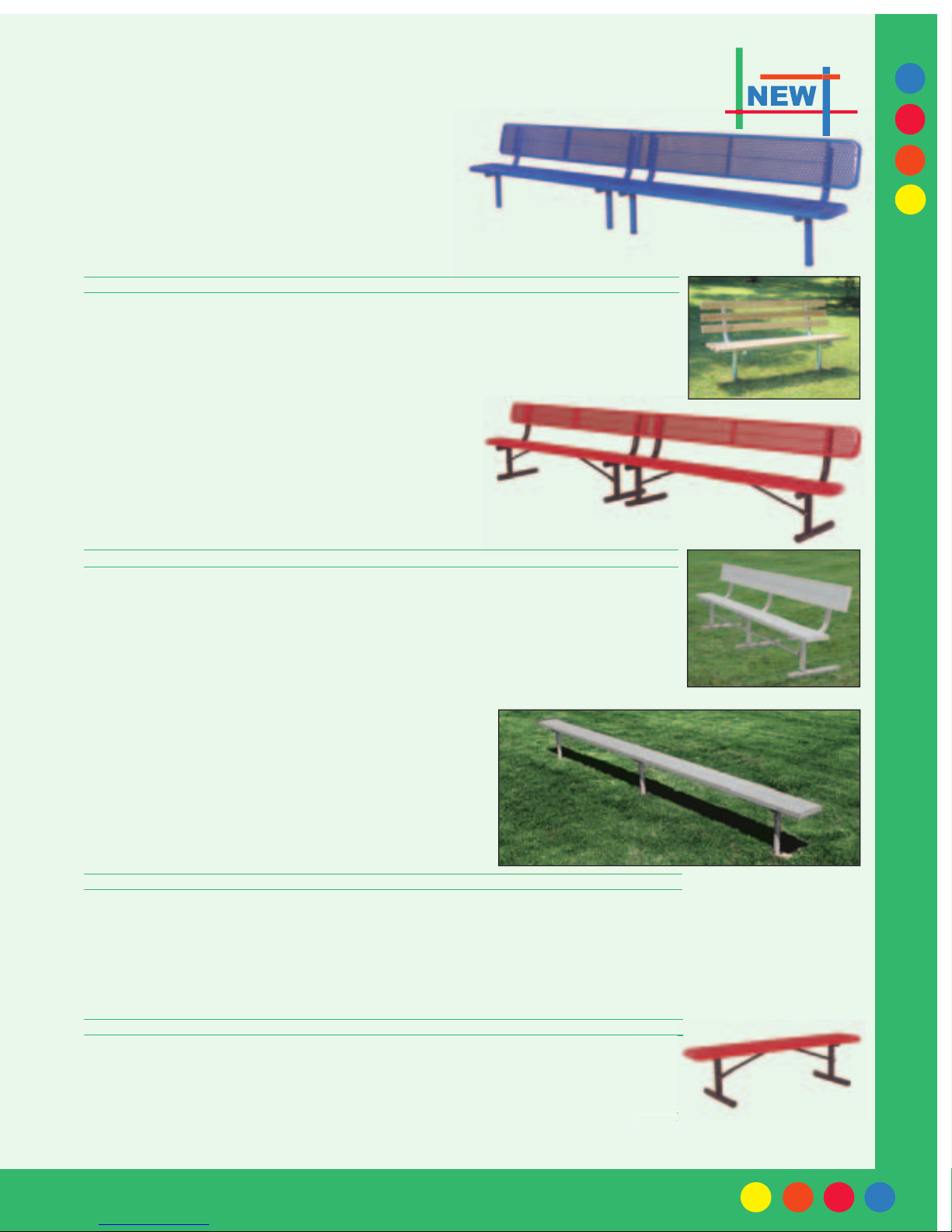

Park & Player Benches .................................. 23

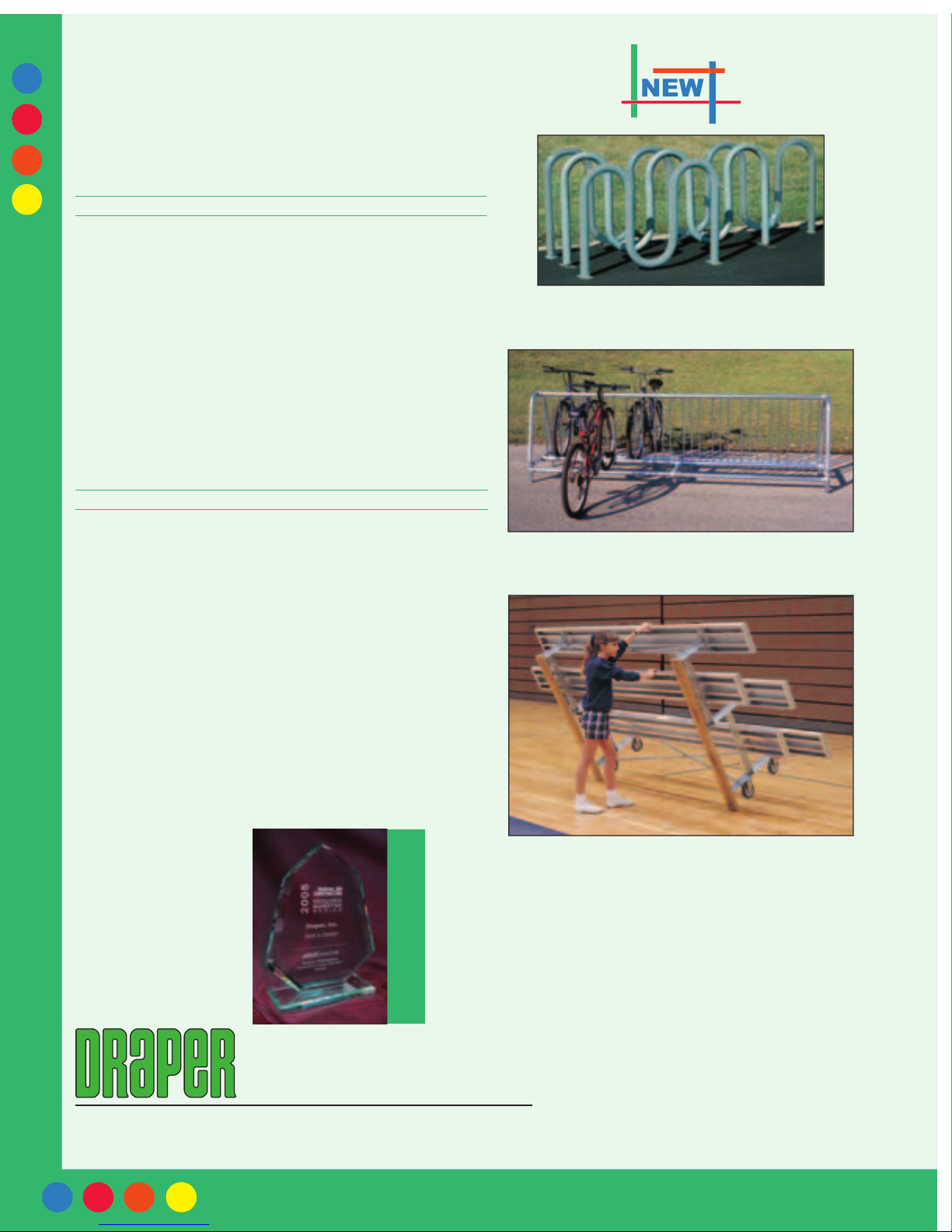

Bike Racks, Tip & Roll Bleachers ................. 24
2
/
2
765-987-7999 • www.draperinc.com
Page 3

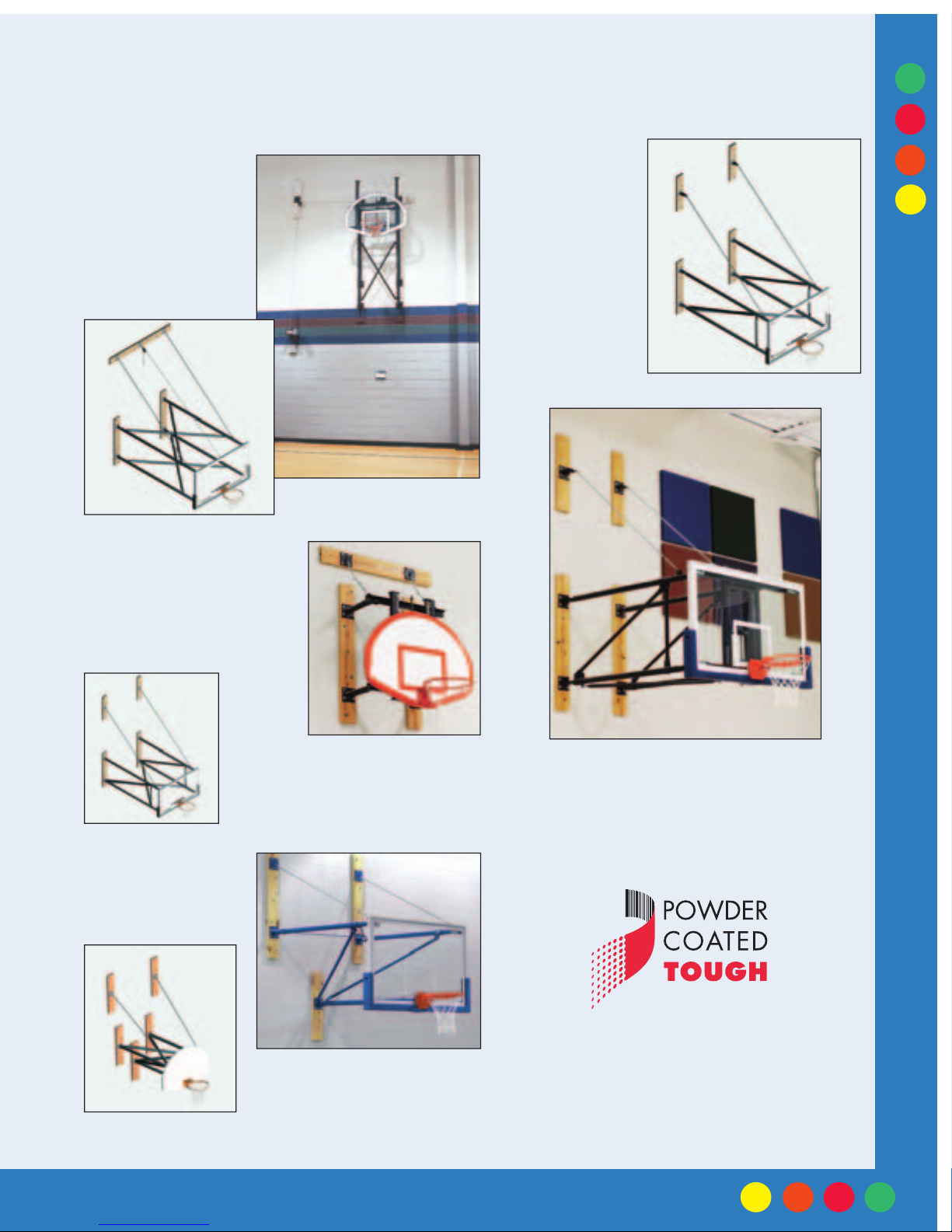

Wall-Mounted Backstops
DUW Up-Folding
• Folds upward to nearly
fl at against the wall.
• Steel tubing framing
system.
• Two ¼˝ welded-link
chains support unit in
play position.
• Manual or electric
winch operated.
SW Stationary
• Steel tubing framing system.
• For units over 3´ from
the wall or with a height
adjuster, a pair of ¼˝ chain supports are added (shown at right).
EZ Fold DUW in folded position.
DGW Side-Folding
• Folds to either
side against wall.
• Steel tubing
framing system.
• Telescopic diagonal brace provides
locking device
in the play or
stored positions.
• Spring-loaded pin
releases diagonal
locking brace.
Indoor Equipment
Centennial Middle School,
South Lyon, MI. Architect:
Integrated Design Solutions,
LLC. Photography: Wayne
Williams, Indianapolis, IN.
SWD Stationary
• Stationary wall mount.
• Direct-mount goal brace.
Sulphur (LA) High School, 9th grade
campus. Randall D. Broussard, Architect
LLC. Photography: Barry Champagne,
Houston, TX.
765-987-7999 • www.draperinc.com
(Left) DGW Side-Folding backstop at Centennial
Middle School, South Lyon, MI.
Architect: Integrated Design Solutions, LLC.
Photography: Wayne Williams, Indianapolis, IN.
2
/
For complete submittals, instructions
or specifi cations, visit Draper’s
web site at www.draperinc.com.
3
Page 4

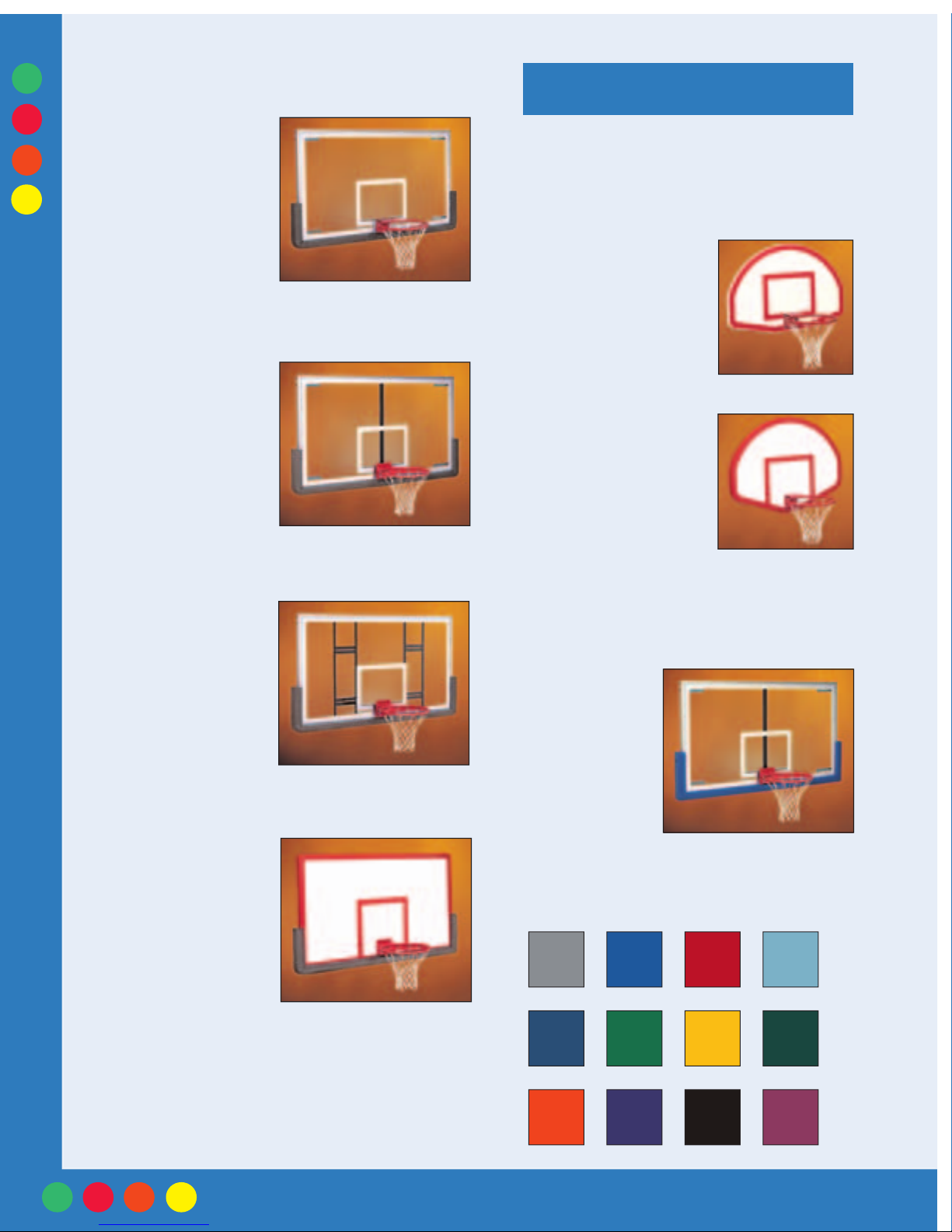

Basketball Backboards
A0136 Rectangular Glass
72˝ x 42˝
A0022 Rectangular Glass
72˝ x 48˝
A0137 Downsize Rectangular
Glass 54˝ x 40˝
Fully tempered ½˝ glass with
offi cial white target and border permanently fi red into glass.
Frame constructed of extruded
brushed aluminum. Used only for backstop structures with Goal
Brace direct goal attachments.
A0136
A0267 Rectangular Steel 72˝ x 42˝
A0024 Rectangular Steel 72˝ x 48˝
Constructed of one-piece 12 ga. steel reinforced with
formed steel channel sections at goal and mounting points.
Finished with primer and two coats of outdoor white enamel. Fan mounting center.
A0133 Fan Aluminum Backboard
White fi nish with orange border
and target. Lifetime Warranty.
Limited Lifetime Warranty on all backboards
incorporating EZ Fold Goal Brace.
A0127 EZ Strut Bank™
72˝ x 42˝
A0126 EZ Strut Bank™
72˝ x 48˝
Same features as A0136 and
A0022 with additional verti-
cal strut to relieve stress on
glass during slam dunks. Goal
is bolted to a plate welded to
bottom of strut for maximum
Indoor Equipment
strength. Used only for backstop structures with four-corner
backboard mounting.
A0132 Rectangular Glass
Conversion 72˝ x 42˝
Designed to replace fan shaped
backboards. Same features as
A0136 with all required conversion framework attached to
backboard. Incorporates a horizontal member which bolts to
goal for maximum strength.
A0134 Rectangular Fiberglass 72˝ x 42˝
A0023 Rectangular Fiberglass 72˝ x 48˝
White backboard is fabricated
with double ³⁄₁₆˝ shell over resintreated honeycomb core. Orange
border and target are applied with
a high gloss gel-coat. Steel attachment T-nuts and goal attachment
holes are through solid plastic
blocks encased between the shells.
Both backboards are designed for
indoor or outdoor use.
A0127
A0132
A0134
A0133
A0018 Fan Fiberglass (shown) 54˝ x 39˝
Constructed of high quality resins
and fi berglass for years of maintenance-free service. Target and
borders are screened on for lasting
durability.
A0020 Fan Glass 54˝ x 39˝
Constructed of high strength aluminum frame and ½˝ fully tempered glass. Offi cial white
target and border are permanently fi red into glass.
Optional Edge Padding for rectangular backboards
Draper recommends all rectangular backboards be fi tted
with edge padding. Three
styles to choose from:
Safe-edge Padding
Grey, open cell foam material applied easily with high
strength adhesive.
A0264 1½˝ Wide Padding
A0253 2˝ Wide Padding
A0142 Bolt-on Padding
Available in the 12 colors
below. Pictured above is Royal Blue A0142. This edge padding is bolted onto the lower edges of the backboard. It has
a molded-in steel track and a fi ve-year warranty on indoor
installations.
Grey Royal Blue Scarlet Co lum bia Blue
A0127 backboard
with A0142 padding
A0018
A0140 Rectangular Wood 72˝ x 42˝
A0021 Rectangular Wood 72˝ x 48˝
Finest wood backboard available. 55 pcf density solid laminated wood core with eggshell white polyurethane face to resist
abrasion. Inner panels are thermally fused. Border and target
markings are part of laminate to prevent wear.
4
Navy Kelly Green Gold Forest
Orange Purple Black Maroon
Green
765-987-7999 • www.draperinc.com
Page 5

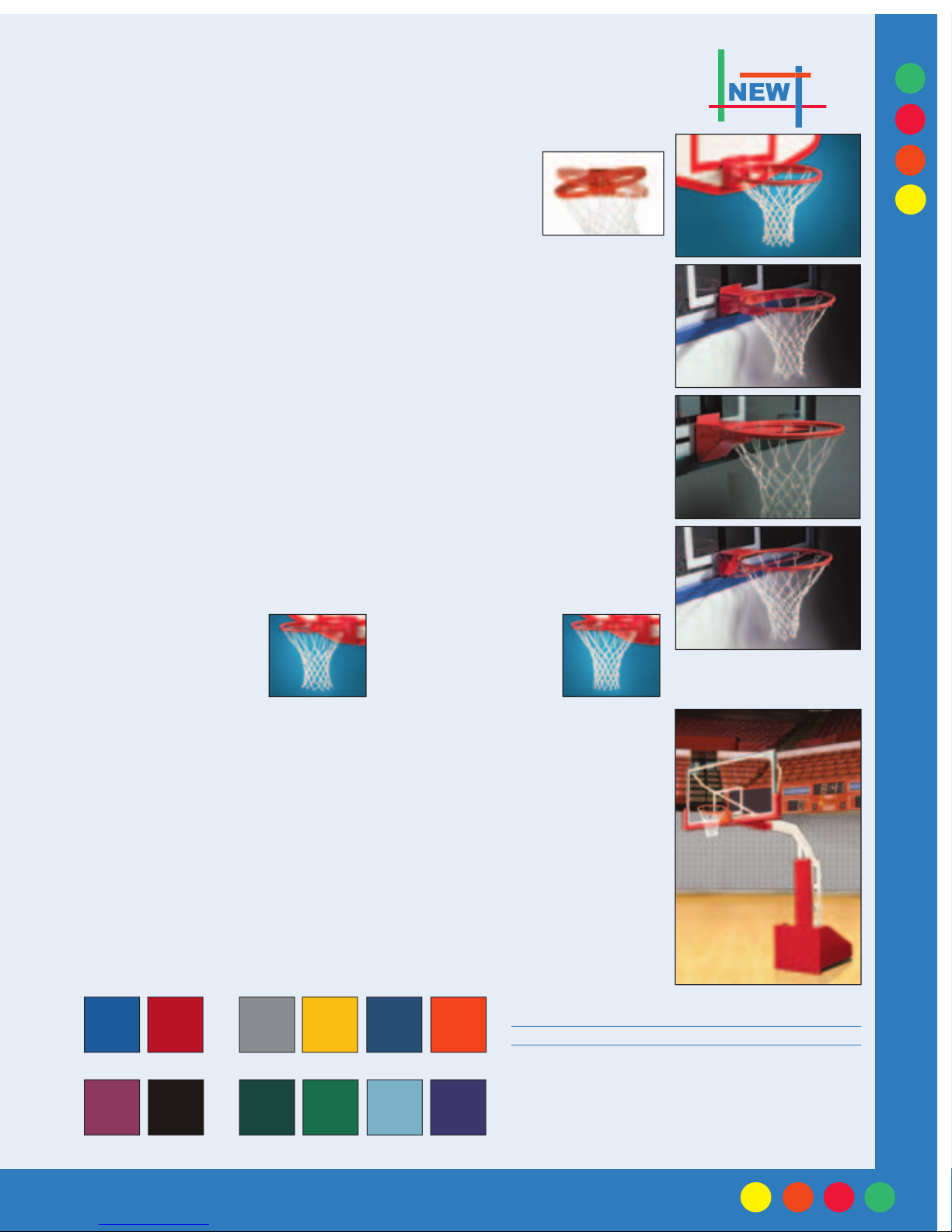

All goals below meet all NCAA
Basketball Goals
503040 180° Breakaway Goal with hardware and net: fi ts both 48˝ and 42˝ bank.
This goal provides consistent breakaway pressure even during the most aggressive slam dunk action.
The ring assembly fl oats on chromium ball bearings for smooth any-direction
fl exibility. Tube-tie net attachment system allows dependable, easy net installation without steel wires or ties cords. Constructed of high tensile steel and
with all moving parts hardened for maximum life. Pressure release mechanism is fi eld adjustable. Includes anti-whip net and mounting hardware.
A0576 Breakaway Goal with hardware and net: fi ts both 48˝ and 42˝ bank.
Offi cial breakaway goal withstands shock loads due to a player slam dunking and/or hanging
on the rim. The rim defl ects down when a load of 230 lbs. is applied and returns to the playing position once the load is removed. Shock absorbing, release/return mechanism is concealed
within a fully protective cover. Rim is ⅝˝ diameter steel with 12 “no tie” net attachment clips
welded to the rim. Complete with mounting hardware and nylon anti-whip net.
A0581 Tube Tie Breakaway with hardware and net:
Adjustable tension breakaway goal with tube-tie net attachment system—virtually fail safe.
Improves player safety. The rim defl ects down when a load is applied and returns to the playing position once the load is removed. Adjustable shock absorbing, release/return mechanism is
concealed within a fully protective cover. Rim is ⅝˝ diameter steel. Complete with mounting
hardware and nylon anti-whip net.
fi ts 48˝ and 42˝ bank.
and NFSHSA specifi cations.
503040
A0576
Indoor Equipment
A0570 Stationary Goal with hardware and net: fi ts both 48˝ and 42˝ bank.
Offi cial competition goal fi ts most front mount backboards made of glass, fi berglass and wood.
Rim is ⅝˝ diameter steel with 12 “no tie” net attachment clips welded to the rim. Rim is supported underneath by ⁷⁄₁₆˝ diameter steel rod welded to the rim and mounting plate. Complete with
mounting hardware and heavy-duty net. (For ⅝˝ diameter support brace to withstand up to 800
lbs., specify A0572 Heavy-Duty Stationary Goal—fi ts both 48˝ and 42˝ bank).
Replacement Nets
503046 Heavy-Duty
Nylon Net
Braided nylon. Bright white.
503045 Heavy-Duty AntiWhip Nylon Net
Braided nylon with stiffened
upper loops to reduce net
whip. Bright white.
Portable Basketball Systems
Competition styling, an offi cial-sized glass backboard and
breakaway goal make Draper Portable Backstops an affordable choice for facilities looking for premium competition
court and side court systems. Low-maintenance extension
spring technology design makes one-person setup and height
adjustment easy and fast. Model 503018 (at right) has 66˝ of
safe play area, and model 503019 has 96˝. Each has a full size
42˝ x 72˝, ½˝ tempered glass backboard and breakaway goal.
Model 503019 also features a rear anchor kit and added structural members, ballast and horizontal beam padding to allow
high school or college competition play.
Portable Basketball Systems: Padding Choices
In Stock: Special Order—Allow Four Weeks
Backboard has a lifetime limited warranty. Goal height is
adjustable from 5´ to 10´ in 6˝
increments for players of all
ages. Base and front are fully
padded on all sides with 2˝
thick padding. Rolls easily on 8˝
diameter, 2˝ wide running gear.
Ballast is hidden from sight.
Front stabilizers lock in place
for maximum play stability.
Molded bolt-on edge padding
color matches base. Front fl oor
positioning pins included.
A0581
A0570
503018
RedDark Blue
Maroon Black Forest
Grey Navy
Green
Yellow Orange
Kelly
Green
765-987-7999 • www.draperinc.com
Warranties
Portable Structures ...............Ten-Year Limited Warranty
72˝ x 42˝ Glass Backboard ...Lifetime Limited Warranty
Bolt-on Edge Padding .........Five-Year Limited Warranty
Breakaway Goal ..................One-Year Limited Warranty
PurpleMarine
Tube-Tie Breakaway Goal ...Four-Year Limited Warranty
5
Page 6

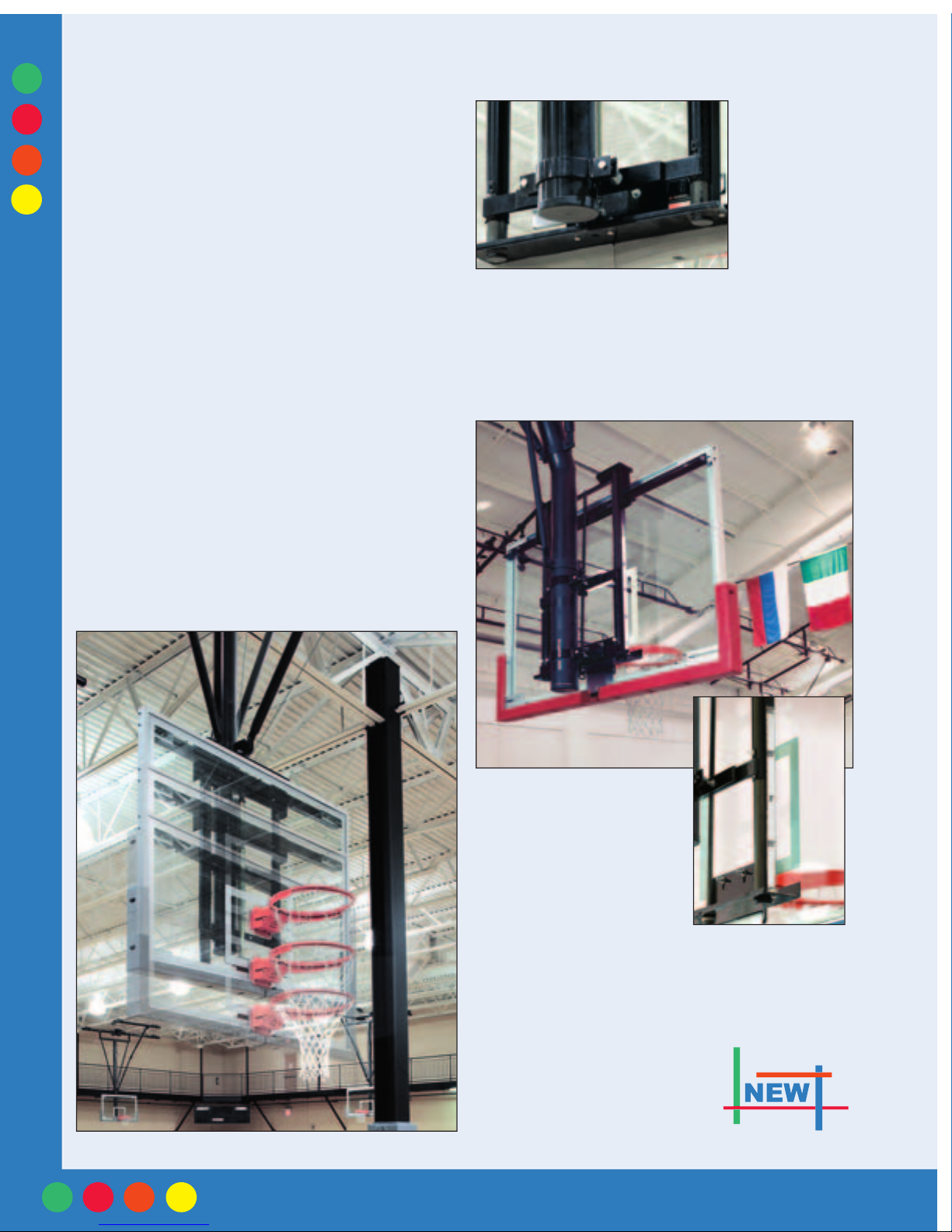

Height Adjusters
Direct Mount 8´–10´ Height Adjusters
For Backboards
For rectangular or fan-shaped backboards and goals, our height
adjuster features a direct goal attachment and is designed to
mount to virtually any style of backstop. All Draper backboards have a limited lifetime warranty when used with our
height adjuster. Height adjuster includes a self-adhesive height
scale that is graduated in 1˝ increments and labeled at 6˝ intervals. Height adjuster frame assembly is jig welded and factory
assembled to ensure precise alignment and smooth operation.
Motorized Height Adjuster: The electric linear actua-
tor provides smooth reversible motion for loads up to 600 lbs.
Linear actuator includes cam style limit switches that will allow 24˝ of travel. The Motorized Height Adjuster’s linear
actuator assembly is bolted in place and easily removed for conversion to manual operation.
503093 Motorized, for rectangular bank. Operated with Key
Switch or Smart Gym Touch Pad.
503097 Motorized, for fan bank. Operated with Key Switch or
Smart Gym Touch Pad.
503095 Motorized, for rectangular bank with wireless remote
control.
Indoor Equipment
503098 Motorized, for fan bank with wireless remote control.
503096 Motorized, for rectangular bank with EZ Stick Power
Wand.
503099 Motorized, for fan bank with EZ Stick Power Wand.
Direct goal attachment is designed to
mount to virtually
any style of backstop.
Manual Height Adjuster: Is operated with a remov-
able awning-style crank handle and actuated via a ¾˝–6 Acme
threaded rod. Its actuator rod assembly is bolted in place and
easily removed for conversion to electric operation.
503092 Manual, for rectangular backboards.
503094 Manual, for fan backboards.
Electric height adjuster can be raised and lowered to allow 24˝ of travel.
6
Manual Height Adjuster at Mt. Pleasant Christian Church, Greenwood,
IN. Includes self-adhesive height scale
(right). Photography by Wayne Williams, Indianapolis, IN.
Note: Height adjusters may not be compatible with some
support structures and backboards. Detailed dimensional information may be required to determine compatibility and to
insure correct hardware is provided.
503003 Portable Height
Adjuster Operator:
cordless, reversible electric operator
for use with the Manual Height
Adjuster. Makes the operation of
manual height adjustment an easy task.
A compact,
765-987-7999 • www.draperinc.com
Page 7
Accessories and Controls
503085 Motorized Winch
A one-horsepower motorized winch operates our EZ Fold
basketball backstops. Our winch delivers 1000 lbs. of vertical
lifting and 1500 lbs. of horizontal line pull. Designed to hold the
backstop at any position when raising or lowering the backstop
with the turn of a key. The cable drum is helically grooved for
¼˝, 7 x 19 aircraft cable. The grooves provide proper spooling
of the cable and ensure excellent repeatability of stop positions.
The drum is equipped with a pressure roller with torsion spring
tensioning. It ensures that the cable tracks in the grooves even
under slack cable conditions. The winch has a direct drive, double
worm reduction system. No oil lubrication is required. Automatic
limit switches control the distance of travel in either direction.
Entire winch assembly is UL listed. A 3-position momentary key
switch and cover plate is supplied with each motorized winch.
Five-year warranty.
503023 EZ Power—
Optional Wireless Remote Control
Eliminate complicated, expensive wiring, wall boxes and individual key switches with a radio control system. The EZ Power
portable hand held transmitter is capable of operating up to 27 in-
dividual one horsepower electric motor winches. Power supply for
the hand held transmitter is a standard 9-volt battery.
Operating range is at least 125´. Requires item 503020, a 9-station
transmitter, or 503021, a 27-station transmitter.
Indoor Equipment

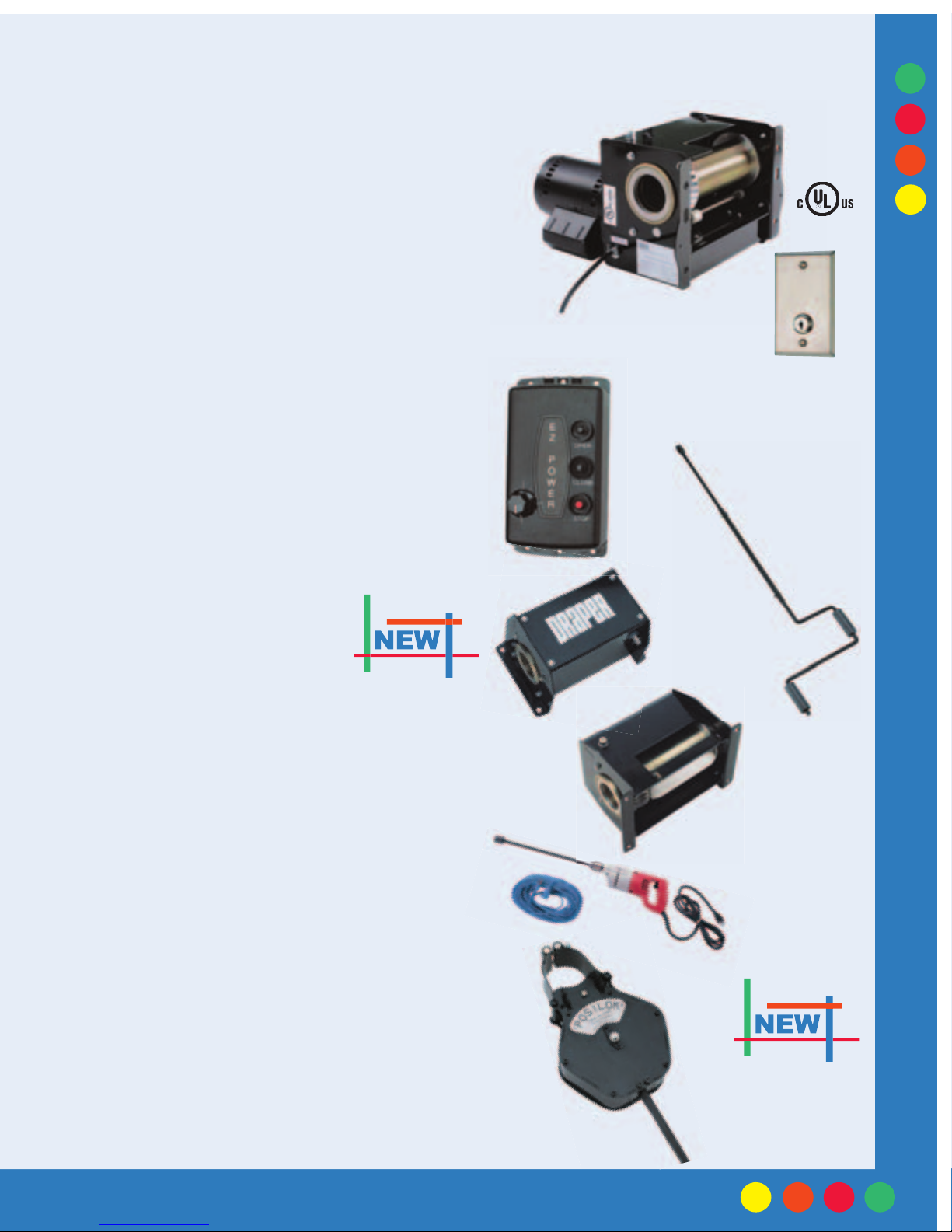

503085 Electric Winch
and Key Switch
503023 Wireless
Remote Control
Removable hand crank
for manual winch
503086 Manual Winch
For ceiling height under 26´, the EZ Fold
backstop may be operated by a manual
winch with a removable handle. The winch
features double worm-gear reduction with a
36:1 ratio and composite gears to make the
unit virtually maintenance free. The cable drum is helical grooved
for ¼˝, 7 x 19 aircraft cable to provide proper spooling. Drum is
equipped with a pressure roller with torsion spring tensioning to
insure cable tracks in grooves even under slack conditions. Gears
and cable drum are enclosed by integral cover. Operated with standard removable handle or optional A0490 Portable Operator.
A0490 Portable Operator
A compact, heavy-duty, reversible electric operator for use with
manual winch 503086. Complete with an 18˝ extension adaptor. Makes the operation of manual winch backstops a quick,
easy task. Optionally available with 503048 50´ Power Cord and
503047 Portable Storage Case.
503029 Posilok
Safety belts are recommended on all backstops, especially those
suspended over bleachers or playing areas. The Posilok Safet y
Belt is self-checking, automatically resets and is virtually fail-safe.
The maximum weight of a suspended load is 1000 lbs. The Posi-
lok Safety Belt checks the speed of the rotating reel six times
per revolution and will instantly lock if the speed exceeds the trip
point of 1½´ per second. Belt includes a maximum extension indicator and breakaway loop to indicate if the Posilok Safety Belt
has been tripped. The Posilok Safety Belt has been cycle tested
to 30 years of typical gymnasium usage with no signifi cant wear
or deterioration of the unit.
™
Safety Belt
503086 Manual Winch.
(Left) top view, (below)
back view of winch.
A0490 electric operator
for Manual Winch and
optional 50´ power cord
Posilok Safety Belt
automatically resets
and is self-checking.
765-987-7999 • www.draperinc.com
7
Page 8
Draper Wall Pads meet the requirements of ASTM F 2440-04,
Wall Pads
Draper manufactures high quality gym wall padding to provide
heavy-duty protection for indoor
impact areas. Draper’s Wall Pads
are ideal for basketball courts,
gymnastics areas, wrestling rooms,
rehabilitation centers—any surface
area where padding is needed
Draper standard pad construction: a 2˝ thick, 3.5 lb. density,
polyurethane foam bonded to a
⁷⁄₁₆˝ thick waferboard which is then
fully wrapped in a vinyl-coated
polyester covering, enhanced by a
leather-like emboss pattern. Coverings come in a variety of colors.
(See color choices and physical
description below.) Optional materials: a 2˝ thick pad with a 6 lb.
density; a 1½˝ thick polyurethane
pad with a 3.5 lb. or 6 lb. density; a
1½˝ thick polyethylene foam pad;
a ½˝ fi re-rated plywood backer;
®
Von ar
interlining, a fl ame retar-
dant material. Vonar® is a registered
Indoor Equipment
trademark of DuPont.
Draper will custom make pads any shape or size, including
those for columns, beams, doors and stage fronts. All pads are
manufactured in one-piece construction. Laced, round post
pads without a waferboard backing are available.
All standard Wa l l Pa d s include a 1˝ lip on the top and bottom
for easy installation over fi nished or unfi nished walls. Or specify one of the following:
Mounting options available—
• “Z”–Clips at the top and bottom for
wall mounting pads. Edges of the pad
are fl ush with the wood backer. Eliminates 1˝ lip.
• “Z”–Clip at top and 1˝ nailing strip at
the bottom.
• Channel System: channel attaches to wall clips; trims out top
and bottom lip; remove single pads as needed for repair.
01 White 02 Marine Blue 03 Brown 04 Red
(Above) Sulphur (LA) High School, 9th grade campus. Randall D. Broussard, Architect LLC.
Photography: Barry Champagne, Houston, TX.
“Standard specifi cation for indoor wall padding.”
Class A Flame Retardant Wall Pads
Draper’s fl ame retardant wall pads have been independently tested as a singular unit and have been found to meet the
requirements of 2003 IBC Section 803.2.1, when tested in
accordance with NFPA 286, and given a “Class A” rating
in accordance with ASTM-E84 and NFPA 255 test procedures. Test Results: Flame Spread Index = 20; Smoke
Developed Index = 350. Draper uses state of the art fl ame
resistant polychloroprene latex, open cell foam cushioning
material, rigid OSB backing and vinyl-coated polyester covering enhanced by a leather-like emboss pattern. Coverings
come in a full range of colors.
Wall Padding Vinyl Selections
General: Solid vinyl-coated polyester fabric with an embossed pattern.
Weight: Average 14 oz. per square yard.
Strength: 350 lbs. per sq. inch break strength and 65 lbs. tear
resistance.
Resistance to Rot and Mildew: Excellent.
Ultraviolet Resistance: Excellent.
Flammability: Rated as self extinguishing in
accordance with California State Fire Code (f–230).
Printed color may vary from actual vinyl. Color samples available
upon request.
05 Beige
06 Orange 07 Yellow 08 Grey 09 Maroon 10 Dark Blue 11 Black 12 Purple 13 Forest Green 14 Kelly Green 15 Navy
8
765-987-7999 • www.draperinc.com
Page 9
Large Scale
Wall
Graphics
Print your mascot, full-color photo, sponsor’s advertising, or any
art you choose on your wall of pads.
• Large format digital image reproduction.
• Printed in 3-color process.
• Images are not silk-screened or made with vinyl tape.
• Art is sharp and clear from any distance.
• Any size is possible.
Images are printed on 18 oz. coated vinyl and laminated for
durability. Over 1000 images to choose from or submit your own
ideas. All designs are sent to the client for fi nal approval prior to
printing. Contact Draper for details.
Pads
Indoor Equipment
Sulphur (LA) High School, 9th grade campus. Randall D.
Broussard, Architect LLC. Photography: Barry Champagne,
Houston, TX.
Milroy Elementary School, Milroy, IN. Photography: Wayne Williams,
Indianapolis, IN.
Harris Elementary School, Greenfi eld, IN. Photography: Wayne Williams, Indianapolis, IN.
Patriot Motorized Flag
Draper’s newest gym equipment product makes a dramatic presentation of
the United States fl ag in any gymnasium. “Old Glory” appears at the touch
of a switch or wireless transmitter. Standard product includes a sewn, nylon
fl ag. Options include state fl ags or school banners, provided by customer.
The Patriot can display a fl ag either vertically or
horizontally. Flag measures 12´ x 18´ with both mount-
ings. The vertical or banner fl ag is housed in a 12´
case, and the horizontal fl ag is housed in a 20´ case.
(Above) Close-up of fl ag mounting and
case (right).
Patriot Motorized Flag at Knightstown (IN) High
School. Architect: R.W. Clinton & Associates, Inc.
Photography: Wayne Williams, Indianapolis, IN.
765-987-7999 • www.draperinc.com
9
Page 10
Power Volleyball System
PVS-01 Power Volleyball System is a one-time invest-
ment that nets you all the top quality demanded by today’s
top level volleyball programs. The all-aluminum PVS-01
fl oor-sleeve type system is a breakthrough in volleyball
technology and engineered for a lifetime of hard use. It will
provide years of trouble-free safe service.
Each post is manufactured with high-strength 3½˝ O.D.
aluminum. Height adjustment from 6´1˝ to 8´4˝ in one inch
increments, uses precise mechanical pin adjustment. Each
upright is equipped with an adjustable protective rubber
bumper for fi ne adjustments. Power winch has a folding
handle to insure player safety.
Consider these PVS-01 features:
• Meets all NFHS, USVBA, NCAA and FIVB require-
ment for competition equipment.
• Adjusts to all competition heights.
• Clear anodized fi nish for professional looking appearance.
• High maneuverability—lightweight and easy to handle.
• Easy setup–requires only one person just a few minutes.
• Secure cast-in-place 3½˝ I.D. fl oor sleeves with choice of
fl ush cover plates provide rigid support—for the life of
the installation.
Indoor Equipment
• Tensioning winch is a heavy-duty, self-locking worm gear
mechanism. A heavy 2˝ wide, high-tensile strength, nylon
strap with heavy-duty snap guarantees safe connection to
the net top cable.
• Easy storage—can be hung on wall hooks, secured with
vertical storage brackets, stored on transporter/storage
cart or tucked away in a closet.
• Heavy-duty construction—built for years of trouble-free
service and rough use.
500001 Single Court System includes:
(See page 13 for additional descriptions)
Tele sc o pin g A lu mi nu m St a nd a rds —One pair of 3½˝
O.D. aluminum uprights. A power winch is located on the
outside of one post. The second upright is equipped with
an adjustable cable anchor collar.
500004 Power Volleyball Net—One each
500005 Rope Tensioner—Two each
500006 Boundary Markers—One pair
500007 Net Antennas—One pair
500002 Two Court System includes:
(See page 13 for additional descriptions)
Tele sc o pin g A lu mi nu m St a nd a rds —T
minum uprights. A power winch is located on the outside of
two posts. Center upright is equipped with double top pulleys and adjustable cable anchor collar to attach two nets.
500004 Power Volleyball Net—Two each
500005 Rope Tensioner—Four each
500006 Boundary Markers—Two pair
500007 Net Antennas—Two pa i r
hree 3½˝ O.D. a lu-
For complete submittals, instructions or specifi cations,
visit Draper’s web site at www.draperinc.com.
Every Draper PVS is equipped with a power-tensioning
winch on one upright. The handle folds for player safety.
10
765-987-7999 • www.draperinc.com
Page 11
Competition Volleyball System
CVS-01 Competition Volleyball System incorporates all of
the top quality features of our PVS-01 with additional versatility.
The all-aluminum CVS-01 fl oor-sleeve type system adjusts to all
competition for tennis, badminton and volleyball or anywhere in
between. No need to change uprights —just move the net into
position, and the gym is equipped for a different sport.
Each post is manufactured with high-strength 3½˝ O.D. aluminum.
Each upright is equipped with an adjustable protective rubber
bumper for fi ne adjustments. Power winch has a folding handle to
insure player safety.
Consider these CVS-01 features:
• Meets all NFHS, USVBA, NCA A and FIVB requirements for
competition equipment.
• Preset setting for tennis, badminton and volleyball competition
for both men and women—with infi nite adjustment to any point
between.
• Clear anodized fi nish for professional-looking appearance.
• High maneuverability—lightweight and easy to handle.
• Easy setup—requires only one person just a few minutes.
• Secure cast-in-place 3½˝ I.D. fl oor sleeves with choice of fl ush
cover plates provide rigid support—for the life of the installation.
• Tensioning winch is a heavy-duty, self-locking worm gear mecha nism. A heavy 2˝ wide, high-tensile strength, nylon strap with
heavy-duty snap guarantees safe connection to the net top cable.
• Easy storage—can be hung on wall
hooks, secure with vertical storage
brackets, stored on transporter/
storage cart or tucked in a closet.
• Heavy-duty construction—built
for years of trouble-free service and
rough use.
Indoor Equipment
For complete submittals,
instructions or
specifi cations,
visit Draper’s
web site at
www.draperinc.com.
500010 Single Court System includes:
(See page 13 for additional descriptions)
Fixed Length Aluminum Standards—One pair of 3½˝ O.D.
aluminum uprights. A power winch is located on the outside of
one post. The second upright is equipped with an adjustable cable
anchor collar.
500004 Power Volleyball Net—One each
500005 Rope Tensioner—Two each
500006 Boundary Markers—One pair
500007 Net Antennas—One pair
765-987-7999 • www.draperinc.com
CVS-01—Two standards stay in place: just lower net to 3´6˝ for tennis or 5´1˝ for badminton.
500011 Two Court System includes:
(See page 13 for additional descriptions)
Fixed Length Aluminum Standards—Three 3½˝ O.D.
aluminum uprights. A power winch is located on the
outside of two posts. Center upright is equipped with
double top pulleys and adjustable cable anchor collar for
attaching two nets.
500004 Power Volleyball Net—Two each
500005 Rope Tensioner—Four each
500006 Boundary Markers—Two pair
500007 Net Antennas—Two pa i r
11
Page 12
Volleyball Accessories
Draper offers a full line of volleyball accessories detailed below.
Additional equipment available upon request. Please call if you
require an accessory that’s not listed below.
Floor Plates
Floor plates in chrome or brass with secured covers and removal key. Protects fl oor sleeves and mounts fl ush with all types
of fl ooring materials. 501001–501003 for new construction;
501004 for existing fl oors. May be combined with any fl oor
sleeve below.
Available fl oor plates: O.D. I.D.
501001 Chrome Plated 5³⁄₁₆˝ 4⅛˝ (swivel type cover)
501002 Solid Brass 7⅜˝ 4¼˝ (fl anged)
501003 Solid Brass 6⁷⁄₁₆˝ 5⅛˝ (concealed)
501004 Chrome Plated 8˝ 5˝ (for existing fl oor)
Indoor Equipment
501001
501002
Floor Sleeves
Cast-in-place fl oor sleeve rigidly
secures standards and is adaptable
for new construction and retrofi t
on existing fl oors. Steel mechanical tubing. Square plate welded to
bottom provides secure footing in
concrete.
Floor sleeves: I.D. Depth
501006 3½˝ 8½˝
501008 2⅜˝ 8¼˝
501009 3˝ 8¼˝
501010 4˝ 12¼˝
Transporter/Storage Cart
501016—Heavy-duty transporter is designed to store two
complete PVS-01 Systems, two center standard kits, padding
for standards, and numerous volleyballs in the storage pouch.
(Balls not included). Rolls easily on swivel casters.
501003
501004
Floor Anchors
Chrome-plated, one-piece fl oor anchors are designed for groutin installation. Anchors have spring-loaded fl ush fairings with
standard ½˝ –13 NC threads. Specify model 501011 for wood
over concrete fl oors, or model 501012 for tile, concrete or rub-
ber fl oors.
501011 501012
Wall Storage Hooks
501017—Pair of steel hooks for mounting
on wood or masonry walls to store game
standards.
Single Post Transporter
501023—Post Transporter
makes it easy to move volleyball
posts to and from storage area. Constructed with 3½˝ ID tube welded
to ¼˝ thick fl at plate. Transporter
features two 1½˝ non-marking nylon
casters. Entire unit fi nished in attractive
gloss black powder coat.
Vertical Storage Brackets
501015—Store volleyball posts
in a vertical position. Constructed from ¼˝ thick fl at steel
and ³⁄₁₆˝ thick angle. Posts are
secured with nylon straps with
hook and loop fastener. Brackets are sold in pairs. Each pair
of brackets is designed to store two posts. Weldment is fi nished in attactive gloss black powder coat.
12
765-987-7999 • www.draperinc.com
Page 13
Volleyball Accessories
Judges Stand with Protective Padding
5013xx*—Offi cial’s platform constructed of 1½˝, 14 ga., square
tubing uses quick-lock pin attachment to collar on post and rolls
on two non-marking wheels. Supplied with protective padding,
dark blue standard. Heavy-duty construction. *Last two digits indicate color of pads. See page 8 for colors.
Protective Pads for Volleyball Standards
501018—One pair of upright pads for standards provide maximum player protection. Our 6´ high pads are constructed of 1¼˝
thick, cross-linked polyethylene foam fi ller covered with polyester reinforced vinyl fabric. Each pad consists of two vertical
sections that attach to each other with hook and loop fasteners
for a quick, easy setup. Each section is hinged at the corners to
fold neatly around posts and tensioning winch. Protective Pads
work equally well when used with a Judges Stand (as seen at
right) or Center Standard Kit. Dark blue is standard, other colors available.
PVS-01 Center Standard Kit
Center Standard Kit for multiple court use in conjunction with
PVS-01 Volleyball System. Same top quality features of PVS-01
standard, but with double top sheaves for attaching two nets. Kit
includes one center standard (501013), one winch with folding
handle, one net (500004), one pair of net antennae (500007)
and one pair of boundary markers (500006). Post pad optional.
Indoor Equipment
CVS-01 Center Standard Kit
Center Standard Kit for multiple court use with CVS-01 Volleyball System. Top collar has dual sheaves for attaching two
nets. Kit includes one center standard (501021), one winch with
folding handle, one net (500004), one pair of net antennae
(500007) and one pair of boundary markers (500006). Post pad
optional.
500004 Power Volleyball Net—32´ x 39⅜˝.
net. 4˝ square #36 black nylon cord with vinyl-coated polyester
hem double stitched around entire perimeter of net. Top hem
has a 42´6˝ long galvanized aircraft cable with a nylon coating for
top tensioning. Bottom of net has a braided white nylon rope for
bottom tensioning. Each side of net is equipped with three polypropylene tension straps with buckles.
500005 Rope Tensioner—A spring-loaded rope tensioner holds
the bottom of the net taut.
500006 Boundary Markers—A pair of 2˝ wide white polyester
reinforced vinyl strips, one for each end of the net.
500007 Antennae—A pair of ⅜˝ dia. fi berglass rods with alter-
nating red and white 4˝ stripes.
Offi cial competition
Other Net Game Systems
Draper offers a full line of game systems that are not pictured:
• 3½˝ Portable Volleyball System (500008)
• Badminton Game System (502100)
• 2⅜˝ Combination Game System (502105)
Please call if you require an accessory that’s not listed, or see our
Web Site: www.draperinc.com.
Above, a Judges Stand with Protective Padding. Its back leg is encased in a Protective Pad for Standards. Dark Blue is our standard
color, but other colors are available.
765-987-7999 • www.draperinc.com
Power Volleyball System Center Standard Kit
13
Page 14
Physical Education Equipment
Multi-Sport Practice Cages
Draper has a solution to year–around practice: Move indoors with our Pr actice Cage. Our cage has a simple
design but various uses: Step inside and practice swinging
at baseballs, softballs, golf balls and tennis balls; practice
kicking footballs and soccer balls.
Practical in application and design, the unit is motor
operated. A turn of the key will raise or lower the cage suspended from a rotating drive pipe. Four sides and the top
of the cage are fi tted with white knotless nylon mesh golf
netting (opening is ¾˝ square). Two corners of the cage are
sewn together, and two are secured using zippers, allowing
one long sidewall to be raised if activity necessitates. Standard cage size is 10´ high x 12´ wide x 70´ long. Custom sizes
available.
Indoor Equipment
Contrasting end panels added by facility owner.
Clock Guard
Draper Clock Guards prevent shattered glass in an
activity area by shielding clock
from fl ying sports equipment.
Draper makes a heavy-duty
steel frame that fi ts over most
standard size gym clocks.
Constructed of ¼˝ diameter,
16-gauge steel rods welded to
a steel frame. All components are powder coat treated in a
glossy black fi nish for years of indestructible protection for
your clock.
The frame mounts securely to the wall. The guard’s inside
dimensions are 20˝ x 20˝ square. The clearance between the
wall and the front of the frame measures 4˝. A 1˝ space lets
the clock cord pass under the frame. For quick and easy access to the clock, the clock protector is double hinged on
one side, with a wingnut fastener assembly on the other. No
tools are needed to open or close the guard.
For complete submittals, instructions
or specifi cations, visit Draper’s
Climbing Ropes
Draper offers climbing ropes in three different materials and a
variety of ends, optional knots, rubber balls and accessories to
improve muscle tone in the upper arms and shoulders. Standard
lengths of rope are 18´.
Choose the material:
① EZ Manila is 1½˝ rope twisted
from 3 strands of Grade A ma-
nila.
② EZ Rope looks and feels like
natural rope but is a synthetic
“unmanila” fi ber. Even
at 1½˝, it is two-thirds the
weight and is superior in
strength to natural rope.
③ EZ Poly is 1½˝ polypro core
covered with a soft, durable
cotton-like polyester.
Choose the end:
① Whipped
② Polyboot
③ Leather seat on a turk knot
Choose optional climbing
aids; specify quantity and
desired location:
① Woven knots spliced
into the rope for assistance and rest areas.
② Large tied knots used
to form platforms for
climbing assistance.
③ Rubber balls available
only on EZ Manila
and EZ Poly ropes.
Choose accessories:
① 502004—Tambou rine
clamps to any position
on the rope to limit
climbing distance.
② 502005—Climbing
Rope Hoist to raise
ropes to wall or ceiling after
use for easy storage.
③ 502003—Adjustable Beam
Clamp with EZ-link to attach ropes to I-beams, bar
joists and trusses.
④ 502014—Safety cable at-
tachment. A backup safety
device for all ropes. Cable
loops up over your ceiling attachment and secures
to the rope with a ¼˝ pipe
clamp.
①② ③
①② ③
①
②
③
①
②
web site at www.draperinc.com.
14
Note: Custom attachment clamps available.
Contact your Dr aper dealer for details.
765-987-7999 • www.draperinc.com
Page 15
Physical Education Equipment
Stall Bar with Extended Top Rail
502026—Mount single Stall Bar sections sepa-
rately or in a continuous row. Each section is 2´ 10 ˝
wide and 8´ high with 11 rungs of 1½˝ diameter solid oak. Rungs are fi nished with a clear lacquer and
secured to the uprights to prevent turning. Each
section weighs 75 lbs. Assembly hardware and
mounting instructions included.
Deluxe Arm Strengthening Bar
502028—T his Deluxe Arm Strengthening
Bar is made of 1¼˝ heavy gauge steel tubing. It
is powder coated for durability. Seven rungs are
in 7˝ increments for endurance training. Overall
measurements are 63˝ tall and 21˝ wide.
Arm Ladder
502027—Arm strengthening climbing
ladder is made from heavy-duty tubular
galvanized steel. Upper body strength developer angles away from the wall for safety.
Five rungs are bolted to the outside rails—
the fi rst four are 8˝ apart and the top one is
approximately 10˝ above the others and 7˝
back toward the wall. Overall dimensions
are 45˝ long and 24˝ wide.
Floor Hockey Goal
502040—Dr aper’s Floor Hockey Goal
is 4´ h x 6´ w x 22˝ d and is constructed of
1⅜˝ O.D. ga lvanized tube frame with galvanized steel fi ttings. Floor hockey goal
includes ¾˝ white nylon net and nonmarking fl oor pads. Net has 14 oz. vinyl sleeves to fi t tubing
frame and eliminate need for lacing. Goal can be used for indoor
or outdoor play. Sold in pairs.
Deluxe Adjustable Wall
Chinning Bar
502015—The fi nest bar
available. Wall mounting brackets and bar are
constructed of galvanized
steel. Bar fi nished with
black powder coat and
adjusts easily in bracket
using 6˝ wall with lag
bolts and shields. Ready
to mount. 40˝ in length.
Adjustable Chinning Bar
502013—Mount Adjustable Chinning
Bar to the wall for a permanent installa-
tion or to the 2˝ x 4˝ x 54˝ wood wall pads
for adjustability and removal for storage.
Solid steel frame and 1⅛˝ diameter solid
steel bar are welded together for a lifetime
of chin-ups. With wood wall pads, bar is
adjustable in 6˝ increments within a 30˝
range. Frame and bar have a chrome fi nish.
Stationary Chinning Bars
These one, two or three section chinning bars feature
the same quality
construction as
our Deluxe Ad-
justable Wall
Chinning Bar,
but are designed
to mount directly
to a wall.
502016—40˝ Single unit chinning bar
502017—82˝ Dual unit chinning Bar
502018—124˝ Three unit chinning bar
Wall Mounted Horizontal Ladder
502025—Side rails are 12´ long and 1½˝ x 4˝ x .083˝ wall
rectangle tubing with capped ends. Side rails are electrostatically painted. Twelve hardwood rungs are 1⅜˝ dia.
solid maple and are secured to the side rails to prevent
turning. Support frames of 1⅝˝ dia. heavy wall tubing will
position the inside of the ladder 2´- 6´ from the wall. 2˝ x 6˝
wood wall pads included. Assembly hardware and mounting instructions included.
Indoor Equipment
765-987-7999 • www.draperinc.com
For complete submittals, instructions
or specifi cations, visit Draper’s
web site at www.draperinc.com.
15
Page 16
Outdoor Basketball Backstop Systems
506993 Titan Adjustable Post Set
Titan’s 6˝ square, 3⁄
extension arm makes it one of the toughest adjustable posts
sets available. Tubular H-Frame backboard mount with direct
goal attachment provides maximum rigidity. Post provides a 4
extension for maximum player safety.
Crank style adjustment system with a double spring assist allows
virtually anyone of any size or age to easily adjust the goal to any
height between 10´ and 4´ 6˝. Indicator shows the rim height.
All pivot points feature welded steel bushings, and post has a
welded top cap to provide long-term durability. Entire post and
extension fi nished in durable black powder coat. Post is attached
to concrete footing via threaded J-bolt anchoring system to allow
perfect pole leveling and easy removal.
Post set provided with 72˝ x 42˝ Acrylic Backboard and Outdoor
Breakaway Goal. 506980 Post Pad and 506986 Backboard
Edge Padding are optional.
˝ thick post and heavy-duty, dual strut
16
506992 Force Adjustable Post Set
Force’s 5˝ square, 3⁄
it a high-quality system that will stand up to even the toughest
play. Post set features the same Tubular H-Frame and direct goal
attachment design featured on our top of the line adjustable post
set. Backboard extends 4´ in front of the post.
Outdoor Equipment
Crank style adjustment system with spring assist makes it easy
for most people to adjust the goal to any height between 10´ and
5´. Indicator shows the rim height.
Post features welded steel bushings at all pivot points and a
welded top cap to provide durability. Post and extension fi nished
in durable black powder coat. Post is attached to concrete footing via threaded J-bolt anchoring system to allow perfect pole
leveling and easy removal.
Post set provided with 48˝ x 36˝ Acrylic Backboard and Outdoor
Breakaway Goal. 506983 Post Pad and 506988 Backboard
Edge Padding are optional.
˝ thick post and dual strut extension make
16
Titan
´
Force
Slam
506991 Slam Adjustable Post Set
Slam post set offers adjustability and durability at an affordable
price. Post is constructed in a single piece from 4˝ Square 11-
gauge tubing. Vinyl cap seals post to prevent collection of water.
Backboard extends 24˝ in front of the post when goal is set at 10´.
Extension distance increases as rim height is lowered.
Pin-style adjustment allows for the goal to be set at heights from
10´ to 7´ in 6˝ increments. Post has a spring-aided design to make
adjustment virtually effort-free.
All steel components fi nished in black powder coat for maximum durability. Post is direct buried 36˝ into concrete footing.
Post set provided with 48˝ x 36˝ Acrylic Backboard and Outdoor
Breakaway Goal. 506981 Post Pad and 506988 Backboard
Edge Padding are optional.
For complete submittals, instructions
or specifi cations, visit Draper’s
web site at www.draperinc.com.
16
765-987-7999 • www.draperinc.com
Page 17
Outdoor Basketball Backstop Systems
Gooseneck Style Posts
Gooseneck style posts are our most
popular choice for Outdoor Back-
stop Systems; 3 sizes and 4 extensions
meet any need and fi eld condition.
Each style post is constructed with
heavy-wall galvanized pipe formed
with an 18˝ to 24˝ radius and horizontal section to extend the board away
from the post. Posts provided with lug
at bottom to prevent rotation in footing. Goals bolt directly through the
backboard to post to eliminate stress
on the backboard, if a player hangs
on goal. Choose from backboards and
goals listed on page 18.
shaped backboards are supplied with
diagonal sway braces for added stability.
5061XY*—3½˝ O.D. with 3´ extension
5062XY—3½˝ O.D. with 4´ extension
5063XY—4½˝ O.D. with 4´ extension
5064XY—4½˝O.D. with 5´ extension
5065XY—5⁹⁄₁₆˝ O.D. with 6´ extension
* X used to indicate backboard. Y used to indicate goal.
Rectangular
506343—4½˝ OD
Gooseneck Post with 4´
Extension, A0133 Fan
Aluminum Backboard
with Border and Target
and A0575 Double Rim
Goal with Nylon Net.
Straight Style Posts
Three sizes and extensions meet any
need and fi eld condition. Each style
post is constructed with heavy-wall
galvanized pipe with lug at bottom to
prevent rotation in footing. Horizontal
extensions are constructed of heavywall galvanized tube and a fi tting to
fi t over vertical post. Goal height can
be set from 0´–10´. Goals bolt directly
through backboard to post to eliminate stress on backboard, if a player
hangs on goal. Choose from backboards and goals listed on page 18.
Rectangular shaped backboards are
supplied with diagonal sway braces for
added stability.
5066XY*—
5067XY—4½˝ O.D. with 4´ extension
5068XY—
* X used to indicate backboard. Y used to indicate goal.
3½˝ O.D. with 3´ extension
5⁹⁄₁₆˝ O.D. with 6´ extension
—3½˝ OD
506643
Straight Post with 3´
Extension, A0133 Fan
Aluminum Backboard
with Border and Target
and A0575 Double Rim
Goal with Nylon Net.
Back-to-Back Style Posts
Same features and construction as straight style posts with second extension for using a common post for two backboards.
Ideal for large playgrounds with courts located end to end.
5069XY*—4½˝ O.D. with two 4´ extensions
5060XY—5⁹⁄₁₆˝ O.D. with two 6´ extensions
* X used to indicate backboard. Y used to indicate goal.
Heavy-Duty Fixed Height Posts
Draper’s fi x e d h e i g h t p o s t s o f f e r e x c e p tional rigidity, uncompromising durability
and maximum safety on even
the toughest basketball courts!
Built from heavy 6˝ square 3/
thick steel tubing, our fi xed
height posts provide unmatched
stability and durability. Designed for the most rugged
playgrounds, the posts performs
equally well on the home court.
The direct bury post is positioned 66˝ behind the backboard for safety.
The extension arm is attached
to the vertical post via six ⅝˝
high tensile bolts. Though
considered a “fi xed height” goal,
the extension arm can be bolted
at any height along the post.
506995—
acrylic backboards and Outdoor
Breakaway Goals with nylon nets.
506997—Post set with 72˝ x 42˝
steel backboards and Super Playground Goals with nylon nets.
Post set with 72˝ x 42˝
˝
16
506997
Heavy-Duty Back-to-Back
Fixed Height Posts
Same premium construction and quality features
as our Heavy-Duty Fixed
Height Posts, except with
a second extension arm,
backboard and rim extending off opposite side.
506996—Post set with
72˝ x 42˝ acrylic back-
boards and Outdoor
Breakaway Goals with
nylon nets.
506998—Post set
72˝ x 42˝ steel
with
backboards and Super
Playground Goals with
nylon nets.
Optional
Square Post Pad and
506986 Backboard Edge
Padding
Duty Fixed Height Post Sets.
506982 6˝
available for all Heavy-
506996
506998
For complete submittals, instructions
or specifi cations, visit Draper’s
web site at www.draperinc.com.
506995
Outdoor Equipment
765-987-7999 • www.draperinc.com
17
Page 18

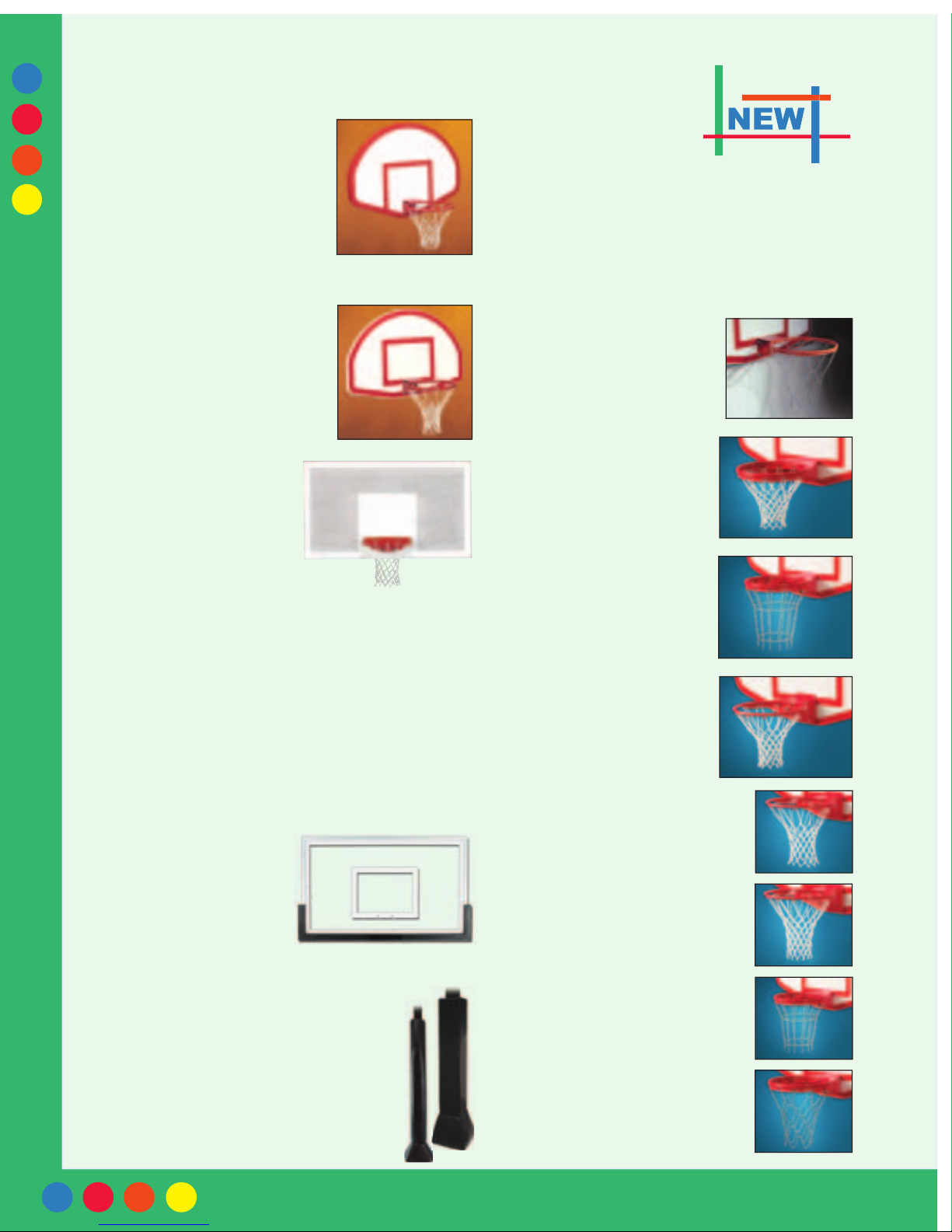

Basketball Backstop Systems
Backboards
A0018 Fan Fiberglass (shown) 54˝ x 39˝
See page 4 for description.
A0135 Fan Aluminum Backboard
Solid die cast aluminum with reinforcing ribs for added strength. White powder
coat fi nish. Lifetime Warranty.
503042 Fan Aluminum Backboard
Same construction as A0135 in natural aluminum fi nish.
Lifetime Warranty.
A0133 Fan Aluminum Backboard
Same as A0135 but includes orange border and target. Lifetime Warranty.
A0267 72˝ x 42˝ Rectangular Steel Backboard with border and target—See page
4 for description. Not for use with 3½˝
O.D. or 4½˝ O.D. posts.
503033 72˝ x 42˝ Rectangular
Perforated Steel Backboard
Ideal for windy areas. The 11-gauge
steel skin is perforated with ¼˝ holes
in a pattern to form border and
target. Backboard includes a steel
Outdoor Equipment
sub-frame for added strength. Not
for use with 3½˝ or 4½˝ O.D. posts.
503035 54˝ x 42˝ Rectangular Polycarbonate Backboard
Gives the look of glass but constructed with ½˝ clear polycarbonate and framed with aluminum extrusions and steel corner
brackets. Includes a steel sub-frame for added strength. White
border and target. Not for use with 3½˝ O.D. posts.
503034 72˝ x 42˝ Rectangular Polycarbonate Backboard
This backboard features the same construction as the 503035 but in
a larger competition size. Not for use with 3½˝ or 4½˝ O.D. posts.
A0018
A0133
Outdoor Backboard Padding
Outdoor backboard padding. Molded urethane construction.
Padding secures to backboard with self-drilling screws. Fits most
48˝-72˝ wide backboards.
506988—48˝ padding
506987—60˝ padding
506986—72˝ padding
Post Padding
Premium pole pad for outdoor posts. Foam pad (1½˝-2˝ thick)
with sewn vinyl cover. All-weather. Velcro® wrap around or
Lace & Grommet attachment. Pole pad is 66˝ tall.
506980 Titan Post Pad—Velcro attached
506981 Slam Post Pad—Velcro attached
506982 Heavy-Duty (6˝ square) Post Pad—
Velcro attached
506983 Force Post Pad—Velcro attached
506984 Lace & Grommet Pad for 3½˝ to 4½˝ round
506985 Lace & Grommet Pad for 5⁹⁄₁₆˝ round
Goals
A0570 Stationary Goal
See page 5 for description.
A0572 Heavy-Duty Stationary Goal
See page 5 for description.
A0575 Double Rim Goal with Nylon Net
Goal has a dual rim made with ⅝˝ diameter and ½˝ diameter steel rods formed into 18˝ ID ring. Rim is reinforced with
7
⁄₁₆˝ diameter braces welded to the ring and mounting plate.
Includes nylon net and mounting hardware.
A0579 Double Rim Goal with
Chain Net
Same construction as A0575 but provided with chain net and hooks for
net attachment.
503078 Super Playground Goal
with Nylon Net
Constructed with double ⅝˝ diameter rings welded to a 3⁄₆˝ box design
gusseted backplate and rim support.
Supplied with nylon net and mounting hardware. Lifetime Warranty.
503077 Super Playground Goal
with Premium Chain Net
Same construction as 503078 but
is supplied with zinc-plated 503076
Premium Steel Safety Net.
Lifetime Warranty.
503079 Outdoor Breakaway Goal
Low maintenance design to stand
up to outdoor use. Rim defl ects
down 15° when excessive load is applied to the front of the ⅝˝ diameter
steel rim. Includes nylon net and
mounting hardware.
A0579
Replacement Nets
503046 Heavy-Duty Nylon Net
Braided nylon. Bright white.
503045 Heavy-Duty Anti-Whip
Nylon Net
Braided nylon with stiffened upper loops
to reduce net whip. Bright white.
503075 Chain Net
Chain net outperforms nylon nets. Resists
wear, stretch, shrink and tangle. Heavyduty S-hooks for attachment to goal.
503076 Premium Steel Safety Net
All links are welded into closed loops to
virtually eliminate the risk of loose and
dangling links. Extra heavy-duty S-hooks
for attachment to any style goal. Premium
Steel Safety Net is zinc plated.
18
765-987-7999 • www.draperinc.com
Page 19
Football Goalposts
5⁹⁄₁₆˝ Gooseneck Goalpost
Draper’s heaviest goalpost comes in styles for high school and
collegiate play. The Gooseneck has a 72˝ setback. Buries 48˝ in
ground. Can be used with 505101 Ground Sleeve. It features an
exclusive design for precise vertical and horizontal alignment and
ease of installation.
The 5⁹⁄₁₆˝ O.D. schedule 40 pipe is bent and then powder coated.
Features 3½˝ steel tube crossbar and 20´ high, 2⅜˝ diameter aluminum uprights. Goalposts ship in four pieces and are sold in
pairs. Hardware included.
Model # Description Details
505125 Collegiate 5⁹⁄₁₆˝ Safety Yellow 18´6˝ Between 20´ Uprights
505124 Collegiate 5⁹⁄₁₆˝ White 18´6˝ Between 20´ Uprights
505123 High School 5⁹⁄₁₆˝ Safety Yellow 23´4˝ Between 20´ Uprights
505122 High School 5⁹⁄₁₆˝ White 23´4˝ Between 20´ Uprights
4½˝ Gooseneck Goalpost
An excellent value, Draper’s 4½˝ O.D. goalposts bury 48˝
into the ground for stability or use 505100 Ground Sleeves for
removable installation. Posts feature 60˝ setback and 20´ alumi-
num uprights. Crossbars are 3½˝ steel tube. Goalposts ship in
four pieces and are sold in pairs. Hardware included.
5⁹⁄₁₆˝ Gooseneck Goalpost
Outdoor Equipment
Model # Description Details
505121 Collegiate 4½˝ Safety Yellow 18´6˝ Between 20´ Uprights
505120 Collegiate 4½˝ White 18´6˝ Between 20´ Uprights
505119 High School 4½˝ Safety Yellow 23´4˝ Between 20´ Uprights
505118 High School 4½˝ White 23´4˝ Between 20´ Uprights
Combination Football/Soccer Goals
for High School or College
505117, the goal can be easily changed to accommodate football or soccer. Change uprights for high school or college width.
Soccer goal is offi cial 24´ x 8´. Goals are constructed of 4˝ square
tube with a white powder coated fi nish. Posts bury 36˝ into
ground. European style bolt-on soccer back stays.
Order 505015 Soccer Net and 505008 Net Attachment Kit
separately. Sold in pairs.
H-Style Galvanized Goalposts
505116, the most affordable Dr aper goalpost option, features
3½˝ heavy wall galvanized uprights and crossbars. Posts bury directly into the ground approximately 3´. Offi cial 23´4˝ wide x 10´
high uprights or crossbar can be fi eld cut and installed at 18´6˝
college width.
Great for practice fi elds, youth fi elds and budget conscious programs. Rain caps keep water out of posts. Sold in pairs.
4½˝ Gooseneck Goalpost
Combination Football/SoccerGoalpost
All Draper Football Goalposts
Have a Three-Year Limited Warranty
765-987-7999 • www.draperinc.com
19
Page 20
Soccer Goals
Portable Soccer Goals
Draper’s lightweight Portable Soccer Goals have a full
4˝ square aluminum post and crossbar design. A unique corner attachment system allows for ease of installation and the elimination
of all protruding hardware on the front and sides of goal. Features a
white powder coated fi nish and full ¾˝ edge radius for player safety.
Backstays are 1⅝˝ galvanized steel tube and provide a 4´ top depth.
Net clips hold the net securely to the face of the goal. Order nets
with 4´ top depth separately.
All Draper Portable Soccer Goals come standard with built-in
wheel kits for easy transport and ground anchor kits for player safety (see page 21).
Offi cial 24´ x 8´ Competition Aluminum Portable Goals
505003—Meets all NCAA, FIFA and National High School
Federation rules. Order 505015 nets separately.
Club 21´ x 7´ Aluminum Portable Goals
505002—Order 505014 nets separately.
Youth 12´ x 6½´ Aluminum Portable Goals
505001—Order 505012 nets separately.
In-Ground Steel Soccer Goals
Sturdy, economical, and easy to install and secure with a corner attachment design. Can be
permanently mounted in concrete or removable
when used with
Outdoor Equipment
steel components feature phosphate and powder
coating to withstand any weather. Order nets,
optional backstays and ground sleeves separately.
Posts are 4˝ square with ⅛˝ wall thickness, and a
full ¾˝ soft edge radius for safety.
Offi cial 24´ x 8´ Competition Steel In-Ground Goals
505006—Meets all NCA A, FIFA and National High School
Federation rules. Order
Club 21´ x 7´ Steel In-Ground Goals
505005—Order 505013 nets separately.
Youth 12´ x 6½´ Steel In-Ground Goals
505004—Order 505011 nets separately.
Optional European 4´ Backstays
505007—Backstays can be mounted to all in-ground soccer
goals. Backstays feature white powder coated fi nish and 1⅝˝ diameter tube construction. When using backstays, a 4´ top depth
net is needed instead of those specifi ed above (see chart below).
Sold in sets of two backstays with mounting hardware.
505009 Ground Sleeves. All
505016 nets separately.
505003 Portable goal
Portable goal net clips
505006 In-ground goal
505006 with optional backstays
Built-in Transporter
Ground Sleeve for Steel In-Ground Soccer Goals
505009—Make Draper’s in-ground goals removable for multi-
purpose fi elds by adding ground sleeves. Aluminum extrusions are
24˝ deep and adjustable at installation to fi t any 4˝ square post. Steel
caps keep out dirt and debris. Requires 30˝ deep x 8˝ minimum di-
ameter ground excavation. Order two per goal; four per fi eld.
Woven Knotless Soccer Nets
Although designed specifi cally for Draper soccer goals, these nets
can be used on any goal with a 4´ top depth or with a zero top
depth. Nets are constructed of 3 mm polypropylene knotless netting
with 4˝ square mesh. Nets are non-abrasive and follow the trend to-
ward reduced mesh size for superior durability and safety. Each pair
of nets comes with a mesh carry bag for easy transport or storage.
20
Soccer Nets:
Top Top
Model # Width Height Depth Depth
505015 24´ 8´ 4´ 10´
505016 24´ 8´ 0´ 8´
505014 21´ 7´ 4´ 7´
505013 21´ 7´ 0´ 7´
505012 12´ 6½´ 4´ 6½´
505011 12´ 6½´ 0´ 6½´
765-987-7999 • www.draperinc.com
Page 21
Football Accessories
See page 19 for Football Goalposts.
Goalpost Padding
5051xx*—Super thick 5˝ foam covered with
weatherproof vinyl in your choice of 12 school
colors. Hook and loop strap closures. Protects
players to a height of 72˝. Meets all NCAA
and National High School Federation rules.
Designed to fi t all goal posts to 5⁹⁄₁₆˝ diameter
and 4˝ square. *Last two digits indicate color
of pads. See below for colors:
In Stock: Special Order—Allow Four Weeks
Lacrosse Goal
with Net
505035—Lacrosse Goal is man-
ufactured with heavy-gauge 1¾˝
galvanized steel tubing. Tubing is fi nished with durable
offi cial orange powder coat. Goal opening measures 6´ x
6´ with a 7´ rear taper. Frame is in two sections for fast as-
sembly and to allow for easy storage. Goal is supplied with
high-grade net made from 60 ply white nylon with 1½˝
square openings and lacing cord for net attachment. Sold
in pairs. Use of anchoring kit recommended.
505010 Outdoor Anchor Kit—order kits separately.
505036 Indoor Anchor Kit—order kits separately.
Outdoor Equipment
04 Red
10 Dark
Blue
09 Ma roon
11 Black 12 Purple
02 Marine
06 Or ange 08 Grey
Blue
13 Forest
Green
07 Yellow
14 Kelly
Green
Adjustable Height Ground Sleeves
The only goalpost sleeve to allows accurate adjustment of the crossbar height to offi cial 10´. Use to
remove gooseneck style goalposts on multi-purpose fi elds. Galvanized steel sleeve with 4˝ of total
crossbar height adjustment. Built-in anti-rotation
device. Aluminum cover to fi nish socket both when
installed and removed. Requires minimum 30˝ di-
ameter x 53˝ deep excavation. Order two per fi eld.
505100—For 4½˝ diameter goalposts.
505101—For 5⁹⁄₁₆˝ diameter goalposts.
See page 20 for Soccer Goalposts and Nets.
Soccer Accessories
Soccer/LaCrosse Goal Ground Anchor Kit
505010—Auger-type anchors designed
for anchoring in soft or loose soils. Proper use of two anchors per aluminum
portable goal complies with all NCAA,
National High School Federation and
FIFA rules for anchoring portable goals.
Set of four (use two per goal) provided
with all aluminum portable goals.
15 Navy
Blue
Field Hockey Goal
505030—Draper’s Field Hockey
Goal is offi cial sized and measures
7´ h x 12´ w x 4´ d. The front frame
is constructed of 2˝ x 1˝ heavy-gauge
aluminum tube that has been painted with a durable white enamal
fi nish. Backstays and top stabilizing
bars are made of 1⅜˝ O.D. galvanized steel tubing. These
goals are approved by the USFHA and NFHS and are provided with 18˝ wood bottom boards and offi cial 2.5 mm
black nylon net. Sold in pairs.
Soccer Net Attachment Kit
505008—Includes double-sided hook and loop straps and
ground stakes for installation of net on any soccer goal without
built-in hooks. Strapping and stakes for attachment of two nets
to two goals. Also, includes storage bag.
Soccer Post Padding
505008—
nyl covered foam pad. Compact 1˝ thick padding is 72˝ high. Velcro
attachment. Sold in kits to protect one goal. Order 2 kits per fi eld.
Protect soccer players from contact with corner posts. Vi-
765-987-7999 • www.draperinc.com
21
Page 22
Tennis Systems
502106 Power Tennis System
Draper’s Pow er Tennis System is your best choice for exterior wind posts. Power
Tennis System has an all aluminum crank that will never rust. Winch handle is
removable. Posts are constructed with 3½˝ O.D., 11 gauge, galvanized tube that is
fi nished with electrostatically applied black enamel. Posts feature an aluminum cap
with an aluminum pulley to permit cable to feed over the post.
502108 Championship Tennis System
Draper offers the most durable, attractive and user-friendly tennis post available.
These high-end 3˝ square x 60˝ posts include an internal net tensioner with ample
cable take-up capacity and a winding mechanism designed for heavy loads without
fear of binding. Winding mechanism works with a ½˝ socket. Posts fi nished with
electrostatically applied black enamel and feature lacing rod.
Draper’s Tennis Systems are supplied with 502100 heavy-duty net made with 3.0 mm
hollow braid polyethylene twine, 36 oz. single layer vinyl head band sewn with 4 rows
of lock stitch. Bottom and side tapes are extra wide, abrasion resistant 18 oz. vinyl with
brass grommets. All vinyl bands are treated with UV and mildew inhibitors. Net has ½˝
fi berglass end dowels and 5/32˝ x 46´ vinyl coated galvanized aircraft top cable.
Tennis Systems also provided standard with a 502111 polyester center strap and
502112 ground anchor. Post can be used indoors or outside and can be direct buried
or used with optional ground sleeves.
505324—3½˝ x 24˝ Steel Ground Sleeve with neoprene seal cap.
502115—3˝ x 24˝ PVC Ground Sleeve
Outdoor Equipment
Volleyball Systems
Championship Outdoor Aluminum Volleyball System
505501—Height adjustable posts are constructed from specially designed heavy-wall
aluminum extrusions. Lightweight aluminum materials make set up and tear down
easy. Post is fi nished with durable white powder coat. Net height is adjustable from
42˝ to 96˝ for all levels of competition. Easy to read height indicators on both posts.
Backlash-free worm gear top rope tensioner provides superior net tension for ball
rebound preferred by players and coaches. Net measures offi cial sized 32´ x 39˝ and
features a ¼˝ Kevlar top cable, ⅜˝ bottom rope and white top, bottom and side tapes.
Options:
505309—3½˝ x 9˝ Steel Ground Sleeve with neoprene seal cap.
505310—Sand/Beach Installation Kit.
Outdoor Steel Volleyball System
505510—Outdoor Volleyball System is manufactured using 2⅜˝ O.D. galva-
nized tubing. Tubes are 10´ long and have end plugs to prevent water and moisture
collection. System provided with #21 all-weather nylon offi cial-sized net and winch
with removable handle.
Tetherball System
505201 Tetherball System consists of a post constructed of
2⅜˝–13-gauge galvanized tubing, a 5-ply yellow rubber covered ball with nylon wound
butyl bladder and reinforced, recessed rope attachment and braided nylon rope. Overall length of post is 11´6˝ to allow for 18˝ to be set in concrete footing or optional ground
sleeve. Bottom of post notched to prevent rotation in footing and/or ground sleeve.
Options:
505318—2⅜˝ x 18˝ Ground Sleeve with neoprene seal cap.
505202—Replacement tetherball with rope.
22
765-987-7999 • www.draperinc.com
Page 23
Park & Player Benches
Permanent Park Benches
Draper Par k B e n c h e s are available in many styles and offer many options to meet your specifi c needs. These benches
feature a sturdy and contoured back for maximum comfort.
Draper Par k B e n c h e s are available in lengths of 6´, 8´ and
15´. Frames are constructed with 2⅜˝ O.D. tubing and are hot
dipped galvanized or fi nished with black powder coat. Choose
your planking from cedar colored recycled plastic, aluminum or
thermoplastic coated expanded metal in choice of three colors.
Permanent Park Benches 6´ 8´ 15´
Galvanized Frame w/Cedar Colored Recycled Plastic Planks 507164 507184 n/a
Black Powder Coat Frame w/Cedar Colored Recycled Plastic Planks 507264 507284 n/a
Galvanized Frame w/Extruded Aluminum Planks 507165 507185 507155
Black Powder Coat Frame w/Extruded Aluminum Planks 507265 507285 507255
Galvanized Frame w/Thermoplastic Coated Expanded Metal Planks 50716X 50718X 50715X
Black Powder Coat Frame w/Thermoplastic Coated Expanded Metal Planks 50726X 50728X 50725X
X—last digit indicates color: 1 Red; 2 Blue; 3 Black
Portable Park Benches
Same quality construction as our permanent park benches with
a design to allow portability. Ideal for indoor or outdoor use.
Frames for portable benches feature 2⅜˝ horizontal feet and 11⁄16˝
lateral braces to increase stability. Feet are provided with rubber
pads to protect fl oors and playing surfaces.
Outdoor Equipment
Portable Park Benches 6´ 8´ 15´
Galvanized Frame w/Cedar Colored Recycled Plastic Planks 507364 507384 n/a
Black Powder Coat Frame w/Cedar Colored Recycled Plastic Planks 507464 507484 n/a
Galvanized Frame w/Extruded Aluminum Planks 507365 507385 507355
Black Powder Coat Frame w/Extruded Aluminum Planks 507465 507485 507455
Galvanized Frame w/Thermoplastic Coated Expanded Metal Planks 50736X 50738X 50735X
Black Powder Coat Frame w/Thermoplastic Coated Expanded Metal Planks 50746X 50748X 50745X
X—last digit indicates color: 1 Red; 2 Blue; 3 Black
Player Benches
Draper Player Benches are available in portable or permanent
models and in lengths of 6´, 8´ and 15´. Frames are constructed
with 2⅜˝ O.D. tubing and are hot dipped galvanized or fi nished
with black powder coat. Portable Player Benches feature 2⅜˝
horizontal feet with rubber fl oor protection pads and 11⁄16˝ lateral
braces to increase stability. Chose your seating surfaces from
cedar colored recycled plastic, aluminum or thermoplastic coated
expanded metal in choice of three colors.
Permanent Player Benches 6´ 8´ 15´
Galvanized Frame w/Cedar Colored Recycled Plastic Planks 507564 507584 n/a
Black Powder Coat Frame w/Cedar Colored Recycled Plastic Planks 507664 507684 n/a
Galvanized Frame w/Extruded Aluminum Planks 507565 507585 507555
Black Powder Coat Frame w/Extruded Aluminum Planks 507665 507685 507655
Galvanized Frame w/Thermoplastic Coated Expanded Metal Planks 50756X 50758X 50755X
Black Powder Coat Frame w/Thermoplastic Coated Expanded Metal Planks 50766X 50768X 50765X
X—last digit indicates color: 1 Red; 2 Blue; 3 Black
(Above) Permanent Player Bench
(Below) Portable Player Bench
Portable Player Benches 6´ 8´ 15´
Galvanized Frame w/Cedar Colored Recycled Plastic Planks 507764 507784 n/a
Black Powder Coat Frame w/Cedar Colored Recycled Plastic Planks 507864 507884 n/a
Galvanized Frame w/Extruded Aluminum Planks 507765 507785 507755
Black Powder Coat Frame w/Extruded Aluminum Planks 507865 507885 507855
Galvanized Frame w/Thermoplastic Coated Expanded Metal Planks 50776X 50778X 50775X
Black Powder Coat Frame w/Thermoplastic Coated Expanded Metal Planks 50786X 50788X 50785X
X—last digit indicates color: 1 Red; 2 Blue; 3 Black
765-987-7999 • www.draperinc.com
23
Page 24
Bike Racks
Loop Style Bike Racks
Draper Loop Style Bike R acks offer a clean and contemporary looking answer for bike storage. Loop Style Bike Racks are
fabricated from 2⅜˝ O.D. galvanized tubing and are available for
permanent or surface mount installations.
Permanent Style Surface Mount Style
3 Loop Bike Rack
5
Loop Bike Rack
7 Loop Bike Rack
9 Loop Bike Rack
Traditional Style Bike Racks
Draper Tr adit iona l S t y l e Bi ke R ack s offer a design that groups
rungs to facilitate uniform storage and allow for easier entrance and
exit of bicycles. Bike racks are constructed with a frame from 1⅝˝
O.D. galvanized tubing and ⅝˝ O.D. galvanized rungs. Bike racks
are assembled using galvanized heavy-gauge stampings. Single-sided
and double-sided racks and add on units available to create longer
bike racks for your specifi c requirements. Rack capacity is one
bicycle per foot per side.
5´ Rack
5´ Add On Rack
8´ Rack
Outdoor Equipment
8´ Add On Rack
10´ Rack
10´ Add On Rack
505313 505323
505315 505325
505317 505327
505319 505329
Single Sided Double Sided
n/a 505345
n/a 505344
505338 505348
505337 505347
505330 505340
505339 505349
Tip and Roll Bleachers
Draper Tip and Roll Bleachers are designed for outdoor or
indoor use and are ideal for locations where only temporary seating
is required. Welded frame is constructed with aluminum angles
and planking is 2˝ x 10˝ extruded 6063-T6 aluminum. Each unit
has three rows of seating and includes 5˝ casters and wood pads to
prevent scuffi ng or marking of fl oors.
507995—9´ long, 3 rows
507955—15
411 S. Pearl St., Spiceland, IN 47385 USA
e-mail drapercontract@draperinc.com ❚ www.draperinc.com
Copyright © 2005 Draper, Inc. Form_AthleticEquipment05 Printed in U.S.A.
´ long, 3 rows
❚
765-987-7999
The McGraw-Hill Construction Information Group, publishers of Sweet’s,
has awarded Draper its “Best in Sweet’s—Most Outstanding Marketplace Program (Print and Electronic)” award, as part of the 2005 Sweet’s Marketplace
Awards. Draper also received honorable mention for Best Electronic Program.
According to Sweets, “Winners in this category represent the fi nest examples of
Best in Sweets
marketing in the construction Marketplace. Utilizing print and electronic programs, they create a complete, easy-to-use resource for industry professionals.”
2005
❚
fax 866-637-5611
Please visit us on the Web at www.draperinc.com to
download specifi cations, CAD details, submittals and
installation instructions 24-hours a day.
To receive an architectural specifi cation CD-ROM,
product cut sheets or additional literature, contact
Drap er by calling, faxing, or e-mailing us.
Unless noted otherwise, all photos in this publication
© Draper, Inc.
24
765-987-7999 • www.draperinc.com
Loading...
