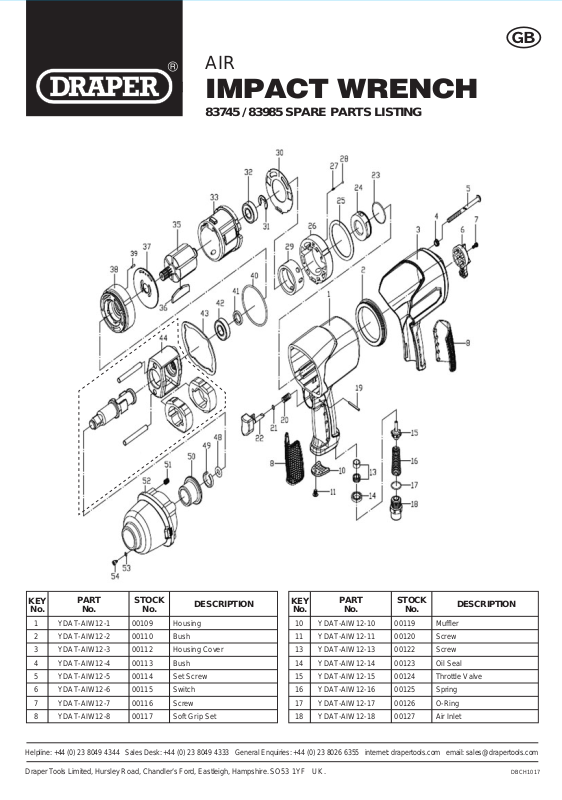

AIR
IMPACT WRENCH
83745 / 83985 SPARE PARTS LISTING
KEY
No.
1 YDAT-AIW12-1 00109 Housing
2 YDAT-AIW12-2 00110 Bush
3 YDAT-AIW12-3 00112 Housing Cover
4 YDAT-AIW12-4 00113 Bush
5 YDAT-AIW12-5 00114 Set Screw
6 YDAT-AIW12-6 00115 Switch
7 YDAT-AIW12-7 00116 Screw
8 YDAT-AIW12-8 00117 Soft Grip Set
Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 internet: drapertools.com email: sales@drapertools.com
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK
PART
No.
STOCK
No.
DESCRIPTION
KEY
No.
10 YDAT-AIW12-10 00119 Muffler
11 YDAT-AIW12-11 00120 Screw
13 YDAT-AIW12-13 00122 Screw
14 YDAT-AIW12-14 00123 Oil Seal
15 YDAT-AIW12-15 00124 Throttle Valve
16 YDAT-AIW12-16 00125 Spring
17 YDAT-AIW12-17 00126 O-Ring
18 YDAT-AIW12-18 00127 Air Inlet
PART
No.
.
STOCK
No.
DESCRIPTION
DBCH1017
AIR
IMPACT WRENCH
83745 / 83985 SPARE PARTS LISTING
KEY
No.
19 YDAT-AIW12-19 00128 Pin
20 YDAT-AIW12-20 00130 Spring
21 YDAT-AIW12-21 00131 O-Ring
22 YDAT-AIW12-22 00132 Trigger
23 YDAT-AIW12-23 00133 O-Ring
24 YDAT-AIW12-24 00134 Air Flow Regulator
25 YDAT-AIW12-25 00135 Gasket
26 YDAT-AIW12-26 00136 Valve Seat
27 YDAT-AIW12-27 00138 Spring
28 YDAT-AIW12-28 00139 Steel Ball
29 YDAT-AIW12-29 00140 Bush
30 YDAT-AIW12-30 00141 Gasket
31 YDAT-AIW12-31 00142 Retainer Ring
32 YDAT-AIW12-32 00143 Bearing
33 YDAT-AIW12-33 00144 Cylinder & Steel Ball
35 YDAT-AIW12-35 00147 Rotor
Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 internet: drapertools.com email: sales@drapertools.com
PART
No.
STOCK
No.
DESCRIPTION
KEY
No.
36 YDAT-AIW12-36 00148 Rotor Blade
37 YDAT-AIW12-37 00149 Washer
38 YDAT-AIW12-38 00150 Front Plate
39 YDAT-AIW12-39 00151 Pin
40 YDAT-AIW12-40 00152 O-Ring
41 YDAT-AIW12-41 00154 Oil Seal
42 YDAT-AIW12-42 00155 Bearing
43 YDAT-AIW12-43 00156 Gasket
44 YDAT-AIW12-44 00157 Hammer Kit
48 YDAT-AIW12-48 01091 O-Ring
49 YDAT-AIW12-49 01092 Retainer
50 YDAT-AIW12-50 00162 Anvil Bush
51 YDAT-AIW12-51 00163 Screw
52 YDAT-AIW12-52 00164 Protector Cover
53 YDAT-AIW12-53 00165 O-Ring
54 YDAT-AIW12-54 00166 Screw
PART
No.
STOCK
No.
DESCRIPTION
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK
.
DBCH1017
