AIR

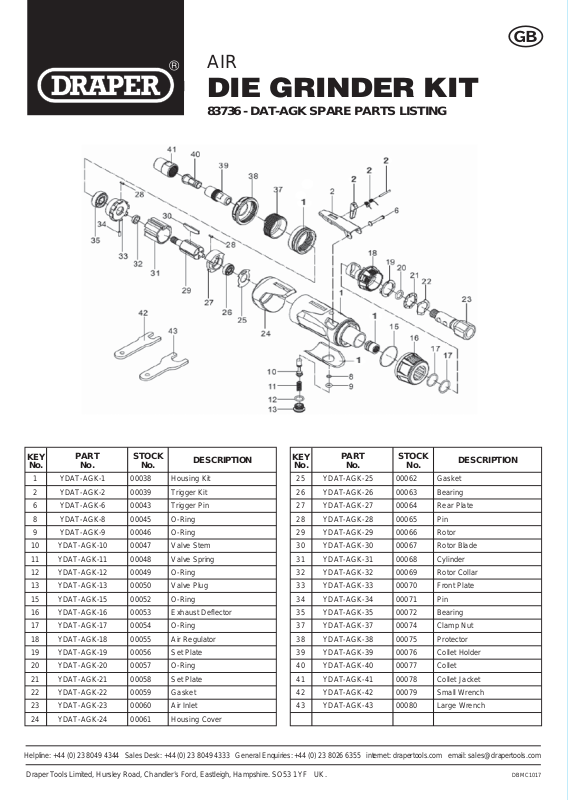

DIE GRINDER KIT
83736 - DAT-AGK SPARE PARTS LISTING
KEY
No.
1 YDAT-AGK-1 00038 Housing Kit
2 YDAT-AGK-2 00039 Trigger Kit
6 YDAT-AGK-6 00043 Trigger Pin
8 YDAT-AGK-8 00045 O-Ring
9 YDAT-AGK-9 00046 O-Ring
10 YDAT-AGK-10 00047 Valve Stem
11 YDAT-AGK-11 00048 Valve Spring
12 YDAT-AGK-12 00049 O-Ring
13 YDAT-AGK-13 00050 Valve Plug
15 YDAT-AGK-15 00052 O-Ring
16 YDAT-AGK-16 00053 Exhaust Deflector
17 YDAT-AGK-17 00054 O-Ring
18 YDAT-AGK-18 00055 Air Regulator
19 YDAT-AGK-19 00056 Set Plate
20 YDAT-AGK-20 00057 O-Ring
21 YDAT-AGK-21 00058 Set Plate
22 YDAT-AGK-22 00059 Gasket
23 YDAT-AGK-23 00060 Air Inlet
24 YDAT-AGK-24 00061 Housing Cover
PART
No.
STOCK
No.
DESCRIPTION
KEY
No.
25 YDAT-AGK-25 00062 Gasket
26 YDAT-AGK-26 00063 Bearing
27 YDAT-AGK-27 00064 Rear Plate
28 YDAT-AGK-28 00065 Pin
29 YDAT-AGK-29 00066 Rotor
30 YDAT-AGK-30 00067 Rotor Blade
31 YDAT-AGK-31 00068 Cylinder
32 YDAT-AGK-32 00069 Rotor Collar
33 YDAT-AGK-33 00070 Front Plate
34 YDAT-AGK-34 00071 Pin
35 YDAT-AGK-35 00072 Bearing
37 YDAT-AGK-37 00074 Clamp Nut
38 YDAT-AGK-38 00075 Protector
39 YDAT-AGK-39 00076 Collet Holder
40 YDAT-AGK-40 00077 Collet
41 YDAT-AGK-41 00078 Collet Jacket
42 YDAT-AGK-42 00079 Small Wrench
43 YDAT-AGK-43 00080 Large Wrench
PART
No.
STOCK
No.
DESCRIPTION
