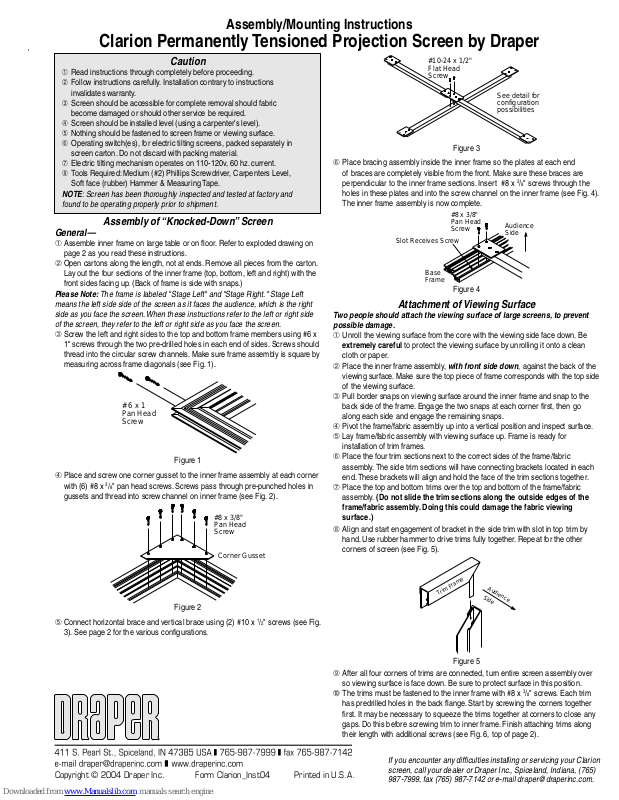

Assembly/Mounting Instructions
T
rim Frame
Audience
Side
Clarion Permanently Tensioned Projection Screen by Draper
Caution
➀ Read instructions through completely before proceeding.
➁ Follow instructions carefully. Installation con trary to instructions
invalidates warranty.
➂ Screen should be accessible for complete removal should fabric
become damaged or should other ser vice be required.
➃ Screen should be installed level (using a carpenter’s level).
➄ Nothing should be fastened to screen frame or viewing surface.
➅ Operating switch(es), for electric tilting screens, packed separately in
screen carton. Do not dis card with packing material.
➆ Electric tilting mechanism operates on 110-120v, 60 hz. current.
➇ Tools Required: Medium (#2) Phillips Screwdriver, Carpenters Level,
Soft face (rubber) Hammer & Measuring Tape.
NOTE: Screen has been thoroughly inspected and tested at factory and
found to be operating properly prior to shipment.
Assembly of “Knocked-Down” Screen
General—
➀
Assemble inner frame on large table or on fl oor. Refer to exploded drawing on
page 2 as you read these instructions.
➁
Open cartons along the length, not at ends. Remove all pieces from the carton.
Lay out the four sections of the inner frame (top, bottom, left and right) with the
front sides facing up. (Back of frame is side with snaps.)
Please Note: The frame is labeled "Stage Left" and "Stage Right." Stage Left
means the left side side of the screen as it faces the audience, which is the right
side as you face the screen. When these instructions refer to the left or right side
of the screen, they refer to the left or right side as you face the screen.
➂
Screw the left and right sides to the top and bottom frame members using #6 x
1" screws through the two pre -drilled holes in each end of sides. Screws should
thread into the circular screw channels. Make sure frame as sem bly is square by
measuring across frame diagonals (see Fig. 1).
# 6 x 1
Pan Head
Screw
Figure 1
➃
Place and screw one corner gusset to the inner frame as sem bly at each corner
with (6) #8 x
gussets and thread into screw chan nel on inner frame (see Fig. 2).
3
/8" pan head screws. Screws pass through pre-punched holes in
#8 x 3/8"
Pan Head
Screw
Corner Gusset
#10-24 x 1/2"
Flat Head
Screw
See detail for
configuration
possibilities
Figure 3
➅
Place bracing assembly inside the inner frame so the plates at each end
of braces are completely visible from the front. Make sure these braces are
per pen dic u lar to the inner frame sections. Insert #8 x
3
/8" screws through the
holes in these plates and into the screw channel on the inner frame (see Fig. 4).
The inner frame assembly is now complete.
#8 x 3/8"
Pan Head
Screw
Slot Receives Screw
Base
Frame
Audience
Side
Figure 4
Attachment of Viewing Surface
Two people should attach the viewing surface of large screens, to pre vent
pos si ble damage.
➀
Unroll the viewing surface from the core with the viewing side face down. Be
extremely careful to protect the viewing surface by un roll ing it onto a clean
cloth or paper.
➁
Place the inner frame assembly, with front side down, against the back of the
viewing surface. Make sure the top piece of frame cor re sponds with the top side
of the viewing surface.
➂
Pull border snaps on viewing surface around the inner frame and snap to the
back side of the frame. Engage the two snaps at each corner fi rst, then go
along each side and engage the remaining snaps.
➃
Pivot the frame/fabric assembly up into a vertical position and in spect surface.
➄
Lay frame/fabric assembly with viewing surface up. Frame is ready for
installation of trim frames.
➅
Place the four trim sections next to the correct sides of the frame/fabric
assembly. The side trim sections will have connecting brackets lo cat ed in each
end. These brackets will align and hold the face of the trim sections together.
➆
Place the top and bottom trims over the top and bottom of the frame/fabric
assembly. (Do not slide the trim sections along the outside edges of the
frame/fabric assembly. Doing this could dam age the fabric viewing
surface.)
➇
Align and start en gage ment of bracket in the side trim with slot in top trim by
hand. Use rubber hammer to drive trims fully together. Repeat for the other
corners of screen (see Fig. 5).
Figure 2
➄
Connect horizontal brace and vertical brace using (2) #10 x 1/2" screws (see Fig.
3). See page 2 for the various confi gurations.
Copyright © 2004 Draper Inc. Form Clarion_Inst04 Printed in U.S.A.
Figure 5
➈
After all four corners of trims are connected, turn entire screen as sem bly over
so viewing surface is face down. Be sure to protect surface in this position.
➉
The trims must be fastened to the inner frame with #8 x 3/8" screws. Each trim
has predrilled holes in the back fl ange. Start by screwing the cor ners together
fi rst. It may be necessary to squeeze the trims together at corners to close any
gaps. Do this before screw ing trim to inner frame. Finish attaching trims along
their length with additional screws (see Fig. 6, top of page 2).
If you encounter any diffi culties installing or ser vic ing your Clarion
screen, call your dealer or Draper Inc., Spiceland, Indiana, (765)
987-7999, fax (765) 987-7142 or e-mail draper@draperinc.com.
Page 2
T
rim Frame
Base Frame
Audience
Side
Slot Receives Screw
#8 x 32
Pan Head
Screw
Clarion by Draper
See detail for
configuration
possibilities
Audience
Side
Corner Gusset
#8 x 3/8 Pan Head Screw
#10-24 Flat
Head Screw
#6 x 1 Pan
Head Screw
Figure 6
The screen frame is assembled and ready for fi xed wall mounting or
at tach ment to tilting angles.
System Components
Page 2 of 2
Wall Mounting of Frames
➀
Mount 2, 3, or, 4 aluminum brackets (provided) on wall at de sired height. Use
carpenters level to ensure brackets are level. When the screen is mounted, the
top of the frame will be
required above these brackets. When the screen is set on the mounting
brackets, pull down gently to ensure that the engagement is snug and secure.
➁
Screen should be positively and securely supported so vibration or abusive
handling will not cause it to work loose or fall. The in stall er must insure that
fasteners are of adequate strength and suitable for mounting surface chosen.
1
/8" above the top of these brackets. ¾" of free space is
Trim Frame has lip on rear side
Viewing Surface
Wall Mounting Brackets
Figure 7
Note: Sizes smaller than those shown require no bracing.
Style I required for
5' 50 x 50
6' 60 x 60
78" 70 x 70
7' 84 x 84
Style III required for 5 x 15
90" 8 x 8
100" 4 x 8
10'
www.draperinc.com
Bracing Confi gurations
Style IV required for 6 x 18
(765) 987-7999
Style II required for
150"
15'
9 x 9
10 x 10
6 x 12
3 x 9
4 x 12
5 x 10
