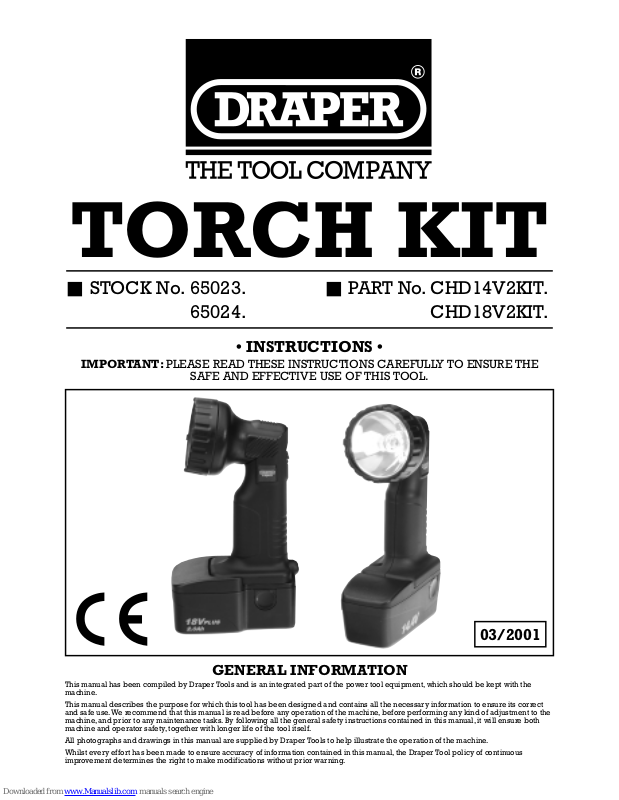

Draper CHD14V2KIT, CHD18V2KIT Instructions Manual

TORCH KIT

■ STOCK No. 65023. ■ PART No. CHD14V2KIT.

65024. CHD18V2KIT.

03/2001

• INSTRUCTIONS •

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE

SAFE AND EFFECTIVE USE OF THIS TOOL.

GENERAL INFORMATION

This manual has been compiled by Draper Tools and is an integrated part of the power tool equipment, which should be kept with the
machine.

This manual describes the purpose for which this tool has been designed and contains all the necessary information to ensure its correct
and safe use.We recommend that this manual is read before any operation of the machine, before performing any kind of adjustment to the
machine, and prior to any maintenance tasks. By following all the general safety instructions contained in this manual, it will ensure both
machine and operator safety, together with longer life of the tool itself.

All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the machine.

Whilst every effort has been made to ensure accuracy of information contained in this manual,the Draper Tool policy of continuous
improvement determines the right to make modifications without prior warning.

- 1 -

ADDED SAFETY INSTRUCTIONS
FOR CORDLESS POWER TOOLS

Safety is a combination of operator common sense and alertness at all times when the
drill is being used.

WARNING

For your own safety do not attempt to use your drill until the battery is fully charged.
Remember the drill is always in an operating condition as it does not need to be

connected to a power supply. When not in use place the direction of rotation switch in
the neutral position.

Before drilling check that there are no hidden hazards such as electrical cables, water
or gas pipes running below the surface - use a metal/voltage detector.

Do not expose either the drill or charger to rain or water.
Do not overcharge the battery (more than 6 hours) as this could damage the battery

cells.

HEALTH AND SAFETY FOR BATTERIES
General: Do not put in fire or mutilate - cells may burst or release toxic materials. Do

not short circuit cells, may cause burns.

DISPOSAL

Do not mutilate batteries, corrosive electrolyte will be released.
Do not incinerate - danger of explosion and release of toxic fumes.
Do not dispose of batteries or cells in a charged condition.
Expired nickel-cadmium batteries must be recycled/disposed of in accordance with

the appropriate regulations or legislation. They should be returned to your local
warranty agent/stockist.

DRAPER POWER HELPLINE:[phone]

- 2 -

GETTING TO KNOW YOUR
TORCH

1. Battery pack (14.4V shown)

2. Lens and reflector

3. Spare bulb

4. Torch

5. Bulb

6. On/Off switch

FIG.1

✗✌

✚✌

✘✌

✕✌

✖✌

✙✌

- 3 -

OPERATION AND USE

ON/OFF SWITCH (Fig 2)

To switch the torch on, slide the switch ✪✌ up as
shown.To switch off, slide the switch in the other
direction.

HEAD ROTATION (Fig.3&4)

The torch head ✫✌ maybe rotated through 180° to
alter the angle during operation to suit the task.

Simple rotate the head until it clicks into position.
To return back, simply rotate in the opposite
direction.

Fig.2.

Fig.3.

Fig.4.

✪✌

✫✌

- 4 -

TO CHARGE THE BATTERY (Fig 5 & 6)

To charge the battery pack it must first be removed
from the torch. To release the battery pack squeeze
the grips ✭✌ located on either side of the battery
casing and gently pull the battery pack from the
housing (fig.5). Plug the battery charger unit into a
230V/A.C. 13 amp, three-pin socket. Place the
battery in the charger as shown in (fig 6). Do not
force. Ensure the battery is inserted correctly. The
indicator light on the charger will now glow to show
that the battery is charging.When the battery is
fully charged the light will go out (approx. 1 hour).
The battery pack can then be removed and used to
power the tool. To refit the battery pack to the torch
push firmly until the battery pack locates and snaps
into place.

NOTE:

WARNING: Please ensure the Battery Pack
is installed correctly before charging.

CHD142V Plus - CHD182V Plus

OPERATION AND USE cont’d ...

Fig.5.

Fig.6.

Fig.7.

The battery was discharged after manufacturing
and will therefore require five to ten
charges/discharges before it reaches its full
capacity.

BULB REPLACEMENT (Fig.7)

Unscrew the lens ✮✌ anti-clockwise and remove.
The bulb ✯✌ sits in the spring. A spare bulb can
be kept in the holder ✰✌.When replaced, refit
the lens.

NOTE: Do not cross thread or over tighten the
lens cap.

✭✌

✮✌

✯✌

✰✌

✔✖

- 5 -

MAINTENANCE

SYMPTOM CAUSE
Torch does not light 1. Battery not connected.

2. Battery flat.

3. Bulb not fitted correctly.

4. Bulb blown.

IMPORTANT:

Please note all repairs/adjustments
should be carried out by a qualified person.

DRAPER HELPLINE:[phone]

BATTERIES

STOCK Nos.: PART Nos.: VOLTAGES

57808 CB14A 14.4V (2.0Ah)

57809 CB18 18V (2.0Ah)

- 6 -
