Page 1

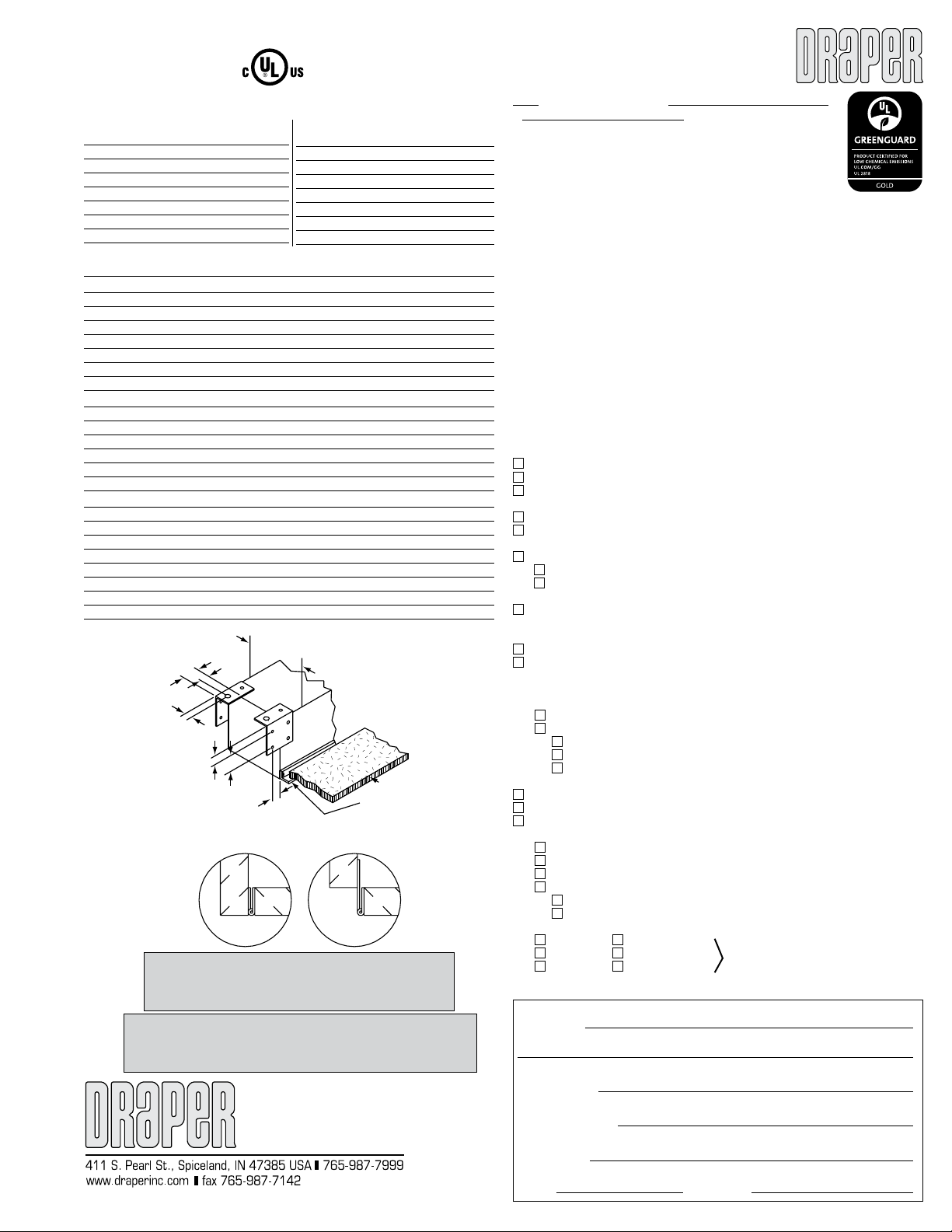

11/4"
1
1
/4"
2
1
/4"
5
/8"
2"
2"
Ceiling
grid and tile
(by others)
79/16"

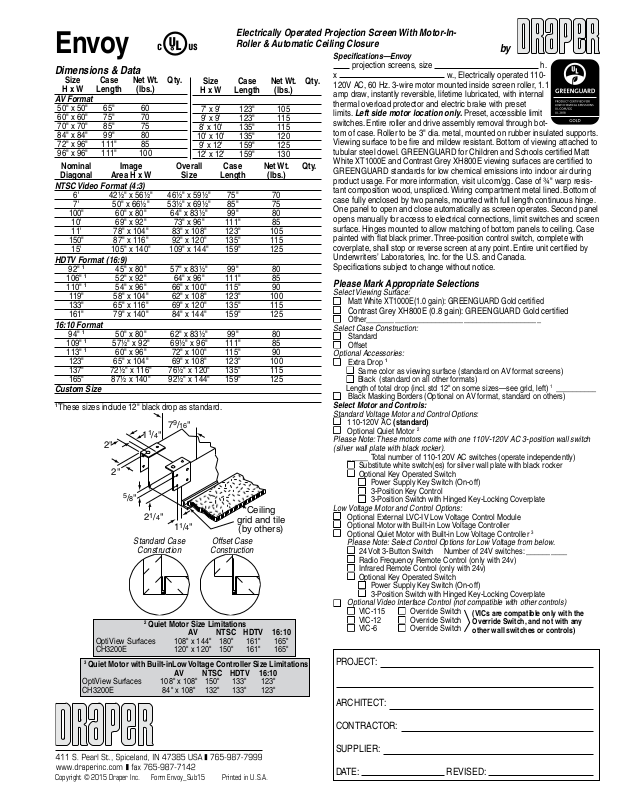

Electrically Operated Projection Screen With Motor-In-
Envoy
Roller & Automatic Ceiling Closure
Dimensions & Data
Size Case Net Wt. Qty.
H x W Length (lbs.)
AV Format
50" x 50" 65" 60
60" x 60" 75" 70
70" x 70" 85" 75
84" x 84" 99" 80
72" x 96" 111" 85
96" x 96" 111" 100
Nominal Image Overall Case Net Wt. Qty.
Diagonal Area H x W Size Length (lbs.)
NTSC Video Format (4:3)
6' 42½" x 56½" 46½" x 59½" 75" 70
7' 50" x 66½" 53½" x 69½" 85" 75
100" 60" x 80" 64" x 83½" 99" 80
10' 69" x 92" 73" x 96" 111" 85
11' 78" x 104" 83" x 108" 123" 105
150" 87" x 116" 92" x 120" 135" 115
15' 105" x 140" 109" x 144" 159" 125
HDTV Format (16:9)
1
92"
45" x 80" 57" x 83½" 99" 80
106" 1 52" x 92" 64" x 96" 111" 85
110" 1 54" x 96" 66" x 100" 115" 90
119" 58" x 104" 62" x 108" 123" 100
133" 65" x 116" 69" x 120" 135" 115
161" 79" x 140" 84" x 144" 159" 125
16:10 Format
1
94"
50" x 80" 62" x 83½" 99" 80
109" 1 57½" x 92" 69½" x 96" 111" 85
113" 1 60" x 96" 72" x 100" 115" 90
123" 65" x 104" 69" x 108" 123" 100
137" 72½" x 116" 76½" x 120" 135" 115
165" 87½ x 140" 92½" x 144" 159" 125
Custom Size
1
These sizes include 12" black drop as standard.
Standard Case
Construction
AV NTSC HDTV 16:10
OptiView Surfaces 108" x 144" 180" 161" 165"
CH3200E 120" x 120" 150" 161" 165"
3 Quiet Motor with Built-inLow Voltage Controller Size Limitations
AV NTSC HDTV 16:10
OptiView Surfaces 108" x 108" 150" 133" 123"
CH3200E 84" x 108" 132" 133" 123"
2 Quiet Motor Size Limitations
Size Case Net Wt. Qty.
H x W Length (lbs.)
7' x 9' 123" 105
9' x 9' 123" 115
8' x 10' 135" 115
10' x 10' 135" 120
9' x 12' 159" 125
12' x 12' 159" 130
Offset Case
Construction
Specifications—Envoy
projection screens, size h.
x
w., Electrically operated 110120V AC, 60 Hz. 3-wire motor mounted inside screen roller, 1.1
amp draw, instantly reversible, lifetime lubricated, with internal
thermal overload protector and electric brake with preset
limits. Left side motor location only. Preset, accessible limit
switches. Entire roller and drive assembly removal through bot
tom of case. Roller to be 3" dia. metal, mounted on rubber insulated supports.
Viewing surface to be fire and mildew resistant. Bottom of viewing attached to
tubular steel dowel. GREENGUARD for Children and Schools certified Matt
White
XT1000E
and Contrast Grey XH800E viewing surfaces are certified to
GREENGUARD standards for low chemical emissions into indoor air during
product usage. For more information, visit ul.com/gg. Case of ¾" warp resis
tant composition wood, unspliced. Wiring compartment metal lined. Bottom of
case fully enclosed by two panels, mounted with full length continuous hinge.
One panel to open and close automatically as screen operates. Second panel
opens manually for access to electrical connections, limit switches and screen
surface. Hinges mounted to allow matching of bottom panels to ceiling. Case
painted with flat black primer. Three-position control switch, complete with
cover plate, shall stop or reverse screen at any point. Entire unit certified by
Underwriters’ Laboratories, Inc. for the U.S. and Canada.
Specifications subject to change without notice.
Please Mark Appropriate Selections
Select Viewing Surface:
Matt White XT1000E(1.0 gain): GREENGUARD Gold certified
Contrast Grey XH800E (0.8 gain): GREENGUARD Gold certified
Other___________________________________________
Select Case Construction:
Standard
Offset
Optional Accessories:
Extra Drop
Same color as viewing surface (standard on AV format screens)
Black (standard on all other formats)
Length of total drop (incl. std 12" on some sizes—see grid, left) 1 __________
Black Masking Borders (Optional on AV format, standard on others)
Select Motor and Controls:
Standard Voltage Motor and Control Options:
110-120V AC (standard)
Optional Quiet Motor
Please Note: These motors come with one 110V-120V AC 3-position wall switch
(silver wall plate with black rocker).
_____ Total number of 110-120V AC switches (operate independently)
Substitute white switch(es) for silver wall plate with black rocker
Optional Key Operated Switch
Power Supply Key Switch (On-off)
3-Position Key Control
3-Position Switch with Hinged Key-Locking Coverplate
Low Voltage Motor and Control Options:
Optional External LVC-IV Low Voltage Control Module
Optional Motor with Built-in Low Voltage Controller
Optional Quiet Motor with Built-in Low Voltage Controller
Please Note: Select Control Options for Low Voltage from below.
24 Volt 3-Button Switch Number of 24V switches: __________
Radio Frequency Remote Control (only with 24v)
Infrared Remote Control (only with 24v)
Optional Key Operated Switch
Power Supply Key Switch (On-off)
3-Position Switch with Hinged Key-Locking Coverplate
Optional Video Interface Control (not compatible with other controls)
VIC-115 Override Switch
VIC-12 Override Switch
VIC-6 Override Switch
1
2
PROJECT:
ARCHITECT:
by
-
-
3
(VICs are compatible only with the
Override Switch, and not with any
other wall switches or controls)
CONTRACTOR:
SUPPLIER:
Copyright © 2015 Draper Inc. Form Envoy_Sub15 Printed in U.S.A.
DATE: REVISED:
Page 2
Envoy by Draper Page 2 of 2
Single Station Control
Junction box at
left end of screen
Internal Screen Wiring
White (Common)
Red (Down)
Black (Up)
Green (Ground)
Dashed wiring
by installer
Control
switch
Single gang box by others
Min. 4" x 2 1/8" x 1 7/8" deep
Blue
Black
Red
Location of key
operated on-off
switch if furnished
To 110-120v Line
Multiple Station Control
Junction box at
left end of screen
Internal Screen Wiring
White (Common)
Red (Down)
Black (Up)
Green (Ground)
Dashed wiring
by installer
Red
Red
Black
Blue
Blue
Cap off with wire
nut and tape
Black
Red
Blue
Black
Single gang box by others
Min. 4" x 2 1/8" x 1 7/8" deep.
3 shown. More or less equally
feasible.
Location of key
operated on-off
switch if furnished
To 110-120v Line
Motor
Motor
Fabric Width + 15"
Viewing
surface
2"
2"
5
/8"
2¼"
7½"
Conduit connection
2" up on this end
1¼"
Ceiling grid and
tile (by others)
Ceiling
closure door
3¼"
7
9
/16"
www
Single Low Voltage Control
Multiple Low Voltage Controls
110-120V Quiet Motor
110-120V Motor

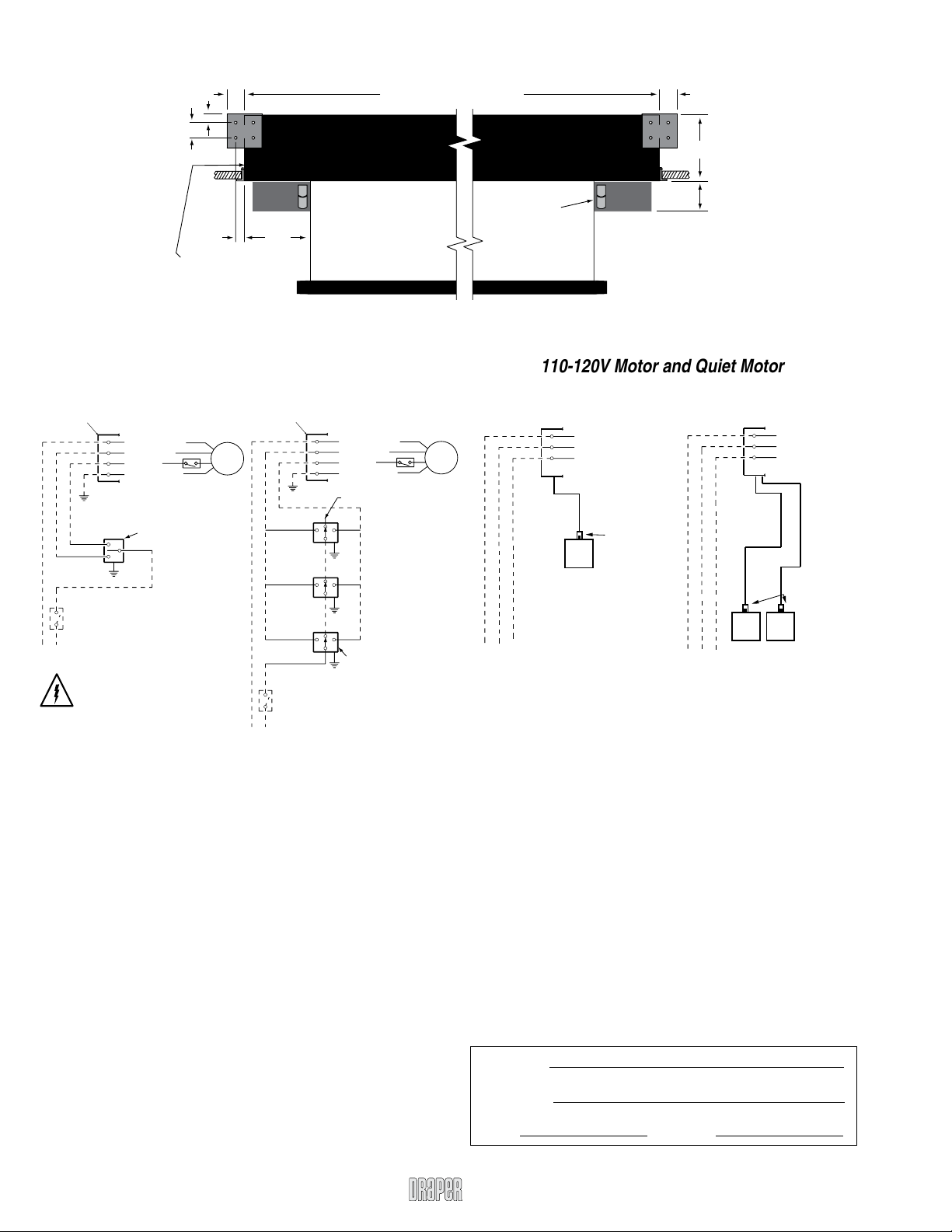

Case Dimensions
Case height—79/16". Case depth—713/16" (including brackets). Mounting brackets extend 2" in length beyond each end of case.
Wiring Diagrams*
110-120V Motor and Quiet Motor
110-120V Motor and Quiet Motor
with Built-in Low Voltage Controller
Please Note: For external low voltage (LVC-IV), serial (LVCIV) and network (LVC-IV & LS100) wiring diagrams, please
consult instructions for those modules.
.draperinc.com
* For more information and wiring diagrams for serial
and network communication, please see wiring diagrams
supplied with individual items.
(765) 987-7999
Internal Screen Wiring
White (Neutral)
Black
Green/Yellow (Ground)
Dashed wiring
by electrician
To 110-120V Line
Data Cable
connector
Wall Switch,
RF or IR
Receiver,
or integrated
control system
RJ-9
To 110-120V Line
PROJECT:
SUPPLIER:
DATE: REVISED:
Dashed wiring
by electrician
Internal Screen Wiring
White (Neutral)
Black
Green/Yellow (Ground)
Data
Cables
RJ-9
connectors
Wall Switches,
RF or IR
Receivers,
or integrated
control systems
