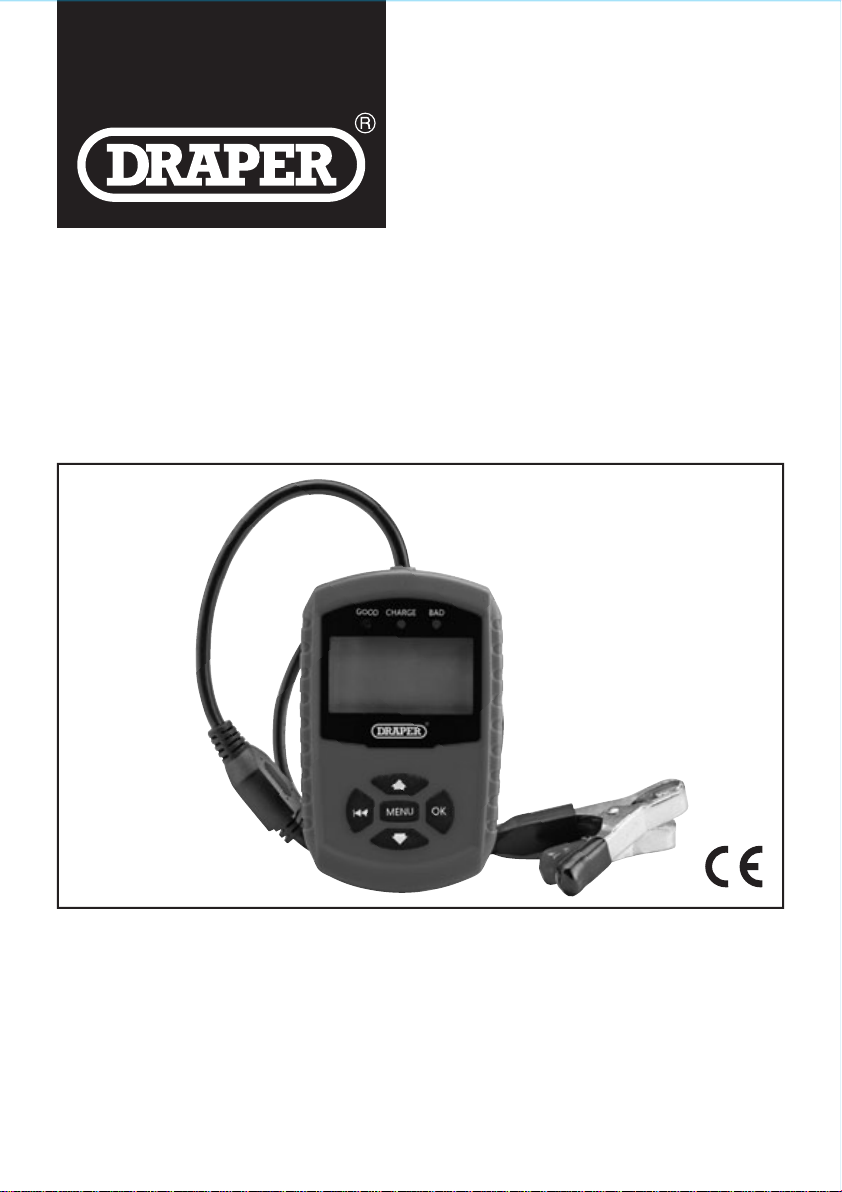

BATTERY
DIAGNOSTIC
TOOL
81164
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: Battery Diagnostic Tool
Stock No: 81164
Part No: BDT/M
1.2 REVISIONS:
Date first published November 2017.
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
2. CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION..........................................................................................................2
1.2 REVISION HISTORY ..................................................................................................2
1.3 UNDERSTANDING THIS MANUAL .............................................................................2
1.4 COPYRIGHT NOTICE .................................................................................................2
2. CONTENTS
2.1 CONTENTS ....................................................................................................................3
3. GUARANTEE
3.1 GUARANTEE...............................................................................................................4
4. INTRODUCTION
4.1 SCOPE.........................................................................................................................5
4.2 SPECIFICATION..........................................................................................................5
4.3 HANDLING AND STORAGE........................................................................................5
5. HEALTH AND SAFETY INFORMATION
5.1 SAFETY INFORMATION..............................................................................................6
5.2 SAFETY MESSAGE CONVENTIONS USED..............................................................6
5.3 IMPORTANT SAFETY INSTRUCTIONS......................................................................6
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION.........................................................................................................7
7. UNPACKING AND CHECKING
7.1 PACKAGING ................................................................................................................8
8. BATTERY DIAGNOSTIC TOOL INSTRUCTION
8.1 HOW TO USE ..............................................................................................................9
8.2 SELECT LANGUAGE
– 1) Battery Test..........................................................................................................9
– 2) Cranking Test.................................................................................................9-10
– 3) Charging Test....................................................................................................10
9. EXPLANATION OF SYMBOLS
9.1 EXPLANATION OF SYMBOLS ................................................................................. 11
10. DISPOSAL
10.1 DISPOSAL..................................................................................................................12
DECLARATION OF CONFORMITY..............................................................................ENCLOSED
- 3 -
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or:
Product Helpline (023) 8049 4344.
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty repair
agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 -
4. INTRODUCTION
4.1 SCOPE
This battery diagnostic tool allows you to easily, quickly and accurately measure the actual cold
cranking amps capability of the vehicle’s starting battery, health state of the battery and the
vehicle’s starting system and charging system.
4.2 SPECIFICATION
Stock No................................................................................................................................... 81164
Part No. ................................................................................................................................. BDT/M
Measure Range
CCA.................................................................................................................................100-2000
BCI ..................................................................................................................................100-2000
CA....................................................................................................................................100-2000
MCA.................................................................................................................................100-2000
JIS .........................................................................................................................26A17--245H52
DIN ..................................................................................................................................100-1400
IEC ..................................................................................................................................100-1400
EN ...................................................................................................................................100-2000
SAE .................................................................................................................................100-2000
GB ...................................................................................................................................100-1400
Working Environment Temp ............................................................................................. -20℃-50℃
4.3 HANDLING AND STORAGE
Care must still be taken when handling and lifting. Dropping this machine will have an effect on the
accuracy and may also result in personal injury. This machine is not a toy and must be respected.
The environment will have a negative result on its operation if you are not careful. If the air is
damp, components will rust. If the machine is unprotected from dust and debris; components will
become clogged: And if not cleaned and maintained correctly or regularly the machine will not
perform at its best.
- 5 -
5. HEALTH AND SAFETY INFORMATION
5.1 SAFETY INFORMATION
For your own safety and the safety of others, and to prevent damage to the equipment and
vehicles, read this manual thoroughly before operating your code reader. The safety messages
presented below and throughout this user’s manual are reminders to the operator to exercise
extreme care when using this device. Always refer to and follow safety messages and test
procedures provided by vehicle manufacturer. Read, understand and follow all safety messages
and instructions in this manual.
5.2 SAFETY MESSAGE CONVENTIONS USED
We provide safety messages to help prevent personal injury and equipment damage. Below are
signal words we used to indicate the hazard level in a condition.
Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury to the operator or to bystanders.
Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury to the operator or to bystanders.
Caution: Indicates a potentially hazardous situation which, if not avoided, may result in moderate
or minor injury to the operator or to bystanders.
5.3 IMPORTANT SAFETY INSTRUCTIONS
And always use your code reader as described in the user’s manual, and follow all safety
messages.
WARNING:
● Do not route the test cable in a manner that would interfere with driving controls.
● Do not exceed voltage limits between inputs specified in this user’s manual.
● Always wear ANSI approved goggles to protect your eyes from propelled objects as well as
hot or caustic liquids.
● Fuel, oil vapours, hot steam, hot toxic exhaust gases, acid, refrigerant and other debris
produced by a malfunction engine can cause serious injury or death. Do not use the code
reader in areas where explosive vapour may collect, such as in below-ground pits, confined
areas, or areas that are less than 18 inches (45 cm) above the floor.
● Do not smoke, strike a match, or cause a spark near the vehicle while testing and keep all
sparks, heated items and open flames away from the battery and fuel / fuel vapours as they
are highly flammable.
● Keep a dry chemical fire extinguisher suitable for gasoline, chemical and electrical fires in
work area.
● Always be aware of rotating parts that move at high speed when an engine is running and
keep a safe distance from these parts as well as other potentially moving objects to avoid
serious injury.
● Do not touch engine components that get very hot when an engine is running to avoid severe
burns.
● Block drive wheels before testing with engine running. Put the transmission in park (for
automatic transmission) or neutral (for manual transmission). And never leave a running
engine unattended.
● Do not wear jewellery or loose fitting clothing when working on engine.
- 6 -
6. TECHNICAL DESCRIPTION

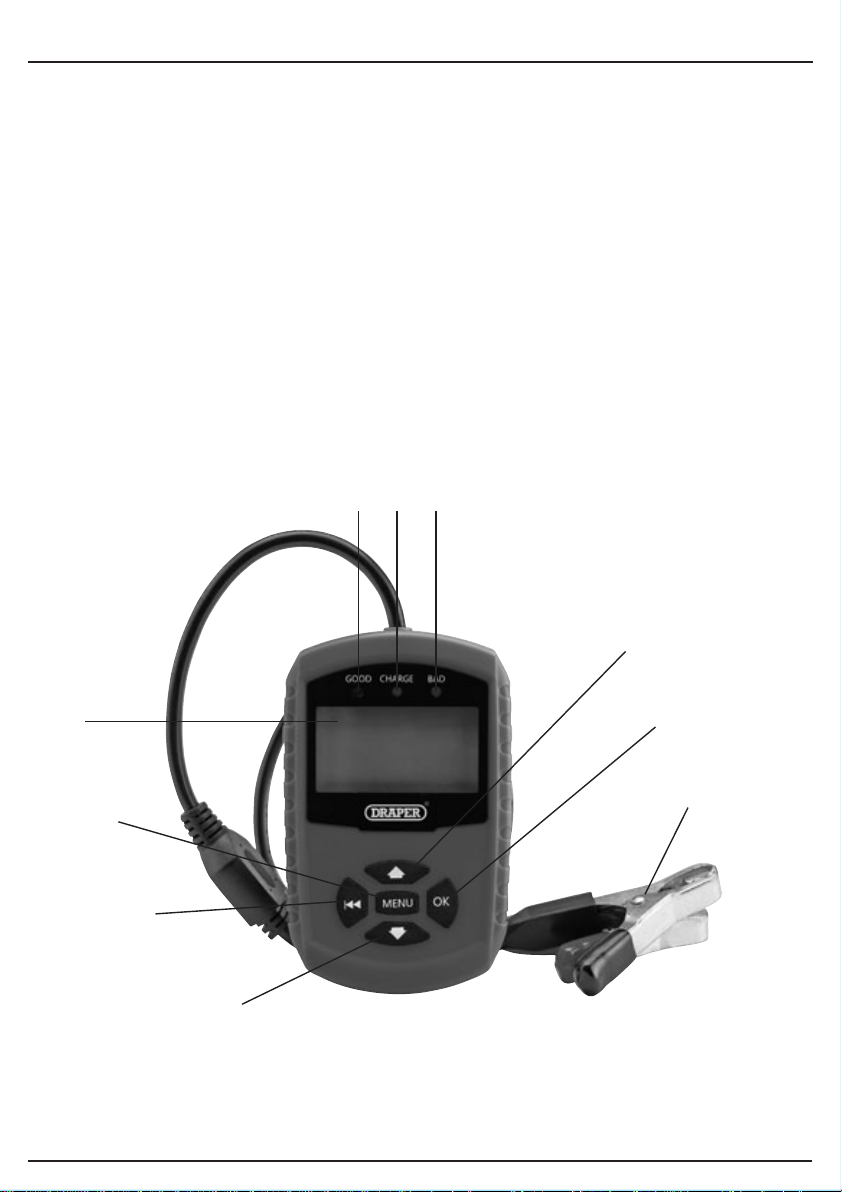

6.1 IDENTIFICATION
LCD Display - shows menus, test results and operation tips.
Green LED Display - indicates the battery is good and can competently hold a charge.
Yellow LED Display - indicates the battery needs charging.
Red LED Display - indicates the battery cannot sufficiently hold a charge and should be
replaced.
UP Key - Select upwards via white UP keys.
OK Key - confirms the selection via white OK key.
Crocodile clips - to attach to battery terminals.
DOWN Key - Select downwards via white DOWN keys.
Return key- Return to previous menu via blue RETURN key.
MENU - Enter additional function program via white MENU key.
- 7 -
7. UNP ACKING AND CHECKING
7.1 PACKAGING
Carefully remove the machine from the packaging and examine it for any sign of damage that may
have happened during shipping. Lay the contents out and check them against the parts shown
below. If any part is damaged or missing; please contact the Draper Helpline (the telephone
number appears on the Title page) and do not attempt to use the machine.
The packaging material should be retained at least during the guarantee period: in case the
machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly; according
to local regulations.
- 8 -
8. BATTERY DIAGNOSTIC TOOL INSTRUCTION
8.1 HOW TO USE
Connect the red test clamp with positive battery terminal and black test clamp to the negative
battery terminal, the tester will power on automatically.
Note: If the battery is below 7.0V, there will not be enough power for the Diagnostic tool to work,
press OK key to continue.
8.2 SELECT LANGUAGE
Press MENU to choose Language.
Using the key pad, press UP/DOWN to choose.
Press OK to continue.
Using the key pad, press UP/DOWN to choose:
1) Battery T est
2) Cranking T est
3) Charging T est
4) Review Data
1) Battery Test
Select the battery test and press OK key to continue:
• Input testing standard: the standard can be found on the battery you are testing, such as
CCA,BCI,DIN.
• Input rated capacity: this will be found on the battery. Such as BCI/300A for example.
• Then press OK key to start testing.
• The relevant LED will light up as a quick indicator of the battery’s status.
2) Cranking Test
Select the cranking test function, press OK key to continue:
Start the engine as prompted. The diagnostic tool will
automatically complete the cranking test and display
the result.
- 9 -
8. BATTERY DIAGNOSTIC TOOL INSTRUCTION
Test result of the diagnostic tool includes actual
cranking voltage and actual cranking time.
3) Charging Test
Select the charging test. The diagnostic tool will prompt "RIPPLE TEST"
Note: Do not turn off the engine during the test. Turn on/off any electrical appliances in the
vehicle during the test.
Follow on screen instructions.
Refer to Haynes manual or similar data instructions for the
recommended procedure to fix the diagnosis.
- 10 -
9. EXPLANATION OF SYMBOLS
9.1 EXPLANATION OF SYMBOLS

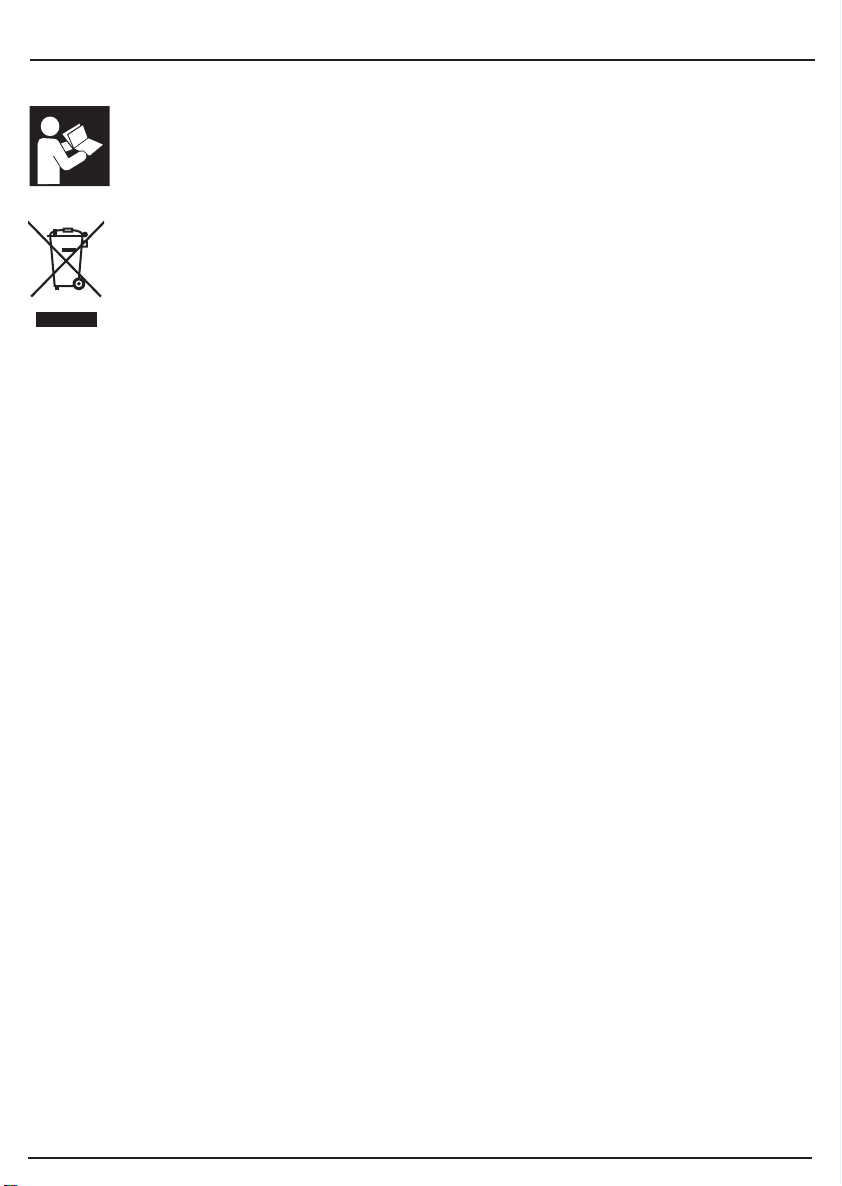

Warning!
Read the instruction manual.
Do not dispose of WEEE*
unsorted municipal waste.
- 11 -
10. DISPOSAL
10.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
Do not dispose of power tools with domestic waste.
•
Do not incinerate.
•
Do not abandon in the environment.
•
Do not dispose of WEEE* as unsorted municipal waste.
•
* Waste Electrical & Electronic Equipment.
- 12 -
NOTES
- 13 -
NOTES
- 14 -
NOTES
- 15 -
CONTACTS
Draper Tools Limited, Hursley Road,
Chandler's Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Helpline: (023) 8049 4344
Sales Desk: (023) 8049 4333
Internet: drapertools.com
E-mail: sales@drapertools.com
General Enquiries: (023) 8026 6355
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Helpline for details of an agent in your local area.
YOUR DRAPER STOCKIST
DBKC1117
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
Loading...
