Page 1
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
STORM
INSTRUCTIONS FOR
18V Li-ion
Cordless Hammer Drill
Stock No.82099 Part No.CDH20LI(SF)
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
Page 2
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR:
18V LI-ION CORDLESS HAMMER DRILL
Stock no.82099
Part no.CDH20LI(SF)
1.2 REVISIONS:
Date first published May 2015
As our user manuals are continually updated, users should make sure that they use the very
latest version.
Downloads are available from: http://www.drapertools.com/manuals.
DRAPER TOOLS LIMITED WEBSITE: www.drapertools.com
HURSLEY ROAD PRODUCT HELPLINE: +44 (0) 23 8049 4344
CHANDLER’S FORD GENERAL FAX: +44 (0) 23 8026 0784
EASTLEIGH
HAMPSHIRE
SO53 1YFUK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other
form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Page 3
2. CONTENTS
3
2.1 CONTENTS
PAGE CONTENT
PAGE
1 TITLE PAGE
1.1 INTRODUCTION ............................................................................................... 2
1.2 REVISION HISTORY........................................................................................... 2
1.3 UNDERSTANDING THIS MANUAL ................................................................... 2
1.4 COPYRIGHT NOTICE......................................................................................... 2
2 CONTENTS
2.1 CONTENTS ........................................................................................................ 3
3 GUARANTEE
3.1 GUARANTEE .....................................................................................................4
4 INTRODUCTION
4.1 SCOPE ............................................................................................................... 5
4.2 SPECIFICATION ................................................................................................. 5
5 HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ........................... 6
5.2
GENERAL INSTRUCTIONS FOR BATTERY POWERED TOOLS & CHARGERS
....... 7
5.3
SAFETY INSTRUCTIONS FOR MAINS POWERED BATTERY PACK CHARGERS ......
7
5.4 INSTRUCTIONS FOR DRILLS, CHARGERS AND BATTERIES .............................. 8
5.5 CONNECTION TO THE POWER SUPPLY (CHARGER) ....................................... 8
6 TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ...............................................................................................9
7 UNPACKING & CHECKING
7.1 PACKAGING...................................................................................................... 10
7.2 WHAT’S IN THE BOX ........................................................................................ 10
8 BASIC CORDLESS ROTARY DRILL OPERATIONS
8.1 REMOVING AND INSERTING BATTERY PACK ................................................. 11
8.2 CHARGING ........................................................................................................ 11
8.3 BATTERY LEVEL INDICATOR............................................................................ 11
8.4 INSTALLING AND REMOVING BITS.................................................................. 12
8.5 LED WORKLIGHT.............................................................................................. 12
8.6 FORWARD/REVERSE SELECTOR ....................................................................... 12
8.7 TRIGGER............................................................................................................ 12
8.8 TORQUE CONTROL........................................................................................... 13
8.9 SPEED SELECTOR SWITCH ................................................................................ 13
8.10 HOLDING THE DRILL ........................................................................................ 13
8.11 DRILLING WOOD AND PLASTIC....................................................................... 13
8.12 DRILLING METAL .............................................................................................. 13
8.13 DRILLING MASONRY ........................................................................................ 13
8.14 SCREWDRIVING ................................................................................................ 14
9 MAINTENANCE
9.1 MAINTENANCE................................................................................................. 15
10 OPTIONAL ACCESSORIES
10.1 BATTERIES......................................................................................................... 16
10.2 CHARGER.......................................................................................................... 16
11 TROUBLESHOOTING
11.1 TROUBLESHOOTING GUIDE............................................................................. 17
12 EXPLANATION OF SYMBOLS
12.1 EXPLANATION OF SYMBOLS .......................................................................... 18
13 DISPOSAL
13.1 DISPOSAL .........................................................................................................19
13.2 HEALTH AND SAFETY FOR BATTERIES............................................................ 19
DECLARATION OF CONFORMITY .....................................................................................ENCLOSED
Page 4
4
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed
to be free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor
or contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or Product Helpline (023) 8049 4344.
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee period covering
parts/labour is 12 months from the date of purchase except where tools are hired out when
the guarantee period is ninety days from the date of purchase. This guarantee does not
apply to normal wear and tear, nor does it cover any damage caused by misuse, careless or
unsafe handling, alterations, accidents, or repairs attempted or made by any personnel other
than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges
will be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of
its terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt
or invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory
rights.
Draper Tools Limited.
Page 5
5
4. INTRODUCTION
4.1 SCOPE
This powerful cordless drill is designed for use with a variety of drill bits and accessories. It is
intended for drilling and screwdriving into masonry, wood, metal and plastic and should be
capable of easily completing most domestic applications and some light trade situations.
4.2 SPECIFICATION
The Draper Tools policy of continuous improvement determines the right to change
specification without notice.
Stock no. ............................................................................................................................... 82099
Part no. ....................................................................................................................... CDH20LI(SF)
Battery:
Type ............................................................................................................................ Li-ion
Rated voltage................................................................................................................ 18V
Rating .........................................................................................................................1.5Ah
Charger:
Rated voltage.................................................................................................... 100V-240V
Rated frequency .................................................................................................... 50-60Hz
Rated power input ......................................................................................................50W
Rated D.C. output voltage ......................................................................................... 18V
Rated D.C. output current ..................................................................................1.5A max
Protective device rated current .....................................................................................2A
Construction............................................................................................................. Class II
Drilling capacities:
Wood......................................................................................................................... 25mm
Mild steel................................................................................................................... 10mm
Masonry..................................................................................................................... 13mm
Max torque.....................................................................................................360kgf-cm(35.0Nm)
Revolutions per minute (no load):
Low ....................................................................................................................0-350min-1
High .................................................................................................................0-1250min-1
Blows per minute (max.).............................................................................. 0-5250/0-18,750bpm
Chuck capacity...................................................................................13mm (All metal auto lock)
Spindle thread.................................................................................................................. 3⁄8" x 24
Sound pressure level* .................................................................................................... 83.5dB(A)
Sound power level** .....................................................................................................94.5dB(A)
Vibration level (drill into concrete)
Main handle........................................................................................................7.528m/s2
Weight (machine & battery)................................................................................................. 1.7kg
Warning: Wear approved safety glasses and ear defenders.
*Continuous A-Weighted Sound Pressure Level at the workstation in accordance to prEN ISO
15744:1999 and declared according to EN ISO 4871.
**A-Weighted Sound Power Level in accordance to prEN ISO 15744:1999 and declared
according to EN ISO 4871.
Page 6
5. HEALTH & SAFETY INFORMATION
6
5.1 GENERAL SAFETY INSTRUCTIONS
General Power Tools Safety Warnings
WARNING: Read all instructions. Failure to follow
all instructions listed below may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your
mains operated (corded) power tool or battery operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) Electrical Safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electrical shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3) Personal Safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off position before connecting to power
source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust related hazards.
4) Power Tool Use And Care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for
operations different from intended could result in
a hazardous situation.
5) Battery tool use and care
a. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire
when used with another battery pack.
b. Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
c. When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together
may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause
irritation or burns.
6) Service
a. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the
power tool is maintained.
Page 7
7
5. HEALTH & SAFETY INFORMATION
5.2 GENERAL INSTRUCTIONS FOR
BATTERY POWERED TOOLS &
CHARGERS
Good Working Practices/Safety
The following suggestions will enable you to observe
good working practices, keep yourself and fellow workers
safe and maintain your tools and equipment in good
working order.
WARNING!! LEAKING BATTERY PACKS
The electrolyte in the battery packs is corrosive, if a
battery pack is damaged and leaking, avoid
contact with the skin; if contact is made, flush
the area with running water, pat dry and seek
medical attention and advice at the earliest
opportunity, inform the medical service that the
contaminant was a "high alkaline, corrosive liquid". If the
electrolyte comes into contact with the eyes, flush with
copious amounts of water only, seek medical attention
immediately, relaying the information above.
WARNING!! KEEP TOOLS AND EQUIPMENT OUT OF THE
REACH OF YOUNG CHILDREN
Battery Powered Tools
Workplace/Environment
Under no circumstances should CHILDREN be allowed in
work areas.
It is good practice to leave the tool and the battery pack
separated until work is about to commence; if this is not
practical do not carry tools around with fingers near the
trigger switch, and engage the stop-lock of the tool if one
is available. It is preferable to move small tools e.g. drills
and jigsaws to the work area in their carrying/storage
cases; if this is not possible it is advisable that you do not
mount the blades or drill bits into the tool until you reach
the work area (they make effective stabbing tools if you
trip or stumble).
If you are working from ladders or towers, ensure they are
securely fixed/braced, and always maintain a balanced,
comfortable working posture; do not over-reach, or
perform simian agility exercises to get the work done, the
extra time required to move the ladder or tower is a good
trade off against injuries sustained from a fall. Similarly
non-slip footwear and non-slip surfaces are a good
investment.
If the work you are carrying out is liable to generate flying
grit, dust, swarf or chips, wear the appropriate safety
clothing, goggles, gloves, masks etc - if the work
operation appears to be excessively noisy, wear
ear-defenders. If you wear your hair in a long style,
wearing a cap, safety helmet, hairnet, even a sweatband,
will minimise the possibility of your hair being caught up
in the rotating parts of the tool, likewise, consideration
should be given to the removal of rings and wristwatches,
if these are liable to be a hazard.
Do not work with cutting tools of any description if you
are tired, your attention is wandering or you are being
subjected to distraction. A deep cut, a lost finger tip or
worse, is not worth it!
Do not use the tools within the designated safety areas of
flammable liquid stores or in areas where there may be
volatile gases. There are very expensive, very specialised
tools for working in these areas, THESE ARE NOT THE
TOOLS FOR THESE AREAS.
Do not discard old batteries, or old cutting tools of any
description, into general rubbish; the cutting tools may
still be sharp enough to inflict an injury, and old batteries
if overheated or are part of rubbish that is to be disposed
of by burning, are an explosion hazard. Similarly, do not
dispose of old battery packs into clean water run-offs; if
they eventually leak, they will become a pollutant hazard.
Check that cutting tools are undamaged and are kept
clean and sharp, this will maintain their operating
performance and lessen the loading on the tool.
5.3 SAFETY INSTRUCTIONS FOR
MAINS POWERED BATTERY
PACK CHARGERS
1. The charger is for INDOOR use only.
2. Prior to plugging the charger in to the supply, check
that the plug and the cable are in good repair. If
either are damaged, have the defective item replaced
immediately by a suitably qualified person. If the
casing of the battery charger is damaged, it is good
policy to have the charger checked over by a suitably
qualified person.
3. Only use a correctly rated mains outlet to provide
power, do not plug into site generators, attach to
engine generators or D.C. sources. Do not use a mains
socket outlet that is not switched.
4. Only use the charger that was supplied with the
battery pack, and vice versa.
5. Do not attempt to charge battery packs that are too
hot (over 40ºC) or too cold (under 5ºC); if these
conditions apply set the battery aside to "normalise"
before proceeding with the charging operation.
6. Set up the charger and cable in a safe place where it
won't be knocked, tripped over, stepped on, etc. and
where it is well ventilated; make sure the ventilation
slots in the charger case are not obstructed, plug the
charger into the socket outlet.
7. Inspect the battery pack for damage; if it is
undamaged, plug it into the charger, ensuring the
correct orientation. (Most chargers and batteries have
'keys' etc, to make sure the battery is not inserted
incorrectly, if you are having to 'force' the battery
into the charger, the chances are you have it the
wrong way round, check and try again.)
8. Switch the charger on and check that the correct
indicators illuminate, allow the battery pack to charge
(see the specific instructions for your charger). Once
charging is complete, switch the charger off, remove
the battery pack and store, repeat the procedure if
you have more than one battery to charge. Note that
some RAPID chargers require a "rest" period between
charges, read the instruction manual concerning your
specific charger to see if this is the case. After
charging is complete, unplug the charger from the
socket outlet by pulling on the plug. Do not pull on
the cable. Store the charger in a dry secure place.
9. If, when the charger was switched on, the correct
indications did not occur, leave for two or three
minutes to allow the charger to stabilise; if the correct
indications occur, allow the charging cycle to proceed
as normal. If no indication appears at all, switch off,
remove the battery pack, unplug the charger, check
that the charger contacts and the battery contacts are
clean and repeat the process; if there is still no
indication, switch off, remove the battery pack,
unplug the charger and check the fuse. If the fuse is
blown, replace and repeat the process; if the fuse
blows again, or if the fuse was intact, attempt no
further action. Refer the charger to a suitably
qualified person for assessment/repair.
Page 8
5.4 INSTRUCTIONS FOR DRILLS,
CHARGERS AND BATTERIES.
1. Drills and Impact Drills
- Wear ear protectors with impact drills.
Exposure to noise can cause hearing loss.
- Use auxiliary handles supplied with the tool.
Loss of control can cause personal injury.
2. Battery Chargers
- Before charging, read the instructions.
- For indoor use. Do not expose to rain.
- Do not charge non-rechargeable batteries.
- The battery charger is only suitable for charging
rechargeable Draper 18V Li-ion batteries.
Any other application is considered misuse.
3. Battery
a. The battery must be removed from the appliance
before it is scrapped.
b. The appliance must be disconnected from the
supply mains when removing the battery.
c. The battery is to be disposed of safely.
d. Do not use non-rechargeable batteries.
e. Do not crush, open or burn the battery. Exposure
to potentially harmful materials may occur.
f. In case of fire use CO2 dry chemical extinguisher.
g. Do not expose to high temperatures >50°C. Cells
may degrade at high temperatures.
h. The battery must be charged by a constant
current, constant voltage transformer.
i. Charge battery regularly in conditions between
5°C to 40°C with the specified charger designed
for this battery.
j. Store in a dry, well ventilated area within the
recommended limits of 10°C to 30°C.
k. Do not use battery if it has been stored at 5°C or
less. Allow it to “normalise” at room temperature
before usage/changing.
l. During decommissioning remove the battery cell
for recycling separately to the product, which is
covered by the waste electrical and electronic
equipment directive. Insulate the terminals with
adhesive insulating tape to prevent a short circuit,
fire or explosion occurring.
5.5 CONNECTION TO THE POWER SUPPLY (CHARGER)
Make sure the power supply information on the machine’s rating plate are compatible
with the power supply you intend to connect it to.
This drill comes supplied with a 1 hour fast charger. It is designed for connection to a
domestic power supply rated at 230V AC.
It is Class 2 (double insulated); is designed for connection to a power supply matching that
detailed on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this
appliance. Follow all the instruction supplied with the extension lead.
This product requires no earth connection as supplementary insulation is applied to the
basic insulation to protect against electric shock in the event of failure of the basic
insulation.
Apart from replacing the fuse in the plug, no other electrical work is recommended on this
charger.
5. HEALTH & SAFETY INFORMATION
8
Page 9
9
Variable speed trigger switch
Forward/reverse selector
13mm keyless chuck
Torque selection collar
Speed selector switch
Hammer/rotary selector/screwdriver
18V 1.5Ah battery pack
LED worklight
Tool belt clip
Battery level indicator.

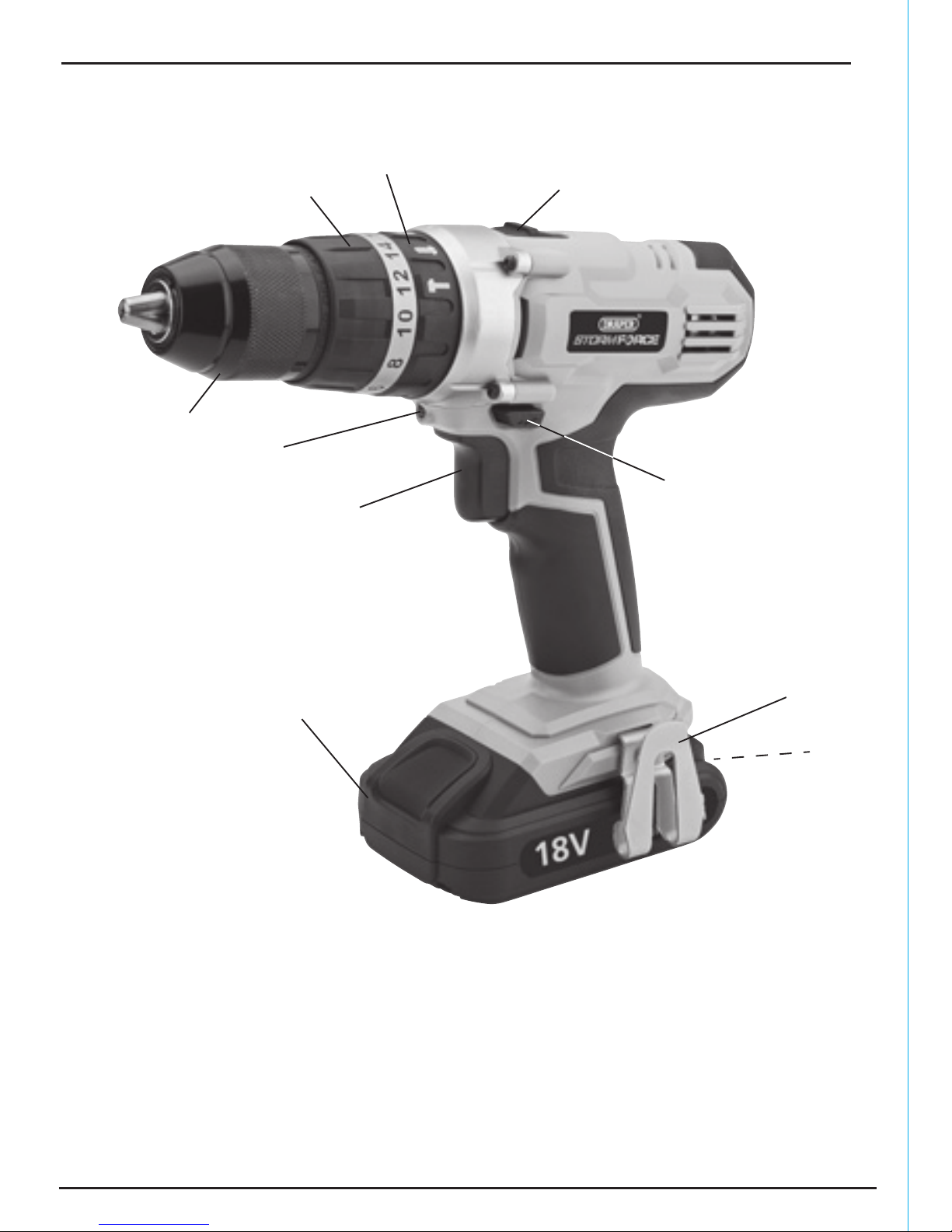

6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
Page 10
10
7. UNPACKING & CHECKING
7.1 PACKAGING
Carefully remove the cordless drill from the packaging and examine it for any sign of
damage that may have happened during shipping. Lay the contents out and check them
against the parts shown below. If any part is damaged or missing; please contact the
Draper Helpline (the telephone number appears on the Title page) and do not attempt to
use the drill.
The packaging material should be retained at least during the guarantee period: in case
the machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave
any of these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly;
according to local regulations.

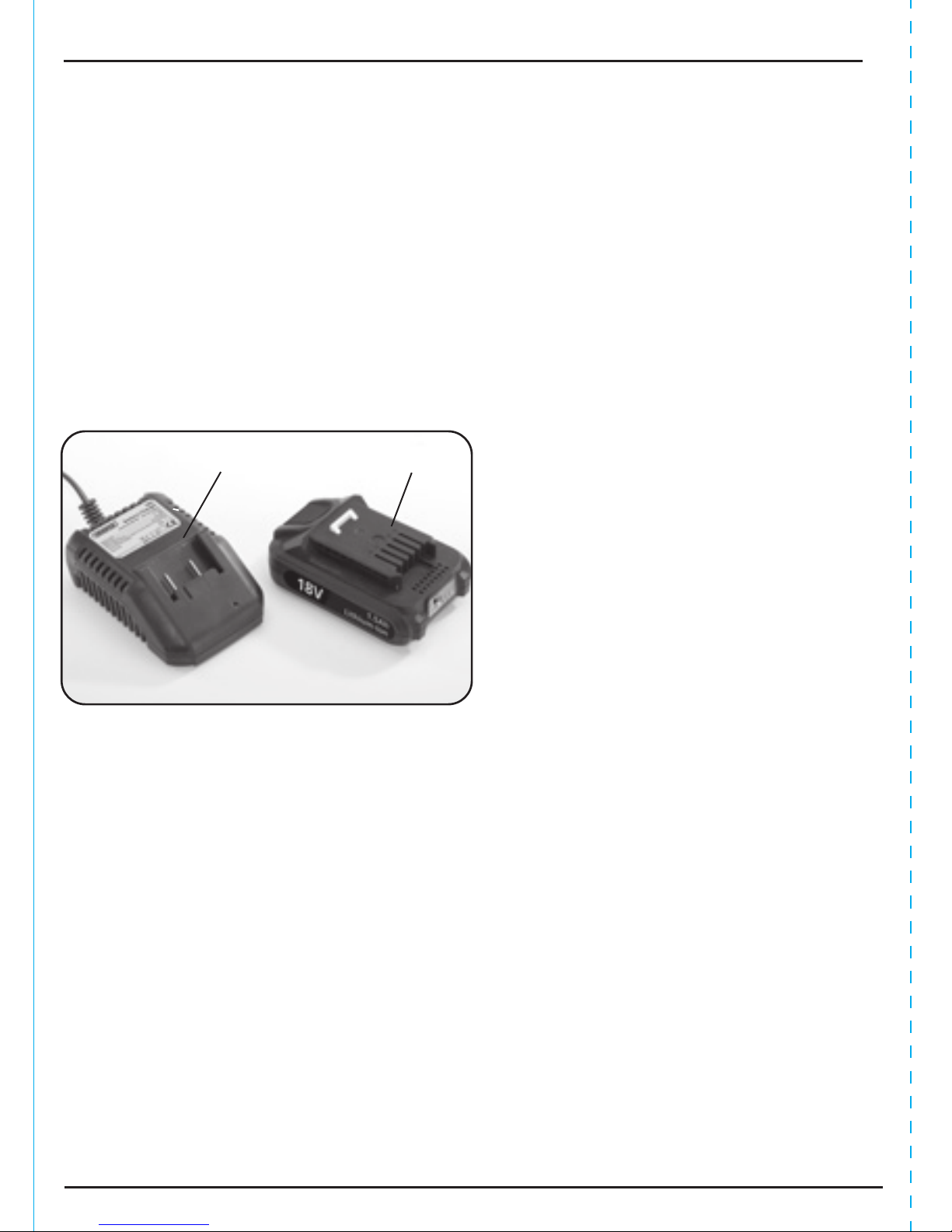

7.2 WHAT´S IN THE BOX?
As well as the cordless drill; there are several parts not fitted or attached to it.
18V 1.5Ah battery pack
18V 1.5Ah fast charger
Page 11
11
8. BASIC CORDLESS ROTARY DRILL OPERATIONS

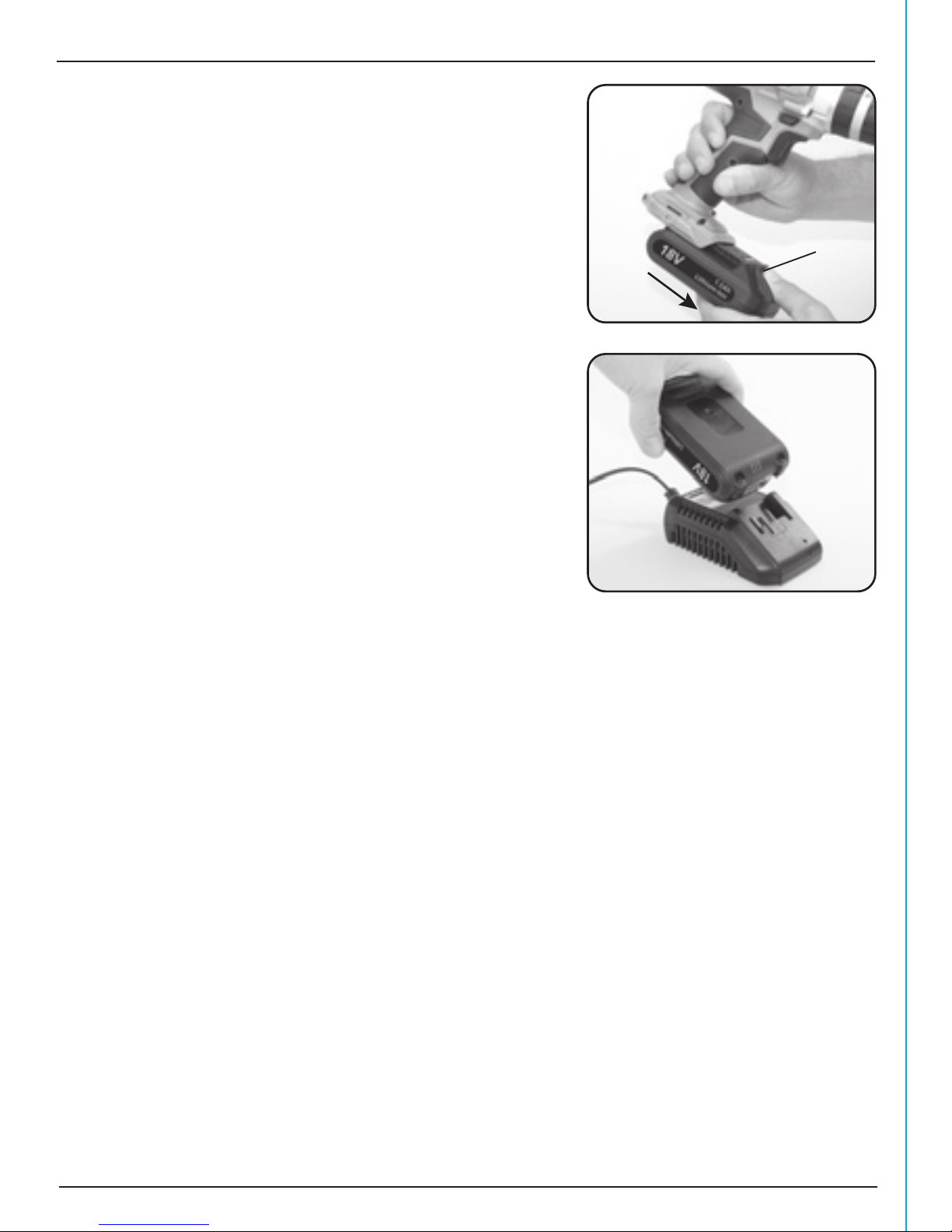

8.1 REMOVING AND INSERTING BATTERY
PACK - FIG.1)
Locate button on top of the battery pack Depress release
button (A) and slide it out of the base of the drill. After
recharging, insert the battery back into the drill. A simple
slight pressure push will be sufficient.
8.2 CHARGING (FIG.2)
IMPORTANT: Before first use, charge battery for a
minimum of 1 hour.
Connect the battery to the Li-ion 1 hour fast battery charger
supplied. Do not use another battery charger.
The Li-ion battery is protected against deep discharging.
When the battery is empty, the drill is switched off by means
of a protective circuit, the chuck will no longer rotate. In a
warm environment or after heavy use, the battery pack may
become too hot. Allow time for the battery to cool down
before recharging.
Plug the charger plug into a suitable mains socket and the
indicator light will show green. The insert the battery pack
into the charger as shown in Fig.2, the indicator light will
become red to indicate that charging is taking place.
a) Connect the power cord to the charger with a wall
socket. The charger LED will turn green.
b) Slide the battery as far as it will go into the charger, by
inserting the battery terminal into the suitable opening
of the charger.
c) The charging LED will turn red, and the three battery
LED’s will start flashing continuously from one to
another.
d) When it reaches approximately 50% capacity, one
battery LED will stay illuminated and the other two
LED’s will continue to flash continuously from one to
the other.
d) When it reaches approximately 75% capacity, two
battery LED’s will stay illuminated and the other LED
will continue to flash continuously on it’s own.
e) When charging is complete, all three LED’s will be
illuminated for approximately 10 minutes before
switching off.
NOTE: After charging for 1 hour, the battery will be fully
charged. When fully charged, the LED lights will be
illuminated fully green (after 10 minutes approx. these will
switch off). Unplug the charger from the socket as the drill is
ready to use.
8.3 BATTERY LEVEL INDICATOR
By pressing the black button on the rear of the battery pack,
it is possible to identify the amount of charge in the battery.
A single green bar indicates 0-40% charge, two bars indicates
40-70% charge and three bars represents 70% or more
charge. Use this battery level indicator to help plan the
work/job in hand.
FIG.1
FIG.2
$
Page 12
12
FIG.3
8. BASIC CORDLESS ROTARY DRILL OPERATIONS

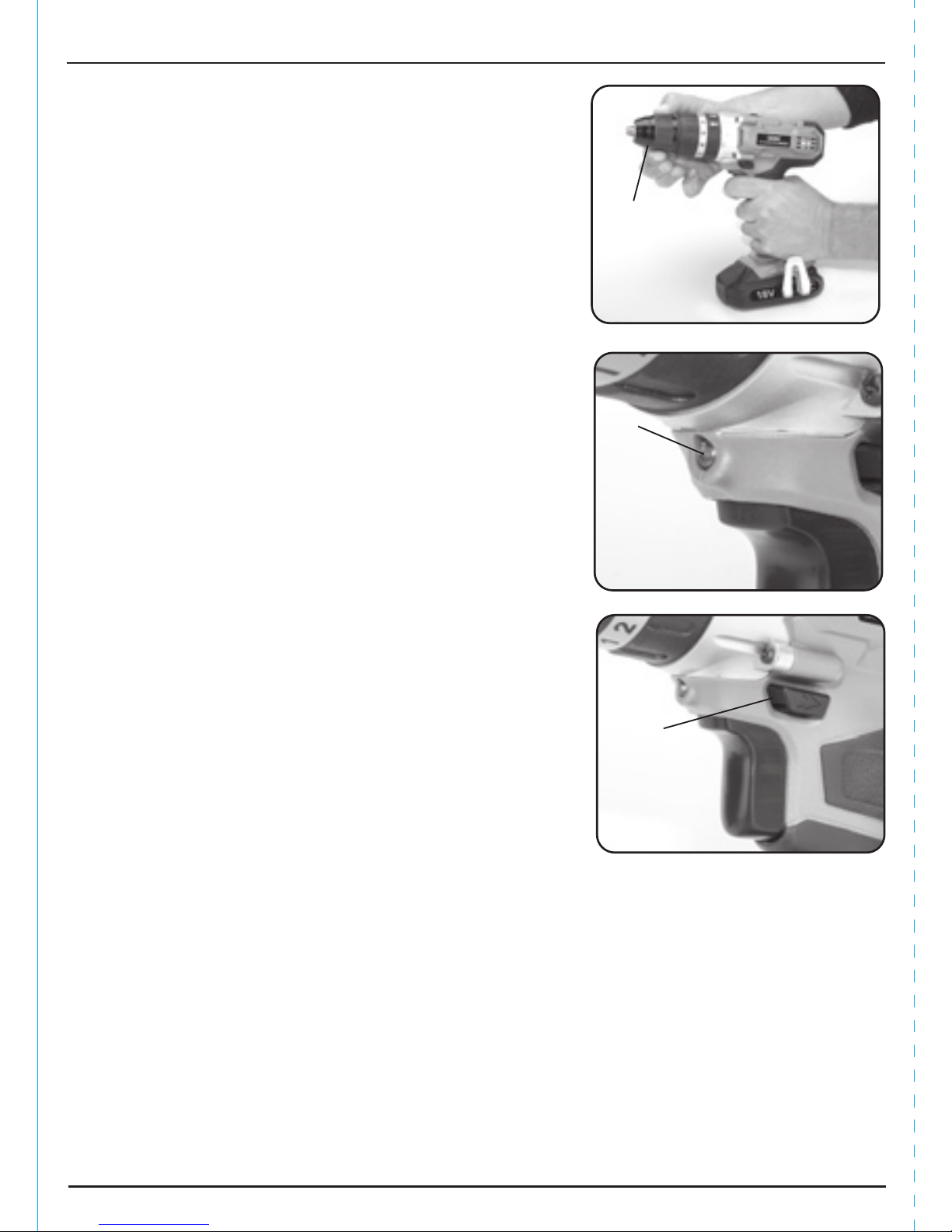

8.4 INSTALLING AND REMOVING BITS - FIG. 3
Screwdriver bits are consumable items.
Before screwdriving check that there are no hidden
hazards such as electrical cables, water or gas pipes
running below the surface use a metal/voltage detector.
The drill is fitted with a keyless chuck , this means
that a chuck key is not required to secure the drill or
screwdriver bit. Place the drill bit shoulder into the
chuck as far as it will go, then hand tighten.
Short screwdriver bits need only be inserted to the
depth of the hexagon shank before tightening chuck
by hand.
8.5 LED WORKLIGHT - FIG. 4
To aid drilling a screwdriving in confined, inadequately
lit spaces, the LED worklight automatically
illuminates when the trigger is activated.
8.6 FORWARD/REVERSE SELECTOR - FIG. 5
The switch determines the direction of rotation of the
chuck, i.e. clockwise or anticlockwise.
(i) Stop the drill and push switch to the left or
right.
NOTE: When the direction switch is pushed to the
left, the chuck will rotate clockwise.
When the switch is pushed to the right, the chuck
will rotate anticlockwise. Before operation, check
that the switch is set in the required position. Do
not change the direction of rotation until the chuck
comes to a complete stop.
(ii) When the drill is not in use move the direction
switch to the neutral position (the middle setting)
to lock the trigger out.
8.7 TRIGGER
When the trigger is depressed, the chuck will rotate
(provided the direction switch is set in the forward or
reverse position). This trigger switch is electronic which
enables the user to vary the speed continuously. The
speed varies according to how far the trigger switch is
depressed. The further it is depressed, the faster the
chuck will rotate. The lighter it is depressed, the slower
it will rotate.
FIG.5
FIG.4
Page 13
13
8. BASIC CORDLESS HAMMER DRILL OPERATIONS

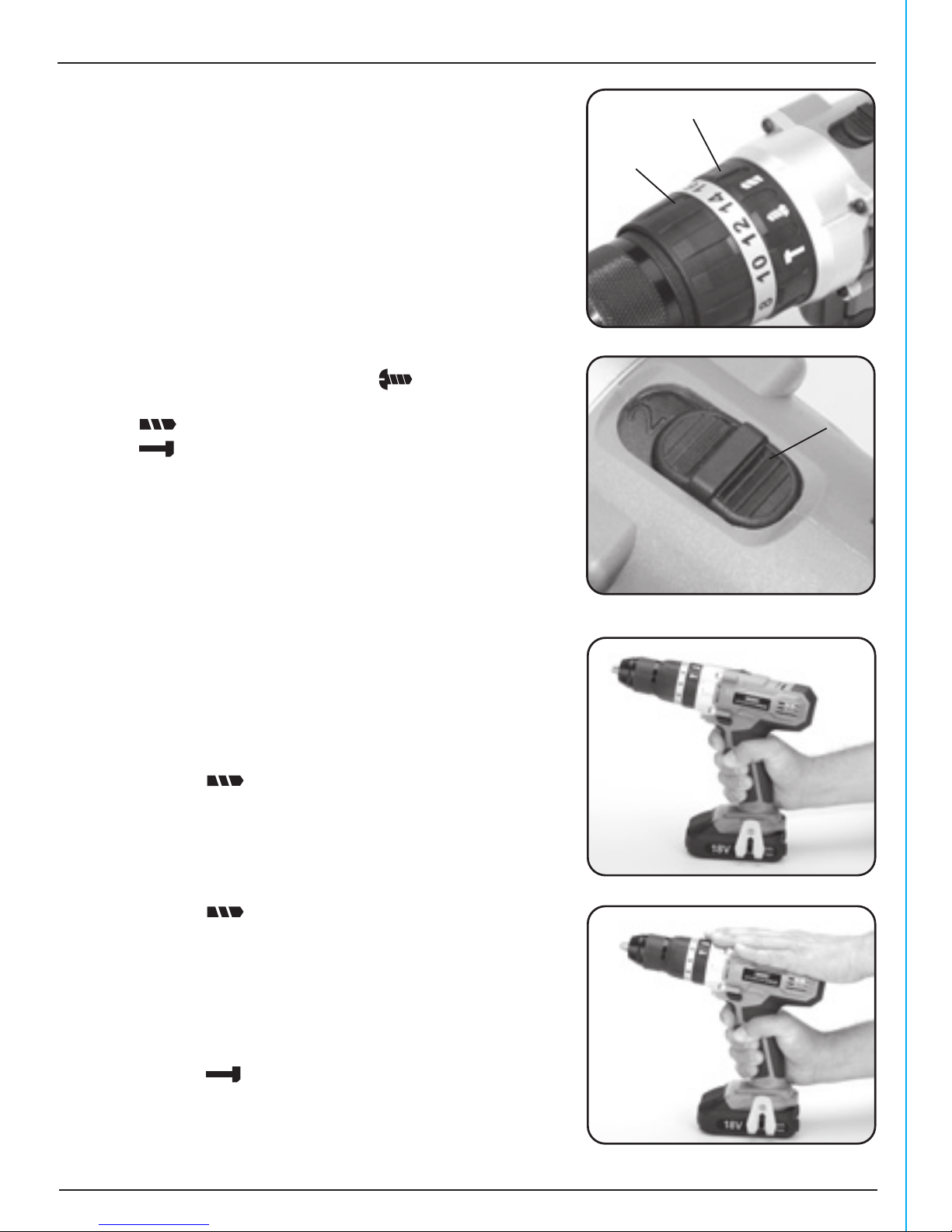

8.8 TORQUE CONTROL - FIG. 6
By turning the collar it is possible to adjust the
amount of torque.
(i) Settings 1-16 provide a facility for setting the
torque to the required level. For example, this
means that repetitive driving of screws of the same
size will be driven into the material to the same
torque, thus giving the same fixing strength, or in
the case of countersunk screws, these will all be
driven to the same depth in the material.
The torque control prevents the heads of small
diameter screws being twisted off when correctly
set.
(ii) By turning the collar to the setting,
the torque collar will be active.
Use setting for rotary drilling.
Use setting for percussion drilling.
8.9 SPEED SELECTOR SWITCH - FIG.7
To change the speed of the chuck, slide the two-speed
gearbox selection switch forwards for low speed, or
backwards for high speed.
IMPORTANT: Only change speed when the machine has
stopped.
8.10 HOLDING THE DRILL - FIGS. 8 - 9
The drill casing is designed to be held comfortably in
two ways,
1. By the handle.
2. Or by the in-line support grip.
8.11 DRILLING WOOD AND PLASTIC
Set collar to setting.
To prevent splitting around the drill holes on the
reverse side, place a piece of scrap timber under the
material to be drilled.
8.12 DRILLING METAL
Set collar to setting.
Metals such as sheet steel, aluminium and brass may be
drilled. Mark the point to be drilled with a centre punch
to help the drill bit tip to locate. A drop of oil on the
area will aid cutting and help prolong the life of the bit.
8.13 DRILLING MASONRY
Set collar to setting.
Start drilling at a low speed to prevent the drill bit from
wandering. Once penetration is achieved, fully depress
the trigger to achieve maximum speed and hammer
power.
FIG.8
FIG.9
FIG.7
FIG.6
Page 14
14
8. BASIC CORDLESS HAMMER DRILL OPERATIONS
8.14 SCREWDRIVING
To prevent slip or damage to the screwhead, match the
screwdriver bit to the screwhead size. To remove screws,
move the direction switch to the reversing position and
apply pressure to the screwhead and depress the trigger
slowly).
Screwdriver bits are consumable items.
Before screwdriving check that there are no hidden
hazards such as electrical cables, water or gas pipes
running below the surface use a metal/voltage detector.
Page 15
15
9. MAINTENANCE
9.1 MAINTENANCE
Regular inspection and cleaning reduces the necessity for maintenance operations and will
keep your tool in good working condition. The motor must be correctly ventilated during
tool operation. For this reason avoid blocking the air inlets. After use disconnect the tool
from the power supply and vacuum the ventilation slots.
Page 16
16
10. OPTIONAL ACCESSORIES
10.1 BATTERIES
10.2 CHARGER
Stock No. Part No. Voltage
82093 CB20LI 18V(1.5Ah)
Stock No. Part No. Voltage
82158 C20LI 18V 1hr fast charger
Page 17
17
11. TROUBLESHOOTING
WARNING: For your own safety always turn the main switch on the machine "off" and
remove the plug from the power supply before carrying out any maintenance or trouble
shooting.
Drill does not
work.
1. Flat battery. 1. Charge battery.
Chuck does not
close or grip.
1. Iock screw loose. 1. Open chuck fully and tighten screw
(left hand thread).
2. Swarf in chuck. 2. Clean inside chuck with cleaning fluid.
2. Select forward or reverse.
Problem Cause Remedy
2. Forward/Reverse
not selected.
Page 18
12.1 EXPLANATION OF SYMBOLS
18
Li-ion
Do not dispose of WEEE*
as unsorted municipal waste.
For indoor use.
Do not expose to rain.
Li-ion battery must be recycled or disposed of
properly.
12. EXPLANATION OF SYMBOLS/PICTOGRAMS
The operator's instruction
must be read before work starts.
Direction of rotation.
Wear safety glasses.
Wear ear defenders.
Page 19
19
13. DISPOSAL
13.1 DISPOSAL
At the end of the machine’s working life, or when it can no longer be repaired, ensure that
it is disposed of according to national regulations.
Contact your local authority for details of collection schemes in your area.
In all circumstances:
• Do not dispose of power tools with domestic waste.
• Do not incinerate.
• Do not abandon in the environment.
• Do not dispose of WEEE* as unsorted municipal waste.
Do not mutilate batteries, corrosive electrolyte will be released.
Do not incinerate - danger of explosion and release of toxic fumes.
Do not dispose of batteries or cells in a charged condition.
Expired lithium-ion batteries must be recycled/disposed of in accordance with the
appropriate regulation or legislation. They should be returned to your local warranty
agent/stockist.
* Waste Electrical & Electronic Equipment.
13.2 HEALTH AND SAFETY FOR BATTERIES
General: Do not put in fire or mutilate - cells may burst of release toxic materials.
Do not short circuit cells, may cause burns.
The battery must be removed from the appliance before it is scrapped.
The battery is to be disposed of safely.
Li-ion
Page 20
CONTACTS
- DRAPER TOOLS LIMITED,
Hursley Road, Chandler's Ford,
Eastleigh, Hampshire. SO53 1YF. U.K.
- Helpline: (023) 8049 4344
- Sales Desk: (023) 8049 4333
- General Enquiries: (023) 8026 6355
- Service/Warranty Repair Agent
For aftersales servicing or warranty repairs, please
contact the Draper Tools Helpline for details of an
agent in your local area.
YOUR DRAPER STOCKIST
RDDH 290915
drapertools.com
