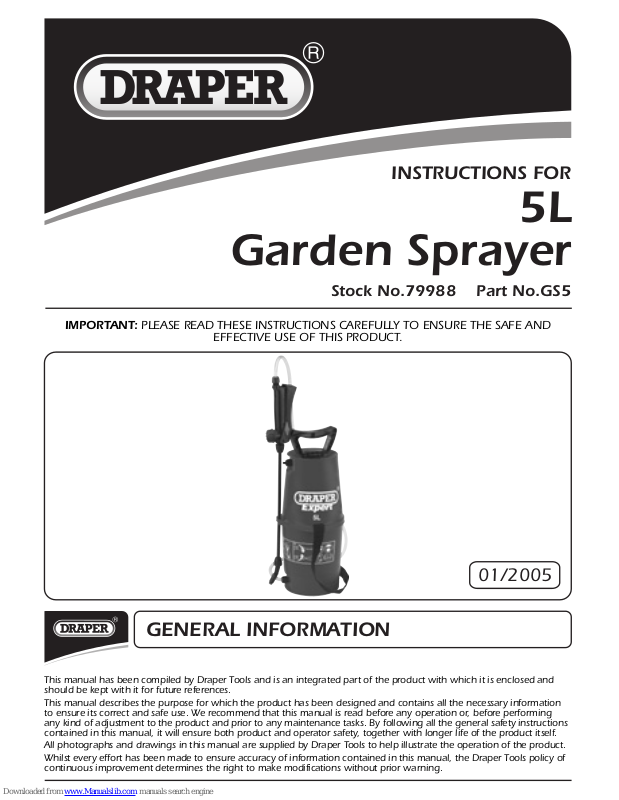

INSTRUCTIONS FOR

5L

Garden Sprayer

Stock No.79988 Part No.GS5

This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and
should be kept with it for future references.

This manual describes the purpose for which the product has been designed and contains all the necessary information
to ensure its correct and safe use. We recommend that this manual is read before any operation or, before performing
any kind of adjustment to the product and prior to any maintenance tasks. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.

All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools policy of

continuous improvement determines the right to make modifications without prior warning.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND

EFFECTIVE USE OF THIS PRODUCT.

GENERAL INFORMATION

01/2005

GUARANTEE

SPECIFICATION

- 1 -

The Draper Tools policy of continuous improvement determines the right to change specification
without notice.

Stock No. .......................................................................................................................... 79988

Part No. ................................................................................................................................ GS5

Tank capacity ...........................................................................................................................

5

L

Weight (empty) .............................................................................................................. 1.126Kg

Lance hose length (approx.) .............................................................................................. 1.07M

Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.

Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone: [phone].

If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee period covering
parts/labour is 12 months from the date of purchase. The guarantee is extended to 24 months
for parts only. This guarantee does not apply to normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorized Draper warranty repair agent.

This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorized.

Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.

Please note that this guarantee is an additional benefit and does not affect your statutory rights.

Draper Tools Limited.

OPERATION AND USE

- 2 -

-STARTING UP:

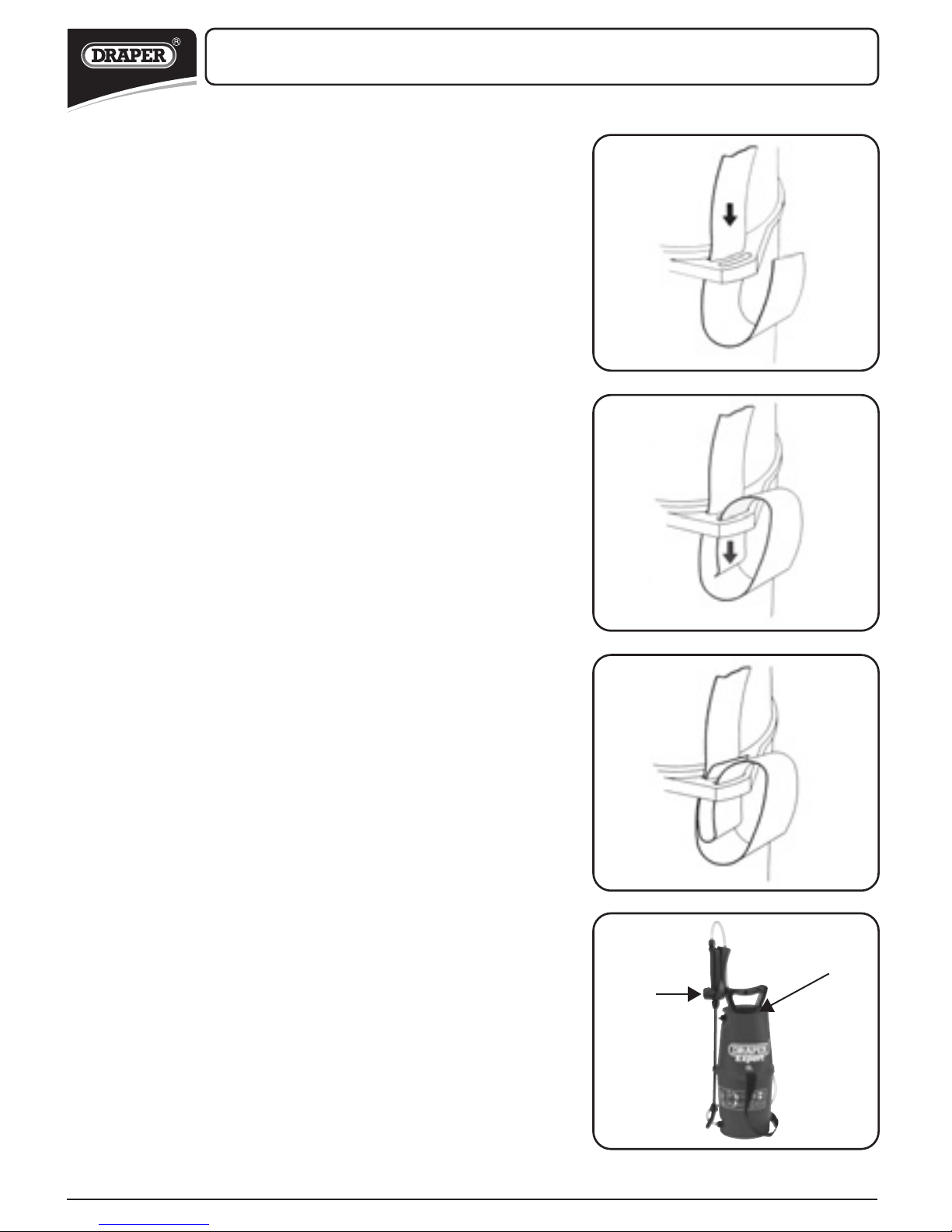

- Fit the strap to the sprayer as shown in Figs.1, 2 and 3.

- The hose is to be attached to the lance as well as the bottom of
the tank.

- Fill the tank to the maximum level (5 litres) and screw the
complete chamber tightly to the tank.

-Pressurize the unit by pumping twenty times with the plunger
handle. If maximum pressure is exceeded, a safety valve is
activated, releasing the air.

-To operate, squeeze the handle add adjust the nozzle to obtain
the desired spray. Pressure and spray intensity will drop with
use. Pump again to regain pressure.

- MAINTENANCE:
(Most frequent malfunctions and solutions).

- Clean the sprayer, trigger and hose of liquid, including filters
after each working day or use. This can be done by working
the device with clean water and adding a little household
detergent if desired.

-Avoid seals becoming dry by washing the equipment after work
and applying a few drops of oil at the points shown in Fig.4.

- If the nozzle is obstructed, clean it with a water jet or non­metallic instrument.

- If the filter is blocked, release the filter cap and clean.

- SAFETY STANDARDS FOR HANDLING PHYTO-SANITARY
PRODUCTS:

- Storage - Store products in a safe area. This should be well
ventilated, locked and out of reach of children and animals.
Keep products in their original packaging and use the same
place to store mixing, preparation and application utensils.

-Preparation of product - Check that the product and treatment
equipment are not out of date and are in good condition. Read
and follow the instructions on product labels and in manuals.
Use suitable utensils for mixing and preparing and mark them
correctly. After preparation, wash your hands and face. Dispose
of empty packages and leftover products properly.

- Performing treatment - Use suitable protective equipment. Avoid
contact with the skin and eyes and do not eat, drink or smoke.
Do not apply in windy conditions or against the wind. Avoid
any product drifting into adjacent land and crops. Avoid any
drift into springs, streams or lakes, etc.

- Advice in case of poisoning - Go to the doctor with the product
label, or take the affected person to the nearest hospital. Do not
use home remedies and in all cases, wash the affected skin
areas with plenty of cool water.

- General precautions - Strictly follow the advice and instructions
shown on the labels of products marked "dangerous" and
"poisonous". Comply with the application time and expiry date
of each product. Do not spray in very hot weather. Take care
near electrical installations. Do not use flammable materials or
materials which might originate combustion processes. This
sprayer is to be used only with herbicides, insecticides and
fungicides for plants. Sprayers must be safety tested at least
once a year by specialist. At the time of manufacturing, the
manufacturer knows of no harmful influences on the material of
which the device is made by anti-parasite products authorized
by the German Federal Institute of Biology. Use only the
original manufacturer's 6-10mm diameter spray hose.

FIG.1

FIG.4

FIG.3

FIG.2

Oil

here

Oil
here
