Page 1
1 TONNE
TRANSMISSION
JACK
78611
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Page 2
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: 1 Tonne Transmission Jack
Stock No: 78611
Part No: TJ1/T
1.2 REVISIONS:
Date first published March 2018.
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Page 3
2. CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION..........................................................................................................2
1.2 REVISION HISTORY ..................................................................................................2
1.3 UNDERSTANDING THIS MANUAL .............................................................................2
1.4 COPYRIGHT NOTICE..................................................................................................2
2. CONTENTS
2.1 CONTENTS ....................................................................................................................3
3. GUARANTEE
3.1 GUARANTEE ............................................................................................................... 4
4. INTRODUCTION
4.1 SCOPE.........................................................................................................................5
4.2 SPECIFICATION..........................................................................................................5
4.3 HANDLING AND STORAGE........................................................................................ 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY WARNINGS.................................................................................6
5.2 SAFETY PRECAUTIONS.............................................................................................7
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION.........................................................................................................8
7. UNPACKING AND CHECKING
7.1 PACKAGING ................................................................................................................ 9
7.2 WHAT´S IN THE BOX? ................................................................................................9
8. ASSEMBLING THE TRANSMISSION JACK
8.1 BEFORE USING ........................................................................................................10
9. TRANSMISSION JACK INSTRUCTION
9.1 SADDLE TILT MECHANISM ...................................................................................... 11
9.2 POSITIONING THE JACK BENEATH LOAD ............................................................. 11
9.3 LOWERING THE LOAD............................................................................................. 11
9.4 TRANSPORTING THE LOAD....................................................................................12
9.5 RE-INSTALLING A GEARBOX ................................................................................... 12
10. MAINTENANCE & TROUBLESHOOTING
10.1 MAINTENANCE .........................................................................................................13
10.2 TROUBLESHOOTING ...............................................................................................13
11. EXPLANATION OF SYMBOLS
11.1 EXPLANATION OF SYMBOLS .................................................................................. 14
12. DISPOSAL
12.1 DISPOSAL..................................................................................................................15
DECLARATION OF CONFORMITY .............................................................................. ENCLOSED
- 3 -
Page 4
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or:
Product Helpline (023) 8049 4344.
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. The guarantee is extended to 24 months for parts only. This guarantee
does not apply to normal wear and tear, nor does it cover any damage caused by misuse, careless
or unsafe handling, alterations, accidents, or repairs attempted or made by any personnel other
than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 -
Page 5
4. INTRODUCTION
4.1 SCOPE
Low positional transmission jack supplied with chain for safe loading. Precision valve allows
delicate adjustment when taking out gearboxes and realigning during replacement. Four castors
for extra manoeuvrability in confined spaces. Fully adjustable saddle with forward, backward and
sideways tilt.
4.2 SPECIFICATION
Stock No................................................................................................................................... 78611
Part No. .....................................................................................................................................TJ1/1
Rated load .............................................................................................................................. 1000kg
Maximum saddle range .................................................................................................205 - 660mm
Saddle tilt
forward......................................................................................................................... 45° Approx.
Dimensions......................................................................................................... 850 x 490 x 305mm
Weight (nett)............................................................................................................................... 54kg
EXTREMELY IMPORTANT: Read these safety instructions carefully in addition to the
instructions for use, operation and maintenance. Keep this instructions sheet in an easy to find
place as you may need to use it again.
This vehicle lift has been designed for use in the elevation of vehicles.
Any other application, beyond the conditions established for use of this vehicle lift will be
considered inappropriate.
Handle the vehicle lift correctly and ensure that all parts are in good condition prior to its use.
Only authorised persons should operate the vehicle lift having read carefully and understood the
contents of this manual.
Do not modify the vehicle lift in any way.
Non-compliance with these rules may result in injury or damage to the user, the vehicle lift or the
vehicle to be lifted.
The manufacturer accepts no responsibility for the improper use of the vehicle lift.
4.3 HANDLING AND STORAGE
Care must still be taken when handling and lifting. Dropping this machine will have an effect on the
accuracy and may also result in personal injury. This machine is not a toy and must be respected.
The environment will have a negative result on its operation if you are not careful. If the air is
damp, components will rust. If the machine is unprotected from dust and debris; components will
become clogged: And if not cleaned and maintained correctly or regularly the machine will not
perform at its best.
- 5 -
Page 6
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY WARNINGS
- The jack may be used for the installation/removal of transmission systems within the weight
limitations specified.
- The jack is designed for lifting/lowering vehicles transmissions and differentials only.
- Always transport transmissions/differentials on the jack in its lowest possible height.
- Never use the jack to lift a vehicle.
- Ensure that the vehicle transmission is stable within the saddle of the transmission jack before
lifting or lowering it.
- The jack should only be used on a firm level surface. Never use on soft uneven surfaces.
- Do not turn the release valve more that 90° (one quarter turn).
- Inspect and lubricate the jack on a regular basis.
- Failure to comply with these safety warnings may result in personal injury and/ or damage to
property and jack.
Caution:
- Use only on a firm level surface.
- Do not exceed the rated capacity of this jack.
- Ensure that the transmission or differential being lifted is stable and correctly centred on the
jack cradle.
- Familiarise yourself thoroughly with this manual before operating to prevent damage to the
jack and property or personal injury.
- Only use this jack for lifting and lowering transmissions and differentials.
- Only move a jack carrying a transmission or differential in the lowest position.
- 6 -
Page 7
5. HEALTH AND SAFETY INFORMATION
5.2 SAFETY PRECAUTIONS
1. The vehicle to be lifted should never exceed the rated capacity of the jack.
2. The maximum stroke of the jack indicated on the label should never be exceeded.
3. The jack should be supported on a solid, level and horizontal surface which is well illuminated
and free of obstructions. Never stand the jack on a surface which may sink.
4. Ensure that there are no persons inside the vehicle to be lifted. Switch off the engine and
apply the brake. Ensure the vehicle or element to be lifted against any type of sliding. Use
chocks if appropriate (1). Do not enter the vehicle or start the engine whilst it is supported on
the jack or appropriate stands. The jack is a lifting device only and should never be used to
move the vehicle.
5. During raising and lowering of the load, all precautions should be taken to avoid movement of
the vehicle load. Traffic may cause the raised vehicle to rock during roadside use of the jack.
6. The jack should be positioned so as to avoid the need for the user to introduce any part of
his/her body underneath the vehicle. Never work under a raised vehicle without supporting it
with axle stands (5) or other appropriate methods. Never position any part of your body near
the movable elements of the jack.
7. It is necessary for the operator to be able to observe the lifting device and the load during all
movements. In the presence of dangerous conditions, such as movement of the vehicle, etc,
the lifting process must be interrupted.
8. Ensure that there are no persons or obstructions underneath the vehicle prior to lowering.
9. As an additional safety measure against overload, the jack is fitted with an overload valve set
at the factory and which should not be adjusted under any circumstances. If the capacity of
the jack is exceeded, the overload valve will stop the lifting operation.
Caution:
• Use only on a firm, level surface, concrete is preferred.
• Do not exceed the rated capacity of this jack.
• This is a lifting device only ... do not work under the vehicle without proper support devices,
such as axle stands.
• Make sure that the lifting point is stable and correctly centred on the jack saddle.
• Familiarize yourself thoroughly with this manual before operating to prevent damage to the
jack, property, or personal injury.
- 7 -
Page 8
6. TECHNICAL DESCRIPTION

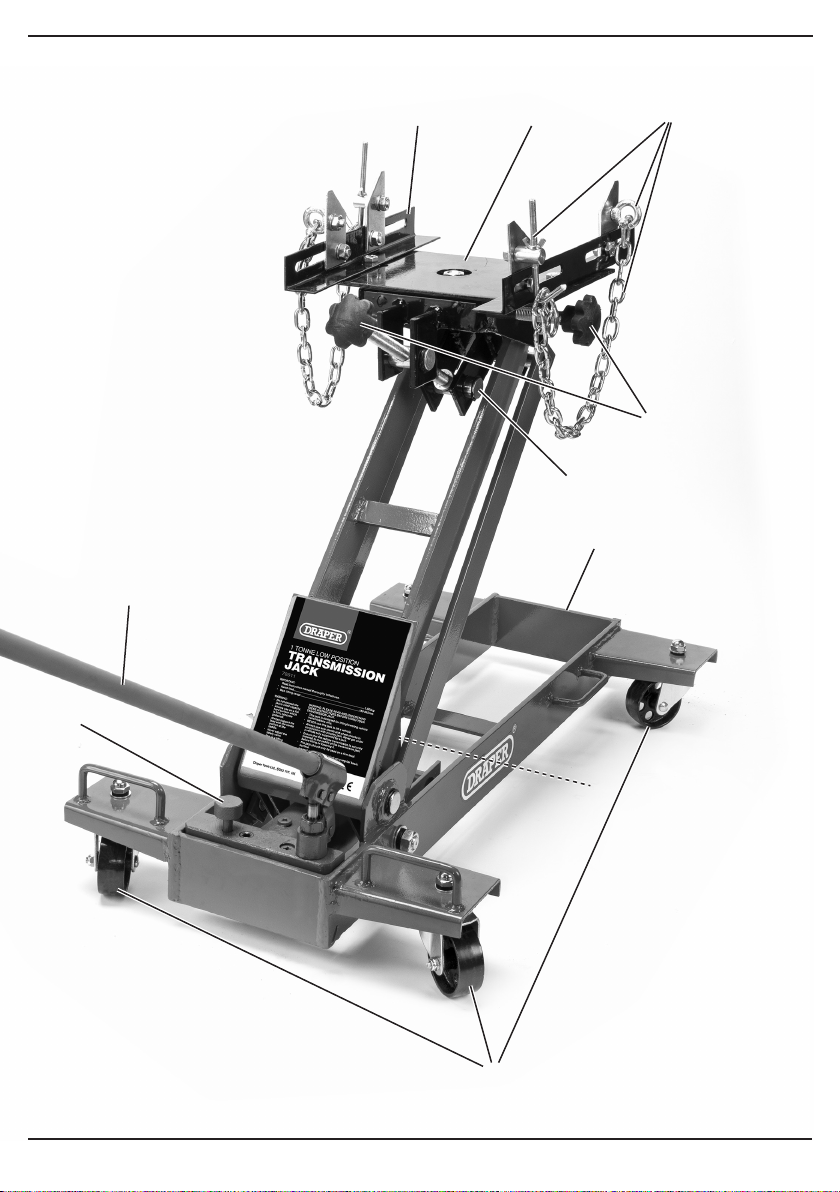

6.1 IDENTIFICATION
Saddle attachments
Saddle base
Ring chain, hooks & pins
Saddle controls
Tilt mechanism
Jack main frame
Cylinder/Hydraulic unit
Swivel caster wheels
Release value
Jack handle
- 8 -
Page 9
7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the jack from the packaging and examine it for any sign of damage that may
have happened during shipping. Lay the contents out and check them against the parts shown
below. If any part is damaged or missing; please contact the Draper Helpline (the telephone
number appears on the Title page) and do not attempt to use the machine.
The packaging material should be retained at least during the guarantee period: in case the
machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly; according
to local regulations.

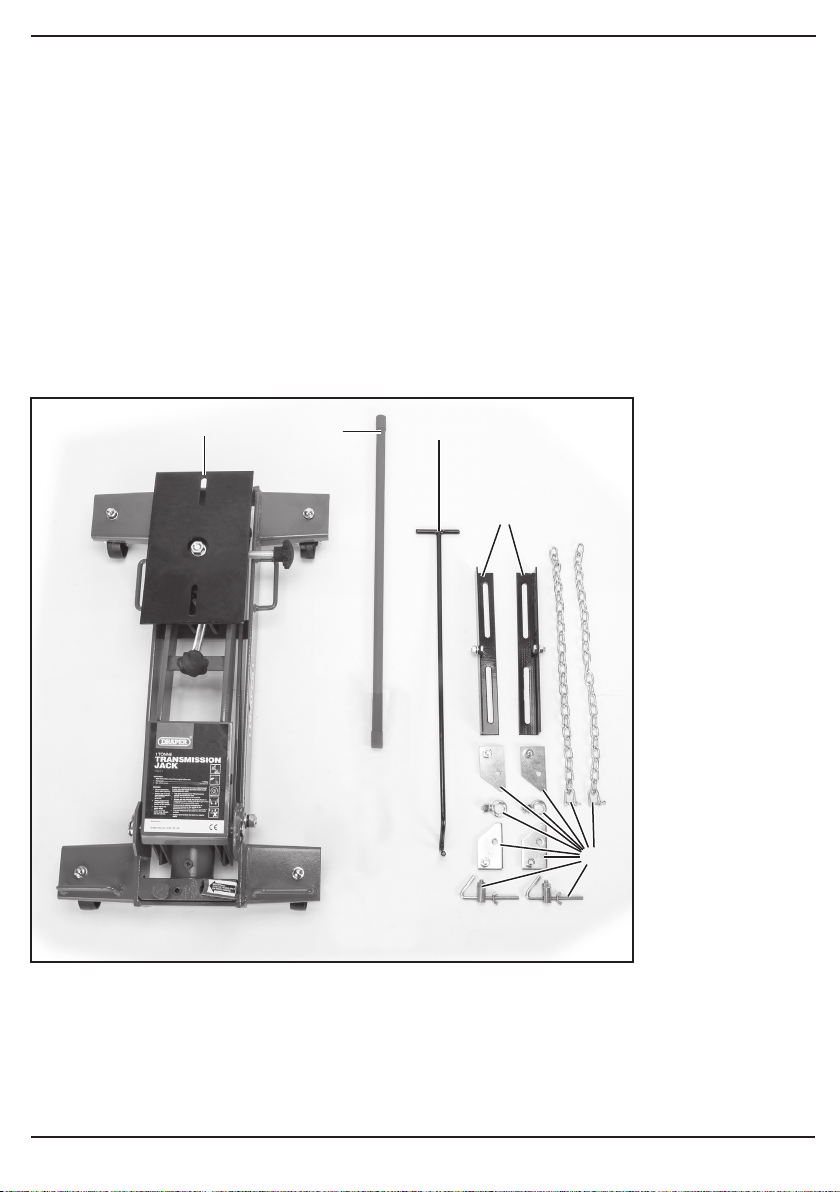

7.2 WHAT´S IN THE BOX?
The packaging contains several parts and semi-assembled elements that require final assembly.
Lay out the contents and check off the items against those featured below.
Saddle
attachments
Ring chain,
hooks & pins
Jack main
frame
Jack handle
Positioning rod
- 9 -
Page 10
8. ASSEMBLING THE TRANSMISSION JACK
8.1 BEFORE USING
Important: Before using the jack for the first time, purge the hydraulic circuit in order to eliminate
any air that may have accumulated in the system during transit, as follows:
1. Open the release valve by turning the knob anti-clockwise.
2. Pump the jack handle up and down 15 to 20 times.
3. Turn the release valve clockwise to close it.
- 10 -
Page 11
9. TRANSMISSION JACK INSTRUCTION
9.1 SADDLE TILT MECHANISM.
Adjusting the pitch and tilt of the saddle will assist in safely supporting and transporting the
gearbox. The saddle base may be tilted forwards and backwards, left or right by turning
saddle tilt controls .
Warning: Ensure that the vehicle is prepared correctly before attempting to use the Transmission
Jack. ALWAYS REFER TO THE VEHICLE MANUFACTURE.
9.2 POSITIONING THE JACK BENEATH LOAD.
Before use, check to ensure that the transmission's weight and size do not exceed the capacities
of the jack.
1. Ensure that the vehicle from which the transmission is to be removed is correctly positioned,
raised and locked on an appropriate lift system.
2. Ensure that there are no other persons around or under the vehicle.
3. Ensure saddle is in it's lowest position, and use the handle to transport and centralise the jack
beneath the vehicle's transmission.
4. Close the jack release valve by turning the knob clockwise.
5. Pump the jack handle up and down repeatedly to raise the saddle.
6. When the saddle base is just beneath the transmission, re-adjust the alignment if necessary,
to centralise the saddle base.
7. Adjust the saddle tilt controls if required for final positioning of the saddle base.
8. Position and attach the safety chains correctly for further security.
9. Raise the saddle further to support the transmission. Remove the transmission from the
vehicle - Refer to vehicle manufacture.
10. Ensure that the load is secure before proceeding to lower it.
9.3 LOWERING THE LOAD
Warning: Ensure the load is central and stable on the jack saddle before attempting to lower the
load. SLOWLY turn the release valve knob is anti-clockwise to GENTLY lower the saddle to
the minimum height before attempting to transport the load.
Important: Speed of lowering is controlled by the release valve. The further the valve knob is
turned, the more rapid the jack’s descent. Ensure the jack’s descent is slow and controlled to avoid
the risk of sudden dropping which could be very dangerous.
- 11 -
Page 12
9. TRANSMISSION JACK INSTRUCTION
9.4 TRANSPORTING THE LOAD
1. Ensure that the jack saddle is fully lowered, if required, use another support chain to secure
the load, ensuring that they are all pulled taut and engaged into the slots on the saddle.
Tighten all the nuts.
2. Transport the load over level and solid ground, preferably concrete, and ensure the floor is
swept clean beforehand.
3. Be diligent by continually monitoring the load in transit. Keep all other persons at a safe
distance.
Danger: DO NOT use on tarmacadam, or any soft surface as the jack may sink or topple. Serious
personal or fatal injury may result.
Danger: If the jack tips or leans, Stop what you are doing. MOVE QUICKLY TO A SAFE
DISTANCE. DO NOT TRY TO HOLD OR STEADY THE JACK. Serious personal or fatal injury
may result.
9.5 RE-INSTALLING A GEARBOX
1. Manoeuvre the jack and load to reposition beneath the vehicle, raise the load up, reversing
the procedures outlined above.
- 12 -
Page 13
10. MAINTENANCE & TROUBLESHOOTING
10.1 MAINTENANCE
Important: Only fully qualified personnel should attempt any maintenance or repair.
1. When the jack is not in use, the saddle must be at its lowest position - to minimise ram and
piston corrosion. Remove the handle for safe storage.
2. Keep the jack clean and wipe off any excess oil or grease, lubricate all moving parts with oil,
and grease the tilt mechanism regularly.
3. The oil tank is a sealed unit and must not be accessed. For a service, contact your authorised
dealer.
Warning: Only use a good quality jack oil, DO NOT use brake fluid.
4. Periodically check the pump piston and piston rod for signs of corrosion. Clean exposed areas
with a clean oiled cloth.
IMPORTANT: NO RESPONSIBILITY IS ACCEPTED FOR INCORRECT USE OF THE
MACHINE.
Hydraulic products are only repaired by local service agents. We have service/repair agents in
all parts of the UK.
10.2 TROUBLESHOOTING
Important: Although the following may identify a problem, in most cases the problem must be
resolved by your authorised service agent.
PROBLEM CAUSE SOLUTION
Jack will not lift 1. No hydraulic oil or defective
Jack will only lift
halfway
Raised load will
not hold
Poor lifting 1. Defective plunger packing.
Saddle tilt knob
too tight
suction valve or delivery valve.
2. Release valve is open.
1. Hydraulic oil level is low or
excessive of hydraulic oil.
1. Defective valves or defective
piston packing.
1. Nuts and bolts may be bent or
rusted.
- 13 -
1. Contact authorised
service agent.
2. Close release valve.
1. Contact authorised
service agent.
1. Contact authorised
service agent.
1. Contact authorised
service agent.
1. Check, clean, oil or
replace items.
Page 14

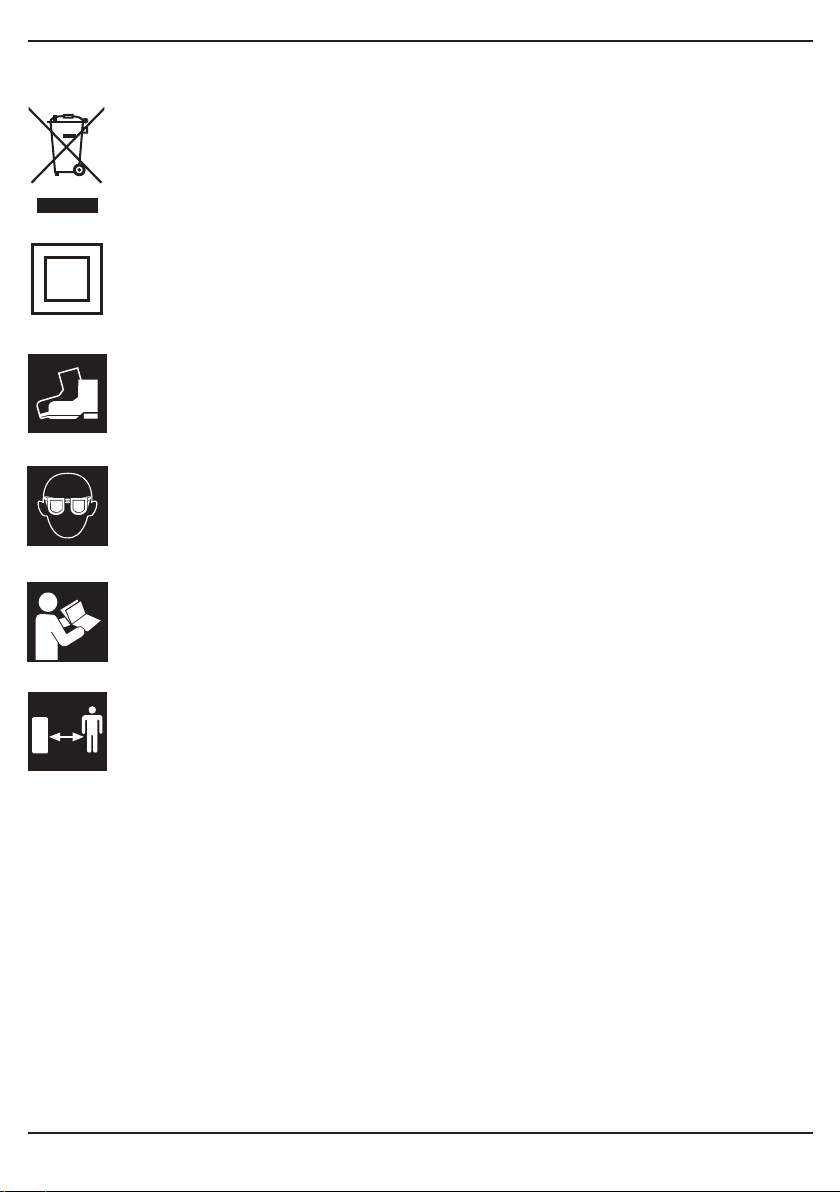

11. EXPLANATION OF SYMBOLS
11.1 EXPLANATION OF SYMBOLS
Do not dispose of WEEE*
unsorted municipal waste.
Class II construction
(Double insulated).
Warning!
Wear suitable foot protection.
Warning!
Wear suitable eye/face protection.
Warning!
Read the instruction manual.
Warning!
Keep bystanders away.
- 14 -
Page 15
12. DISPOSAL
12.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
Do not dispose of power tools with domestic waste.
•
Do not incinerate.
•
Do not abandon in the environment.
•
Do not dispose of WEEE* as unsorted municipal waste.
•
* Waste Electrical & Electronic Equipment.
- 15 -
Page 16
CONTACTS
Draper Tools Limited, Hursley Road,
Chandler's Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Helpline: (023) 8049 4344
Sales Desk: (023) 8049 4333
Internet: drapertools.com
E-mail: sales@drapertools.com
General Enquiries: (023) 8026 6355
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Helpline for details of an agent in your local area.
YOUR DRAPER STOCKIST
DBKC0318
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
Loading...
