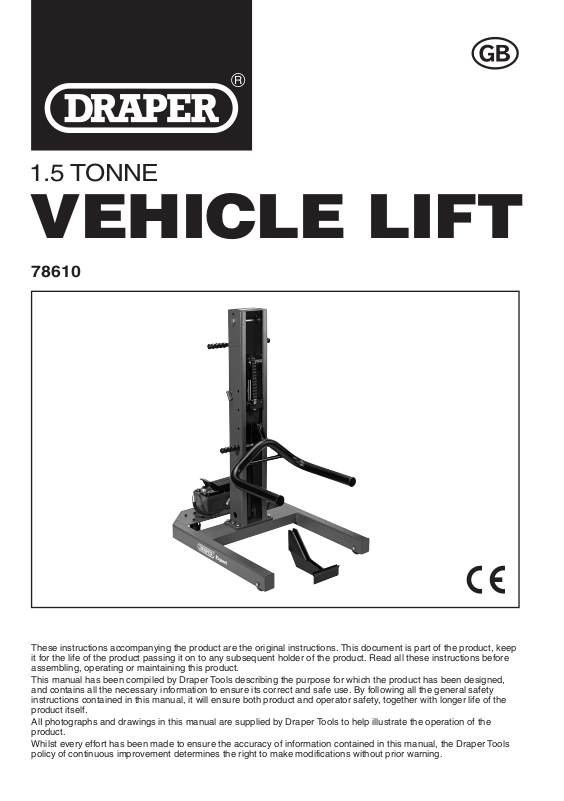

Page 1
1.5 TONNE
VEHICLE LIFT
78610
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Page 2
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: 1.5 Tonne Vehicle Lift
Stock No: 78610
Part No: VL100
1.2 REVISIONS:
Date first published August 2017.
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Page 3
2. CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION..........................................................................................................2
1.2 REVISION HISTORY ..................................................................................................2
1.3 UNDERSTANDING THIS MANUAL .............................................................................2
1.4 COPYRIGHT NOTICE..................................................................................................2
2. CONTENTS
2.1 CONTENTS ....................................................................................................................3
3. GUARANTEE
3.1 GUARANTEE ............................................................................................................... 4
4. INTRODUCTION
4.1 SCOPE.........................................................................................................................5
4.2 SPECIFICATION..........................................................................................................5
4.3 HANDLING AND STORAGE........................................................................................ 5
5. HEALTH AND SAFETY INFORMATION
– Before positioning the lift, you should ensure the following .............................. 6
– Correct Positioning when using body lift plate....................................................6
– Terrain.......................................................................................................................6
– Never exceed the lift’s Rated Capacity..................................................................6
– Working Under The Vehicle.....................................................................................7
5.1 SAFETY PRECAUTIONS.............................................................................................7
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION.........................................................................................................8
7. UNPACKING AND CHECKING
7.1 PACKAGING ................................................................................................................ 9
7.2 WHAT´S IN THE BOX? ................................................................................................9

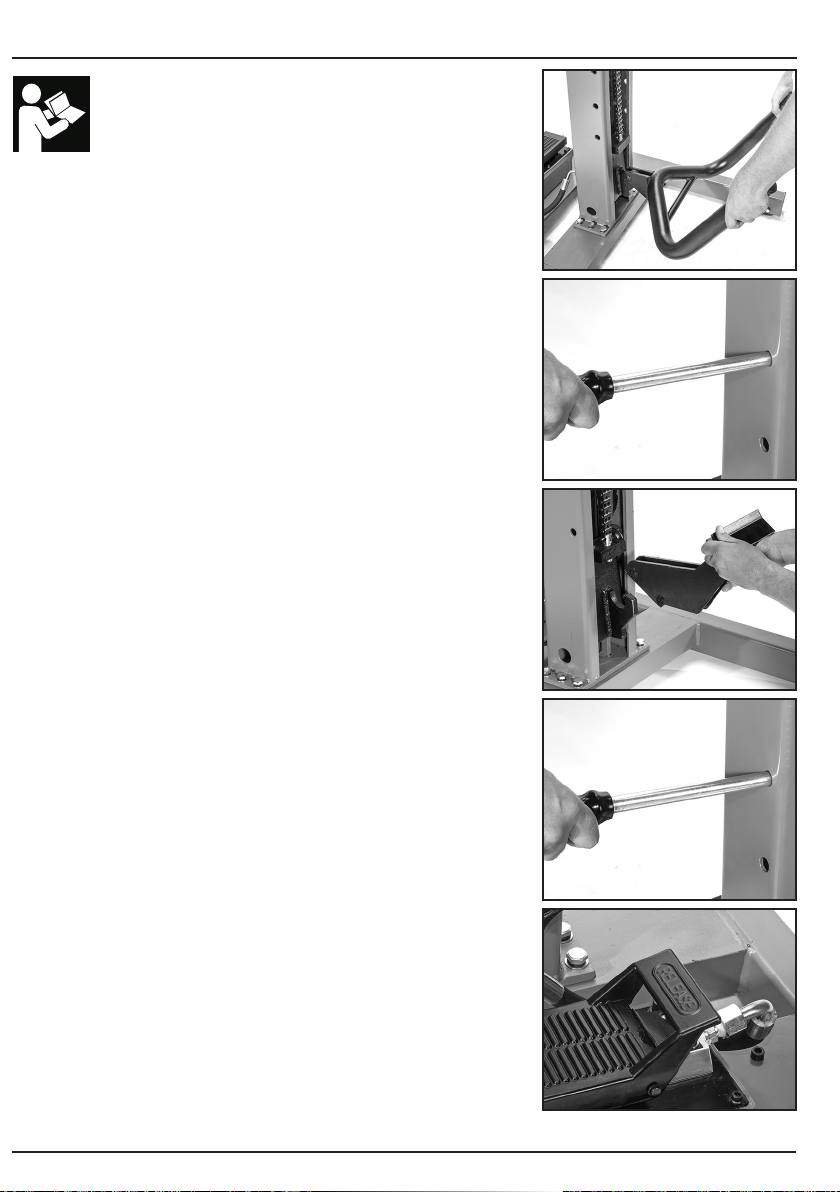

8. ASSEMBLING THE VEHICLE LIFT

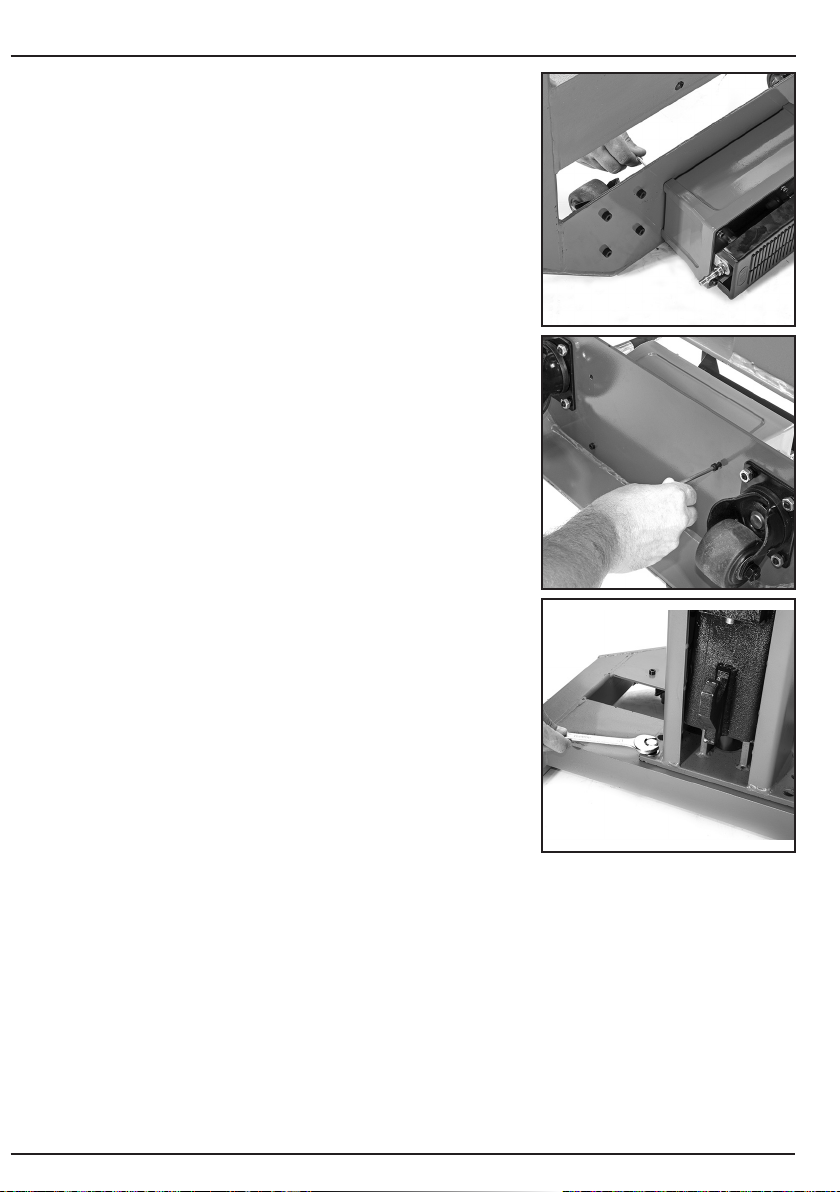

8.1 FITTING THE FOOT PEDAL PUMP .......................................................................... 10
8.2 FITTING THE LIFT COLUMN ....................................................................................10

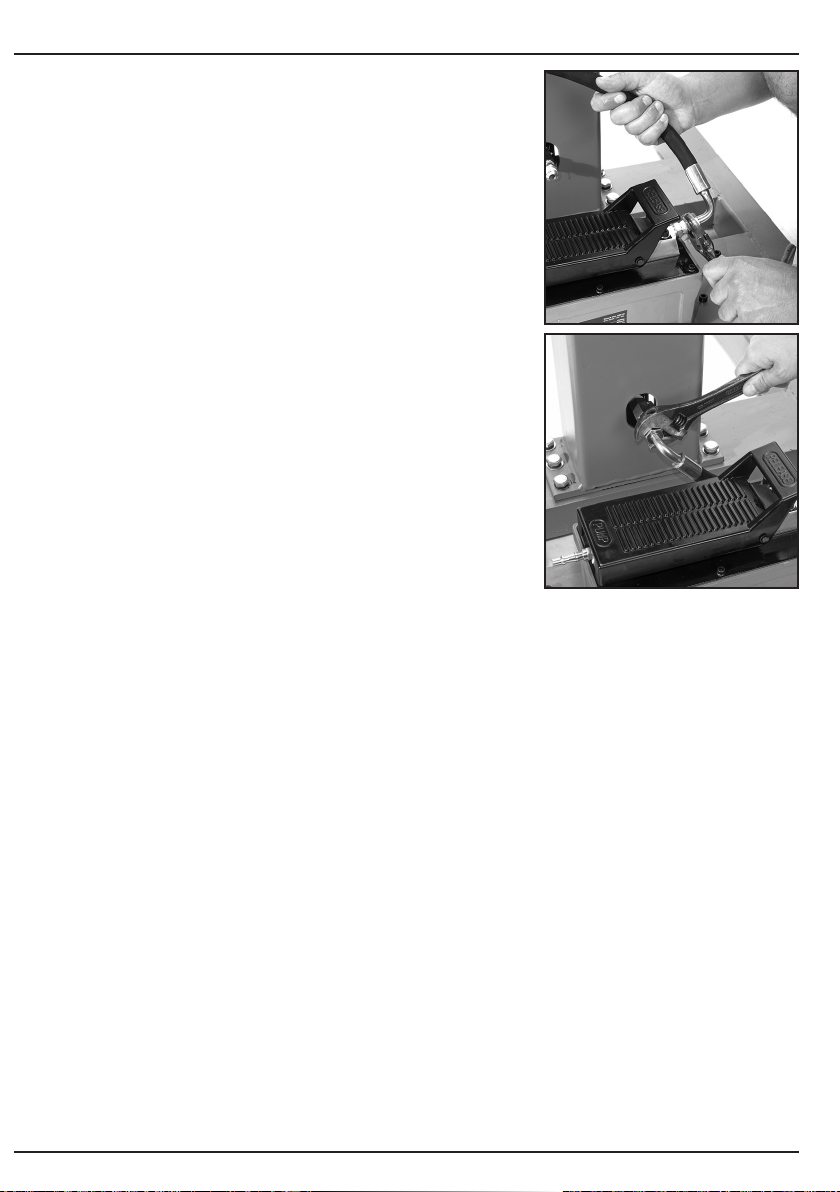

8.3 CONNECTING THE FOOT PEDAL PUMP TO LIFT COLUMNS............................... 11
9. VEHICLE LIFTING INSTRUCTIONS
9.1 WHEEL CRADLE ....................................................................................................... 12
9.2 BODY LIFT PLATE..................................................................................................... 12
9.3 HOW TO LOWER THE VEHICLE DOWN..................................................................12
10. MAINTENANCE
10.1 MAINTENANCE ......................................................................................................... 13
11. EXPLANATION OF SYMBOLS
11.1 EXPLANATION OF SYMBOLS .................................................................................. 14
12. DISPOSAL
12.1 DISPOSAL..................................................................................................................15
DECLARATION OF CONFORMITY .............................................................................. ENCLOSED
- 3 -
Page 4
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or:
Product Helpline (023) 8049 4344.
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty repair
agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 -
Page 5
4. INTRODUCTION
4.1 SCOPE
This vehicle lift is designed to lift vehicles to the maximum stated weight limit and height.
4.2 SPECIFICATION
Stock No................................................................................................................................... 78610
Part No. ....................................................................................................................................VL100
Rated load .............................................................................................................................. 1500kg
Maximum lift range ................................................................................................................. 785mm
Working air pressure ...................................................................................... 90-145psi (6.2-9.9bar)
Locking Spacing ....................................................................................................................... 80mm
Locking Positions.............................................................................................................................. 5
Overall Height...................................................................................... (H)1260 x (W)710 x (L)94mm
Weight ...................................................................................................................................... 102kg
EXTREMELY IMPORTANT: Read these safety instructions carefully in addition to the
instructions for use, operation and maintenance. Keep this instructions sheet in an easy to find
place as you may need to use it again.
This vehicle lift has been designed for the elevation of vehicles.
Any other application, beyond the conditions established for use of this vehicle lift will be
considered inappropriate.
Handle the vehicle lift correctly and ensure that all parts are in good condition prior to its use.
Only authorised persons should operate the vehicle lift having read carefully and understood the
contents of this manual.
Do not modify the vehicle lift in any way.
Non-compliance with these rules may result in injury or damage to the vehicle lift or the vehicle to
be lifted.
Always refer to the vehicle manufacturer for the correct lifting position for the vehicle you
are working on.
Draper Tools accepts no responsibility for the improper use of the vehicle lift.
4.3 HANDLING AND STORAGE
Care must still be taken when handling. Dropping this machine will have an effect on the machine
and may also result in personal injury. This machine is not a toy and must be respected.
The environment will have a negative result on its operation if you are not careful. If the air is
damp, components will rust. If the machine is unprotected from dust and debris; components will
become clogged: And if not cleaned and maintained correctly or regularly the machine will not
perform at its best.
- 5 -
Page 6
5. HEALTH AND SAFETY INFORMATION
✘
✓

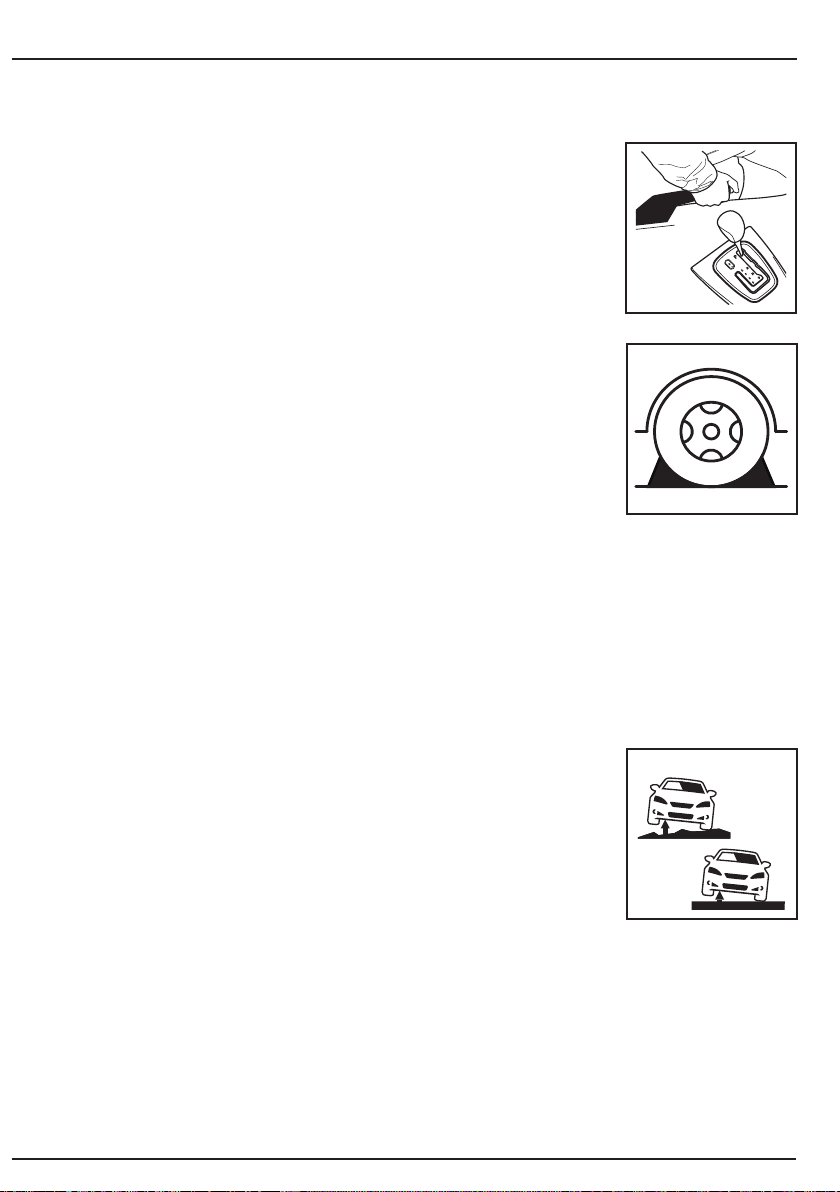

1) Before positioning the lift, you should ensure the following:
a. Vehicle should be clear of all passengers. Transmission should be
in gear (or ‘Park’ for automatic transmissions) and the handbrake
applied.
If the vehicle has automatic stop/start or is electric only - ensure
the vehicle key is a safe distance from the vehicle to prevent it
activating by mistake.
b. To prevent the vehicle from movement, wheels should be securely
blocked with wheel chocks (Draper Stock No.54500) when possible.
2) Correct Positioning when using body lift plate:
The lift should be positioned either under the approved lifting points for the vehicle or around
the vehicle tyre, as instructed. Since these points may vary with each vehicle, it is important to
refer to the vehicle manufacture or Haynes workshop manuals.
Warning: Ensure when using the lift with the wheel cradle, that this cannot come into contact
with the vehicle bodywork as the suspension compresses! Draper will accept no claims if the
bodywork is damaged due to incorrect application of the vehicle lift. If the wheel cradle is not
suitable - use the body lift plate.
This lift will not be applicable to all vehicles, and must be used very carefully on first
application to prevent damage to the vehicle and its bodywork.
3) Terrain:
The lift should only be operated on a hard and level surface as the
location will permit, concrete is required.
4) Never exceed the lift’s Rated Capacity.
- 6 -
Page 7
5. HEALTH AND SAFETY INFORMATION

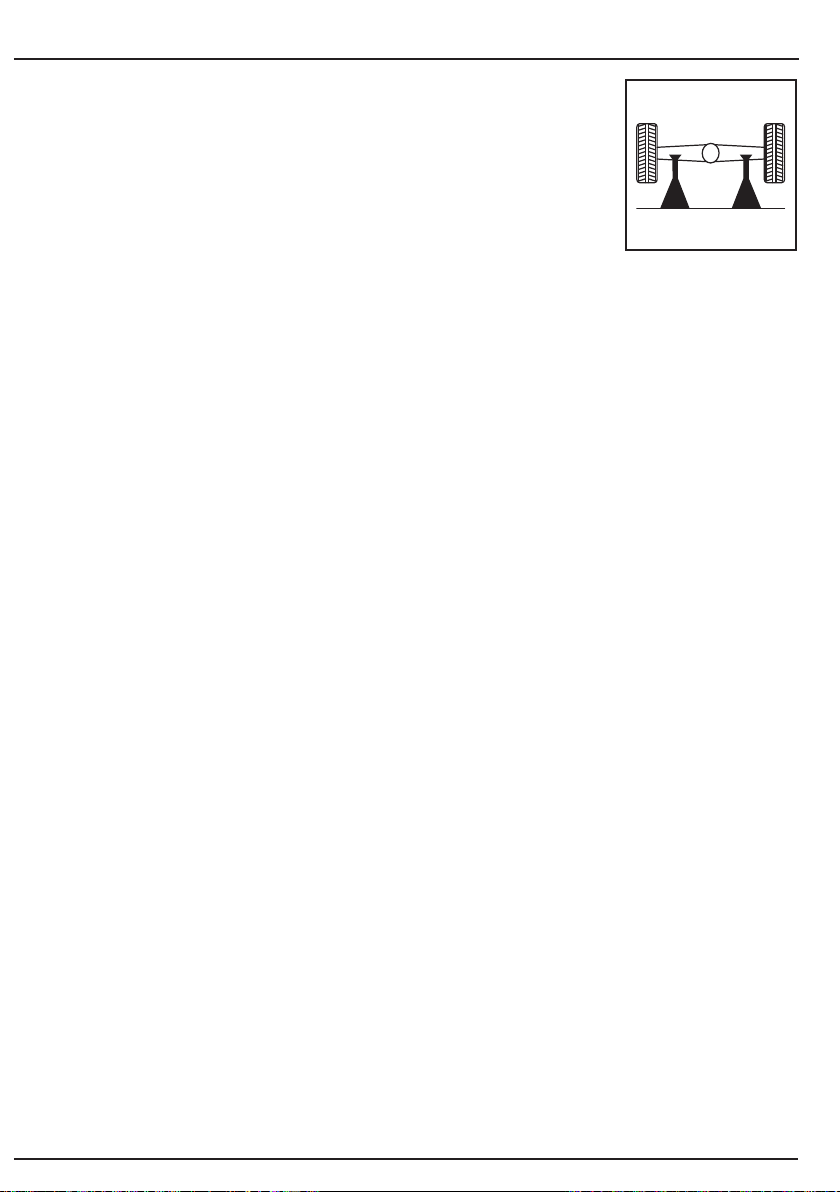

5) Working Under The Vehicle
It is extremely important, when working under the vehicle, to
ensure axle stands are always used.
5.1 SAFETY PRECAUTIONS
1. The vehicle to be lifted should never exceed the rated capacity of the life.
2. The lift should be supported on a solid, level and horizontal surface which is well illuminated
and free of obstructions. Never stand the lift on a surface which may sink.
4. Ensure that there are no persons inside the vehicle to be lifted. Switch off the engine and
apply the brake. If the vehicle has automatic stop/start or is electric only - ensure the vehicle
key is a safe distance from the vehicle to prevent it activating by mistake. Ensure the vehicle
or element to be lifted is safe against any type of sliding. Use chocks if appropriate (1). Do not
enter the vehicle or start the engine whilst it is supported on the lift or appropriate stands. The
lift is a lifting device only and should never be used to move the vehicle.
5. When using the body lift plate, position the lift under the manufacturer’s recommended lifting
point for the vehicle and ensure that it is not corroded, dirty or greasy.
6. During raising and lowering of the load, all precautions should be taken to avoid movement of
the vehicle load.
7. The lift should be positioned so as to avoid the need for the user to introduce any part of
his/her body underneath the vehicle. Never work under a raised vehicle without supporting it
with axle stands (5) or other appropriate methods. Never position any part of your body near
the movable elements of the lift.
8. It is necessary for the operator to be able to observe the lifting device and the load during all
movements. In the presence of dangerous conditions, such as movement of the vehicle, etc,
the lifting process must be stopped immediately and not attempted until the vehicle is fully
secured for lifting.
9. Ensure that there are no persons or obstructions underneath the vehicle prior to lowering.
10. Always use the locking bar at the nearest locking position under the wheel cradle or body lift
plate when the vehicle is at the required height.
Caution:
• Use only on a firm, level surface, concrete is required.
• Do not exceed the rated capacity of this lift.
• This is a lifting device only - do not work under the vehicle without proper support devices,
such as axle stands.
• Make sure that the lifting point is stable and correctly centred on the lift saddle.
• Familiarise yourself thoroughly with this manual before operating to prevent damage to the lift,
property, or personal injury.
- 7 -
Page 8

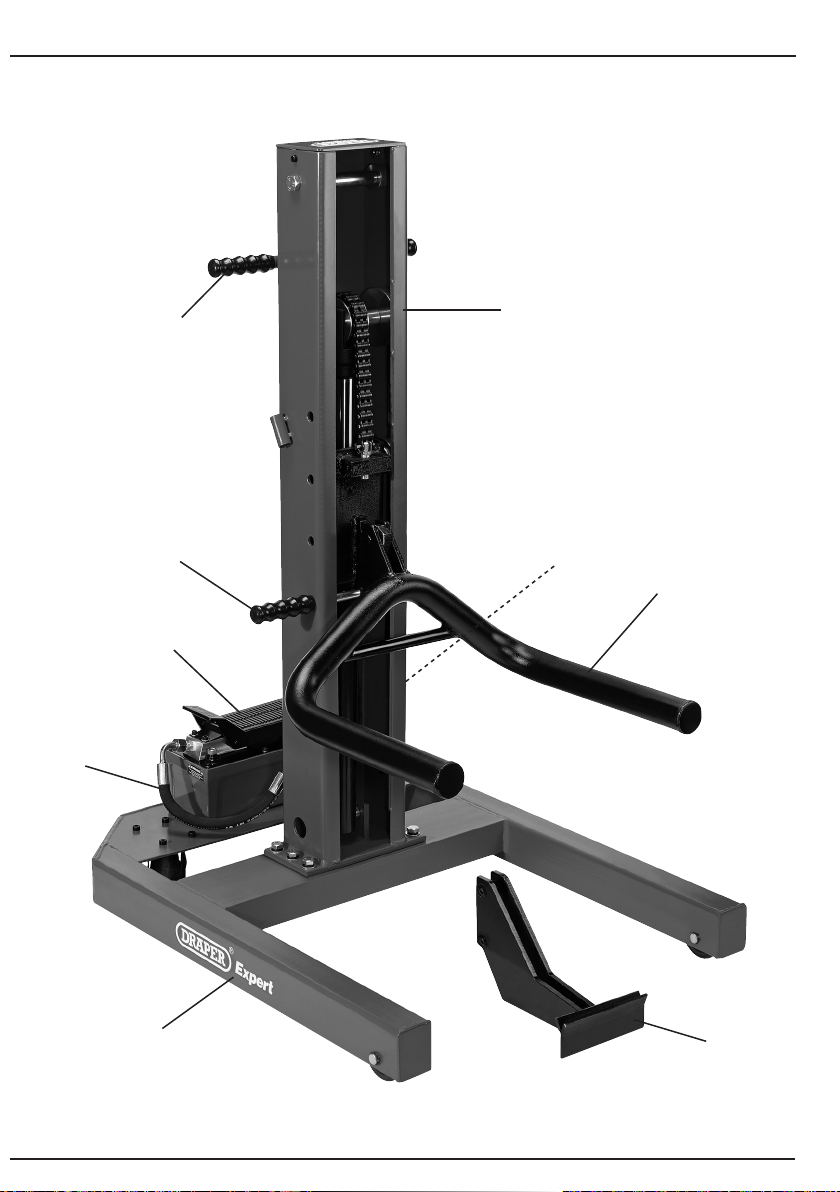

6. TECHNICAL DESCRIPTION

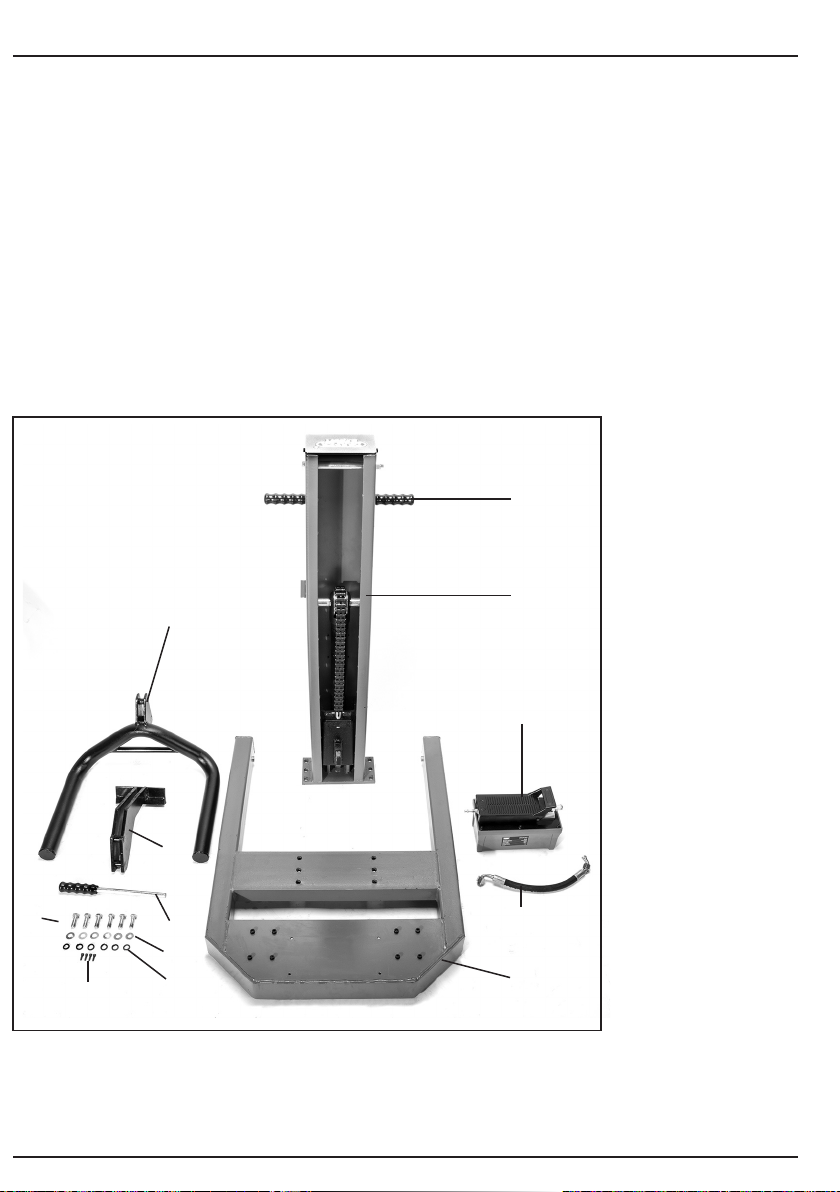

6.1 IDENTIFICATION
Hydraulic pipe
Foot pedal pump
Locking bar
Moving handle
Column
Wheel cradle
Body lift plate
Base
Air inlet
- 8 -
Page 9
7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the machine from the packaging and examine it for any sign of damage that may
have happened during shipping. Lay the contents out and check them against the parts shown
below. If any part is damaged or missing; please contact the Draper Helpline (the telephone
number appears on the Title page) and do not attempt to use the machine.
The packaging material should be retained at least during the guarantee period: in case the
machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly; according
to local regulations.
7.2 WHAT´S IN THE BOX?
The packaging contains several parts and semi-assembled elements that require final assembly.
Lay out the contents and check off the items against those featured below.
Hydraulic pipe
Foot pedal pump
Locking bar
Moving handle
Column
Wheel cradle
Body lift plate
Base
6x Bolts
6x Washers
6x Spring washer
4x Hex key bolts
- 9 -
Page 10
8. ASSEMBLING THE VEHICLE LIFT
8.1 FITTING THE FOOT PEDAL PUMP
Using the supplied 4x hex key bolts , fit the foot pedal pump
to the base of the lift as shown.
8.2 FITTING THE LIFT COLUMN
With assistance, bolt the lift column to the lift base as
shown using bolts .
- 10 -
Page 11
8. ASSEMBLING THE VEHICLE LIFT
8.3 CONNECTING THE FOOT PEDAL PUMP TO
LIFT COLUMNS
Using PTFE tape or liquid PTFE on the hydraulic hose connect
the foot pedal pump to the lift column as shown.
Before use:
• A copper knob is installed for shipping to prevent leaks, this
must be loosened anticlockwise before use.
• Inspect each bolt to ensure they are tight and secure.
• Carry out test run with no vehicle to ensure there are no
leaks.
- 11 -
Page 12
9. VEHICLE LIFTING INSTRUCTIONS
9.1 WHEEL CRADLE
Position the wheel cradle around the vehicle wheel and using
the foot pedal pump lift the vehicle to the desired height and fit
the locking bar to the nearest position under the wheel cradle.
Warning: Ensure when using the lift with the wheel cradle,
that this cannot come into contact with the vehicle bodywork
as the suspension compresses! Draper will accept no claims if
the bodywork is damaged due to incorrect application of the
vehicle lift. If the wheel cradle is not suitable - use the body lift
plate.
This lift will not be applicable to all vehicles, and must be used
very carefully on first application to prevent damage to the
vehicle and its bodywork.
9.2 BODY LIFT PLATE
Position the body lift plate in the correct lift position according
to the vehicle manufacturer and using the foot pedal, lift the
vehicle to the desired height and fit the locking bar to the
nearest position under the body lift plate.
Note: Never take the vehicle to a height that may cause it to
roll over.
9.3 HOW TO LOWER THE VEHICLE DOWN
To bring the vehicle back down, remove the locking bar and
press the release side of the foot pedal pump.
- 12 -
Page 13
10. MAINTENANCE
10.1 MAINTENANCE
1. IMPORTANT: Both the maintenance and repair of the lift may only be performed by qualified
persons, who have sufficient knowledge of the hydraulic systems used in these devices as a
result of their training and experience.
2. Keep the lift clean and lubricate all moving parts at regular intervals, which must be clean and
protected from aggressive conditions at all times.
3. Only original spare parts should be used.
4. Prior to each use, check for bent, broken, cracked or loose parts. Do not use if any defects are
present. If it is suspected that the lift has been subjected to abnormal loads or has suffered
any knocks, withdraw it from service until the problem has been rectified.
5. Following a period of prolonged intensive use, it is recommendable to change the oil in order
to extend the useful life of the lift.
6. Insufficient oil volume may render the lift inoperative.
7. Only use suitable hydraulic oil. Never use brake fluid or engine oil etc.
8. Keep the lift in a clean, dry place and out of children reach.
9. At the end of the useful life of the lift, drain off the oil and hand it over to an authorised agent
and dispose of the lift in accordance with local regulations.
- 13 -
Page 14
11. EXPLANATION OF SYMBOLS
11.1 EXPLANATION OF SYMBOLS
Warning!
Wear suitable foot protection.
Warning!
Wear suitable eye/face protection.
Warning!
Read the instruction manual.
Warning!
Keep bystanders away.
- 14 -
Page 15
12. DISPOSAL
12.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
Do not dispose of this lift with domestic waste.
•
Do not incinerate.
•
Do not abandon in the environment.
•
- 15 -
Page 16
CONTACTS
Draper Tools Limited, Hursley Road,
Chandler's Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Helpline: (023) 8049 4344
Sales Desk: (023) 8049 4333
Internet: drapertools.com
E-mail: sales@drapertools.com
General Enquiries: (023) 8026 6355
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Helpline for details of an agent in your local area.
YOUR DRAPER STOCKIST
DBKC0817
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
Loading...
