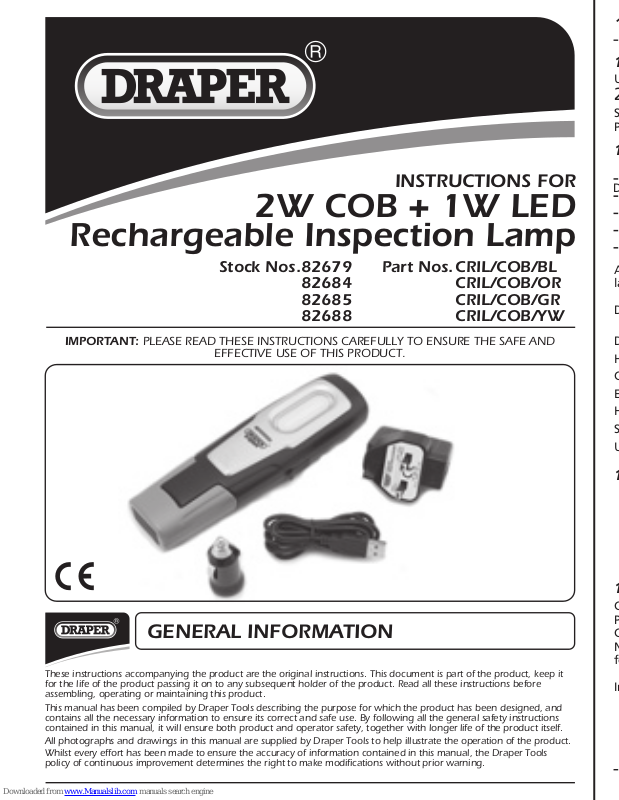

Page 1
INSTRUCTIONS FOR
2W COB + 1W LED
Rechargeable Inspection Lamp
Stock Nos.82679 Part Nos. CRIL/COB/BL
82684 CRIL/COB/OR
82685 CRIL/COB/GR
82688 CRIL/COB/YW
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR:
2W COB +1W LED RECHARGEABLE INSPECTION LAMP
Stock nos. 82679, 82684, 82685, 82688.
Part no. CRIL/COB/BL, CRIL/COB/OR, CRIL/COB/GR, CRIL/COB/YW.
1.2 REVISIONS:
As our user manuals are continually updated, users should make sure that they use the very
latest version.
Downloads are available from: http://www.drapertools.com/b2c/b2cmanuals.pgm
DRAPER TOOLS LIMITED WEBSITE: www.drapertools.com
HURSLEY ROAD PRODUCT HELPLINE: +44 (0) 23 8049 4344
CHANDLER’S FORD GENERAL FAX: +44 (0) 23 8026 0784
EASTLEIGH
HAMPSHIRE
SO53 1YF
UK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other
form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Date first published July 2015
Page 2
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR:
2W COB +1W LED RECHARGEABLE INSPECTION LAMP
Stock nos. 82679, 82684, 82685, 82688.
Part no. CRIL/COB/BL, CRIL/COB/OR, CRIL/COB/GR, CRIL/COB/YW.
1.2 REVISIONS:
As our user manuals are continually updated, users should make sure that they use the very
latest version.
Downloads are available from: http://www.drapertools.com/b2c/b2cmanuals.pgm
DRAPER TOOLS LIMITED WEBSITE: www.drapertools.com
HURSLEY ROAD PRODUCT HELPLINE: +44 (0) 23 8049 4344
CHANDLER’S FORD GENERAL FAX: +44 (0) 23 8026 0784
EASTLEIGH
HAMPSHIRE
SO53 1YF
UK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other
form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Date first published July 2015
2
Page 3
2. CONTENTS
2.1 CONTENTS
Page content
Page
1 TITLE PAGE
1.1 INTRODUCTION ...............................................................................................2
1.2 REVISION HISTORY...........................................................................................2
1.3 UNDERSTANDING THIS MANUAL ..................................................................2
1.4 COPYRIGHT NOTICE.........................................................................................2
2 CONTENTS
2.1 CONTENTS ........................................................................................................3
3 GUARANTEE
3.1 GUARANTEE .....................................................................................................4
4 INTRODUCTION
4.1 SCOPE ...............................................................................................................4
4.2 SPECIFICATION .................................................................................................4
4.3 HANDLING & STORAGE ...................................................................................4
5 HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS ...................................................................5
5.2 CONNECTION TO THE POWER SUPPLY (CHARGER) .......................................6
6 TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ...............................................................................................6
7 UNPACKING & CHECKING
7.1 PACKAGING......................................................................................................6
8 PREPARING THE INSPECTION LAMP
8.1 CHARGING........................................................................................................7
9 OPERATING THE INSPECTION LAMP
9.1 OPERATION ......................................................................................................7
10 MAINTENANCE ...................................................................................................................7
11 EXPLANATION OF SYMBOLS
11.1 EXPLANATION OF SYMBOLS ...........................................................................7
12 DISPOSAL
12.1 DISPOSAL..........................................................................................................7
DECLARATION OF CONFORMITY .................................................................................... ENCLOSED
3
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or Product Helpline (023) 8049 4344.
A proof of purchase must be provided with the tool.
If upon inspection it is found that a fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. The guarantee period covering parts/labour is 12 months
from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agents.
Note: If the tool is found not to be within the Terms of Warranty, repair and carriage charges will
be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
3. GUARANTEE
3.1 GUARANTEE
4. INTRODUCTION
4.1 SCOPE
2 watt Chip On Board (COB) and 1W LED rechargeable inspection lamp, 2W COB to be used as an
inspection lamp and 1 LED for use as a torch. Magnets on the base and on the rear, a 360° swivel
hook. Base pivots 180°, supplied with mains charger, connection lead and 12V charger.
4.2 SPECIFICATION
Stock nos.......................................................................................................82679, 82684, 82685, 82688.
Part nos............................................................ CRIL/COB/BL, CRIL/COB/OR, CRIL/COB/GR, CRIL/COB/YW
Battery:
Type ............................................................................................................................................... Li-Ion
Rated Voltage ................................................................................................................................ 3.7V
Rating ........................................................................................................................................... 2.0Ah
Charger:
Rated Voltage ............................................................................................................................. 230V~
Rated Frequency ........................................................................................................................... 50Hz
Rated Power Input .......................................................................................................................... 8W
Rated D.C. Output Voltage ........................................................................................................ 5V DC
Rated D.C. Output Current ..................................................................................................... 1000mA
Construction ............................................................................................................................... Class II
Charging time.................................................................................................................... 4 hrs (approx.).
Lamp operating time:
2W COB LED inspection lamp....................................................................................... 3 hrs (approx.).
1W LED torch................................................................................................................. 8 hrs (approx.).
Lamp luminosity:
2W COB inspection lamp ....................................................................................................150 lumens.
1W LED torch.........................................................................................................................70 lumens.
4.3 HANDLING & STORAGE
Do not drop the inspection lamp as this can damage and shorten the life span of the unit.
Store in a dry location as damp conditions can damage the inspection lamp.
Charging on a regular basses in advised to prolong the life of the battery cells.
Page 4
4
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or Product Helpline (023) 8049 4344.
A proof of purchase must be provided with the tool.
If upon inspection it is found that a fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. The guarantee period covering parts/labour is 12 months
from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agents.
Note: If the tool is found not to be within the Terms of Warranty, repair and carriage charges will
be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
3. GUARANTEE
3.1 GUARANTEE
4. INTRODUCTION
4.1 SCOPE
2 watt Chip On Board (COB) and 1W LED rechargeable inspection lamp, 2W COB to be used as an
inspection lamp and 1 LED for use as a torch. Magnets on the base and on the rear, a 360° swivel
hook. Base pivots 180°, supplied with mains charger, connection lead and 12V charger.
4.2 SPECIFICATION
Stock nos.......................................................................................................82679, 82684, 82685, 82688.
Part nos............................................................ CRIL/COB/BL, CRIL/COB/OR, CRIL/COB/GR, CRIL/COB/YW
Battery:
Type ............................................................................................................................................... Li-Ion
Rated Voltage ................................................................................................................................ 3.7V
Rating ........................................................................................................................................... 2.0Ah
Charger:
Rated Voltage ............................................................................................................................. 230V~
Rated Frequency ........................................................................................................................... 50Hz
Rated Power Input .......................................................................................................................... 8W
Rated D.C. Output Voltage ........................................................................................................ 5V DC
Rated D.C. Output Current ..................................................................................................... 1000mA
Construction ............................................................................................................................... Class II
Charging time.................................................................................................................... 4 hrs (approx.).
Lamp operating time:
2W COB LED inspection lamp....................................................................................... 3 hrs (approx.).
1W LED torch................................................................................................................. 8 hrs (approx.).
Lamp luminosity:
2W COB inspection lamp ....................................................................................................150 lumens.
1W LED torch.........................................................................................................................70 lumens.
4.3 HANDLING & STORAGE
Do not drop the inspection lamp as this can damage and shorten the life span of the unit.
Store in a dry location as damp conditions can damage the inspection lamp.
Charging on a regular basses in advised to prolong the life of the battery cells.
Page 5
5. HEALTH & SAFETY INFORMATION
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
7.1 PACKAGING
Carefully remove the inspection lamp from the packaging and examine it for any sign of damage
that may have happened during shipping. If any part is damaged or missing; please contact the
Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the
lamp.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly; according
to local regulations.
7. UNPACKING & CHECKING
5.2 CONNECTION TO THE POWER
SUPPLY (CHARGERS)
Make sure the power supply information on the
machine’s rating plate are compatible with the power
supply you intend to connect it to.
This lamp comes supplied with a UK standard 3 pin
transformer. It is designed for connection to a domestic
power supply rated at 230V AC.
5
5. HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY
INSTRUCTIONS
General Power Tools Safety Warnings
WARNING: Read all instructions. Failure to follow
all instructions listed below may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your
mains operated (corded) power tool or battery operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
2) Electrical Safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electrical shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3) Personal Safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on
the switch or energising power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust
collection can reduce dust related hazards.
4) Power Tool Use And Care
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for
which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
d)
Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from intended could result in a hazardous
situation.
5) Battery tool use and care
a. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when
used with another battery pack.
b. Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
c. When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
d. Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
6) Service
a. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
Page 6
6
5. HEALTH & SAFETY INFORMATION
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
7.1 PACKAGING
Carefully remove the inspection lamp from the packaging and examine it for any sign of damage
that may have happened during shipping. If any part is damaged or missing; please contact the
Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the
lamp.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly; according
to local regulations.
7. UNPACKING & CHECKING
360° swivel hook
On/off switch
Charger socket
Rear magnet
Magnetic base
1W LED torch
2W COB LED inspection lamp
180° jointed body
Charging LED Indicator
230V charger
12V DC charger
Interchangeable charger lead
5.2 CONNECTION TO THE POWER
SUPPLY (CHARGERS)
Make sure the power supply information on the
machine’s rating plate are compatible with the power
supply you intend to connect it to.
This lamp comes supplied with a UK standard 3 pin
transformer. It is designed for connection to a domestic
power supply rated at 230V AC.
It is Class 2 (double insulated); is designed for connection
to a power supply matching that detailed on the rating
label and compatible with the plug fitted.
If an extension lead is required, use an approved and
compatible lead rated for this appliance. Follow all the
instruction supplied with the extension lead.
This product requires no earth connection as supplementary
insulation is applied to the basic insulation to protect
against electric shock in the event of failure of the basic
insulation.
Page 7
- DRAPER TOOLS LIMITED,
Hursley Road, Chandler's Ford,
Eastleigh, Hampshire. SO53 1YF. U.K.
- Helpline: (023) 8049 4344
- Sales Desk: (023) 8049 4333
- Internet: www.drapertools.com
- E-mail: sales@drapertools.com
- Sales Fax: (023) 8049 4209
- General Enquiries: (023) 8026 6355
- Service/Warranty Repair Agent
For aftersales servicing or warranty repairs, please
7
F
130°C
5
Keep the inspection lamp clean from dirt and grease, using a damp cloth.
Do not submerge in water.
10. MAINTENANCE
11.1 EXPLANATION OF SYMBOLS
11. EXPLANATION OF SYMBOLS
12.1 DISPOSAL
- At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
- Contact your local authority for details of collection schemes in your area.
In all circumstances:
• Do not dispose of power tools with domestic waste.
• Do not incinerate.
• Do not abandon in the environment.
• Do not dispose of WEEE* as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.
12. DISPOSAL
WEEE
Do not dispose of Waste Electrical
& Electronic Equipment in with
domestic rubbish
For indoor use only.
Do not expose to rain.
Class II construction
(Double insulated).
Short-circuit-proof safety
isolating transformer.
Polarity indication.
Non-Self-Resetting protective
device.
8.1 CHARGING - FIG.1
Connect the charging plug into the charging socket , which is
located on the side of inspection lamp. Connect the 230V charger
or 12V DC charger to a power supply and turn it on.
The charging LED indicator will illuminate red, charge for 5
hours or until the charging LED illuminates green.
Disconnect the charger from the inspection lamp when it is fully
charged.
8. PREPARING THE INSPECTION LAMP
9.1 OPERATION - FIG.2
CAUTION: Never shine the LED light directly into your or any one
else’s eyes.
To run through the sequence of modes (1 Watt LED, 2 Watt COB
and off).
Press the on/off button.
The lamp can be suspended and swivel 360° on hooks or the
magnets and located on the rear on base of the lamp.
9. OPERATING THE INSPECTION LAMP
FIG.1
FIG.2
Page 8
CONTACTS
- DRAPER TOOLS LIMITED,
Hursley Road, Chandler's Ford,
Eastleigh, Hampshire. SO53 1YF. U.K.
- Helpline: (023) 8049 4344
- Sales Desk: (023) 8049 4333
- Internet: www.drapertools.com
- E-mail: sales@drapertools.com
- Sales Fax: (023) 8049 4209
- General Enquiries: (023) 8026 6355
- Service/Warranty Repair Agent
For aftersales servicing or warranty repairs, please
contact the Draper Tools Helpline for details of an
agent in your local area.
YOUR DRAPER STOCKIST
RWKC041215
5
Loading...
