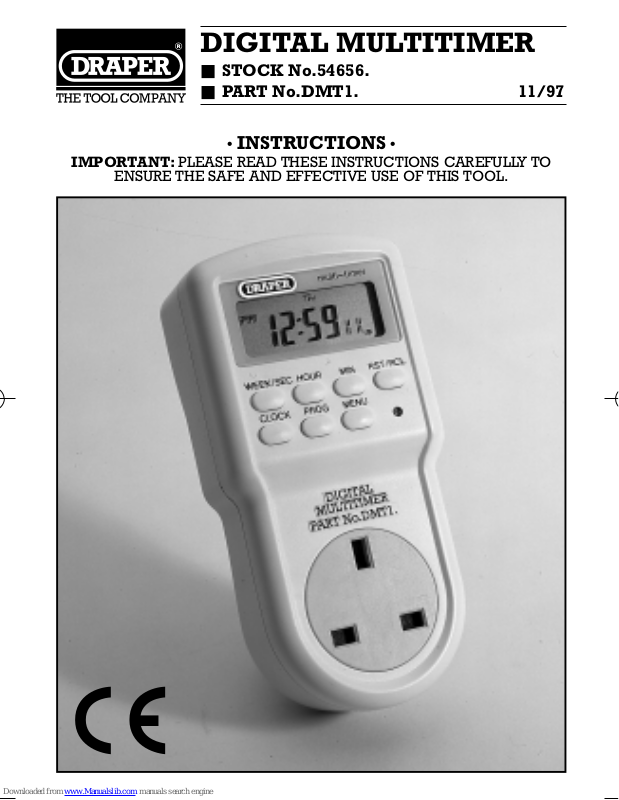

Page 1
• INSTRUCTIONS •
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO
ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL.

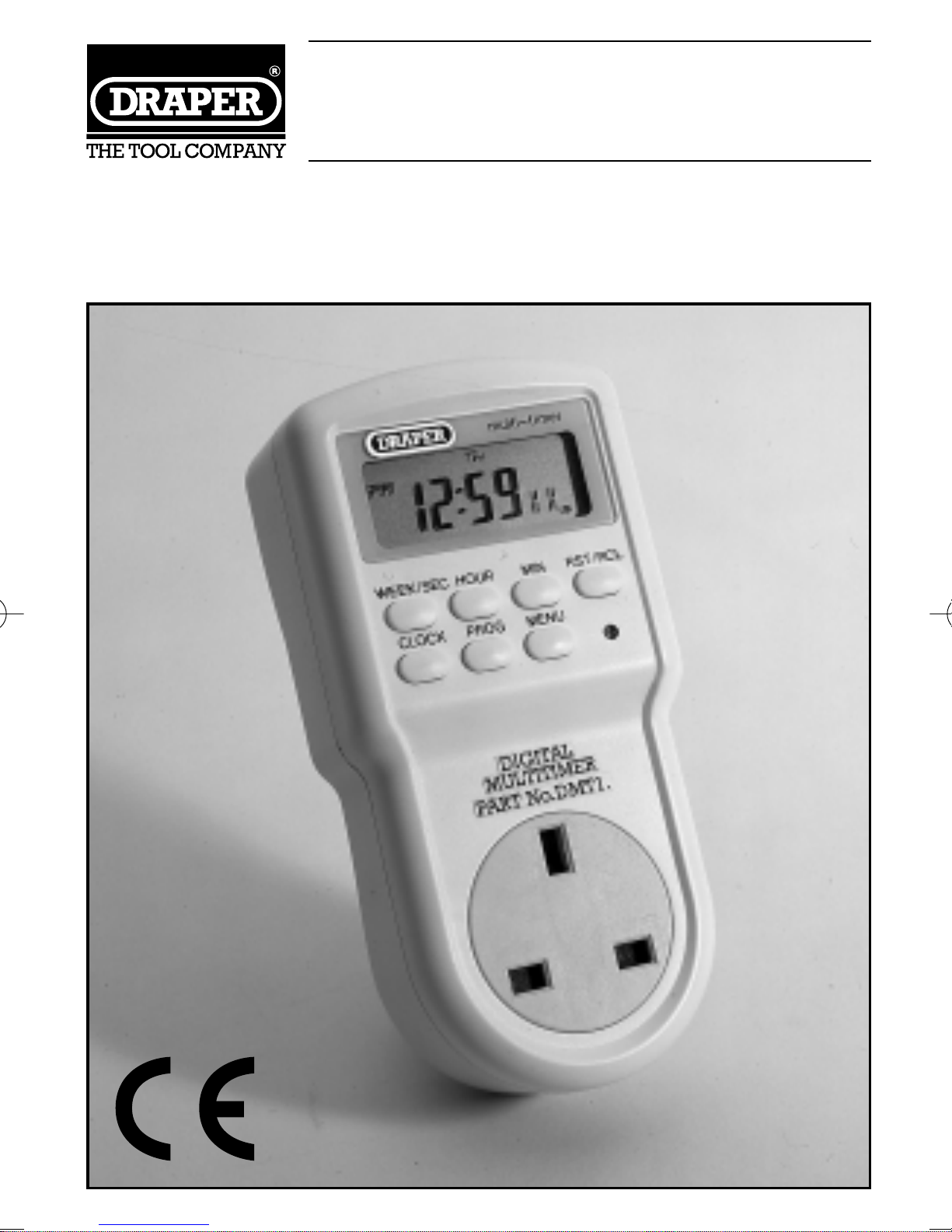

DIGITAL MULTITIMER
■ STOCK No.54656.
■ PART No.DMT1. 11/97
Page 2
OPERATING INSTRUCTIONS
DISPLAY
✪✌ Weekday display.
✫✌ Time/Response time.
✬✌ Programme display: 12 on/12off.
✭✌ On/Off/Auto/Count down/Alarm display.
OPERATING FEATURES
✕✌ WEEK/SEC: Day setting/second setting in alarm
function.
✖✌ HOUR: Hour setting key.
✗✌ MIN: Minute setting key.
✘✌ RST/RCL: Reset/recall key.
✙✌ CLOCK: Time setting/stop key in countdown
function.
✚✌ PROG: Programme-key/start-key in
countdown function.
✛✌ MENU: Choice function and timer status
(On/Auto/Alarm/Down/Off).
✜✌ LED-Display: Lights up when the timer is switched
on.
The electronic plug-in multi-timer with a 24 hour, 7 day,
switches power on and off up to 12 times per day
including clock alarm and countdown programme.The
easy menu-assisted programming mechanism, using only
7 keys, ensures user friendliness.

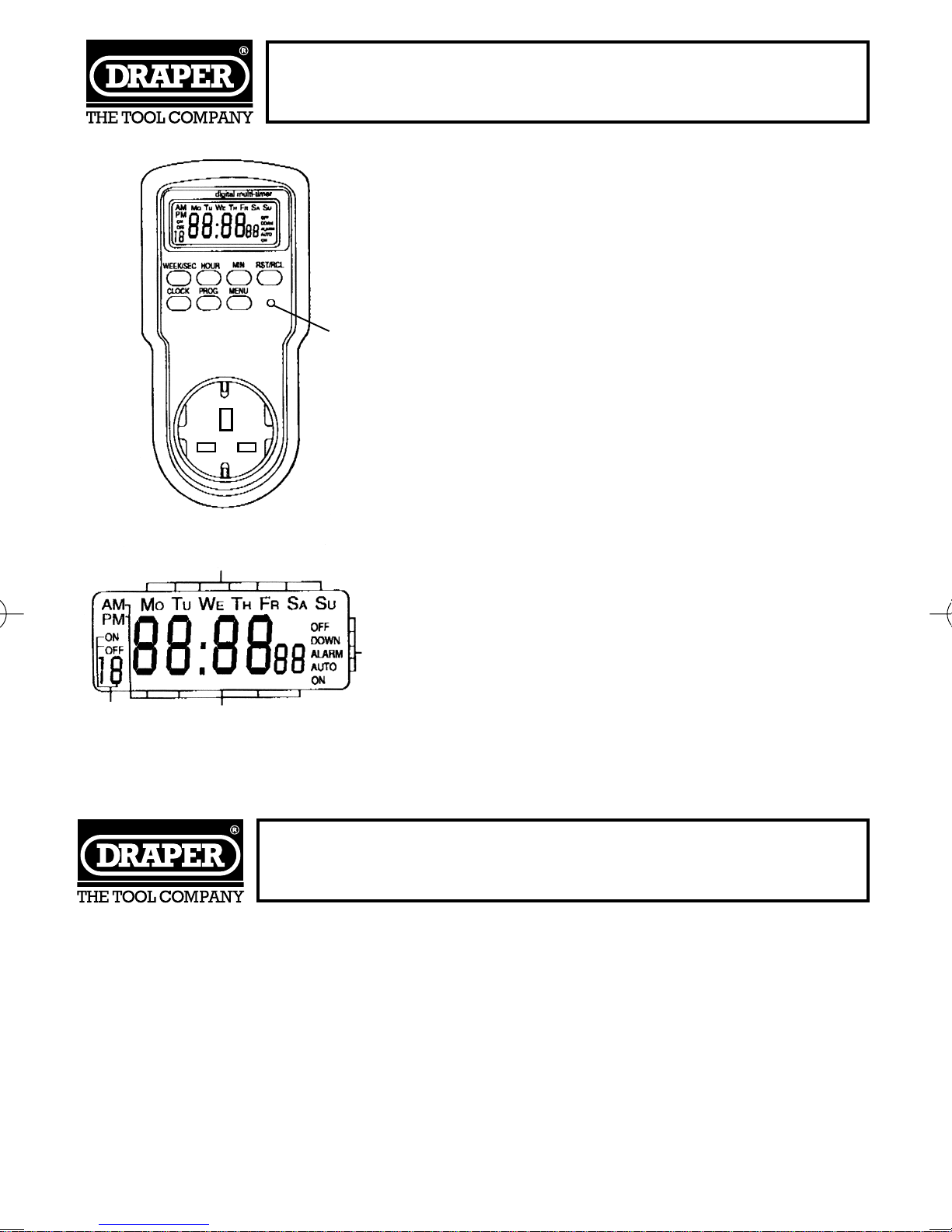

Fig.1.
Display
A
B
C
D
A Setting day and time
1. Day Set: Hold down the CLOCK button and press the WEEK button until correct day appears
at the top of the display.
2. Time Set: Hold down the CLOCK button and press the HOUR button until the display
indicates the correct hour.You may have to cycle through the hours twice to obtain the
proper AM or PM (on the left side of the display). Seconds will automatically reset to zero.
3. Hold down the CLOCK button and press the MIN button until the display indicates the
correct minutes. Seconds will automatically reset to zero.
B. Setting the power ON/OFF times
1. Push the PROG button once. 1 and ON will appear near the lower left of the display to
indicate that the first power-on time is ready to be programmed.
2. Press the HOUR and MIN buttons to enter your first “on” time.
PROGRAMMING
7
8
65
13
4
2
Page 3
3. Press the WEEK button to select the desired day. These days appear along the top of the
display. (If Mo Tu We Th Fr Sa Su all appear on the display, these days all have the same
power-on time).You can select Mo Tu We Th Fr as a group, or Sa Su as a group, or a single
day.
4. When you finish steps 1-3 then press the PROG button. 1OFF now appears on the display to
indicate that the first power-off time is ready to be programmed. Repeat steps 2 and 3 to
enter your first desired power-off time.
5. Press the PROG button again. 2 and ON appears on the display to indicate that the second
power-on time is ready to be programmed. Repeat the same procedure you used in steps 2
through to 4 to enter the rest of your power-on/power off times (up to a maximum of
12 on/12 off times).
6. Press the PROG button to step through the times you entered to make sure they are correct.
7. Press the RST/RCL button to reset or recall any timer entries.When you reset (disable) a
particular power-on/off entry, four dashes will appear instead of time.When you recall an
entry, it will return to the values that were set before you performed a reset.
8. Press the CLOCK button to return to the real-time clock display.
1. Press the MENU button, “DOWN” appears on the display to indicate that countdown is ready
to be programmed.
2. Hold down the CLOCK button and press the HOUR, MIN and SEC button to enter the
requested countdown time.
3. Press the PROG button to start countdown and press the CLOCK button to stop it. MAX.
duration 59 hours, 59 mins, 59 secs.
TECHNICAL DATA
Switching times: 12 x ON, 12 x OFF, up to 84 switching possibilities by programming Mo-Su.
Countdown: Max. 59 hours, 59 mins, 59 secs.
Alarm: 24 times per day, 1-59 seconds.
Switching load: 16A/250V (4000W).
Power supply: 230V-/50Hz.
Battery: 1 x AAA 1.5V.
1. Press the MENU button to select the alarm function, when ALARM appears on the display
press the PROG button until seconds “00” appears at bottom of the display.
2. Press the WEEK/SEC button to set alarm sound period.
NOTE: The first setting is same as second, third up to 24 alarm sound setting, i.e. First setting is
08 sec. then, second, third up to 24 alarm sound also 08 sec.
3. Press PROG to set alarm time-press. Hour button to set hour and press MIN button to set
min. Finish the first setting.
4. Press PROG button to start the second alarm setting, when 1OFF appears on the display you
can start the second alarm setting by repeating 2 and 3.
NOTE: 1OFF is equal to 2ON for alarm setting function.
Although this setting is referred to as ‘alarm’ on the timer, there is no audible alarm
feature built-in.
SETTING COUNTDOWN
SHORT DURATION OVERRIDE
Page 4
DRAPER TOOLS LIMITED
Hursley Road, Chandler's Ford,
Eastleigh, Hants. SO53 1YF. England.
Tel: (01703) 266355.
Fax: (01703) 260784.
©Published by Draper Tools Ltd.
