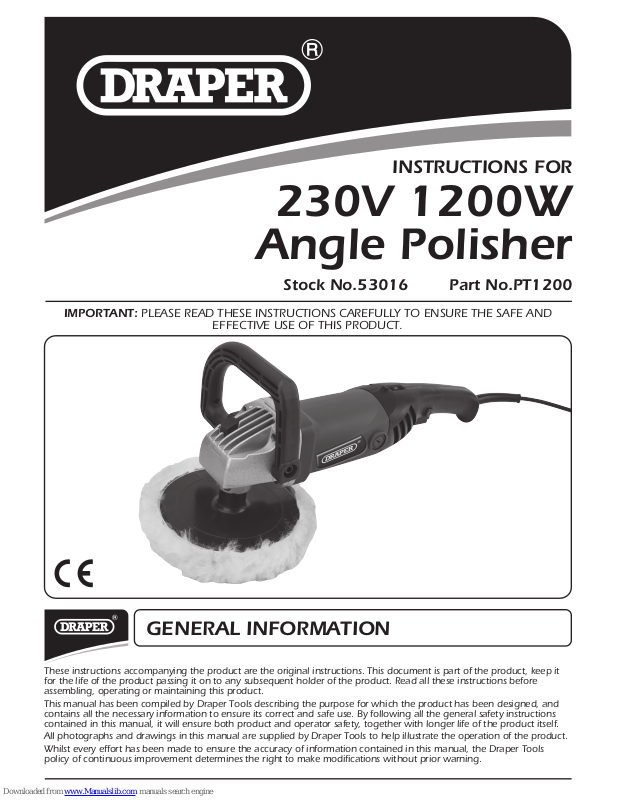

Draper 53016 Instructions Manual

Page 1
INSTRUCTIONS FOR
230V 1200W
Angle Polisher
Stock No.53016 Part No.PT1200
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product. Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Page 2
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR:
230V 1200W Angle Polisher
Stock no. 53016 Part no. PT1200
1.2 REVISIONS:
As our user manuals are continually updated, users should make sure that they use the very latest version.
Manuals are available to download under products on: www.drapertools.com.
DRAPER TOOLS LIMITED WEBSITE: www.drapertools.com HURSLEY ROAD PRODUCT HELPLINE: +44 (0) 23 8049 4344 CHANDLER’S FORD GENERAL FAX: +44 (0) 23 8026 0784 EASTLEIGH HAMPSHIRE SO53 1YF UK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
NOTE! Important information.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited. Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Date first published May 2013.
Page 3
2. CONTENTS
3
2.1 CONTENTS Page content
Page
1 TITLE PAGE
1.1 INTRODUCTION ............................................................................................... 2
1.2 REVISION HISTORY........................................................................................... 2
1.3 UNDERSTANDING THIS MANUAL ................................................................... 2
1.4 COPYRIGHT NOTICE......................................................................................... 2
2 CONTENTS
2.1 CONTENTS ........................................................................................................ 3
3 GUARANTEE
3.1 GUARANTEE .....................................................................................................4
4 INTRODUCTION
4.1 SCOPE ............................................................................................................... 5
4.2 SPECIFICATION ................................................................................................. 5
4.3 HANDLING & STORAGE ...................................................................................5
5 HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR ANGLE POLISHER USE ...................... 6
5.2 CONNECTION TO THE POWER SUPPLY ........................................................... 8
6 TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ...............................................................................................9
7 UNPACKING & CHECKING
7.1 PACKAGING...................................................................................................... 10
7.2 WHATS IN THE BOX ......................................................................................... 10
8 PREPARING THE POLISHER
8.1 PREPARING THE POLISHER .............................................................................. 11
9 OPERATING THE POLISHER
9.1 OPERATING THE POLISHER.............................................................................. 12
10 MAINTENANCE
10.1 MAINTENANCE................................................................................................. 13
11 TROUBLE SHOOTING
11.1 TROUBLESHOOTING......................................................................................... 13
12 DISPOSAL
12.1 DISPOSAL.......................................................................................................... 13
13 EXPLANATION OF SYMBOLS/PICTOGRAMS
13.1 DISPOSAL.......................................................................................................... 14
14 NOTES 15 CONTACTS
DECLARATION OF CONFORMITY .....................................................................................ENCLOSED
Page 4
4
3. GUARANTEE
3.1 GUARANTEE
Draper
tools have been carefully tested and inspected before shipment and are guaranteed to
be free from defective materials and workmanship. Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England. Telephone Sales Desk: (023) 8049 4333 or Product Helpline (023) 8049 4344. A proof of purchase must be provided with the tool. If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase. The guarantee is extended to 24 months for parts only. This guarantee does not apply to normal wear and tear, nor does it cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights. Draper Tools Limited.
Page 5
5
4. INTRODUCTION
4.1 SCOPE
This hand held power tool uses polishing mops and foam polishing sponges in order to finish painted surfaces. Intended for DIY and light commercial use only. Any other application is considered mis-use.
4.2 SPECIFICATION
Stock no ............................................................................................................................ 53016
Part no ............................................................................................................................ PT1200
Rated voltage: .........................................................................................................230V~50Hz
Rated input: .................................................................................................................... 1200W
Disc diameter............................................................................................................... 180mm
ø
Speed (no load) .................................................................................................600-3300min-1
Rated capacity ............................................................................................................... 180mm
Spindle thread .................................................................................................................... M14
Sound pressure level ................................................................................................. 88.4dB(A)
Sound power level .................................................................................................... 99.4dB(A)
Vibration level .............................................................................................................. 5.97m/s
2
Weight (nett)........................................................................................................................ 4kg
4.3 HANDLING & STORAGE
Although this machine is small in size, care must still be taken when handling and lifting. Dropping this machine will have an effect on the accuracy and may also result in personal injury. This machine is not a toy and must be respected.
The environment will have a negative result on its operation if you are not careful. If the air is damp, components will rust. If the machine is unprotected from dust and debris; components will become clogged: And if not cleaned and maintained correctly or regularly the machine will not perform at its best.
Page 6
5. HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury.
Read the instruction manual fully. Do not attempt any operation until you have read and understood this manual. Most important you must know how to safely start and stop this machine, especially in an emergency.
Keep the work area tidy and clean. Attempting to clear clutter from around the machine during use will reduce your concentration. Mess on the floor creates a trip hazard. Any liquid spilt on the floor could result in you slipping.
Find a suitable location. If the machine is bench mounted; the location should provide good natural light or artificial lighting as a replacement. Avoid damp and dust locations as it will have a negative effect on the machine’s performance. If the machine is portable; do not expose the tool to rain. In all cases do not operate power tools near any flammable materials.
Beware of electric shock. Avoid contact with earthed surfaces; because they can conduct electricity if there is an electrical fault with the power tool. Always protect the power cable and route it away from danger.
Keep bystanders away. Children, onlookers and passers by must be restricted from entering the work area for their own protection. The barrier must extend a suitable distance from the tool user.
Unplug and house all power tools that are not in use. A power tool should never be left unattended while connected to the power supply. They must be housed in a suitable location, away locked up and from children.
Do not overload or misuse the tool. All tools are designed for a purpose and are limited to what they are capable of doing. Do not attempt to use a power tool (or adapt it in any way) for an application it is not designed for. Select a tool appropriate for the size of the job. Overloading a tool will result in tool failure and user injury: This covers the use of accessories.
Dress properly. Loose clothing, long hair and jewellery are all dangerous because they can become entangled in moving machinery: This can also result in parts of body being pulled into the machine. Clothing should be close fitted, with any long hair tired back and jewellery and neck ties removed. Footwear must be fully enclosed and have a nonslip sole.
6
Page 7
7
5. HEALTH & SAFETY INFORMATION
Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous if not suitably protected against. If the work involving the power tool creates dust or fumes; wear a dust mask. Vibration to the hand, caused by operating some tools for longer periods must be protected against. Wear vibration reducing gloves and allow long breaks between uses. Protect against dust and swarf by wearing approved safety goggles or a face shield. These are some of the more common hazards and preventions; however, always find out what hazards are associated with the machine/work process and wear the most suitable protective equipment available.
Do not breathe contaminated air. If the work creates dust or fumes; connect the machine (if possible) to an extraction system either locally or remotely. Working outdoors can also help if possible.
Move the machine as instructed. If the machine is hand held, do not carry it by the power supply cable. If the product is heavy; employ a second or third person to help move it safely or use a mechanical device. Always refer to the instructions for the correct method.
Do not overreach. Extending your body too far can result in a loss of balance and you falling. This could be from a height or onto a machine and will result in injury.
Maintain your tools correctly. A well maintained tool will do the job safely. Replace any damaged or missing parts immediately with original parts from the manufacturer. As applicable; keep blades sharp; moving parts clean, oiled or greased; handles clean; and emergency devices working.
Wait for the machine to stop. Unless the machine is fitted with a safety brake; some parts may continue to move due to momentum. Wait for all parts to stop; then unplug it from the power supply before making any adjustments, carrying out maintenance operations or just finishing using the tool.
Remove and check setting tools. Some machinery requires the use of additional tools or keys to set, load or adjust the power tool. Before starting the power tool always check to make certain they have been removed and are safely away from the machine.
Prevent unintentional starting. Before plugging any machine in to the power supply, make sure the switch is in the OFF position. If the machine is portable; do not hold the machine near the switch and take care when putting the machine down; that nothing can operate the switch.
Carefully select an extension lead. Some machines are not suitable for use with extension leads. If the tool is designed for use outdoors; use an extension lead also suitable for that environment. When using an extended lead, select one capable of handling the current (amps) drawn by the machine in use. Fully extend the lead regardless of the distance between the power supply and the tool. Excess current (amps) and a coiled extension lead will both cause the cable to heat up and can result in fire.
Concentrate and stay alert. Distractions are likely to cause an accident. Never operate a power tool if you are under the influence of drugs (prescription or otherwise), including alcohol or if you are feeling tired. Being disorientated will result in an accident.
Page 8
8
5. HEALTH & SAFETY INFORMATION
5.2 CONNECTION TO THE POWER SUPPLY
To eliminate the possibility of an electric shock your machine has been fitted with a BS approved, non rewireable moulded plug and cable which incorporates a fuse, the value of which is indicated on the pin face of the plug. If the plug is marked with the symbol and the fuse needs replacing, an approved BS1362 fuse must be used of the same amp rating. If the plug is not marked, a fuse with the symbol, BS Kitemark, or both and BS Kitemark, of the same amp rating should be used.
The fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is the same colour as that visible on the pin face of the plug (i.e. red). Fuse covers are available from your Draper Tools stockist.
If the fitted plug is not suitable, it should be cut off and destroyed. *The end of the cable should now be suitably prepared and the correct type of plug fitted. See below.
*WARNING:
A plug with bare flexible wires exposed is hazardous if engaged in a live power socket outlet.
WARNING: THIS APPLIANCE IS DOUBLE INSULATED.
The mains lead is coloured Blue - Neutral, Brown - Live.
As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with the letter ‘N’ or coloured black or blue.
The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or coloured red or brown.
EXTENSION LEAD CHART:
Extension lead sizes shown assure a voltage drop of not more than 5% at rated load of tool.
IMPORTANT:
On products exceeding 2000W it is recommended that the power cable and/or extension cable are fully unwound before a connection is made to the power supply. However, ensure the residual cable does not pose a trip hazard.
For safe operation of this appliance it should be supplied via a residual current device (RCD) with tripping current of no more than 30mA.
131063
Ampere rating
(on Name plate)
Wire Size mm
2
Extension cable length (Metres)
7.5
15
22.5
30
40
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
1.0
1.0
1.0
1.25
1.5
1.25
1.5
1.5
1.5
2.5
Page 9
9
6. TECHNICAL DESCRIPTION

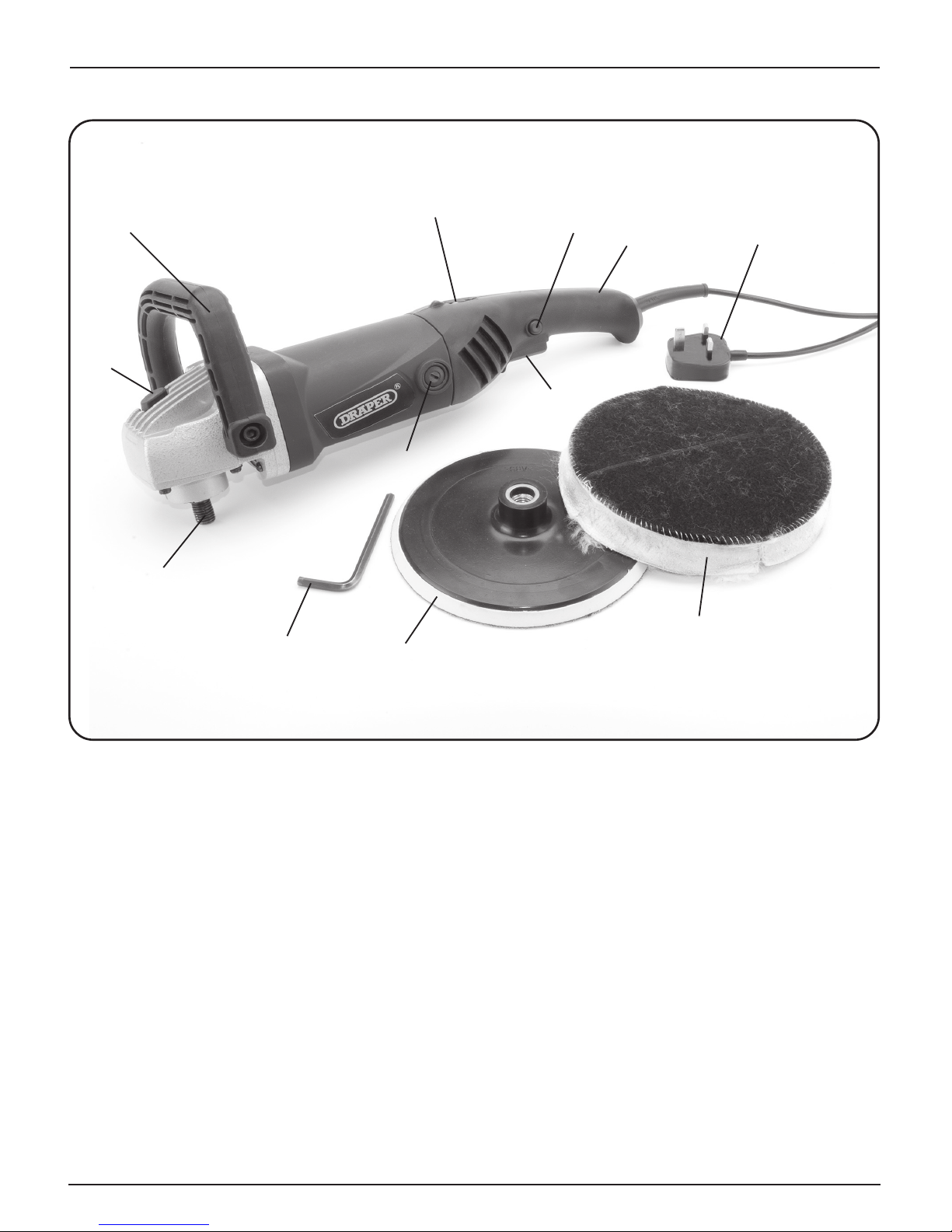

 On/off trigger switch.  Switch lock button.  Variable speed control.  BS moulded plug and cable.  Hand grip.  Brush cover.  Auxiliary handle.
 Spindle lock button.  Threaded spindle.  Hook and loop backing pad.  Polishing bonnet.  Hex. key.












Page 10
10

7. UNPACKING & CHECKING
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may have happened during shipping. Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the guarantee period: in case the machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly; according to local regulations.
7.2 WHAT´S IN THE BOX?
 Hook and loop backing pad.  Polishing bonnet.  Hex. key.
NOTE: No cutting tools come supplied in the box.



Page 11
11
8. PREPARING THE POLISHER
8.1 PREPARING THE POLISHER
NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance.

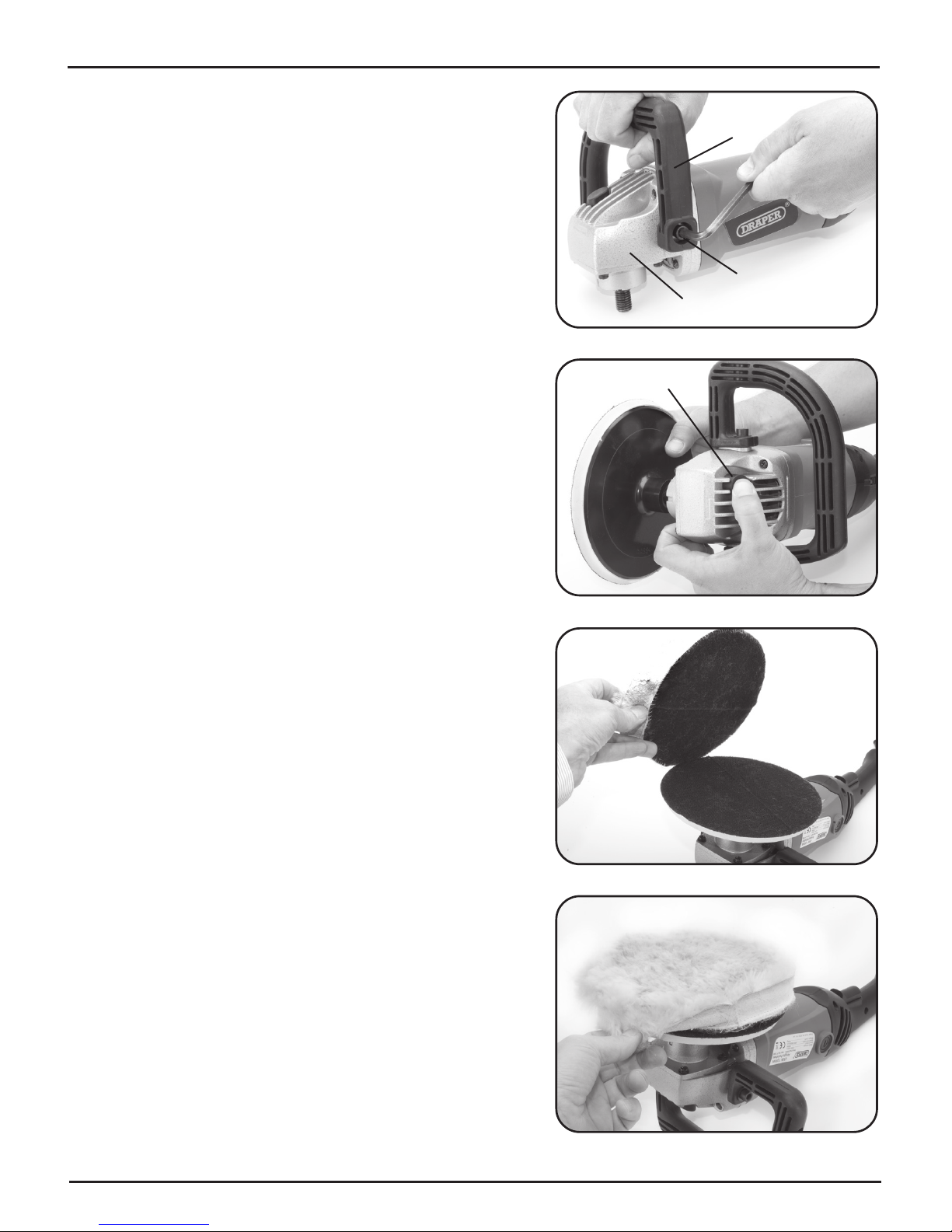

FITTING THE AUXILIARY HANDLE (FIG.1)
Choose the best orientation to suit operator comfort and application in hand.
Pass the two hex. head bolts $through the handle %and into the threaded apertures in the gearbox housing &. Tighten with the hex. key supplied.
FITTING THE BACKING PAD (FIGs.2-4)
Place the backing pad onto the spindle. Carefully attach the backing pad in a clockwise direction taking care not to cross the thread.
Press and hold the spindle lock button ' and firmly tighten the pad by hand.
NOTE: Never press the spindle lock button while the spindle is in motion.

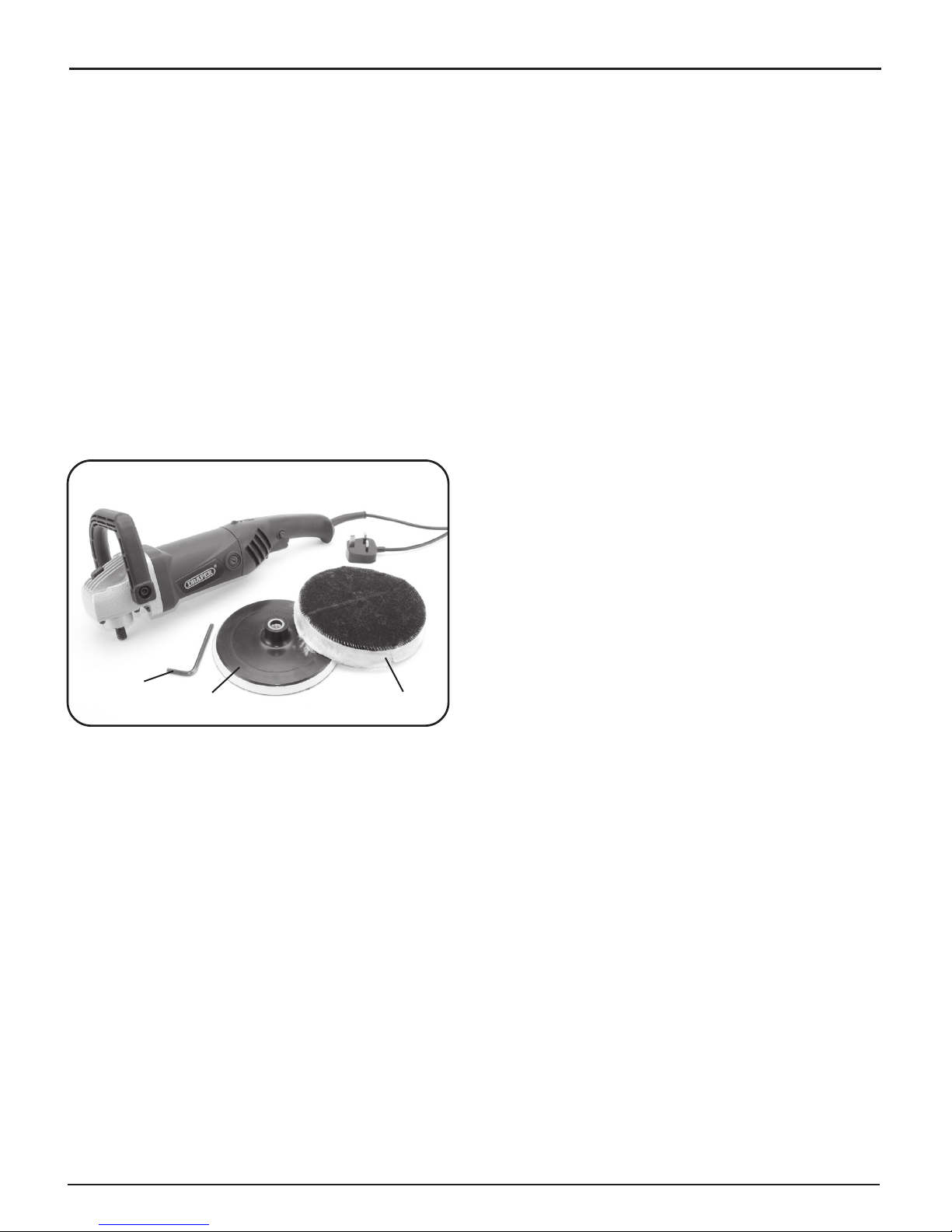

Simply align the bonnet with the backing pad as per Fig.3 then press firmly in place. Once securely fitted, roll the edges of the bonnet over as per Fig.4.



FIG. 1
FIG. 2
FIG. 3
FIG. 4
$
&
'
%
Page 12
12
9. OPERATING THE POLISHER
9.1 OPERATING THE POLISHER
SWITCH (FIG.5)

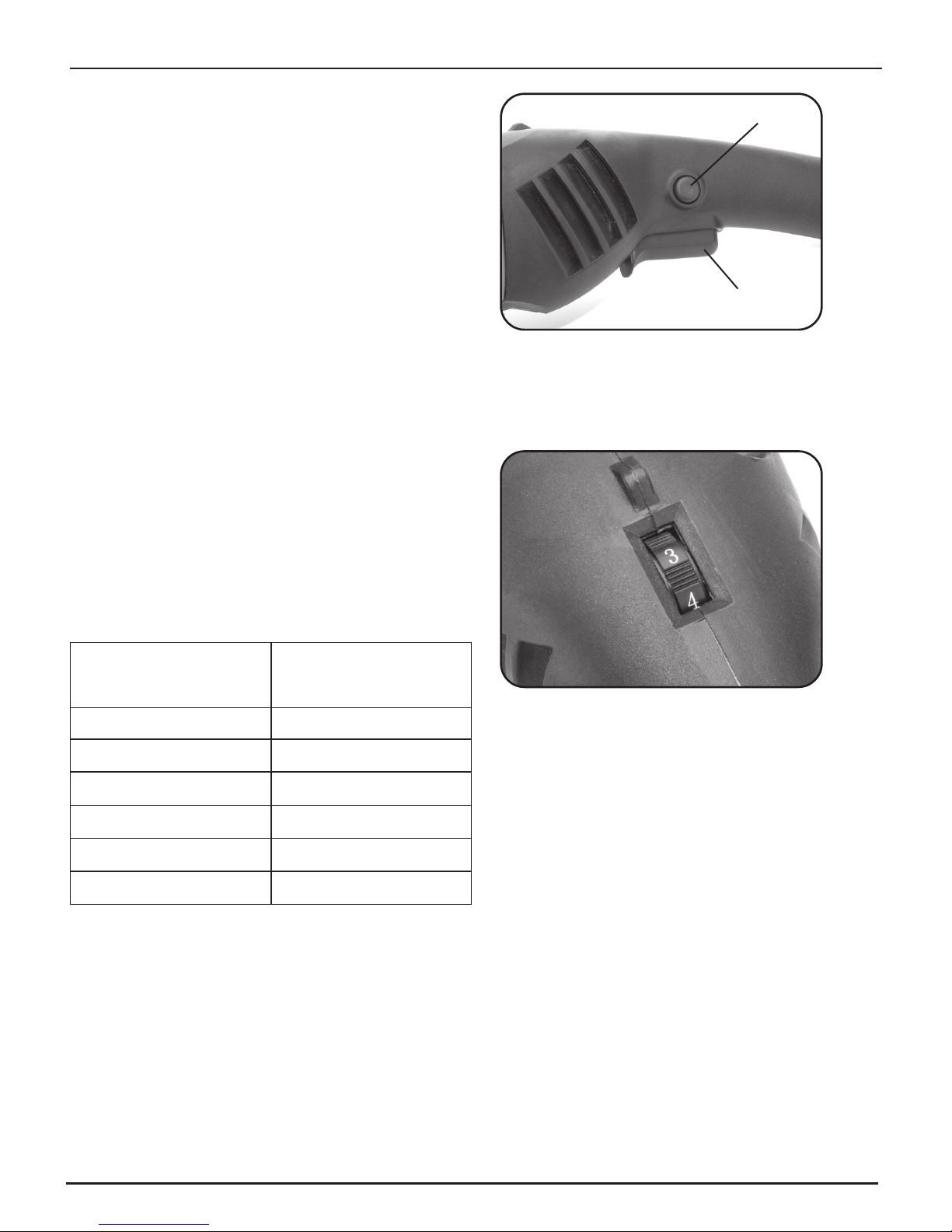

To start the polisher, pull the trigger (and hold. For prolonged operation, it is possible to lock the trigger in the ON position. Pull trigger )and hold to start the polisher and push button ). This will lock the trigger in the ON position. To release the lock, pull trigger ( and release.
VARIABLE SPEED SETTING (FIG.6)
Set the variable speed in accordance to the
cutting paste/compound or polish being used. Read the manufacturers instructions regarding this. No responsibility or liability is accepted by Draper Tools regarding the setting of the correct speed for the job to be done. The speed settings are approximately as per table below.
NOTE: We strongly recommend that the
polisher, speed setting, the polishing sponge/mop and medium being used are tested on a small, obscure area before applying to a vehicle panel or similar.
IMPORTANT: Excessive pressure on the
machine does not result in higher working speed. It increases wear on the disc and can damage the polisher.
FIG. 5
FIG. 6
(
)
Speed setting
1
2
3
4
5
6
600
1100
1600
2100
2600
3000
Corresponding RPM
(approx.)
Page 13
13
11. TROUBLESHOOTING
10. MAINTENANCE
10.1 MAINTENANCE
Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets. If replacement of the supply cord is necessary this has to be done by the manufacturer or his agent in order to avoid a safety hazard. Remove the plug from the socket before carrying out adjustment, servicing of maintenance.
12. DISPOSAL
12.1 DISPOSAL
- At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations.
- Contact your local authority for details of collection schemes in your area.
In all circumstances:
• Do not dispose of power tools with domestic waste.
• Do not incinerate.
• Do not abandon in the environment.
• Do not dispose of WEEE*
as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.
11.1 TROUBLESHOOTING
Problem Cause Remedy
Motor does not start
1. Fuse
2. Brushes worn
3. Other.
1. 13amp time delay fuse or circuit breaker.
2. Replace brushes.
3. Authorised service agent.
Machine vibrates
1. Pad/bonnet damaged or out of balance.
1. Replace pad/bonnet.
Page 14
14
13. EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS
Warning! Ejection hazards. Wear safety goggles
Warning! Noise. Wear ear defenders
Warning! Wear dust mask.
Warning! Read the instruction manual
WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish
Class II construction (Double insulated).
Page 15
15
NOTES
Page 16
CONTACTS
- DRAPER TOOLS LIMITED, Hursley Road, Chandler's Ford,
Eastleigh, Hampshire. SO53 1YF. U.K.
- Helpline: (023) 8049 4344
- Sales Desk: (023) 8049 4333
- General Enquiries: (023) 8026 6355
- Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please
contact the Draper Tools Helpline for details of an agent in your local area.
YOUR DRAPER STOCKIST
RDMC0716
