Page 1

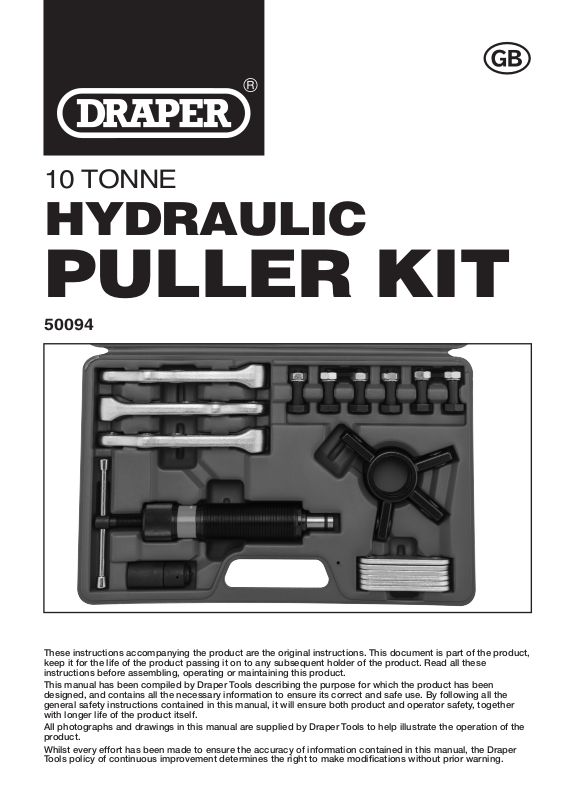

10 TONNE
HYDRAULIC
PULLER KIT
50094
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
Page 2
1. OPERATION AND USE
The Draper hydraulic puller can be used in either 2 leg or
3 leg modes with 3 different depth settings on the legs.
First set up your puller yoke and legs in the configuration
to suit the workpiece.

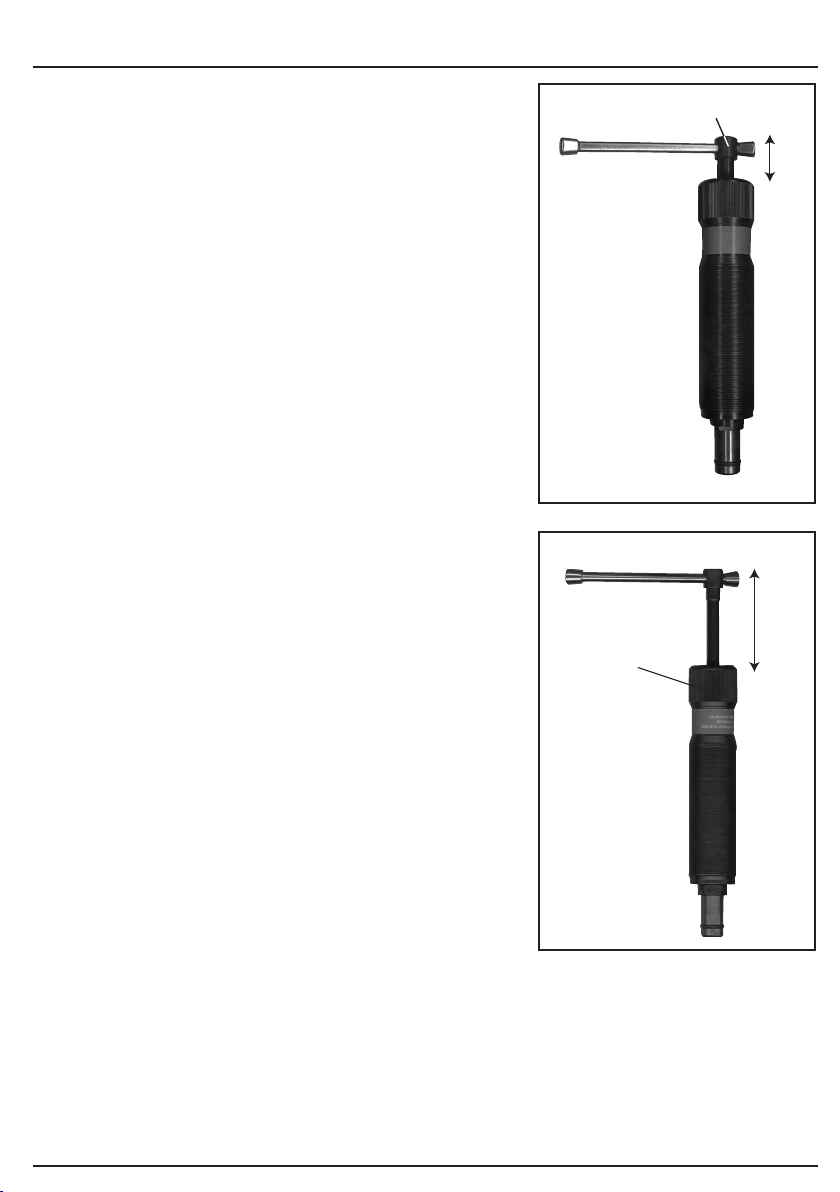

- Unscrew the centre screw $ from the ram until a
total length of 80mm is withdrawn from the ram. Now
screw the hydraulic ram body into the puller yoke and
screw down until firm contact is made with the spindle
and the legs are locked into the item to be pulled.
- Now turn the ram pressure screw $ slowly into the
ram until about 25mm remains or item to be pulled is
released. Then unscrew to 80mm and re-tighten puller
by screwing ram body into yoke and repeat the
previous operation until the item being removed is
free.
Important: Do not strike the hydraulic ram with a hammer
or anything else, as this will cause the ram to fail and
invalidate warranty.
$
25mm
80mm
RAM
- 2 -
Page 3

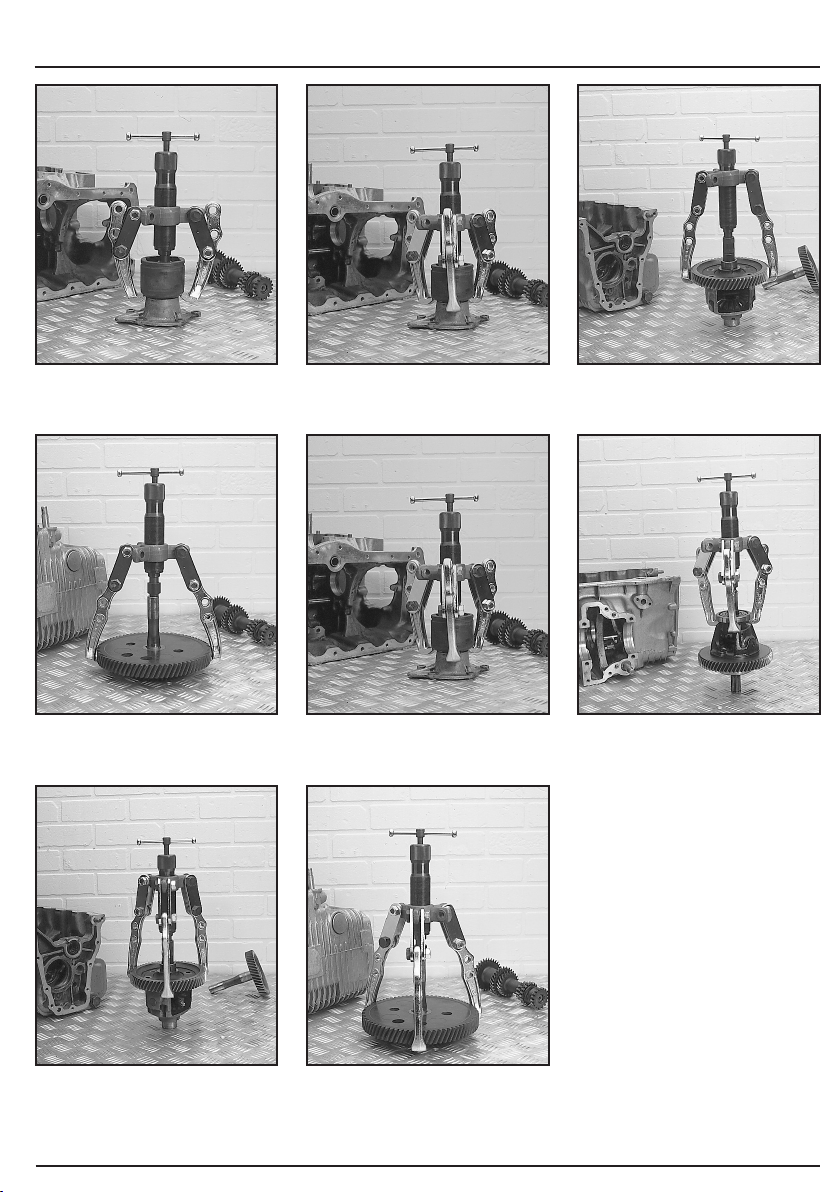

2. ASSEMBLY OPTIONS
Diameter range.... 100-150mm
Reach range..............0-90mm
Diameter range.... 160-240mm
Reach range............0-150mm
Diameter range.... 100-150mm
Reach range............ 0-110mm
Diameter range.... 100-150mm
Reach range..............0-90mm
Diameter range.... 160-240mm
Reach range............0-150mm
Diameter range.... 100-150mm
Reach range............ 0-110mm
Diameter range.... 160-240mm
Reach range............0-150mm
Diameter range.... 160-240mm
Reach range............0-150mm
- 3 -
