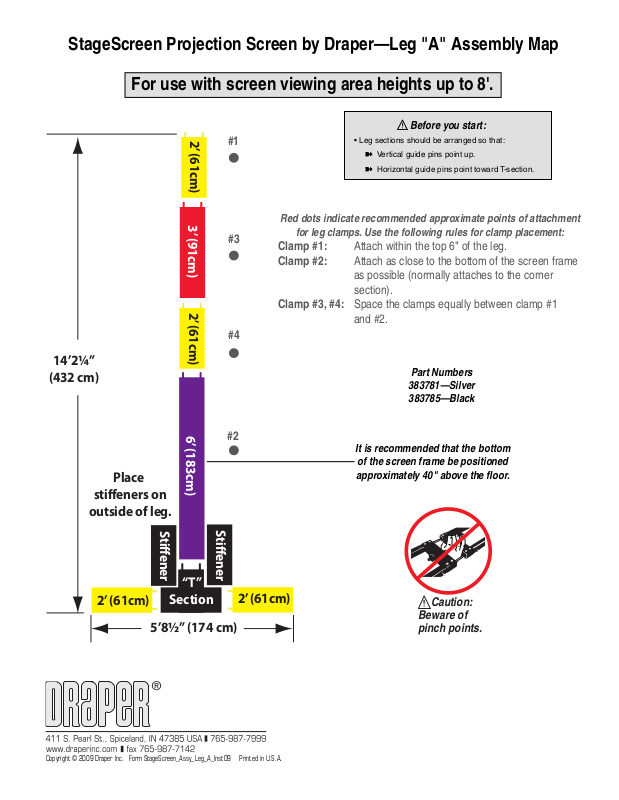

StageScreen Projection Screen by Draper—Leg "A" Assembly Map
For use with screen viewing area heights up to 8'.
Before you start:
2’ (61cm)
#1
• Leg sections should be arranged so that:
➽ Vertical guide pins point up.
➽ Horizontal guide pins point toward T-section.
14’2¼”
(432 cm)
outside of leg.
Place
stieners on
Stiener
3’ (91cm)
#3
2’ (61cm)
#4
6’ (183cm)
#2
Stiener
Red dots indicate recommended approximate points of attachment
for leg clamps. Use the following rules for clamp placement:
Clamp #1: Attach within the top 6" of the leg.
Clamp #2: Attach as close to the bottom of the screen frame
as possible (normally attaches to the corner
section).
Clamp #3, #4: Space the clamps equally between clamp #1
and #2.
Part Numbers
383781—Silver
383785—Black
It is recommended that the bottom
of the screen frame be positioned
approximately 40" above the fl oor.
“T”
2’ (61cm)
Section
2’ (61cm)
5’8½” (174 cm)
®
Copyright © 2009 Draper Inc. Form StageScreen_Assy_Leg_A_Inst09 Printed in U.S.A.
Caution:
Beware of
pinch points.
