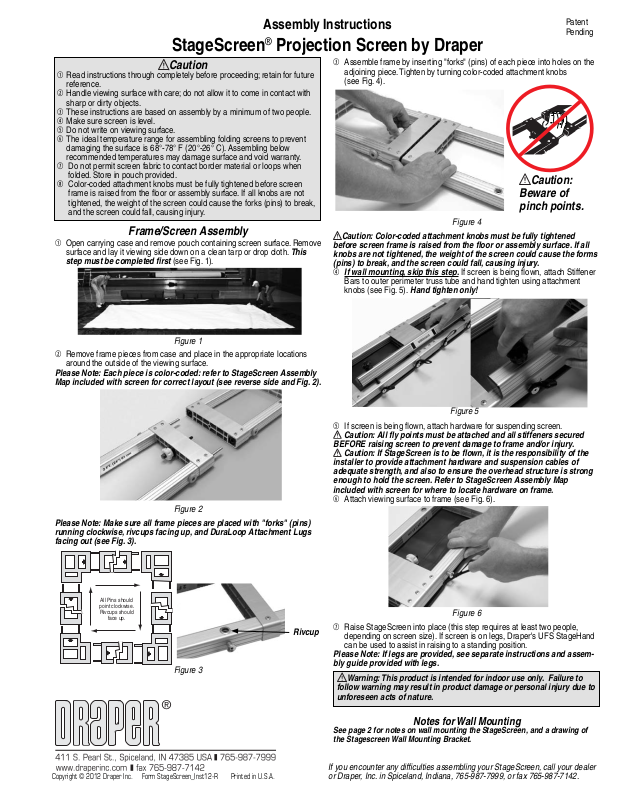

Assembly Instructions
StageScreen® Projection Screen by Draper
Caution
① Read instructions through completely before proceeding; retain for future
reference.
② Handle viewing surface with care; do not allow it to come in contact with
sharp or dirty objects.
③ These instructions are based on assembly by a minimum of two people.
④ Make sure screen is level.
⑤ Do not write on viewing surface.
⑥ The ideal temperature range for assembling folding screens to prevent
damaging the surface is 68°-78° F (20°-26° C). Assembling below
recommended temperatures may damage surface and void warranty.
⑦ Do not permit screen fabric to contact border material or loops when
folded. Store in pouch provided.
⑧ Color-coded attachment knobs must be fully tightened before screen
frame is raised from the fl oor or assembly surface. If all knobs are not
tightened, the weight of the screen could cause the forks (pins) to break,
and the screen could fall, causing injury.
Frame/Screen Assembly
① Open carrying case and remove pouch containing screen surface. Remove
surface and lay it viewing side down on a clean tarp or drop cloth. This
step must be completed fi rst (see Fig. 1).
Patent
Pending
③ Assemble frame by inserting "forks" (pins) of each piece into holes on the
adjoining piece. Tighten by turning color-coded attachment knobs
(see Fig. 4).
Caution:
Beware of
pinch points.
Figure 4
Caution: Color-coded attachment knobs must be fully tightened
before screen frame is raised from the fl oor or assembly surface. If all
knobs are not tightened, the weight of the screen could cause the forms
(pins) to break, and the screen could fall, causing injury.
④ If wall mounting, skip this step. If screen is being fl own, attach Stiffener
Bars to outer perimeter truss tube and hand tighten using attachment
knobs (see Fig. 5). Hand tighten only!
Figure 1
② Remove frame pieces from case and place in the appropriate locations
around the outside of the viewing surface.
Please Note: Each piece is color-coded: refer to StageScreen Assembly
Map included with screen for correct layout (see reverse side and Fig. 2).
Figure 2
Please Note: Make sure all frame pieces are placed with "forks" (pins)
running clockwise, rivcups facing up, and DuraLoop Attachment Lugs
facing out (see Fig. 3).
All Pins should
point clockwise.
Rivcups should
face up.
Rivcup
Figure 3
®
Figure 5
⑤ If screen is being fl own, attach hardware for suspending screen.
Caution: All fl y points must be attached and all stiffeners secured
BEFORE raising screen to prevent damage to frame and/or injury.
Caution: If StageScreen is to be fl own, it is the responsibility of the
installer to provide attachment hardware and suspension cables of
adequate strength, and also to ensure the overhead structure is strong
enough to hold the screen. Refer to StageScreen Assembly Map
included with screen for where to locate hardware on frame.
⑥ Attach viewing surface to frame (see Fig. 6).
Figure 6
⑦ Raise StageScreen into place (this step requires at least two people,
depending on screen size). If screen is on legs, Draper's UFS StageHand
can be used to assist in raising to a standing position.
Please Note: If legs are provided, see separate instructions and assembly guide provided with legs.
Warning: This product is intended for indoor use only. Failure to
follow warning may result in product damage or personal injury due to
unforeseen acts of nature.
Notes for Wall Mounting
See page 2 for notes on wall mounting the StageScreen, and a drawing of
the Stagescreen Wall Mounting Bracket.
Copyright © 2012 Draper Inc. Form StageScreen_Inst12-R Printed in U.S.A.
If you encounter any diffi culties assembling your StageScreen, call your dealer
or Draper, Inc. in Spiceland, In di ana, 765-987-7999, or fax 765-987-7142.
StageScreen by Draper page 2 of 2
9
Notes for Wall Mounting
If wall mounting, do not use any stiffener bars. Product does not ship
with any mounting hardware. Anticipate the weight of this product with
proper support into studs. Do not rely on drywall only to hold screen! It
is the installer's responsibility to choose hardware appropriate for the
weight of the screen and the mounting surface
Wall Mounting StageScreen
This bracket kit is to be used when wall-mounting a StageScreen only. The
number of wall-mount bracket kits required for your screen (if wall-mounting
a previously fl own screen) corresponds with both the number and location of
“fl y points” shown on the frame map. Contact Draper if you have questions as
to the number or location of wall-mount brackets for your screen. Wall mount
bracket is ordered separately under part number 383827.
PLEASE NOTE: Prior to mounting brackets to wall, locate & measure locations along the top horizontal of your StageScreen to allow the brackets to
be placed away from frame section unions & vertical rungs. The ladder-truss
design of your StageScreen provides many mounting location possibilities for
wall brackets. Ideally the brackets will be at the mid-point of a frame section &
centered between vertical rungs.
① Attach bracket to wall (illustration shows three ¼" x 3" lag bolts [A]. It is the
installer's responsibility to choose hardware appropriate for the weight of
the screen and the mounting surface). EACH OF THE THREE MOUNTING
HOLES SHOULD BE UTILIZED WITH APPROPRIATE FASTENERS!
Please Note: Always mount wall brackets to a wall stud or a suitable
structure using appropriate mounting hardware.
② Position top horizontal member of the StageScreen frame over the wall mount brackets as shown.
Please Note: Steps #3-#5 lock the StageScreen frame to the mounting
brackets to prevent the screen from being dislodged from the brackets.
③ Thread the top two #10-24 x
wall bracket until they contact the wall.
④ Drill hole through one wall of StageScreen frame tube with #20 (.1610")
drill bit; using wall bracket as a drill guide (C).
⑤ Thread the self-tapping #10-24 x
in the bracket & through the hole in the StageScreen tube.
Please Note: if desired, the wall mount bracket can also be placed at the
BOTTOM of the screen to:
a. Secure the screen to the wall on the bottom as well as the top.
b. Adjust the bottom horizontal member (if needed) to correct defl ection.
3
/8" fasteners (B) into the tapped holes on the
3
/8" fastener (C) through the tapped hole
C
A
B
www.draperinc.com
(765) 987-799
