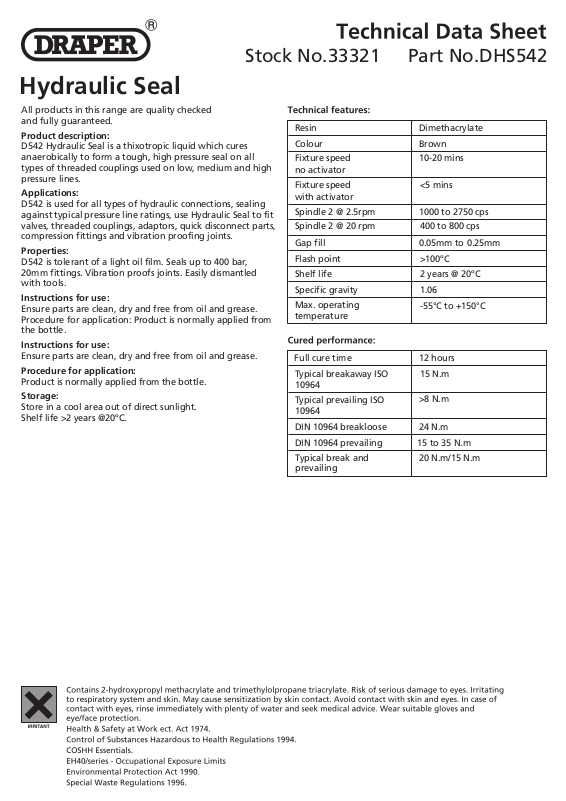

Page 1
Stock No.33321 Part No.DHS542
Hydraulic Seal
All products in this range are quality checked
and fully guaranteed.
Product description:
D542 Hydraulic Seal is a thixotropic liquid which cures
anaerobically to form a tough, high pressure seal on all
types of threaded couplings used on low, medium and high
pressure lines.
Applications:
D542 is used for all types of hydraulic connections, sealing
against typical pressure line ratings, use Hydraulic Seal to fit
valves, threaded couplings, adaptors, quick disconnect parts,
compression fittings and vibration proofing joints.
Properties:
D542 is tolerant of a light oil film. Seals up to 400 bar,
20mm fittings. Vibration proofs joints. Easily dismantled
with tools.
Instructions for use:
Ensure parts are clean, dry and free from oil and grease.
Procedure for application: Product is normally applied from
the bottle.
Instructions for use:
Ensure parts are clean, dry and free from oil and grease.
Procedure for application:
Product is normally applied from the bottle.
Storage:
Store in a cool area out of direct sunlight.
Shelf life >2 years @20ºC.
Resin
Colour Brown
Fixture speed
no activator
Fixture speed
with activator
Spindle 2 @ 2.5rpm 1000 to 2750 cps
Spindle 2 @ 20 rpm
Gap fill
Flash point
Shelf life
Specific gravity
Max. operating
temperature
Full cure time
Typical breakaway ISO
10964
Typical prevailing ISO
10964
DIN 10964 breakloose
DIN 10964 prevailing 15 to 35 N.m
Typical break and
prevailing
Dimethacrylate
10-20 mins
<5 mins
400 to 800 cps
0.05mm to 0.25mm
>100ºC
2 years @ 20ºC
1.06
-55°C to +150°C
12 hours
15 N.m
>8 N.m
24 N.m
20 N.m/15 N.m
