DIESEL
SPACE HEATERS
81018/81027
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
1. TITLE PAGE
1.1 INTRODUCTION:

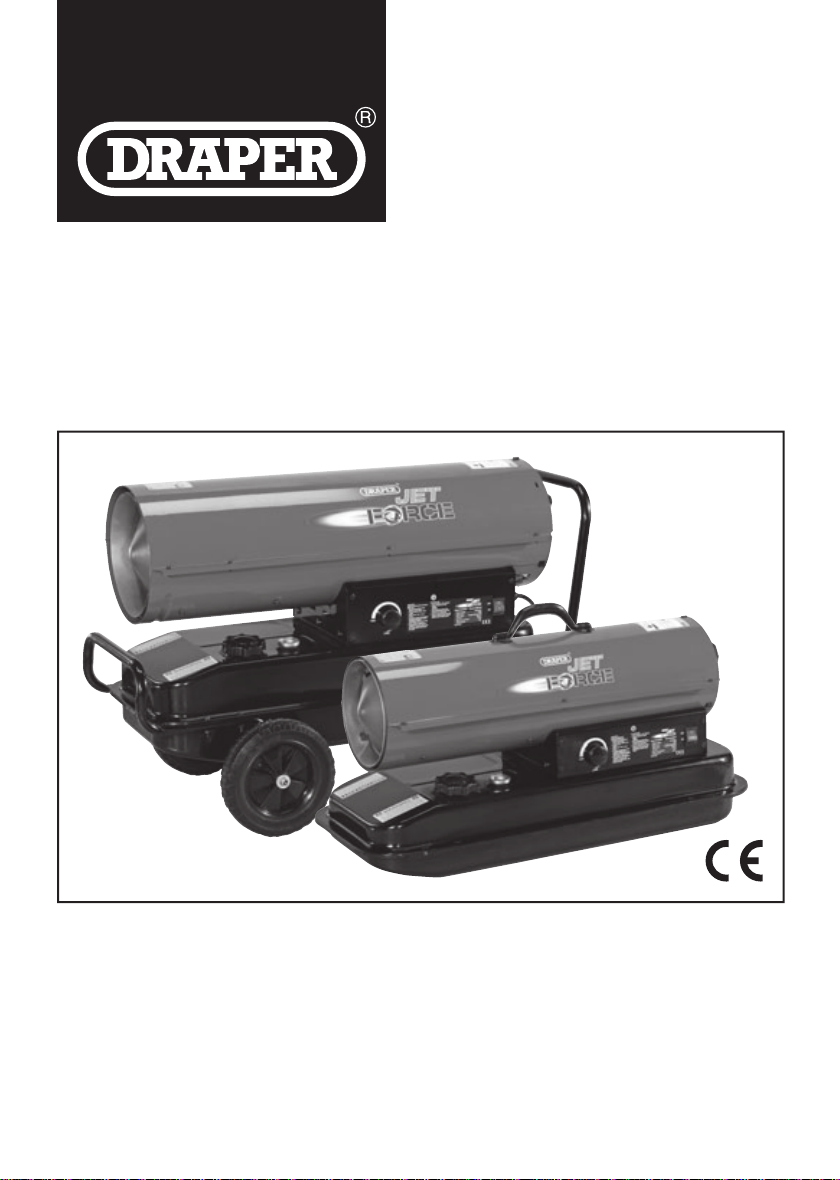

USER MANUAL FOR: Diesel Space Heaters
Stock Nos:81018/81027
Part Nos: DSH107/DSH77
1.2 REVISIONS:
Date first published July 2017.
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
2. CONTENTS
1. TITLE PA GE
1.1 INTRODUCTION..........................................................................................................2
1.2 REVISION HISTORY ..................................................................................................2
1.3 UNDERSTANDING THIS MANUAL .............................................................................2
1.4 COPYRIGHT NOTICE .................................................................................................2
2. CONTENTS
2.1 CONTENTS ....................................................................................................................3
3. GUARANTEE
3.1 GUARANTEE...............................................................................................................4
4. INTRODUCTION
4.1 SCOPE.........................................................................................................................5
4.2 SPECIFICATION..........................................................................................................5
4.3 HANDLING AND STORAGE........................................................................................5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL HEATER SAFETY WARNINGS .................................................................6
– 1) Work area safety..................................................................................................6
– 2) Electrical safety...................................................................................................6
– 3) Personal safety....................................................................................................6
– 4) Heater use and care............................................................................................7
– 5) Service ..............................................................................................................7-8
5.2 CONNECTION TO THE POWER SUPPLY ..................................................................9
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION.......................................................................................................10
7. UNPACKING AND CHECKING
7.1 PACKAGING.............................................................................................................. 11
7.2 WHAT´S IN THE BOX?..............................................................................................11
8. ASSEMBLING THE SPACE HEATER
8.1 FRAME & WHEEL FITMENT (81018 ONLY).............................................................12
8.2 FUELS........................................................................................................................12
8.3 FUELLING YOUR HEATER.......................................................................................12
8.4 VENTILATION............................................................................................................12
9. SPACE HEATER INSTRUCTION
9.1 TO START HEATER...................................................................................................13
9.2 TO SHUT DOWN HEATER........................................................................................13
9.3 TO RESTART HEATER..............................................................................................13
9.4 FUEL SYSTEM...........................................................................................................13
9.5 THE SAFETY SYSTEM .............................................................................................13
9.6 STORING, TRANSPORTING OR SHIPPING............................................................14
10. MAINTENANCE
10.1 FUEL T ANK................................................................................................................15
10.2 AIR INTAKE FILTER...................................................................................................15
10.3 AIR OUTPUT FILTER, LINT FILTER..........................................................................15
10.4 FAN BLADES.............................................................................................................15
10.5 CLEAN PHOTOCELL.................................................................................................16
10.6 FUEL FILTER.............................................................................................................16
10.7 BURNER HEAD.........................................................................................................17
10.8 SPARK PLUG.............................................................................................................17
10.9 PHOTOCELL ............................................................................................................. 18
11. EXPLANATION OF SYMBOLS
11.1 EXPLANATION OF SYMBOLS..................................................................................19
12. DISPOSAL
12.1 DISPOSAL..................................................................................................................20
DECLARATION OF CONFORMITY ..............................................................................ENCLOSED
- 3 -
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or:
Product Helpline (023) 8049 4344.
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. The guarantee is extended to 24 months for parts only. This guarantee
does not apply to normal wear and tear, nor does it cover any damage caused by misuse, careless
or unsafe handling, alterations, accidents, or repairs attempted or made by any personnel other
than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper T ools Limited.
- 4 -
4. INTRODUCTION
4.1 SCOPE
This heater is designed to heat large, semi-open areas by means of combustion of Diesel or
Kerosene fuel, and is electrically operated. Any other application is considered mis-use.
4.2 SPECIFICATION
Stock nos.......................................................................81027 ....................................81018
Part nos........................................................................DSH77..................................DSH107
Motor:
Rated voltage ........................................................... 230V~....................................230V~
Rated frequency........................................................ 50Hz......................................50Hz
Rated input................................................................150W..................................... 165W
Heat output........................................................ 20,5kW/70,000 BTU.............29,3kW/100,000 BTU
Fuel ...................................................................... Diesel/Kerosene....................Diesel/Kerosene
Diesel consumption....................................................1.9Ltrs/hr............................... 2.8Ltrs/hr
Tank capacity................................................................22.7Ltr.....................................32Ltr
Weight .......................................................................... 13.7kg....................................21.4kg
4.3 HANDLING AND STORAGE
The environment will have a negative result on its operation if you are not careful. If the air is
damp, components will rust. If the machine is unprotected from dust and debris; components will
become clogged: And if not cleaned and maintained correctly or regularly the machine will not
perform at its best.
- 5 -
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL HEATER SAFETY WARNINGS
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate heaters in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Heaters create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating a heater. Distractions can cause
you to lose control.
2) Electrical safety
a) Heaters plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) heaters. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose heaters to rain or wet conditions. Water entering a heater will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
heater. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a heater outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a heater in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
heater. Do not use a heater while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while operating heaters may result in
serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before
connecting to power source.
d) Remove any adjusting key or wrench before turning the heater on. A wrench or a key
left attached to a rotating part of the heater may result in personal injury.
e) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can get sucked into
the in moving parts of the heater.
- 6 -
5. HEALTH AND SAFETY INFORMATION
4) Heater use and care
DO NOT move the heater when it is in operation or when plugged into the mains
supply. Only move heater once it has cooled and it has been unplugged.
a) Use the correct heater for your application. The correct heater will do the job better and
safer at the rate for which it was designed.
b) Do not use the heater if the switch does not turn it on and off. Any heater that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before making any adjustments. Such
preventive safety measures reduce the risk of starting the heater accidentally.
d) Store idle heater out of the reach of children and do not allow persons unfamiliar
with the heater or these instructions to operate the power tool. Heaters are
dangerous in the hands of untrained users.
e) Maintain heaters. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the heaters operation. If damaged,
have the heater repaired before use. Many accidents are caused by poorly maintained
heaters.
g) Use the heater, in accordance with these instructions, taking into account the
working conditions and the work to be performed. Use of the heater for operations
different from those intended could result in a hazardous situation.
5) Service
a) Have your heater serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the heater is maintained.
Warning: Diesel fuel is carcinogenic. Take care when transporting, refuelling and storage of
diesel fuel. Always clean up fuel spills with regard to local legislative requirements.
Warning: Before using this heater please read this OPERATING INSTRUCTION very carefully.
This USER’S MANUAL has been designed to instruct you as to the proper manner in which to
assemble, maintain, store, and most importantly, how to operate the heater in a safe and efficient
manner.
Danger: Improper use of this heater can result in serious injury or death from burns, fire,
explosion, electrical shock, and/or carbon monoxide poisoning.
Warning: Risk of Burns / Fire / Explosion!
- NEVER use fuels such as petrol, benzene, paint thinners, or other oil compounds in this
heater (RISK OF FIRE OR EXPLOSION)
- NEVER use this heater where flammable vapours may be present
- NEVER refill the heater's fuel tank while heater is operating or still hot. This heater is
EXTREMELY HOT while in operation
- Keep all combustible materials away from this heater.
Use only diesel or kerosene fuel according to EN 267. For details please refer to your fuel
supplier or contact your dealer.
Warning: Never leave the heater unattended while burning!
- 7 -
5. HEALTH AND SAFETY INFORMATION
Warning: Risk of Indoor Air Pollution!
- Use this heater only in well ventilated areas!
- Provide at least a three square foot (2,800 sq cm) opening of outside air for every
25,000Kcal/hr of heater rating.
- People with breathing problems should consult a physician before using the heater.
- Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble flu-like
symptoms such as headaches, dizziness, and/or nausea. If you have these symptoms, your
heater may not be working properly.
- Get fresh air at once! Have the heater serviced. Some people are more affected by carbon
monoxide than others. These include pregnant women, those with heart or lung problems,
anaemia, or those under the influence of alcohol, or at high altitudes.
- Never use this heater in living or sleeping areas.
Warning: Risk of Electric Shock!
Use only the electrical power (voltage and frequency) specified on the model plate of the heater.
Use only a three-prong, grounded outlet and extension cord.
- ALWAYS install the heater so that it is not directly exposed to water spray, rain, dripping water,
or wind.
- ALWAYS unplug the heater when not in use.
Minimum Clearances:
Outlet................................................................................................................8 feet (250cm)
Sides, Top and Rear.........................................................................................8 feet (250cm)
- NEVER block air inlet (rear) or air outlet (front) of heater.
- NEVER use duct work in front or at rear of.
- NEVER move or handle heater while still hot.
- NEVER transport heater with fuel in its tank.
- When used with optional thermostat or if equipped with a thermostat, the heater may start at
any time.
- ALWAYS locate heater on a stable and level surface.
- ALWAYS keep children and animals away from heater.
- Use clean diesel or 1-K kerosene in this heater. #1 fuel oil is a suitable substitute.
- Bulk fuel storage should be a minimum of 25ft from heaters, torches, portable generators, or
other sources of ignition. All fuel storage should be in accordance with National, state, or local
authorities.
Warning: The heater must be placed on a non-flammable surface which must extend 1 metre
(3 feet) outside the base of the heater in all directions.
- 8 -
Loading...
