Draper 300292 Instructions

Installation/Operating Instructions

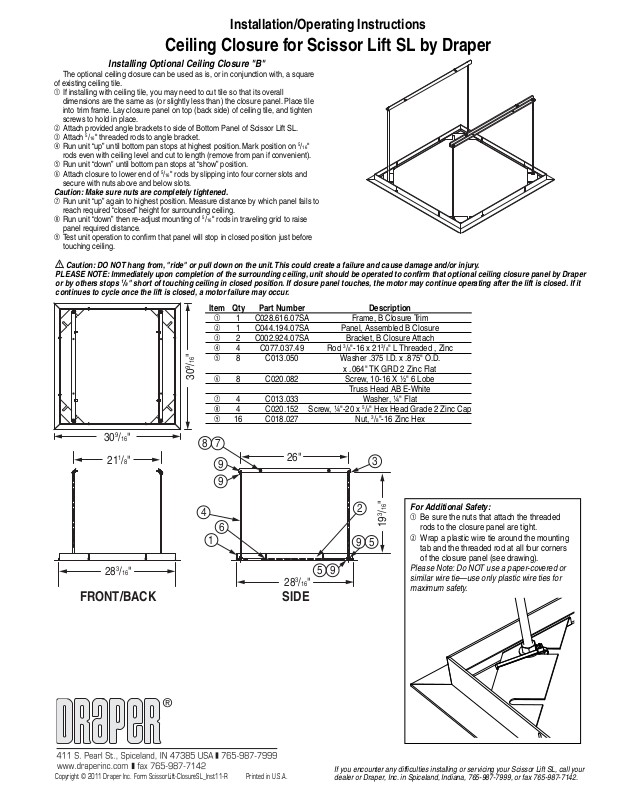

Ceiling Closure for Scissor Lift SL by Draper

The optional ceiling closure can be used as is, or in conjunction with, a square
of existing ceiling tile.
① If installing with ceiling tile, you may need to cut tile so that its overall
dimensions are the same as (or slightly less than) the closure panel. Place tile
into trim frame. Lay closure panel on top (back side) of ceiling tile, and tighten
screws to hold in place.

② Attach provided angle brackets to side of Bottom Panel of Scissor Lift SL.
③ Attach
④ Run unit “up” until bottom pan stops at highest position. Mark po si tion on

rods even with ceiling level and cut to length (remove from pan if convenient).

⑤ Run unit “down” until bottom pan stops at “show” position.
⑥ Attach closure to lower end of

secure with nuts above and below slots.

Caution: Make sure nuts are completely tightened.

⑦ Run unit “up” again to highest position. Measure distance by which panel fails to
reach required “closed” height for sur round ing ceil ing.
⑧ Run unit “down” then re-adjust mounting of
panel required distance.
⑨ Test unit operation to confi rm that panel will stop in closed position just before
touching ceiling.

Caution: DO NOT hang from, "ride" or pull down on the unit. This could create a failure and cause damage and/or injury.
PLEASE NOTE: Immediately upon completion of the surrounding ceiling, unit should be operated to confi rm that optional ceiling closure panel by Draper
or by others stops
continues to cycle once the lift is closed, a motor failure may occur.

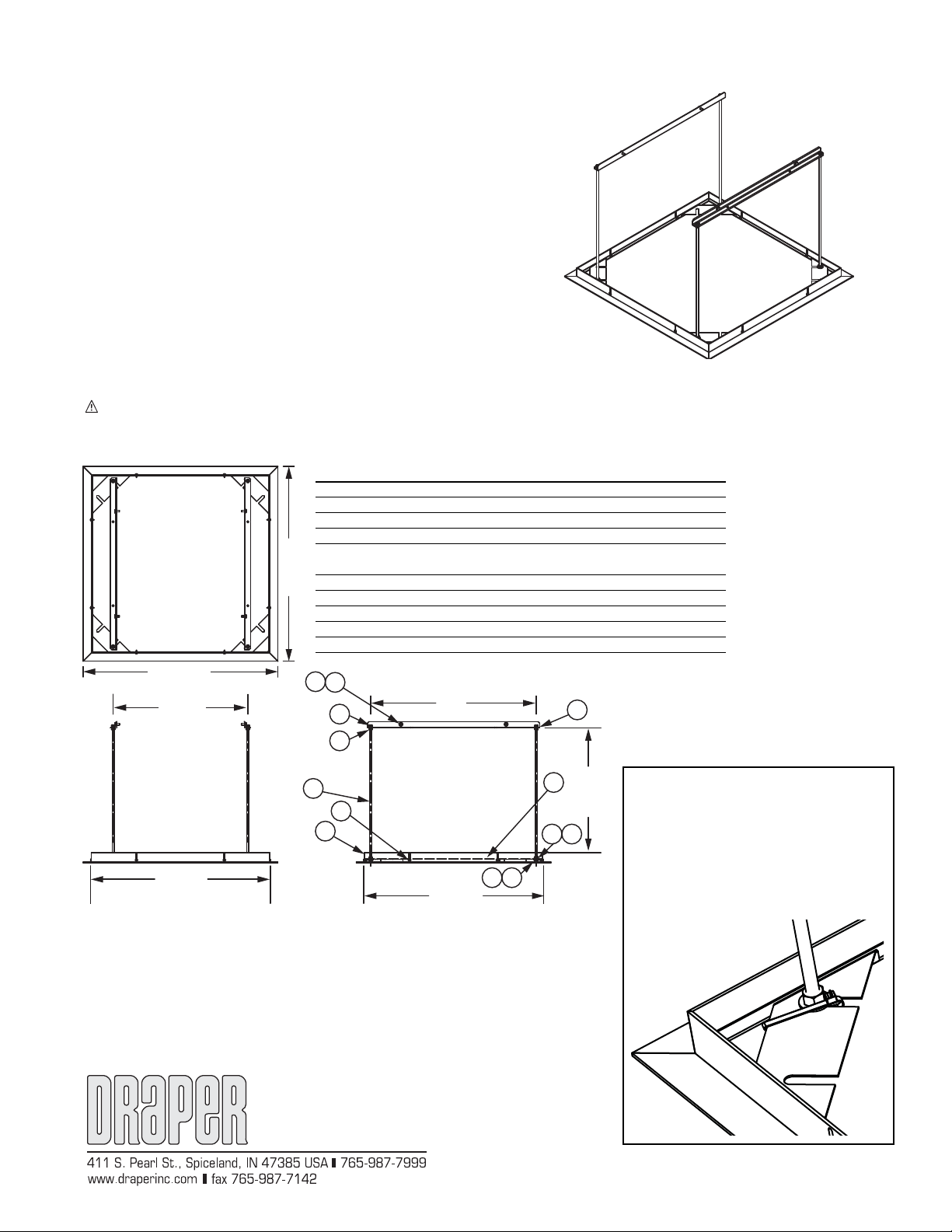

Installing Optional Ceiling Closure "B"

5

/16" threaded rods to angle bracket.

5

/16" rods by slipping into four corner slots and

5

/16" rods in traveling grid to raise

1

/8" short of touching ceiling in closed position. If closure panel touches, the motor may continue operating after the lift is closed. If it

Item Qty Part Number Description

① 1 C028.616.07SA Frame, B Closure Trim
② 1 C044.194.07SA Panel, Assembled B Closure
③ 2 C002.924.07SA Bracket, B Closure Attach
④ 4 C077.037.49 Rod

"

⑤ 8 C013.050 Washer .375 I.D. x .875" O.D.

16

/

9

x .064" TK GRD 2 Zinc Flat

30

⑥ 8 C020.082 Screw, 10-16 X ½" 6 Lobe
Truss Head AB E-White
⑦ 4 C013.033 Washer, ¼" Flat
⑧ 4 C020.152 Screw, ¼"-20 x
⑨ 16 C018.027 Nut,

5

/16"

3

/8"-16 x 213/8" L Threaded , Zinc

5

/8" Hex Head Grade 2 Zinc Cap

3

/8"-16 Zinc Hex

309/16"

211/8"

8

7

9

26"

9

4

6

1

283/16"

283/16"

FRONT/BACK SIDE

®

3

"

For Additional Safety:

16

2

/

3

① Be sure the nuts that attach the threaded

19

rods to the closure panel are tight.

9 5

5

9

② Wrap a plastic wire tie around the mounting
tab and the threaded rod at all four corners
of the closure panel (see drawing).

Please Note: Do NOT use a paper-covered or
similar wire tie—use only plastic wire ties for
maximum safety.

Copyright © 2011 Draper Inc. Form ScissorLift-ClosureSL_Inst11-R Printed in U.S.A.

If you encounter any diffi culties installing or servicing your Scissor Lift SL, call your
dealer or Draper, Inc. in Spiceland, In di ana, 765-987-7999, or fax [phone].

Ceiling Closure for Scissor Lift SL by Draper page 2 of 4

9

The optional ceiling closure can be used as is, or in conjunction with, a square

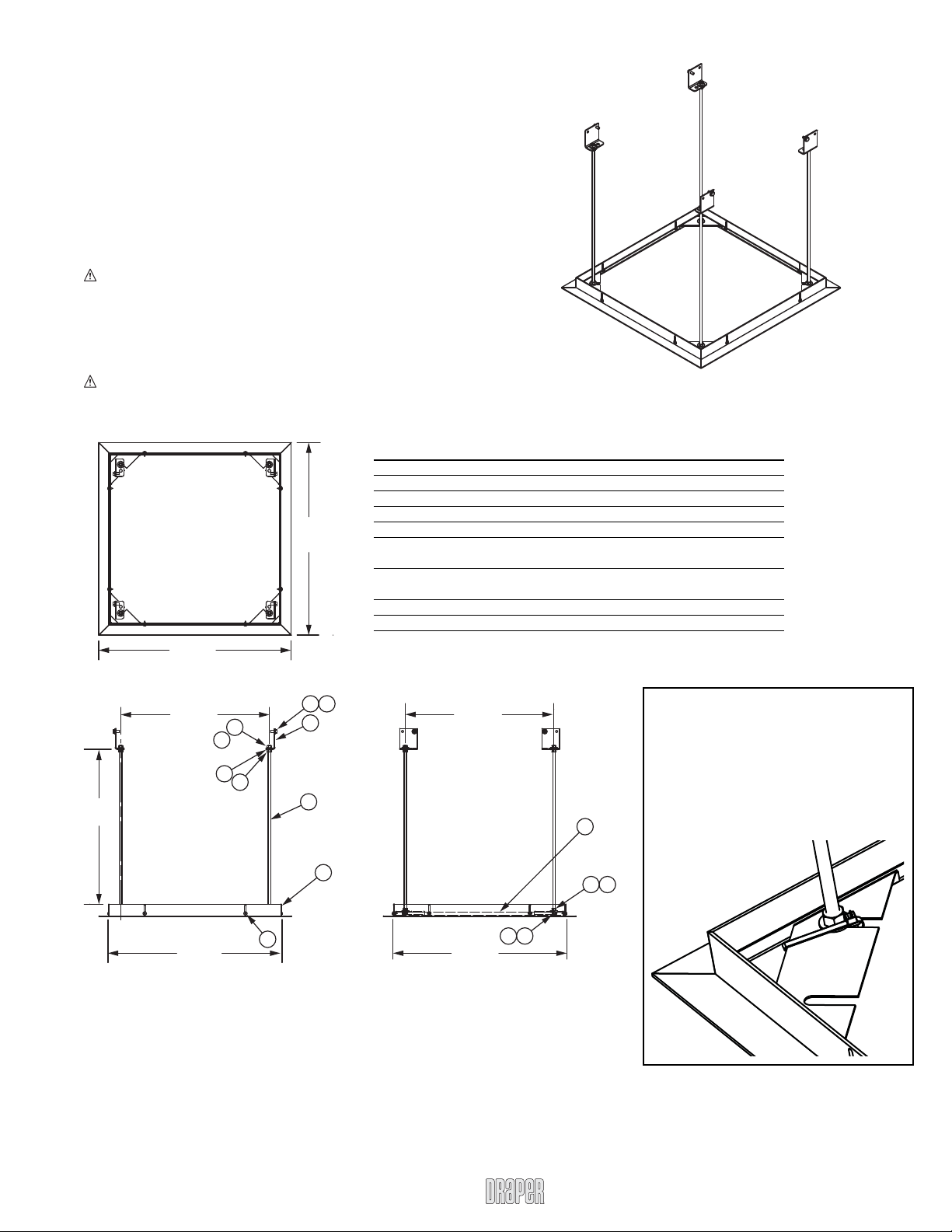

Installing Optional Ceiling Closure "E"

of existing ceiling tile.
① If installing with ceiling tile, you may need to cut tile so that its overall
dimensions are the same as (or slightly less than) the closure panel. Place tile
into trim frame. Lay closure panel on top (back side) of ceiling tile, and tighten
screws to hold in place.

② Attach provided angle brackets to side of Bottom Panel of Scissor Lift SL.
③ Attach
④ Run unit “up” until bottom pan stops at highest position. Mark po si tion on

rods even with ceiling level and cut to length (remove from pan if convenient).

⑤ Run unit “down” until bottom pan stops at “show” position.
⑥ Attach closure to lower end of

secure with nuts above and below slots.

⑦ Run unit “up” again to highest position. Measure distance by which panel fails to
reach required “closed” height for sur round ing ceil ing.
⑧ Run unit “down” then re-adjust mounting of
panel required distance.
⑨ Test unit operation to confi rm that panel will stop in closed position just before
touching ceiling.

PLEASE NOTE: Immediately upon completion of the surrounding ceiling, unit should be operated to confi rm that optional ceiling closure panel by Draper
or by others stops
continues to cycle once the lift is closed, a motor failure may occur.

5

/16" threaded rods to angle bracket.

5

/16" rods by slipping into four corner slots and

Caution: Make sure nuts are completely tightened.

5

/16" rods in traveling grid to raise

Caution: DO NOT hang from, "ride" or pull down on the unit. This could create a failure and cause damage and/or injury.

1

/8" short of touching ceiling in closed position. If closure panel touches, the motor may continue operating after the lift is closed. If it

5

/16"

Item Qty Part Number Description

① 1 C044.199.07SA Panel, E Assembled Closure
② 1 C028.619.07SA Frame, E Trim
③ 2 C002.920.07SA Bracket, E Front/Back Angle

30

④ 2 C002.921.07SA Bracket, E End Angle
⑤ 4 4 C077.037.49 Rod, Threaded

5

/16"

⑥ 10 C020.082 Screw, 10-16 X ½" 6 Lobe
Truss Head AB E-White

3

⑦ 8 C013.050 Washer .375 I.D. x .875 O.D.

13

40

/16"

Top View

36¼"

x .064" TK GRD 2 Zinc Flat
⑧ 16 C018.027 Nut,
⑨ 4 C020.152 Screw, ¼"-20 x
⑩ 4 C013.033 Washer, ¼", Flat
⑪ 4 C020.321 Screw,
⑫ 4 C018.045 Nut,

11

4

8

25¾"

3

3

/8"-16 Zinc Hex

5

/16" Grade 2 HH Zinc Cap

5

/16"-18 x 5/8" Grade 5 HH Zinc Cap

5

/16"-18 Zinc Hex Keps

/8"-16 x 21 3/8" L Zinc

8

109

5

189/16"

6

7

/16"

38

12

1

8

7

2

8

7

15

/16"

27

Front/Back ViewSide View

For Additional Safety:

① Be sure the nuts that attach the threaded
rods to the closure panel are tight.
② Wrap a plastic wire tie around the mounting
tab and the threaded rod at all four corners
of the closure panel (see drawing).

Please Note: Do NOT use a paper-covered or
similar wire tie—use only plastic wire ties for
maximum safety.

www.draperinc.com

(765) 987-799

Ceiling Closure for Scissor Lift SL by Draper page 3 of 4

9

The optional ceiling closure can be used as is, or in conjunction with, a square
of existing ceiling tile.
① If installing with ceiling tile, you may need to cut tile so that its overall
dimensions are the same as (or slightly less than) the closure panel. Place tile
into trim frame. Lay closure panel on top (back side) of ceiling tile, and tighten
screws to hold in place.

② Attach provided angle brackets to side of Bottom Panel of Scissor Lift SL.
③ Attach
④ Run unit “up” until bottom pan stops at highest position. Mark po si tion on

rods even with ceiling level and cut to length (remove from pan if convenient).

⑤ Run unit “down” until bottom pan stops at “show” position.
⑥ Attach closure to lower end of

secure with nuts above and below slots.

⑦ Run unit “up” again to highest position. Measure distance by which panel fails to
reach required “closed” height for sur round ing ceil ing.
⑧ Run unit “down” then re-adjust mounting of
panel required distance.
⑨ Test unit operation to confi rm that panel will stop in closed position just before
touching ceiling.

PLEASE NOTE: Immediately upon completion of the surrounding ceiling, unit should be operated to confi rm that optional ceiling closure panel by Draper
or by others stops
continues to cycle once the lift is closed, a motor failure may occur.

5

/16" threaded rods to angle bracket.

5

/16" rods by slipping into four corner slots and

Caution: Make sure nuts are completely tightened.

5

/16" rods in traveling grid to raise

Caution: DO NOT hang from, "ride" or pull down on the unit. This could create a failure and cause damage and/or injury.

1

/8" short of touching ceiling in closed position. If closure panel touches, the motor may continue operating after the lift is closed. If it

5

/16"

Item Qty Part Number Description

① 4 C013.033 Washer, ¼", Flat
② 1 C044.184.07SA Panel, SL Closure
③ 1 C028.573.07SA Frame, SL Closure Trim

243/8"

④ 4 C002.889.07SA Bracket, SL Closure Mounting
⑤ 4 4 C077.052 Rod, Threaded
⑥ 16 C013.050 Washer .375 I.D. x .875 O.D.

5

/16"-18 x 16" L Zinc

x .064" TK GRD 2 Zinc Flat
⑦ 8 C020.082 Screw, 10-16 x ½" 6 Lobe

24

Truss Head AB E-White
⑧ 16 C018.028 Nut,
⑨ 4 C020.152 Screw, ¼"-20 x

3

/8"

5

/16"-18 Zinc Hex

5

/16" Grade 2 HH Zinc Cap

Top View

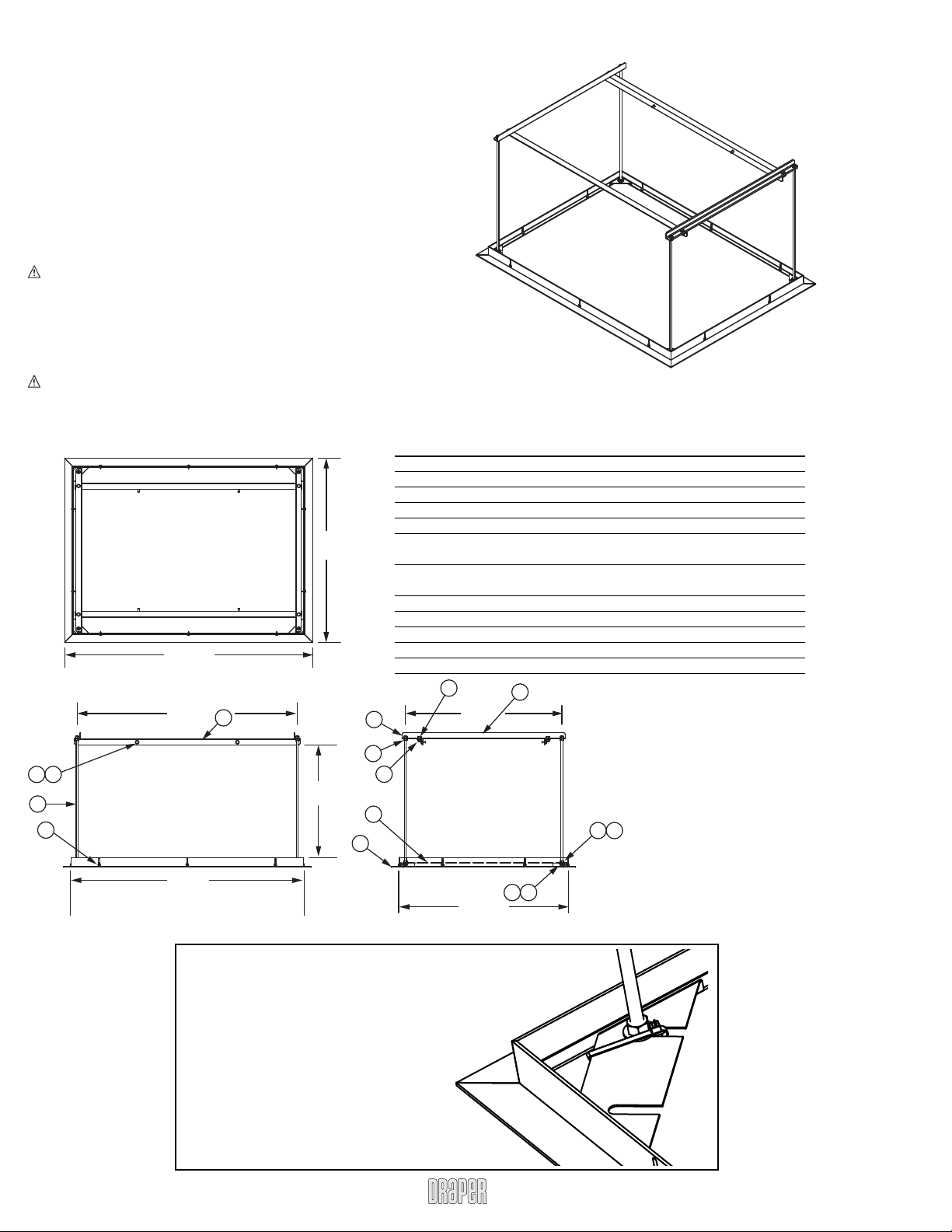

Installing Optional Ceiling Closure "SL"

19

9

18

13

/16"

8

1

4

6

6

8

5

/8"

5

3

7

Front/Back View Side View

18

22

13

/16"

For Additional Safety:

① Be sure the nuts that attach the threaded
rods to the closure panel are tight.
② Wrap a plastic wire tie around the mounting
tab and the threaded rod at all four corners
of the closure panel (see drawing).

Please Note: Do NOT use a paper-covered or
similar wire tie—use only plastic wire ties for

2

8

1

86

/16"221/16"

maximum safety.

6

www.draperinc.com

(765) 987-799

Ceiling Closure for Scissor Lift SL by Draper page 4 of 4

9

The optional ceiling closure can be used as is, or in conjunction with, a square

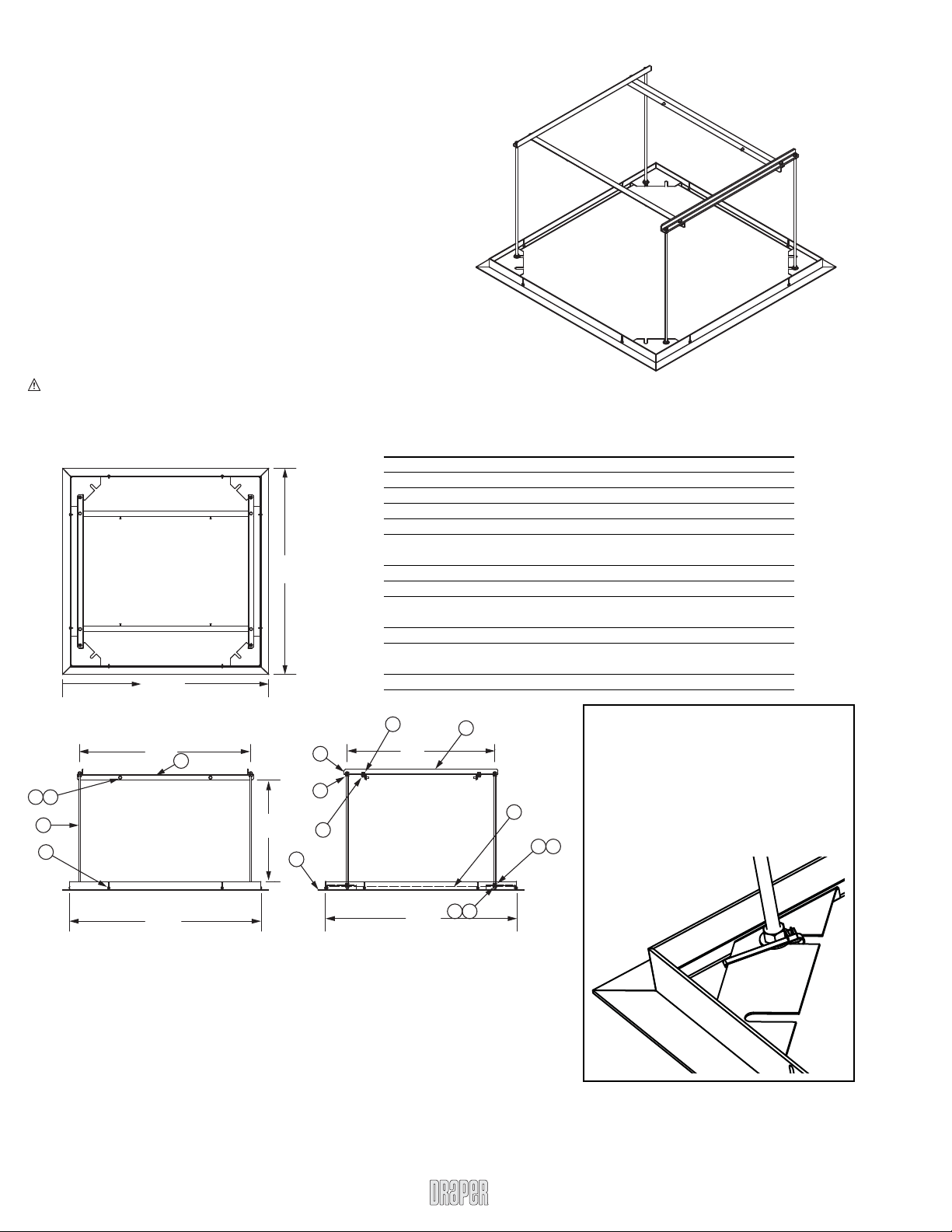

Installing Optional Ceiling Closure "U"

of existing ceiling tile.
① If installing with ceiling tile, you may need to cut tile so that its overall
dimensions are the same as (or slightly less than) the closure panel. Place tile
into trim frame. Lay closure panel on top (back side) of ceiling tile, and tighten
screws to hold in place.

② Attach provided angle brackets to side of Bottom Panel of Scissor Lift SL.
③ Attach
④ Run unit “up” until bottom pan stops at highest position. Mark po si tion on

rods even with ceiling level and cut to length (remove from pan if convenient).

⑤ Run unit “down” until bottom pan stops at “show” position.
⑥ Attach closure to lower end of

secure with nuts above and below slots.

Caution: Make sure nuts are completely tightened.

⑦ Run unit “up” again to highest position. Measure distance by which panel fails to
reach required “closed” height for sur round ing ceil ing.
⑧ Run unit “down” then re-adjust mounting of
panel required distance.
⑨ Test unit operation to confi rm that panel will stop in closed position just before
touching ceiling.

PLEASE NOTE: Immediately upon completion of the surrounding ceiling, unit should be operated to confi rm that optional ceiling closure panel by Draper
or by others stops
continues to cycle once the lift is closed, a motor failure may occur.

5

/16" threaded rods to angle bracket.

5

/16" rods by slipping into four corner slots and

5

/16" rods in traveling grid to raise

5

/16"

Caution: DO NOT hang from, "ride" or pull down on the unit. This could create a failure and cause damage and/or injury.

1

/8" short of touching ceiling in closed position. If closure panel touches, the motor may continue operating after the lift is closed. If it

Item Qty Part Number Description

① 1 C028.615.07SA Frame, U Closure Trim
② 1 C044.204.07SA Panel, U Assembled Closure
③ 2 C002.923.07SA Bracket, U End Angle
④ 2 C002.922.07SA Bracket, E Front/Back Angle
⑤ 4 4 C077.037.49 Rod, Threaded

3

/8"-16 x 21 3/8" L Zinc

⑥ 8 C020.082 Screw, 10-16 X ½" 6 Lobe

3711/16"

Truss Head AB E-White
⑦ 4 C020.321 Screw,
⑧ 4 C018.045 Nut,

5

/16"-18 x 5/8" Grade 5 HH Zinc Cap

5

/16"-18 Zinc Hex Keps
⑨ 8 C013.050 Washer .375 I.D. x .875 O.D.
x .064" TK GRD 2 Zinc Flat
⑩ 16 C018.027 Nut

3

/8"-16 Hex Zinc
⑪ 4 C020.152 Screw, ¼"-20 x
Grade 2 Zinc Cap Part 1
⑫ 4 C013.033 Washer, ¼" Flat

37

11

/16"

5

/8" Hex Head

Top View

7

31¼"

3

1211

5

18

9

6

1

/8"

35

/16"

10

10

8

1

27"

35

4

2

10 9

109

1

/8"

For Additional Safety:

① Be sure the nuts that attach the threaded
rods to the closure panel are tight.
② Wrap a plastic wire tie around the mounting
tab and the threaded rod at all four corners
of the closure panel (see drawing).

Please Note: Do NOT use a paper-covered or
similar wire tie—use only plastic wire ties for
maximum safety.

Front/Back ViewSide View

www.draperinc.com

(765) 987-799
