Page 1
Installation/Operating Instructions

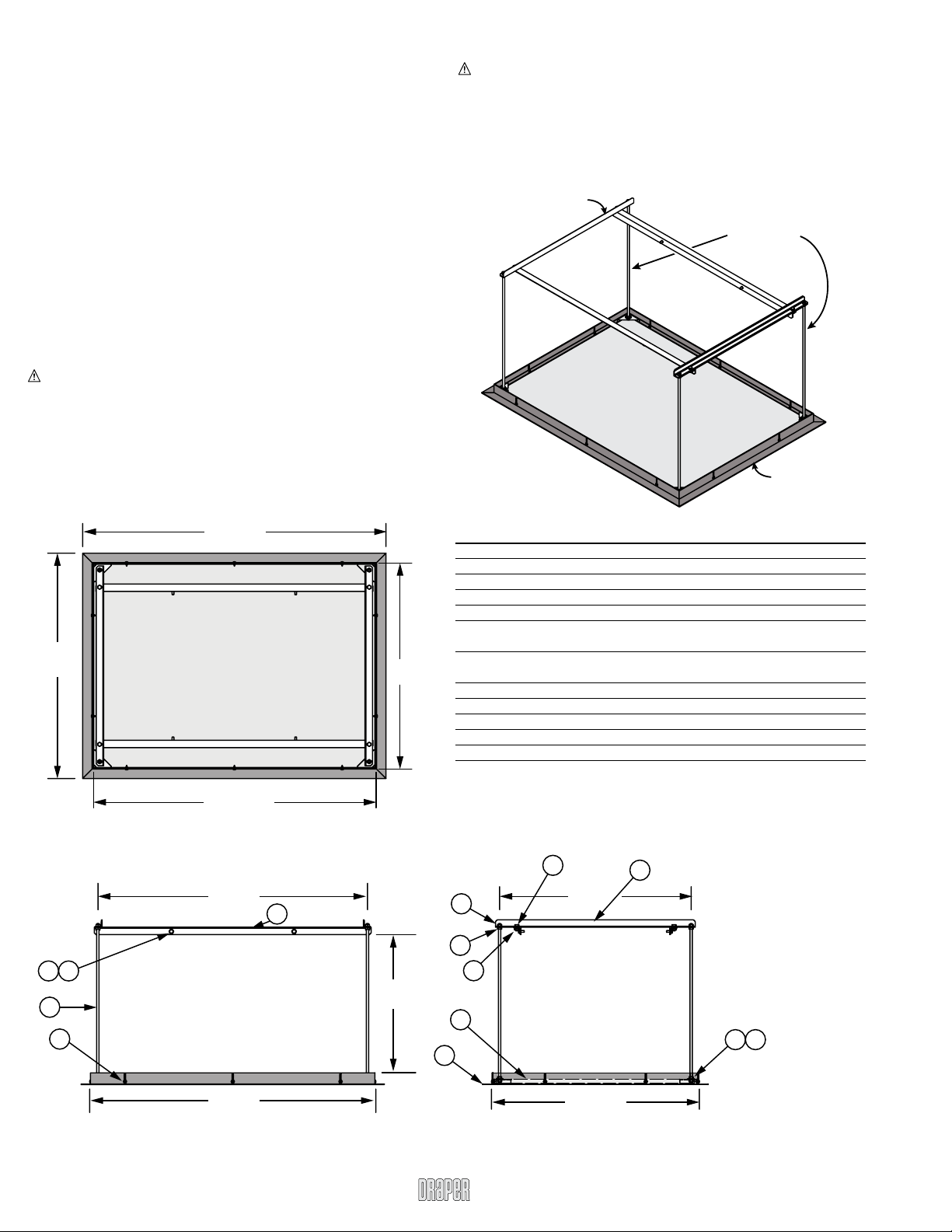

Closure Bracket
Closure Panel
Threaded Rod
Closure
Trim Frame
Closure
Panel
30
Ceiling Closure for Scissor Lift SL by Draper
The optional ceiling closure can be used as is, or in conjunction with, a square of existing ceiling tile.
1 If installing with ceiling tile, you may need to cut tile so that its overall dimensions are the same as
(or slightly less than) the closure panel. Place tile into trim frame. Lay closure panel on top (back side)
of ceiling tile, and tighten screws to hold in place.
Lipless Closure Option is available by removing the Trim Ring from the Closure Panel.
A substrate material (ceiling tile, gypsum board, etc.) can be attached directly to the Closure Panel using
adhesive, double-sided tape or screws. NOTE: Make sure the added weight of the substrate does not
exceed the stated weight capacity of the lift. Substrate should be installed so that it is centered
within the finished opening in the ceiling, with a gap of no less that
Lipless Closure dimensions shown with * in drawing below.
2 Attach provided angle brackets to side of Bottom Panel of Scissor Lift SL.
3 Attach threaded rods to angle bracket.
4 Run unit “up” until bottom pan stops at highest position. Mark position on
and cut to length (remove from pan if convenient).
5 Run unit “down” until bottom pan stops at “show” position.
6 Attach closure to lower end of rods by slipping into four corner slots. Secure with nuts above and below slots.
Caution: Make sure nuts are completely tightened.
7 Run unit “up” again to highest position. Measure distance by which panel fails to reach required “closed” height for surrounding ceiling.
8 Run unit “down” then re-adjust mounting of rods in traveling grid to raise panel required distance.
9 Test unit operation to confirm that panel will stop in closed position just before touching ceiling.
Caution: DO NOT hang from, "ride" or pull down on the unit. This could create a failure
and cause damage and/or injury.
PLEASE NOTE: Immediately upon completion of the surrounding ceiling, unit should be
operated to confirm that optional ceiling closure panel by Draper or by others stops
short of touching ceiling in closed position. If closure panel touches, the motor may continue
operating after the lift is closed. If it continues to cycle once the lift is closed, a motor failure
may occur.
Installing Optional Ceiling Closure "B"
3
/16" around all edges.
5
/16" rods even with ceiling level
1
/8"
For Additional Safety:
1 Be sure the nuts that attach the threaded
rods to the closure panel are tight.
2 Wrap a plastic wire tie around the mounting
tab and the threaded rod at all four corners
of the closure panel (Fig 9).
Please Note: Do NOT use a
paper-covered or similar wire tie—
use only plastic wire ties for
maximum safety.
9
/16"309/16"
30
9
/16"
Lipless Closure Dimensions
*
Top View
27 5/8"
*
211/8"
FRONT/BACK SIDE
283/16"
27
Item Qty Part Number Description
1 1 C028.616.07SA Frame, B Closure Trim
2 1 C044.194.07SA Panel, Assembled B Closure
3 2 C002.924.07SA Bracket, B Closure Attach
4 4 C077.037.49 Rod
5
/8"
8
5 8 C013.050 Washer .375 I.D. x .875" O.D.
x .064" TK GRD 2 Zinc Flat
*
6 8 C020.082 Screw, 10-16 X ½" 6 Lobe
Truss Head AB E-White
7 4 C013.033 Washer, ¼" Flat
8 4 C020.152 Screw, ¼"-20 x
9 16 C018.027 Nut,
7
9
26"
3
/8"-16 x 213/8" L Threaded , Zinc
5
/8" Hex Head Grade 2 Zinc Cap
3
/8"-16 Zinc Hex
3
9
"
3
16
/
19
4
2
6
1
5
9 5
9
283/16"
Copyright © 2016 Draper Inc. Form ScissorLift-ClosureSL_Inst16 Printed in U.S.A.
If you encounter any difficulties installing or servicing your Scissor Lift SL, call your
dealer or Draper, Inc. in Spiceland, Indiana, 765-987-7999, or fax 765-987-7142.
Page 2
Ceiling Closure for Scissor Lift SL by Draper page 2 of 4
www
Closure Brac
30
The optional ceiling closure can be used as is, or in conjunction with, a square
Installing Optional Ceiling Closure "E"
of existing ceiling tile.
1 If installing with ceiling tile, you may need to cut tile so that its overall
dimensions are the same as (or slightly less than) the closure panel. Place tile
into trim frame. Lay closure panel on top (back side) of ceiling tile, and tighten
screws to hold in place.
Lipless Closure Option is available by removing the Trim Ring from the
Closure Panel. A substrate material (ceiling tile, gypsum board, etc.) can be
attached directly to the Closure Panel using adhesive, double-sided tape or
screws. NOTE: Make sure the added weight of the substrate does not
exceed the stated weight capacity of the lift. Substrate should be installed
so that it is centered within the finished opening in the ceiling, with a gap of no
less that 3/16" around all edges. Lipless Closure dimensions shown with * in
drawing below.
2 Attach provided angle brackets to side of Bottom Panel of Scissor Lift SL.
3 Attach threaded rods to angle bracket.
4 Run unit “up” until bottom pan stops at highest position. Mark position on
rods even with ceiling level and cut to length (remove from pan if convenient).
5 Run unit “down” until bottom pan stops at “show” position.
6 Attach closure to lower end of rods by slipping into four corner slots and
secure with nuts above and below slots.
Caution: Make sure nuts are completely tightened.
7 Run unit “up” again to highest position. Measure distance by which panel fails to
reach required “closed” height for surrounding ceiling.
8 Run unit “down” then re-adjust mounting of rods in traveling grid to raise
panel required distance.
9 Test unit operation to confirm that panel will stop in closed position just before
touching ceiling.
5
/16"
Caution: DO NOT hang from, "ride" or pull down on the unit. This could
create a failure and cause damage and/or injury.
PLEASE NOTE: Immediately upon completion of the surrounding ceiling,
unit should be operated to confirm that optional ceiling closure panel by
Draper or by others stops
If closure panel touches, the motor may continue operating after the lift is
closed. If it continues to cycle once the lift is closed, a motor failure may
occur.
1
/8" short of touching ceiling in closed position.
ket
Threaded Rod
Closure Panel
Closure
Trim Frame
5/16"
109
5
6
13
40
/16"
Top View
37 15/16"
Lipless Closure Dimensions
*
*
36¼"
4
Side View
27
189/16"
Item Qty Part Number Description
1 1 C044.199.07SA Panel, E Assembled Closure
2 1 C028.619.07SA Frame, E Trim
3 2 C002.920.07SA Bracket, E Front/Back Angle
4 2 C002.921.07SA Bracket, E End Angle
5 4 4 C077.037.49 Rod, Threaded
6 10 C020.082 Screw, 10-16 X ½" 6 Lobe
Truss Head AB E-White
7 8 C013.050 Washer .375 I.D. x .875 O.D.
7
/16"
x .064" TK GRD 2 Zinc Flat
*
8 16 C018.027 Nut,
9 4 C020.152 Screw, ¼"-20 x
4 C013.033 Washer, ¼", Flat
4 C020.321 Screw,
4 C018.045 Nut,
11
8
25¾"
5
/16"-18 x 5/8" Grade 5 HH Zinc Cap
3
3
/8"-16 x 21 3/8" L Zinc
3
/8"-16 Zinc Hex
5
/16" Grade 2 HH Zinc Cap
5
/16"-18 Zinc Hex Keps
8
12
Front/Back View
1
8
2
7
38
7
/16"
.draperinc.com (765) 987-7999
27
15
/16"
Page 3
Ceiling Closure for Scissor Lift SL by Draper page 3 of 4
www
The optional ceiling closure can be used as is, or in conjunction with, a square
of existing ceiling tile.
1 If installing with ceiling tile, you may need to cut tile so that its overall
dimensions are the same as (or slightly less than) the closure panel. Place tile
into trim frame. Lay closure panel on top (back side) of ceiling tile, and tighten
screws to hold in place.
Lipless Closure Option is available by removing the Trim Ring from the
Closure Panel. A substrate material (ceiling tile, gypsum board, etc.) can be
attached directly to the Closure Panel using adhesive, double-sided tape or
screws. NOTE: Make sure the added weight of the substrate does not
exceed the stated weight capacity of the lift. Substrate should be installed
so that it is centered within the finished opening in the ceiling, with a gap of no
less that 3/16" around all edges. Lipless Closure dimensions shown with * in
drawing below.
2 Attach provided angle brackets to side of Bottom Panel of Scissor Lift SL.
3 Attach threaded rods to angle bracket.
4 Run unit “up” until bottom pan stops at highest position. Mark position on
rods even with ceiling level and cut to length (remove from pan if convenient).
5 Run unit “down” until bottom pan stops at “show” position.
6 Attach closure to lower end of rods by slipping into four corner slots and
secure with nuts above and below slots.
Caution: Make sure nuts are completely tightened.
7 Run unit “up” again to highest position. Measure distance by which panel fails to
reach required “closed” height for surrounding ceiling.
8 Run unit “down” then re-adjust mounting of rods in traveling grid to raise
panel required distance.
9 Test unit operation to confirm that panel will stop in closed position just before
touching ceiling.
5
/16"
24 3/8"
Installing Optional Ceiling Closure "SL"
Caution: DO NOT hang from, "ride" or pull down on the unit. This could
create a failure and cause damage and/or injury.
PLEASE NOTE: Immediately upon completion of the surrounding ceiling,
unit should be operated to confirm that optional ceiling closure panel by
Draper or by others stops
If closure panel touches, the motor may continue operating after the lift is
closed. If it continues to cycle once the lift is closed, a motor failure may
occur.
1
/8" short of touching ceiling in closed position.
Closure
Mounting
Brackets
Threaded
Rod
Closure
Panel
24 3/8"
19
Item Qty Part Number Description
Top View
21 1/2"
*
Lipless Closure Dimensions
*
1813/16"
8
21 1/2"
9
1
4
1 4 C013.033 Washer, ¼", Flat
2 1 C044.184.07SA Panel, SL Closure
*
3 1 C028.573.07SA Frame, SL Closure Trim
4 4 C002.889.07SA Bracket, SL Closure Mounting
5 4 4 C077.052 Rod, Threaded
6 16 C013.050 Washer .375 I.D. x .875 O.D.
x .064" TK GRD 2 Zinc Flat
7 8 C020.082 Screw, 10-16 x ½" 6 Lobe
Truss Head AB E-White
8 16 C018.028 Nut,
9 4 C020.152 Screw, ¼"-20 x
6
6
8
5
/8"
5
Front/Back View Side View
18
Closure
Trim Frame
5
/16"-18 x 16" L Zinc
5
/16"-18 Zinc Hex
5
/16" Grade 2 HH Zinc Cap
13
/16"
2
3
7
.draperinc.com (765) 987-7999
22
6
8
86
1
/16"221/16"
Page 4
Ceiling Closure for Scissor Lift SL by Draper page 4 of 4
www
Closure Brac
37
The optional ceiling closure can be used as is, or in conjunction with,
Installing Optional Ceiling Closure "U"
a square of existing ceiling tile.
1 If installing with ceiling tile, you may need to cut tile so that its overall
dimensions are the same as (or slightly less than) the closure panel. Place tile
into trim frame. Lay closure panel on top (back side) of ceiling tile, and tighten
screws to hold in place.
Lipless Closure Option is available by removing the Trim Ring from the
Closure Panel. A substrate material (ceiling tile, gypsum board, etc.) can be
attached directly to the Closure Panel using adhesive, double-sided tape or
screws. NOTE: Make sure the added weight of the substrate does not
exceed the stated weight capacity of the lift. Substrate should be installed
so that it is centered within the finished opening in the ceiling, with a gap of no
less that 3/16" around all edges. Lipless Closure dimensions shown with * in
drawing below.
2 Attach provided angle brackets to side of Bottom Panel of Scissor Lift SL.
3 Attach threaded rods to angle bracket.
4 Run unit “up” until bottom pan stops at highest position. Mark position on
rods even with ceiling level and cut to length (remove from pan if convenient).
5 Run unit “down” until bottom pan stops at “show” position.
6 Attach closure to lower end of
secure with nuts above and below slots.
Caution: Make sure nuts are completely tightened.
7 Run unit “up” again to highest position. Measure distance by which panel fails to
reach required “closed” height for surrounding ceiling.
8 Run unit “down” then re-adjust mounting of rods in traveling grid to raise
panel required distance.
9 Test unit operation to confirm that panel will stop in closed position just before
touching ceiling.
5
/16" rods by slipping into four corner slots and
Caution: DO NOT hang from, "ride" or pull down on the unit. This could
create a failure and cause damage and/or injury.
PLEASE NOTE: Immediately upon completion of the surrounding ceiling,
unit should be operated to confirm that optional ceiling closure panel by
Draper or by others stops
If closure panel touches, the motor may continue operating after the lift is
closed. If it continues to cycle once the lift is closed, a motor failure may
occur.
1
/8" short of touching ceiling in closed position.
ket
Threaded Rod
Closure Panel
11
/16"
11
/16"
37
Top View
34 3/4"
Lipless Closure Dimensions
*
*
31¼"
3
34 3/4"
Closure
Trim Frame
Item Qty Part Number Description
1 1 C028.615.07SA Frame, U Closure Trim
2 1 C044.204.07SA Panel, U Assembled Closure
3 2 C002.923.07SA Bracket, U End Angle
4 2 C002.922.07SA Bracket, E Front/Back Angle
5 4 4 C077.037.49 Rod, Threaded
6 8 C020.082 Screw, 10-16 X ½" 6 Lobe
*
Truss Head AB E-White
7 4 C020.321 Screw,
8 4 C018.045 Nut,
9 8 C013.050 Washer .375 I.D. x .875 O.D.
x .064" TK GRD 2 Zinc Flat
16 C018.027 Nut
4 C020.152 Screw, ¼"-20 x
Grade 2 Zinc Cap Part 1
4 C013.033 Washer, ¼" Flat
7
10
27"
5
/16"-18 x 5/8" Grade 5 HH Zinc Cap
4
3
/8"-16 x 21 3/8" L Zinc
5
/16"-18 Zinc Hex Keps
3
/8"-16 Hex Zinc
5
/8" Hex Head
1211
10
2
5
6
1
/8"
35
9
18
/16"
8
Front/Back ViewSide View
1
.draperinc.com (765) 987-7999
35
1
10 9
/8"
Loading...
