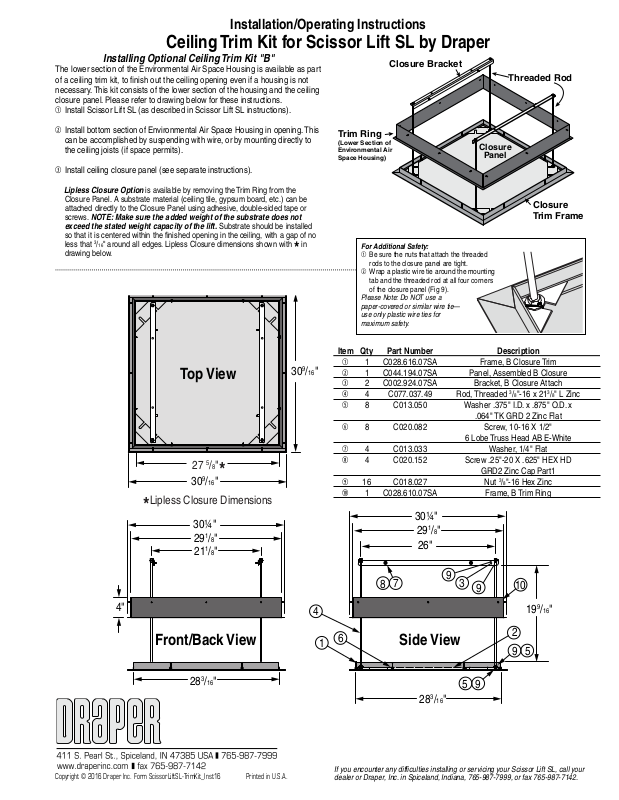

Page 1
Installation/Operating Instructions
T
(Lo
En
Space Housing)
"
Ceiling Trim Kit for Scissor Lift SL by Draper
Installing Optional Ceiling Trim Kit "B"
The lower section of the Environmental Air Space Housing is available as part
of a ceiling trim kit, to finish out the ceiling opening even if a housing is not
necessary. This kit consists of the lower section of the housing and the ceiling
closure panel. Please refer to drawing below for these instructions.
1 Install Scissor Lift SL (as described in Scissor Lift SL instructions).
Closure Bracket
Threaded Rod
2 Install bottom section of Environmental Air Space Housing in opening. This
can be accomplished by suspending with wire, or by mounting directly to
the ceiling joists (if space permits).
3 Install ceiling closure panel (see separate instructions).
Lipless Closure Option is available by removing the Trim Ring from the
Closure Panel. A substrate material (ceiling tile, gypsum board, etc.) can be
attached directly to the Closure Panel using adhesive, double-sided tape or
screws. NOTE: Make sure the added weight of the substrate does not
exceed the stated weight capacity of the lift. Substrate should be installed
so that it is centered within the finished opening in the ceiling, with a gap of no
less that 3/16" around all edges. Lipless Closure dimensions shown with * in
drawing below.
Top View
5
27
/8"
*
30
9
/16"
309/16"
Lipless Closure Dimensions
*
30¼"
1
29
/8"
1
21
/8"
rim Ring
wer Section of
vironmental Air
For Additional Safety:
1 Be sure the nuts that attach the threaded
rods to the closure panel are tight.
2 Wrap a plastic wire tie around the mounting
tab and the threaded rod at all four corners
of the closure panel (Fig 9).
Please Note: Do NOT use a
paper-covered or similar wire tie—
use only plastic wire ties for
maximum safety.
Item Qty Part Number Description
1 1 C028.616.07SA Frame, B Closure Trim
2 1 C044.194.07SA Panel, Assembled B Closure
3 2 C002.924.07SA Bracket, B Closure Attach
4 4 C077.037.49 Rod, Threaded
5 8 C013.050 Washer .375" I.D. x .875" O.D. x
.064" TK GRD 2 Zinc Flat
6 8 C020.082 Screw, 10-16 X 1/2"
6 Lobe Truss Head AB E-White
7 4 C013.033 Washer, 1/4" Flat
8 4 C020.152 Screw .25"-20 X .625" HEX HD
GRD2 Zinc Cap Part1
9 16 C018.027 Nut
1 C028.610.07SA Frame, B Trim Ring
Closure
Panel
3
/8"-16 Hex Zinc
Closure
Trim Frame
3
/8"-16 x 213/8" L Zinc
30¼"
291/8"
26"
4"
Front/Back View Side View
3
/16"
28
Copyright © 2016 Draper Inc. Form ScissorLiftSL-TrimKit_Inst16 Printed in U.S.A.
7
8
4
6
1
28
If you encounter any difficulties installing or servicing your Scissor Lift SL, call your
dealer or Draper, Inc. in Spiceland, Indiana, 765-987-7999, or fax 765-987-7142.
3
/16"
3
9
10
19
9
2
5
9
5
9
9
/
16
Page 2
Ceiling Trim Kit for Scissor Lift SL by Draper page 2 of 4
www
Installing Optional Ceiling Trim Kit "E"
The lower section of the Environmental Air Space Housing is available as part
of a ceiling trim kit, to finish out the ceiling opening even if a housing is not
necessary. This kit consists of the lower section of the housing and the ceiling
closure panel. Please refer to drawing below for these instructions.
1 Install Scissor Lift SL (as described in Scissor Lift SL instructions).
Closure Bracket
Threaded Rod
2 Install bottom section of Environmental Air Space Housing in opening. This
can be accomplished by suspending with wire, or by mounting directly to
the ceiling joists (if space permits).
3 Install ceiling closure panel (see separate instructions).
Lipless Closure Option is available by removing the Trim Ring from the
Closure Panel. A substrate material (ceiling tile, gypsum board, etc.) can be
attached directly to the Closure Panel using adhesive, double-sided tape or
screws. NOTE: Make sure the added weight of the substrate does not
exceed the stated weight capacity of the lift. Substrate should be installed
so that it is centered within the finished opening in the ceiling, with a gap of no
less that 3/16" around all edges. Lipless Closure dimensions shown with * in
drawing below.
Top View
37 15/16"
40
*
13
/16"
Trim Ring
(Lower Section of
Environmental Air
Space Housing)
305/16"
Closure
Panel
Closure
Trim Frame
Item Qty Part Number Description
1 1 C044.199.07SA Panel, E Assembled Closure
2 1 C028.619.07SA Frame, E Trim
3 2 C002.920.07SA Bracket, E Front/Back Angle
4 2 C002.921.07SA Bracket, E End Angle
5 4 C077.037.49 Rod, Threaded
6 10 C020.082 Screw, 10-16 X ½" 6 Lobe Truss Head AB E-White
7 8 C013.050 Washer .375" I.D. x .875" O.D. x .064"
TK GRD 2 Zinc Flat
8 16 C018.027 Nut 3/6"-16 Hex Zinc
9 4 C020.152 Screw .25"-20 X .625" Hex HD
GRD2 Zinc Cap Part1
4 C013.033 Washer, ¼" Flat
4 C020.321 Screw
4 C018.045 Nut 5/16"-18 Zinc Hex Keps
1 C028.612.07SA Frame, E Trim Ring
5
/16"-18 X 5/8" Hex HD Cap GR5 Zinc
3
/8"-16 x 213/8" L Zinc
Lipless Closure Dimensions
*
4
10 9
40½"
393/8"
36¼"
11
8
25¾"
8
3
13
12
9
18
4"
/16"
1
5
Front/Back ViewSide View
8
7
2
6
7
/16"
38
.draperinc.com (765) 987-7999
27
15
/16"
8
7
Page 3
Ceiling Trim Kit for Scissor Lift SL by Draper page 3 of 4
www
Installing Optional Ceiling Trim Kit "SL"
The lower section of the Environmental Air Space Housing is available as part
of a ceiling trim kit, to finish out the ceiling opening even if a housing is not
necessary. This kit consists of the lower section of the housing and the ceiling
closure panel. Please refer to drawing below for these instructions.
1 Install Scissor Lift SL (as described in Scissor Lift SL instructions).
Closure Brackets
Threaded Rod
2 Install bottom section of Environmental Air Space Housing in opening. This
can be accomplished by suspending with wire, or by mounting directly to
the ceiling joists (if space permits).
3 Install ceiling closure panel (see separate instructions).
Lipless Closure Option is available by removing the Trim Ring from the
Closure Panel. A substrate material (ceiling tile, gypsum board, etc.) can be
attached directly to the Closure Panel using adhesive, double-sided tape or
screws. NOTE: Make sure the added weight of the substrate does not
exceed the stated weight capacity of the lift. Substrate should be installed
so that it is centered within the finished opening in the ceiling, with a gap of no
less that 3/16" around all edges. Lipless Closure dimensions shown with * in
drawing below.
Top View
21 1/2"
*
3
24
/8"
243/8"
Trim Ring
(Lower Section of
Environmental Air
Space Housing)
Closure
Panel
Closure
Trim Frame
Item Qty Part Number Description
1 4 C013.033 Washer, ¼" Flat
2 1 C044.184.07SA Panel, SL Closure
3 1 C028.573.07SA Frame, SL Closure Trim
4 4 C002.889.07SA Bracket, SL Closure Mounting
5 4 C077.052 Rod, Threaded 5/16"-18 x 16" L Zinc
6 16 C013.050 Washer .375" I.D. x .875" O.D. x .064"
TK GRD 2 Zinc Flat
7 8 C020.082 Screw, 10-16 X ½" 6 Lobe
Truss Head AB E-White
8 16 C018.028 Nut
9 4 C020.152 Screw .25"-20 X .625" Hex HD
GRD2 Zinc Cap Part1
1 C028.608.07SA Frame, SL Trim Ring
5
/16"-18 Hex Zinc
4"
Lipless Closure Dimensions
*
1
24
/16"
15
22
18
/16"
13
/16"
8
9
1
4
18
13
6
6
8
5
5
/8"
19
Front/Back View Side View
3
7
22
1
/16"
22
/16"
1
/16"
10
2
8 6
86
.draperinc.com (765) 987-7999
Page 4
Ceiling Trim Kit for Scissor Lift SL by Draper page 4 of 4
www
Closure Bracket
T
(Lo
En
Space Housing)
Installing Optional Ceiling Trim Kit "U"
The lower section of the Environmental Air Space Housing is available as part
of a ceiling trim kit, to finish out the ceiling opening even if a housing is not
necessary. This kit consists of the lower section of the housing and the ceiling
closure panel. Please refer to drawing below for these instructions.
1 Install Scissor Lift SL (as described in Scissor Lift SL instructions).
Threaded Rod
2 Install bottom section of Environmental Air Space Housing in opening.
This can be accomplished by suspending with wire,
or by mounting directly to the ceiling joists (if space permits).
3 Install ceiling closure panel (see separate instructions).
Lipless Closure Option is available by removing the Trim Ring from the
Closure Panel. A substrate material (ceiling tile, gypsum board, etc.) can be
attached directly to the Closure Panel using adhesive, double-sided tape or
screws. NOTE: Make sure the added weight of the substrate does not
exceed the stated weight capacity of the lift. Substrate should be installed
so that it is centered within the finished opening in the ceiling, with a gap of no
less that 3/16" around all edges. Lipless Closure dimensions shown with * in
drawing below.
rim Ring
wer Section of
vironmental Air
3711/16"
Top View
Closure
Panel
Closure
Trim Frame
Item Qty Part Number Description
1 1 C028.615.07SA Frame, U Closure Trim
2 1 C044.204.07SA Panel, U Closure
3 2 C002.923.07SA Bracket, U End Angle
4 2 C002.922.07SA Bracket, U Front/Back Angle
5 4 C077.037.49 Rod, Threaded 3/8"-16 x 213/8" L Zinc
6 8 C020.082 Screw, 10-16 X ½" 6 Lobe
Truss Head AB E-White
7 4 C020.321 Screw 5/16"-18 X 5/8" Hex HD Cap GR5 Zinc
8 4 C018.045 Nut 5/16"-18 Zinc Hex Keps
9 8 C013.050 Washer .375" I.D. x .875" O.D. x .064"
TK GRD 2 Zinc Flat
16 C018.027 Nut 3/8"-16 Hex Zinc
4 C020.152 Screw .25"-20 X .625" Hex HD
GRD2 Zinc Cap Part1
4 C013.033 Washer, ¼" Flat
1 C028.614.07SA Frame, U Trim Ring
4"
5
6
34 3/4"
Lipless Closure Dimensions
*
11
12
3711/16"
3
/8"
37
36¼"
*
3
31¼"
1
35
/8"
7
10
10
8
9
/16"
18
1
.draperinc.com (765) 987-7999
Front/Back ViewSide View
27"
35
4
13
9
10
2
1
/8"
109
