Page 1

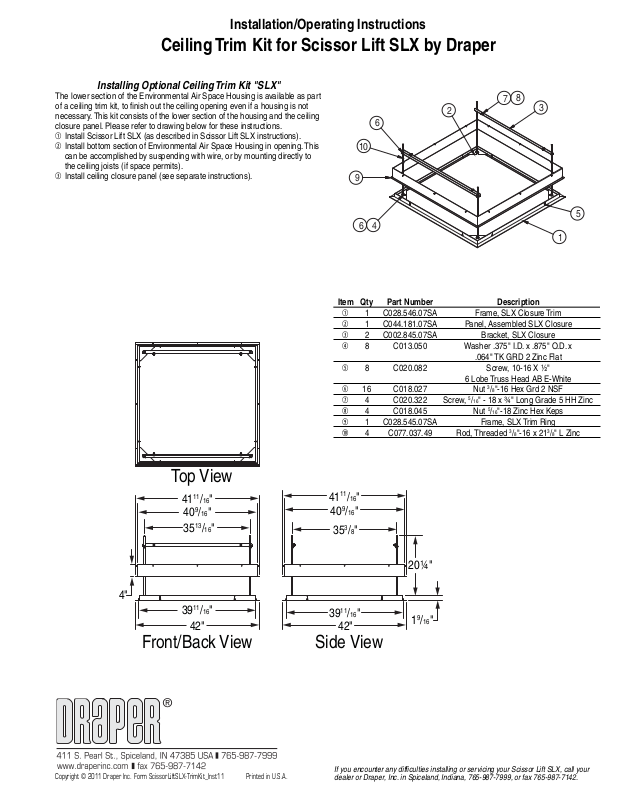

Installation/Operating Instructions
Ceiling Trim Kit for Scissor Lift SLX by Draper

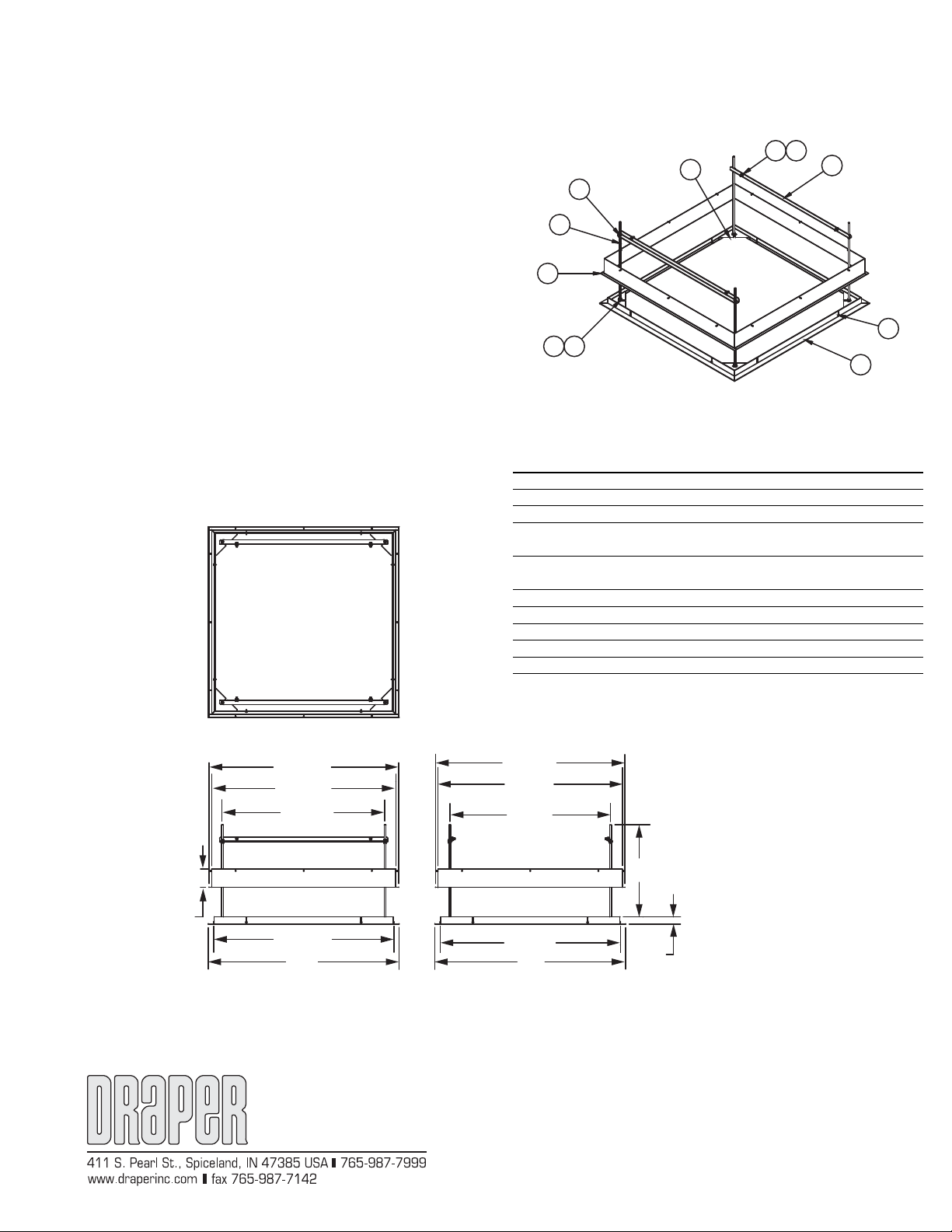

Installing Optional Ceiling Trim Kit "SLX"
The lower section of the Environmental Air Space Housing is available as part
of a ceiling trim kit, to fi nish out the ceiling opening even if a housing is not
necessary. This kit consists of the lower section of the housing and the ceiling
closure panel. Please refer to drawing below for these in struc tions.
① Install Scissor Lift SLX (as described in Scissor Lift SLX instructions).
② Install bottom section of Environmental Air Space Housing in opening. This
can be accomplished by suspending with wire, or by mounting directly to
the ceiling joists (if space permits).
③ Install ceiling closure panel (see separate instructions).
Item Qty Part Number Description
① 1 C028.546.07SA Frame, SLX Closure Trim
② 1 C044.181.07SA Panel, Assembled SLX Closure
③ 2 C002.845.07SA Bracket, SLX Closure
④ 8 C013.050 Washer .375" I.D. x .875" O.D. x
.064" TK GRD 2 Zinc Flat
⑤ 8 C020.082 Screw, 10-16 X ½"
6 Lobe Truss Head AB E-White
⑥ 16 C018.027 Nut 3/8"-16 Hex Grd 2 NSF
⑦ 4 C020.322 Screw, 5/16" - 18 x ¾" Long Grade 5 HH Zinc
⑧ 4 C018.045 Nut 5/16"-18 Zinc Hex Keps
⑨ 1 C028.545.07SA Frame, SLX Trim Ring
⑩ 4 C077.037.49 Rod, Threaded 3/8"-16 x 213/8" L Zinc
8
7
2
6
10
9
6
4
3
5
1
Top View
11
/16"
41
409/16"
13
/16"
35
4"
3911/16"
42" 42"
®
Copyright © 2011 Draper Inc. Form ScissorLiftSLX-TrimKit_Inst11 Printed in U.S.A.
11
/16"
41
9
/16"
40
3
/8"
35
20¼"
11
39
/16"
9
/16"
1
Side ViewFront/Back View
If you encounter any diffi culties installing or servicing your Scissor Lift SLX, call your
dealer or Draper, Inc. in Spiceland, In di ana, 765-987-7999, or fax 765-987-7142.
Page 2
Ceiling Trim Kit for Scissor Lift SLX by Draper page 2 of 2
9

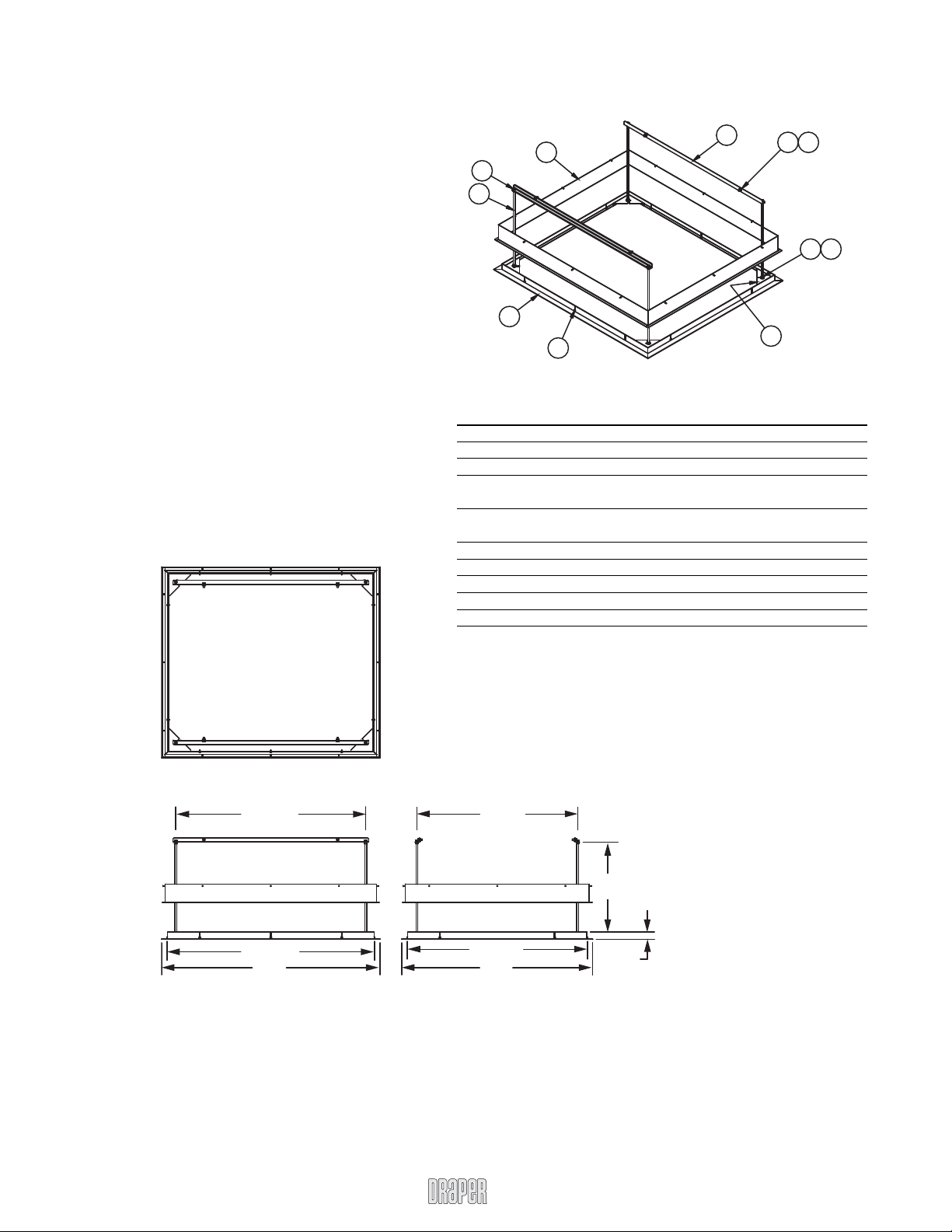

Installing Optional Ceiling Trim Kit "SLXR"
The lower section of the Environmental Air Space Housing is available as part
of a ceiling trim kit, to fi nish out the ceiling opening even if a housing is not
necessary. This kit consists of the lower section of the housing and the ceiling
closure panel. Please refer to drawing below for these in struc tions.
① Install Scissor Lift SLX (as described in Scissor Lift SLX instructions).
② Install bottom section of Environmental Air Space Housing in opening. This
can be accomplished by suspending with wire, or by mounting directly to
the ceiling joists (if space permits).
③ Install ceiling closure panel (see separate instructions).
Item Qty Part Number Description
① 1 C028.624.07SA Frame, SLXR Closure Trim
② 1 C044.205.07SA Panel, Assembled SLXR Closure
③ 2 C002.932.07SA Bracket, SLXR Closure
④ 8 C013.050 Washer .375" I.D. x .875" O.D. x
.064" TK GRD 2 Zinc Flat
⑤ 10 C020.082 Screw, 10-16 X ½"
6 Lobe Truss Head AB E-White
⑥ 16 C018.027 Nut 3/8"-16 Hex Grd 2 NSF
⑦ 4 C020.322 Screw, 5/16" - 18 x ¾" Long Grade 5 HH Zinc
⑧ 4 C018.045 Nut 5/16"-18 Zinc Hex Keps
⑨ 4 C077.037.49 Rod, Threaded 3/8"-16 x 213/8" L Zinc
⑩ 1 C028.626.07SA Frame, SLXR Trim Ring
10
6
9
1
5
3
8
7
6
4
2
Top View
13
41
/16"35
11
/16"
45
48"
www.draperinc.com
Side ViewFront/Back View
3
/8"
3911/16"
42"
(765) 987-799
19¾"
9
1
/16"
