Technical Data Sheet
4½"
Front Side Back
Lift LV Switch—Low Voltage Control Switch By Draper
USES: Up, Down and Stop control of a Lift Low Voltage Control via wall switch.
COMPATIBILITY: The Lift LV Switch can be used with the Lift Low Voltage Control.
Other controls may be connected to the Lift Low Voltage Control simultaneously:
a. Lift RF Kit radio frequency remote control package.
b. Lift IR Kit infrared remote control package.
c. Multiple Lift LV Switches may be used to control one Lift Low Voltage Control.
Auxiliary control systems employing momentary “dry” contacts.
SP-KSM 3-position momentary key switch (beware: Stop won’t work).
CONTACTS: Three individual Single Pole, Single Throw contacts (On/Off). Momentary action.
Latching contacts are part of the Lift Low Voltage Control.
RATING: 10V 25mA
DESCRIPTION: The Lift LV Switch is a 3-button (Up, Stop, Down) wall switch which controls a Lift Low
Voltage Control. The buttons are oval. The 2¾" x 4½" cover plate is plastic, and
finished white. It fits a single-gang box. There are no wire leads: there are screw
terminals on the back for Down, Common, and Up.
PART NUMBER: 121225

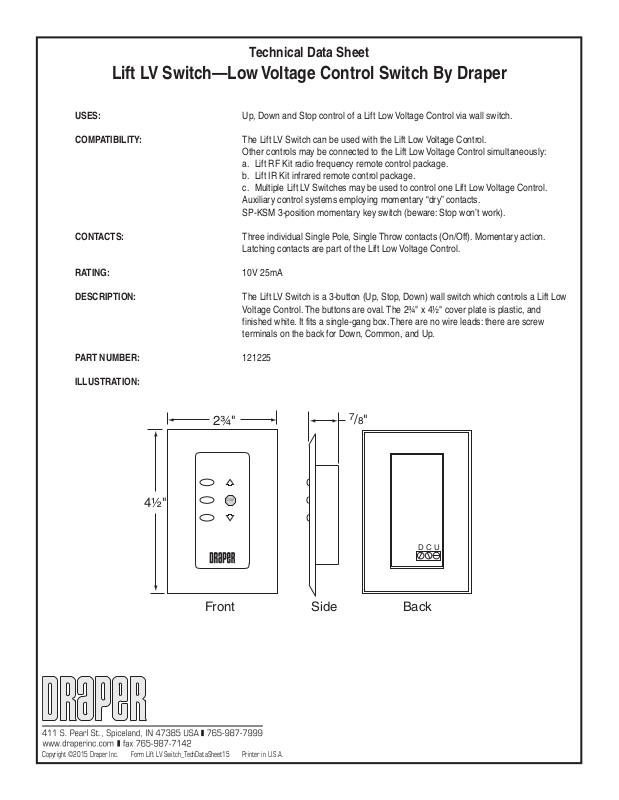

ILLUSTRATION:
2¾"
7
/8"
D C U
Copyright ©2015 Draper Inc. Form Lift LV Switch_TechDataSheet15 Printer in U.S.A.
