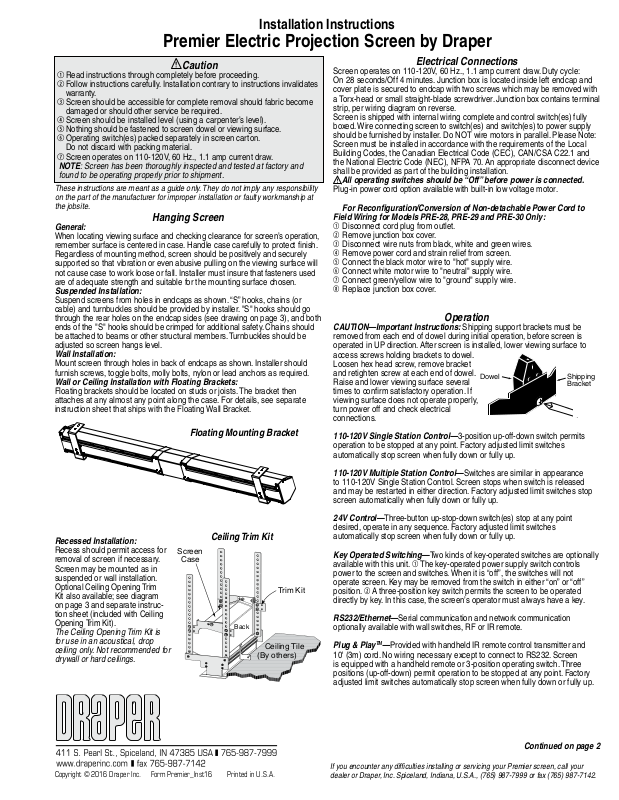

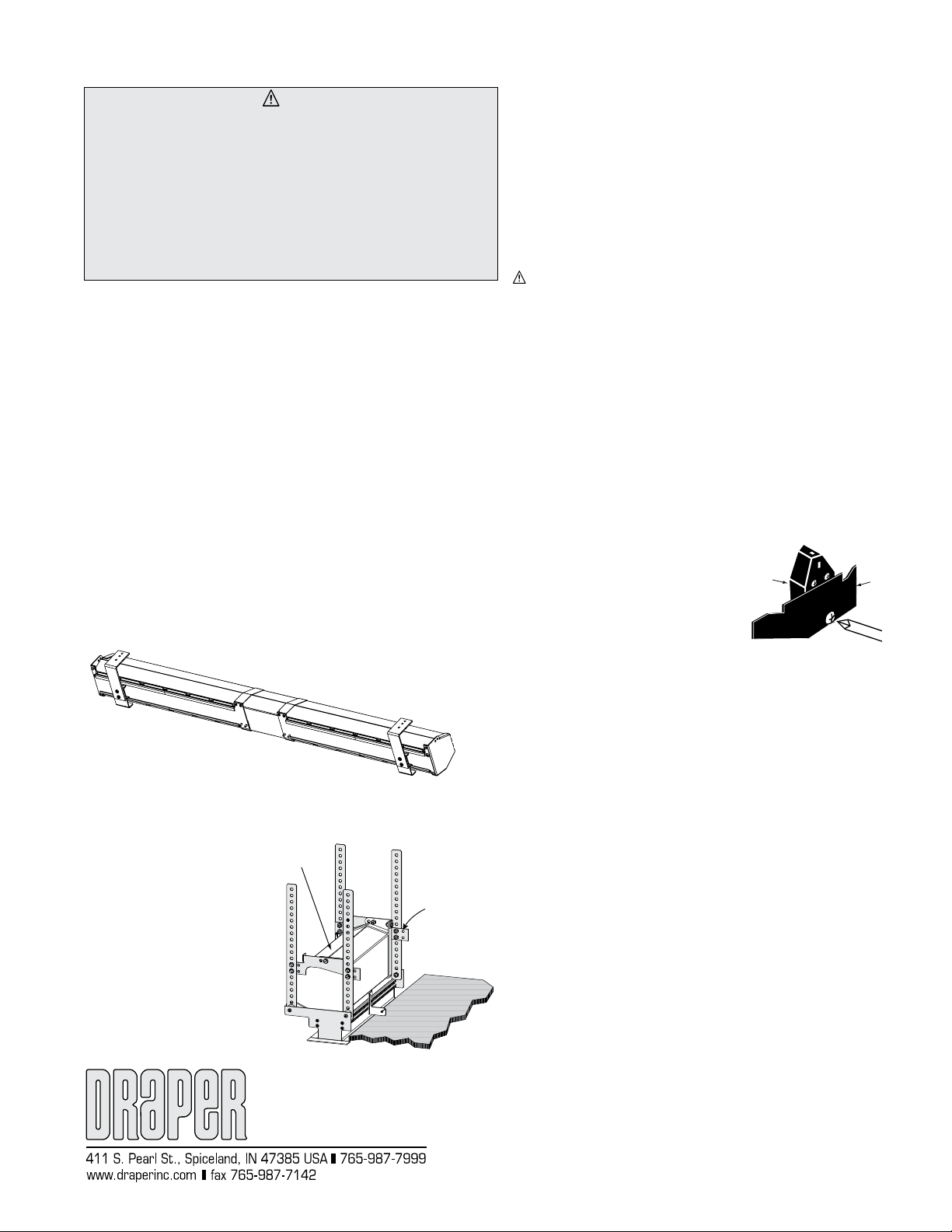

Draper 101387LP Instructions

Installation Instructions

Dowel

Shipping
Bracket

Screen

Premier Electric Projection Screen by Draper

1

Read instructions through completely before proceeding.

2

Follow instructions carefully. Installation contrary to instructions invalidates

warranty.

3

Screen should be accessible for complete removal should fabric become

damaged or should other service be required.

4

Screen should be installed level (using a carpenter’s level).

5

Nothing should be fastened to screen dowel or viewing surface.

6

Operating switch(es) packed separately in screen carton.

Do not discard with packing material.

7

Screen operates on 110-120V, 60 Hz., 1.1 amp current draw.

NOTE: Screen has been thoroughly inspected and tested at factory and
found to be operating properly prior to shipment.

These instructions are meant as a guide only. They do not imply any responsibility
on the part of the manufacturer for improper installation or faulty workmanship at
the jobsite.

Hanging Screen

General:

When locating viewing surface and checking clearance for screen’s operation,
remember surface is centered in case. Handle case carefully to protect finish.
Regardless of mounting method, screen should be positively and securely
supported so that vibration or even abusive pulling on the viewing surface will
not cause case to work loose or fall. Installer must insure that fasteners used
are of adequate strength and suitable for the mounting surface chosen.

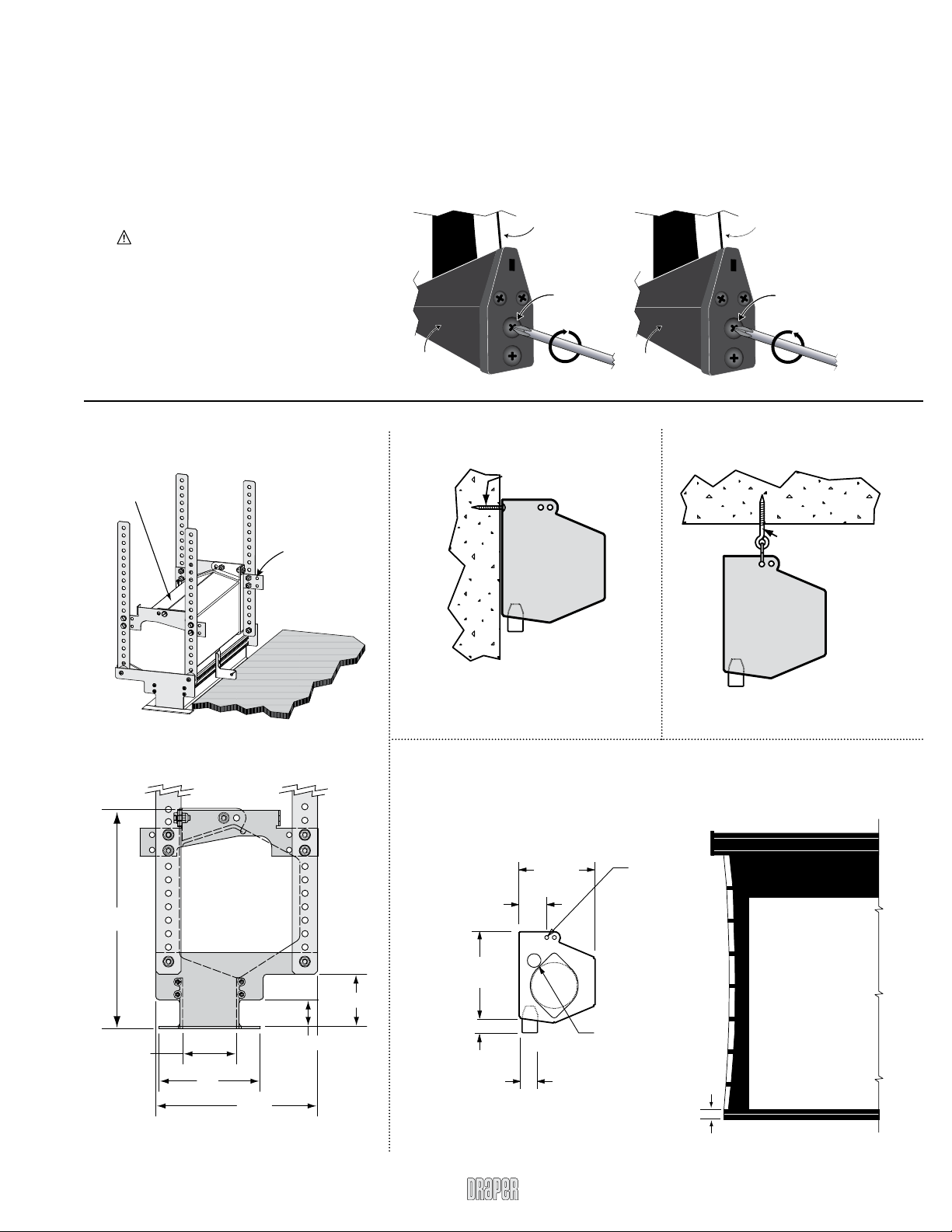

Suspended Installation:

Suspend screens from holes in endcaps as shown. “S” hooks, chains (or
cable) and turnbuckles should be provided by installer. "S" hooks should go
through the rear holes on the endcap sides (see drawing on page 3), and both
ends of the "S" hooks should be crimped for additional safety. Chains should
be attached to beams or other structural members. Turnbuckles should be
adjusted so screen hangs level.

Wall Installation:

Mount screen through holes in back of endcaps as shown. Installer should
furnish screws, toggle bolts, molly bolts, nylon or lead anchors as required.

Wall or Ceiling Installation with Floating Brackets:

Floating brackets should be located on studs or joists. The bracket then
attaches at any almost any point along the case. For details, see separate
instruction sheet that ships with the Floating Wall Bracket.

Floating Mounting Bracket

Caution

Screen operates on 110-120V, 60 Hz., 1.1 amp current draw. Duty cycle:

Electrical Connections

On 28 seconds/Off 4 minutes. Junction box is located inside left endcap and
cover plate is secured to endcap with two screws which may be removed with
a Torx-head or small straight-blade screwdriver. Junction box contains terminal

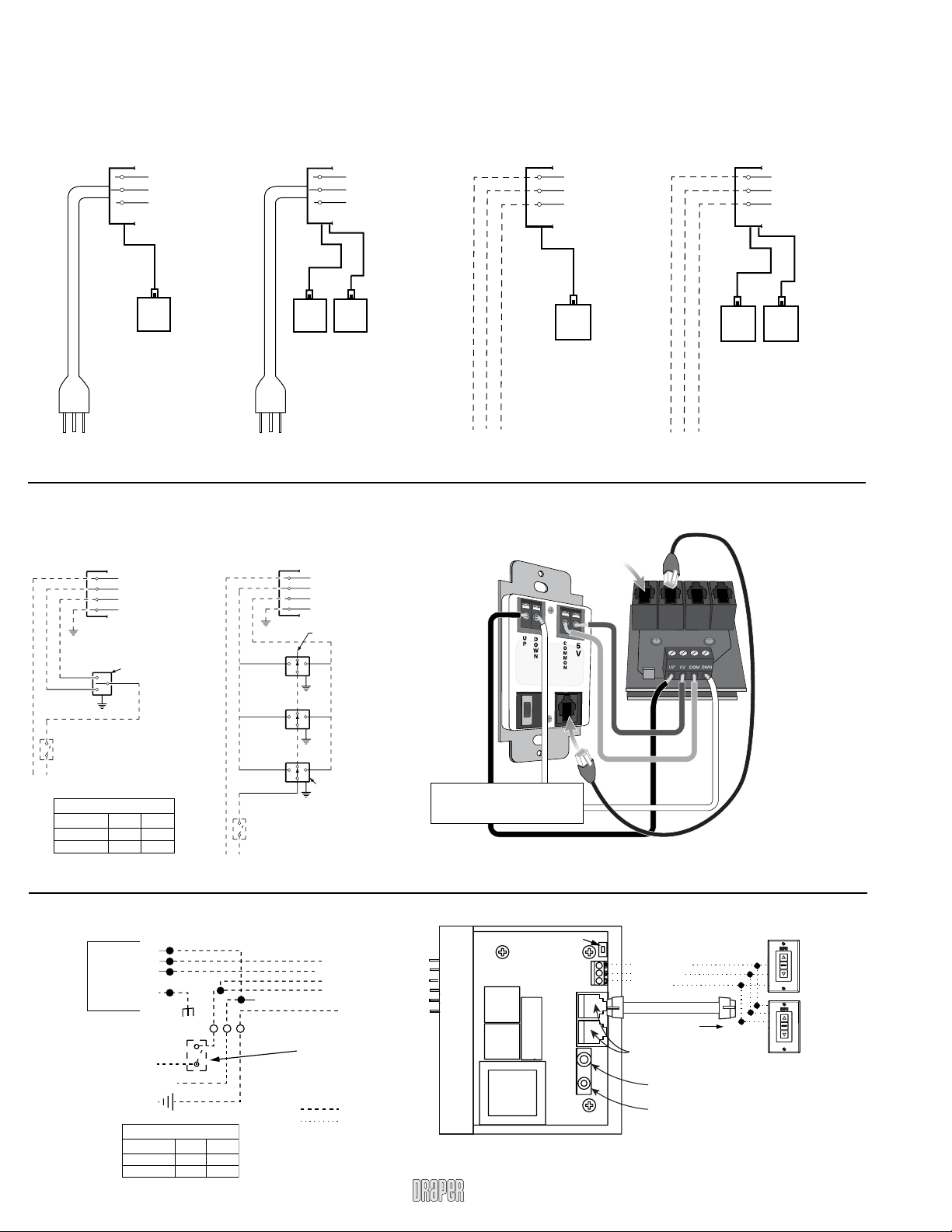

strip, per wiring diagram on reverse.
Screen is shipped with internal wiring complete and control switch(es) fully
boxed. Wire connecting screen to switch(es) and switch(es) to power supply
should be furnished by installer. Do NOT wire motors in parallel. Please Note:
Screen must be installed in accordance with the requirements of the Local
Building Codes, the Canadian Electrical Code (CEC), CAN/CSA C22.1 and
the National Electric Code (NEC), NFPA 70. An appropriate disconnect device
shall be provided as part of the building installation.

All operating switches should be “Off” before power is connected.

Plug-in power cord option available with built-in low voltage motor.

For Reconfiguration/Conversion of Non-detachable Power Cord to
Field Wiring for Models PRE-28, PRE-29 and PRE-30 Only:

1 Disconnect cord plug from outlet.
2 Remove junction box cover.
3 Disconnect wire nuts from black, white and green wires.
4 Remove power cord and strain relief from screen.
5 Connect the black motor wire to "hot" supply wire.
6 Connect white motor wire to "neutral" supply wire.
7 Connect green/yellow wire to "ground" supply wire.
8 Replace junction box cover.

Operation

CAUTION—Important Instructions: Shipping support brackets must be

removed from each end of dowel during initial operation, before screen is
operated in UP direction. After screen is installed, lower viewing surface to
access screws holding brackets to dowel.
Loosen hex head screw, remove bracket
and retighten screw at each end of dowel.
Raise and lower viewing surface several
times to confirm satisfactory operation. If
viewing surface does not operate properly,
turn power off and check electrical
connections.

110-120V Single Station Control—3-position up-off-down switch permits
operation to be stopped at any point. Factory adjusted limit switches
automatically stop screen when fully down or fully up.

Recessed Installation:

Recess should permit access for
removal of screen if necessary.
Screen may be mounted as in
suspended or wall installation.
Optional Ceiling Opening Trim
Kit also available; see diagram
on page 3 and separate instruc
tion sheet (included with Ceiling
Opening Trim Kit).

The Ceiling Opening Trim Kit is
for use in an acoustical, drop
ceiling only. Not recommended for
drywall or hard ceilings.

Copyright © 2016 Draper Inc. Form Premier_Inst16 Printed in U.S.A.

-

Ceiling Trim Kit

Case

Back

Ceiling Tile

(By others)

Tr im Kit

110-120V Multiple Station Control—Switches are similar in appearance
to 110-120V Single Station Control. Screen stops when switch is released
and may be restarted in either direction. Factory adjusted limit switches stop
screen automatically when fully down or fully up.

24V Control—Three-button up-stop-down switch(es) stop at any point
desired, operate in any sequence. Factory adjusted limit switches
automatically stop screen when fully down or fully up.

Key Operated Switching—Two kinds of key-operated switches are optionally
available with this unit. 1 The key-operated power supply switch controls
power to the screen and switches. When it is “off”, the switches will not
operate screen. Key may be removed from the switch in either “on” or “off”
position. 2 A three-position key switch permits the screen to be operated
directly by key. In this case, the screen’s operator must always have a key.

RS232/Ethernet—Serial communication and network communication
optionally available with wall switches, RF or IR remote.

Plug & PlayTM—Provided with handheld IR remote control transmitter and
10' (3m) cord. No wiring necessary except to connect to RS232. Screen
is equipped with a handheld remote or 3-position operating switch. Three
positions (up-off-down) permit operation to be stopped at any point. Factory
adjusted limit switches automatically stop screen when fully down or fully up.

Continued on page 2

If you encounter any difficulties installing or servicing your Premier screen, call your
dealer or Draper, Inc. Spiceland, Indiana, U.S.A., [phone] or fax [phone].

Premier by Draper

www

kwise

Low Voltage

Single Low Voltage Control

Multiple Low Voltage Controls

Remove two (2)
Torx head screws
from endcap

Remove

access panel

with LVC IV

Remove

access panel

with LVC IV

Electrical

Connection

Hole*

Limit Adjustments (Standard Motors/Quiet Motors)

Please Note: Screen limits are factory set for optimum performance of the
screen. Any adjustment of these limits could void the warranty. Please
check with Draper prior to resetting screen limits.

CAUTION: Always be prepared to shut screen off manually when new
adjustment is being tested. Screen may be severely damaged if viewing
surface is allowed to run too far up or too far down.

CAUTION: Be sure all switches are in “off” position before adjusting limit

switches.

The motor limit screws are normally located on the audience left of screen
roller, and the viewing surface rolls off the back of the roller. If the viewing
surface is coming off the front of the roller (motor on left), or the motor is on
the audience right of the screen roller (with viewing surface rolling off the
back), reverse the below instructions.

To Reduce Screen Drop

1 Raise screen surface about 1' above
desired setting and turn off.
2 Turn the DOWN limit screw clockwise
(three screw turns = ½ roller revolution).
3 Test by running screen down and repeat steps
1 and 2 until desired position is reached.

To Increase Screen Drop

1 Run screen to the down limit.
2 With the down switch on, turn the DOWN limit

screw counterclockwise (three turns of screw equals ½ roller revolution)
to increase drop.

3 Test by running screen up about 1' and back down to new down limit.
4 Repeat steps 2 and 3 until desired position is reached.

Screen is Running Too Far Up

1 Lower screen surface about 1' below desired setting and turn off.
2 Turn the UP limit screw clockwise (three screw turns = ½ roller revolution).
3 Test by running screen up.
4 Repeat steps 1 through 3 until desired position is reached.

Screen Needs to Run Up More

1 Run screen down about 1' and turn off.
2 With the up switch on, turn the UP limit screw counterclockwise

(three turns of screw equals ½ roller revolution).
3 Repeat steps 1 and 2 until desired position is reached.

CAUTION: Do NOT allow the dowel to wrap up over the roller when the
screen is running up! This could damage the screen.

"DOWN" LIMIT ADJUSTMENT

I

+

"UP" LIMIT ADJUSTMENT

DOWN Limit
Countercloc

+

increases

down travel

UP Limit

I

Counterclockwise

increases

up travel

Please Note: Screen limits are factory set for optimum performance
of the screen. Any adjustment of these limits could void the warranty.
Please check with Draper prior to resetting screen limits.
(Height adjustments are made from wall switch)

1 Connect the switch to the motor via the terminal blocks, or via the
modular port using four conductor modular cable. When using modular
cable, the cable connectors MUST NOT be crimped in reverse, as with
standard telephone cable.
2 Set the slide switch to the lower position. Press and hold the DOWN button
on the switch to move the viewing surface to the desired lower limit. If the
screen moves in the opposite direction, release the DOWN button and
press and hold down the STOP button for four seconds. This will reverse
the operation of the UP and DOWN switches.
3 Move slider switch into center position. Wait a couple of seconds.

Please Note: If you move the slider switch from down to up in one
motion it sets the two limits in the same position.

4 Set the slide switch to the higher position. Move the viewing surface to the
desired upper limit by pressing and holding the UP button on the wall switch.

5 Return the slide switch to the center position to return to normal operation.
6 To set the viewing surface to an alternate format position, move the viewing

surface to the desired position and press the STOP button. Press and
hold STOP for at least three seconds to record the position.

Please Note: Pressing and releasing the UP button on the switch will
move the screen to its upper limit. Pressing and releasing the DOWN
button will move the screen to its lower limit.
While the motor is in motion, pressing STOP for less than two
seconds will stop the viewing surface at its present position.
Once the motor is stopped, pressing the STOP button will move the
viewing surface to its alternate format position.
Pressing and holding the STOP button, when the motor is at rest or in
motion, for at least three seconds will record a new alternate format
position.

To Motor

Low Voltage

Switch

To Motor

Built-In

Page 2 of 4

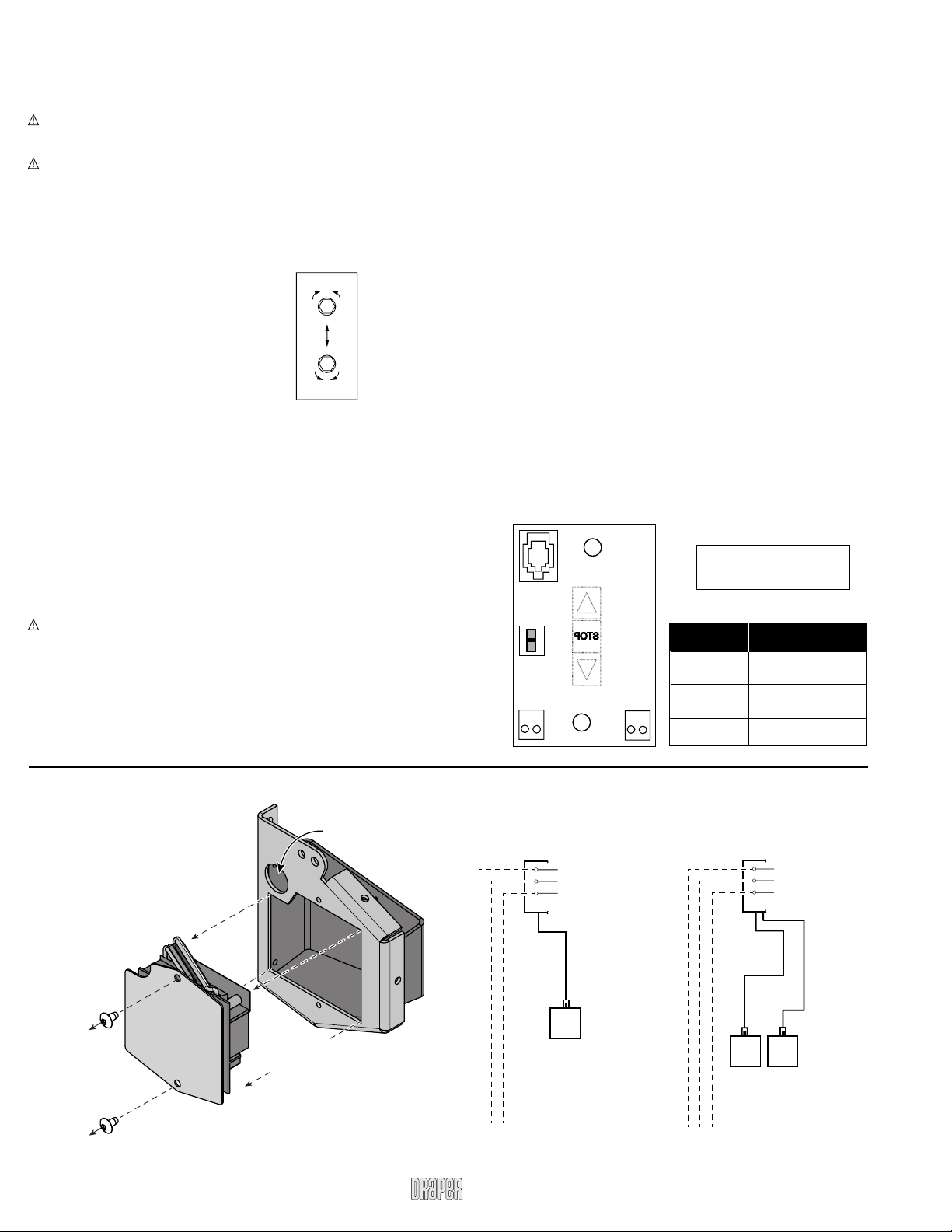

Limit Adjustments (Built-in Low Voltage Motors)

with

Built-In

Slide

with

5V
DC

+

C
o
m
m
o
n

Back View

S T O P

D
o

U

w

p

n

Please Note: 5V DC must be
connected to be able to set
limits using the wall switch.

POSITION

DOWN

UP

CENTER

FUNCTION

Set LOWER limit

Set UPPER limit

Normal Operation

Accessing Internal Low Voltage Control Unit (LVC-IV)

To access the Internal LVC-IV:

1 Remove the two (2) Torx head
screws from the motor
end of the screen housing.

2 Remove the access panel
with the LVC-IV from the
screen housing.

PLEASE NOTE:

Internal LVC-IV will increase
overall case length by 1½".

*A second electrical connection
hole is included in the screen
housing in order to separate Low
Voltage and High Voltage Wiring.

.draperinc.com [phone]

Wiring Diagrams—110-120V Motor and Quiet Motor

with Internal Low Voltage Controller (LVC-IV)

Dashed wiring
by electrician

To 110-120V Line

Internal Screen Wiring

White (Neutral)

Black

Green (Ground)

Data Cable
(by others)

Wall Switch,

RF or IR

Receiver,

or integrated

control system

Dashed wiring
by electrician

Wall Switch(es),

To 110-120V Line

control systems

Internal Screen Wiring

White (Neutral)

Black

Green (Ground)

RF or IR

Receivers,

or integrated

Data
Cable(s)
(by others)

Appropriate hardware
provided by installer.

Appropriate hardware
provided by installer.

Premier by Draper

www

51/4"

1

13

/16"

5

7

/8"

1"

15

/16"

7

/8" dia.
electrical
connection
hole

Mounting
hole

21/8"

"

Screen

Page 3 of 4

Tab-Tension Adjustment Procedure

Draper’s Tab-Tensioning System is factory-set, and under normal circumstances will not require field adjustment.
If, however, you notice wrinkles, waves or other indications that the tensioning cables need to be adjusted, follow the procedure below.

1 Determine which side requires adjustment.
2 Secure dowel with one hand.
3 Using Phillips-head screwdriver, depress spring-loaded adjustment screw and slowly turn CLOCKWISE TO INCREASE tension,

or COUNTER-CLOCKWISE TO RELEASE tension. The screw adjusts in 60° turn increments. Adjust only one increment (60° turn) at a time

4 If problem is not corrected, leave screen in position for 24 hours to allow surface material to stretch into position.
5 If problem still is not corrected, repeat steps 2 and 3.

Caution: Do not touch

TENSIONING

CABLE

or bend surface.

TENSIONING

CABLE

Optional Ceiling Opening Trim Kit

Case

Tr im Kit

Back

Ceiling Tile

(By others)

ADJUSTMENT

SCREW

A

E

R

C

N

I

O

O

L

C

T

DOWEL

Types of Installation

ADJUSTMENT

SCREW

S

E

T

E

N

S

C

I

K

O

W

N

I

S

T

E

U

R

N

DOWEL

S

A

E

E

T

L

E

E

N

R

E

S

R

T

-

C

N

O

L

U

I

O

O

T

O

C

C

N

K

T

W

U

I

S

R

E

N

SuspendedWall

If using "S"
Hooks )by
others), be
sure to crimp
both ends
of the "S"
Hooks.

8"

21/8"

4"

6

Case Dimensions*

1

2

/16

1

/16"

1

3

/4"

PLEASE NOTE:

Internal LVC-IV will increase
overall case length by 2".

.draperinc.com [phone]

Premier by Draper

www

External LVC-IV - Single or Multiple

Projection Screen Wiring Diagram

Single Station Control

Internal Screen Wiring
White (Common)
Black (Directional)*
Red (Directional)*
Green/Ye llow (Ground)

Dashed wiring
by electrician

Control
switch

Single gang box by others
Min. 4" x 2

1

/8" x 17/8" deep

Blue

Black

Red

Location of key
operated on-off
switch if furnished

To 110-120V Line

Multiple Station Control

Internal Screen Wiring
White (Common)
Black (Directional)*
Red (Directional)*
Green/Ye llow (Ground)

Dashed wiring
by electrician

Red

Red

Black

Blue

Blue

Cap off with wire
nut and tape

Black

Red

Blue

Black

Single gang box by others
Min. 4" x 2

1

/8" x 17/8" deep.
3 shown. More or less equally
feasible.

Location of key
operated on-off
switch if furnished

To 110-120V Line

Motor Type Up Down

Standard Red Black
Quiet Red Black

*Motor Direction

Single Low Voltage Control

Multiple Low Voltage Controls

110-120V

Quiet Red Black

*Motor Direction

To

Page 4 of 4

Wiring Diagrams—Plug & Play 110-120V Motor

(Low Voltage Control Built Into Motor)

Internal Screen Wiring

White (Neutral)

Black

Green (Ground)

Data
Cable

Plug

Wall Switch,

RF or IR

Receiver,

or integrated

control system

110-120V

Plug

Wiring Diagrams (Standard and Quiet Motors)

Please Note: Do not wire motors in parallel.

Wall Switches,

RF or IR

Receivers,

or integrated

control systems

Internal Screen Wiring

White (Neutral)

Black

Green (Ground)

Data
Cables

Wiring Diagrams—110-120V Motor

(Low Voltage Control Built Into Motor)

Single Low Voltage Control

110-120V Line To 110-120V Line

Built-in Low Voltage Motor: Switch-to-Motor—

Back of

wall switch.

Internal Screen Wiring

White (Neutral)

Black

Green (Ground)

Data
Cable

Wall Switch,

RF or IR
Receiver,

or integrated

control system

Dry Contacts or Data Cable connection

INSERT MOTOR DATA
CABLE HERE

Multiple Low Voltage Controls

Internal Screen Wiring

White (Neutral)

Black

Green (Ground)

Data
Cables

Wall Switches,

RF or IR

Receivers,

or integrated

control systems

Please Note:

Although both Dry
Contact and Data
Cable connections
are shown, you
should only use
one connection
type per motor.

INTERNAL SCREEN WIRING

TO: MOTOR LEADS

White (Common)

Black (Down)

Green/Yellow

(Motor Ground)

To

110-120 VAC

Line

Red (Up)

L1

N

GND

Motor Type Up Down

Standard Red Black

Please Note: 5V DC must be
connected to be able to set
limits using the wall switch.

White -Common to screen & 110V-220V AC Neutral

Wiring Diagram – External LVC-IV

Red-to screen (directional)

Brown-to screen (directional)

Ye llow-to

110V-220V

AC-Hot

110V-220V

AC-Hot

Black-to

Green/Yellow (Ground)

Location of key
operated on-off
switch if furnished.

Dashed wiring by electrician
Low voltage wiring by others

.draperinc.com [phone]

Receiver

Button

FUSE - 3.15 AMP

250 VAC 5x20mm

3 Button Wall Switch
DOWN - Black
COM - White
UP - Red

Electrically Straight

Data Cable to more

LVC-IV modules*

RS232/485

Inputs/Outputs

IR Eye Input

Low Voltage

Tr igger

3-28 VDC

*A maximum of six (6)
LVC-IV modules can
be linked together.

Please Note:

This Splitter/Jack
is located inside the
motor-end endcap
of your screen.
To access, remove
access panel from
endcap.

Data Cables to switches
or to additional motorscan
be plugged into any of the

three open jacks.

Wall Switch
