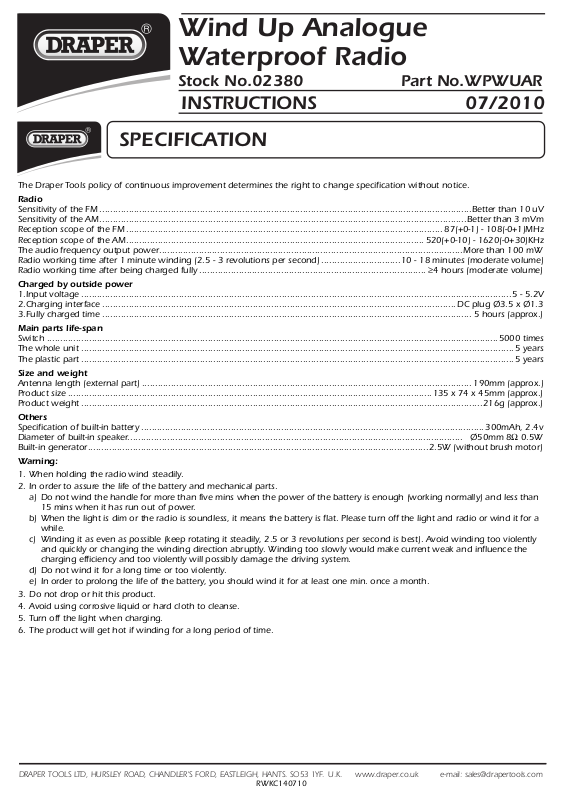

Draper WPWUAR, 02380 Instruction Manual

Wind Up Analogue
Waterproof Radio

Stock No.02380 Part No.WPWUAR

07/2010INSTRUCTIONS

SPECIFICATION

The Draper Tools policy of continuous improvement determines the right to change specification without notice.

Radio

Sensitivity of the FM .............................................................................................................................................Better than 10 uV

Sensitivity of the AM...........................................................................................................................................Better than 3 mVm

Reception scope of the FM ........................................................................................................................ 87(+0-1) - 108(-0+1)MHz

Reception scope of the AM................................................................................................................. 520(+0-10) - 1620(-0+30)KHz

The audio frequency output power...................................................................................................................More than 100 mW

Radio working time after 1 minute winding (2.5 - 3 revolutions per second) ..............................10 - 18 minutes (moderate volume)

Radio working time after being charged fully ...................................................................................... ≥4 hours (moderate volume)

Charged by outside power

1.Input voltage ...................................................................................................................................................................5 - 5.2V

2.Charging interface ......................................................................................................................................DC plug Ø3.5 x Ø1.3

3.Fully charged time ............................................................................................................................................ 5 hours (approx.)

Main parts life-span

Switch ...........................................................................................................................................................................5000 times

The whole unit .................................................................................................................................................................... 5 years

The plastic part ....................................................................................................................................................................5 years

Size and weight

Antenna length (external part) ............................................................................................................................. 190mm (approx.)

Product size ..........................................................................................................................................135 x 74 x 45mm (approx.)

Product weight ........................................................................................................................................................216g (approx.)

Others

Specification of built-in battery ..................................................................................................................................300mAh, 2.4v

Diameter of built-in speaker............................................................................................................................... Ø50mm 8Ω 0.5W

Built-in generator................................................................................................................................. 2.5W (without brush motor)

Warning:

1. When holding the radio wind steadily.

2. In order to assure the life of the battery and mechanical parts.
a) Do not wind the handle for more than five mins when the power of the battery is enough (working normally) and less than

15 mins when it has run out of power.

b) When the light is dim or the radio is soundless, it means the battery is flat. Please turn off the light and radio or wind it for a

while.

c) Winding it as even as possible (keep rotating it steadily, 2.5 or 3 revolutions per second is best). Avoid winding too violently

and quickly or changing the winding direction abruptly. Winding too slowly would make current weak and influence the

charging efficiency and too violently will possibly damage the driving system.
d) Do not wind it for a long time or too violently.
e) In order to prolong the life of the battery, you should wind it for at least one min. once a month.

3. Do not drop or hit this product.

4. Avoid using corrosive liquid or hard cloth to cleanse.

5. Turn off the light when charging.

6. The product will get hot if winding for a long period of time.

DRAPER TOOLS LTD, HURSLEY ROAD, CHANDLER'S FORD, EASTLEIGH, HANTS. SO53 1YF. U.K.

RWKC140710

www.draper.co.uk e-mail: [e-mail]

GETTING TO KNOW YOUR RADIO

OPERATION

WARNING: Do not submerse in water.

1. Winding to charge the unit:
Unlock the handle and wind it at the speed of 2.5 to 3
circles per second.

2. Charged by external power source:
Connect with the 5V adapter to charge the internal
battery, and about 5 hours it will be fully charged.

3. Reception of radio:
A. Operation of the power switch and volume adjusting:

Turn the volume knob clockwise to increase the
volume. Turn the volume switch anticlockwise to
decrease the volume gradually, a “crack” sound will
be heard to show power off.

B. FM/AM wave band shifting: Push the wave band

converting switch down for FM and up for AM.

C. Station search: Observe the tuner indicator while

tuning and select the radio program you need. Tune
the knob to an optimal position in which the
reception effect is the best.

D. Use of antenna:

a). This product adopts telescoping antenna to receive

signal for FM . When the signal is weak, you can
extend the antenna or change the direction of the
antenna to find the optimal position, thus can
improve the reception effect.

Whereas, shrink the antenna when the signal is

strong.

b). It adopts built-in magnetic antenna to receive

signal for AM. You can change the position of the
product properly when the signal is weak.

Note:
a. It is advised to turn the volume to the optimal position

(be comfortable) when you listen to it.

b. Avoid places like high building, basement, etc, as

possible as you can, such places will badly influence the
effect of the reception Leave far away from the induction
cooker, fluorescent lamp, car generator, motor, computer
or such electrical equipment that may disturb the signal
easily.

4. Earphone:
Plug the earphone into the earphone jack, the speaker

will be turned off automatically.
