Quick Reference Guide

For the Dranetz HDPQ Xplorer / Xplorer 400 / Guide / Visa product family.

It is recommended that the user still be familiar with the complete User Guides for the respective products, as it contains more detailed information about all of the functions, as well as the specifications and accessories.

Dranetz

1000 New Durham Road, Edison, New Jersey 08818

Telephone 1-800-372-6832 or 732-287-3680

Fax 732-248-1834



www.dranetz.com

WARNING

Death, serious injury, or fire hazard could result from improper connection of this instrument. Read and understand this manual before connecting this instrument. Follow all installation and operating instructions while using this instrument.

Connection of this instrument must be performed in compliance with the National Electrical Code (ANSI/NFPA 70-2014) of USA and any additional safety requirements applicable to your installation.

Installation, operation, and maintenance of this instrument must be performed by qualified personnel only. The National Electrical Code defines a qualified person as “one who has the skills and knowledge related to the construction and operation of the electrical equipment and installations, and who has received safety training on the hazards involved.”

Qualified personnel who work on or near exposed energized electrical conductors must follow applicable safety related work practices and procedures including appropriate personal protective equipment in compliance with the Standard for Electrical Safety Requirements for Employee Workplaces (ANSI/NFPA 70E-2012) of USA and any additional workplace safety requirements applicable to your installation.

No part of this book may be reproduced, stored in a retrieval system, or transcribed in any form or by any means—electronic, mechanical, photocopying, recording, or otherwise—without prior written permission from the publisher, Dranetz, Edison, NJ 08818-4019.

Printed in the United States of America.

P/N QR-HDPQ Rev B 06.16.14

ADVERTENCIA

Una conexión incorrecta de este instrumento puede producir la muerte, lesiones graves y riesgo de incendio. Lea y entienda este manual antes de conectar. Observe todas las instrucciones de instalación y operación durante el uso de este instrumento.

La conexión de este instrumento a un sistema eléctrico se debe realizar en conformidad con el Código Eléctrico Nacional (ANSI/NFPA 70-2014) de los E.E.U.U., además de cualquier otra norma de seguridad correspondiente a su establecimiento.

La instalación, operación y mantenimiento de este instrumento debe ser realizada por personal calificado solamente. El Código Eléctrico Nacional define a una persona calificada como "una que esté familiarizada con la construcción y operación del equipo y con los riesgos involucrados."

El personal cualificado que trabaja encendido o acerca a los conductores eléctricos energizados expuestos debe seguir prácticas y procedimientos relacionados seguridad aplicable del trabajo incluyendo el equipo protector personal apropiado en conformidad con el estándar para los requisitos de seguridad eléctricos para los lugares de trabajo del empleado (ANSI/NFPA 70E-2012) de los E.E.U.U. y cualquier requisito de seguridad adicional del lugar de trabajo aplicable a su instalación.

AVERTISSEMENT

Si l'instrument est mal connecté, la mort, des blessures graves, ou un danger d'incendie peuvent s'en suivre. Lisez attentivement ce manuel avant de connecter l'instrument. Lorsque vous utilisez l'instrument, suivez toutes les instructions d'installation et de service.

Cet instrument doit être connecté conformément au National Electrical Code (ANSI/NFPA 70-2014) des Etats-Unis et à toutes les exigences de sécurité applicables à votre installation.

Cet instrument doit être installé, utilisé et entretenu uniquement par un personnel qualifié. Selon le National Electrical Code, une personne est qualifiée si "elle connaît bien la construction et l'utilisation de l'équipement, ainsi que les dangers que cela implique".

Le personnel qualifié qui travaillent dessus ou s'approchent des conducteurs électriques activés exposés doit suivre des pratiques en matière et des procédures reliées par sûreté applicable de travail comprenant le matériel de protection personnel approprié conformément à la norme pour des conditions de sûreté électriques pour les lieux de travail des employés (ANSI/NFPA 70E-2012) des Etats-Unis et toutes les conditions de sûreté additionnelles de lieu de travail applicables à votre installation.

WARNUNG

Der falsche Anschluß dieses Gerätes kann Tod, schwere Verletzungen oder Feuer verursachen. Bevor Sie dieses Instrument anschließen, müssen Sie die Anleitung lesen und verstanden haben. Bei der Verwendung dieses Instruments müssen alle Installation- und Betriebsanweisungen beachtet werden.

Der Anschluß dieses Instruments muß in Übereinstimmung mit den nationalen Bestimmungen für Elektrizität (ANSI/NFPA 70-2014) der Vereinigten Staaten, sowie allen weiteren, in Ihrem Fall anwendbaren Sicherheitsbestimmungen, vorgenommen werden.

Installation, Betrieb und Wartung dieses Instruments dürfen nur von Fachpersonal durchgeführt werden. In dem nationalen Bestimmungen für Elektrizität wird ein Fachmann als eine Person bezeichnet, welche "mit der Bauweise und dem Betrieb des Gerätes sowie den dazugehörigen Gefahren vertraut ist."

Qualifiziertes Personal, das an bearbeiten oder herausgestellte angezogene elektrische Leiter sich nähern, muß anwendbare Sicherheit bezogener Arbeit Praxis und Verfahren einschließlich passende persönliche schützende Ausrüstung gemäß dem Standard für elektrische Sicherheitsauflagen für Angestellt-Arbeitsplätze (ANSI/NFPA 70E-2012) der Vereinigten Staaten und alle zusätzlichen Arbeitsplatzsicherheitsauflagen folgen, die auf Ihre Installation anwendbar sind.

Safety Summary

Definitions

WARNING statements inform the user that certain conditions or practices could result in loss of life or physical harm.

CAUTION statements identify conditions or practices that could harm the instrument, its data, other equipment, or property.

NOTE statements call attention to specific information.

Symbols

The following International Electrotechnical Commission (IEC) symbols are marked on the top and rear panel in the immediate vicinity of the referenced terminal or device:

Caution, refer to accompanying documents (this manual).

Alternating current (AC) operation of the terminal or device.

Direct current (DC) operation of the terminal or device.

Power switch

Safety Precautions

The following safety precautions must be followed whenever any type of voltage or current connection is being made to the instrument.

• Connect the safety (earth) ground first, before making any other connections.

• When connecting to electric circuits or pulse initiating equipment, open their related breakers. DO NOT install any connection of the instrument on live power lines.

• Connections must be made to the instrument first, then connect to the circuit to be monitored.

• Wear proper personal protective equipment, including safety glasses and insulated gloves when making connections to power circuits.

• Hands, shoes and floor must be dry when making any connection to a power line.

• Make sure the instrument is turned OFF before connecting probes to the rear panel.

• Before each use, inspect all cables for breaks or cracks in the insulation. Replace immediately if defective.

• If the equipment is used in a manner not specified in this user guide, the protection provided by the equipment may be impaired. These safety precautions are repeated where appropriate throughout this manual.

TABLE OF CONTENTS

Introduction…………………………………………….…… 8

Getting Started……………………………………………... 9

Connecting to AC Power Source………………...………... 10 Controls, Indicators and Connectors….………...………… 12

Making Connections…………….………………………… 15 Connecting Voltage Measurement Cables……………….. 16 3 Phase Four Wire Wye…………………………………….. 19

3 Phase (Floating or Grounded) Delta …….……......……. 20

Xplorer UI Touchscreen Features…………..……...…… 21

Xplorer Touch Icon Buttons……........………...………… 22

Xplorer Home Monitoring Page…...………..…………… 23

Key Instrument Control Functions……………......……….. 24

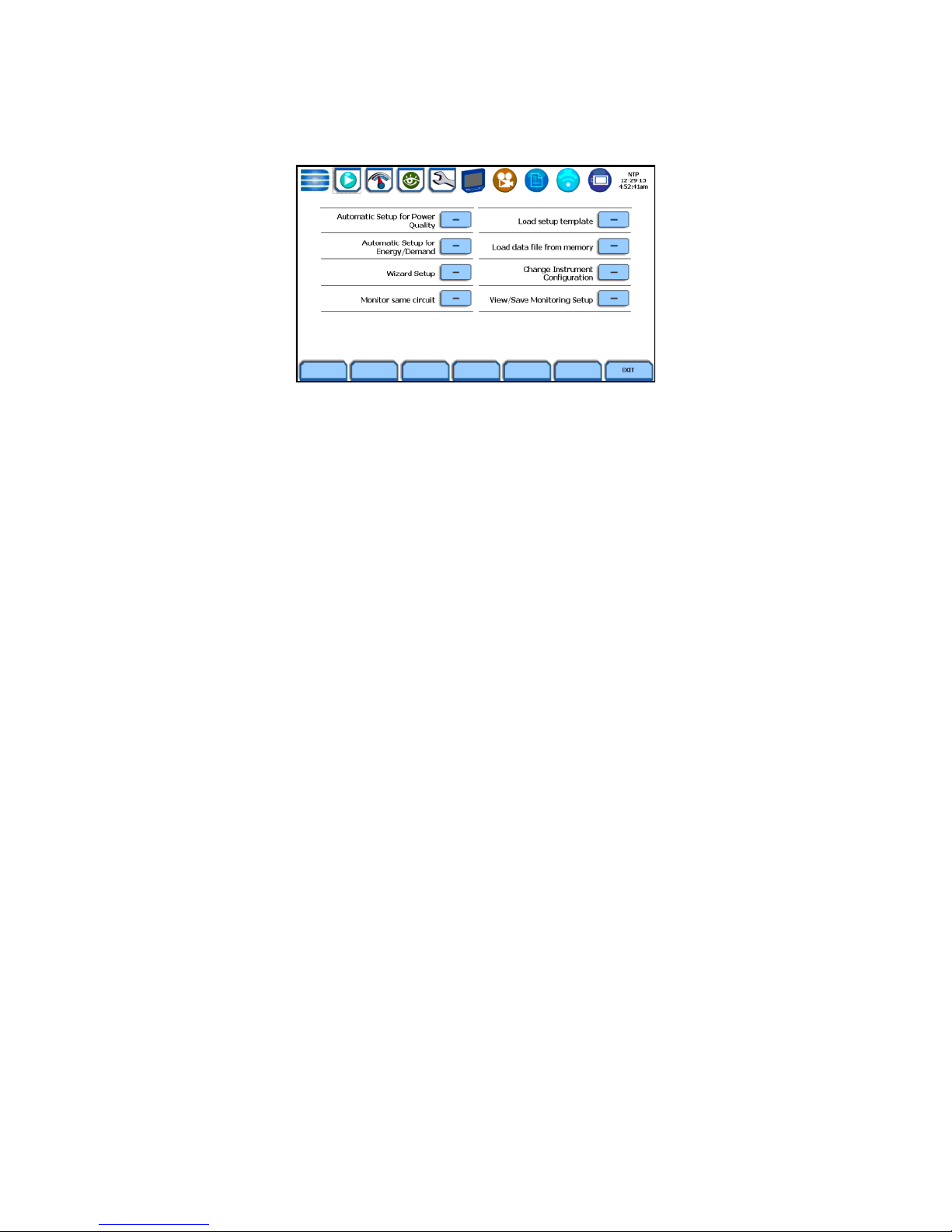

Setup Monitoring....................................……………….. 25

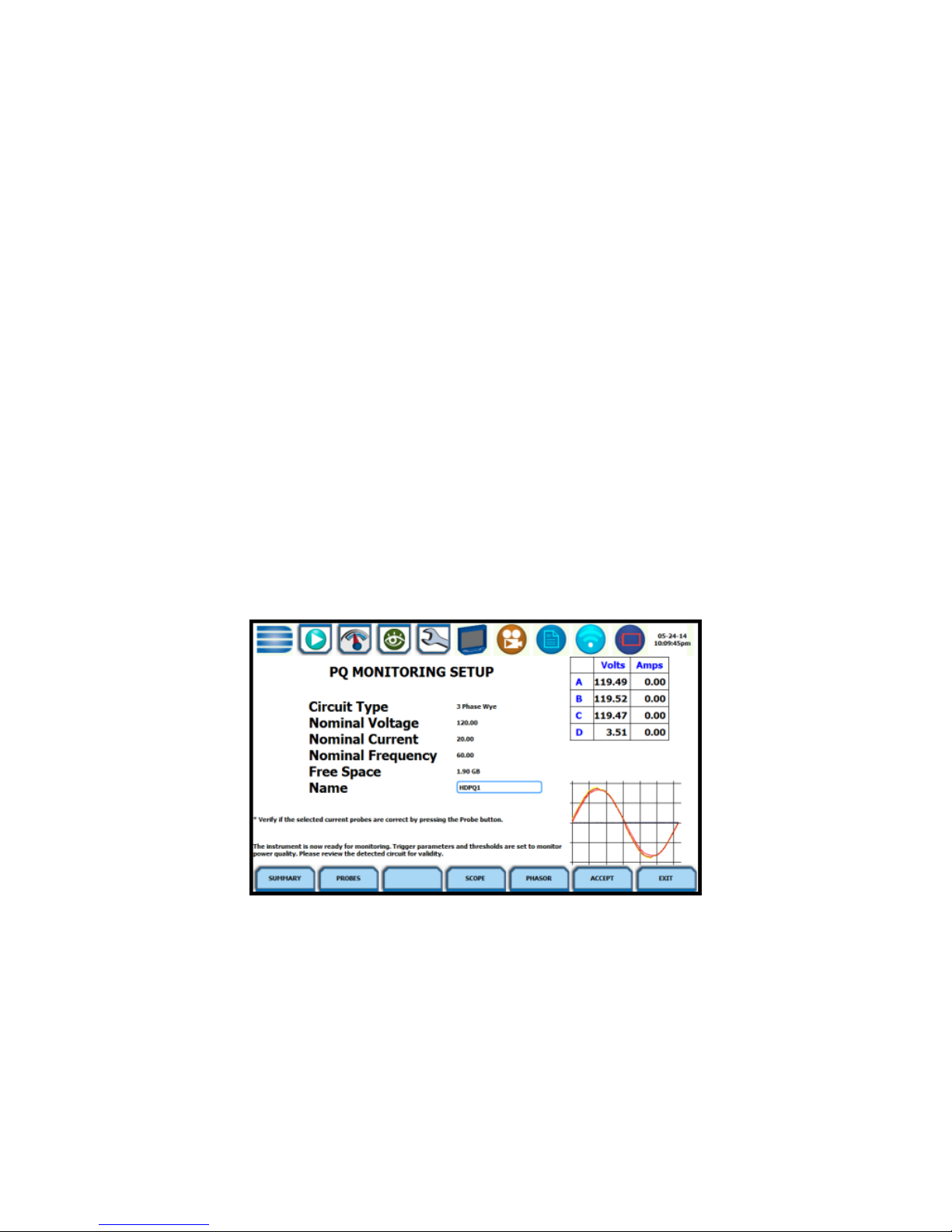

Measurement Connections………………………..……….. 26 Automatic Setup for Power Quality….…………………….. 26 Automatic Setup for Energy/Demand.…………………….. 27 Wizard Setup…………………………………………..…….. 27 Input Configuration….……………………………...……….. 28

Monitor Same Circuit.......…………....…………………….. 38

Load Setup Template………………....……...…………….. 39

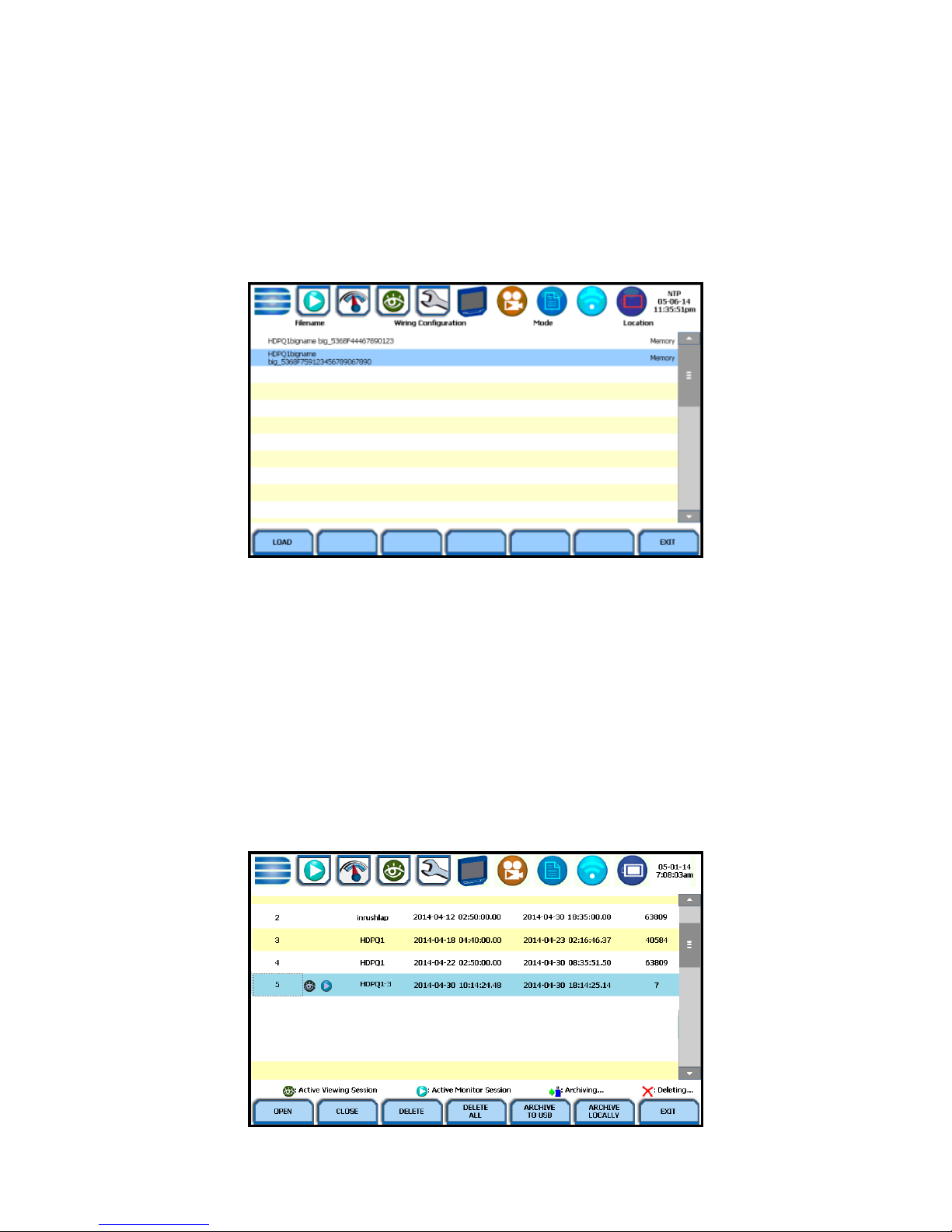

Load Data File from Memory.………………………..…….. 39 Change Instrument Configuration……………...………….. 41

View/Save Monitoring…...…………....…………………….. 41

Instrument Settings.................................……………….. 42

Set Up Communications Options……....………...……….. 43

Download Data Remotely via Network, WiFi & Bluetooth PAN.. 44

Download Data via USB Connection..………...……....….. 45

Real Time Meter Modes…………………………………... 46 Scope Mode …………….…………………………………… 46 Dial Meters (graphical).….……………………………..…… 46 Text Display Meters (tabular)………………………………. 47

Dashboard............………………………………..…………. 47

Harmonics ……………………………....…………………… 48

Phasor Display ……………......……………………………. 48

Strip Chart Recorder…………………………..……………. 49

Stored Data Functions and Displays…..………………. 50 Event Data and Reports Menu………….……………...…. 50 Trend Plot.………………………………………………...…. 51

Trend with Event Markers..……………………………...…. 51 Event List.………………………………………………….… 52 Event Plot (rms)……………...…………………………...…. 53 Event Waveform..………………………………………...…. 53 Event Detail………………..……………………………...…. 54

Reports.………………………..……………………..……… 55 Voltage Compliance Report….………………...………..…. 55 Energy and Demand Report……...……………..…………. 57

Harmonics Statistics Report………....……..……………… 58

Mini-Report Viewer..………......……………………………. 58

General Specifications…..…………………………….….. 59

Statement and Notices….………………………………… 59

INTRODUCTION

The Dranetz HDPQ hand-held, eight-channel power quality meter/monitors which are very similar in operation, although the Xplorer also has a high speed sampling board for capturing the details of very fast transients. The features common to all monitors are covered in this document, and the Xplorer name will be used to represent all four instruments unless otherwise noted. These cutting-edge power quality instruments are designed with a 7” WVGA wide screen LCD, using touch screen technology. They can monitor, record and display data on four voltage channels, as well as four current channels simultaneously.

The Xplorer is designed to meet both the IEEE 1159 and IEC 61000-430 Class A standards for accuracy and measurement requirements. It can do PQ-optimized acquisition of power quality related disturbances and events. It is designed with a statistical package called Quality of Supply (QOS), with monitoring and setup protocols set to determine voltage measurement compliance required for EN50160 monitoring. European standard EN50160 requires that measurement parameters must be within a specified percentage for 95% of the time.

The Xplorer also allows you to perform automatic setup or to customize threshold settings for power quality or energy/demand. The power quality and energy/demand dashboard interface helps you monitor and manage energy consumption including utility costs.

The Xplorer firmware can monitor power quality and energy/demand phenomena for troubleshooting and/or compliance purposes. It can record inrush conditions, carry out long-term statistical studies to establish performance baselines, and perform field-based equipment testing and evaluation for commissioning and maintenance. The firmware integrates an intuitive instrument setup procedure to ensure the capture of all relevant data for additional post process analysis, report writing, and data archiving using other compatible Dranetz software applications such as Dran-View

Xplorer, Xplorer 400, Guide and Visa are portable,

GETTING STARTED

IMPORTANT NOTICE

 Charge Battery Before Use

Always charge the battery fully before using the instrument!

The instrument will fully charge its internal battery in three (3) hours.

The instrument will always operate on the charger and is designed to do so regardless of the state of charge of the battery.

Refer to the User Guide for additional information.

 Set Time and Date

From the Home screen, press the Setup Instrument then press Set Time and Date.

Set the time zone applicable to your application using the Time Zone drop down selection list.

NOTE: Time and/or date cannot be changed if monitoring is on.

The Xplorer also lets you synchronize time, so that all of your devices are using the same time for data recording. Time sync options include GPS, NTP or Real Time Clock (RTC). Each Time Sync Source button toggles the respective source enabled or disabled.

If all three are enabled, time sync is sourced by the instrument in the following priority order: If GPS is available, then it is used. If not and NTP is available, then NTP is used. If neither GPS nor NTP is available, then RTC is used.

NOTE: If the battery is removed and only RTC time is available, the instrument reverts to the default time/date.

Refer to the User Guide for additional information.

( ) icon,

Connecting to AC Power Source

Power The Xplorer AC adapter can be connected to a 50/60 Specifications Hz, 90-264V AC power input source.

CAUTION Always set the power switch to the off position

before connecting or disconnecting the input power cable.

Operation of the Xplorer from an AC voltage source other than the rated voltage input stated on the instrument nameplate can cause damage to the instrument.

PRECAUCION Siempre fije el interruptor de encendido en la

posición apagada antes de conectar o desconectar el cable de energía de entrada.

La operación del Xplorer desde una fuente de voltaje

de ca que no sea la entrada de voltaje nominal indicada en la placa de identificación de la unidad puede causar daños a la unidad.

MISE EN Mettez toujours l’interrupteur dans la position GARDE ouverte avant de connecter ou de déconnecter le câble d’alimentation primaire.

Mettez toujours l’interrupteur dans la position ouverte avant de connecter ou de déconnecter le câble d’alimentation primaire.

VORSICHT Vor dem Einstecken bzw. Ausstecken des

Eingangsnetzkabels den Netzschalter immer in die Aus-Stellung bringen.

Der Betrieb des Xplorer von einer

Wechselspannungsquelle, die nicht dem auf der Namensplatte der Einheit aufgeführten Nennspannungseingang entspricht, kann zur Beschädigung der Einheit führen.

AC Power

The Xplorer can be operated from a 50/60 Hz,

Source 120/240V AC power source with or without the battery

pack installed.

• Voltage range, 120/240V AC

• Frequency, 50/60 Hz

• Power consumption, 20W

STEP 1 Connect the AC adapter/battery charger plug into the left

side of the instrument.

STEP 2 Plug the AC adapter into an AC power source.

STEP 3 Press the momentary On/Off power switch to turn the

instrument on. Result

: The Dranetz logo will be displayed while the

instrument is booting.

STEP 4 The instrument completes the power on sequence. If the

instrument was shut down while monitoring, the instrument will resume monitoring upon power up.

Result: Upon start-up, the Home screen serves as the access point for major instrument control functionalities.

Home Screen: The Home screen displays large shortcut buttons to include Start Monitoring, Real Time Data, Recorded Data and Instrument Setup. Repeated pressing of the Dranetz logo alternates between the Home screen and the Home Monitoring screen.

Home Monitoring Screen: After the instrument has been powered up and monitoring is turned ON, the Home Monitoring screen becomes the start-up page. This is the screen from which all other functions launch and eventually return back to using the Exit function key.

Controls, Indicators and Connectors

Top View

Voltage and Current Connections - There are four differential voltage

and four differential current channels, which can be wired to measure a variety of circuit configurations. Use only Dranetz voltage leads and current probes for proper operation. Do not exceed the marked maximum ratings.

Front View

Color LCD with Touch Screen – the color LCD has an integral touch

screen that is used to select functions for setups, real time meters, and viewing stored data. The color LCD touch screen is operable using the finger and/or a stylus. The touch screen display permits menu selection and alphanumeric data entry. Clean only with a soft cloth.

Power Indicator - LED will light steadily when the instrument is operating normally.

Three Button Icons - used to perform various functions i.e. take a Snapshot of the active screen, capture Mini-Reports and access Help screens. These buttons cannot be activated with gloves on, as they employ capacitive or touch technology.

Left Side View

Left Side Panel - contains the power switch, GPS receiver port, and AC

adapter input connector.

Right Side View

Right Side Panel - contains the ethernet port and two USB port

connectors for the USB flash drive, as well as the USB cable for plug & play file transfer directly to a computer.

Rear View

Rear Panel - shows the device mounting hanger located on top if you

want to hang the instrument on a panel, wire coil holders to manage wire connections, and the hinge which deploys a stand. The stand also has features to hold the measurement wiring.

Field Replaceable Battery Pack – the internal UPS feature requires that the internal batteries be properly charged and maintained. If the battery pack is in need of replacement, de-energize the connections and power to the instrument before opening the battery door. Replace the pack only with the Dranetz battery pack P/N BP-HDPQ.

MAKING CONNECTIONS

WARNING

Death, serious injury, or fire hazard could result from improper connection of this instrument. Read and understand the warnings in the beginning of this manual before connecting this instrument.

ADVERTENCIA

AVERTISSEMENT

WARNUNG

Connecting Voltage Measurement Cables

Measurement Cable Set

Description: Voltage measurement cables are provided as standard accessories, and are stored in a cable pouch as part of the measurement cable set, P/N VSC-HDPQ. Each cable set consists of a cable and an alligator clip.

Voltage Rating: Direct connection of all voltage measurement cables are rated at 1000 VCAT III Vrms max. For measuring voltages greater than 1000 Vrms, potential transformers (PTs) must be used.

Interconnect Jumpers

Optional Fused Voltage Adapter

The standard cable set for the HDPQ includes four (4) interconnect jumpers bearing part number 114013G1. These interconnect jumpers can be used to connect the same conductor points together and are rated 600V CAT III. When using the interconnect jumpers, also use the supplied wire markers to identify the wiring connections applicable to your installation.

WARNINGS

DO NOT EXCEED 600 VRMS when using Dranetz P/N 114013-G1 interconnect jumpers.

For circuit configurations above 600VRMS, each voltage channel input is to be individually connected to the HDPQ instrument with the supplied 1000V CAT III cables and safety clips ONLY.

There are two optional fuse voltage adapter accessory kits available for use with the measurement cables for the HDPQ Xplorer. A single kit (P/N FVA-1K1) contains one (1) fuse voltage adapter and one (1) black measurement connecting cable 50 cm in length. The other kit (P/N FVA-1K4) contains four (4) fuse voltage adapters and four (4) black measurement connecting cables 50 cm in length. These fuse voltage adapters are rated up to 1000V AC/DC applications.

A wire marker kit consisting of snap-on wire markers in various colors are also supplied with each fuse voltage adapter to be used for identifying connections applicable to your installation.

The single fuse voltage adapter kit is used for one single voltage measurement input, while the four fuse voltage adapter kit is used for a three phase and neutral voltage measurement inputs.

Wire Markers Each kit consisting of snap-on wire markers in various

colors is supplied as described in the following table. These wire markers are to be used to identify each wire connection applicable to your installation.

 WMV-KIT (118376-G1) measures 0.138 inch

diameter; kit is included with the standard measurement cable set and used for identifying voltage cables.

 WMI-KIT (118377-G1) measures 0.218 inch

diameter; kit is included with the standard measurement cable set and is used for identifying current probes.

 WMFV-KIT (118376-G2) measures 0.138 inch

diameter; kit is supplied with each Fuse Voltage Adapter and is used for identifying voltage cables.

Wire Marker Color WMV-KIT

Quantity

WMI-KIT Quantity

WMFV-KIT

Quantity

Blue 16 4 4

Black 4 4 4

Brown 4 4 4

Orange 4 4 4

Yellow 4 4 4

Red 4 4 4

Green 4 4 4

White 16 4 4

Measurement Cable with Optional Fused Voltage Adapter

 WARNING: To avoid the risk of electric shock or burns, always

connect the safety (or earth) ground before making any other connections.

 WARNING: To reduce the risk of fire, electrical shock, or physical

injury, it is strongly recommended to fuse the voltage measurement inputs. Fuses must be located as close to circuit connection as possible to maximize protection.

 WARNING: For continued protection against risk of fire or shock

hazard, replace only with same type and rating of recommended fuse.

 WARNING: Do not replace fuse again if failure is repeated.

Repeated failure indicates a defective condition that will not clear with replacement of the fuse. Refer condition to a qualified technician.

---------------------------------------------------------------------------------

The Xplorer can monitor the following power configurations:

 Single Phase  Split Phase  3 Phase, Four Wire Wye  3 Phase (Floating or Grounded) Delta  3 Phase 2-Watt Delta  Generic Circuit  2 ½ Element without Vb  2 ½ Element without Vc

3 Phase, Four Wire Wye and 3 Phase (Floating or Grounded) Delta are described in this Quick Reference Guide. For other configurations, please refer to the complete User Guide, UG-HDPQ.
