Drake digital ALT72 User Manual

®

ALT 72 Assistive Listening System

Contains an ALT 72 Assistive Listening Transmitter

and 2 Model MR306 FM Receivers

Instruction Manual

Creating Sound Solutions for Easy Listening

TM

ii Caution Statements

WARNING: TO PREVENT FIRE OR

ELECTRICAL SHOCK DO NOT

EXPOSE TO RAIN OR MOISTURE

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK,

DO NOT REMOVE COVER

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED PERSONNEL

WARNING:

CAUTION:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
DO NOT OPEN THE CABINET, REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION
CORD RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.

A product and cart combination should be moved
with care. Quick stops, excessive force and
uneven surfaces may cause the product and cart
combination to overturn.

The lightning flash with arrow head symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying
the product.

ATTENTION:

POUR PREVENIR LES CHOCS ELECTRIQUES, NE PAS UTILISER CETTE FICHE POLARISEE
AVEC UN PROLONGATEUR, UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE
COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER
AUCUNE PARTIE A DECOUVERT.

Important Safety Instructions iii

1. Read Instructions—All the safety and operating instructions should be read
before the product is operated.

2. Retain Instructions—The safety and operating instructions should be
retained for future reference.

3. Heed Warnings—All warnings on the product and in the operating
instructions should be adhered to.

4. Follow Instructions—All operating and use instructions should be followed.

5. Cleaning—Unplug this product from the wall outlet before cleaning. Do not

use liquid cleaners or aerosol cleansers. Use a damp cloth for cleaning.

6. Attachments—Do not use attachments that are not recommended by the
product manufacturer as they may cause hazards.

7. Water and Moisture—Do not use this product near water—for example,
near a bathtub, wash bowl, kitchen sink or laundry tub; in a wet basement;
or near a swimming pool; and the like.

8. Accessories—Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury to a child or adult,
and serious damage to the product. Use only with a cart, stand, tripod, bracket,
or table recommended by the manufacturer, or sold with the product. Any
mounting of the product should follow the manufacturer's instructions, and
should use a mounting accessory recommended by the manufacturer.

9. A product and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the product and cart
combination to overturn.

10. Ventilation—Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect it from
overheating, and these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa, rug,
or similar surface. This product should not be placed in a built-in installation
such as bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.

11. Power Sources—This product should be operated only from the type of
power source indicated on the marking label. If you are not sure of the type of
power supplied to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other
sources, refer to the operating instructions.

12. Grounding or Polarization—This product may be equipped with a
polarized alternating-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
Alternate Warnings—If this product is equipped with a three-wire grounding­type plug, a plug having a third (grounding) pin, the plug will only fit into a
grounding-type power outlet. This is a safety feature. If you are unable to insert
the plug into the outlet, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the grounding-type plug.
12 a. Mise à la terre ou Polarisation—Cet appareil est équipé avec un cordon
d'alimentation à trois fils. Il est a brancher sur une prise ayant un connecteur a
la terre. Assurez-vous que la connection a la terre ne manque pas.

13. Power-Cord Protection—Power-supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience receptacles,
and the point where they exit from the product.

14. Outdoor Antenna Grounding—If an outside antenna or cable system is
connected to the product, be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
See Figure A.

15. Lightning—For added protection for this product during a lightning storm,
or when it is left unattended and unused for long periods of time, unplug it from
the wall outlet and disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line surges.

16. Power Lines—An outside antenna system should not be located in the
vicinity of overhead power lines, other electric light or power circuits, where it
can fall into such power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touching such power lines
or circuits as contact with them may be fatal.

17. Overloading—Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or electric shock.

18. Object and Liquid Entry—Never push objects of any kind into this product
through openings as they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never spill liquid of any kind
on the product.

19. Servicing—Do not attempt to service this product yourself as opening
or removing covers may expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.

20. Damage Requiring Service—Unplug this product from the wall outlet and
refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged,
b. If liquid has been spilled, or objects have fallen into the product,
c. If the product has been exposed to rain or water,
d. If the product does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the
product to its normal operation,

e. If the product has been dropped or damaged in any way, and
f. When the product exhibits a distinct change in performance—this indicates

a need for service.

21. Replacement Parts—When replacement parts are required, be sure the
service technician has used replacement parts specified by the manufacturer
or have the same characteristics as the original part. Unauthorized substitutes
may result in fire, electric shock or other hazards.

22. Safety Check—Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to determine that the
product is in proper operating condition.

23. Wall or Ceiling Mounting—The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.

24. Heat—The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products (including amplifiers) that
produce heat.

NOTE TO CATV SYSTEM INSTALLERS:

THIS REMINDER IS PROVIDED TO CALL THE
CATV SYSTEM INSTALLER'S ATTENTION TO
ARTICLE 820 - 40 OF THE NEC THAT
PROVIDES GUIDELINES FOR PROPER
GROUNDING AND, IN PARTICULAR,
SPECIFIES THAT THE CABLE GROUND
SHALL BE CONNECTED TO THE
GROUNDING SYSTEM OF THE BUILDING, AS
CLOSE TO THE POINT OF CABLE ENTRY AS
PRACTICAL.

Example of antenna grounding as per National Electrical Code, ANSI/NFPA 70

GROUND CLAMP

ELECTRIC
SERVICE
EQUIPMENT

NEC - NATIONAL ELECTRIC CODE

Figure A

ANTENNA
LEAD IN
WIRE

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

iv

This page left intentionally blank

Table of Contents v

Thank you for purchasing an ALT 72 Assistive Listening
System. This product has been designed and manufac­tured to high quality standards, and will provide reliable
operation for many years.
Please carefully read the Instruction Manual for proper
installation of the transmitter to ensure reliable listening
range.

Caution Statements

Important Safeguards

Table of Contents

Specifications / Options and Accessories

Introduction - General Description

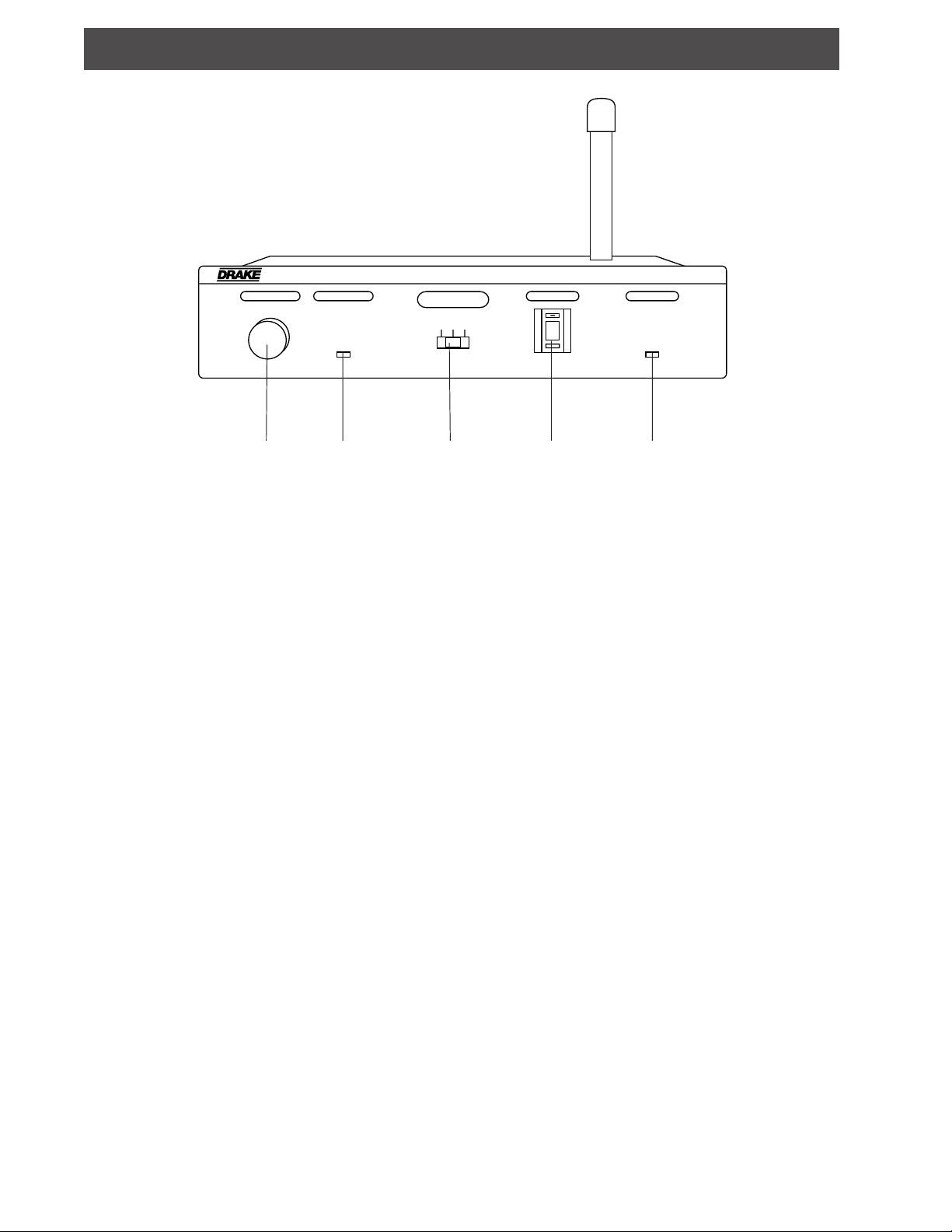

Front Panel Controls and Indicators

Rear Panel Controls and Connections

Installation

Setup and Operation

Also included with the system are (3) three ALT 72
Assistive Listening System decals. These decals can
be posted to inform people that a facility is equipped
with the AudioAccent

ii

iii

v

vi

1

2

3

4
4

TM

Assistive Listening System.

Operating the MR306 Receiver

Service Information / If You Need To Call For
Help

Warranty

6

8

9

vi Specifications / Options and Accessories

SPECIFICATIONS:

Frequency Coverage:

Frequency Selection:

Frequency Generation:

Frequency Stability:

Tuning Step Size:

Modulation:

FM Deviation:

Pre-Emphasis:

RF Field Strength:

Audio Input Level for

75 kHz Peak Deviation-

XLR Connector:

RCA Phono Connector:

72.1 to 72.9 MHz, 74.7 MHz,
and 75.3 to 75.9 MHz.

Selectable by front panel
channel switch.

PLL Synthesis.

0

±10 ppm, 0

to +500 C.
200 kHz.
FM, 180KF3E.
±75 kHz, maximum.
75 µSec.
80 mV/m @ 3m with

supplied flexible antenna
("rubber duck") or optional
magnetic mount antenna.

20K Ohm input impedance,
balanced.

-10 to +10 dBu manual gain
adjustment with front panel
modulation indicator.

20K Ohm input impedance,
unbalanced.

-16 to +4 dBu manual gain
adjustment with front panel
modulation indicator.

Frequency Response:

Ultimate S/N Ratio:

(with Drake Model MR306

receiver)

Total Harmonic Distortion:

Power Requirement:

Antenna:

Size:

Weight:

Agency Approval:

Front Panel:

Rear Panel:

20 Hz to 15 kHz, ±1 dB
referenced to a standard
75 µSec. pre-emphasis curve.

Greater than 60 dB, monaural.

Less than 0.25%, typical.
12 VDC @ 200 mA, regulated

by supplied wall AC Adapter.
Flexible 7 inch length whip.

7.25" (18.4 cm) W x

1.6" (4.1 cm) H x

5.0" (12.7 cm) D
(with antenna removed).

1.9 lbs. (0.85 Kg.)
FCC Part 15 Certification.

Industry Canada Certification.
Channel switch, Limiting/

Compression switch, Input
Level control, Modulation
indicator, and Power indicator.

XLR connector with
GROUND LIFT switch,
RCA Phono connector,
DC Power Input connector,
Power On/Off switch, and
External Antenna connector.

1) Optional Magnetic-mount Antenna:

3) Side-by-side 1 RU Rack Mount:

2) Additional MR306 Receivers:

MR306 SPECIFICATIONS:

Frequency Range:

digital
receiver

FM

MEMO

TUNING

M1M2M3M4M5

®

10% THD Output

Receiver Accessories:

Antenna:

Power:

Battery:

FM 72.0 MHz to

108.1 MHz
FM Headphone Cord

Earphone­10mW + 10mW
Speaker- 30mW

3 VDC (1.5Vx2)
"AAA"/RO3/UM4

Stereo Dynamic
Headphones (1pair)

Introduction - General Description 1

The ALT 72 is a wideband FM Listening System which
operates in the 72 - 76 MHz frequency band. Designed
for hearing assistance in places of public access, the
ALT 72 is for those who need help overcoming
background noise, reverberation, or distance from the
sound source. It is easily integrated with your existing
sound system.

Loudspeakers

Line-Level

Input

The Assistive Listening System has two principal parts:
the ALT 72 Assistive Listening Transmitter, and the
MR306 FM Receivers. Audio input to the ALT 72 is
broadcast as an FM signal (72.1 - 72.9 MHz, 74.7 MHz,
and 75.3 - 75.9 MHz) to as many MR306 receivers as
desired. The receivers pick up the broadcast in an area
up to approximately 700,000 square feet (approximate
radius of 500 feet).

Microphones (wired or wireless type)

Sound System Amplifier

Line-Level Output

MR306 FM Receivers with Earphones

INPUT LEVEL

4

3

2

1

0

5

6

10

MODULATION LIMITING/

7

8

9

ALT 72 ASSISTIVE LISTENING TRANSMITTER

OFF L C+L

CHANNEL

7

+

COMPRESSION

POWER

ALT 72 Transmitter

ARCHITECTURAL AND ENGINEERING
SPECIFICATIONS

The transmitter shall operate in the 72 - 76 MHz Auditory
Assistance Band as approved by the FCC. Specifically, the
transmitter shall operate on the wideband channels spaced
at 200 kHz increments on frequencies of 72.1 to 72.9 MHz,

74.7 MHz, and 75.3 to 75.9 MHz. The transmitted field
strength shall not exceed 80 millivolts per meter at a 3 meter
distance. The operating frequency shall be programmable
by a front panel 10-position pushwheel switch. The transmit­ter shall be FCC and Industry Canada approved.

Maximum FM deviation shall not exceed ±75 kHz.
Frequency stability shall be controlled by a phase-locked
loop frequency synthesizer with crystal reference and shall
be accurate within ±0.001% from 0

0

to +500 C. The transmit­ter shall permit fitting of a 7" flexible whip antenna mounted
through the top cover of the unit, or permit connection of an
optional magnet mount antenna, with coaxial cable, to a rear
panel connector. Only the particular antenna type intended
for this connection shall be specified.

The transmitter shall have an XLR connector for balanced
audio input and an RCA Phono connector for unbalanced
audio input. The transmitter shall provide a GROUND LIFT
switch for the XLR input. The transmitter shall permit switch
selection of no limiting, limiting only, or limiting and
compression operation from a front panel switch. There
shall be a front panel control to adjust the audio input level
with an LED MODULATION indicator.

digital
receiver

FM

MEMO

TUNING

M4

M5

M1M2M3

®

digital
receiver

FM

MEMO

TUNING

M1M2M3M4M5

®

The transmitter shall be powered by an external AC line to
12 VDC power adapter. The rear panel shall have a power
switch and front panel display indication when power is
active. The transmitter shall permit either desktop mounting
or side-by-side mounting in a standard 1 RU rack package.

The receiver shall be tunable in 100 kHz increments for
reception in the 72 - 108.1 MHz Band. Tuning to the
required frequency shall be permitted by the

/ TUNING

buttons or by user programmable memory recall. The
receiver shall have five preset memory channels that are
recalled by individual memory channel buttons. The receiver
shall be equipped with a LOCK switch to prevent inadvertent
setting changes. The receiver shall be set to either
STEREO or MONO reception with a switch. The receiver
shall have a Volume control. The receiver shall have a 1/8"
stereo/mono headphone connector and a switch to select
audio output to either the headphone (EAR) connector or to
the internal speaker (SPK). The output power shall be 10
mW + 10 mW to the headphone (EAR) connector or 30 mW
to the internal speaker. The receiver shall be powered by
two “AAA” size, 1.5 V batteries with power controlled by an
ON/OFF switch. The headphone wiring shall provide the FM
antenna.

The R.L. Drake ALT 72 Assistive Listening Transmitter with
MR306 FM Receiver(s) system is specified.

2 Front Panel Controls and Indicators

ALT 72 ASSISTIVE LISTENING TRANSMITTER

INPUT LEVEL

5

4

3

2

1

0

1 2 3 4 5

MODULATION LIMITING/

6

7

8

9

10

COMPRESSION

OFF L C+L

CHANNEL

7

+

POWER

1. INPUT LEVEL CONTROL - This control is used to
adjust input sensitivity. It should be set at or just below
the point where the modulation indicator lights on audio
peaks.

2. MODULATION INDICATOR - Lights to indicate that
full modulation is being reached when the LIMITING/
COMPRESSION switch (see Item 3) is set to “OFF”.
With the switch set for either the “L” or “C+L” position,
this indicator will light on audio signal peaks as the
limiter is activated at full modulation level. Also see
Item 3 for additional hints for proper setting of the
LIMITING/COMPRESSION switch for a given type of
audio source.

3. LIMITING/COMPRESSION SWITCH - This switch
selects the operation of the limiter. Select the proper,
or desired, setting according to the following criteria:

“OFF” - For audio sources with limiting and/or
compression already applied. This setting bypasses
the limiting circuitry of the ALT 72. With the audio
source connected, adjust the INPUT LEVEL control to a
setting at or just below the point where the
MODULATION indicator lights on audio peaks.

“L” - For most types of audio sources and listening
environments. This setting provides automatic limiting
on audio peaks to prevent loud bursts and to avoid over
modulation conditions which can cause distorted audio
at the receiver. With the audio source connected,
(for example, the output of a public address amplifier
with a person speaking at a normal level into the
microphone), adjust the INPUT LEVEL control to a
setting at the point where the MODULATION indicator
lights on audio peaks.

“C+L” - For audio sources that contain relatively low
audio levels combined with relatively high audio levels
as might be encountered when the audio output from a
public address amplifier contains audio from multiple
microphones with different persons speaking.
This setting provides automatic increasing of the low
level audio passages combined with limiting on voice
peaks. This type of audio processing can sometimes
aid intelligibility for a person receiving the signal while
located in a relatively noisy audio environment. With
the audio source connected, and the weaker audio
levels active, adjust the INPUT LEVEL control to a
setting at or just below the point where the
MODULATION indicator lights on audio peaks.

4. CHANNEL SWITCH - Used to select transmitted
frequency. Frequency assignments are as follows:

CHANNEL FREQUENCY

0 72.1 MHz
1 72.3 MHz
2 72.5 MHz
3 72.7 MHz
4 72.9 MHz
5 74.7 MHz
6 75.3 MHz
7 75.5 MHz
8 75.7 MHz
9 75.9 MHz

This table also appears on the bottom of the unit.

5. POWER INDICATOR - With the AC Adapter
connected to the ALT 72 rear panel DC Input and the
AC Adapter plugged into an AC power source, this LED
lights when the rear panel POWER switch is set to the
"ON" position.

Rear P anel Controls and Connections 3

1 2 3 4 5

1. DC INPUT - Connect the supplied AC adapter to this

connector. Plug the AC Adapter into a source of
nominal 120 VAC, 60 Hz power

2. POWER ON/OFF - Set this switch to the "ON"
position to operate the ALT 72.

3. EXTERNAL ANTENNA - Connect the optional
magnet mount antenna here. This connector permits
fitting only the R. L. Drake Company supplied remote
magnet mount antenna.

4. AUDIO INPUT - Connect audio to the appropriate
input. The unbalanced phono style input and the XLR
balanced input are each always active, so audio will be
fed from whichever input is being used. Do not
attempt to use both inputs at once. All inputs can be
considered high impedance ( > 20K Ohm).

5. GROUND LIFT - When switched "ON" this switch
lifts or isolates the shield connection (pin 1) of the XLR
connector. In some installations where excessive
ground currents are present on the balanced line shield,
turning the ground lift "ON" may help. For other
conditions it should be set to the "OFF" position. This
switch does not affect the unbalanced input.

4 Installation

SETUP and OPERATION

Locating the ALT 72

Prior to connection and adjustments, decide on a
location for the ALT 72 that will provide a reliable signal
to the receivers throughout the intended listening area.
Generally, for the best transmitted signal coverage,
locate the ALT 72 in an area that is free of metal
obstructions and closest to the intended listening area.
If the supplied “rubber duck” antenna is to be used, do
not locate the ALT 72 in a metal cabinet.

1. Install the antenna

The “rubber duck” antenna fits into the hole on top of
the transmitter and threads onto a mounting stud inside.
Guide the antenna onto the stud and turn it clockwise to
tighten. Do not use excessive force to tighten the
antenna; it only needs to be finger-tight.

Tighten

If the optional magnetic-mount antenna is more
appropriate, contact your dealer or the R.L. Drake
Company. The magnetic-mount antenna installation
and placement is detailed on page 5 of this manual.

2. Make audio connections

The ALT 72 will accept line level audio inputs. The best
sources for a signal from a sound system are as
follows:

1. TAPE OUT or LINE OUT

2. BOOSTER or BRIDGING

3. Speaker Transformer tap
Use XLR connectors to connect balanced audio signals

to the ALT 72 AUDIO INPUT. Use RCA phono
connectors to connect unbalanced audio signals to the
ALT 72 AUDIO INPUT. The following diagrams
illustrate balanced and unbalanced audio wiring details:

Balanced
Line

Unbalanced
Line

Shield Grounded As Required

- OR -

Male XLR Connector To

ALT 72 Input

-

12

+

3

RCA Phono Connector

To ALT 72 Input

*Do not use both
inputs at once.

AC Adapter

3. Connect the Transmitter to Power

Plug the DC power cord of the supplied AC Adapter into
the DC INPUT connector on the rear panel of the
ALT 72 unit. Plug the AC Adapter into a nominal
120 VAC, 60 Hz wall outlet. Set the rear panel
POWER switch to the ‘ON’ position.

4. Set the Operating Frequency

Determine a frequency in the range of 72.1 - 72.9 MHz,

74.7 MHz, or 75.3 - 75.9 MHz that is not active in your
area. Use one of the supplied MR306 receivers to
monitor the intended frequency. Refer to the CHAN­NEL (0-9) / FREQUENCY (MHz) chart in this manual
and on the bottom of this unit and press the "+" or "-"
button on the channel switch as required to set the
desired channel (operating frequency). A receiver set
to the same operating frequency should become quiet.

Installation, continued 5

Switch to 'ON'

INPUT LEVEL

3

2

1

MODULATION LIMITING/

5

6

4

7

8

9

0

10

5. Set the INPUT LEVEL Control

With the audio source active, and the desired type of
limiting set, adjust the INPUT LEVEL control clockwise
until the MODULATION LED indicator just begins to
light on audio signal peaks. Refer to the "Front Panel
Controls and Indicators" section of this manual
for details.

ALT 72 ASSISTIVE LISTENING TRANSMITTER

COMPRESSION

OFF L C+L

CHANNEL

7

+

POWER

Locating the Optional Magnetic-Mount Antenna

The optional magnetic-mount antenna is intended for
use with rack-mounted transmitters or in installation
areas where a remote antenna is needed for maximum
operating distance. For maximum signal strength, it is
best to locate the antenna somewhere within the
listening area. Generally, the higher the antenna can
be mounted above the listening area, the better.

Per FCC rules, only antennas supplied by the R. L.
DRAKE COMPANY may be used with this transmitter.

The mating connector on the coaxial cable
feed for the antenna tightens in a
COUNTERclockwise direction.

Installing the Remote Antenna

1. Remove the “rubber duck” antenna from the ALT 72

by turning it counterclockwise and guiding it through the
top cover.

2. Attach the optional antenna to the rear panel ‘EXT
ANTENNA’ connector. CAUTION: This connector is a
left-hand thread type. The mating connector on the
coaxial cable feed for the antenna tightens in a
COUNTERclockwise direction.

Magnetic-mount

Antenna

Antenna Coax Cable

6 Operating the MR306 Receiver

10
11
12
13
14

1 2 3

1. Phone Jack

2. Power ON/OFF Switch

3. Volume Control

7
8

LOCK PRESET

FM MHz

4

9

digital
receiver

FM

MEMO

TUNING

M1

M2

M3

M4

M5

5
6

4. FM MONO Stereo Switch

5. Key LOCK Switch

6. TUNING Buttons

7. Memory Indicator

8. Key Lock Indicator

9. FM Stereo Indicator

10. LCD Display

11. Ear/Speaker Selector Switch

12. Memory Button (MEMO)

13. Station Preset Buttons

14. Battery Compartment

15

®

15. Speaker

POWER SUPPLY

Slide open the battery compartment cover (14) on the
back of the unit and insert two "AAA" (RO3/UM4) dry
cells. Make sure the "+" and "-" markings on the
batteries match the markings inside the compartment.

- Do not mix old and new batteries.

- Do not mix alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium) batteries.

- If the LCD display is flashing or shuts off during
operation, the batteries should be replaced.

OPERATION

The intended use of this receiver is for assistive
listening. For that type of system, earphones are
generally used so that any background noise is
eliminated. It is also important to note that the wires of
a connected earphone also work as an antenna with
this receiver, thereby providing more reliable signal
reception.

1. Set the EAR/SPK switch (11) to the “EAR” position.
Use the “SPK” position for general radio listening, as
desired. As previously explained, the wires of a
connected earphone provide better reception regard­less of the EAR/SPK switch setting.

3. Set the ON/OFF switch (2) to the “ON” position.

4. Press the TUNING or button (6) to tune to the
desired frequency. When either button is pressed for
more than one (1) second, the receiver will scan for the
next available frequency. The scan mode will stop
automatically when a signal is found.
The automatic scan will continue to scan a band even
after the search reaches the minimum or maximum
frequency of that band. Once the search reaches
maximum frequency, the receiver will return to minimum
frequency and continue the search.

-Press the TUNING button (6) again to select the
desired frequency.

5. Adjust the volume control (3) to the desired level.

6. Set the FM "MONO/Stereo" switch (4) to the
"MONO" position.

2. Connect the Earphones to the Phone Jack (1).

Operating the MR306 Receiver, continued 7

PRESET TUNING

Once the desired frequencies are stored in the preset
buttons (13), they can easily be recalled.

To store a station into memory, use the following
sequence:

1. Tune to a desired frequency.

2. Press the "MEMO" (12) button and a blinking
Memory indicator (7) will appear on the LCD display
(10).

3. While the memory indicator is blinking, press one of
the five preset buttons (13) to store the frequency. The
memory indicator light will turn off 15 seconds later,
if no other preset buttons are pressed.

MEMORY RECALL

Recall a stored frequency by simply pressing the
appropriate preset button (M1-M5).

MEMORY BACKUP OF STORED FREQUENCIES

When the batteries are low, the LCD display will flash or
turn off. If this occurs, switch the "ON/OFF" switch to
the "OFF" position. Then install new batteries. The
new batteries must be installed within one minute of the
time that the old batteries are removed in order to save
the frequencies stored into memory.

SUGGESTIONS FOR RECEIVER MANAGEMENT

Different types of facilities will use varied approaches
for receiver management and earphone sanitation. The
following includes some options that customers have
used successfully:

1. Regular users purchase their own receiver and
maintain the batteries and earphone.

2. Some facilities label each receiver and earphone with
the name of the person to which the receiver/earphone
is assigned and used.

3. Ushers issue receivers to those people who request
them. Earphones are sanitized after each use. Foam
ear cushions can be replaced or washed with a mild
detergent, rinsed thoroughly, and air-dried. Certain
models of earphones can be sanitized with an alcohol
pad.

4. The receivers can be stored in a multiple storage
case with a credit card or driver’s license left as
collateral for the receiver.

5. Regular users purchase their own earphone or
headphone and bring them to use with receivers at the

facility.

Examples for wearing the MR306 receiver:

Placed in a pocket: Clipped onto a belt:

To assemble belt clip to receiver:

1. Apply double-stick tape (A) to
plastic belt clip (B).

OPEN

digital
receiver

FM

MEMO

TUNING

M5

M1M2M3

M4

digitaldigital
receiverreceiver

FM

MEMOMEMO

TUNINGTUNING

M1M1

M2M2

M3M3

M4M4

M5M5

®

2. Stick clip in desired location on
the back of the receiver, without
covering the battery cover.

8 Service Information / If You Need To Call For Help

NOTE: Soon our area code will change from
(513) to (937). If problems are experienced
when dialing us, please try the (937) area code.
We look forward to serving you soon.

SERVICE INFORMATION

You may contact the R.L. DRAKE Service Department for
additional information or assistance by calling
[phone], Monday through Friday, between
8:00 A.M. and 4:00 P.M. Eastern Time, except on holidays.

You may also contact the R.L. DRAKE Service Department by
E-mail at the following address:
[e-mail]
or by Telefax:
[phone].

IFIF

IF YOU NEED TO CALL FOR HELP

IFIF

Call our Customer Service/Technical Support line at
[phone] between 8:00 A.M. and 4:00 P.M. Eastern
Time, weekdays. Please have the unit’s serial number
available. We will also need to know the specifics of any
other equipment connected to the unit.
When calling, please have the unit up and running, near
the phone if possible. Our technician(s) will likely ask
certain questions to aid in diagnosis of the problem. Also,
have a voltmeter handy, if possible.

R.L. DRAKE also provides technical assistance by
e-mail: [e-mail]
or by Telefax: [phone].

Should you want to return your unit for service, package
the unit carefully using the original carton or other suitable
container.

Write your return address clearly on the shipping carton
and on an enclosed cover letter describing the service
required, symptoms or problems. Also include your
daytime telephone number and a copy of your proof of
purchase.

The unit will be serviced under the terms of the
R.L. DRAKE COMPANY Limited Warranty and returned to
you.

Red is an overnight service. Send the unit in a way that it
can be traced if we can’t verify receipt of shipment. We
suggest UPS or insured postal shipment.

If the unit is still under the original owner’s warranty,
R.L. DRAKE will pay the cost of the return shipment to
you. Our return shipping policy is that we will return it UPS
Brown if received Brown or by US Mail, it will be returned
Blue if received Blue or Red—or it will be returned
however you prefer if you furnish the return cost for the
method you select.
If the unit is out of warranty, it will be returned by UPS
Brown label COD (UPS does not accept cash/currency)
unless:

Many of the products that are sent to us for repair are in
perfect working order when we receive them. For these
units, there is a standard checkout fee that you will be
charged. Please perform whatever steps are applicable
from the installation sections of the Owner's Manual
before calling or writing—this could save unnecessary
phone charges. Please do not return the unit without
contacting R.L. DRAKE first: it is preferred to help
troubleshoot the problem over the phone (or by mail) first,
saving you both time and money.

Inside the carton, enclose a note with your name, ad­dress, daytime phone number, and a description of the
unit’s problem.
The unit must be sent to the following address:

Service Department
R.L. DRAKE COMPANY
230 Industrial Drive
Franklin, Ohio 45005 U.S.A.

Be sure to include your street address which will be
needed for UPS return. UPS Surface (Brown Label) takes
7-10 days to reach us depending on your location, Blue
takes 2-3 days.

1) It was received UPS Blue/Red, in which case it will be
returned UPS Blue/Red COD;

2) You designate billing to American ExPress, VISA,
MasterCard or Discover card;

3) You prepay the service charges with a personal check,
or

4) You specify some other method of return.
When calling, the technician can estimate the repair

charges for you over the phone. This is another good
reason to call before sending a unit in for repair.
Typically, equipment is repaired in five to ten working
days after it arrives at R.L. DRAKE if we have all the facts.
If we must call you, it may take longer. R.L. DRAKE is not
responsible for damage caused by lightning, nonprofes­sional alterations, “acts of God”, shipping damage, poor
storage/handling, etc. R.L. DRAKE will make note of any
shipping damage upon receipt.
Should your warranty card not be on file at R.L. DRAKE,
you will need to send proof of purchase to receive
warranty service. Typically, a copy of the invoice from an
R.L. DRAKE dealer will suffice. The warranty is for the
original owner only and is not transferable.

Warranty 9

Three Three

Three

Three Three

R. L. DRAKE COMPANY warrants to the original purchaser this product shall be free from defects in material or
workmanship for three (3) years from the date of original purchase.

During the warranty period the R. L. DRAKE COMPANY or an authorized Drake service facility will provide, free
of charge, both parts and labor necessary to correct defects in material and workmanship. At its option, R.
L. DRAKE COMPANY may replace a defective unit.

To obtain such a warranty service, the original purchaser must:

(1)(1)

(1) Retain invoice or original proof of purchase to establish the start of the warranty period.

(1)(1)

(2)(2)

(2) Notify the R. L. DRAKE COMPANY or the nearest authorized service facility, as soon as possible after discovery

(2)(2)

of a possible defect, of:
(a) the model and serial number,
(b) the identity of the seller and the approximate date of purchase; and
(c) A detailed description of the problem, including details on the electrical connection to associated equipment and
the list of such equipment.

(3)(3)

(3) Deliver the product to the R. L. DRAKE COMPANY or the nearest authorized service facility, or ship the same

(3)(3)

in its original container or equivalent, fully insured and shipping charges prepaid.
Correct maintenance, repair, and use are important to obtain proper performance from this product. Therefore

carefully read the Instruction Manual. This warranty does not apply to any defect that R. L. DRAKE COMPANY
determines is due to:

YY

ear Limited ear Limited

Y

ear Limited

YY

ear Limited ear Limited

WW

arrantyarranty

W

arranty

WW

arrantyarranty

(1)(1)

(1) Improper maintenance or repair, including the installation of parts or accessories that do not conform to the

(1)(1)

quality and specifications of the original parts.

(2)(2)

(2) Misuse, abuse, neglect or improper installation.

(2)(2)

(3)(3)

(3) Accidental or intentional damage.

(3)(3)

All implied warranties, if any, including warranties of merchantability and fitness for a particular purpose, terminate
three (3) years from the date of the original purchase.

The foregoing constitutes R. L. DRAKE COMPANY’S entire obligation with respect to this product, and the original
purchaser shall have no other remedy and no claim for incidental or consequential damages, losses or expenses.
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusions or
limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
This warranty shall be construed under the laws of Ohio.

For Service, contact:

R.L. DRAKE COMPANY

230 Industrial Drive

Franklin, Ohio 45005 U.S.A.

Customer Service and Parts Telephone:

[phone]

Telefax:

[phone]

World Wide Web Site:

http://www.rldrake.com

NOTE: Soon our area code
will change from (513) to
(937). If problems are
experienced when dialing us,
please try the (937) area code.
We look forward to serving
you soon.

®

R.L. DRAKE COMPANY

230 INDUSTRIAL DRIVE

FRANKLIN, OHIO 45005 U.S A.

CUSTOMER SERVICE AND PARTS TELEPHONE:

[phone]

TELEFAX:

[phone]

WORLD WIDE WEB SITE: http://www.rldrake.com

NOTE: Soon our area code will change from
(513) to (937). If problems are experienced
when dialing us, please try the (937) area code.
We look forward to serving you soon.

® is a registered trademark of the R.L. Drake Company

© Copyright 2002 R.L. Drake Co. P/N: 3852429D-3-2002 Printed in the U.S.A.
