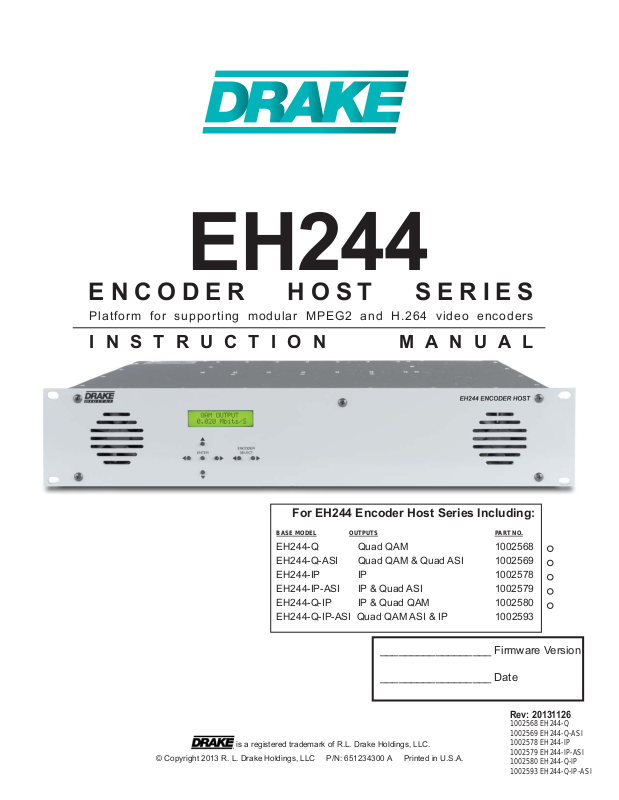

Drake EH244 User Manual
EH244
ENCODER HOST SERIES
Platform for supporting modular MPEG2 and H.264 video encoders
INSTRUCTION MANUAL
For EH244 Encoder Host Series Including:
BASE MODEL OUTPUTS PART NO.
EH244-Q Quad QAM 1002568
EH244-Q-ASI Quad QAM & Quad ASI 1002569
EH244-IP IP 1002578
EH244-IP-ASI IP & Quad ASI 1002579
EH244-Q-IP IP & Quad QAM 1002580
EH244-Q-IP-ASI Quad QAM ASI & IP 1002593
__________________ Firmware Version
__________________ Date
is a registered trademark of R.L. Drake Holdings, LLC.
© Copyright 2013 R. L. Drake Holdings, LLC P/N: 651234300 A Printed in U.S.A.
Rev: 20131126
1002568 EH244-Q
1002569 EH244-Q-ASI
1002578 EH244-IP
1002579 EH244-IP-ASI
1002580 EH244-Q-IP
1002593 EH244-Q-IP-ASI
2
TABLE OF CONTENTS AND CAUTION STATEMENTS
TABLE OF CONTENTS AND CAUTION STATEMENTS
IMPORTANT SAFETY INSTRUCTIONS
Chapter 1 – INTRODUCTION
GENERAL DESCRIPTION
MODELS / OUTPUT CONFIGURATIONS
Chapter 2 – INSTALLATION AND MOUNTING
EAS - Modes (Emergency Alert Services)
DTA - Modes (Digital Transport Adapter)
Chapter 3 - CONFIGURATION
Front Panel Confi guration
Ethernet Control Interface Confi guration
Chapter 4 - IMPORTANT NOTES
Chapter 5 – DATA
SPECIFICATIONS
LIMITED WARRANTY
TECHNICAL SUPPORT / SERVICE INFORMATION
........................................................................................................................................... 17
........................................................................................................................ 5
.............................................................................................................................. 5
....................................................................................................................... 8
.................................................................................................................... 8
................................................................................................................... 16
................................................................................................................................ 17
.......................................................................................................................... 18
........................................................................................................ 3
............................................................................................. 6
............................................................................................. 7
............................................................................................. 10
................................................................................ 2
.................................................................................................... 5
........................................................................................... 6
.......................................................................... 19
Caution Statements:
WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK, DO NOT
EXPOSE TO RAIN OR MOISTURE
WARNING: THE SOCKETͳOUTLET
SHALL BE INSTALLED
NEAR THE EQUIPMENT
AND SHALL BE EASILY
ACCESSIBLE.
A product and cart combination should be moved with care. Quick stops, excessive
force and uneven surfaces may cause the product and cart combination to overturn.
The lightning flash with arrow head symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
***NOTE: Connect and apply power only after all other connections are made.***
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE.
DO NOT OPEN THE CABINET, REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE
ATTENTION: POUR PREVENIR LES CHOCS ELECTRIQUES, NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN
PROLONGATEUR, UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES
PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT.
.
3
1. Read Instructions: All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions: The safety and operating instructions should be retained for future reference.
3. Heed Warnings: All warnings on the product and in the Instruction Manualshould be adhered to.
4. Follow Instructions: All operating and use instructions should be followed.
5. Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleansers. Use a damp cloth for cleaning.
6. Attachments: Do not use attachments that are not recommended by the product manufacturer as they
may cause hazards.
7. Water and Moisture: Do not use this product near water—for example, near a bathtub, wash bowl, kitchen
sink or laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product
may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting
of the product should follow the manufacturer’s instructions, and should use a mounting accessory
recommended by the manufacturer.
9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven
surfaces may cause the product and cart combination to overturn.
10. Ventilation: Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation
of the product and to protect it from overheating, and these openings must not be blocked or covered.
The openings should never be blocked by placing the product on a bed, sofa, rug, or similar surface. This
product should not be placed in a built-in installation such as bookcase or rack unless proper ventilation is
provided or the manufacturer’s instructions have been adhered to.
11. Power Sources: This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supplied to your home, consult your product dealer
or local power company. For products intended to operate from battery power, or other sources, refer to the
operating instructions.
12. Grounding or Polarization: This product may be equipped with a polarized alternating-current line plug
(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This
is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug. Alternate Warnings – If this product is equipped with a three-wire groundingtype plug, a plug having a third (grounding) pin, the plug will only fit into a grounding-type power outlet. This
is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
13. Outdoor Antenna Grounding: If an outside antenna or cable system is connected to the product, be
sure the antenna or cable system is grounded so as to provide some protection against voltage surges and
built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information
with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
14. Power-Cord Protection: Power-supply cords should be routed so that they are not likely to be walked on
or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
(continued on Page 4)
4
IMPORTANT SAFETY INSTRUCTIONS
(continued from Page 3)
15. Lightning: For added protection for this product during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the product due to lightning and power-line surges.
16. Power Lines: An outside antenna system should not be located in the vicinity of overhead power lines,
other electric light or power circuits, where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such power lines or circuits
as contact with them may be fatal.
17. Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this
can result in a risk of fire or electric shock.
18. Object and Liquid Entry: Never push objects of any kind into this product through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
19. Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as an improper
adjustment of other controls may result in damage and will often require extensive work by
a qualified technician to restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance—this indicates a need for
service.
21. Replacement Parts: When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutes may result in fire, electric shock or other hazards.
22. Safety Check: Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks to determine that the product is in proper operating condition.
23. Wall or Ceiling Mounting: The product should be mounted to a wall or ceiling only as recommended by the
manufacturer.
24. Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
EH244 ENCODER HOST SERIES
INTRODUCTION
General Description
The Drake Digital EH244 Encoder Host is a platform for supporting Drake Digital modular MPEG2
and H.264 video encoders, including the SDE24A, HDE24, and SDI24A. The EH244 Encoder Host
multiplexes the outputs of the Encoder Modules into a digital output (QAM RF, ASI stream, or Internet
Protocol data stream - IP, depending on which EH244 model you have purchased) stream, configurable
via a front panel interface or Ethernet web server. The EH244 Encoder Host also includes provisions
for Emergency Alert System (EAS), using either video replacement or SCTE18 control messages.
The EH244 Encoder Host accepts up to 6 Drake Digital Encoder Modules, and allows each encoder’s
output program to be included or excluded from the outgoing digital QAM RF Channels, IP program
data stream, or the ASI output stream (or a combination of these output formats). The EH244 Encoder
Host Series comes available in two base models that can be ordered with various output format
configurations tailored to your specific application requirements.
Models / Output Configurations
The EH244 Encoder Host Series is available in two standard models:
5
EH244-Q Quad QAM Encoder Host
This base unit outputs four (4) sequential Clear QAM RF channels.
EH244-IP (IP Output) Encoder Host (Part Number 1002578)
This base unit outputs a single (1) Internet Protocol (IP) data stream.
From these two base models, you may order alternate or additional output format configurations.
From the base EH244 Quad QAM Encoder Host, you may select the following additional output format
configuration:
EH244-Q-ASI Quad QAM / Quad ASI Encoder Host (Part Number 1002569)
This unit outputs four (4) ASI streams as well as four (4) Clear QAM RF channels.
The second base model in the EH244 Encoder Host Series, is the EH244-IP. The EH244-IP utilizes
a video codec to output MPEG transport streams encapsulated in a stream of IP (Internet Protocol)
packets. From the base model EH244-IP (IP Output) Encoder Host, you may select the following
additional output format configurations:
EH244-IP-ASI Quad ASI / IP Encoder Host (Part Number 1002579)
This unit outputs four (4) ASI streams in addition to a single (1) IP data stream.
EH244-Q-IP Quad QAM / IP Encoder Host (Part Number 1002580)
This unit outputs four (4) Clear QAM RF channels in addition to the single (1) IP data stream.
EH244-Q-IP-ASI Quad QAM / IP / ASI Encoder Host
This unit outputs four (4) Clear QAM RF channels in addition to the single (1) IP data stream
and four (4) ASI streams.
(Part Number 1002568)
(Part Number 1002593)
*NOTE: All models / Output Configuration Types of the EH244 Encoder Host Series will have a
separate isolated ASI Output Port. This separate ASI Output is a low-data ASI port used
only to output SCTE-18 data for EAS or DT A MODES when daisy-chaining several EH244
Series or EH24 Series models together in a headend (see Chapter 2, INST ALLATION AND
MOUNTING on Page 6 for specific information).
6
INSTALLATION AND MOUNTING
The EH244 Series Encoder Host is designed to be installed in a standard 19’’ rack.
*NOTE: All Drake Digital Encoder and Interface Modules must be installed in the EH244 Series
chassis before power is applied. DO NOT INSERT ENCODER MODULES OR INTERFACE
MODULES WHILE THE EH244 SERIES UNIT IS POWERED. Inserting any Encoder or
Interface Modules into the EH244 Series Encoder Host chassis, while it is powered, will
void the EH244 Series Encoder Host’s and Encoder / Interface Modules’ warranties.
Image: Rear view of base model EH244 Quad QAM Encoder Host
EH244 ENCODER HOST SERIES
Module Slot Number: 1 2 3 4 5 6
Encoded Program Number: 1 (& 2*) 3 (& 4*) 5 (& 6*) 7 (& 8*) 9 (& 10*) 11 (& 12*)
The input modules that will be inserted into the back of the EH244 Series chassis, are referred
to in this manual (and in the Ethernet Control Interface, Chapter 3 CONFIGURATION on Page )
numerically by position of the Slot that they occupy. They are 1, 2, 3, 4, 5, and 6, from left to right,
when viewing the rear of the EH244 Series unit. Each Encoder Module’s program number will be
assigned based on its Slot location:
Slot 1 will provide programs 1 (*and 2 if using an SDE24 Dual Standard Definition MPEG Encoder
Module); Slot 2 will provide programs 3 (*and 4); Slot 3 will provide programs 5 (*and 6); etc.
*NOTE: In the case where a Slot has a single program Encoder Module inserted in it, for
ident-ification purposes, the Slot will provide only the odd-numbered program.
Ex: If there are six (6) HDE24 High Definition MPEG Encoder Modules (which are single
program Encoders) inserted into the six (6) Slots of the EH244 Series Encoder
Host, the programs’ numbers being output from the HDE24’s to the EH244 Series’
multiplexer would be identified as programs 1, 3, 5, 7, 9, and 11.
EAS - Modes (Emergency Alert Services)
If the EH244 Series Encoder Host will be used in an EAS-enabled system, and the unit will be used
as the ‘master’ EAS unit in Slot 6 Mode (or Slot 6 + SCTE 18 Mode), a Drake model SDE24EAS
(EAS Input Encoder) module must be installed in slot 6 of the chassis.
If the EH244 Series Encoder Host is configured as a ‘slave’ EAS unit (Slot 6 Mode or Slot 6 + SCTE
18 Mode), a Drake model ASII module (ASI Input) must be installed in slot 6, and wired to the ASI
Output port of the previous Encoder Host (EH24, EH24A, or EH244 Series) in the chain.
(continued on Page 7)
Loading...
