DATACOM DT-103
DEAR CONSUMER
GREAT APPRECIATION FOR PURCHASING OUR PRODUCT; TO SECURE
THE BEST PERFORMANCE AND THE HIGHEST SAFETY, PLEASE READ
THE FOLLOWING EXPLANATION CAREFULLY
PLEASE READ THIS MANUAL WITH SUFFICIENT CAREFULNESS AND
PATIENCE PRECEDE THE CONNECTION AND INSTALLATION
CONTENT
Safety Instruction ................................................................................................................................1
Front Panel ......................................................................................................................................... 2
Rear Panel.......................................................................................................................................... 2
Remote controller ...............................................................................................................................3
System Connection ............................................................................................................................5
Power On............................................................................................................................................ 5
Menu Tree...........................................................................................................................................6
Installation........................................................................................................................................... 7
User Setup........................................................................................................................................ 10
Edit ................................................................................................................................................... 11
Lock setup ........................................................................................................................................15
Advanced setting ..............................................................................................................................16
Timer .................................................................................................................................................17
Game ................................................................................................................................................17
TEL....................................................................................................................................................18
Feature..............................................................................................................................................18
Terms ..............................................................................................................................................19
Specification...................................................................................................................................20
SAFETY INSTRUCTION
Please read the following instructions carefully
Do not overload the following wall outlets, extension cords or integral convenience receptacles as this can
result in a risk of fire or an electrical shock
Never allow liquids, sprays or other material to be exposed with the inside of the STB
Unplug the STB from the wall outlet before cleaning and use the soft cloth to clean the exterior
of the STB
The LNB cable must be earthed to the system that earthing for the satellite antenna
The parameter of using power source should be squared with which indicating on its rear panel, otherwise,
the machine will work improperly and even be ruined
To maintain the suitable antenna installation position, the proper antenna installation angle, the adequate
antenna earthing, the normal antenna anti-interference measure; Keep the earthing of the outdoor
antenna separating with the indoor equipment’s
Do not place the STB where it is exposed to sunlight directly or near a heater
Never stack other electronic equipment on top of the STB
Place the STB indoor properly to prevent lightening, raining and direct sunlight
The location where connecting with the connector plug of this machine should be served as the
disconnect device, and should be maintained on the state of power-supplying always
Protect the power line from being walked on or being squeezed particularly on plugs, convenience
receptacles (jack), and the spot where they exit from the apparatus
Unplug this apparatus during lightning storms or when unused for long periods
Refer all servicing to qualified service personnel. Service is required when the machine has been
damaged in any case, such as power-supply cord or plug is damaged, liquid has been dropped into or
objects have fallen into the interior, the machine has been exposed to rain or moisture, does not
perform malfunctioning, or has been dropped on the ground, or other situations abnormally etc
Warning: This unit should only be maintained by the authorized and the regular trained technician; Opening
the cover or other attempts by the user to service this unit can lead serious injury or person-death from
electrical shock, and can increase the possibility of risk of fire
The naked flame sources, such as the lighting candles, shouldn't be placed on the apparatus
Do not use any attachment that are not recommended as these may cause hazards or damage the
equipment
Note: All the OSD and illustrations in this manual may be somewhat different from the actual situation
Please take the digital receiver as the standard
1
FRONT PANEL
g
1. Card slot (spare)
2. AUDIO: to choose audio channel
3. MENU: Menu entry/ exit button
4. OK: menu confirmation/ channel list
5. Remote sensor/ status indicator
LED-displaying window
REAR PANEL
1. Power switch
2. Satellite signal output terminal
3. Satellite signal input terminal
4. Serial data interface (option)
5. Video signal output terminal
6. Standby switch
7. Volume adjusting decrease/ key leftwards
8. Channel turning forwards/ key upwards
9. Volume adjusting increase/ key rightwards
10. Channel turning backwards/ key downwards
6. Audio signal output terminal(R/L)
7. TV Scart (option)
8. RF signal input terminal
9. RF si
nal output terminal
2
REMOTE CONTROLLER KEYS
Advice operates each function of the STB by using the button on the remote controller. Please read this
section to help advance your understanding of the function of the STB
Non-menu: to mute the audio output
To instruct the unit to enter the standby mode
Non-menu: to select the favorite installed channel
Non-menu: to show satellite list
Menu mode: to select or adjust the parameter
Non-menu: volume decrease/increase
Menu mode: to move cursor upwards/ downwards
Non-menu: to turn the channel forwards or backwards
To return to the non-menu (program-enjoying) mode
To enter the Main Menu interface or return to the last grade interface
Non-menu: to choose the channel
To show the Select Satellite interface
Non-menu: Punch once, punch +/-, Ÿ/ź to move the selecting area, punch
the OK key to magnify the area and punch the key once more to recover to the
normal
Non-menu: to show the EPG Infor
Non-menu: to show the image’s brightness, contrast and color
Non-menu: to select the audio channel
3
Non-menu: to switch the channel between the present and the last
Non-menu: to enter the timer editing function
Non-menu: to switch the channel mode between TV and Radio
Non-menu: to show the stored channel list, menu mode: to confirm the
operation
Non-menu: to show the present channel’s information
Non-menu: to enter Game interface for entertainment
Non-menu: to switch the state of scene between activity and inactivity
PRECAUTIONS ABOUT BATTERIES
Improper use of batteries may cause corrosion or fluid leakage. Please observe the following
instructions for the safe use of batteries
1. Do not mistake the polarities of batteries
2. Never leave dead batteries in the remote control
3. Remove batteries from the remote controller it is not going to be used for a certain time
4. Do not attempt to disassemble, short-circuit, heat, recharge or throw the batteries into the fire
source
5. Do not use new batteries and old one together, or which is different type
6. Wipe away any electrolyte fluid inside the remote controller, and insert new batteries
4
PREPARATION OF REMOTE CONTROLLER
f
f
A
r
t
p
Load the batteries to the groove of the remote
controller and then enable you to operate the native
1. Open the lid
Load the batteries (AAA type) and attend
whether the anode and cathode of battery
are corresponding to the polarity indicated
on the remote controller
Close the lid
OPERATION SCOPE OF THE REMOTE CONTROLLER
Make the controller toward the inductive window o
native and then punch the keys
1. Distance: about seven meters in front o
USEFUL PROMPT
the inductive window
2.
to the frontispiece of the native’s fron
To prolong the useful life of this machine, the interval of the continuous switch action must be
above one minute
The parameter of using power source should be squared with which indicated on the rear panel,
or the machine will work improperly and even be ruined
When the picture that the unexpected non-respondency happening, please turn on the machine
again
To maintain the suitable antenna installation position, proper antenna installation angle,
adequate antenna earthing, the normal antenna anti-interference measure; and should keep the
earthing of the outdoor antenna separating with the indoor equipment’s
ngle: about 30 degree right or left refe
anel
INDUCTIVE WINDOW OF FRONT PANEL
5
SYSTEM CONNECTION
Connect the AUDIO, VIDEO, and TV Scart output terminals with the corresponding terminals of
the TV set
Adjust the direction of the dish according to the antenna signal level displaying on the screen
Connect the F terminal to both ends of the cable, one end to the LNB terminal of satellite
antenna and the other end to “SAT IN” input terminal of this unit
Please make sure that the F terminals are connected well
The Serial data interface is used to upgrade the software or to enrich the date bank of the
machine via the manner of pc to pc or box to box
Do not tie the cable line with the power line in case influencing the reception
POWER ON
Plug the machine and punch its power switch to keep the “ON” status, the unit enters its normal
mode
Punch the standby key on the remote controller to the remote receiving window of the machine or
the key on the set, which enters its standby mode and the “standby” character appears on the
screen for seconds. Re-punch the key; the unit recovers to its normal
If the channel has been locked, the lock indicator lights up
6
MENU TREE
7

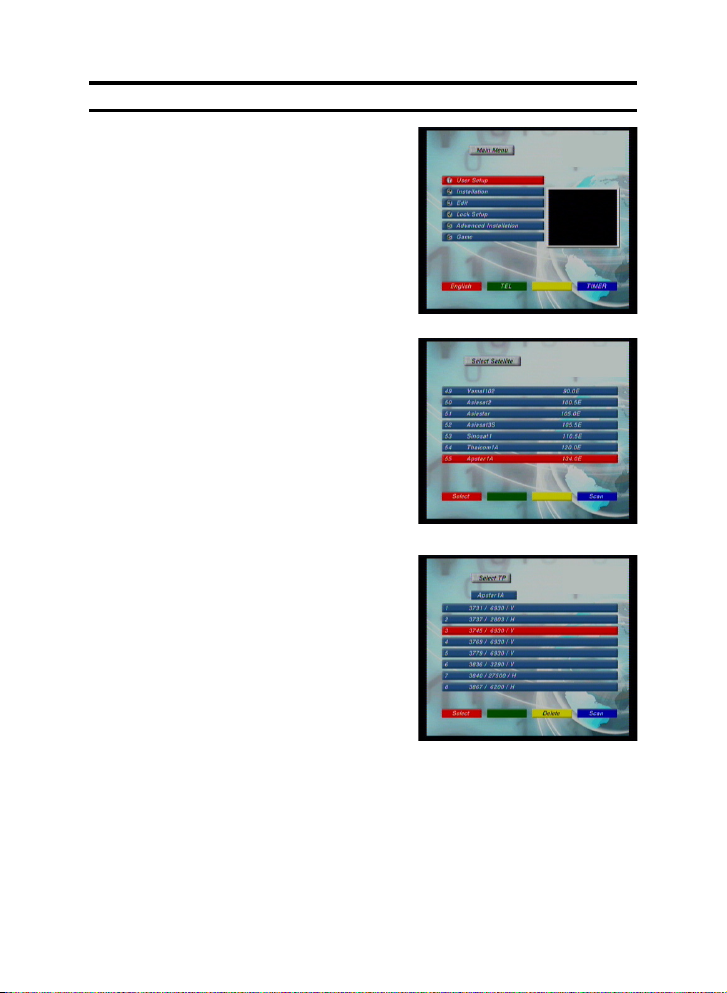

INSTALLATION
Punch the MENU key on the program-enjoying mode and
the image shows as
Move the cursor onto the Installation menu tape and
punch the OK key, the image shows as:
Punch the OK key to enter the lighting satellite name and
the interface shows its transponders as:
Punch the red key and Ʒkey to select the transponder
or the transponders and then scan, punch the blue key to
scan the channels in the Satellite interface (next page)
Punch the yellow key to delete the lighting transponder
tape
Punch the blue key to enter the Satellite menu interface
(next page):
8
Punch the MENU key to return to the Select Satellite
interface, punch the red key and
or more the satellites and punch the blue key to enter the
Satellite interface ( right side) to scan the chosen satellite
or satellites
Move the cursor onto the Satellite tape, punch the +/- key
to select the selecting satellite (note: only two or more the
satellites in Select Satellite interface have been selected,
this item has the selectivity) name which above-mentioned
Move the cursor onto the LNB type tape, therein, eight
types, punch the +/- key to select the suitable one or,
punch the OK key to enter the LNB setting interface, the
image as:
Light the LNB index (1.8) to choose one type name (for
example, Type 1 is as indication)
Light the LNB Freq. Low and LNB Freq. High menu tape,
punch the +/- key to install the parameter by referring to
the frequency value of tuner on the antenna or the
digit-keys to input the digits directly, finish installing, force
down the OK key to save the installation
Light the DiSEqC tape to select the port through pressing
the +/- key; the DiSEqC parameter of the port must be
consistent with the actual input terminal of the present
satellite antenna
Attention:
LNB Power: Single machine situation: keep the status on
Loop situation: keep the status of the
machine which connecting the satellite signal
on the “on” and others on the “off”
key to select one
Ʒ
the “on”
Punch the MENU key to return the interface to the Satellite
one as above, light the TP Freq., punch the +/- key to
choose the suitable parameter of TP Freq., TP Polar, TP
SR or, punch the digit-keys to input the correct value
which what we according to are either Quality or Level
9
tapes show together a certain length and whether the lock
indicator lights up simultaneously.
Light the sixth tape; punch the +/- key to switch the status
between “on” and “off”, punch the OK key to enter the
motor interface when the “on” status is being chosen and
the interface shows as
Light the seventh instruction tape; punch the OK key to
reveal a inquire window with a sentence “ARE YOU
SURE?” Use pressing the red key to confirm and the
green one to give up
Light the fourth instruction tape to punch the +/- key to
choose one of the three instructions: Off, West, and East.
Punch the OK key to confirm. Therein:
1. West: to limit the westward limit of the
dish-adjustment
2. East: to limit the eastward limit of the dish-adjustment
3. Off: to give up the limitation set
Light the Position auto, Move dish, Step move; the
functions of these three instructions are to adjust the
direction of dish, hereinto:
1. Position auto: the drive instruction will not be
stopped until to punch the OK key
2. Move dish: to drive the dish to adjust a relative
biggish range
3. Step move instruction is to modify a relative minor
range
What we according to of adjustment is the Quality tape
show its longest length, in which:
=>E: to drive the dish to the east direction
=>W: to drive the dish to the west direction
=>Stop: to stop the adjustment
After adjustment˖
1. Light the fifth instruction tape Store position, force
down the digit-keys to input the adjusted situation
(position) code and then punch the OK key to save
the code
2. Light the sixth instruction tape Goto position, use
input the code digit to drive the dish to the situation
where has saved
10
The function of eighth instruction tape Recalculate
position is to send an instruction to the motor, and
calculate the suitable situation by itself
Punch the MENU key to return to the Satellite interface to
start the scan, there four modes to search the satellite
channels, they are: Auto, TP, FTA and NIT. In which:
Auto: to scan all the channels in the selecting satellite
name.
TP: to scan the channels which in the choosing
transponder
FTA: to scan the channels, which are, belong to the free to
air
NIT: to scan the channels, which are, belong to the network
For example: punch the blue key to search the net
channels and the image shows as:
Finish scanning, if the channel has been searched then the
machine will auto-save all the scanned channels and turn
the image to the program-enjoying mode, or, return to the
Select Satellite interface
USER SETUP
Force down the MENU key on program-enjoying mode,
light and then punch the User Setup tape, the image
shows:
LANGUAGE SETTING
Light the Language Setting tape and punch the OK key to
enter its sub-menu, the picture shows
Language Setting: punch the +/- key to select the
appropriate language. Therein, Audio Language: what
language is being chosen means which is owning the
strongest priority in broadcasting. The function rest with the
support of satellite service
11
LOCAL TIME SETTING
Light the Local Time Setting and enters its sub-menu:
GMT: the Greenwich Meantime
Selected time zone: to choose the appropriate location
Summer time: daylight saving time
Time offset: to modify the time
What the Current Time appears is the synchro-time which
is sent by the satellite signal
A/V OUTPUT SETTING
Light the A/V Output Setting tape and enters
Aspect: use the +/- key to select the window style (4:3;
16:9)
Delay Time: use the +/- key to select 2-7second, always
etc.; the magnitude of value decide the length of time of
channel info tape staying on the screen when switching the
channel
Always: the instruction means the info tape will stay on the
screen until punch the EXIT key when switching
Transparency: use the +/- key to modify the value and the
magnitude of it decides the transparency degree of menu
Light the About menu tape and punch the OK key to enter
its sub-menu, the interface shows the model and software
of the machine
EDIT
Return to the Main Menu interface then light the Edit tape
and force down, the image shows as:
12
EDIT TV CHANNEL
Light Edit TV Channel and enters its interface:
Punch the green key repeatedly to change the mode and
which will be shown on the yellow tape correspondingly,
the status includes: MOVE, FAVOR1-4, SORT, DELETE
1. Move: when the yellow tape shows the “move”
character, punch the yellow key, punch the Ʒ key
to move the channel name tape to the suitable location
and punch the yellow key once more to release.
2. Favor: when the yellow tape shows “favor1…favor4”
character, punch the yellow key and punch the
key to add the “heart” symbol on the tail of channel
name tape, the symbol shows the channel has been
added in the present favor mode. The same operation in
turn to finish the rest of three favor modes
3. Delete: to remove the choosing channel name. Punch
the yellow key when the yellow tape shows the “delete”
word, the window with “YES” and “NO” appears, punch
the red key to delete or green key to give up
4. Sort: when the yellow tape shows the “sort” word,
punch the yellow key, the list which what we accord ing
to sort the channels appears, punch the Ʒ key to
choose one suitable instruction to complete the sorting
Forces down the red key to switch the list mode between
TV and radio
Forces down the blue key to show the satellite name list
EDIT RADIO CHANNEL
The same operation as above-mentioned
Ʒ
EDIT SATELLITE
Return to the Edit interface and enter the Edit Satellite
interface the image shows:
Delete: punch the red key, the window with “YES” and
“NO” Instructions appears, force down the red key again to
delete the selecting satellite name and the green one to
give up
13
Change: punch the yellow key, the picture shows:
Light the Satellite tape and punch the OK key to enter the
soft-keyboard interface:
Use the Ʒ, +/- key to move the cursor and the OK key
to confirm the input
Use CAPS instruction to switch the letter state between
capital and miniscule
Use NUM instruction to switch the mode from letter to digit
and special symbol
After inputting, move the cursor onto the Save instruction
and punch the OK key to save the installation
Light the TP frequency; punch the +/- key to choose the
appropriate stored transponder parameter of TP frequency,
LNB polarization, Symbol Rate that belong to the
selected satellite or, directly, punch the digit-keys to
complete the value input of TP frequency, LNB polarization,
Symbol Rate
Light the Channel Name menu tape; punch the +/- key to
choose the channel’s name which belong to the choosing
transponder, punch the OK key to appear the
soft-keyboard to rename the channel name which
operation just as above-mentioned about soft-keyboard
introduction. Light the Video PID, Audio PID, and PCR
instruction tape and punch the digit-keys to input the
correct value
Add: return to the Edit Satellite interface and punch the
blue key, the picture shows as:
Punch the OK key to reveal the soft-keyboard to define
the satellite name, finish the definition, input one-group
parameter of TP frequency, LNB polarization and
Symbol Rate, punch the OK key to save the installation
and the new satellite will be added meanwhile. Check the
added satellite in the Select Satellite menu interface pls
14
EDIT TRANSPONDER
Return the interface to the Edit and light the
Transponder menu tape, the image shows
Delete: punch theƷ key to move the cursor upwards
or downwards, punch the red key and the window with
“YES” and “NO” appears, punch the red key to delete it
and the green one to exit
Punch the green key to add the “upward/ downward”
symbol on the end of the transponder parameter tape,
punch the Ʒ key to move the tape to the suitable
situation and release
Change: refer to the relative introduction segment of Edit
Satellite
Add: return to the Edit Transponder and force down the
blue key to enter the image:
Punch the digit-keys to finish the input of parameter of TP
frequency, LNB polarization, Symbol Rate, punch the
OK key to save the new added transponder and which can
be detected in the interface of Select Transponder of
Select Satellite
LOCK SETUP
Return the interface to the Main Menu, light the Lock
Setup menu tape and the image shows:
Light the Change PIN instruction tape and punch the OK
key to enter its interface
To realize creating one new private code by this instruction:
the default or primary code is “0000”. First, input the
correct current code and then the new one and verify it.
The verified code will become the current one and the
information window with “password changed!” phrase
flashing on the screen for seconds; the information window
shows the operation is successful
Edit
15
Lock TV Channel: return the Lock Setup interface and
light the Lock TV Channel instruction, the image shows
Punch the OK key to enter its interface which is similar with
the Edit TV Channel, punch the Ʒ key to select the
channel and punch the yellow key to add one “lock”
symbol on the end of installing channel name tape. Just as
the right side image indicates. Punch the yellow key once
more on the locking tape to unlock
Lock Radio Channel: as same as above-mentioned
Lock Receiver: move the cursor onto the forth instruction
tape, punch the +/- key to switch the receiver mode
between locked and free. When the machine has been
locked, starting machine from standby or power-on status
needs the right code input
Lock Edit & Installation: move the cursor onto the fifth
instruction tape, punch the +/- key to switch the receiver
mode between locked and free, when the mode is locked,
enter the sub-menu of Installation, Edit, etc. need the
right code input
ADVANCED SETTING
Return to the Main Menu interface and light the Advanced
Installation menu, punch the OK key to enter its sub-menu
and the image shows:
The relative introduction of Edit/Add SAT/TP refer to the
relative segment in EDIT
Move the cursor onto the Reset (Factory Default) and
punch the OK key, the image shows as
Punch the red key to complete the Reset instruction
Attention: all the installation and parameter former set will
be cleared completelyʽ
16
TIMER
Punch the blue key in the Main Menu interface, the
interface enters TIMER function, the image shows as
The tape on the top shows the present date and time sent
by satellite
Punch the digit-keys directly to modify the showing date
and time, hereinto:
Input 12 digits is to modify either the date or the time
Input 8 digits is to modify the date only
(All the digits are 0 is useless)
The red key is to delete the timer instruction tape, and
instead, the green key is to add one. Punch the Ʒ, +/key to move the cursor, punch the yellow and blue keys to
adjust the parameter of the timer instruction
GAME
Punch the GAME key in the program-enjoying state to
enter the game playing, there three kinds of game to be
provided for entertainment: Snake, Gobang, Tetris
Use pressing the Ʒ key to select the game tape and
OK key to enter which interface
For example, to choose the Tetris:
Punch the Ʒ key to adjust the game level and the
highest grade is 7, then punch the OK key to enter the
playing interface
Punch the Ʒ key to deform the shape, the + key to move
the shape to the right direction , the – key to the left, the
key to accelerate the falling and the MENU key to pause
the action, the OK key to react
17
TELEPHONE DIRECTORY
To punch the green key in the MAIN MENU, the interface
enters the Telephone directory one
Punch the green key to add the telephone list, and instead
the red key to remove which.
Punch the +/-, Ʒ key to redden the item of the
telephone list which as Name, Tel.No.(Office),
Tel.No.(Res), Mobile No. to edit, Therein:
1. Use the soft-keyboard to complete the name definition
2. Punch the digit-keys to complete input of the rest three
items
FEATURE
Advanced Feature
Multi-Mode auto search satellite programs (AUTO/FTA/NIT/TP)
Maximum storage Channels, Transponders and Satellites
4 users defined Favorite groups with user-friendly editing functions
Teletext by VBI insertion
Real-time antenna signal strength indicating
Multi-satellite/transponder searching at one time
ZOOM / EPG / Recall / Timer / Still Picture
Basic Feature
Free-To-Air Compatible
High Sensitiveness, Low Eb/No Tuner
LED window
Fully DVB-S/MPEG2 Compliant
SCPC/MCPC, C-band/Ku-band Compatible
Multi-Language OSD
Automatic PAL / NTSC Detection
Satellite signal loop through
RF output, RF in, AV output, TV Scart
Convenient software up-grade (DFU&DFA) – PC to Receiver, Receiver to Receiver
256 color graphic menu
Powerful edit abilities (rename, add, delete, move, sort) channels, transponders & satellites edit
Timer function
Editable TEL Directory
Game entertainment offering
Note:
Rest with the availability of satellite service
18
TERMS (reference)
DiSEqC (Digital Satellite Equipment Control)
A standard through which it is possible to let a DiSEqC compatible receiver send a signal via the
RF cable to a switching device to switch between different LNBs or dishes. The DiSEqC uses the
22KHz signal to control the switching device.
EPG (Electronic Programme Guide)
A electronic program guide (EPG) that comes with the broadcast to a particular satellite, note that
every station fills the EPG differently or not, so differences in the EPG are not necessarily receiver errors.
Frequency
The number of cycles or events per one second, which is expressed in the unit of Hertz
FTA (Free-To-Air)
An unscrambled broadcast, which you can view without additional payments to a service provider.
Hi-Fi (High Fidelity)
The characteristics of audio devices that can perform all the audio frequencies to the human,
whose range is from 16Hz to 20KHz, uniformly from the low frequency to high frequency. Sometimes it is used to indicate high quality of an audio device such as CD player, etc.
LNB (Low Noise Block)
An electronic unit mounted on the satellite antenna. It receives the signal reflected by the dish
and converts them to signal that can be used by this product.
OSD (On Screen Display)
The function that displays the information about the monitor that the user needs or has to know
on the screen directly. OSD information probably includes brightness, contrast, tuning, RGB
adjustment, screen size, positions or other instructions else, etc.
OTA (Over The Air)
Means that software downloads where the manufacturer reserves the right to decide when and
where to release them through satellite system.
RF (Radio Frequency)
Frequencies occupied by radio waves of the total frequency range of electromagnetic waves.
Transponder
In communications, a device that receives and retransmits signals. In satellite communications
the received signals are amplified and retransmitted at a different frequency
FCC
Error correction forwards.
19 15
SPECIFICATION
Tuner
Input Frequency 950 - 2,150 MHz
Signal Level -25dBm - -65dBm (75:)
LNB Control DiSEqC1.0/1.2 22KHz
LNB Power & Polarization 13V/18V (Max. 400mA)
Channel Decode
Demodulation QPSK (SCPC, MCPC)
Input Symbol Rate 2-40MSPS
Video
Profile Level MPEG-II MP@ ML
Output System NTSC / PAL
Output Terminal RCA, TV Scart
Output Level 1Vp-p (75:) (RCA)
Audio
Audio Decoding MPEG-II layer I & II
Sampling Rate 32/44.1/48KHz
Freq response 20Hz - 20KHz
Output Level Adjustable (600: unbalance)
Working condition
Power supply voltage AC: 90-240V 50/60 Hz
Power consumption About 15W
Temperature 0
Humidity 10% -90%
Size 300X210X64mm(L/W/H)
Weight Approx. 2.0Kg
- 40
ć
ć
20
PAC KIN G L IST
ITEMS Qty. REMARK
DIGITAL SATELLITE RECEIVER 1
INSTRUCTION MANUAL 1
REMOTE CONTROL 1
AV CABLE 1
CELL 2 AAA
NOTE: Any modification will not be noticed in advance. Our company reserves the rights for the
explanation of the difference
Loading...
