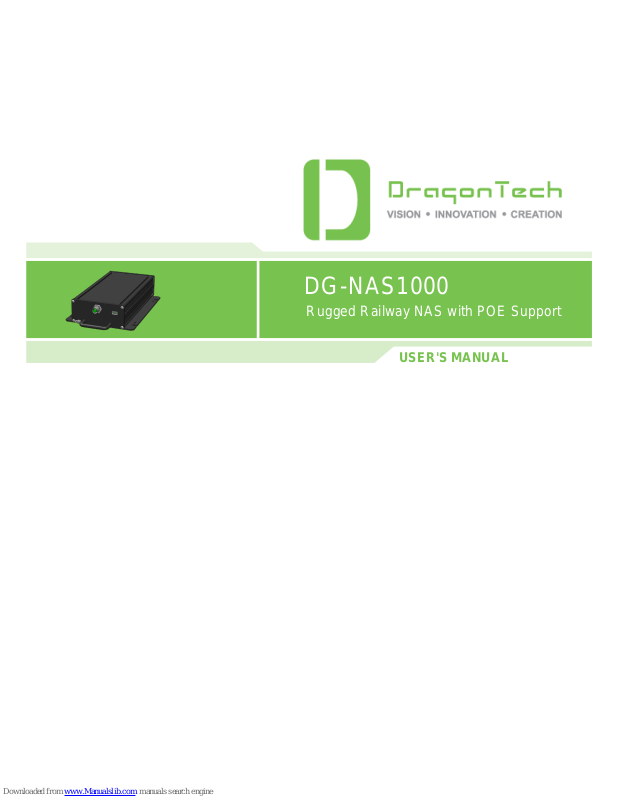

USER'S MANUAL
DG-NAS1000
Rugged Railway NAS with POE Support
Errore. Per applicare Heading 1;IT_Title 1 al testo da visualizzare in questo punto, utilizzare la scheda
Home.
Trademarks
All trademarks both marked and unmarked appearing in this document are the property of their
respective owners.
Revision History
Revision Description Date
1.0
First release February 2013
Table of contents
3
Table of contents
Trademarks .................................................................................................................................................... 2
Revision History ............................................................................................................................................. 2
Table of contents ............................................................................................................................................. 3
Important user information ............................................................................................................................. 5
Alerts that can be found throughout this manual ........................................................................................... 5
Safety notices and warnings .......................................................................................................................... 6
Life support policy .......................................................................................................................................... 8
Warranty ......................................................................................................................................................... 8
CE notice ........................................................................................................................................................ 8
WEEE ............................................................................................................................................................. 8
RoHS .............................................................................................................................................................. 8
Technical assistance ...................................................................................................................................... 9
Product overview ........................................................................................................................................... 11
Contents of the box ....................................................................................................................................... 12
Product specifications .................................................................................................................................. 13
Front panel Layout ....................................................................................................................................... 14
System installation and use ......................................................................................................................... 16
Unpacking .................................................................................................................................................... 17
Usage ........................................................................................................................................................... 17
Warnings about electrical and power connections ...................................................................................... 17
Installation notes .......................................................................................................................................... 18
Installation procedure ................................................................................................................................... 19
How to connect the system to the Ethernet network ................................................................................... 22
How to access the system ........................................................................................................................... 22
Physical characteristics ................................................................................................................................ 23
Operating characteristics ............................................................................................................................. 23
Environmental specifications........................................................................................................................ 23
Mechanical characteristics ........................................................................................................................... 24
Qualification and certification ...................................................................................................................... 27
Eurotech worldwide presence ...................................................................................................................... 28
DragonTech
(This page has been intentionally left blank)
Important user information
5
Important us er i nformation
Please carefully read and understand the instructions in this manual before using this device.
Whenever you have any doubt regarding the operation of this device, consult this manual or contact
your local Technical Support Team (see third and fourth cover of this manual for details).
Keep this manual for future reference.
In order to lower the risk of personal injury, ele ctric shock, fire or damage to equipment, users
must observe the following precautions, as well as using good technical judgment, whenever
installing or using the device.
Alerts that can be found throughout this manual
The following alerts indicate potentially dangerous situations:
SYMBOL MEANING
DANGER!
Information highlighting potential electrical shock hazards:
• Personal injury or death could occur.
• Damage to the system, connected peripheral devices, or software could occur.
Appropriate safety precautions should always be used; these should meet the requirements set out for the
environment that the equipment will be deployed in.
WARNING!
Information highlighting potential hazards:
• Personal injury or death could occur.
• Damage to the system, connected peripheral devices, or software could occur.
Appropriate safety precautions should always be used; these should meet the requirements set out for the
environment that the equipment will be deployed in.
NOTE
These will highlight important features or instructions.
DragonTech
6
Safety notices and warnings
Users must observe the following safety precautions during all phases of operation, service, and repair
of t he device. F ailure t o c omply with these pr ecautions or with s pecific warnings e lsewhere in t his
manual violates safety standards of design, manufacture, and intended use of the device.
Dragontech assumes no liability for the customer’s failure to comply with these requirements.
The safety precautions listed below represent warnings of certain dangers of which Dragontech is aware.
You, as the user of the device, should follow these warnings and all other safety precautions
necessary for the safe operation of the device in your operating environment.
Do not operate in an explosive atmosphere
WARNING!
Do not operate the equipm ent in the presence of flammable gases or fumes. Operation of any
electrical equipment in such an environment constitutes a definite safety hazard.
Antistatic precautions
WARNING!
To avoid ESD (Electro Static Discharge) damage, always use appropriate antistatic precautions
when handing any electronic equipment.
Connection to power supply or other devices
DANGER!
Before applying power to the system, thoroughly review all installation, operation, and safety
instructions.
Failure to install the system power supply correctly or to follow all operating instructions correctly
may create an electrical shock hazard, which can result in personal injury or loss of life, and/or
damage to equipment or other property
• To avoid injuries, always disconnect power and discharge circuits before touching them.
• Only start the device with a power supply that meets the requirements stated on the voltage
label. In case of uncertainties about the required power supply, please contact the Dragontech
Technical Support Team or the electricity authority
• Before connecting other equipment carefully read any supplied instructions
• Always disconnect the power before connecting or disconnecting cables
• Do not perform connections with wet hands
• Check any power cords for damage before use
• Use certified power cables. The power cable must meet the requirements (voltage and
current) of the device.
• Position cables with care. Avoid positioning cables in places where they may be trampled on
or compressed by objects placed on them. Take particular care of the plug, power-point and
outlet of power cable
• Avoid overcharging any power outlets
• Only apply power to the device or connected equipment after checking that all the above
conditions have been met
DragonTech
7
Installation
WARNING!
• Verify that the mounting location can withstand the added loads caused by the addition of the
device, it should be firmly secured so that it will not cause any potentially hazardous
situations (e.g. falling down due to vibration or shock)
• Do not operate the device near heat sources or flames.
NOTE:
If the device must be moved from one place to another with different ambient temperatures, ensure sufficient
time for the temperature of the device to stabilize before repowering.
Ventilation
WARNING!
Ensure adequate ventilation to avoid overheating, Dragontech suggests the fol lowing steps:
• When installing the device within a cabinet, rack or other enclosed space, be sure to leave
sufficient space to allow adequate air circulation
• Do not block any ventilation openings
Maintenance
DANGER!
• Never open, dismantle or repair the device!
• For your maintenance or repair requirement please contact a qualified Dragontech engineer.
If the device does not function correctly and you are unable to find a solution, feel free to contact
the Dragontech Technical Support Team.
If the equipment does not work properly, especially if smells unusual, unplug it immediately and
contact the Dragontech Technical Support Team (see third and fourth cover of this manual for details).
Cleaning
WARNING!
When you clean the device, remember to:
• Ensure sufficient ESD protection during the cleaning process.
• Remove any power from the device.
• When cleaning an enclosed system or peripheral use a dry cloth on the external casing.
• With single boards, use only a low power air brush or soft bristled paintbrush.
• Do not use detergents, aerosol sprays, solvents or abrasive sponges.
DragonTech
8
Life support policy
WARNING!
Users must not use Dragontech products as critical components of life support devices or systems
without the express written approval of Dragontech Systems Ltd.
Warranty
Please contact your local Dragontech Systems Sales Office for detailed warranty terms and conditions.
See the third and fourth covers of this manual for further details.
CE notice
This product has the CE labelling in accordance with the 1999/5/EC regulations.
Eurotech s hall not be l iable f or us e o f i ts pr oducts w ith eq uipment ( i.e. power s upplies,
personal computers, etc.) that are not CE marked.
WEEE
The information below complies with the regulations set out in the 2002/96/EC directive, subsequently
superseded by 2003/108/EC. It refers electrical and electronic equipment and the waste management
of such products.
When disposing of a device, including all of its components, subassemblies and materials that are an
integral part of the product, you should consider the WEEE directive.
The use of the following symbol, attached to the equipment, packaging, instruction
literature, or the guarantee sheet, states that the device has been marketed after August
13th 2005, and implies that you must separate all of its components when possible, and
dispose of them in accordance with local waste disposal legislations:
• Because of the substances present in the equipment, improper use or disposal of the refuse can
cause damage to human health and the environment.
• With reference to WEEE, it is compulsory not to dispose of the equipment with normal urban refuse;
an arrangement for separate collection and disposal is essential.
• To avoid any possible legal implications users should contact the local waste collection body for full
recycling information.
RoHS
This device, including all the components, subassemblies and the consumable materials that are an
integral part of the product, have been manufactured in compliance with the European directive
2002/95/EC known as the RoHS directive (Restrictions of the use of certain Hazardous Substances).
This directive targets the reduction of certain hazardous substances previously used in electrical and
electronic equipment (EEE).
DragonTech
9
Technical assistance
For an y t echnical qu estions, or i f you c annot isolate a pr oblem w ith your device, or f or an y e nquiry
about repair and returns policies, feel free to contact your local Dragontech Technical Support Team (see
third and fourth cover of this manual for details).
Transportation
When transporting any module or system, for any reason, it should be packed using anti-static material
and placed in a sturdy box with enough packing material to adequately cushion it.
Warning:
Any product returned to Dragontech Systems that is damaged due to inappropriate packaging will not be
covered by the warranty!
Device labelling
On the rear side of the device you will find a label displaying the following information:
• Model
• Serial Number
• Power Requirements
Figure 1. Label location on the rear side
DragonTech
(This page has been intentionally left blank)
Product overview
11
Product overview
The NAS1000 family o f systems is an ideal solution when looking for robust and capable storage
devices integrating Network-Attached S torage (NAS)
1
functionalities. When c onnected to a n etwork,
thanks to an integrated Ethernet-to-SATA controller, NAS1000 systems make available two hard disk
configurations: in RAID0 or RAID1. In addition, the systems can be powered using Power - overEthernet (PoE) technology
2
NAS1000 systems allow for different installation possibilities: they can be installed using two mounting
brackets, or inserted inside a security enclosure that has a locking mechanism and allows you to install
the system while avoiding unauthorized removal.
.
The rugged design of NAS1000 systems allows their deployment in railway applications prone to harsh
environmental conditions.
Figure 2. rear and front views
1
Network-Attached-Storage (NAS) is file-level computer data storage connected to a computer
network providing data access to heterogeneous network clients.
2
Power-over-Ethernet (PoE) is a technology that allows t he s afe t ransfer of el ectrical p ower, along
with da ta, t o r emote de vices us ing s tandard C AT-5 c ables within a n Ethernet net work. It does not
require modification of existing Ethernet cabling.
DragonTech
12
Contents o f t he box
The following order codes are available when purchasing a NAS1000:
Model / Order Code Description Diagram
NAS-0200-00 NAS POE 100 GB in RAID 1 or 200
GB aggregated HDD
NAS-1000-00 NAS POE 5 00 GB in RAID 1 or 1 TB
aggregated HDD
NAS-0200-01 NAS POE 100 GB in RAID 1 or 200
GB aggregated HDD coming enclosed
within a Key-locked Enclosure
NAS-1000-01 NAS POE 500 GB in RAID 1 or 1 TB
aggregated HDD coming enclosed within a
Key-locked Enclosure
NAS-CBL-01
M12 Male to M12 Male Connection Cable
(length: 2 m)
NAS-CBL-02
M12 Male to RJ45 Male Connection Cable
(length: 2 m)
DragonTech
13
Product specifications
FEATURE DESCRIPTION
Communication port
10/100Mbps Ethernet host interface
Storage capacity
NAS-0200-00 and NAS-0200-01 models:
100 GB in RAID 1 or 200 GB aggregated HD
NAS-1000-00 and NAS-1000-01 models:
500 GB in RAID 1 or 1 TB aggregated HDD
Encryption standard
Advanced Encryption Standard (AES); 128 bit key-size
LED indicators
• Ethernet link
• Ethernet activity
• SATA boot failure
• Early On
• CPU power ON
Power Input
• Power-over-Ethernet
• Powered Device: 37 to 57 V dc
• Power Classification: Class 0
• (IEEE 802.3af compliant)
Maximum Weight
3 Kg
Maximum Power Consumption
12 W
Overall Dimensions in mi ll imetres
(W x H x L)
NAS-0200-00 and NAS-1000-00 models:
171.0 x 59.5 x 285.0
NAS-0200-01 and NAS-1000-01 models:
171.0 x 83.0 x 293.0
Cooling Fans
Not required. Passive heat sink provided
Operating Temperature
NAS-0200-00 and NAS-0200-01 models:
-25°C to +55°C; +70°C for 10 minutes
NAS-1000-00 and NAS-1000-01 models:
-10°C to +55°C; +70°C for 10 minutes
Storage Temperature Range
-40°C to +85°C
Relative Humidity
<95% (non-Condensing)
Environmental
IP 65 (NEMA 4X)
Compliance
• EN 50155 (Railway applications)
• EN 61373 (Vibrations & Shocks)
• EN 60950 (Safety)
• EN 61000 (Immunity, Emission)
• EN 60068 (Environmental testing)
DragonTech
14
Front panel Layout
Figure 3. Front panel layout
LED indicators layout and functionality
LED # FUNCTION
1
Ethernet link
2
Ethernet activity
3
SATA boot failure
4
CPU ready
5
Spare
6
CPU power ON
M12 connector layout and functionality
Function
• 10/100 Mbps Ethernet with Power-over-Ethernet (ETH1)
Connector type:
• Female box-mounting
• Type: 4-pin, M 12, D Code
• Part #: Lumberg 0986 EFC 152
PIN # FUNCTION PoE
1
TX+ (Transmit Data +)
+
2
Rx+ (Receive Data +)
-
3
TX- (Transmit Data -)
+
4
RX- (Receive Data +)
-
Housing
Shield
2
1 3
4
Handle M12 LED indicators
1 3 5
2 4 6
DragonTech
(This page has been intentionally left blank)
16
System installation and use
Please carefully read and understand the ins tructions of the chapter Important user information
on page 5 before using the device.
In order to lower the risk of personal injury, electric shock, fire or damage to equipment, users
must observe the following precautions, as well as using good technical judgment, whenever
installing or using the device des cribed in this manual.
WARNING!
The installation of the product described in this manual can be only performed by qualified
personnel and must be carried out in accordance with the standards.
WARNING!
To avoid ESD (Electro Static Discharge) damage, always use appropriate antistatic precautions (i.e.:
use an antistatic wrist strap connected to ground) when handing any electronic equipment.
DragonTech
System installation and use
17
Unpacking
When unpacking the equipment, ensure to remove all packaging material. All ventilation openings in
the chassis must be free of obstructions. Thoroughly inspect the equipment for damage that may have
occurred during shipment. If such damage has occurred, further inspection of the packaging material
may be necessary.
Immediately contact your local Dragontech Sales Office (see the third and fourth covers of this manual for
further details) to register a claim.
Usage
The uni t was intended t o be us ed as a robust s torage de vice, i ntegrating Network-Attached-Storage
(NAS) functionalities and taking advantage of the Power-over-Ethernet (PoE) technology.
The unit is NOT intended for the following functions:
Function Examples
Vehicle direction controls
Gears, Brakes, Suspension, Active steering, Speed limitation devices Engine
management
Driver positioning
Seat or Steering wheel positioning
Driver visibility
Headlight controls, Windscreen wipers
Functions related to the
drivers, passengers and other
road-users protection
Airbag and Safety restraint systems
Functions that could cause
confusion to the driver or
other road users
Optical disturbances:
Indicator control, Brake lights, Reversing lights, Light bars for emergency system,
Warning indicators, Lamps or Displays related to functions in clauses (a) or (b)
that may be observed in the direct view of the driver
Acoustic disturbances:
Anti-theft alarm, Horns
Functions related to vehicle
data bus functionality
Data transmission on vehicle data bus-systems, which are used to transmit data,
required to ensure the correct functioning of other immunity-related functions
Functions that affect vehicle
statutory data
Tachograph, Odometer
Warnings about electrical and power connections
DANGER!
• Before supplying power to the product, verify the correct installation, the order of operations to
follow and safety instructions
• Power have only to be connected after the installation of the system has been completed
• Do not connect or disconnect the cables with the system or the external apparatus switched on
FAILURE TO INSTALL THE SYSTEM POWER SUPPLY CORRECTLY OR TO FOLLOW ALL
OPERATING INSTRUCTIONS CORRECTLY MAY CREATE AN ELECTRICAL SHO CK HAZARD WHICH
CAN RESULT IN PERSONAL INJURY OR LOSS OF LIFE, AND/OR DAMAGE TO EQUIPME NT OR
OTHER PROPERTY.
WARNING!
It is the responsibility of the system integrator to ensure that all connections are compliant with
relevant standards for each type of interface.
DragonTech
18
WARNING!
The degree protection on the system is only obtained by covering the connectors properly. Be
careful to use cables that ensure the seal of the connector. Unused connectors have to be covered
with an appropriate plug. An improper cover of the connectors may result in damage to the system
and other system’s components due to a leaking seal.
WARNING!
See the paragraph Operating characteristics on page 23 for the pow er requirements of the product.
Use only cables that are appropriate to the power rating of the system.
Make sure that during installation the system maintains a proper grounding.
Installation notes
NOTE:
The device can operate in vertical, transversal and longitudinal orientations.
WARNING!
Verify that the addition of the system does not cause instability or damage to the mounting location.
Firmly secure the system.
Be aware of potentially haz ardous situation when mounting the system (e.g. falling down). If
required, use stiffeners to reinforce the mounting area.
NOTE:
When the unit is mounted, ensure adequate clearance distance for cabling and air circulation: there
must be sufficient space to connect the cables and for the maintenance operations.
WARNING!
Make sure the temperature and humidity will stay within the ranges specified in the Operating
characteristics paragraph on page 23.
Be aware of other devices that may raise the ambient temperature in the installation area, also the
radiated heat of the system itself.
DragonTech
System installation and use
19
Installation procedure
Depending on the NAS1000 model there are two ways of installation:
• NAS-0200-00 and NAS-1000-00: installation can be made using the two mounting brackets
attached to the DuraNAS system
• NAS-0200-01 and NAS-1000-01: installation can be made using the two mounting brackets
attached to the key-locked enclosure
How to install the NAS-0200-00 and NAS-1000-00 models
NAS-0200-00 an d N AS-1000-00 m odels c ome pr ovided with t wo m ounting br ackets attached t he
system. Four M5 screws and washers can be used to secure the brackets in place.
Bracket
171.0
5.5
5.5
5
.
5
15.0
59.5
32.0
47.0
248.5
207.0
254.0
221.5
285.0
153.0
129.0
DragonTech
20
How to install the NAS-0200-01 and NAS-1000-01 models
NAS-0200-01 an d NAS-1000-01 m odels c ome enclosed within a k ey-locked enc losure pr ovided with
two mounting brackets. Four M5 screws and washers can be used to secure the brackets in place.
Bracket
DragonTech
21
How to release the system from the key-locked enclosure
1. Open the latch of the locking mechanism using the key provided
2. Open the security door
3. Pull the handle and slide the system from the enclosure
How to reinstall the system in the key-locked enclosure
1. The security door must be open.
2. Using the handle slide the system along the guiderails to insert it into the enclosure.
3. Close the security door and close the latch of the locking mechanism.
Handle
Locking mechanism
Guiderail
DragonTech
22
How to connect the system to the Ethernet network
The NAS1000 has to be connected to an Ethernet network via connector M12 using a specific cable
(not supplied) and that has to comply with the Power-over-Ethernet standards.
Once the NAS1000 is connected to the network, it immediately turns itself ON.
How to access the system
The NAS1000 will have the following fixed IP address: 192.168.0.11
It is possible to access the NAS1000 as follows:
1. Map a network drive using the folder: \\192.168.0.111\PUBLIC
2. Using a web browser.
Type the address: \\192.168.0.111\PUBLIC (username: "admin"; password: "admin") to configure
the NAS1000 (shared folders and users)
3. Using a Secure Shell (SSH) protocol to enter the operating system of the NAS1000
• Username: “admin”
• Password: “admin”
DragonTech
23
Physical characteristics
Operating characteristics
Electrical operating characteristics
The system meets the IEEE 802.3af PD specifications.
CHARACTERISTIC MINIMUM NOMINAL MAXIMUM
Input Voltage range
37 V dc 48 V dc 57 V dc
Power Consumption
12 W
Environmental specifications
Temperature
CHARACTERISTIC MODEL MINIMUM MAXIMUM NOTES
Operating Temperature Range
NAS-0200-00 -25 °C +55 °C
+70°C for 10 minutes
NAS-0200-01 -25 °C +55 °C
+70°C for 10 minutes
NAS-1000-00 -10 °C +55 °C
+70°C for 10 minutes
NAS-1000-01 -10 °C +55 °C
+70°C for 10 minutes
Storage temperature range
All -40 °C +85 °C
Vibration
The mechanical strength of the unit must meet the requirement of the category 1 class B defined in EN
50155.
EMC
Immunity and Emissions must meet the requirements defined in EN 50155 standard.
Power supply
The power supply must meet the requirements defined in IEEE 802.3af standard.
DragonTech
24
Mechanical characteristics
Note: All dimensions are in millimetres unless otherwise stated.
NAS-0200-00 and NAS-1000-00 models
171.0
5.5
5.5
5
.
5
15.0
59.5
32.0
47.0
248.5
207.0
254.0
221.5
285.0
153.0
129.0
DragonTech
25
NAS-0200-01 and NAS-1000-01 models
DragonTech
(This page has been intentionally left blank)
27
Qualification and certification
Test Standard followed Restriction Type Routine
Visual inspection
EN 50155 Section 12.2.1 * *
Performance test
EN 50155 Section 12.2.2 Nominal voltage: 48 Vdc
(802.3af compliant)
Low limit: 37 Vdc
High limit: 57 Vdc
Interruption: Class 1
(no interruptions)
* *
Cooling test
EN 50155 Section 12.2.3
(EN60068-2-1 test Ac)
Class T1: -25°C
(HDD not powered below -10 °C)
* -
Dry heat test
EN 50155 Section 12.2.4
(EN 60068-2-2 test Bd)
Class T1: +55°C
(+70° for 10 min.)
* -
Emission enclosure port
EN 50155 Section 12.2.7.3
EN 50121-3-2
EN 55011
Performance criteria A
Scanned over the frequency range:
30MHz to 1GHz
* -
Fast transient
EN 50155 Section 12.2.8.1
EN 50121-3-2
EN 61000-4-4
+- 2 KV on Ethernet cable
Performance criteria: A
* -
Immunity to conducted
disturbances, inducted by
radio-frequency fields.
EN 50121-3-2
EN 61000-4-3
Test executed on Ethernet cable from
0.15 MHz to 80 MHz
Performance criteria: A
* -
Radiated, radio-frequency,
electromagnetic field
immunity test
EN 50121-3-2
EN 61000-4-3
Field strength 20V/m from 80MHz to
1GHz, 10V/m from 1.4GHz to 2.1GHz
and 5V/m from 2.1GHz to 2.5GHz.
Performance criteria: A
* -
Electrostatic discharge
EN 50121-3-2
EN 61000-4-2
Contact discharges +-6KV, air
discharges +-8KV
Performance criteria: A
* -
Random vibrations
EN 50155 Section 12.2.11
EN 61373 (ed. 2000) Section 8
Category 1 Class B * -
Simulated long life testing
EN 50155 Section 12.2.11
EN 61373 (ed. 2000) Section 9
Category 1 Class B * -
Shocks
EN 50155 Section 12.2.11
EN 61373 (ed. 2000) Section 10
Category 1 Class B * -
Safety
EN 60950
Essential constraints defined in the
standard
* -
* Performed
- Not performed
