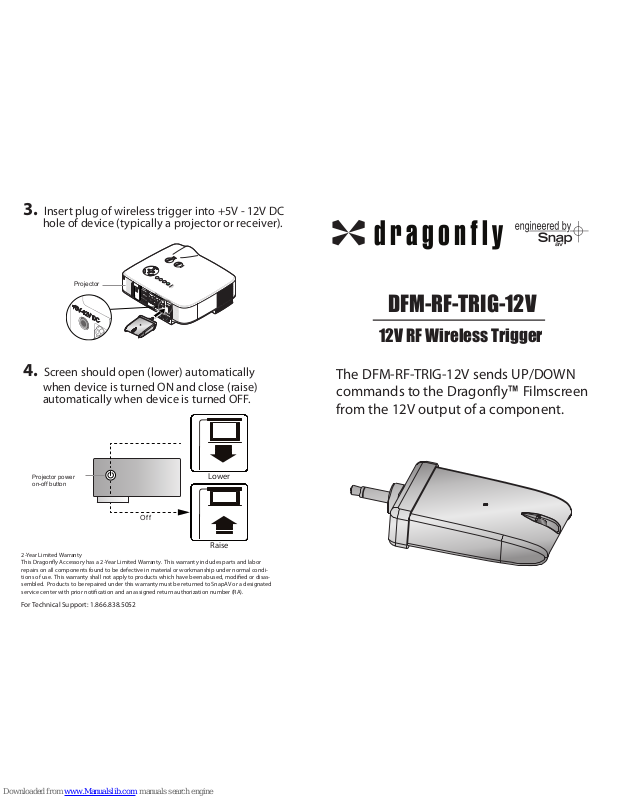

Dragonfly DFM-RF-TRIG-12V User Manual

DFM-RF-TRIG-12V

The DFM-RF-TRIG-12V sends UP/DOWN
commands to the Dragony™ Filmscreen
from the 12V output of a component.

12V RF Wireless Trigger

3. Insert plug of wireless trigger into +5V - 12V DC

hole of device (typically a projector or receiver).

4. Screen should open (lower) automatically

when device is turned ON and close (raise)
automatically when device is turned OFF.

Projector

Off

Projector power
on-off button

2-Year Limited Warranty
This Dragony Accessory has a 2-Year Limited Warranty. This warranty includes parts and labor
repairs on all components found to be defective in material or workmanship under normal condi­tions of use. This warranty shall not apply to products which have been abused, modied or disas­sembled. Products to be repaired under this warranty must be returned to SnapAV or a designated
service center with prior notication and an assigned return authorization number (RA).

For Technical Support: 1.866.838.5052

Lower

Raise

Installation

1. Take 3V Battery (CR2430) positive side

up and insert in to battery slot.

2. a. Insert wireless RF/IR receiver into external

IR input of screen.

b. Insert a small pin into the programming

button hole insert. With the pin inserted,
depress the programming button and the
indicator light will ash repeatedly. The
programming instructions will be synced to
both devices and the program mode will end.
Once completed, the indicator light will stop
ashing and stay on.

(Positive side UP)

Wireless Converter (RF to IR )

12V Wireless Trigger

Programming
Button

Indicator Light

Battery

Battery Model: CR2430 (3v) Lithium
Transmitting Frequency: 868MHz
Modulation Method: RF

Pin Insert

Battery
Groove

RF to IR Receiver

Wireless 12V
Trigger
