Dragino DT01 User Manual
www.dragino.com
DT01 WiFi/3G VoIP PBX / ATA User Manual 1 / 23
DT01 WiFi/3G VoIP PBX / ATA User Manual
Document Version: 1.0
Firmware Version: v1.3.5
Ver si on
Description
Date 1.0 Initiate
2015
-Feb-26
www.dragino.com
DT01 WiFi/3G VoIP PBX / ATA User Manual 2 / 23
Index:
1 Introduction ....................................................................................................... 3
1.1 What is DT01 ............................................................................................ 3
1.2 Specifications ........................................................................................... 3
1.3 Features ................................................................................................... 3
1.4 Operation Temperature ............................................................................ 4
2 Access DT01........................................................................................................ 5
2.1 Overview .................................................................................................. 5
2.2 Find the ip addresses ................................................................................ 5
2.3 Configure Method .................................................................................... 6
2.3.1 Access via browser ......................................................................... 6
2.3.2 Access via SSH ................................................................................ 6
3 Typical Network Setup ........................................................................................ 7
3.1 Connect Internet via WAN port ................................................................. 7
3.2 Connect Internet via WiFi Client mode ..................................................... 8
3.3 Connect Internet via USB dongle, 3G/4G/GPRS......................................... 9

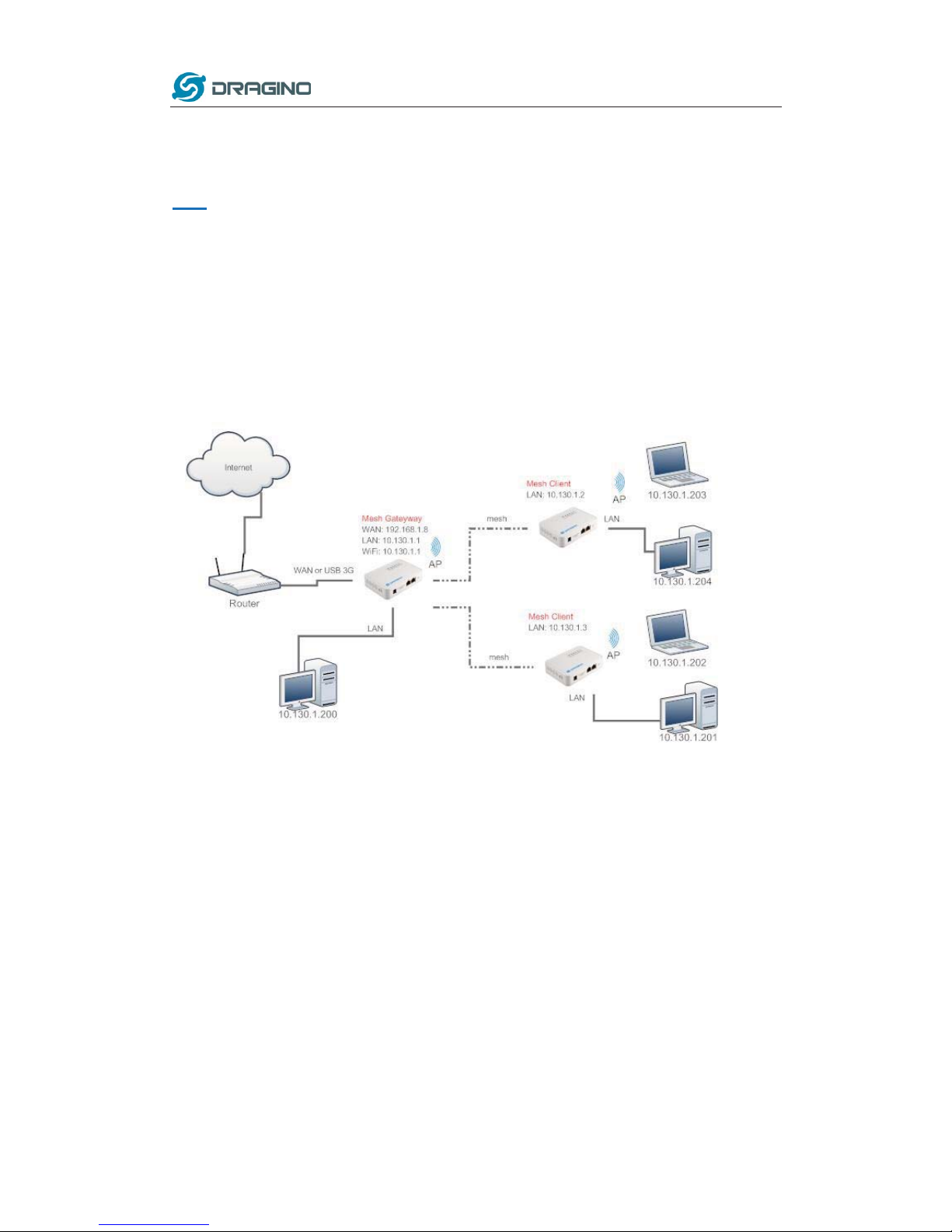

3.4 Set up WiFi mesh network ...................................................................... 11
3.4.1 Mesh Gateway Set Up via Web UI ................................................. 11
3.4.2 Mesh Client Set Up via Web UI ..................................................... 12
4 VoIP Settings ..................................................................................................... 13
4.1 Overview ................................................................................................ 13
4.2 General Settings ..................................................................................... 13
4.3 VoIP Server Settings ................................................................................ 14
4.4 VoIP Clients ............................................................................................ 15
4.5 Dial Plan ................................................................................................. 16
5 VoIP Set up example: ........................................................................................ 18
5.1 Configure as SIP ATA ............................................................................... 18
5.2 Configure as SIP server ........................................................................... 19
5.3 Link two DT01s via IAX2 protocol. ........................................................... 20
6 Upgrade Firmware ............................................................................................ 21
7 FAQ ................................................................................................................... 22
7.1 How to get long distance WiFi range? ..................................................... 22
7.2 How to reset DT01 to factory default? .................................................... 22
7.3 How to recover DT01 if firmware crash? ................................................. 22
8 Reference ......................................................................................................... 23
www.dragino.com
DT01 WiFi/3G VoIP PBX / ATA User Manual 3 / 23
1 Introduction
1.1 What is DT01
The DT01 is an Open Source appliance designed for VoIP application. DT01 has built-in Asterisk
software and have a FXS port to connect normal phone. DT01 has a friendly Web UI, user can
configure the DT01 to work as a VoIP ATA or PBX through the web browser easily.
DT01 has two RJ45 port, a WiFi 802.11 b/g/n interface and a USB port host port to provide
flexible network connection via LAN cable/ wifi or 3G/4G network.
DT01 is fully open source, user can modify the inside Linux system or compile a firmware for their
customized applications.
The goal for DT01 is to fulfill VoIP requirement on dedicate application or installations.
1.2 Specifications
Hardware System:
¾ Processor: 400MHz, 24K MIPS
¾ 64MB RAM
¾ 16MB Flash
¾ DC Input: 9 ~ 12v or 5V
Interface:
¾ 1 x FXS port
¾ 2 x RJ45 ports
¾ USB 2.0 Host port to connect 3G dongle or USB flash
WiFi Spec:
¾ IEEE 802.11b/g/n
¾ Frenquency Band: 2.4 ~ 2.462GHz
¾ Chip Antenna or External antenna
1.3 Features
9 Open Source OpenWrt system
9 Asterisk 1.8.10
9 Support SIP / IAX2 server/client.
9 Support multiply SIP / IAX2 entries
9 Easy configure SIP/IAX2/dial-plan in Web UI
9 Managed by Web GUI or SSH
9 Firmware upgrade via Web
www.dragino.com
DT01 WiFi/3G VoIP PBX / ATA User Manual 4 / 23
9
Support WiFi AP, Client or Ad-Hoc(Mesh) mode
9
Optional external antenna for long distance connection
9
Support USB dongle for 3G/4G dial up
9
Support USB flash for extend storage
1.4 Operation Temperature
9
Operation Temperature: -25ć ~ 65ć
9
Storage Temperature: -40ć ~ 85ć
www.dragino.com
DT01 WiFi/3G VoIP PBX / ATA User Manual 5 / 23
2 Access DT01
2.1 Overview
DT01 has two separate RJ45 ports and a WiFi Interface. They have different IP addresses, user can
use either of them to access the DT01 and configure it via Web or SSH.
2.2 Find the ip addresses
Factory IP of WiFi port
At the first boot of Yun Shield, it will auto generate an secure WiFi
network call Dragino2-xxxxxx. The WiFi password is
dragino-dragino by default
User can use their laptop to join this WiFi network. The laptop will
get an IP 10.130.1.xxx and the DT01 has the default IP 10.130.1.1
Fall Back IP
A fall back IP 172.31.255.254/255.255.255.252 is
assigned to DT01's LAN port so user can always access
DT01 with this ip if their laptop has the IP
172.31.255.253/255.255.255.252.
www.dragino.com
DT01 WiFi/3G VoIP PBX / ATA User Manual 6 / 23
2.3 Configure Method
The DT01 runs Open Source Linux system. If user has a PC at the same network as DT01, user can
access its system via either
Web Interfa ce
or
Secure Shell (SSH)
.
2.3.1 Access via browser
The recommended browsers to configure DT01 are
Firefox
and
Chrome
. Simply type the IP
address into your browser and you will see the log in page of DT01.
Default Web Login:
User name: root
Password: dragino
2.3.2 Access via SSH
Via SSH access, user can access to the Linux system directly and customized the system to
support more features and applications.
SSH Access:
IP address: IP Address of DT01
Port: 22
User Name: root
Password: dragino (default)
www.dragino.com
DT01 WiFi/3G VoIP PBX / ATA User Manual 7 / 23
3 Typical Network Setup
User can configure DT01 to meet different network requirement. This chapter lists some typical
network setup. Device are not limited to the network set up shows below, user can configure
more advance network modes via the OpenWrt Linux system.
3.1 Connect Internet via WAN port
This is the default connection mode. System works like below:
Set Up in Web UI:
9 Internet Access
Access Internet via WAN port
9 LAN and DHCP:
Enable DHCP server in its LAN port
9 Access Point(optional)
Enable WiFi AP
Input SSID/ Encryption/ Passphrase
9 Mesh Network
Disable WiFi Mesh Network
