RS485-LN -- RS485 to LoRaWAN Converter User Manual
Document Version: 1.2
Image Version: v1.2.3
RS485 to LoRaWAN Converter User Manual 1 / 32
www.dragino.com
1. Introduction .............................................................................................................................. 4
1.1 What is RS485-LN RS485 to LoRaWAN Converter ...................................................................... 4
1.2 Specifications .............................................................................................................................. 5
1.3 Features ...................................................................................................................................... 5
1.4 Applications ................................................................................................................................ 6
1.5 Firmware Change log ................................................................................................................. 7
2. Power ON Device ...................................................................................................................... 7
3. Operation Mode ....................................................................................................................... 9
3.1 How it works? ............................................................................................................................. 9
3.2 Example to join LoRaWAN network ............................................................................................ 9
3.3 Configure Commands to read data .......................................................................................... 12
3.3.1 Configure UART settings for RS485 communication ....................................................... 12
3.3.2 Configure RS485 sensors ................................................................................................ 12
3.3.3 Configure read commands for each sampling ................................................................ 13
3.3.4 Compose the uplink payload .......................................................................................... 16
3.3.5 Clear commands ............................................................................................................. 18
3.3.6 Uplink on demand .......................................................................................................... 18
3.4 Uplink Payload .......................................................................................................................... 19
3.5 Downlink Payload ..................................................................................................................... 19
3.6 Buttons ..................................................................................................................................... 21
3.7 LEDs .......................................................................................................................................... 21
4. Use AT Command .................................................................................................................... 22
4.1 Access AT Command ................................................................................................................. 22
4.2 Common AT Command Sequence ............................................................................................. 24
4.2.1 Multi-channel ABP mode (Use with SX1301/LG308) ...................................................... 24
4.2.2 Single-channel ABP mode (Use with LG01/LG02) ........................................................... 24
5. FAQ ......................................................................................................................................... 24
5.1 How to upgrade the image? ..................................................................................................... 24
5.2 How to change the LoRa Frequency Bands/Region? ................................................................ 27
5.3 How to set up RS485-LN to work with Single Channel Gateway such as LG01/LG02? ............. 28
6. Trouble Shooting ..................................................................................................................... 30
RS485 to LoRaWAN Converter User Manual 2 / 32
www.dragino.com
6.1 Downlink doesn’t work, how to solve it? .................................................................................. 30
6.2 Why I can’t join TTN in US915 /AU915 bands? ......................................................................... 30
7. Order Info ............................................................................................................................... 30
8. Packing Info ............................................................................................................................ 30
9. Support ................................................................................................................................... 31
10. Reference ................................................................................................................................ 32
RS485 to LoRaWAN Converter User Manual 3 / 32
www.dragino.com
1. Introduction
1.1 What is RS485-LN RS485 to LoRaWAN Converter
The Dragino RS485-LN is a RS485 to LoRaWAN Converter. It converts the RS485 signal into
LoRaWAN wireless signal which simplify the IoT installation and reduce the
installation/maintaining cost.
RS485-LN allows user to monitor / control RS485 devices and reach extremely long ranges. It
provides ultra-long range spread spectrum communication and high interference immunity whilst
minimizing current consumption. It targets professional wireless sensor network applications
such as irrigation systems, smart metering, smart cities, smartphone detection, building
automation, and so on.
For data uplink, RS485-LN sends user-defined commands to RS485 devices and gets the return
from the RS485 devices. RS485-LN will process these returns according to user-define rules to get
the final payload and upload to LoRaWAN server.
For data downlink, RS485-LN runs in LoRaWAN Class C. When there downlink commands from
LoRaWAN server, RS485-LN will forward the commands from LoRaWAN server to RS485 devices.
RS485 to LoRaWAN Converter User Manual 4 / 32
1.2 Specifications
Hardware System:
STM32L072CZT6 MCU
SX1276/78 Wireless Chip
Power Consumption (exclude RS485 device):
Idle: 32mA@12v
20dB Transmit: 65mA@12v
Interface for Model:
RS485
Power Input 7~ 24V DC.
LoRa Spec:
Frequency Range:
Band 1 (HF): 862 ~ 1020 Mhz
Band 2 (LF): 410 ~ 528 Mhz
168 dB maximum link budget.
+20 dBm - 100 mW constant RF output vs.
+14 dBm high efficiency PA.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm.
Bullet-proof front end: IIP3 = -12.5 dBm.
Excellent blocking immunity.
Low RX current of 10.3 mA, 200 nA register retention.
Fully integrated synthesizer with a resolution of 61 Hz.
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
Built-in bit synchronizer for clock recovery.
Preamble detection.
127 dB Dynamic Range RSSI.
Automatic RF Sense and CAD with ultra-fast AFC.
Packet engine up to 256 bytes with CRC.
www.dragino.com
1.3 Features
LoRaWAN Class A & Class C protocol (default Class C)
Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865/RU864
AT Commands to change parameters
Remote configure parameters via LoRa Downlink
Firmware upgradable via program port
Support multiply RS485 devices by flexible rules
Support Modbus protocol
RS485 to LoRaWAN Converter User Manual 5 / 32
www.dragino.com
1.4 Applications
Smart Buildings & Home Automation
Logistics and Supply Chain Management
Smart Metering
Smart Agriculture
Smart Cities
Smart Factory
RS485 to LoRaWAN Converter User Manual 6 / 32
www.dragino.com
1.5 Firmware Change log
RS485-LN Image files – Download link
Image v1.2.3
Add command AT+CMDDL to be compatible with some modbus device has long time to
reply
Add Watchdog
Image v1.2.2
Update LoRaWAN stack to DR-LWS-003:
http://www.dragino.com/downloads/downloads/LoRa_End_Node/DR-LWS/changelog
Image v1.1
Extend RS485 commands from 2 to 15 commands.
Format of AT+DATAUP and AT+DATACUT has been changed to more flexible.
Add poll command for downlink.
Add AT Command to set UART Parity
Add more RS485 read command entries.
Image v1.0
Release
2. Power ON Device
The RS485-LN can be powered by 7 ~ 24V DC power source. Connection as below
Power Source VIN to RS485-LN VIN+
Power Source GND to RS485-LN VIN-
Once there is power, the RS485-LN will be on.
RS485 to LoRaWAN Converter User Manual 7 / 32
www.dragino.com
RS485 to LoRaWAN Converter User Manual 8 / 32
www.dragino.com
3. Operation Mode
3.1 How it works?
The RS485-LN is configured as LoRaWAN OTAA Class C mode by default. It has OTAA keys to join
network. To connect a local LoRaWAN network, user just need to input the OTAA keys in the
network server and power on the RS485-LN. It will auto join the network via OTAA.
In case user can’t set the OTAA keys in the network server and has to use the existing keys from
server. User can use AT Command to set the keys in the devices.
3.2 Example to join LoRaWAN network
Here shows an example for how to join the TTN Network. Below is the network structure, we use
our LG308 as LoRaWAN gateway here.
The RS485-LN in this example connected to two RS485 devices for demonstration, user can
connect to other RS485 devices via the same method. The connection is as below:
RS485 to LoRaWAN Converter User Manual 9 / 32
www.dragino.com
The LG308 is already set to connect to TTN network . So what we need to now is only configure
the TTN:
Step 1: Create a device in TTN with the OTAA keys from RS485-LN.
Each RS485-LN is shipped with a sticker with unique device EUI:
RS485 to LoRaWAN Converter User Manual 10 / 32
www.dragino.com
User can enter this key in their LoRaWAN Server portal. Below is TTN screen shot:
Add APP EUI in the application.
Add APP KEY and DEV EUI
Step 2: Power on RS485-LN and it will auto join to the TTN network. After join success, it will start
to upload message to TTN and user can see in the panel.
RS485 to LoRaWAN Converter User Manual 11 / 32
www.dragino.com
AT Commands
Description
Example
AT+BAUDR
Set the baud rate (for RS485 connection).
Default Value is: 9600.
AT+BAUDR=9600
Options:
(1200,2400,4800,14400,19200,115200)
AT+PARITY
Set UART parity (for RS485 connection)
AT+PARITY=0
Option: 0: no parity, 1: odd parity, 2:
even parity
AT Commands
Description
Example
AT +CFGDEV
This command is used to configure the RS485
devices; they won’t be used during sampling.
AT+CFGDEV=xx xx xx xx xx xx xx xx xx xx xx xx,m
m: 0: no CRC, 1: add CRC-16/MODBUS in the
end of this command
AT+CFGDEV=xx xx xx xx xx xx xx xx xx xx
xx xx,m
3.3 Configure Commands to read data
There are plenty of RS485 devices in the market and each device has different command to read
the valid data. To support these devices in flexible, RS485-LN supports flexible command set.
User can use AT Commands to configure what commands RS485-LN should send for each
sampling and how to handle the return from RS485 devices.
Note: below description and commands are for firmware version >v1.1, if you have firmware
version v1.0. Please check the user manual v1.0 or upgrade the firmware to v1.1
3.3.1 Configure UART settings for RS485 communication
To use RS485-LN to read data from RS485 sensors, connect the RS485-LN A/B traces to the
sensors. And user need to make sure RS485-LN use the match UART setting to access the sensors.
The related commands for UART settings are:
3.3.2 Configure RS485 sensors
Some sensors might need to configure before normal operation. User can configure such sensor
via PC and RS485 adapter or through RS485-LN AT Commands AT+CFGDEV. Each AT+CFGDEV
equals to send a RS485 command to sensors. This command will only run when user input it and
won’t run during each sampling.
RS485 to LoRaWAN Converter User Manual 12 / 32
www.dragino.com
AT+COMMANDx=xx xx xx xx xx xx xx xx xx xx xx xx,m
xx xx xx xx xx xx xx xx xx xx xx xx: The RS485 command to be sent
m: 0: no CRC, 1: add CRC-16/MODBUS in the end of this command
3.3.3 Configure read commands for each sampling
During each sampling, we need confirm what commands we need to send to the RS485 sensors
to read data. After the RS485 sensors send back the value, it normally include some bytes and we
only need a few from them for a shorten payload.
To save the LoRaWAN network bandwidth, we might need to read data from different sensors
and combine their valid value into a short payload.
This section describes how to achieve above goals.
During each sampling, the RS485-LN can support 15 commands to read sensors. And combine the
return to one or several uplink payloads.
Each RS485 commands include two parts:
1) What commands RS485-LN will send to the RS485 sensors. There are total 15 commands
from AT+COMMAD1, ATCOMMAND2,…, to AT+COMMANDF. All commands are of same
grammar.
2) How to get wanted value the from RS485 sensors returns from by 1). There are total 15 AT
Commands to handle the return, commands are AT+DATACUT1,AT+DATACUT2,…,
AT +DATACUTF corresponding to the commands from 1). All commands are of same
grammar.
3) Some RS485 device might has longer delay on reply, so user can use AT+CMDDL to set the
timeout for getting reply after the RS485 command is sent. For example
AT+CMDDL1=1000 to send the open time to 1000ms
After we got the valid value from each RS485 commands, we need to combine them together
with the command AT+DATAUP.
Below are examples for the how above AT Commands works.
AT+COMMANDx : This command will be sent to RS485 devices during each sampling, Max
command length is 14 bytes. The grammar is:
For example, if we have a RS485 sensor. The command to get sensor value is: 01 03 0B B8 00 02
46 0A. Where 01 03 0B B8 00 02 is the Modbus command to read the register 0B B8 where
stored the sensor value. The 46 0A is the CRC-16/MODBUS which calculate manually.
RS485 to LoRaWAN Converter User Manual 13 / 32
www.dragino.com
In the RS485-LN, we should use this command AT+COMMAND1=01 03 0B B8 00 02,1 for the
same.
RS485 to LoRaWAN Converter User Manual 14 / 32
www.dragino.com
AT+DATACUTx=a,b,c
a: length for the return of AT+COMMAND
b:1: grab valid value by byte, max 6 bytes. 2: grab valid value by bytes
section, max 3 sections.
c: define the position for valid value.
AT+DATACUTx : This command defines how to handle the return from AT+COMMANDx, max
reture length is 40 bytes. .
Examples:
Grab bytes:
Grab a section.
Grab different sections.
RS485 to LoRaWAN Converter User Manual 15 / 32
www.dragino.com
3.3.4 Compose the uplink payload
Through AT+COMMANDx and AT+DATACUTx we got valid value from each RS485 commands,
Assume these valid value are RETURN1, RETURN2, .., to RETURNx. The next step is how to
compose the LoRa Uplink Payload by these RETURNs. The command is AT+DATAUP.
Examples: AT+DATAUP=0
Compose the uplink payload with value returns in sequence and send with A SIGNLE UPLINK.
Final Payload is
PAYVER + VALID Value from RETURN1 + Valid Value from RETURN2
+ … + RETURNx
Where PAYVER is defined by AT+PAYVER, below is an example screen shot.
RS485 to LoRaWAN Converter User Manual 16 / 32
www.dragino.com
Examples: AT+DATAUP=1
Compose the uplink payload with value returns in sequence and send with Multiply UPLINKs.
Final Payload is
PAYVER + PAYLOAD COUNT + PAYLOAD# + DATA
1) PAYVER: Defined by AT+PAYVER
2) PAYLOAD COUNT: Total how many uplinks of this sampling.
3) PAYLOAD#: Number of this uplink. (from 0,1,2,3…,to PAYLOAD COUNT)
4) DATA: Valid value: max 8 bytes for each uplink so each uplink <= 11 bytes. For the last uplink,
DATA will might less than 8 bytes
So totally there will be 3 uplinks for this sampling, each uplink include 8 bytes DATA
DATA1=RETURN1 Valid Value + the first two of Valid value of RETURN10= 20 20 0a 33 90 41 02 aa
DATA2=3rd ~ 10th byte of Valid value of RETURN10= 05 81 0a 20 20 20 20 2d
DATA3=the rest of Valid value of RETURN10= 30
Below are the uplink payloads:
RS485 to LoRaWAN Converter User Manual 17 / 32
www.dragino.com
3.3.5 Clear commands
The AT+COMMANDx and AT+DATACUTx settings are stored in special location, user can use below
command to clear them.
AT+CMDEAR=mm,nn mm: start position of erase ,nn: stop position of erase
Etc. AT+CMDEAR=1,10 means erase AT+COMMAND1/AT+DATACUT1 to
AT+COMMAND10/AT+DATACUT10
Example screen shot:
The uplink screen shot is:
3.3.6 Uplink on demand
Except uplink periodically, RS485-LN is able to uplink on demand. The server send downlink
command to RS485-LN and RS485 will uplink data base on the command.
Downlink control command:
0x08 command: Poll an uplink with current command set in RS485-LN.
0xA8 command: Send a command to RS485-LN and uplink the output from sensors.
RS485 to LoRaWAN Converter User Manual 18 / 32
www.dragino.com
Size(bytes)
1
Length depends on the return from the commands
Value
PAYLOAD_VER
If the valid payload is too long and exceed the maximum
support payload length in server, server will show payload not
provided in the LoRaWAN server.
Downlink Control Type
Type Code
Downlink payload
size(bytes)
TDC (Transmit Time Interval)
01 4 RESET
04 2 Poll a uplink
08
2
Clear command
09 aa bb same as AT+CMDEAR=aa,bb
09
3
RS485 control command (Same as AT+CFGDEV with uplink)
A8 MM NN XX XX XX XX YY
A8
Not fix
Set AT+DATAUP command (Same as AT+DATAUP)
AD 00: set AT+DATAUP=0
AD 01: set AT+DATAUP=1
AD
2
PAYLOAD_VER (Same as AT+PAYVER)
AE kk
KK:version
AE
2
Configure AT+COMMANDx or AT+DATACUTx
AF MM NN LL XX XX XX XX YY
AF
Dynamic
3.4 Uplink Payload
3.5 Downlink Payload
If the payload=0100003C, means to control the END Node’s TDC to 0x00003C=60(S), while type
code is 01.
Example Downlink payload setting in TTN:
Type Code 0x04
If payload = 0x04FF, it will reset the RS485-LN.
RS485 to LoRaWAN Converter User Manual 19 / 32
www.dragino.com
Type Code 0x08
If payload = 0x08FF, RS485-LN will immediately send an uplink.
Type Code 0xA8
0xA8 downlink command can be used to control the RS485 devices via LoRaWAN.
Format: A8 MM NN XX XX XX XX YY
Where:
MM: 1: add CRC-16/MODBUS ; 0: no CRC
NN: The length of RS485 command
XX XX XX XX: RS485 command total NN bytes
YY: How many bytes will be uplink from the return of this RS485 command, if YY=0,
RS485-LN will execute the downlink command without uplink; if YY>0, RS485-LN will uplink
total YY bytes from the output of this RS485 command
For example,
The RS485 Alarm we use here use Modbus RTU to communicate.
The command to active alarm is: 0A 05 00 04 00 01 4C B0. Where 0A 05 00 04 00 01 is the
Modbus command to read the register 00 40 where stored the DI status. The 4C B0 is the
CRC-16/MODBUS which calculate manually.
The command to deactivate alarm is: 0A 05 00 04 00 00 8D 70. Where 0A 05 00 04 00 00 is
the Modbus command to read the register 00 40 where stored the DI status. The 8D 70 is
the CRC-16/MODBUS which calculate manually.
So if user want to use downlink command to control to RS485 Alarm, he can use:
A8 01 06 0A 05 00 04 00 01 00: to activate the RS485 Alarm
A8 01 06 0A 05 00 04 00 00 00: to deactivate the RS485 Alarm
A8 is type code and 01 means add CRC-16/MODBUS at the end, the 3rd byte is 06, means the next
6 bytes are the command to be sent to the RS485 network, the final byte 00 means this
command don’t need to acquire output.
Type Code 0xAF
0xAF downlink command can be used to set AT+COMMANDx or AT+DATACUTx.
Note: if user use AT+COMMANDx to add a new command, he also need to send AT+DATACUTx
downlink.
Format: AF MM NN LL XX XX XX XX YY
Where:
MM: the ATCOMMAND or AT+DATACUT to be set. Value from 01 ~ 0F,
NN: 0: no CRC; 1: add CRC-16/MODBUS ; 2: set the AT+DATACUT value.
LL: The length of AT+COMMAND or AT+DATACUT command
XX XX XX XX: AT+COMMAND or AT+DATACUT command
YY: If YY=0, RS485-LN will execute the downlink command without uplink; if YY=1, RS485-LN
will execute an uplink after got this command.
Example:
AF 03 01 06 0A 05 00 04 00 01 00: Same as AT+COMMAND3=0A 05 00 04 00 01,1
RS485 to LoRaWAN Converter User Manual 20 / 32
www.dragino.com
Button
Feature
ACT
If RS485 joined in network, press this button for more than 1 second,
RS485 will upload a packet, and the SYS LED will give a Blue blink
RST
Reboot RS485
PRO
Use for upload image, see How to Update Image
LEDs
Feature
PWR
Always on if there is power
SYS
After device is powered on, the SYS will fast blink in GREEN for 5
times, means RS485-LN start to join LoRaWAN network. If join
success, SYS will be on GREEN for 5 seconds. SYS will blink Blue on
every upload and blink Green once receive a downlink message.
AF 03 02 06 10 01 05 06 09 0A 00: Same as AT+DATACUT3=16,1,5+6+9+10
AF 03 02 06 0B 02 05 07 08 0A 00: Same as AT+DATACUT3=11,2,5~7+8~10
3.6 Buttons
3.7 LEDs
RS485 to LoRaWAN Converter User Manual 21 / 32
www.dragino.com
4. Use AT Command
4.1 Access AT Command
RS485-LN supports AT Command set. User can use a USB to TTL adapter plus the 3.5mm Program
Cable to connect to RS485-LN to use AT command, as below.
In PC, User needs to set serial tool(such as putty, SecureCRT) baud rate to 9600 to access to
access serial console of RS485-LN. Below is the output for reference:
RS485 to LoRaWAN Converter User Manual 22 / 32
www.dragino.com
More detail AT Command manual can be found at AT Command Manual
RS485 to LoRaWAN Converter User Manual 23 / 32
www.dragino.com
4.2 Common AT Command Sequence
4.2.1 Multi-channel ABP mode (Use with SX1301/LG308)
If device has not joined network yet:
AT+FDR
AT+NJM=0
ATZ
If device already joined network:
AT+NJM=0
ATZ
4.2.2 Single-channel ABP mode (Use with LG01/LG02)
AT+FDR Reset Parameters to Factory Default, Keys Reserve
AT+NJM=0 Set to ABP mode
AT+ADR=0 Set the Adaptive Data Rate Off
AT+DR=5 Set Data Rate
AT+TDC=60000 Set transmit interval to 60 seconds
AT+CHS=868400000 Set transmit frequency to 868.4Mhz
AT+RX2FQ=868400000 Set RX2Frequency to 868.4Mhz (according to the result from server)
AT+RX2DR=5 Set RX2DR to match the downlink DR from server. see below
AT+DADDR=26 01 1A F1 Set Device Address to 26 01 1A F1, this ID can be found in the LoRa
Server portal.
ATZ Reset MCU
Note:
1. Make sure the device is set to ABP mode in the IoT Server.
2. Make sure the LG01/02 gateway RX frequency is exactly the same as AT+CHS setting.
3. Make sure SF / bandwidth setting in LG01/LG02 match the settings of AT+DR. refer this
link to see what DR means.
4. The command AT+RX2FQ and AT+RX2DR is to let downlink work. to set the correct
parameters, user can check the actually downlink parameters to be used. As below.
Which shows the RX2FQ should use 868400000 and RX2DR should be 5
5. FAQ
5.1 How to upgrade the image?
RS485 to LoRaWAN Converter User Manual 24 / 32
www.dragino.com
The RS485-LN LoRaWAN Controller is shipped with a 3.5mm cable, the cable is used to upload
image to RS485-LN to:
Support new features
For bug fix
Change LoRaWAN bands.
Below shows the hardware connection for how to upload an image to RS485-LN:
Step1: Download flash loader.
Step2: Download the LT Image files.
Step3: Open flashloader; choose the correct COM port to update.
Hold down the PRO button and then momentarily press the RST reset button and the SYS led will change from
OFF to ON, While SYS LED is RED ON, it means the RS485-LN is ready to be program.
RS485 to LoRaWAN Converter User Manual 25 / 32
www.dragino.com
Board detected
HOLD PRO then press the
ON, then click next
RST button, SYS will be
RS485 to LoRaWAN Converter User Manual 26 / 32
www.dragino.com
Notice: In case user has lost the program cable. User can hand made one from a 3.5mm cable.
The pin mapping is:
5.2 How to change the LoRa Frequency Bands/Region?
User can follow the introduction for how to upgrade image. When download the images, choose
the required image file for download.
RS485 to LoRaWAN Converter User Manual 27 / 32
www.dragino.com
5.3 How to set up RS485-LN to work with Single Channel Gateway such as
LG01/LG02?
In this case, users need to set RS485-LN to work in ABP mode & transmit in only one frequency.
Assume we have a LG02 working in the frequency 868400000 now , below is the step.
Step1: Log in TTN, Create an ABP device in the application and input the network session key
(NETSKEY), app session key (APPSKEY) from the device.
Note: user just need to make sure above three keys match, User can change either in TTN or Device to make then
match. In TTN, NETSKEY and APPSKEY can be configured by user in setting page, but Device Addr is generated by
TTN.
Step2: Run AT Command to make LT work in Single frequency & ABP mode. Below is the AT
commands:
AT+FDR Reset Parameters to Factory Default, Keys Reserve
AT+NJM=0 Set to ABP mode
AT+ADR=0 Set the Adaptive Data Rate Off
AT+DR=5 Set Data Rate (Set AT+DR=3 for 915 band)
AT+TDC=60000 Set transmit interval to 60 seconds
AT+CHS=868400000 Set transmit frequency to 868.4Mhz
AT+DADDR=26 01 1A F1 Set Device Address to 26 01 1A F1
ATZ Reset MCU

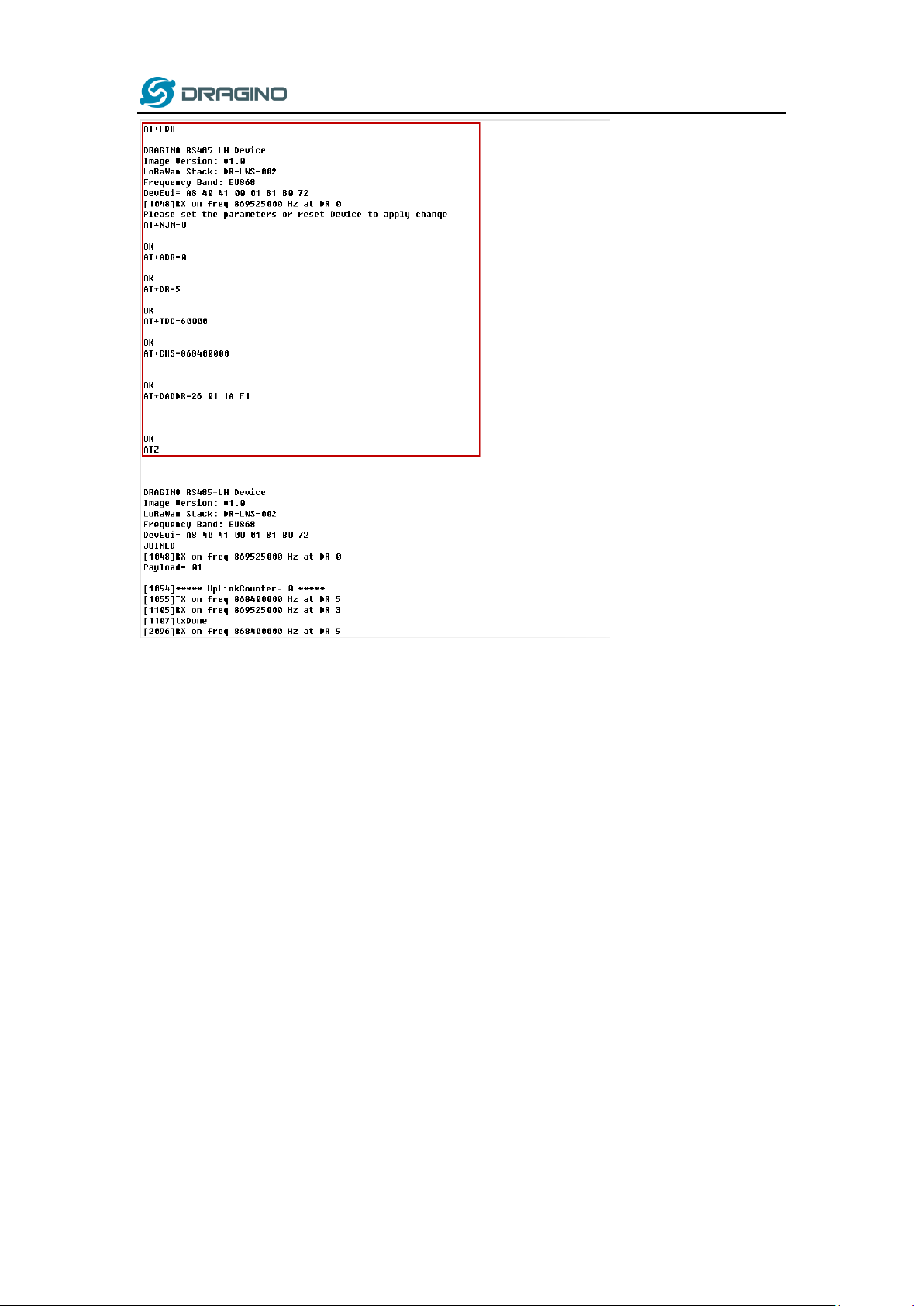

As shown in below:
RS485 to LoRaWAN Converter User Manual 28 / 32
www.dragino.com
RS485 to LoRaWAN Converter User Manual 29 / 32
www.dragino.com
6. Trouble Shooting
6.1 Downlink doesn’t work, how to solve it?
Please see this link for debug:
http://wiki.dragino.com/index.php?title=Main_Page#LoRaWAN_Communication_Debug
6.2 Why I can’t join TTN in US915 /AU915 bands?
It might about the channels mapping. Please see for detail.
http://wiki.dragino.com/index.php?title=LoRaWAN_Communication_Debug#Notice_of_US915.2
FCN470.2FAU915_Frequency_band
7. Order Info
Part Number: RS485-LN-XXX
XXX:
EU433: frequency bands EU433
EU868: frequency bands EU868
KR920: frequency bands KR920
CN470: frequency bands CN470
AS923: frequency bands AS923
AU915: frequency bands AU915
US915: frequency bands US915
IN865: frequency bands IN865
CN779: frequency bands CN779
KZ865: frequency bands KZ865
8. Packing Info
Package Includes:
RS485-LN x 1
Stick Antenna for LoRa RF part x 1
Program cable x 1
Dimension and weight:
Device Size: 13.5 x 7 x 3 cm
Device Weight: 105g
Package Size / pcs : 14.5 x 8 x 5 cm
Weight / pcs : 170g
RS485 to LoRaWAN Converter User Manual 30 / 32
www.dragino.com
9. Support
Support is provided Monday to Friday, from 09:00 to 18:00 GMT+8. Due to different
timezones we cannot offer live support. However, your questions will be answered as soon
as possible in the before-mentioned schedule.
Provide as much information as possible regarding your enquiry (product models, accurately
describe your problem and steps to replicate it etc) and send a mail to
support@dragino.com
RS485 to LoRaWAN Converter User Manual 31 / 32
www.dragino.com
10. Reference
Product Page
Image Download
AT Command Manual
Hardware Source
RS485 to LoRaWAN Converter User Manual 32 / 32
Loading...
