LoRaWAN Soil pH Sensor User Manual
Document Version: 1.1
Image Version: v1.0
Version
Description
Date
1.0
Release
2021-May-13
1.1
Fix Typo for sensor model
2021-Jul-24
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 2 / 29
1. Introduction 4
1.1 What is LoRaWAN Soil pH Sensor 4
1.2 Features 4
1.3 Probe Specification 5
1.4 Applications 5
1.5 Pin mapping and power on 5
2. Configure LSPH01 to connect to LoRaWAN network 6
2.1 How it works 6
2.2 Quick guide to connect to LoRaWAN server (OTAA) 6
2.3 Uplink Payload 10
2.3.1 Battery Info 10
2.3.2 DS18B20 Temperature sensor 10
2.3.3 Soil pH 10
2.3.4 Soil Temperature 10
2.3.5 Interrupt Pin 11
2.3.6 Message Type 11
2.3.7 Decode payload in The Things Network 11
2.4 Uplink Interval 11
2.5 Show Data in DataCake IoT Server 12
2.6 Installation and Maintain 17
2.6.1 Before measurement 17
2.6.2 Measurement 17
2.6.3 Maintain Probe 17
2.7 Calibration 18
2.8 Frequency Plans 19
2.8.1 EU863-870 (EU868) 19
2.8.2 US902-928(US915) 19
2.8.3 CN470-510 (CN470) 19
2.8.4 AU915-928(AU915) 20
2.8.5 AS920-923 & AS923-925 (AS923) 20
2.8.6 KR920-923 (KR920) 20
2.8.7 IN865-867 (IN865) 21
2.9 LED Indicator 21
2.10 Firmware Change Log 21
3. Configure LSPH01 via AT Command or LoRaWAN Downlink 22
3.1 Set Transmit Interval Time 22
3.2 Set Interrupt Mode 23
3.3 Calibrate Sensor 23
3.4 Get Firmware Version Info 23
4. Battery & How to replace 25
4.1 Battery Type 25
4.2 Replace Battery 25
4.3 Power Consumption Analyze 25
4.3.1 Battery Note 26
4.3.2 Replace the battery 26
5. Use AT Command 27
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 3 / 29
5.1 Access AT Commands 27
6. FAQ 28
6.1 How to change the LoRa Frequency Bands/Region 28
7. Trouble Shooting 28
7.1 AT Commands input doesn’t work 28
8. Order Info 28
9. Packing Info 28
10. Support 29
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 4 / 29
1. Introduction
1.1 What is LoRaWAN Soil pH Sensor
The Dragino LSPH01 is a LoRaWAN Soil pH Sensor for IoT of Agriculture. It is designed to
measure the soil PH and soil temperature, so to send to the platform to analyze the soil acid
or alkali level. The probe is IP68 waterproof.
LSPH01 probe is made by Solid AgCl reference electrode and Pure metal pH sensitive
electrode. It can detect soil’s pH with high accuracy and stable value. The LSPH01 probe can
be buried into soil for long time use.
The LoRa wireless technology used in LSPH01 allows device to send data and reach
extremely long ranges at low data-rates. It provides ultra-long range spread spectrum
communication and high interference immunity whilst minimizing current consumption.
LSPH01 is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5
years.
Each LSPH01 is pre-load with a set of unique keys for LoRaWAN registrations, register these
keys to local LoRaWAN server and it will auto connect after power on.
1.2 Features
LoRaWAN 1.0.3 Class A
Ultra-low power consumption
Monitor soil pH with temperature compensation.
Monitor soil temperature
Monitor Battery Level
Support pH calibration by end user
Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
AT Commands to change parameters
Uplink on periodically
Downlink to change configure
IP66 Waterproof Enclosure
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 5 / 29
IP68 rate for the Sensor Probe
8500mAh Battery for long term use
1.3 Probe Specification
Soil pH:
Range: 3 ~ 10 pH
Resolution: 0.01 pH
Accuracy: ±2% under (0~50 ℃, Accuracy will poor under 0 due to frozen)
Temperature Compensation Range: 0 ~ 50℃
IP68 Protection
Length: 3.5 meters
Soil Temperature:
Range -40℃～85℃
Resolution: 0.1℃
Accuracy: <±0.5℃(-10℃～40℃)，<±0.8℃ (others)
IP68 Protection
Length: 3.5 meters
1.4 Applications
Smart Agriculture
1.5 Pin mapping and power on
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 6 / 29
2. Configure LSPH01 to connect to LoRaWAN network
2.1 How it works
The LSPH01 is configured as LoRaWAN OTAA Class A mode by default. It has OTAA keys to
join LoRaWAN network. To connect a local LoRaWAN network, you need to input the OTAA
keys in the LoRaWAN IoT server and power on the LSPH01. It will automatically join the
network via OTAA and start to send the sensor value. The default uplink interval is 20
minutes.
In case you can’t set the OTAA keys in the LoRaWAN OTAA server, and you have to use the
keys from the server, you can use AT Commands to set the keys in the LSPH01.
2.2 Quick guide to connect to LoRaWAN server (OTAA)
Following is an example for how to join the TTN v3 LoRaWAN Network. Below is the network
structure; we use the LG308 as a LoRaWAN gateway in this example.
The LG308 is already set to connected to TTN network , so what we need to now is configure
the TTN server.
Step 1: Create a device in TTN with the OTAA keys from LSPH01.
Each LSPH01 is shipped with a sticker with the default device EUI as below:
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 7 / 29
You can enter this key in the LoRaWAN Server portal. Below is TTN screen shot:
Register the device
Add APP EUI and DEV EUI
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 8 / 29
Add APP EUI in the application
Add APP KEY
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 9 / 29
Step 2: Power on LSPH01
Put a Jumper on JP2 to power on the device. ( The Switch must be in FLASH position).
Step 3: The LSPH01 will auto join to the TTN network. After join success, it will start to
upload messages to TTN and you can see the messages in the panel.
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 10 / 29
2.3 Uplink Payload
LSPH01 will uplink payload via LoRaWAN with below payload format:
Uplink payload includes in total 11 bytes.
Normal uplink payload:
2.3.1 Battery Info
Check the battery voltage for LSPH01.
Ex1: 0x0B45 = 2885mV
Ex2: 0x0B49 = 2889mV
2.3.2 DS18B20 Temperature sensor
This is optional, user can connect external DS18B20 sensor to the +3.3v, 1-wire and GND pin .
and this field will report temperature.
Example:
If payload is: 0105H: (0105 & FC00 == 0), temp = 0105H /10 = 26.1 degree
If payload is: FF3FH : (FF3F & FC00 == 1) , temp = (FF3FH - 65536)/10 = -19.3 degrees.
2.3.3 Soil pH
Range: 0 ~ 14 pH
Example:
0x02B7(H) = 695(D) = 6.95pH
2.3.4 Soil Temperature
Get Soil Temperature
Example:
If payload is: 0105H: (0105 & FC00 == 0), temp = 0105H /10 = 26.1 degree
If payload is: FF3FH : (FF3F & FC00 == 1) , temp = (FF3FH - 65536)/10 = -19.3 degrees.
Size
(bytes)
2 2 2 2 1 1 1
Value
BAT
Temperature
( Optional )
Soil pH
Soil
Temperature
Digital Interrupt
(Optional)
Reserve
Message
Type
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 11 / 29
2.3.5 Interrupt Pin
This data field shows if this packet is generated by interrupt or not. Click here for the hardware
and software set up.
Example:
0x00: Normal uplink packet.
0x01: Interrupt Uplink Packet.
2.3.6 Message Type
For a normal uplink payload, the message type is always 0x01.
Valid Message Type:
Message Type Code
Description
Payload
0x01
Normal Uplink
Normal Uplink Payload
0x02
Reply configures info
Configure Info Payload
0x03
Reply Calibration Info
Calibration Payload
2.3.7 Decode payload in The Things Network
While using TTN network, you can add the payload format to decode the payload.
The payload decoder function for TTN is here:
LSPH01 TTN Payload Decoder:
https://www.dragino.com/downloads/index.pHp?dir=LoRa_End_Node/LSPH01/Dec
oder/
2.4 Uplink Interval
The LSPH01 by default uplink the sensor data every 20 minutes. User can change this
interval by AT Command or LoRaWAN Downlink Command. See this link:
http://wiki.dragino.com/index.pHp?title=End_Device_AT_Commands_and_Downlink_Com
mands#Change_Uplink_Interval
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 12 / 29
2.5 Show Data in DataCake IoT Server
DATACAKE provides a human friendly interface to show the sensor data, once we have data
in TTN, we can use DATACAKE to connect to TTN and see the data in DATACAKE. Below are
the steps:
Step 1: Be sure that your device is programmed and properly connected to the network at
this time.
Step 2: To configure the Application to forward data to DATACAKE you will need to add
integration. To add the DATACAKE integration, perform the following steps:
Step 3: Create an account or log in Datacake.
Step 4: Create LSPH01 product.
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 13 / 29
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 14 / 29
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 15 / 29
Step 5: add payload decode
Download Datacake decoder from:
https://www.dragino.com/downloads/index.pHp?dir=LoRa_End_Node/LSPH01/Decoder/
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 16 / 29
After added, the sensor data arrive TTN, it will also arrive and show in Mydevices.
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 17 / 29
2.6 Installation and Maintain
2.6.1 Before measurement
If the LSPH01 has more than 7 days not use or just clean the pH probe. User should put the probe
inside pure water for more than 24 hours for activation. If no put in water, user need to put
inside soil for more than 24 hours to ensure the measurement accuracy.
2.6.2 Measurement
Measurement the soil surface
Choose the proper measuring position. Split the
surface soil according to the measured deep.
Put pure water, or rainwater to make the soil of
measurement point to moist mud. Remove rocks
or hard things.
Slowly insert the probe to the measure point.
Don’t use large force which will break the probe.
Make sure not shake when inserting.
Put soil over the probe after insert. And start to
measure.
Measurement inside soil
Dig a hole with diameter > 20CM.
Insert the probe inside, method like measure the surface.
2.6.3 Maintain Probe
1. pH probe electrode is fragile and no strong. User must avoid strong force or hitting it.
2. After long time use (3~ 6 months). The probe electrode needs to be clean; user can use
high grade sandpaper to polish it or put in 5% hydrochloric acid for several minutes. After
the metal probe looks like new, user can use pure water to wash it.
3. Probe reference electrode is also no strong, need to avoid strong force or hitting.
4. User should keep reference electrode wet while not use.
5. Avoid the probes to touch oily matter. Which will cause issue in accuracy.
6. The probe is IP68 can be put in water.
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 18 / 29
2.7 Calibration
User can do calibration for the probe. It is limited to use below pH buffer solution to calibrate: 4.00, 6.86, 9.18.
When calibration, user need to clean the electrode and put the probe in the pH buffer solution to wait the value
stable ( a new clean electrode might need max 24 hours to be stable).
After stable, user can use below command to calibrate.
pH buffer solution
AT Command to calibrate
Downlink Command
Read Cal Value
4.00
AT+PHCAL=4
0x13 04
Reply with Calibrate payload
AT+PHCAL=?
Example 41,61,91
6.86
AT+PHCAL=6
0x13 06
Reply with Calibrate payload
AT+PHCAL=?
9.18
AT+PHCAL=9
0x13 09
Reply with Calibrate payload
AT+PHCAL=?
Factory Default
AT+PHCAL=15
0x13 15
Reply with Calibrate payload
AT+PHCAL=?
Example 151
Calibration Payload
User can also send 0x14 downlink command to poll the current calibration payload.
Downlink Control Type
FPort
Type Code
Downlink payload size(bytes)
Get Calibration Version Info
Any
14
2
➢ Reply to the confirmation package: 14 01
➢ Reply to non-confirmed packet: 14 00
Size
(bytes)
1 1 1 7 1
Value
PH4
Calibrate value
PH6.86
Calibrate value
PH9.18
Calibrate value
Reserve
Message
Type
Always 0x03
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 19 / 29
2.8 Frequency Plans
The LSPH01 uses OTAA mode and below frequency plans by default. If user want to use it with
different frequency plan, please refer the AT command sets.
2.8.1 EU863-870 (EU868)
Uplink:
868.1 - SF7BW125 to SF12BW125
868.3 - SF7BW125 to SF12BW125 and SF7BW250
868.5 - SF7BW125 to SF12BW125
867.1 - SF7BW125 to SF12BW125
867.3 - SF7BW125 to SF12BW125
867.5 - SF7BW125 to SF12BW125
867.7 - SF7BW125 to SF12BW125
867.9 - SF7BW125 to SF12BW125
868.8 - FSK
Downlink:
Uplink channels 1-9 (RX1)
869.525 - SF9BW125 (RX2 downlink only)
2.8.2 US902-928(US915)
Used in USA, Canada and South America. Frequency band as per definition in LoRaWAN 1.0.3
Regional document.
To make sure the end node supports all sub band by default. In the OTAA Join process, the end
node will use frequency 1 from sub-band1, then frequency 1 from sub-band2, then frequency 1
from sub-band3, etc to process the OTAA join.
After Join success, the end node will switch to the correct sub band by:
➢ Check what sub-band the LoRaWAN server ask from the OTAA Join Accept message and
switch to that sub-band
➢ Use the Join successful sub-band if the server doesn’t include sub-band info in the OTAA
Join Accept message ( TTN v2 doesn't include)
2.8.3 CN470-510 (CN470)
Used in China, Default use CHE=1
Uplink:
486.3 - SF7BW125 to SF12BW125
486.5 - SF7BW125 to SF12BW125
486.7 - SF7BW125 to SF12BW125
486.9 - SF7BW125 to SF12BW125
487.1 - SF7BW125 to SF12BW125
487.3 - SF7BW125 to SF12BW125
487.5 - SF7BW125 to SF12BW125
487.7 - SF7BW125 to SF12BW125
Downlink:
506.7 - SF7BW125 to SF12BW125
506.9 - SF7BW125 to SF12BW125
507.1 - SF7BW125 to SF12BW125
507.3 - SF7BW125 to SF12BW125
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 20 / 29
507.5 - SF7BW125 to SF12BW125
507.7 - SF7BW125 to SF12BW125
507.9 - SF7BW125 to SF12BW125
508.1 - SF7BW125 to SF12BW125
505.3 - SF12BW125 (RX2 downlink only)
2.8.4 AU915-928(AU915)
Frequency band as per definition in LoRaWAN 1.0.3 Regional document.
To make sure the end node supports all sub band by default. In the OTAA Join process, the end
node will use frequency 1 from sub-band1, then frequency 1 from sub-band2, then frequency 1
from sub-band3, etc to process the OTAA join.
After Join success, the end node will switch to the correct sub band by:
➢ Check what sub-band the LoRaWAN server ask from the OTAA Join Accept message and
switch to that sub-band
➢ Use the Join successful sub-band if the server doesn’t include sub-band info in the OTAA
Join Accept message ( TTN v2 doesn't include)
2.8.5 AS920-923 & AS923-925 (AS923)
Default Uplink channel:
923.2 - SF7BW125 to SF10BW125
923.4 - SF7BW125 to SF10BW125
Additional Uplink Channel:
(OTAA mode, channel added by JoinAccept message)
AS920~AS923 for Japan, Malaysia, Singapore:
922.2 - SF7BW125 to SF10BW125
922.4 - SF7BW125 to SF10BW125
922.6 - SF7BW125 to SF10BW125
922.8 - SF7BW125 to SF10BW125
923.0 - SF7BW125 to SF10BW125
922.0 - SF7BW125 to SF10BW125
AS923 ~ AS925 for Brunei, Cambodia, Hong Kong, Indonesia, Laos, Taiwan, Thailand,
Vietnam:
923.6 - SF7BW125 to SF10BW125
923.8 - SF7BW125 to SF10BW125
924.0 - SF7BW125 to SF10BW125
924.2 - SF7BW125 to SF10BW125
924.4 - SF7BW125 to SF10BW125
924.6 - SF7BW125 to SF10BW125
Downlink:
Uplink channels 1-8 (RX1)
923.2 - SF10BW125 (RX2)
2.8.6 KR920-923 (KR920)
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 21 / 29
Default channel:
922.1 - SF7BW125 to SF12BW125
922.3 - SF7BW125 to SF12BW125
922.5 - SF7BW125 to SF12BW125
Uplink: (OTAA mode, channel added by JoinAccept message)
922.1 - SF7BW125 to SF12BW125
922.3 - SF7BW125 to SF12BW125
922.5 - SF7BW125 to SF12BW125
922.7 - SF7BW125 to SF12BW125
922.9 - SF7BW125 to SF12BW125
923.1 - SF7BW125 to SF12BW125
923.3 - SF7BW125 to SF12BW125
Downlink:
Uplink channels 1-7(RX1)
921.9 - SF12BW125 (RX2 downlink only; SF12BW125 might be changed to SF9BW125)
2.8.7 IN865-867 (IN865)
Uplink:
865.0625 - SF7BW125 to SF12BW125
865.4025 - SF7BW125 to SF12BW125
865.9850 - SF7BW125 to SF12BW125
Downlink:
Uplink channels 1-3 (RX1)
866.550 - SF10BW125 (RX2)
2.9 LED Indicator
The LSPH01 has an internal LED which is to show the status of different state.
➢ The sensor is detected when the device is turned on, and it will flash 4 times quickly when it
is detected.
➢ Blink once when device transmit a packet.
2.10 Firmware Change Log
Firmware download link:
http://www.dragino.com/downloads/index.pHp?dir=LoRa_End_Node/LSPH01/Firmware/
Firmware Upgrade Method:
http://wiki.dragino.com/index.pHp?title=Firmware_Upgrade_Instruction_for_STM32_base_
products#Introduction
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 22 / 29
3. Configure LSPH01 via AT Command or LoRaWAN Downlink
Use can configure LSPH01 via AT Command or LoRaWAN Downlink.
➢ AT Command Connection: See FAQ.
➢ LoRaWAN Downlink instruction for different platforms:
http://wiki.dragino.com/index.pHp?title=Main_Page#Use_Note_for_Server
There are two kinds of commands to configure LSPH01, they are:
➢ General Commands.
These commands are to configure:
✓ General system settings like: uplink interval.
✓ LoRaWAN protocol & radio related command.
They are same for all Dragino Device which support DLWS-005 LoRaWAN Stack. These
commands can be found on the wiki:
http://wiki.dragino.com/index.pHp?title=End_Device_Downlink_Command
➢ Commands special design for LSPH01
These commands only valid for LSPH01, as below:
3.1 Set Transmit Interval Time
Feature: Change LoRaWAN End Node Transmit Interval.
AT Command: AT+TDC
Command Example
Function
Response
AT+TDC=?
Show current transmit Interval
30000
OK
the interval is 30000ms = 30s
AT+TDC=60000
Set Transmit Interval
OK
Set transmit interval to 60000ms
= 60 seconds
Downlink Command: 0x01
Format: Command Code (0x01) followed by 3 bytes time value.
If the downlink payload=0100003C, it means set the END Node’s Transmit Interval to
0x00003C=60(S), while type code is 01.
➢ Example 1: Downlink Payload: 0100001E // Set Transmit Interval (TDC) = 30 seconds
➢ Example 2: Downlink Payload: 0100003C // Set Transmit Interval (TDC) = 60 seconds
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 23 / 29
3.2 Set Interrupt Mode
Feature, Set Interrupt mode for GPIO_EXIT.
AT Command: AT+INTMOD
Command Example
Function
Response
AT+INTMOD=?
Show current interrupt mode
0
OK
the mode is 0 = No interruption
AT+INTMOD=2
Set Transmit Interval
0- (Disable Interrupt),
1- (Trigger by rising and falling
edge),
2- (Trigger by falling edge)
3- (Trigger by rising edge)
OK
Downlink Command: 0x06
Format: Command Code (0x06) followed by 3 bytes.
This means that the interrupt mode of the end node is set to 0x000003=3 (rising edge
trigger), and the type code is 06.
➢ Example 1: Downlink Payload: 06000000 // Turn off interrupt mode
➢ Example 2: Downlink Payload: 06000003 // Set the interrupt mode to rising edge trigger
3.3 Calibrate Sensor
Detail See Calibration Guide for the user of 0x13 and 0x14 downlink commands
3.4 Get Firmware Version Info
Feature: use downlink to get firmware version.
Downlink Command: 0x26
Downlink Control Type
FPort
Type Code
Downlink payload size(bytes)
Get Firmware Version Info
Any
26
2
➢ Reply to the confirmation package: 26 01
➢ Reply to non-confirmed packet: 26 00
Device will send an uplink after got this downlink command. With below payload:
Configures info payload:
Size
(bytes)
1 1 1 1 1 5 1
Value
Software
Type
Frequency
Band
Sub-band
Firmware
Version
Sensor
Type
Reserve
Message
Type
Always 0x02
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 24 / 29
Software Type: Always 0x03 for LSPH01
Frequency Band:
*0x01: EU868
*0x02: US915
*0x03: IN865
*0x04: AU915
*0x05: KZ865
*0x06: RU864
*0x07: AS923
*0x08: AS923-1
*0x09: AS923-2
*0xa0: AS923-3
Sub-Band: value 0x00 ~ 0x08
Firmware Version: 0x0100, Means: v1.0.0 version
Sensor Type:
0x01: LSE01
0x02: LDDS75
0x03: LDDS20
0x04: LLMS01
0x05: LSPH01
0x06: LSNPK01
0x07: LDDS12
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 25 / 29
4. Battery & How to replace
4.1 Battery Type
LSPH01 is equipped with a 8500mAH ER26500 Li-SOCI2 battery. The battery is un-rechargeable
battery with low discharge rate targeting for 8~10 years use. This type of battery is commonly
used in IoT target for long-term running, such as water meter.
The discharge curve is not linear so can’t simply use percentage to show the battery level. Below
is the battery performance.
Minimum Working Voltage for the LSPH01:
LSPH01: 2.45v ~ 3.6v
4.2 Replace Battery
Any battery with range 2.45 ~ 3.6v can be a replacement. We recommend to use Li-SOCl2 Battery.
And make sure the positive and negative pins match.
4.3 Power Consumption Analyze
Dragino Battery powered product are all runs in Low Power mode. We have an update battery
calculator which base on the measurement of the real device. User can use this calculator to
check the battery life and calculate the battery life if want to use different transmit interval.
Instruction to use as below:

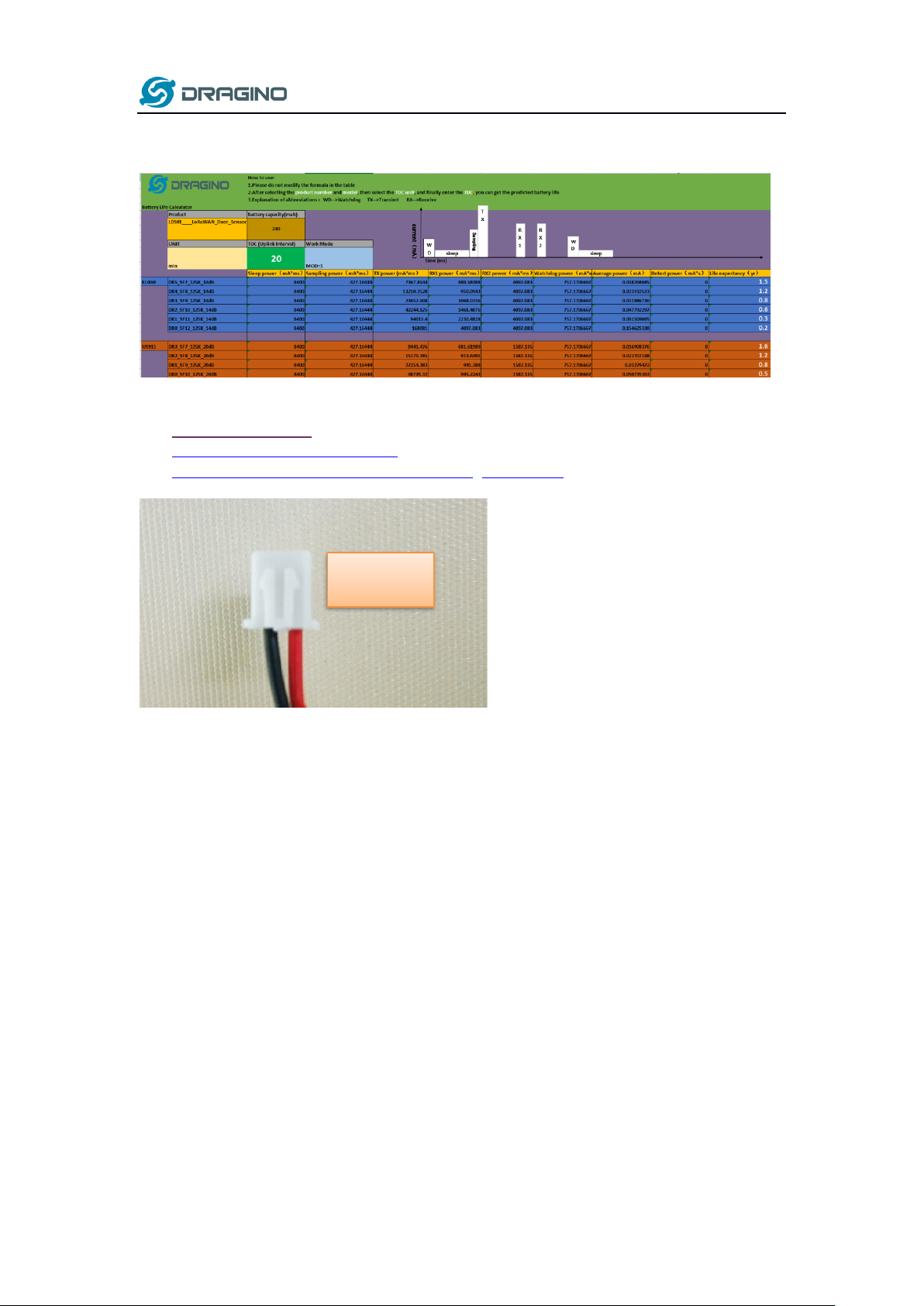

Step 1: Downlink the up-to-date DRAGINO_Battery_Life_Prediction_Table.xlsx from:
https://www.dragino.com/downloads/index.pHp?dir=LoRa_End_Node/Battery_Analyze/
Step 2: Open it and choose
➢ Product Model
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 26 / 29
➢ Uplink Interval
➢ Working Mode
And the Life expectation in difference case will be shown on the right.
The battery related documents as below:
● Battery Dimension,
● Lithium-Thionyl Chloride Battery datasheet
● Lithium-ion Battery-Capacitor datasheet, Tech Spec
4.3.1 Battery Note
The Li-SICO battery is designed for small current / long period application. It is not good to
use a high current, short period transmit method. The recommended minimum period for
use of this battery is 5 minutes. If you use a shorter period time to transmit LoRa, then the
battery life may be decreased.
4.3.2 Replace the battery
You can change the battery in the LSPH01.The type of battery is not limited as long as the
output is between 3v to 3.6v. On the main board, there is a diode (D1) between the battery
and the main circuit. If you need to use a battery with less than 3.3v, please remove the D1
and shortcut the two pads of it so there won’t be voltage drop between battery and main
board.
The default battery pack of LSPH01 includes a ER26500 plus super capacitor. If user can’t
find this pack locally, they can find ER26500 or equivalence, which will also work in most
case. The SPC can enlarge the battery life for high frequency use (update period below 5
minutes)
JST-XH-2P
connector
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 27 / 29
5. Use AT Command
5.1 Access AT Commands
LSPH01 supports AT Command set in the stock firmware. You can use a USB to TTL adapter
to connect to LSPH01 for using AT command, as below.
Connection:
USB TTL GND <----> GND
USB TTL TXD <----> UART_RXD
USB TTL RXD <----> UART_TXD
In the PC, you need to set the serial baud rate to 9600 to access the serial console for
LSPH01. LSPH01 will output system info once power on as below:
Valid AT Command please check Configure Device.
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 28 / 29
6. FAQ
6.1 How to change the LoRa Frequency Bands/Region
You can follow the instructions for how to upgrade image.
When downloading the images, choose the required image file for download.
7. Trouble Shooting
7.1 AT Commands input doesn’t work
In the case if user can see the console output but can’t type input to the device. Please check
if you already include the ENTER while sending out the command. Some serial tool doesn’t
send ENTER while press the send key, user need to add ENTER in their string.
8. Order Info
Part Number: LSPH01-XX
XX: The default frequency band
● AS923: LoRaWAN AS923 band
● AU915: LoRaWAN AU915 band
● EU433: LoRaWAN EU433 band
● EU868: LoRaWAN EU868 band
● KR920: LoRaWAN KR920 band
● US915: LoRaWAN US915 band
● IN865: LoRaWAN IN865 band
● CN470: LoRaWAN CN470 band
9. Packing Info
Package Includes:
➢ LSPH01 LoRaWAN Soil Ph Sensor x 1
Dimension and weight:
➢ Device Size: cm
➢ Device Weight: g
➢ Package Size / pcs : cm
➢ Weight / pcs : g
www.dragino.com
LSPH01 LoRaWAN Soil pH Sensor User Manual 29 / 29
10. Support
● Support is provided Monday to Friday, from 09:00 to 18:00 GMT+8. Due to different
timezones we cannot offer live support. However, your questions will be answered as
soon as possible in the before-mentioned schedule.
● Provide as much information as possible regarding your enquiry (product models,
accurately describe your problem and steps to replicate it etc) and send a mail to
support@dragino.com
Loading...
