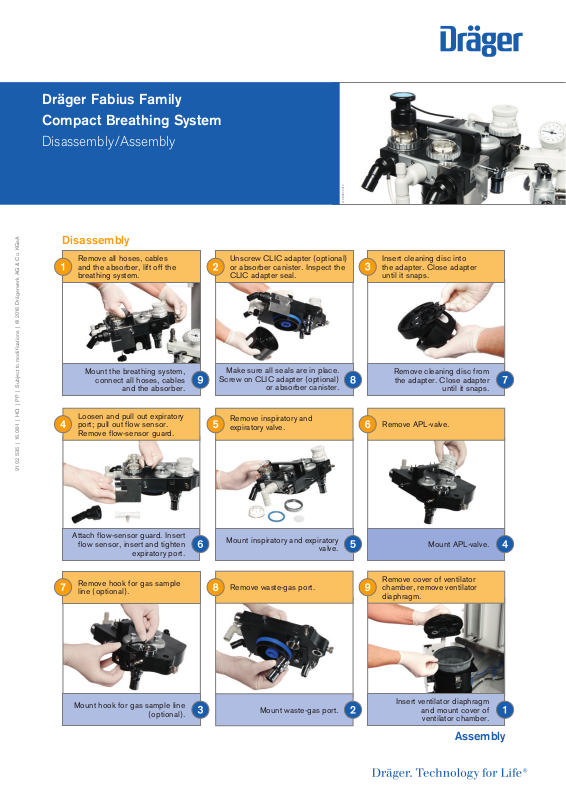

Dräger Fabius Family
Compact Breathing System
Disassembly/Assembly
Disassembly
D-58067-2012
Remove all hoses, cables
and the absorber, lift off the
breathing system.
Mount the breathing system,
connect all hoses, cables
and the absorber.
Loosen and pull out expiratory
port; pull out flow sensor.
Remove flow-sensor guard.
91 02 535 | 16.08-1 | HQ | PP | Subject to modifications | © 2016 Dräger werk AG & Co. KGaA
Unscrew CLIC adapter (optional)
or absorber canister. Inspect the
CLIC adapter seal.
Make sure all seals are in place.
Screw on CLIC adapter (optional)
or absorber canister.
Remove inspiratory and
expiratory valve.
Insert cleaning disc into
the adapter. Close adapter
until it snaps.
Remove cleaning disc from
the adapter. Close adapter
until it snaps.
Remove APL-valve.
Attach flow-sensor guard. Insert
flow sensor, insert and tighten
expiratory port.
Remove hook for gas sample
line (optional).
Mount hook for gas sample line
(optional).
Mount inspiratory and expiratory
valve.
Remove waste-gas port.
Mount waste-gas port.
Mount APL-valve.
Remove cover of ventilator
chamber, remove ventilator
diaphragm.
Insert ventilator diaphragm
and mount cover of
ventilator chamber.
Assembly
Dräger Fabius Family
Compact Breathing System
Reprocessing Instructions
D-58067-2012
Manual cleaning
and disinfection
Position components so that all interior spaces and surfaces are completely flushed and water can drain off freely.
Machine cleaning
and disinfection
Sterilization
Visual check
This guideline does not replace the instruction for use.
After the machine cleaning and disinfection,
a hot steam sterilization is required to dry the
breathing system. Valves, ventilator cover,
and AGS sleeve: Make sure that the cleaning
and rinsing liquids can flow in the opening
direction of the valve. Remove any water
which may have accumulated in the ventilator
diaphragm. For further instructions and
explanations please see the respective
instructions for use.
